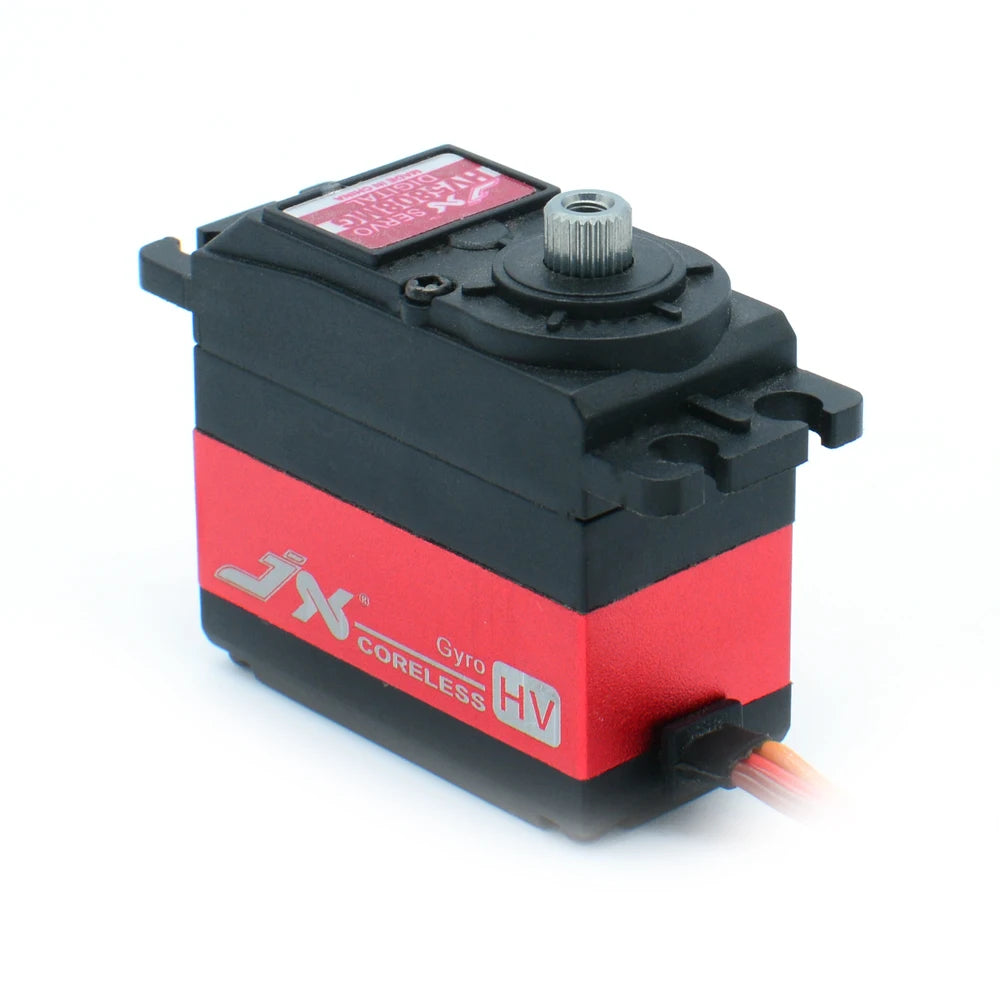

JX Servo PDI-HV5808MG - 8.4V 7kg High-Voltage Digital Narrow Frequency Tail Locking Hollow Cup HV Gyro Coreless Servos For Rc Drone

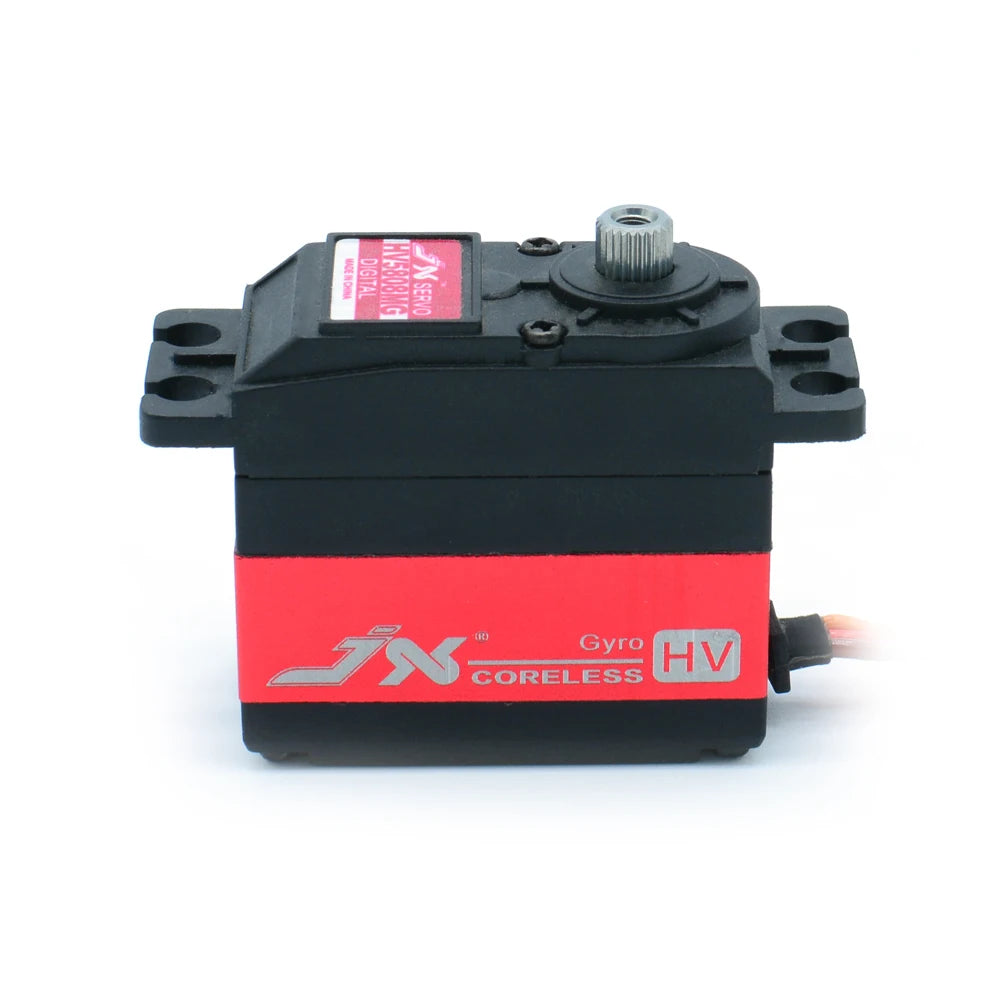

JX Servo PDI-HV5808MG - 8.4V 7kg High-Voltage Digital Narrow Frequency Tail Locking Hollow Cup HV Gyro Coreless Servos For Rc Drone - Image 2

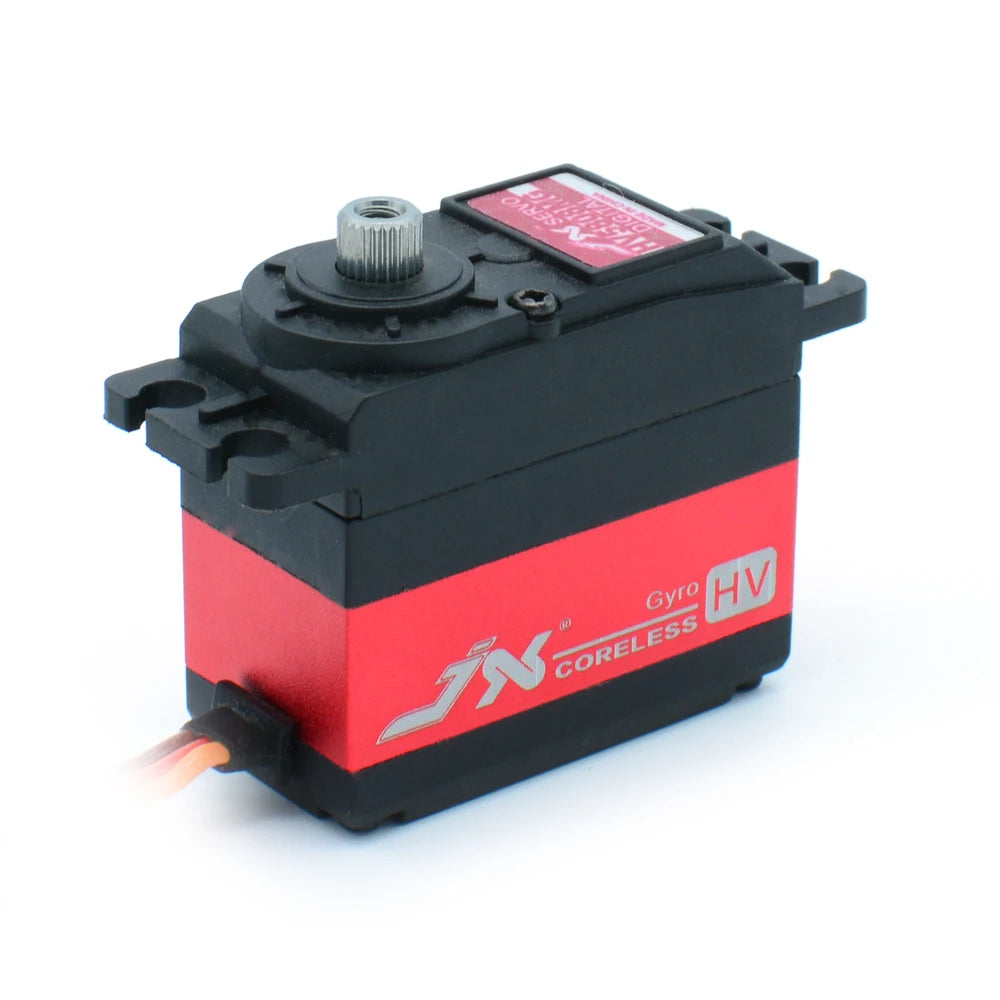

JX Servo PDI-HV5808MG - 8.4V 7kg High-Voltage Digital Narrow Frequency Tail Locking Hollow Cup HV Gyro Coreless Servos For Rc Drone - Image 3

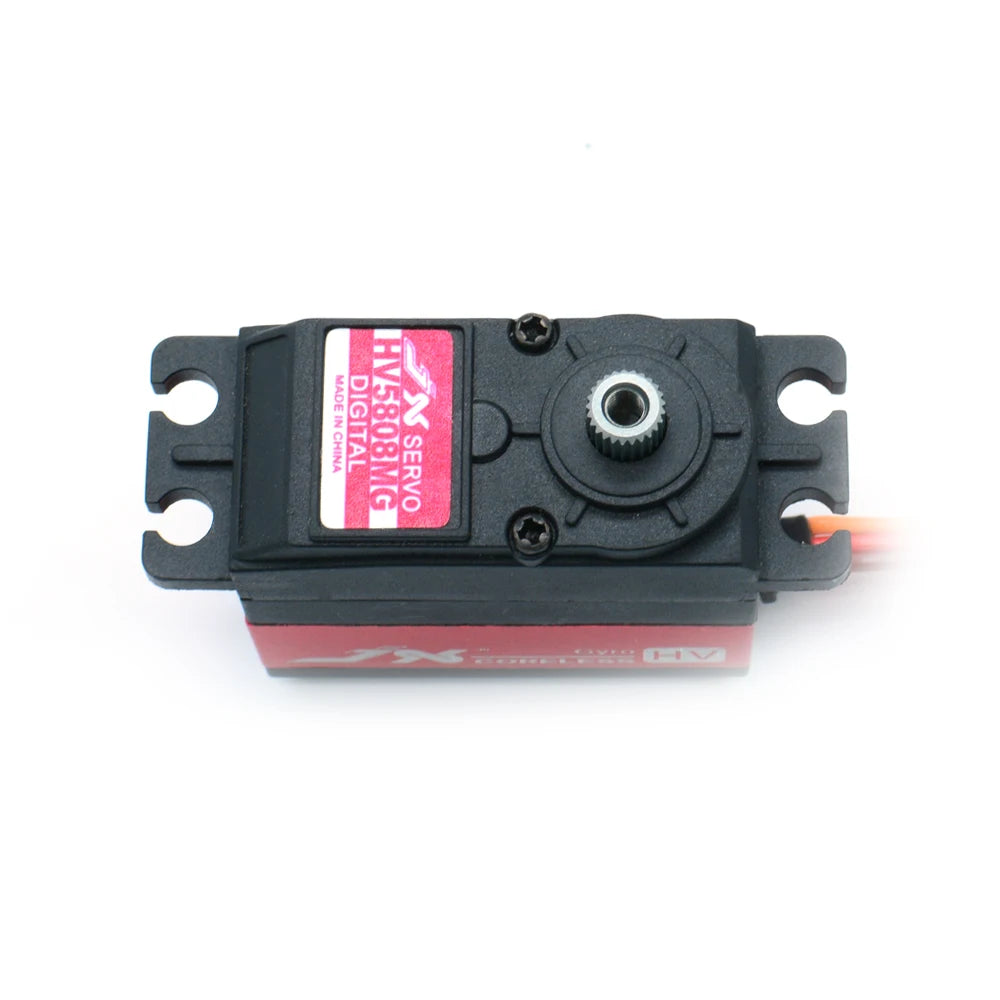

JX Servo PDI-HV5808MG - 8.4V 7kg High-Voltage Digital Narrow Frequency Tail Locking Hollow Cup HV Gyro Coreless Servos For Rc Drone - Image 4

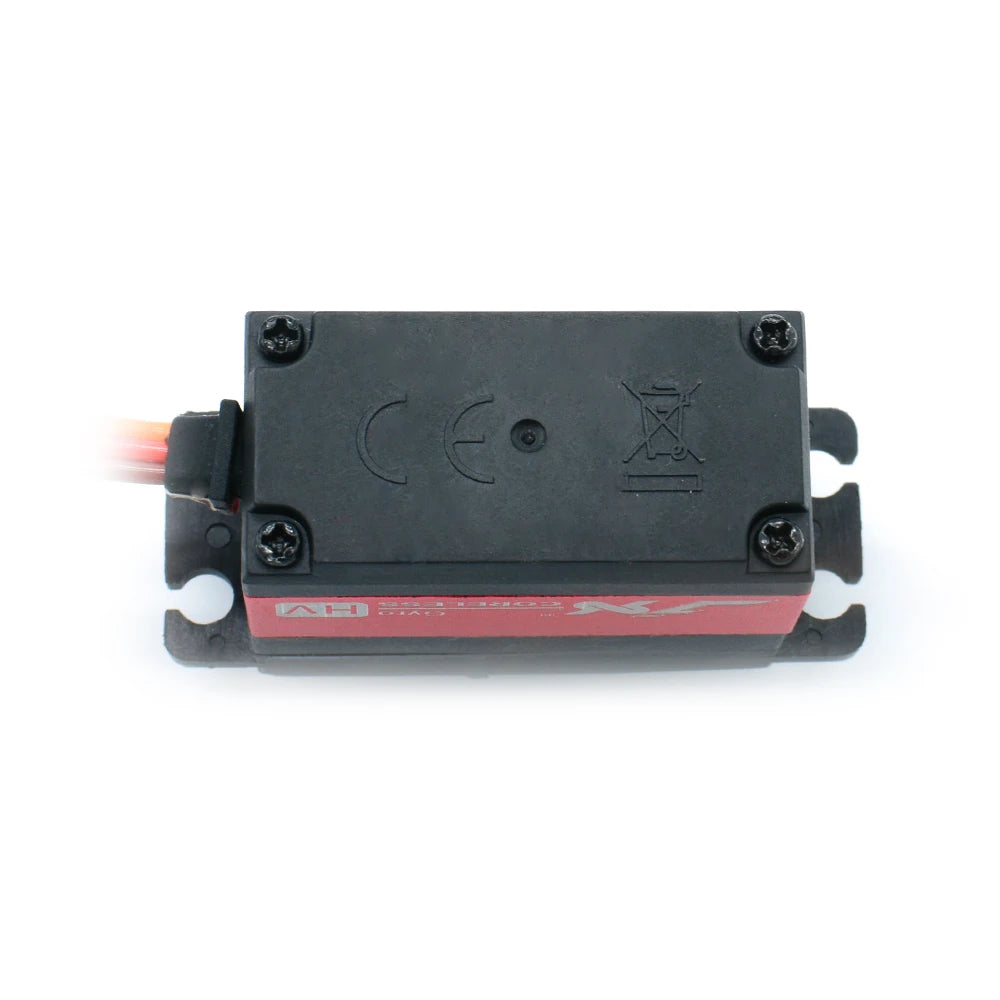

JX Servo PDI-HV5808MG - 8.4V 7kg High-Voltage Digital Narrow Frequency Tail Locking Hollow Cup HV Gyro Coreless Servos For Rc Drone - Image 5

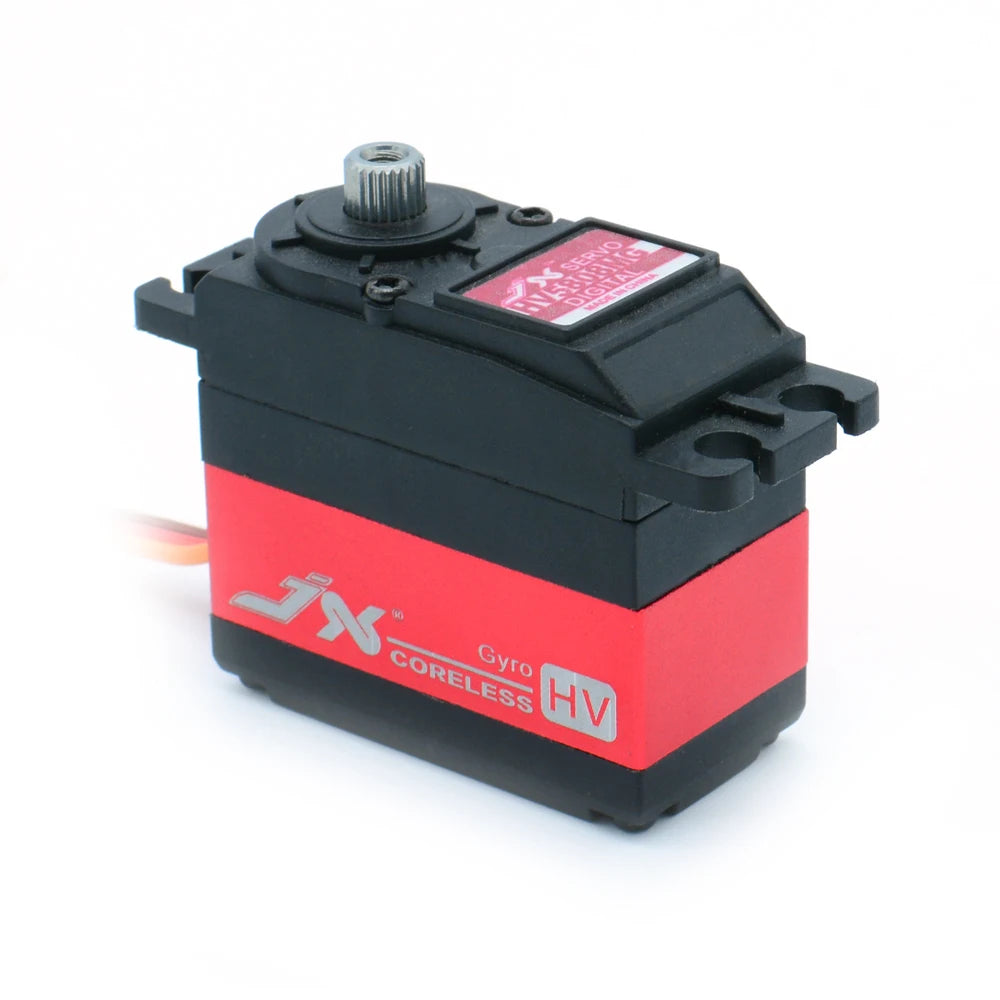

JX Servo PDI-HV5808MG - 8.4V 7kg High-Voltage Digital Narrow Frequency Tail Locking Hollow Cup HV Gyro Coreless Servos For Rc Drone - Image 6

The JX Servo PDI-HV5808MG - 8.4V 7kg High-Voltage Digital Narrow Frequency Tail Locking Hollow Cup HV Gyro Coreless Servos For Rc Drone is a drone product in the Drone Servos category priced at $44.90, featuring PDI-HV5808MG.

,

JX Servo PDI-HV5808MG – 8.4V 7kg High-Voltage Digital Narrow Frequency Tail Locking Hollow Cup HV Gyro Coreless Servos For Rc Drone

$44.90

+ Free Shipping
- +

Regional payment methods

Payssion regional payment methods
SKU: N/A Categories: ,
Ask for more info

Best Use Cases

  • Recommended for the Drone Servos category.

Key Specifications

  • model: PDI-HV5808MG
  • dead_band: 1μs 1520μs / 330hz
  • working_frequence: 760μs /560hz
  • motor: coreless motor
  • operating_speed_(6.0v): 0.053sec/60°
  • operating_speed_(8.4v): 0.04sec/60°
  • stall_torque_(6.0v): 5.71 kg.cm (79.29oz/in)
  • stall_torque_(8.4v): 7.22kg.cm 100.25oz/in)

Compared to Alternatives

Compared to 3 alternatives in the Drone Servos category, the JX Servo PDI-HV5808MG - 8.4V 7kg High-Voltage Digital Narrow Frequency Tail Locking Hollow Cup HV Gyro Coreless Servos For Rc Drone is $44.90.

Frequently Asked Questions

  • What are the key specifications of JX Servo PDI-HV5808MG - 8.4V 7kg High-Voltage Digital Narrow Frequency Tail Locking Hollow Cup HV Gyro Coreless Servos For Rc Drone?
    Model: PDI-HV5808MG; Dead Band: 1μs 1520μs / 330hz; Working Frequence: 760μs /560hz.
  • How much does JX Servo PDI-HV5808MG - 8.4V 7kg High-Voltage Digital Narrow Frequency Tail Locking Hollow Cup HV Gyro Coreless Servos For Rc Drone cost in the Drone Servos category?
    JX Servo PDI-HV5808MG - 8.4V 7kg High-Voltage Digital Narrow Frequency Tail Locking Hollow Cup HV Gyro Coreless Servos For Rc Drone is available at priced at $44.90 on 100drone.com.

SPECIFICATIONS

Brand Name: JX

Remote Control Peripherals/Devices: Servos

Size: 40.5X20.5X36.5mm

Technical parameters: Value 2

Wheelbase: Screws

Recommend Age: 14+y

RC Parts & Accs: Servos

Certification: CE

Certification: FCC

Certification: RoHS

Use: Vehicles & Remote Control Toys

For Vehicle Type: Airplanes

Origin: Mainland China

Material: Metal

Upgrade Parts/Accessories: Servo

Model Number: PDI-HV5808MG

Quantity: 1 pcs

JX Servo, PDI-HV5808MG is a high-voltage digital hollow cup

FEATURE:
– High-performance, high-voltage digital hollow cup narrow-frequency tail-locking servo
– Hard anodized high precision aluminum gear made in Taiwan
– CNC aluminum middle shell
– Double ball bearing
– Narrowband
– Lock tail

SPECIFICATIONS:
Brand:JX

Model:PDI-HV5808MG

Dead band: 1μs 1520μs / 330hz

Working frequence: 760μs /560hz
Motor: coreless motor
Operating Speed (6.0V): 0.053sec/60°
Operating Speed (8.4V): 0.04sec/60°
Stall Torque (6.0V): 5.71 kg.cm (79.29oz/in)
Stall Torque (8.4V): 7.22kg.cm 100.25oz/in)

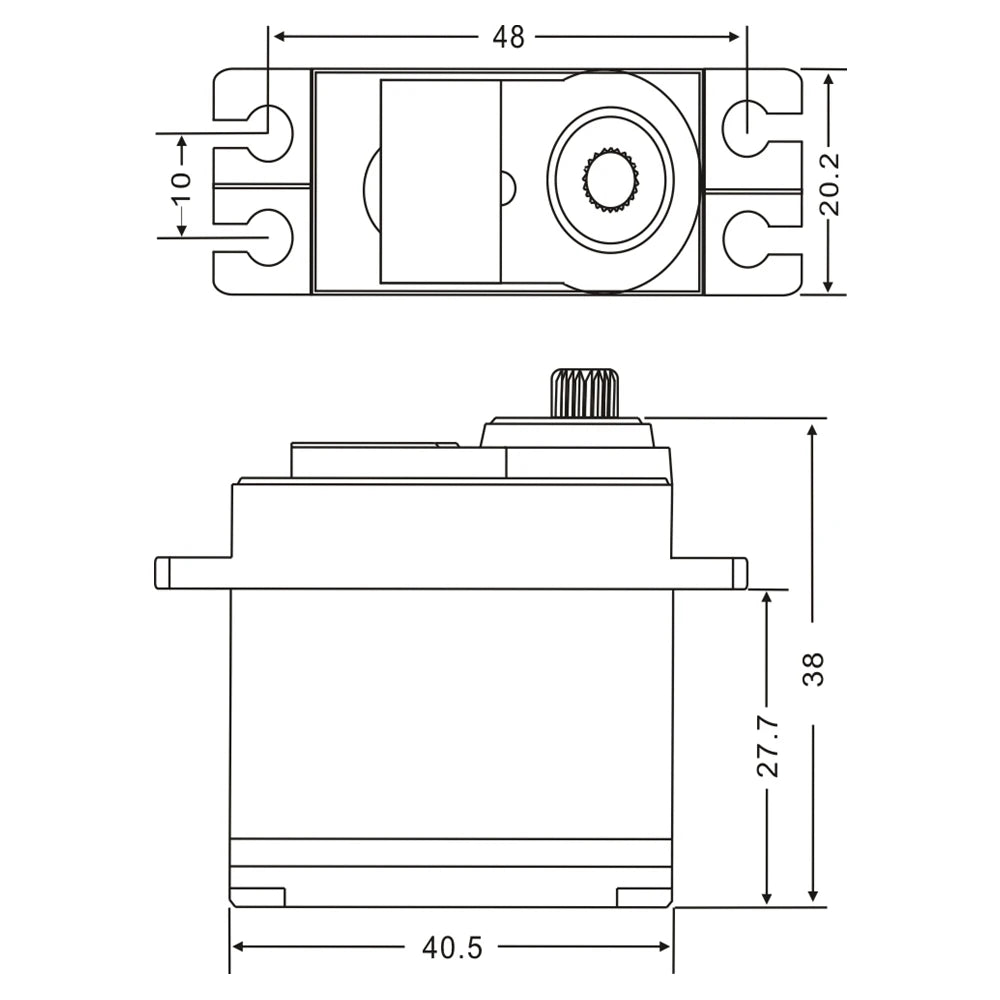

Dimensions: 40.5X20.5X36.5mm /1.59
X0.80X1.43 in
Weight: 58.4 g (2.05oz)
Connector Wire Length: JR 265 mm
(10.43in)
Bearing: 2BB

Package Included:
1 x Servo
1 x Bag of Accessories

JX Servo, PDI-HV5808MG is a high-voltage digital hollow cupJX Servo, PDI-HV5808MG is a high-voltage digital hollow cupJX Servo, PDI-HV5808MG is a high-voltage digital hollow cupJX Servo, PDI-HV5808MG is a high-voltage digital hollow cupJX Servo, PDI-HV5808MG is a high-voltage digital hollow cupJX Servo, PDI-HV5808MG is a high-voltage digital hollow cupJX Servo, PDI-HV5808MG is a high-voltage digital hollow cupJX Servo, PDI-HV5808MG is a high-voltage digital hollow cup
