SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Digital Servo
Size: 40.5×20.5x25mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Servo
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Assembly Category
Quantity: 1 pcs
Technical parameters: KV1100
Model Number: JX Servo PDI-4410MG
Four-wheel Drive Attributes: Assemblage
Wheelbase: Bottom Plate

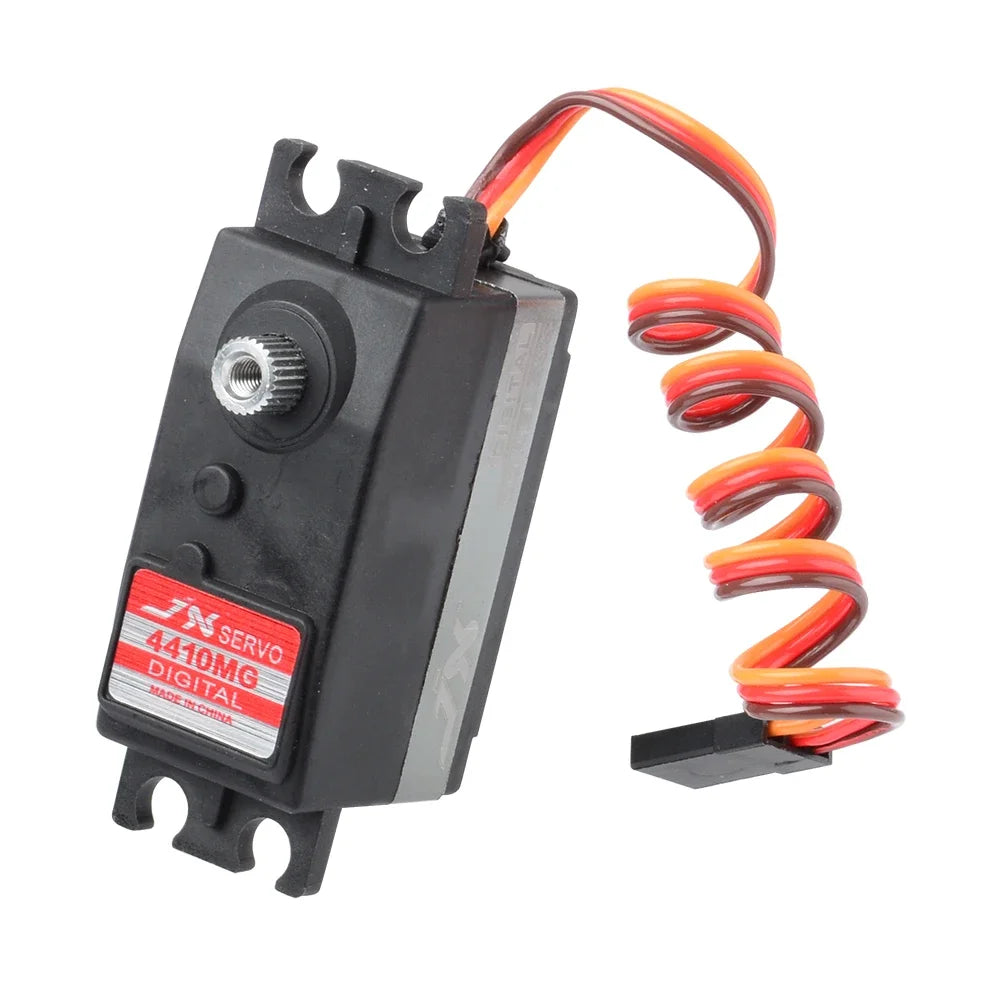

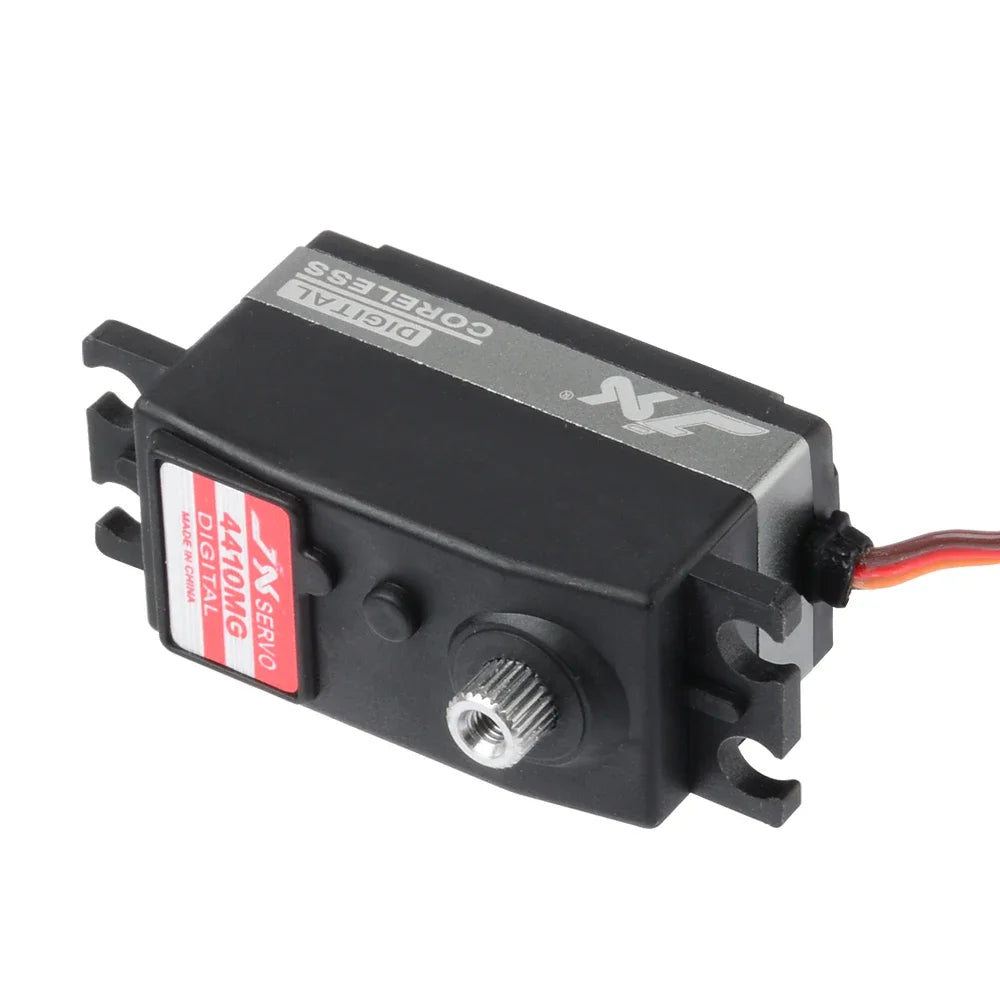

JX Servo PDI-4410MG 10Kg High Precision Metal Gear Low Profile Coreless Servo 120 Degree 1/8 1/10 RC Car Steering Digital Servo
FEATURE:
— High performance digital coreless servo
— High-precision Taiwan-made aluminium gears with hard anodizing
— CNC aluminium middle Shell
— Dual ball bearings
SPECIFICATIONS:
Brand:JX
Model:PDI-4410MG
Description:9kg low profile coreless motor digital servo
Dead band: 2μs
Working frequence: 1520μs / 330hz
Motor:coreless
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.11sec/60°
Operating Speed (6.0V): 0.09sec/60°
Stall Torque (4.8V): 8.58 kg.cm
Stall Torque (6.0V): 9.53 kg.cm

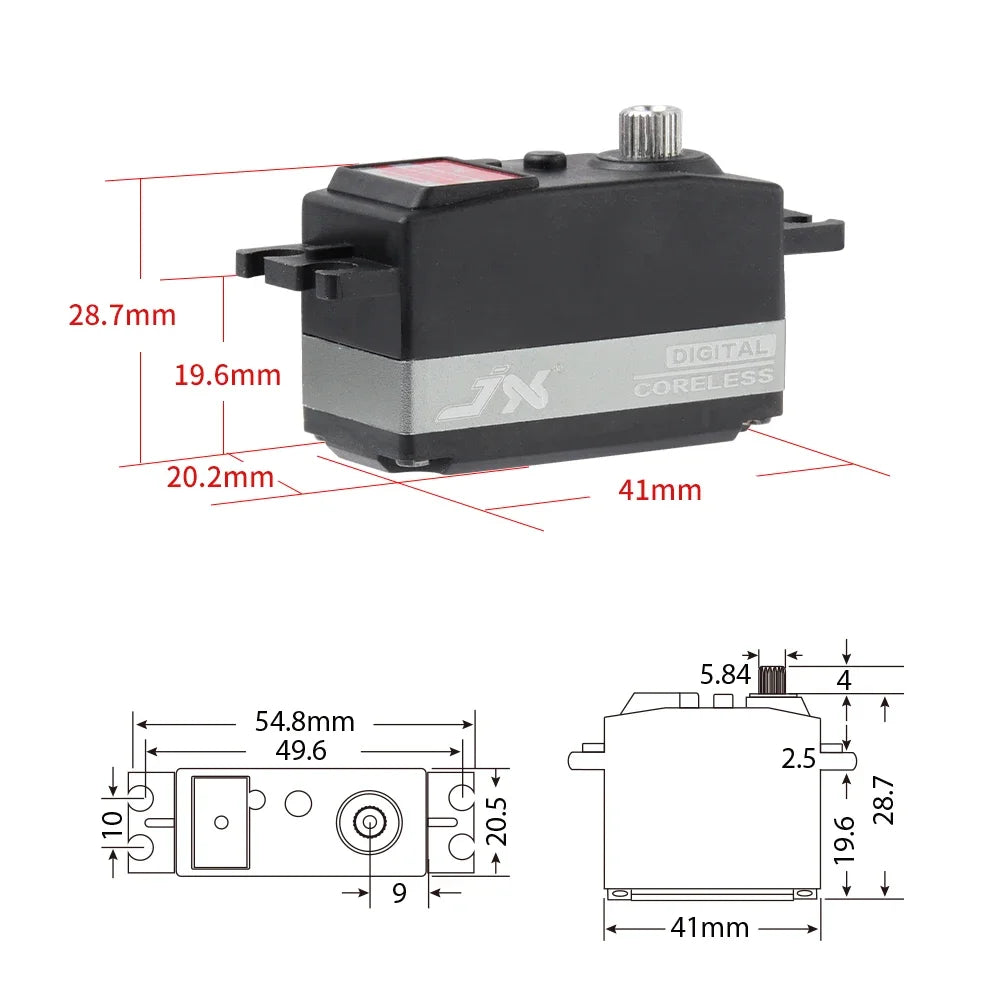

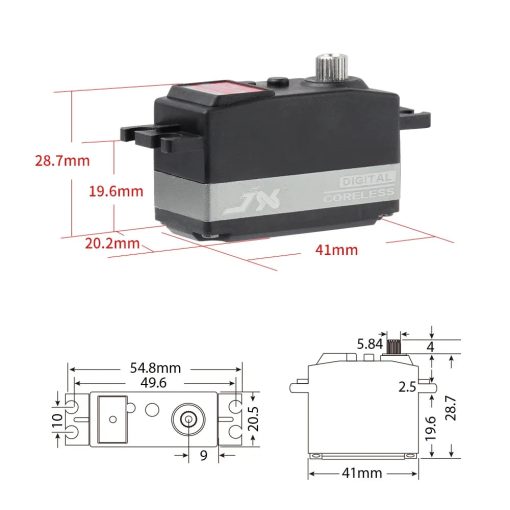

Dimensions: 40.5×20.5x25mm
Weight:44.30g
Connector Wire Length: JR265mm
Wire/Color:JR 265 mm/ -Brown +Red S Orange

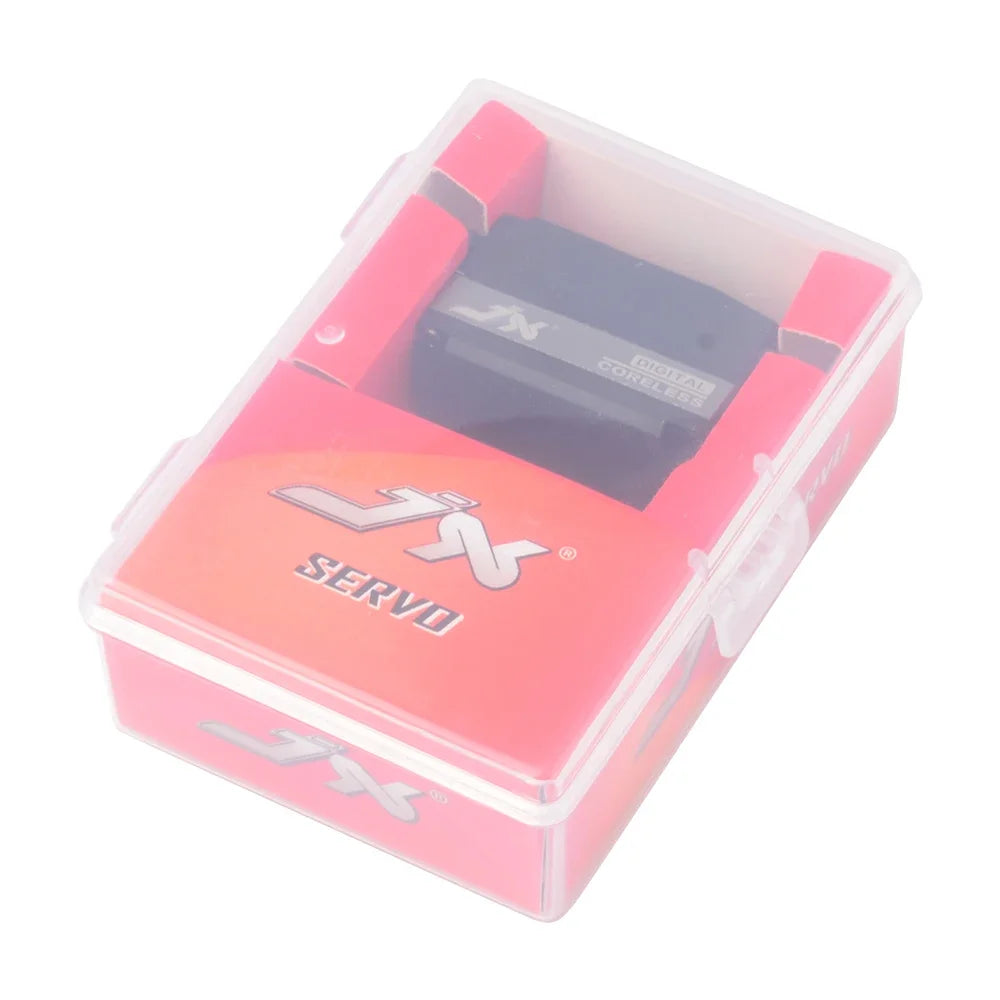

Package Included:
1 x Servo
1 x Bag of Accessories
