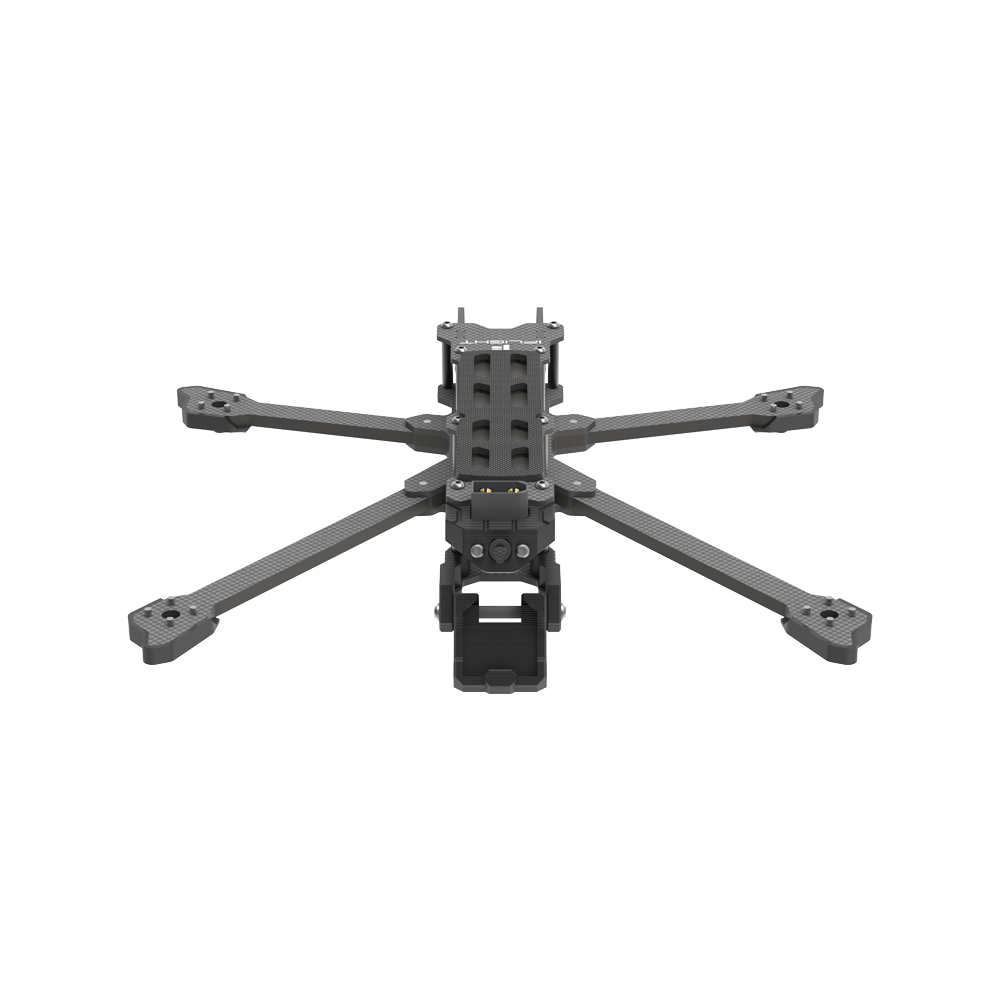

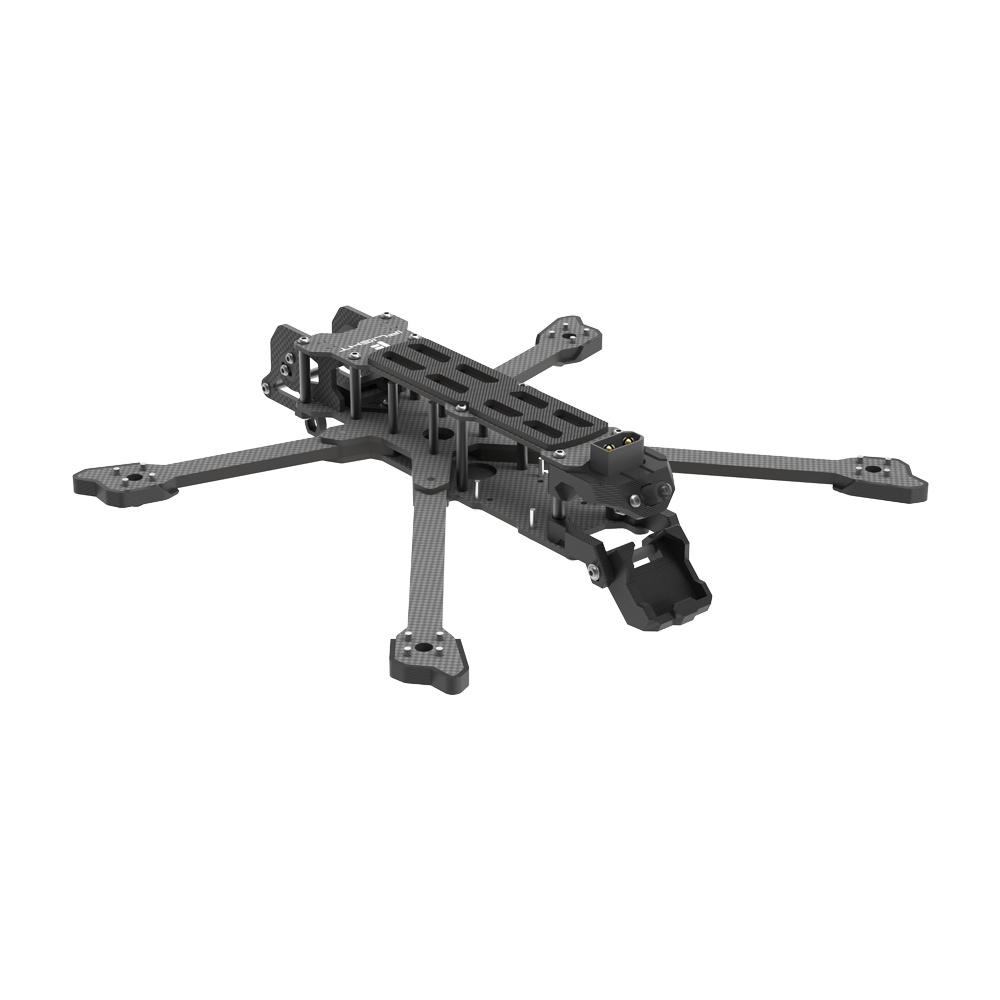

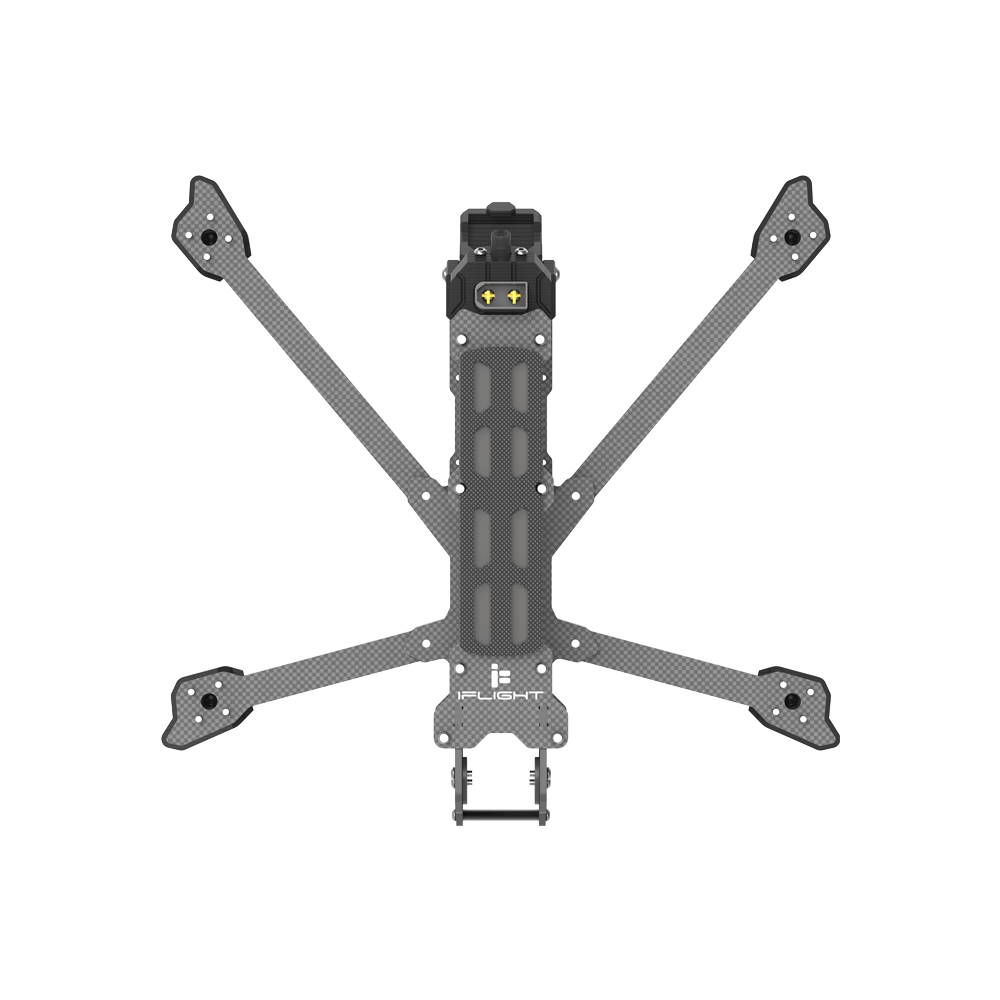

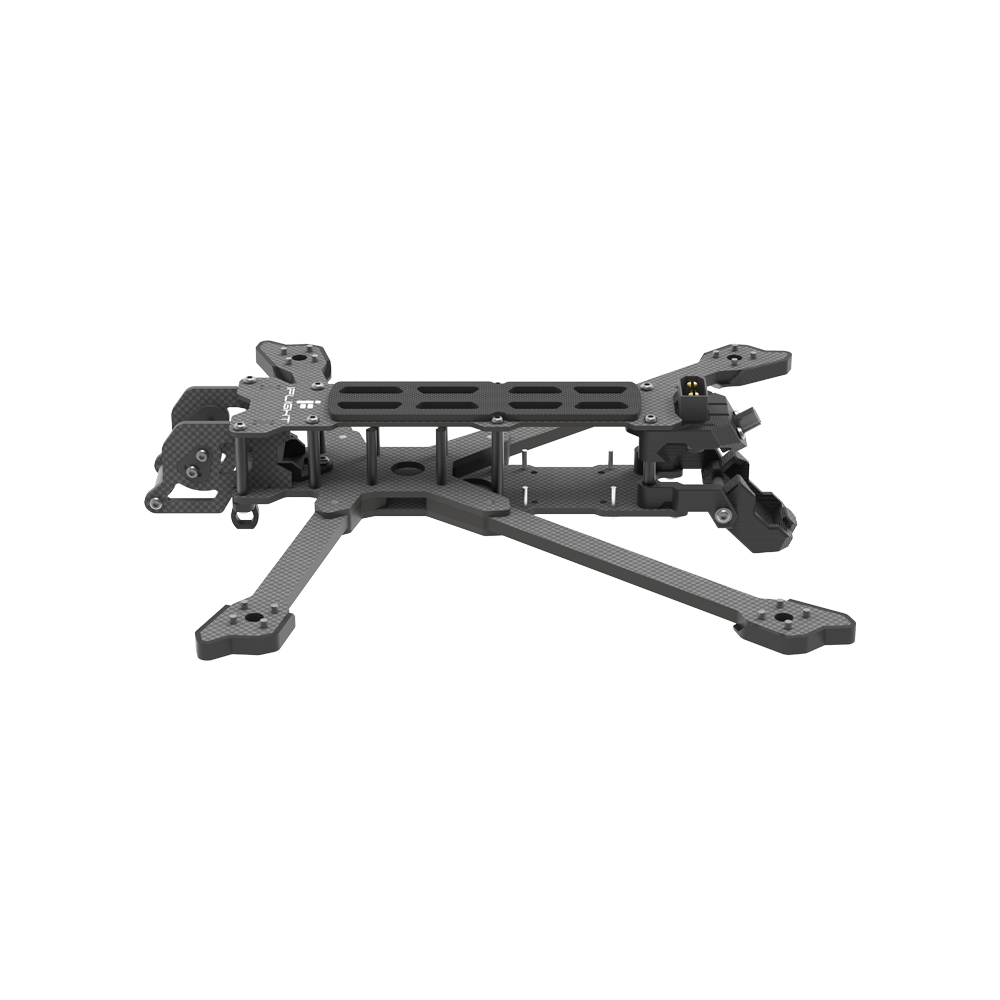

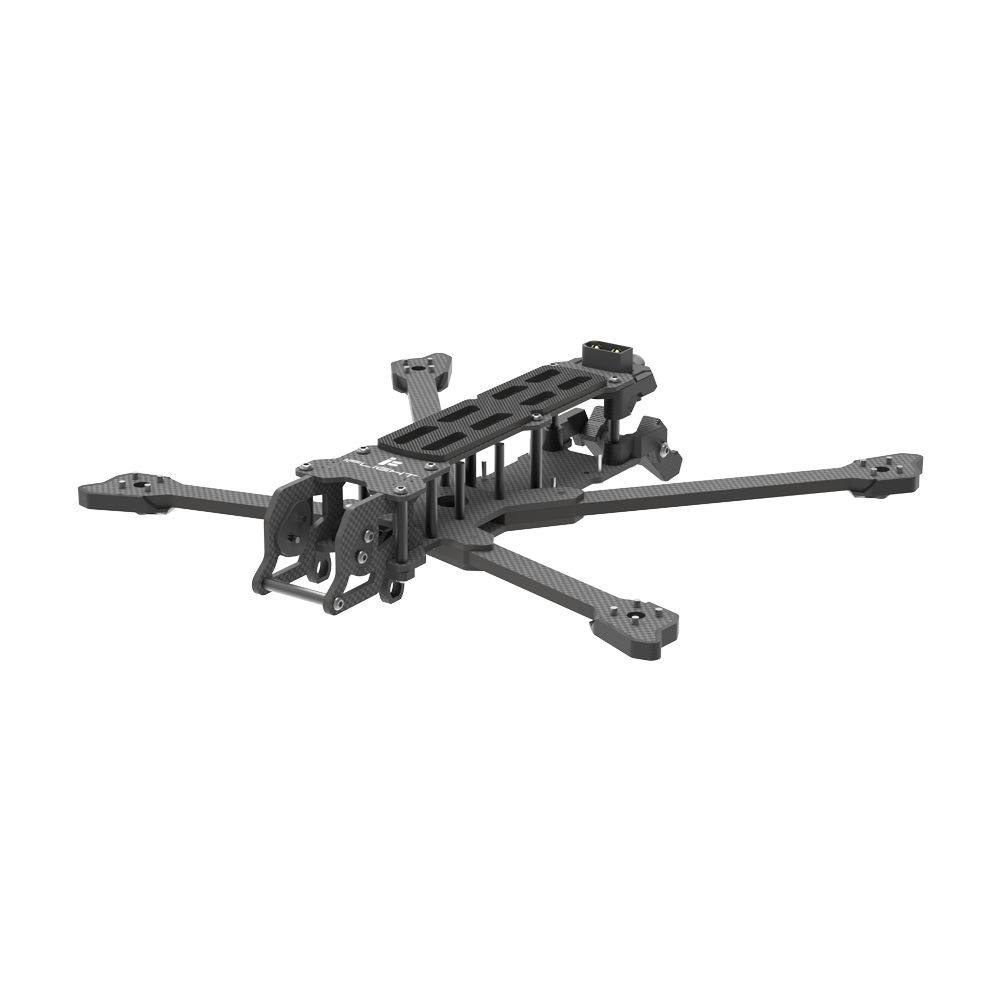

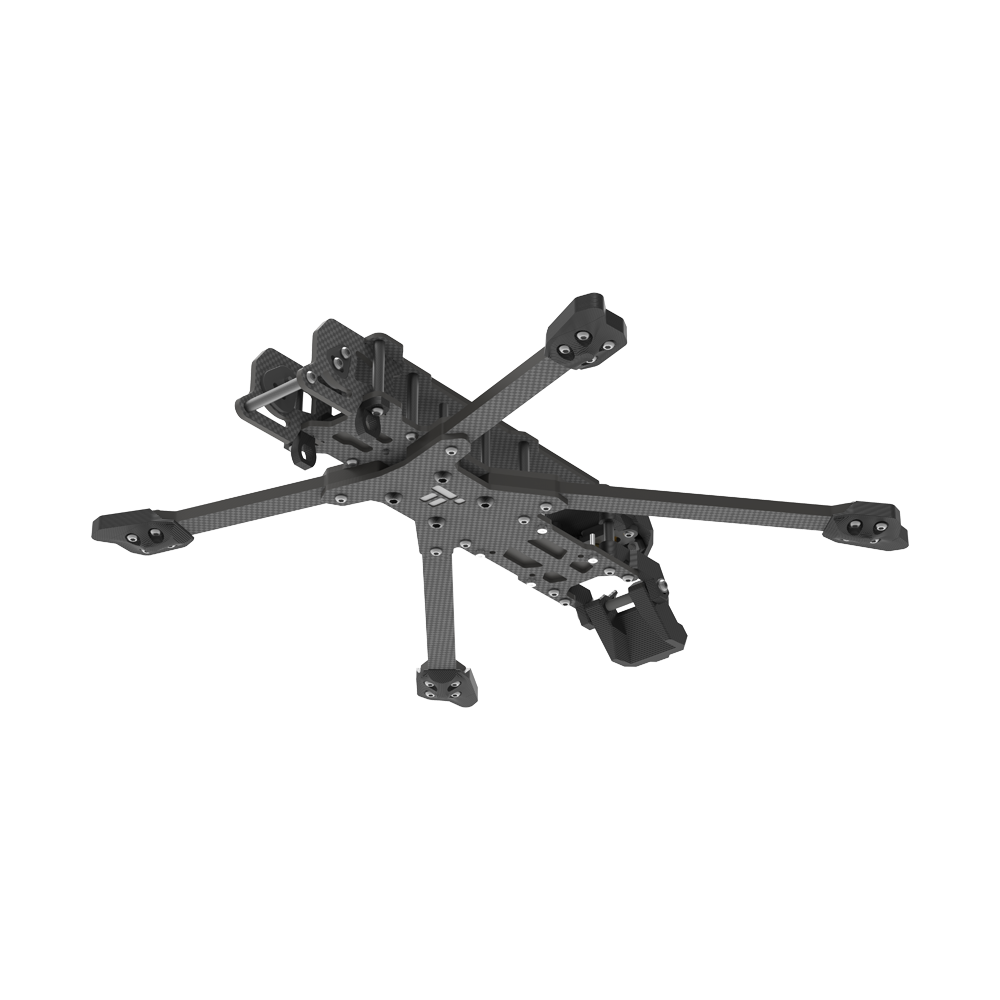

iFlight Chimera5 Pro V2 5inch Frame Kit SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Cutting
Technical parameters: Value 2
Size: 225mm 5inch
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Antennas
Quantity: 1 pcs
Origin: Mainland China
Model Number: Chimera5 Pro V2
Material: Carbon Fiber
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT
Description：
- Introducing our ultra-light Long Range 5 inch Frame kit for every terrain and beyond. If our iFlight Chimera4 is too small and light to fight against stronger winds, here you go.
- The latest version of this frame has updated camera side plates to support the DJI O3 Air Unit and other 19-20mm FPV cameras.
Features
- New Side Panels to perfectly fit the O3 Air Unit in the back
- Secured Integrated XT60 Battery Plug
- New GPS Mount, easy to disassemble
Specifications
- Product Name：Chimera5 Pro V2 Frame Kit
- Wheelbase: 225mm
- Frame Dimension: L140*W176*H28.5 mm
- Frame Body Dimension: 28.5mm
- Arm Thickness: 4mm
- Bottom Plate Thickness: 2mm
- Top Plate Thickness: 1.5mm
- Upper Plate Thickness: 2mm
- Motor Mounting: 12x12mm
- VTX Mounting: 25*25 φ1.6mm / 20*20 φ2mm
- Weight: 135grams
Packing List
- 1 x Chimera5 Pro V2 Frame Kit
- 1 x TPU Set
- 1 x Screw Bag
- 1 x Anti-Slip Battery Pad
- 2 x Battery Strap
