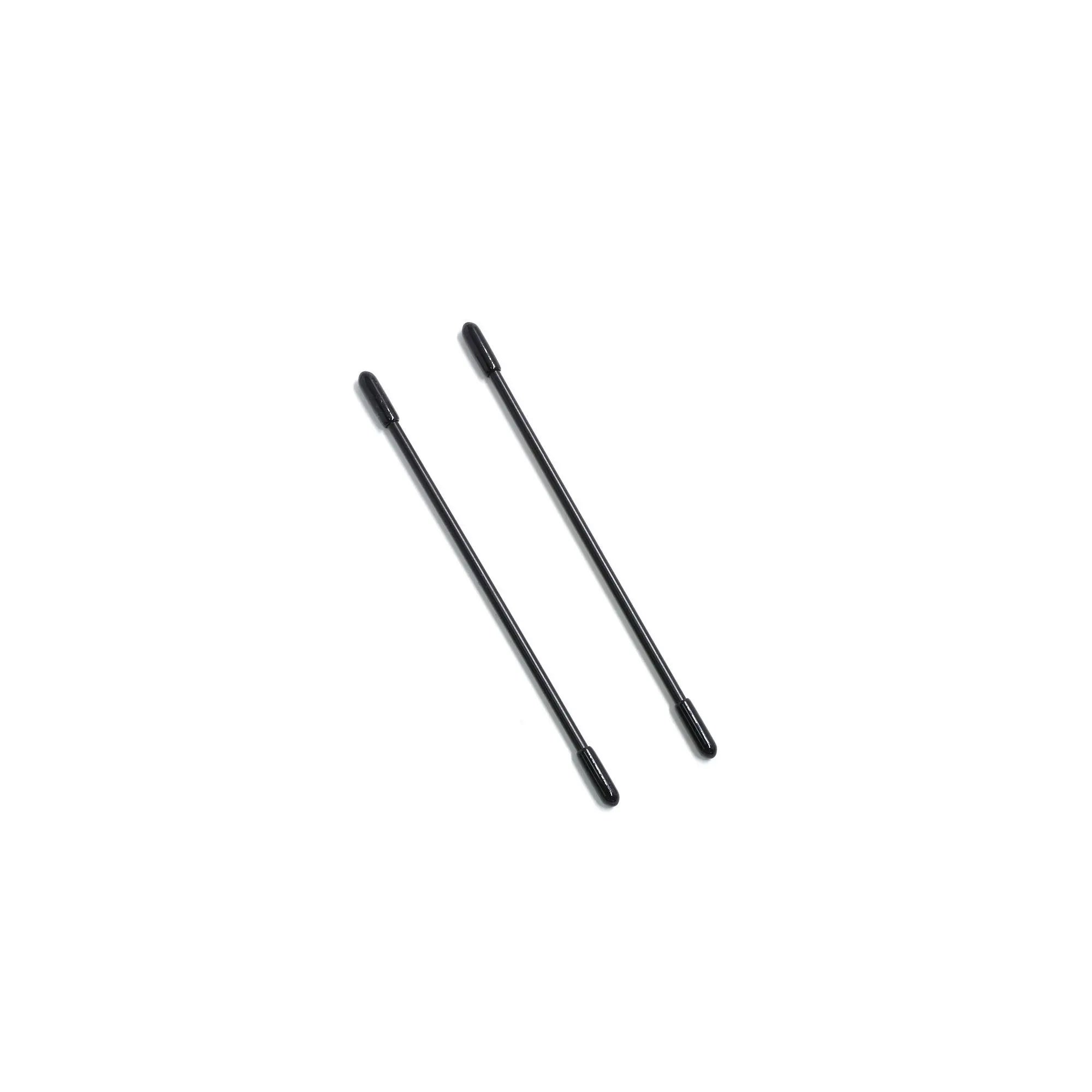

TBS Nano RX Antenna
Arm Plate2

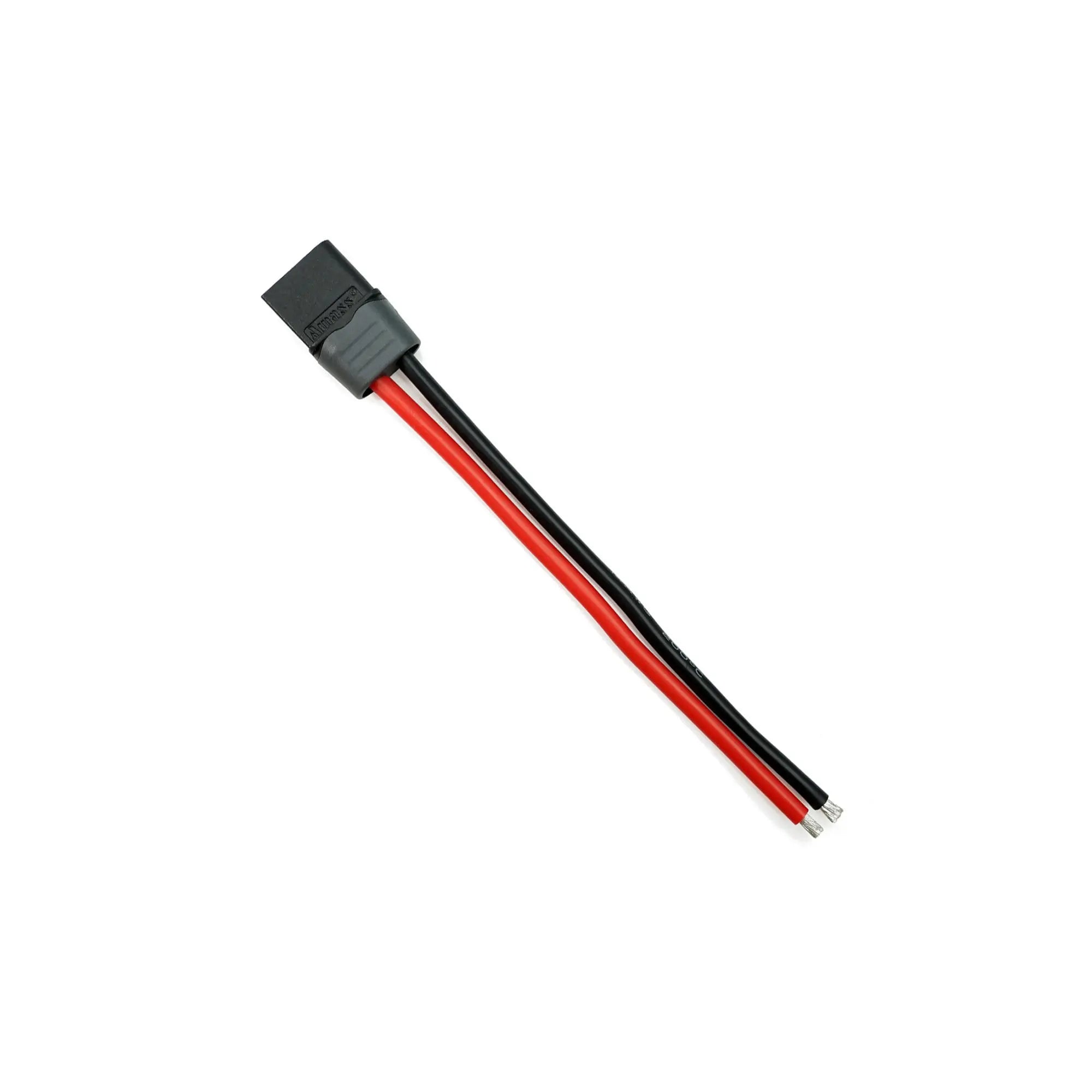

Cam Power Cable
TBS Receiver Mount
Arm Plate1
Screw Package
Screwdriver
Mount of Camera
Bottom Plate
Battery Non-slip Mat
M7 Spanne

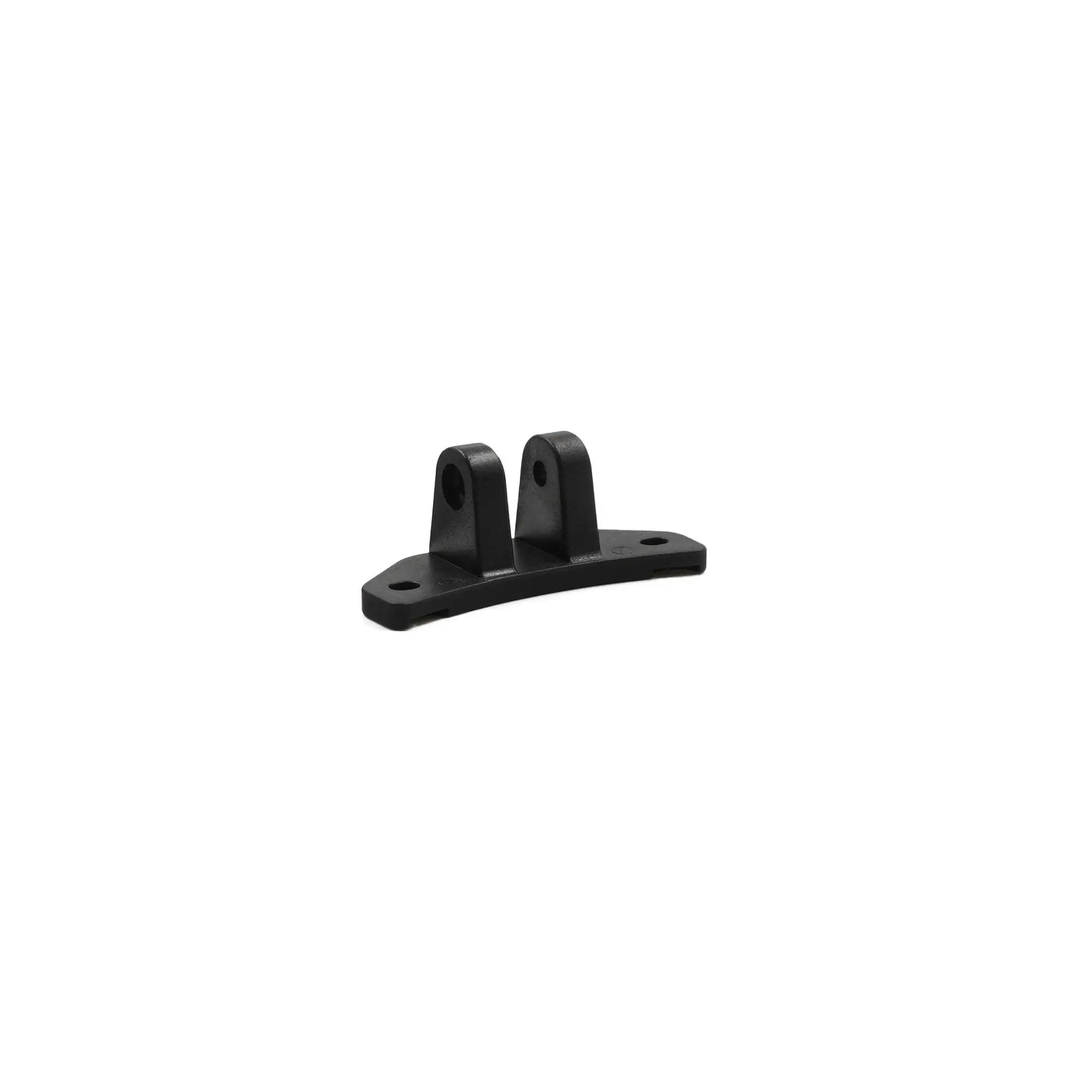

Naked Camera Mount
Frame
Vista Camera ProtectDamping PadPower CordPropeller Guard(Gree2xAntenna Fixed TubeAntenna MountTop PlateBatteries StrapsTBS Nano RX AntennaArm Plate2Cam Power CableTBS Receiver MountArm Plate1Screw PackageScrewdriverMount of CameraBottom PlateBattery Non-slip MatM7 SpanneNaked Camera MountFrame
Clear
SKU: N/A Categories: ,

GEP-CL35 Performance Frame SPECIFICATIONS

Brand Name: GEPRC

Origin: Mainland China

Material: Plastic

Plastic Type: PC

Recommend Age: 14+y

RC Parts & Accs: Frame

Size: 1 inch

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Remote Control Peripherals/Devices: Frame

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: GEP-CL35 Performance Frame/Parts

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

Summary

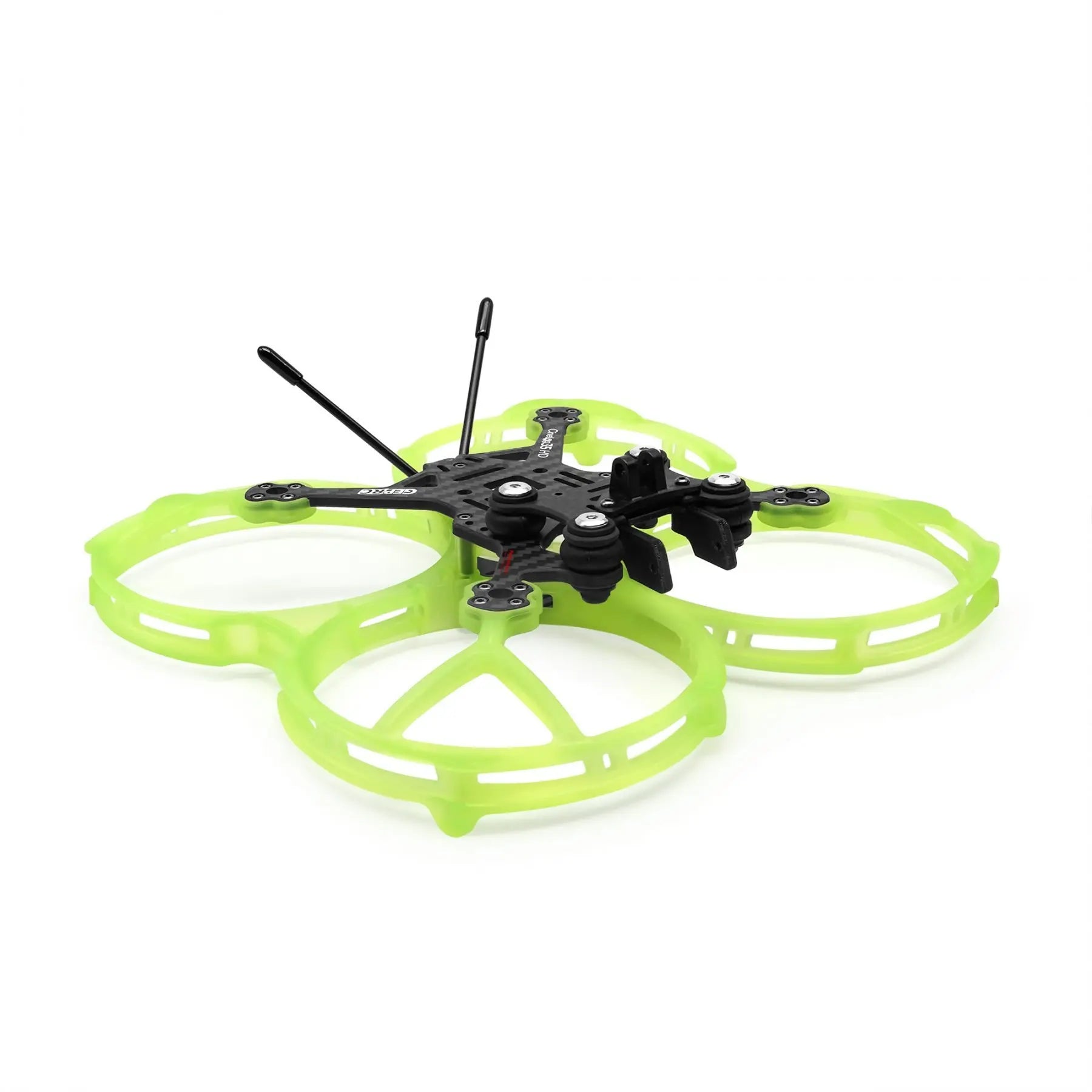

The GEP-CL35 Performance Frame developed by CEPRC for mounting camera is now officially released.

The CineLog35 Performance frame is improved and optimized on the basis of the CineLog35 frame. It supports the installation of mainstream AIO flight controllers with 25.5mm x 25.5mm holes. The mounting holes for 20mm x 20mm/25.5mmx25.5mm can be directly installed VISTA and AVATAR digital VTX. The propeller guard adopts an integrated design, and the overall structure is more solid. The GEP-CL35 Performance frame uses brand new materials that are stronger impact resistance and better toughness. Upgrade the power system, use a 12mm x 12mm motor holes, compared with the CL30, a larger 15-18-21 series motors can be installed. With 3.5 inch propellers, has a stronger power output. Greater mounting compatibility, you can use 3D printed parts to install 8/9/10 cameras, or use the base to install naked 8, Insta 360 GO2 and Caddx Peanut cameras.

We pursue lighter weight, better flying experience, and more extended functions of the FPV frame.

Specification

  • Model: GEP-CL35 Performance
  • Motor to Motor: 142mm
  • Top plate: 2.5mm
  • Bottom plate: 2.0mm
  • Arm plate: 3.5mm
  • FC mounting hole: 25.5mm x 25.5mm
  • VTX mounting hole: 20mm x 20mm/25.5mm x 25.5mm
  • Motor mounting hole: 12mm x 12mm
  • Camera installation space: 14~19mm
  • Propeller guard internal diameter: 95mm
  • Suitable propeller size: 3.5 inch propeller
  • Dimension: 203mm x 203mm x 42mm(Including propeller guard)
  • Weight:105.7g(Including propeller guard, 3D print parts, Naked  8 mount )

Feature

1.3.5-inch injection-molded one-piece propeller guard, brand new appearance design, hollowed-out noise reduction design, quiet and safe flight.

2. Can install mainstream 14/19mm camera.

3. Improved shock absorption gimbal design, more stable and clearer shooting effect, reduce the jelly effect.

4. The 8/9/10 can be installed with 3D printed parts, you can also use the Naked 8 mount to install Naked 8, Insta 360 GO2 and Caddx Peanut camera.

5.12 x 12mm motor holes, support mounting 1507/1805/2004/2105.5 and other motors.

6. Support the installation of 3.5-inch propellers, with strong power output

7. Independent receiver cabin design, convenient and fast frequency binding.

Includes

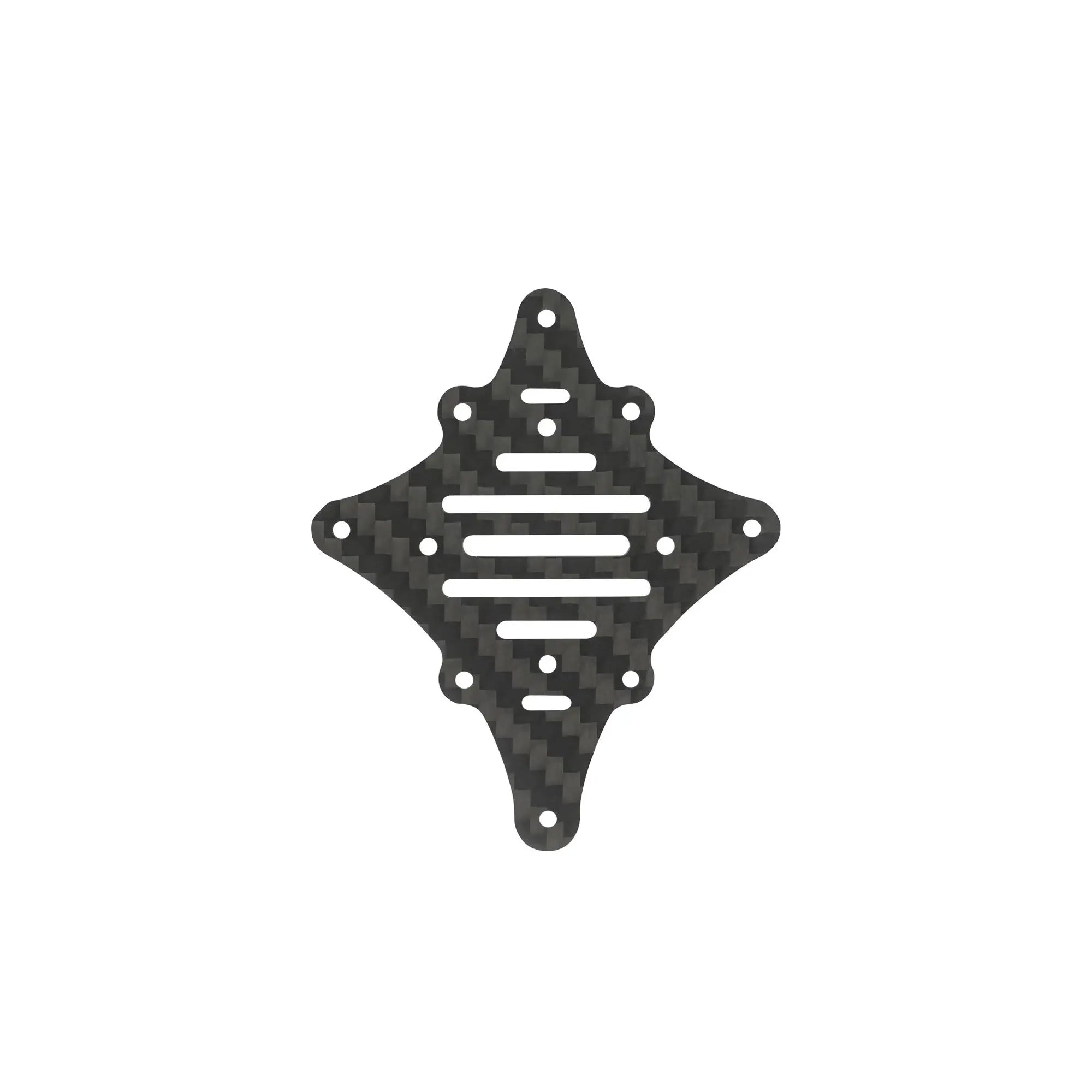

1 x Top Plate 2.5mm

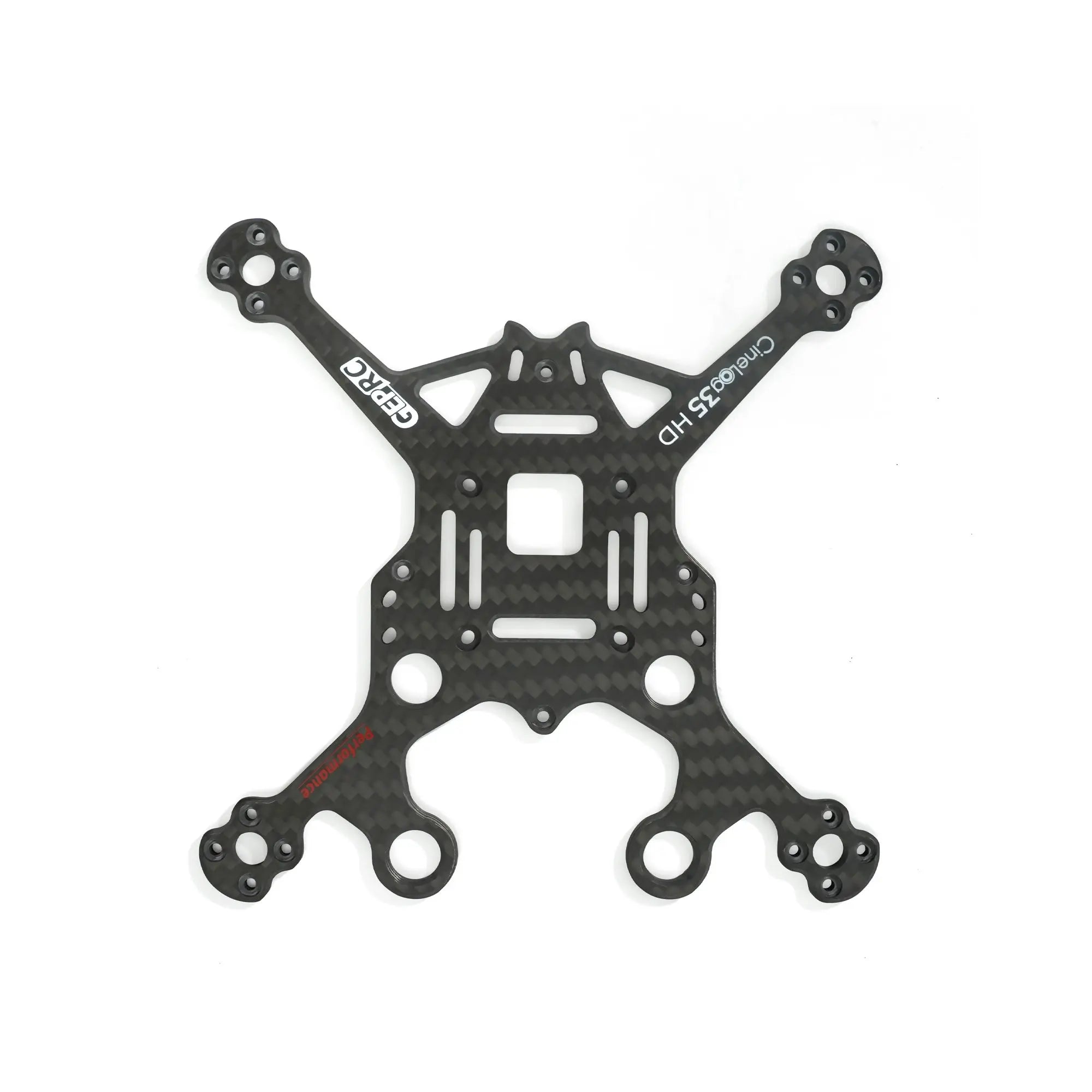

1 x Arm Plate 3.5mm

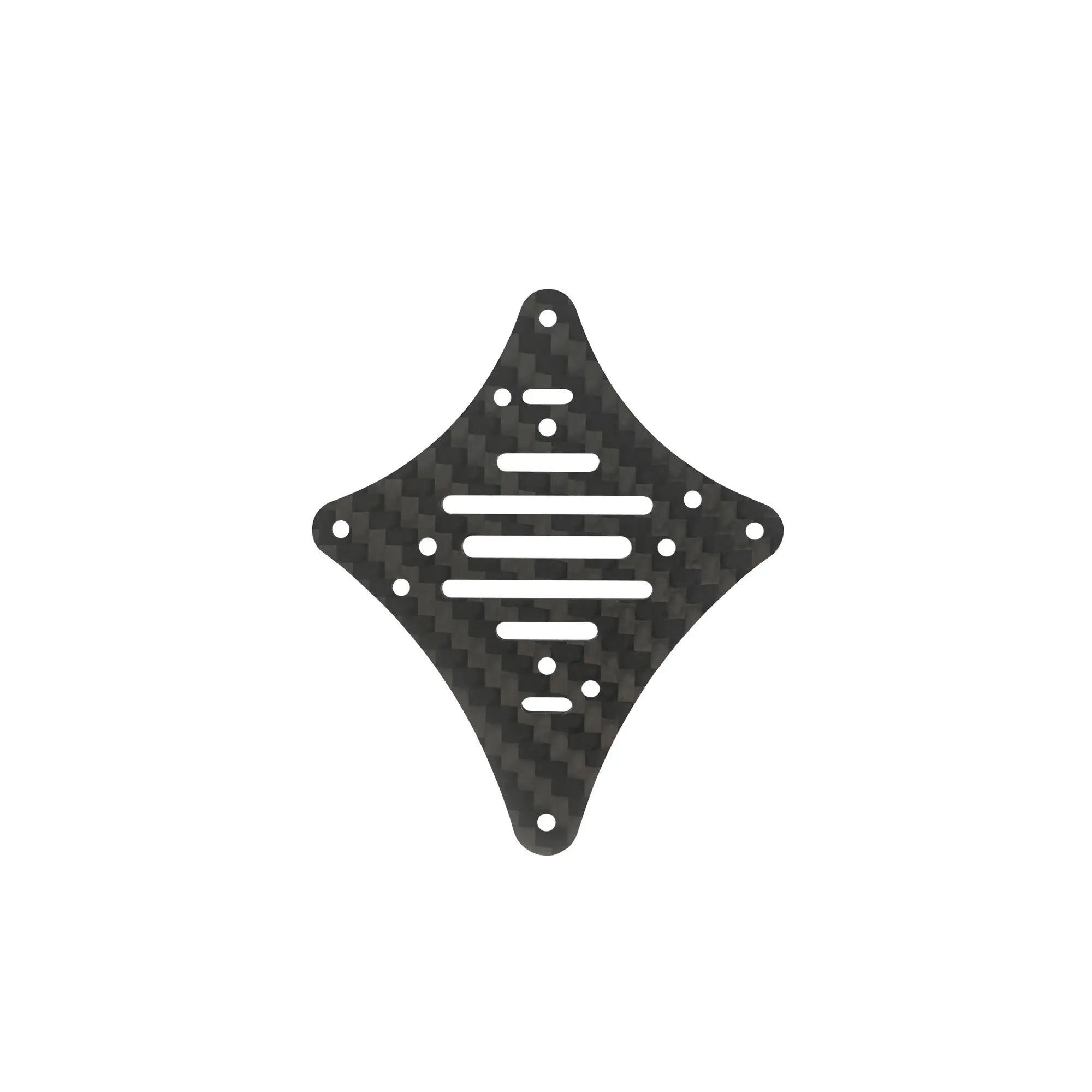

1 x Bottom Plate 2.0mm

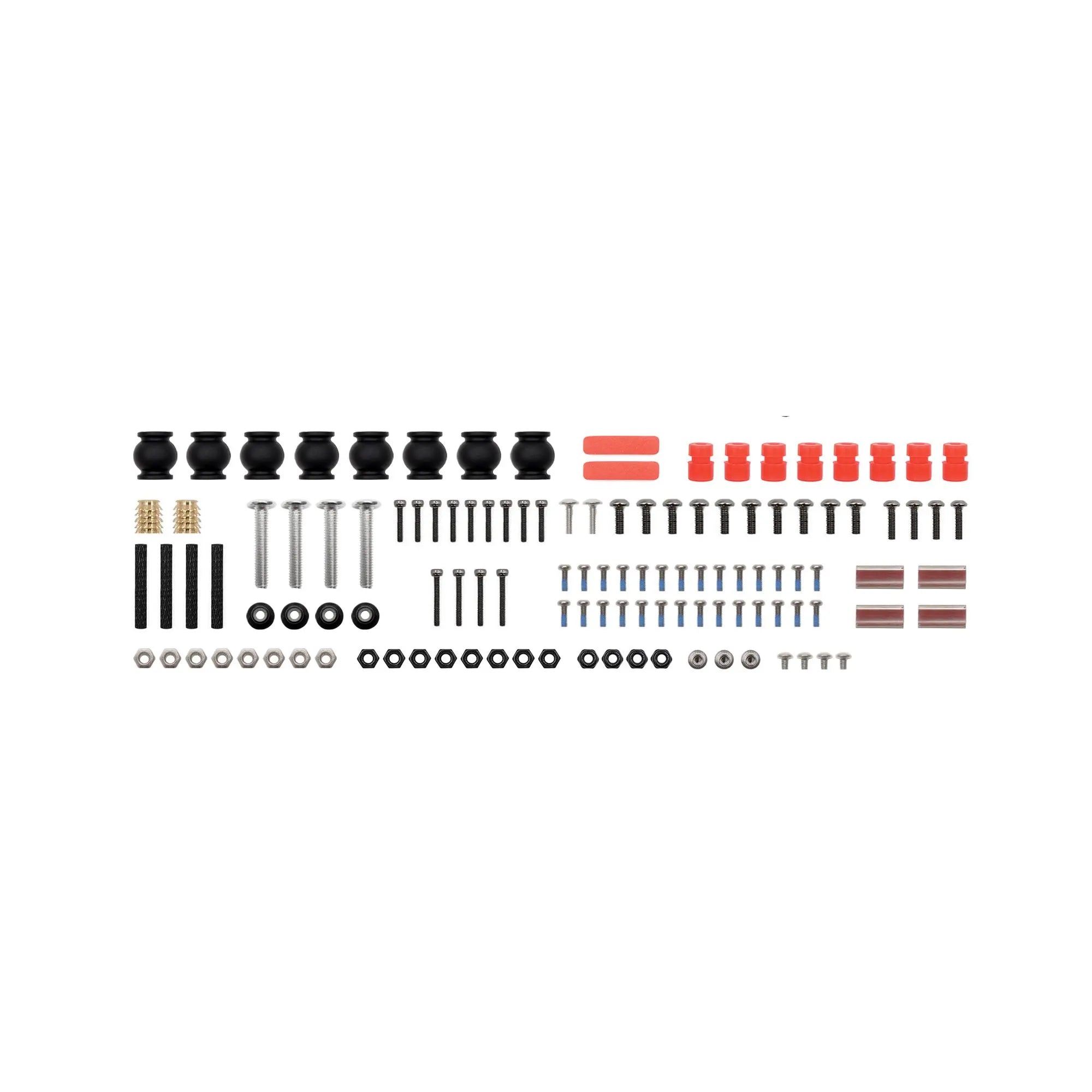

1 x Set of screws

1 x Set of screwdrivers

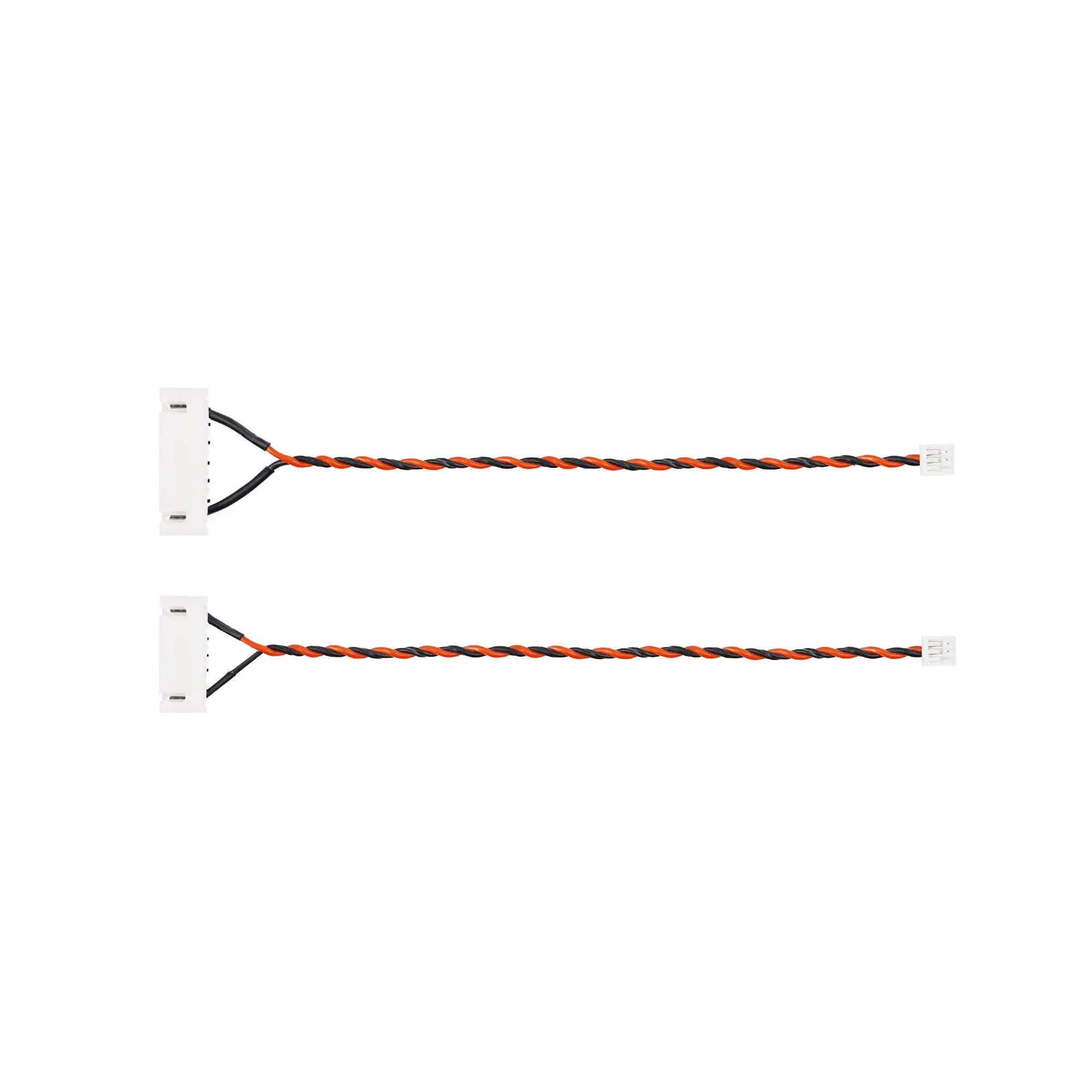

1 x Set of cables

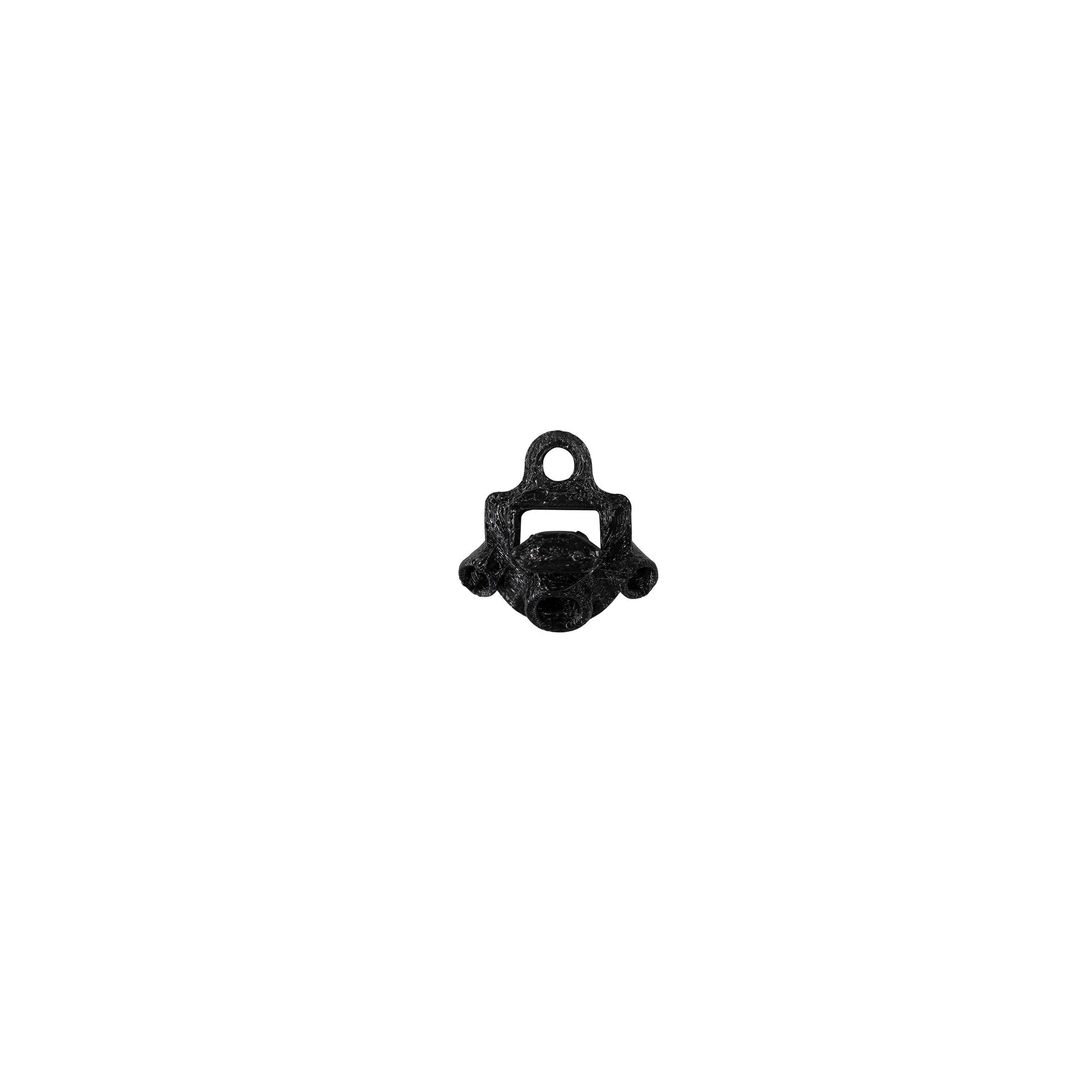

1 x Set of 3D print parts

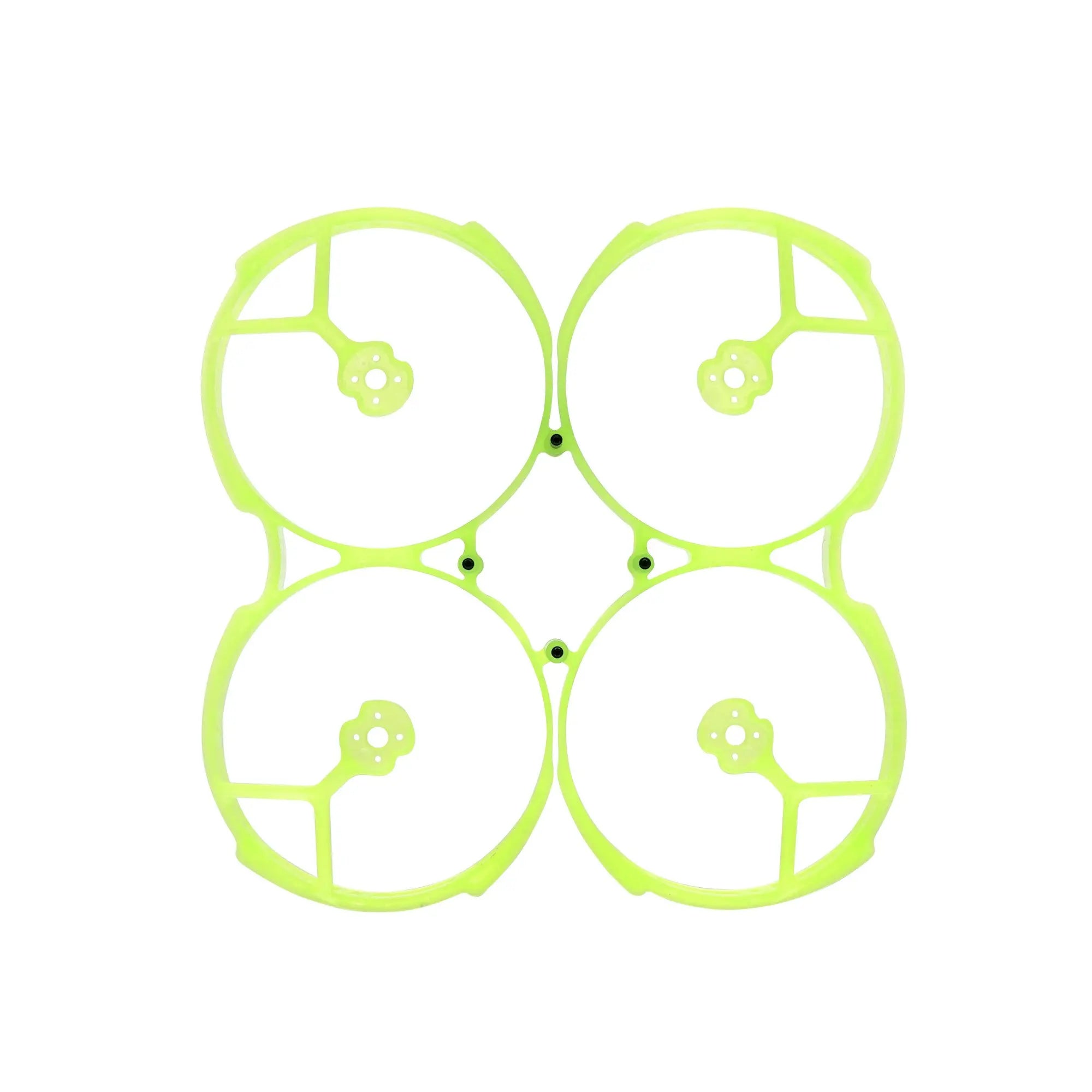

2 x 3.5 inch integrated propeller guards

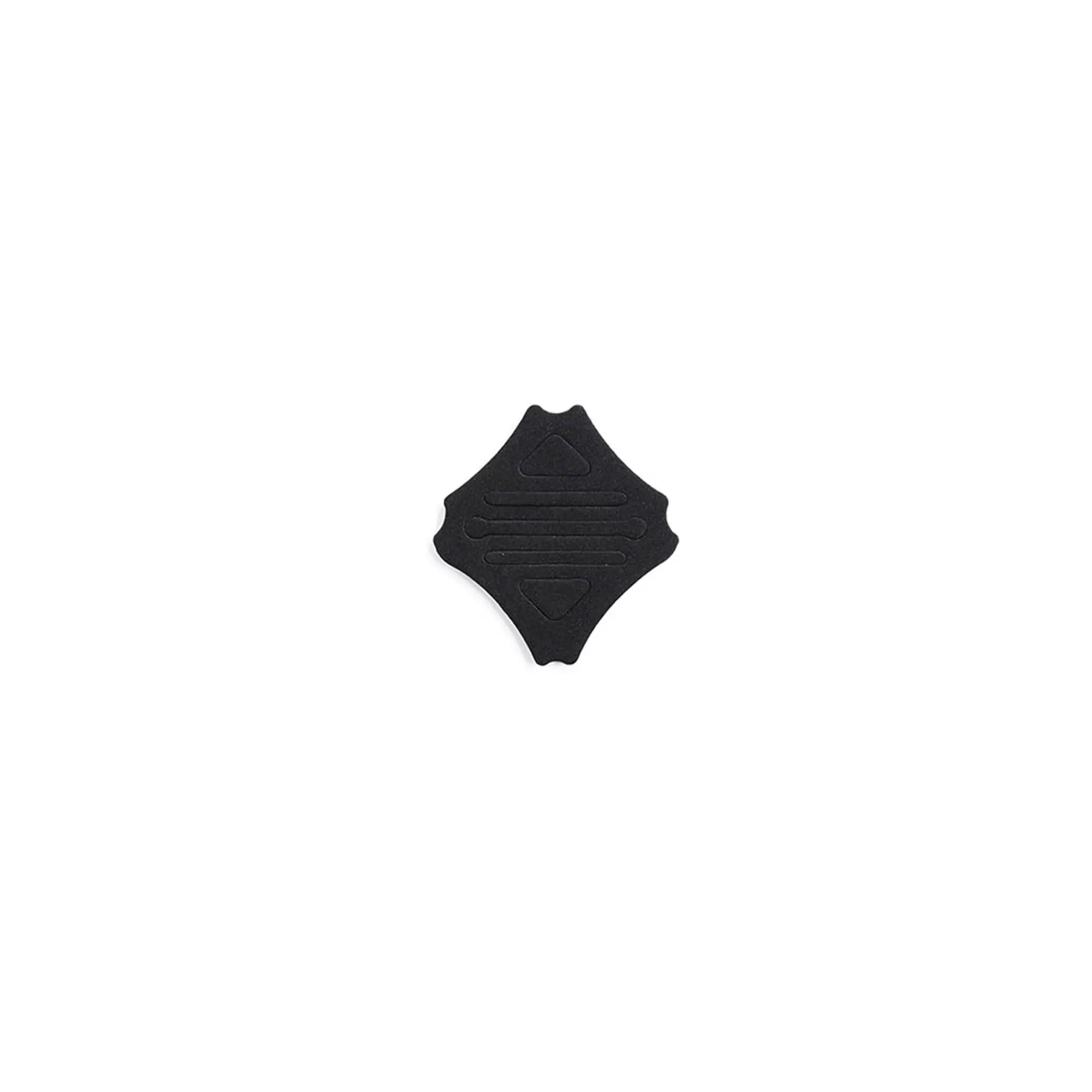

2 x Battery Non-slip Mat

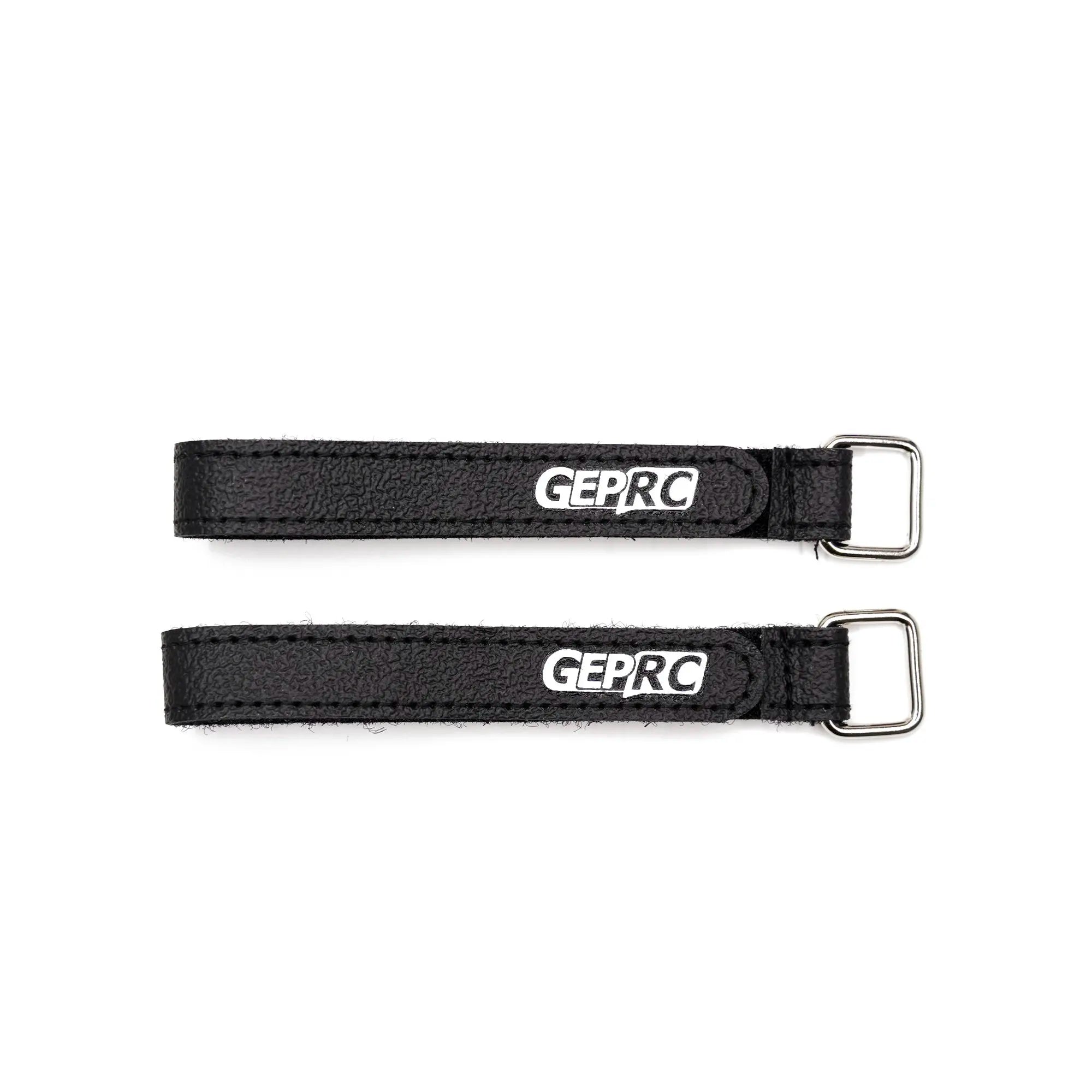

2 x M15x200mm battery straps

1 x Antenna Mounting Tube

Other parts

the propeller guard adopts an integrated design, and the overall structure is more solidthe GEP-CL35 Performance frame uses brand new materials that are stronger impact resistance and betterimproved shock absorption gimbal design, more stable and clearer shooting effect .TitTTTTTTTtttTtt TTTT TTITTTwe pursue lighter weight, better flying experience, and more extended functions of the FPV framethe propeller guard adopts an integrated design, and the overall structure is more solidCineLog35 Performance frame is improved and optimized on the basis of the frame .a 12mm x 12mm motor hole can be used to upgrade the power system the propeller guard adopts an integrated design, and the overall structure is more solidthe 8/9/10 can be installed with 3D printed parts . you can also usewe pursue lighter weight, better flying experience, and more extended functions of the FPV framethe GEP-CL35 Performance frame uses brand new materials that are stronger impact resistance and betterthe propeller guard adopts an integrated design, and the overall structure is more solidthe propeller guard adopts an integrated design, and the overall structure is more solid
