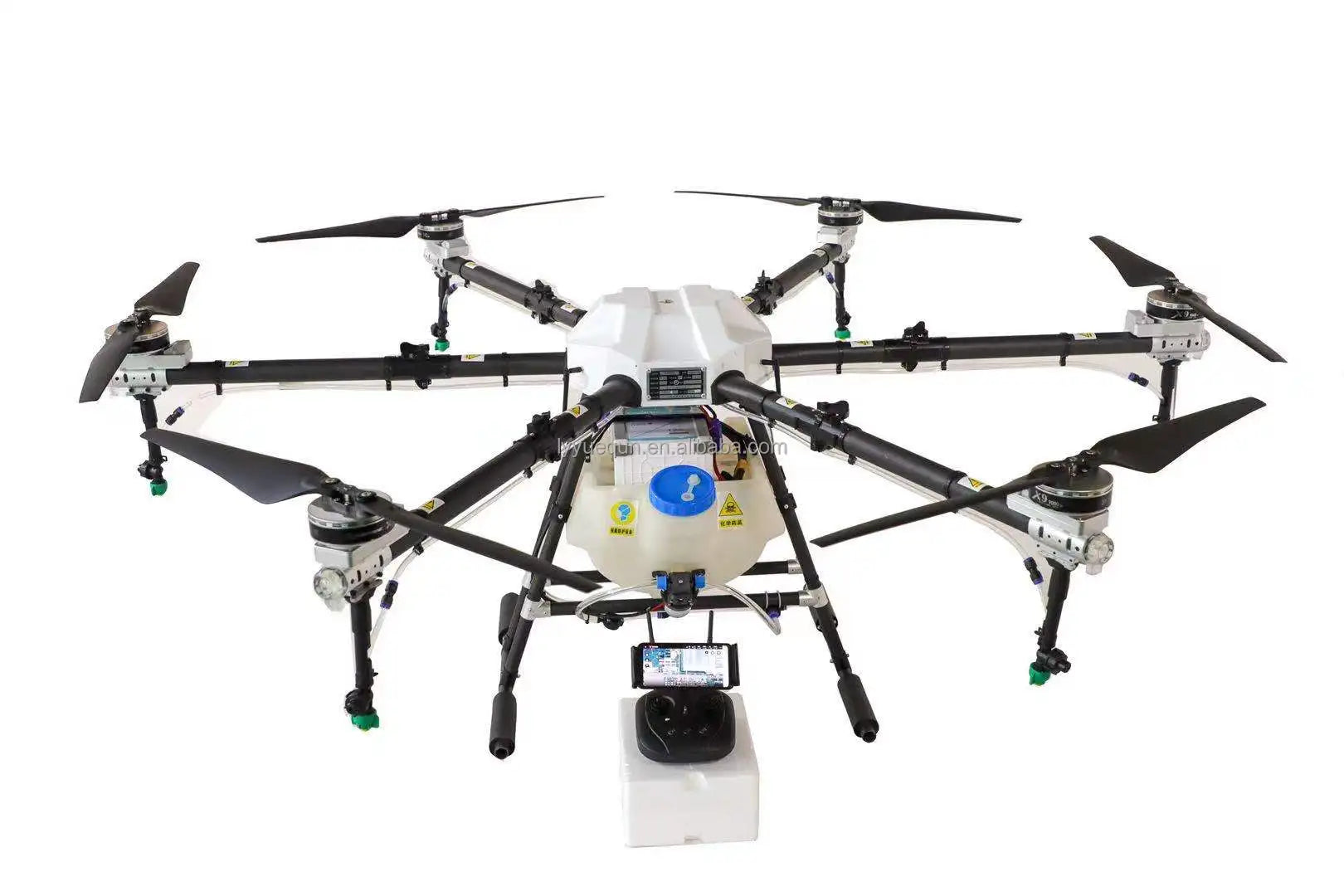

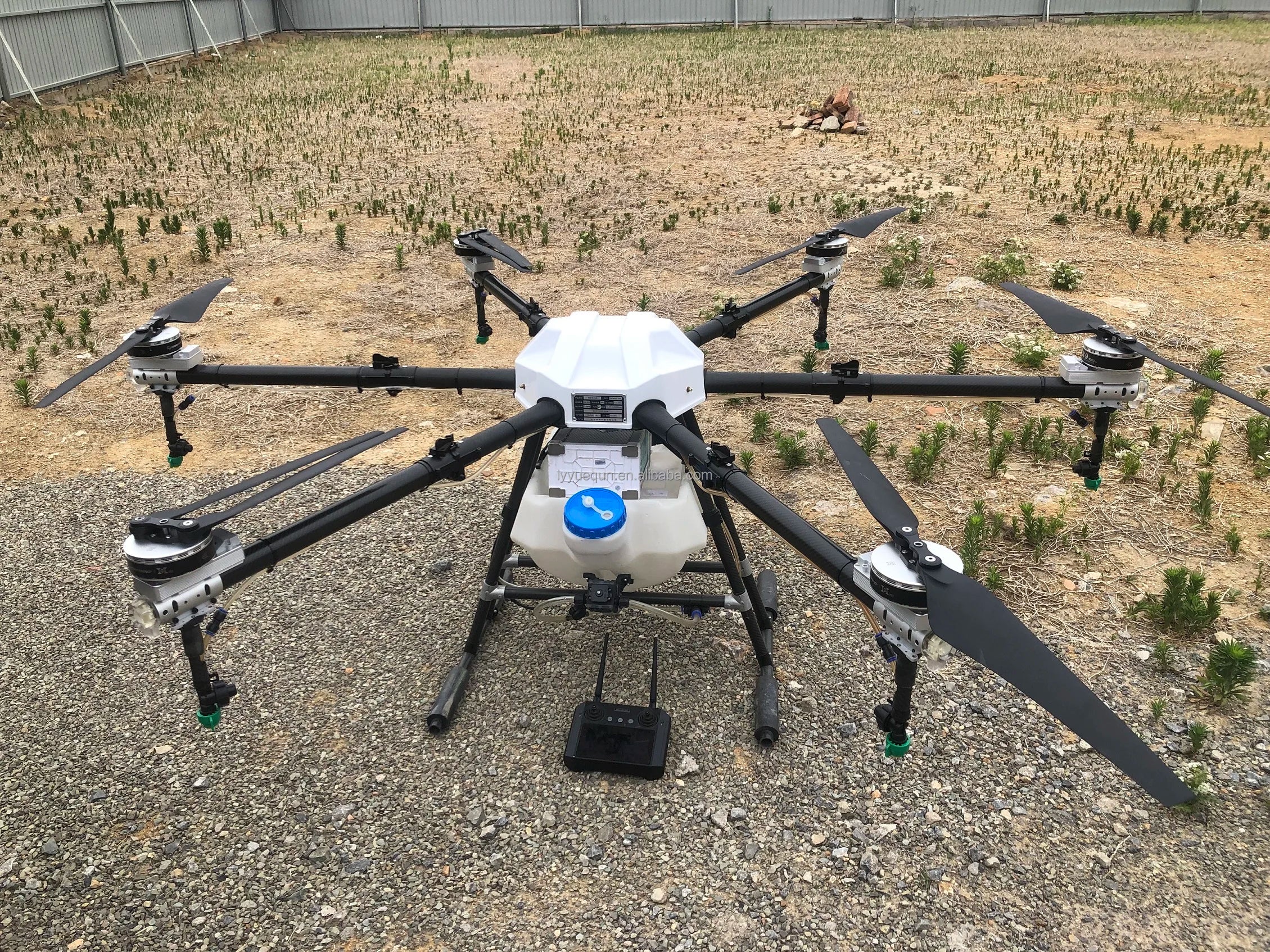

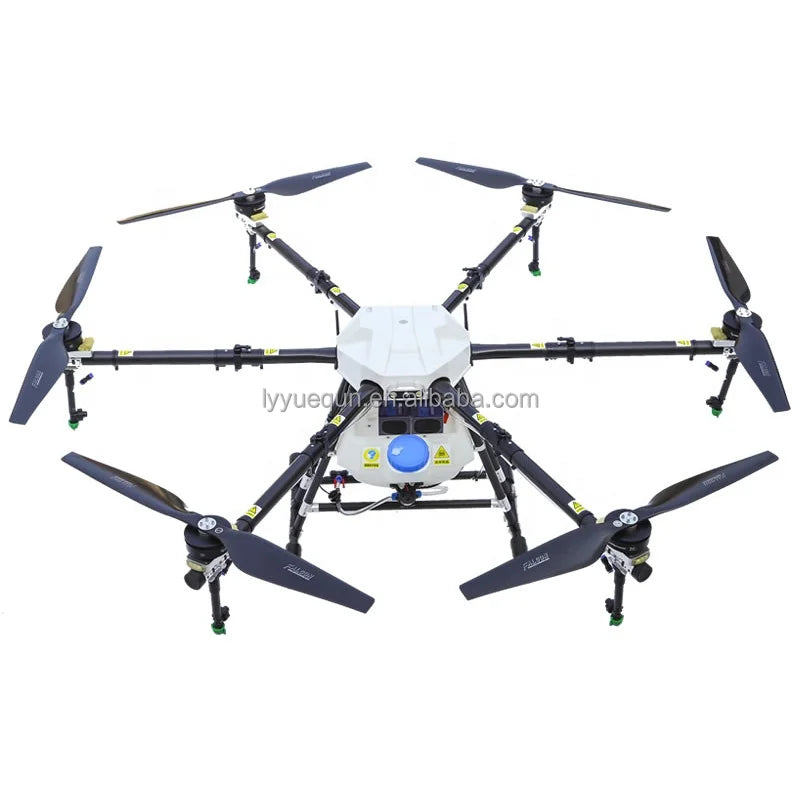

YUEQUN 3WWDZ-30A 30L Agriculture Drone Parameters
- Brand Name: YUEQUN
- Model Number: 3WWDZ-30A
- Material: Plastic, carbon fiber
- Power: Battery Operated
- Type: agriculture use

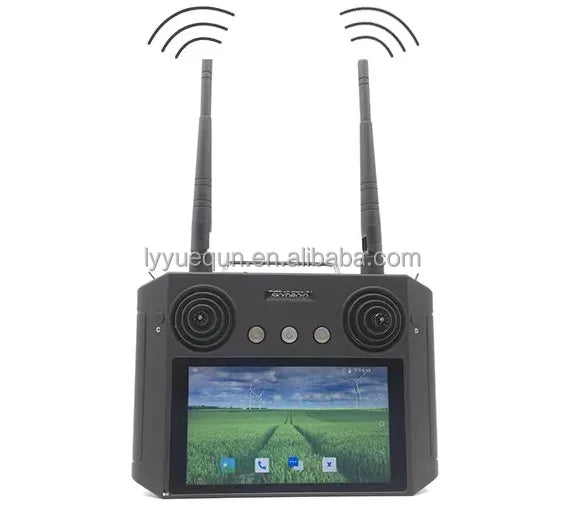

- Function: One Key Takeoff / Landing, With Camera, APP Control, With Remote Control, With LED lights
- Private Mold: Yes
- Capacity: 30000 ml, 30L
- Model: 3WWDZ-30A
- Battery: 28000mAH
- Spray Nozzle: 6
- Max flow rate: 5.4L/min
- Spraying Width: 5-8m
- Maximum take-off weight: 63kg
- Max Payload: 30kg
- Drone weight: 38.4kg
- Working Hight: 1-20m
Model
|
3WWDZ-30A
|
3WWDZ-20A
|
Basic Parameters
|
||
Wheelbase
|
1800mm
|
1800mm
|
Wingspan diameter
|
2650mm
|
2650mm
|
maximum payload
|
30kg
|
25kg
|
Maximum effective takeoff weight
|
63kg
|
48kg
|

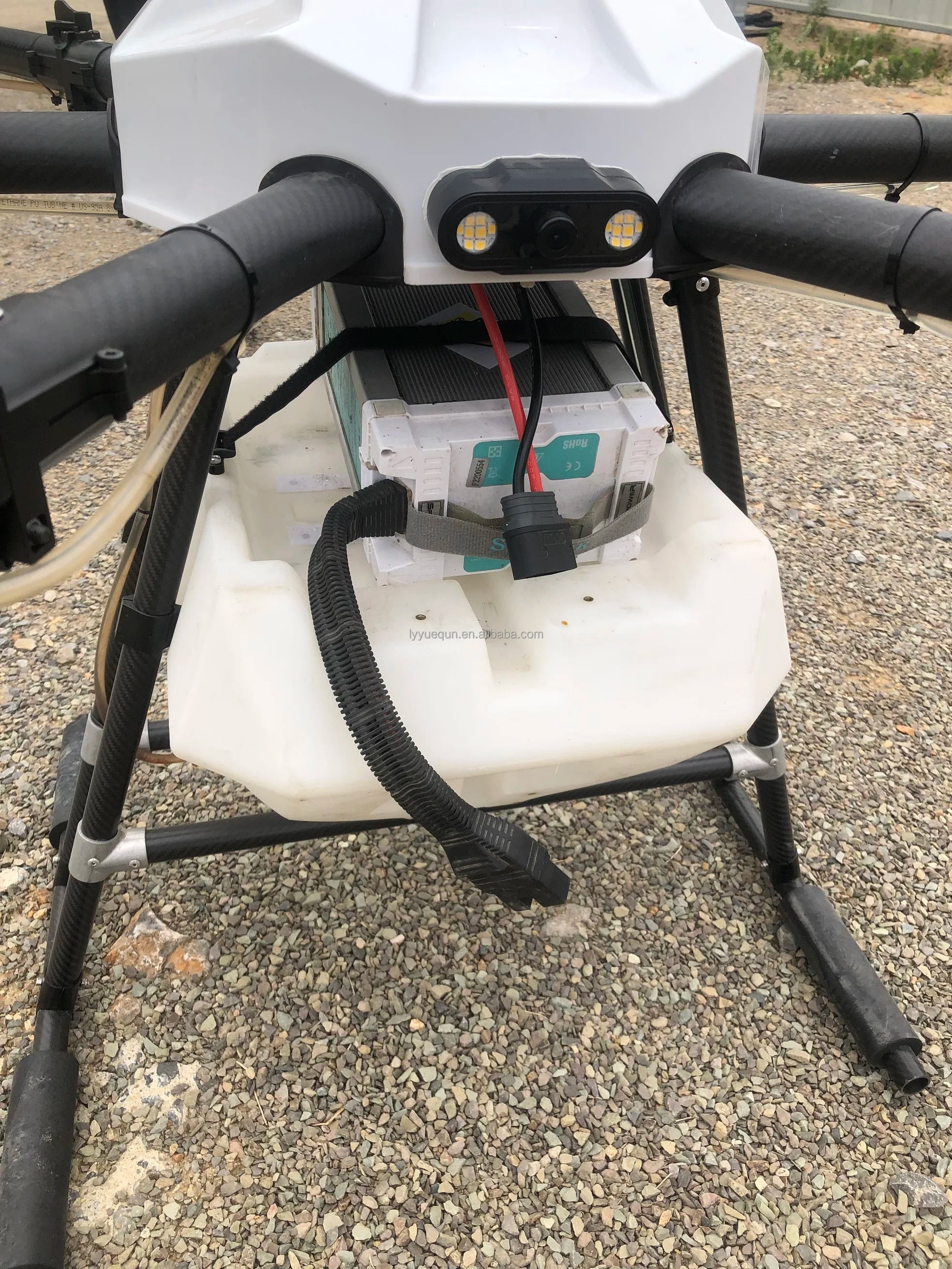

Battery
|
28000mAh
|
20000mAh
|
Flight Parameters
|
||
Hover
|
>20min(no load)
|
25min
|
>8min(full load)
|
12min
|
|
cruising speed
|
3-8m/s
|
3-8m/s
|
Maximum flight speed
|
8m/s
|
8m/s
|
Work height
|
1-20m
|
1-20m
|
Obstacle avoidance perception range
|
1-40m
|
1-20m
|
Autonomous obstacle avoidance
|
YES
|
YES
|
Spray Parameters
|
||

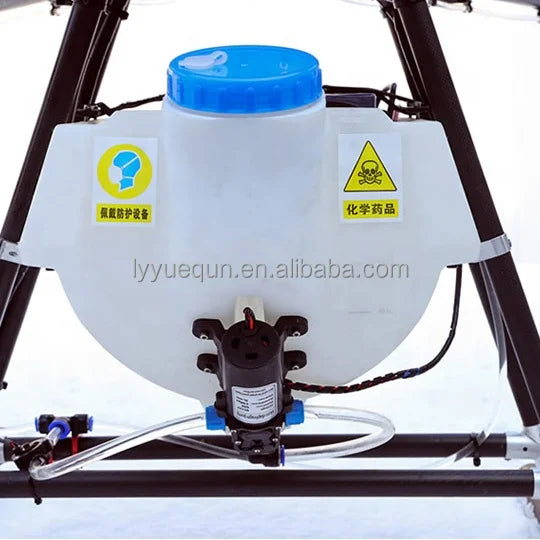

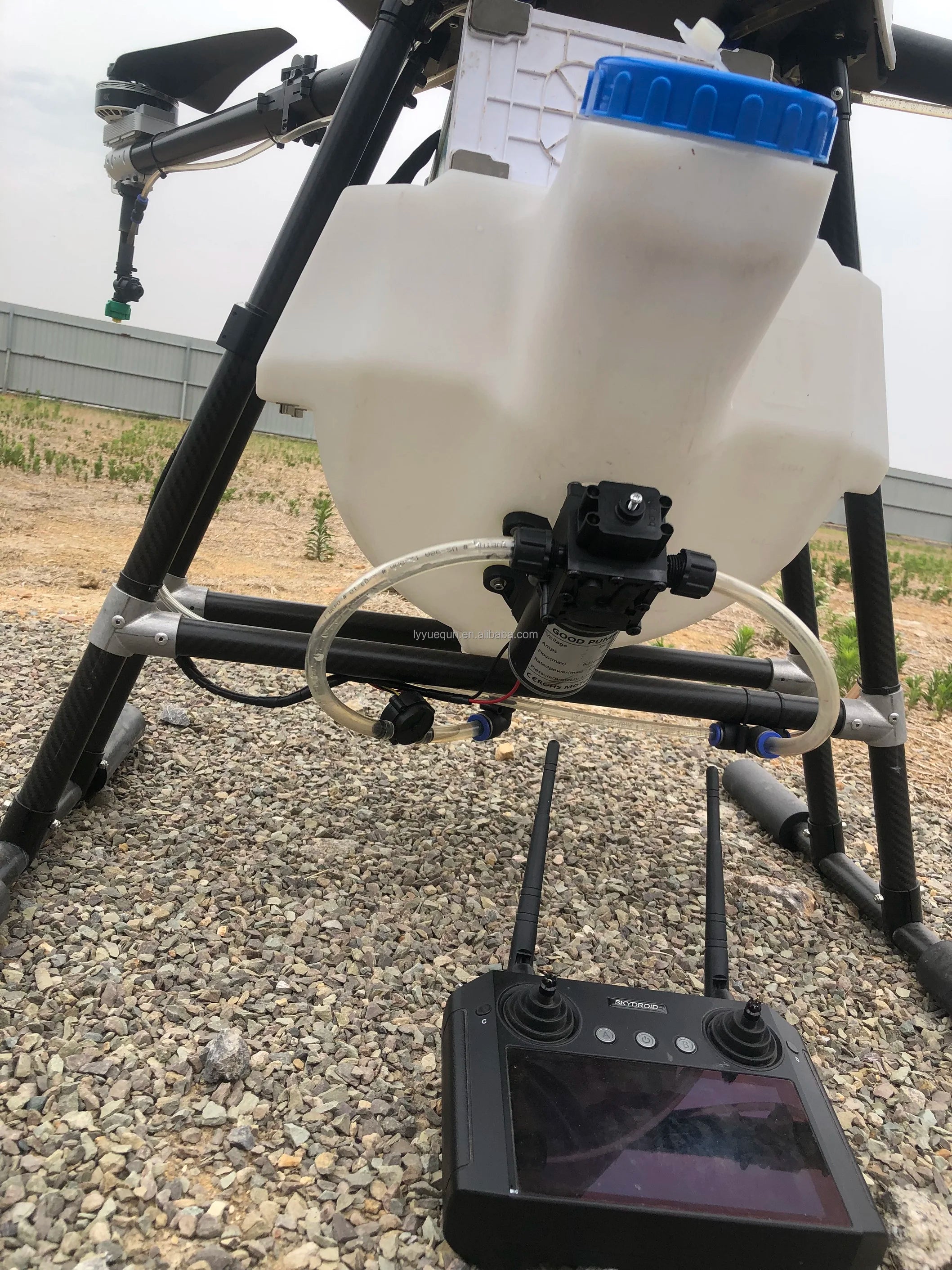

Pesticide tank
|
30L
|
22L
|
Nozzle type & No
|
6 high pressure fan nozzle, support switching centrifugal nozzle
|
4 high pressure fan nozzle, support switching centrifugal nozzle
|
Maximum flow rate
|
8.1L/min
|
5.4L/min
|
Spray width
|
5-8m
|
5-8m
|
HD camera

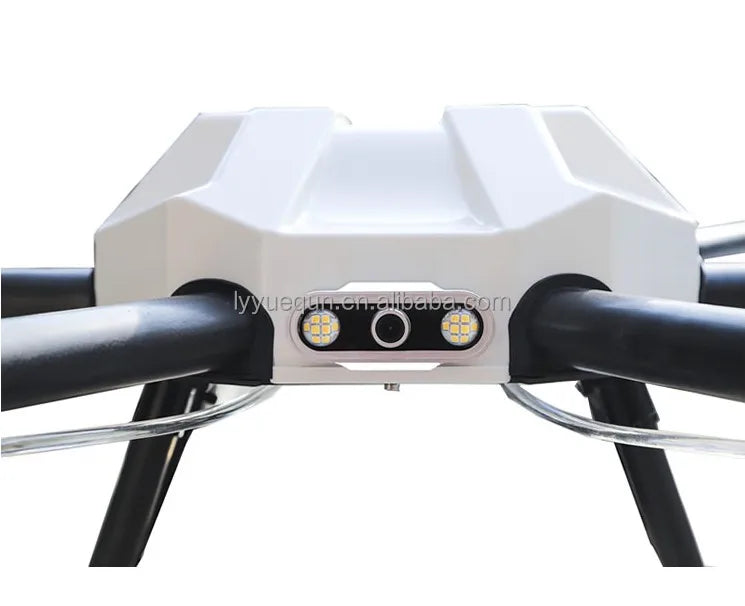

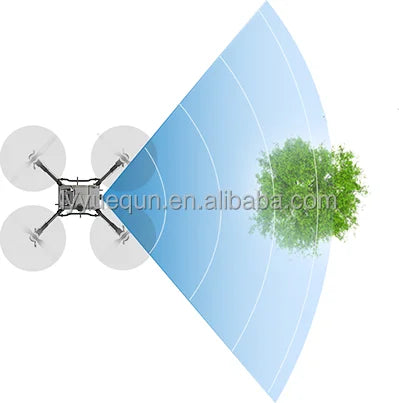

1.Ultra-far 40m automatic identification of obstacles, autonomous obstacle avoidance 2.Five beams imitate the ground, accurately follow the terrain 3.Front and rear 720P HD FPV, rear FPV can be flipped down to observe the ground

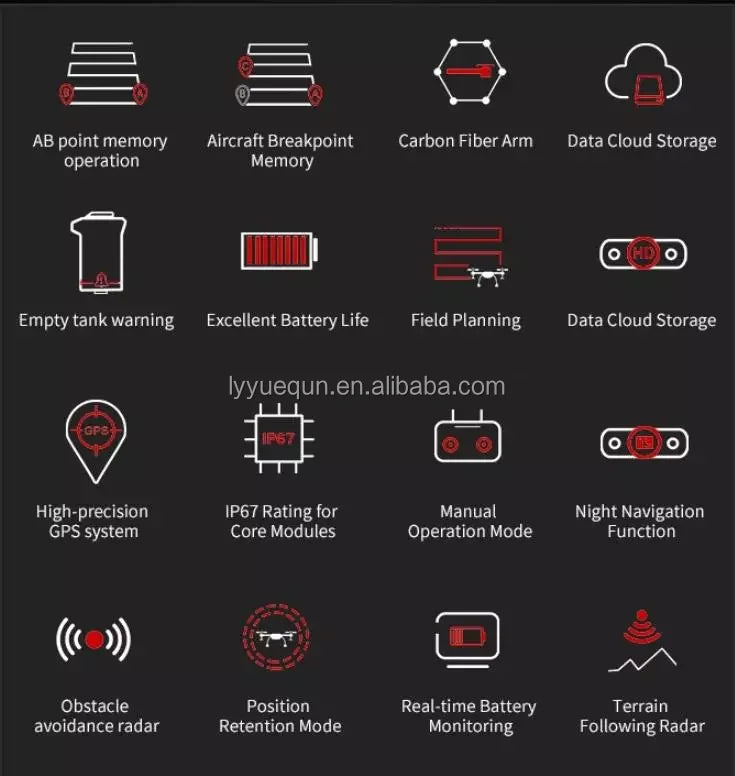

YUEQUN’s agricultural drone features advanced breakpoint technology, carbon fiber arm design, data cloud storage capabilities, memory for field planning, and an excellent battery life, along with an empty tank warning feature.
Our team was firstly established in 2009 and formally registered in 2015. With more than 10 years of experience in flight control development and manufacture, has expanding our technologies to produce UAV and peripherals including sensors, pods, apps, software and cloud service system. Our products are widely used for agricultural purposes, power line inspection, logistics, etc.

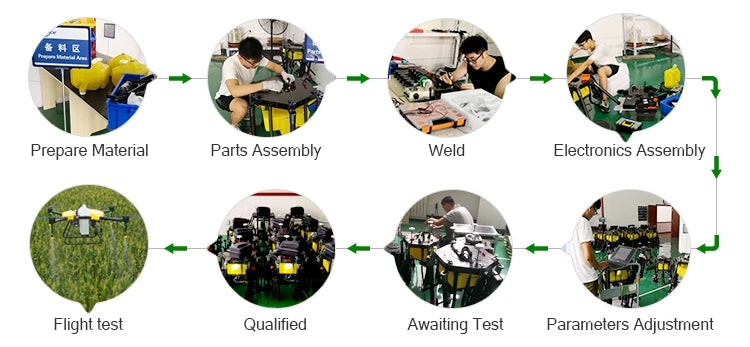

Six sets of materials are prepared for parts assembly, followed by welding and electronics assembly. The drone then undergoes flight testing to ensure qualification, pending final test parameters.
We’d love to collaborate with customers from around the globe to build a brighter future together.
A1: Yes, we are a professional manufacturer for agricultural sprayer drone, products including: agricultural sprayer drones, spreader drones. thermal fogger drones, Biocontrol control drone.
Q2. Is uav sprayer drone ready to fly?
A2: Yes.Before dispatch, we assembled all the parts and set all the parameters. Every drone is 100% flight tested and strict quality control.
Q3. What’s your MOQ of agricultural drone?
A3: MOQ ≥1. More than 100 units order is available. Besides, we are looking for dealers and agents all over the word. Welcome to contact us for more.
