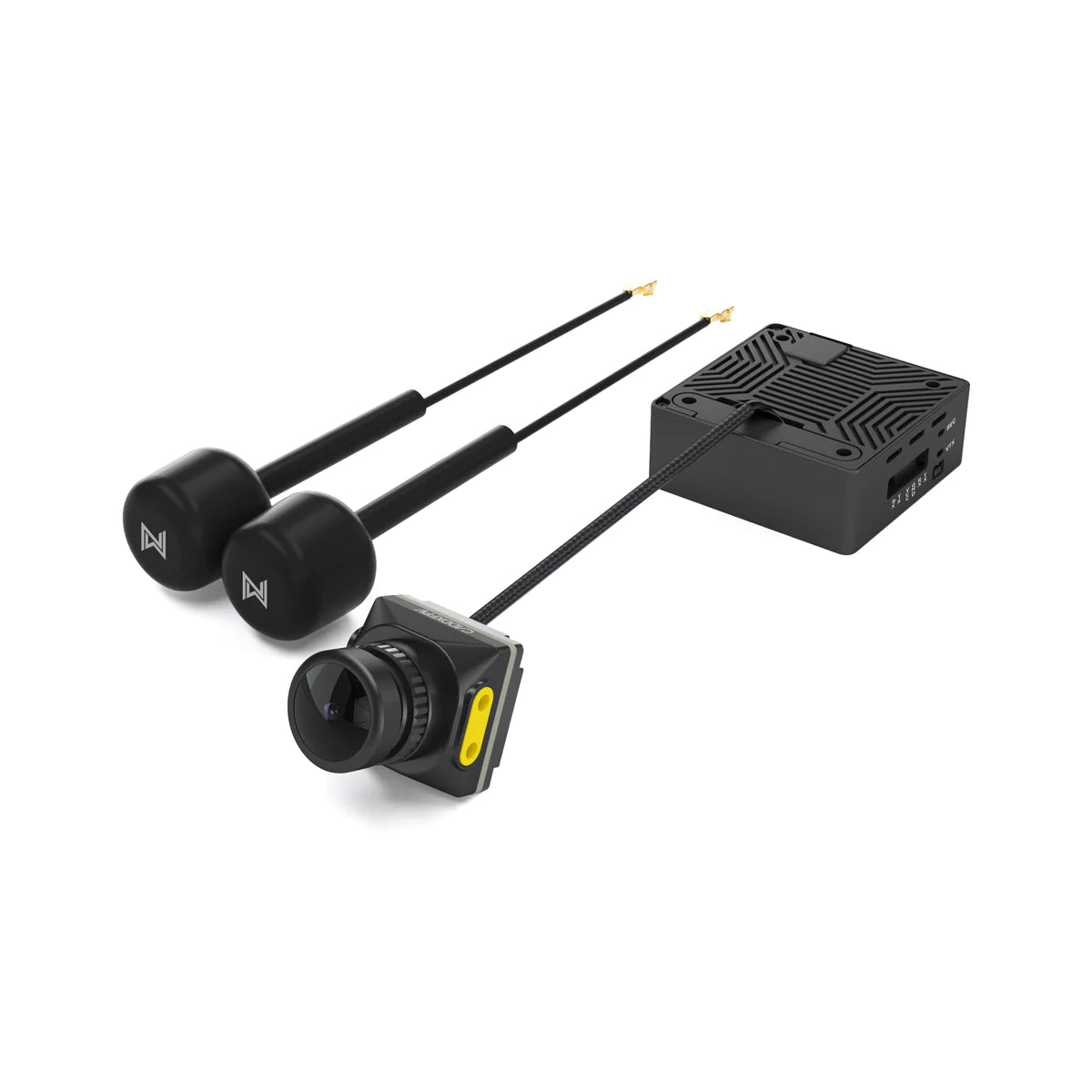

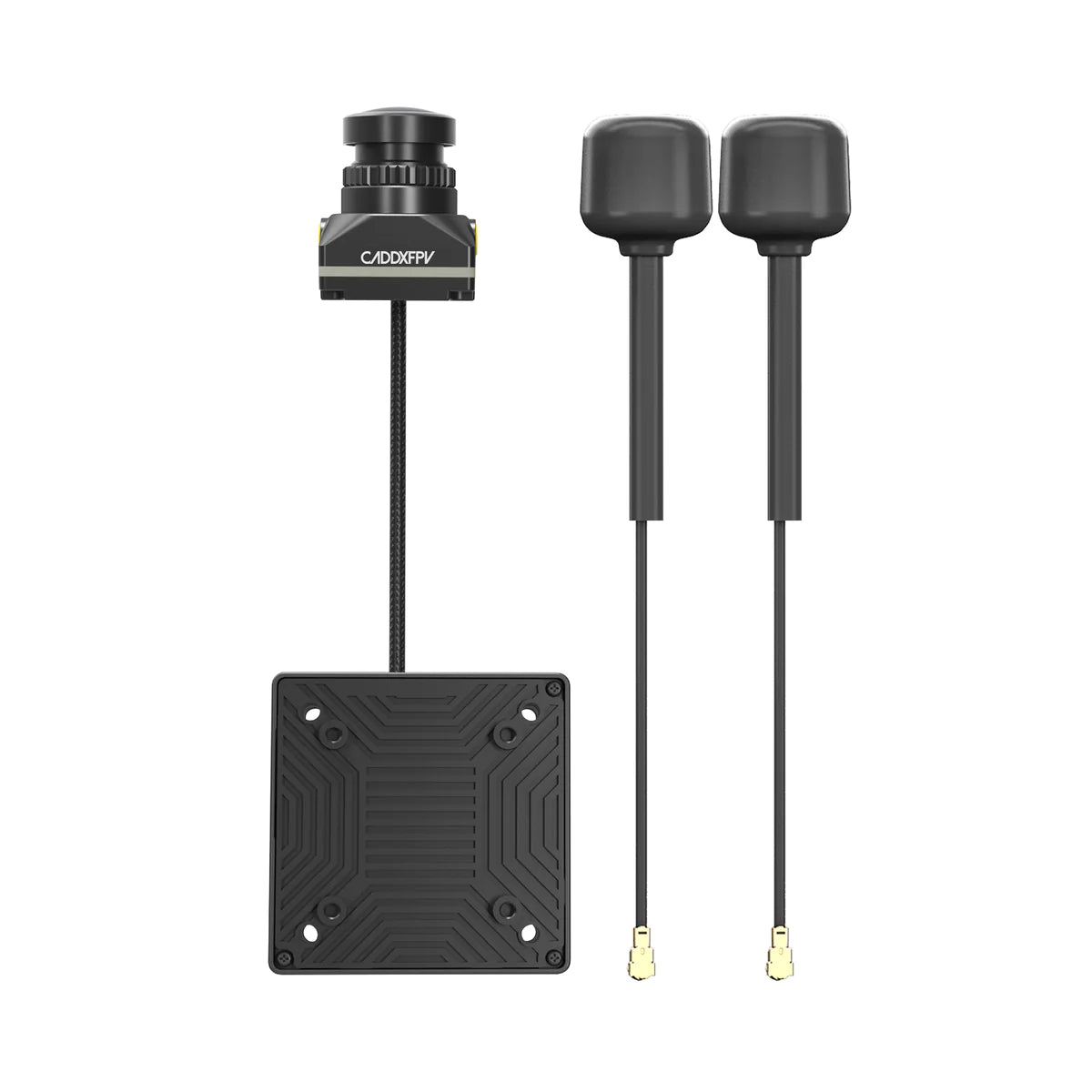

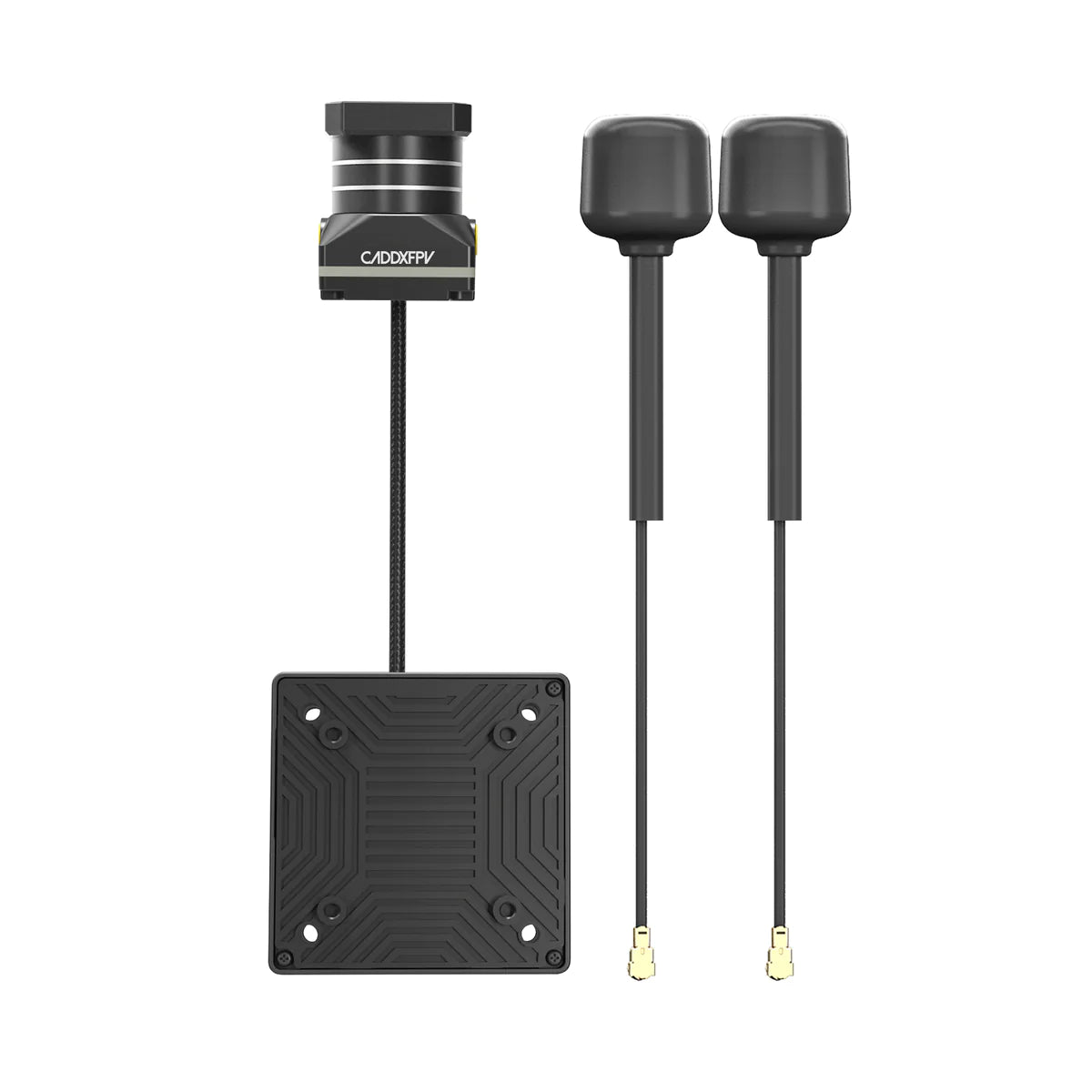

Walksnail Moonlight kit – 4K/60FPS Startlight Camera Built-in EIS FOV 160° Dual Antennas FPV VTX Video Transmitter System

$225.00

+ Free Shipping
Default Title
Default Title
Clear
SKU: N/A Category:

features:

●4k/60FPS Startlight Camera
●Built-in EIS Support Gyroflow
●Sd card ●FOV 160°
Dual Antennas ●7.4V-25.2V
Walksnail Moonlight kit, MOONLIGHT KIT 4KI6Ofps Startlight Built-in E



Bullet Points:

  • Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, bring pilots a smoother FPV experience.
Walksnail Moonlight kit, shooting stable and HD videos without unnecessary latency, bring pilots a smoother FP

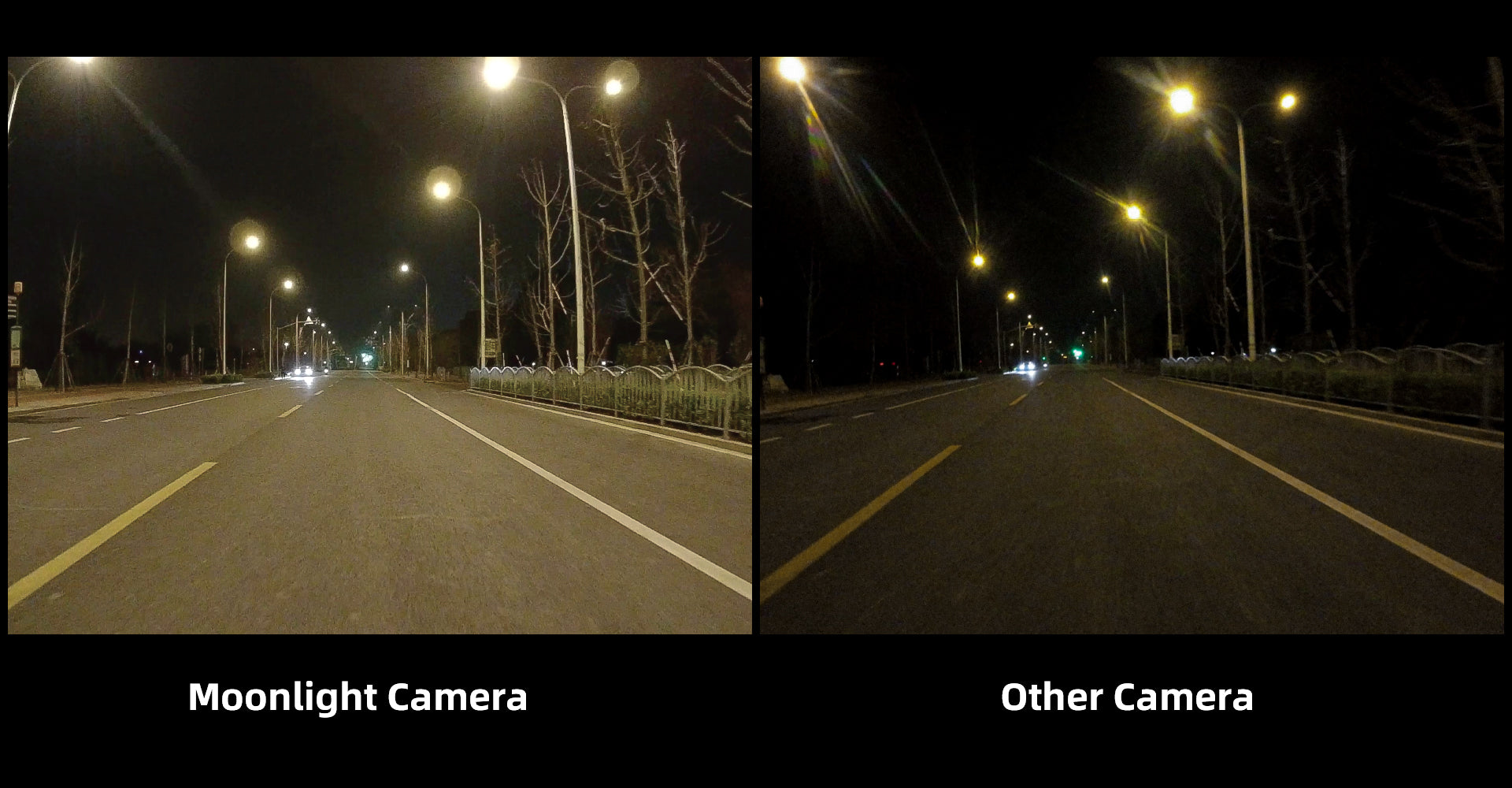

  • Feature starlight sensor, to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.
Walksnail Moonlight kit, Moonlight Camera Other


  • Built-in EIS and supports Gyroflow technology, taking you a smooth and stable video quality, to facilitate and enjoy freestyle fly.
Walksnail Moonlight kit, moonlight camera has a 160° FOV, providing you with a more natural and


  • Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.

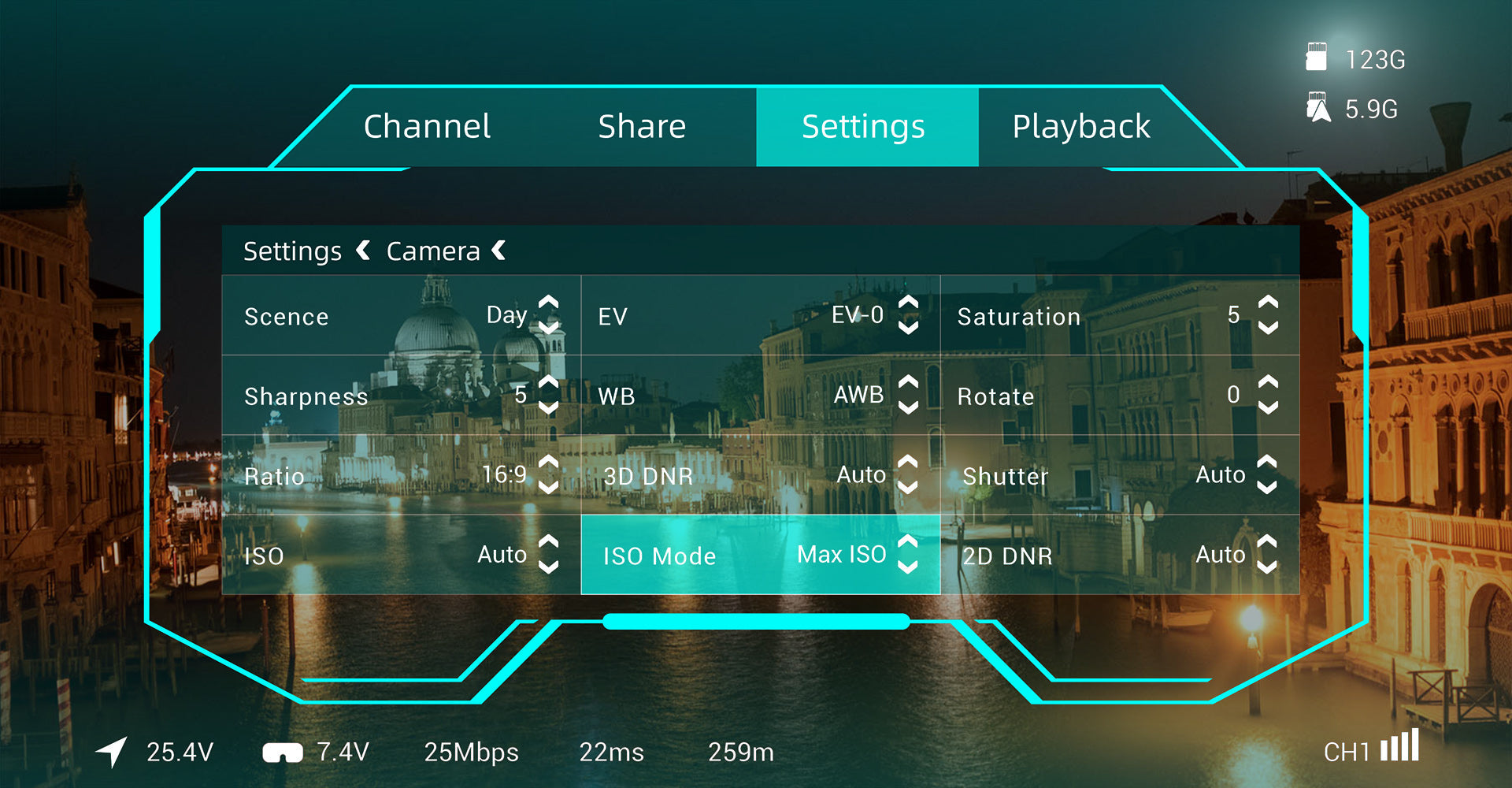

  • Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.
Walksnail Moonlight kit, 123G 5.96 Channel Share Settings Playback Settings Camera Scence Day EV EV

123G 5.96 Channel Share Settings Playback Settings Camera Scence Day EV EV-0 Saturation 5 * Sharpness WB AWB Rotate Ratio 16.9 3D DNR Auto Shutter Auto ISO Auto ISO Mode Max ISO 2d DNR auto 25.4V 7.4V 25Mbps 22ms 259m CHI I


  • The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.

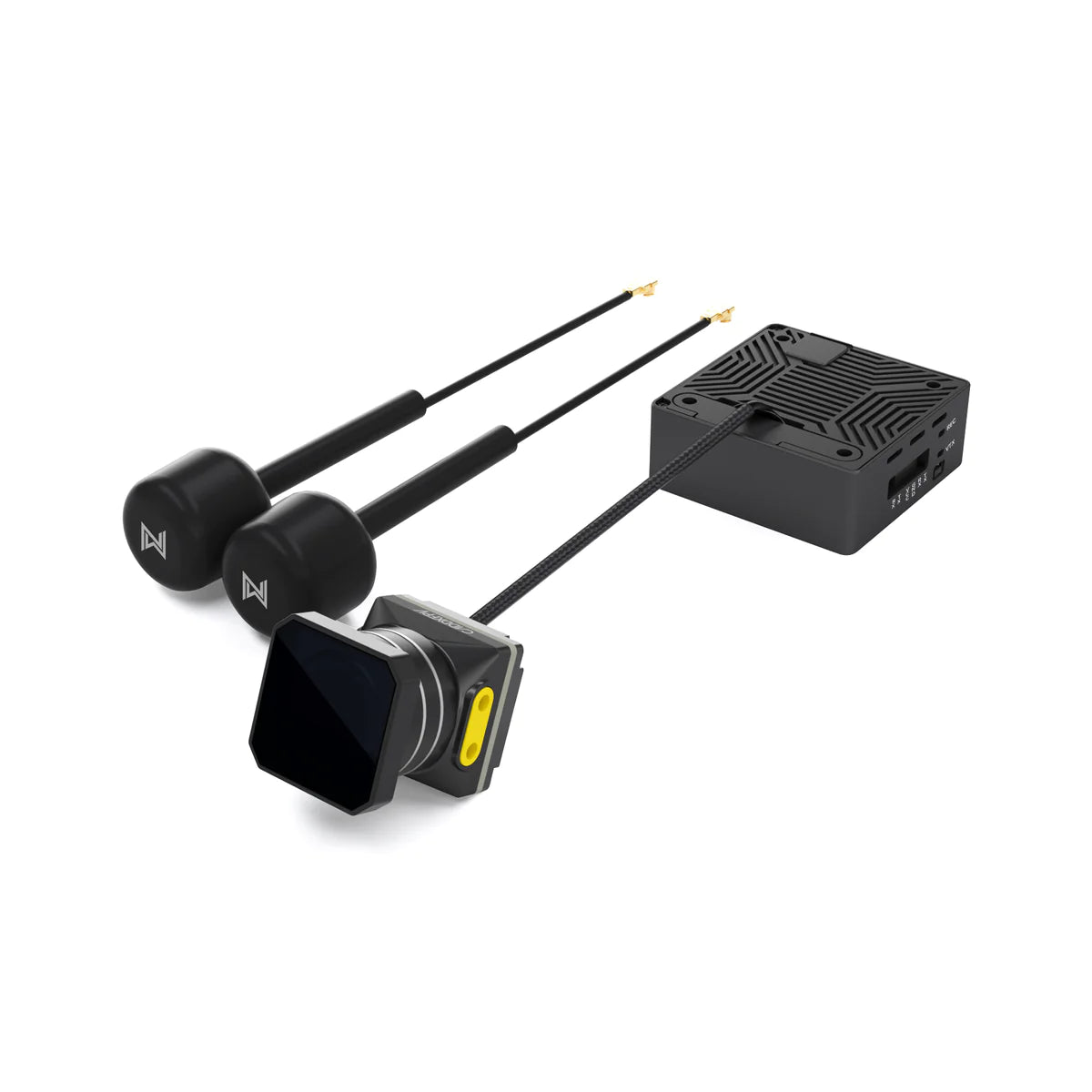

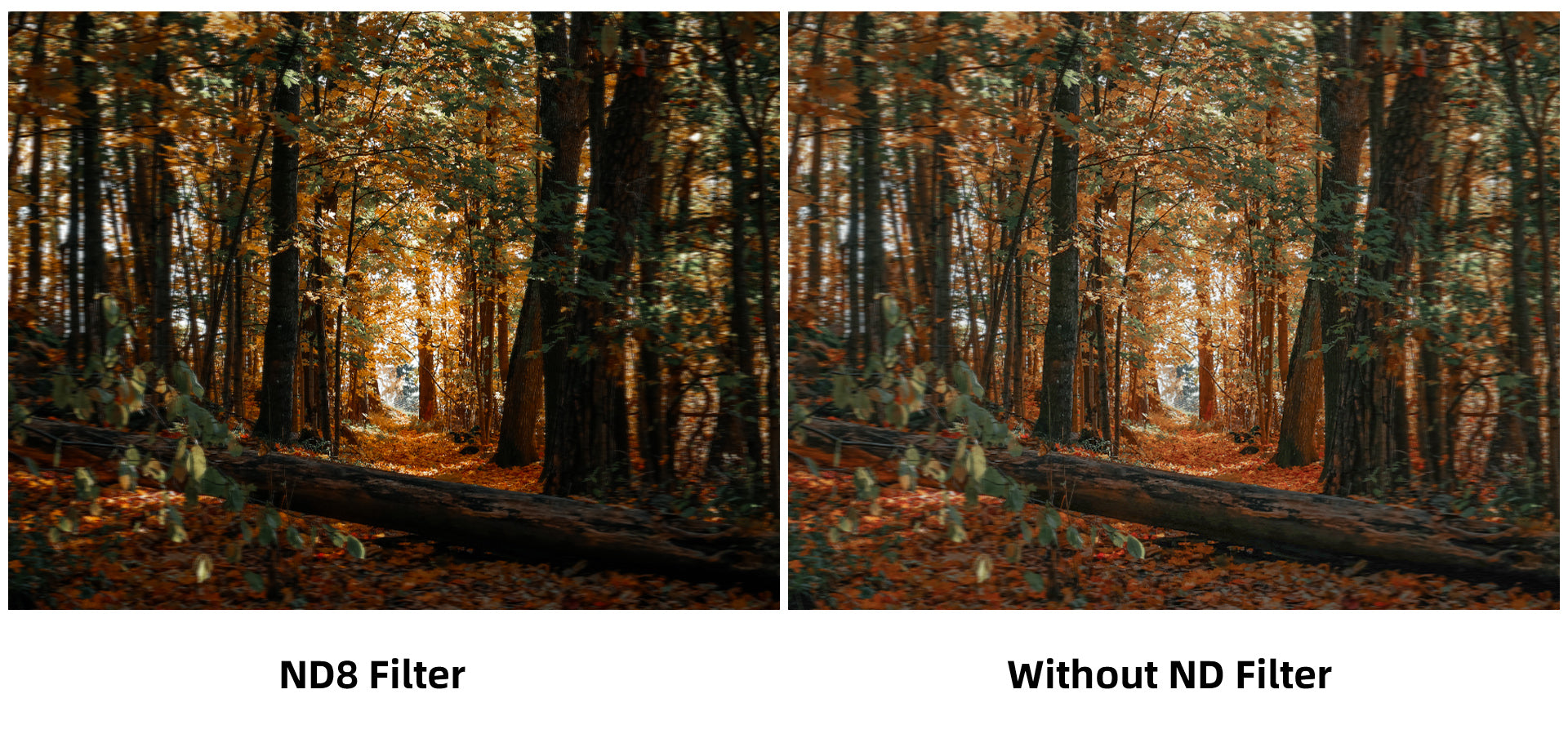

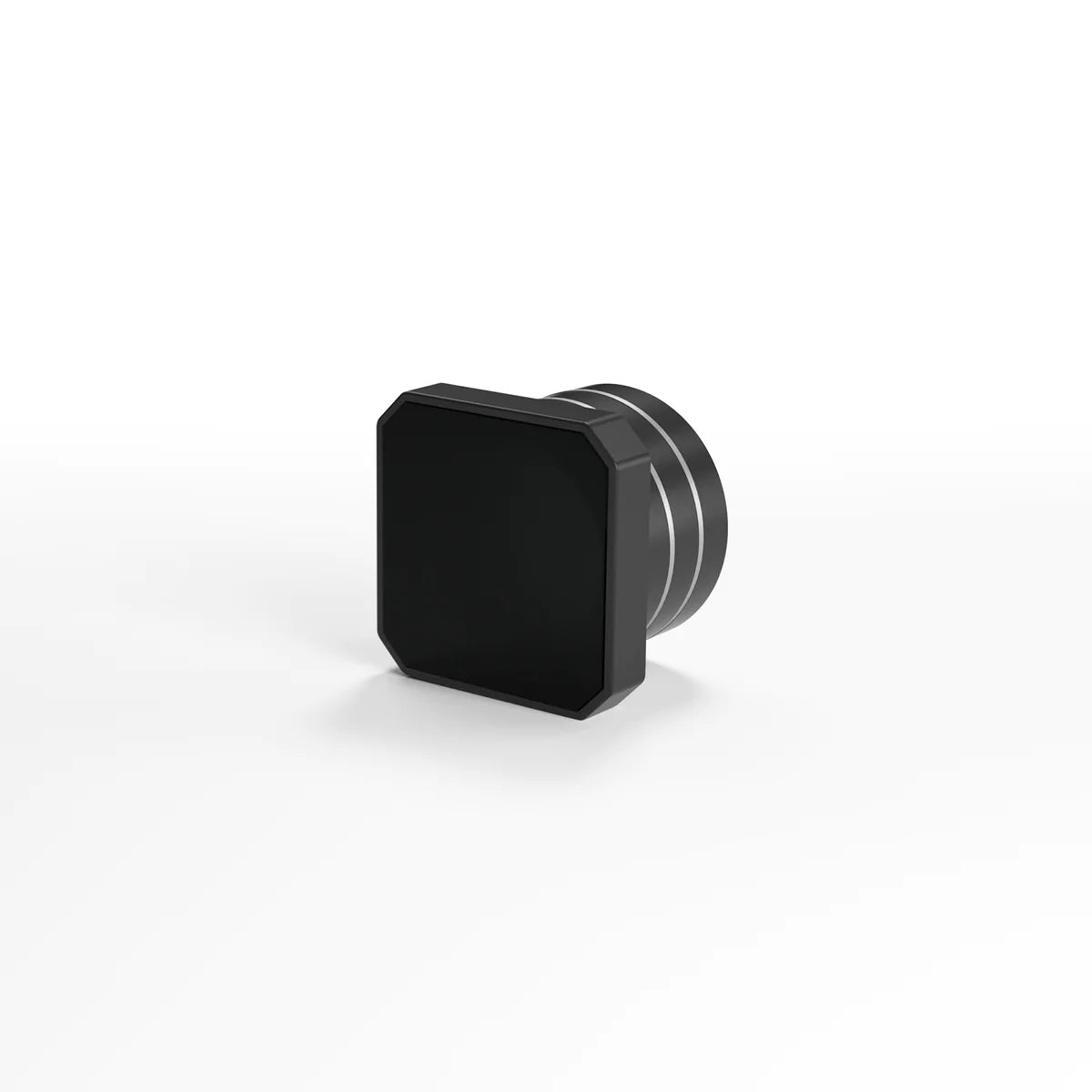

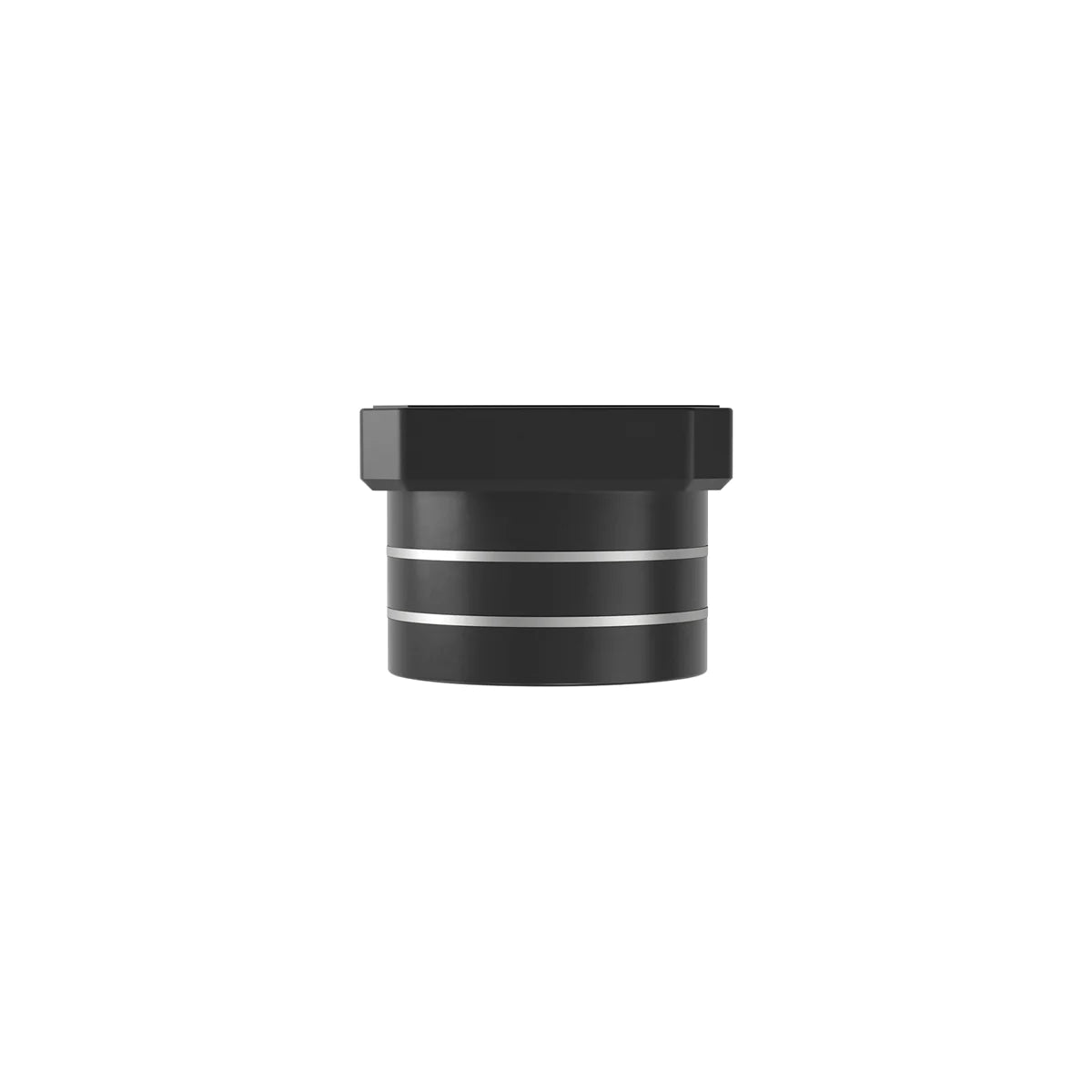

  • Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.
Walksnail Moonlight kit, 4k/60fps  Startlight Camera Built

Walksnail Moonlight kit, shooting stable and HD videos without unnecessary latency, bring pilots a smoother FP

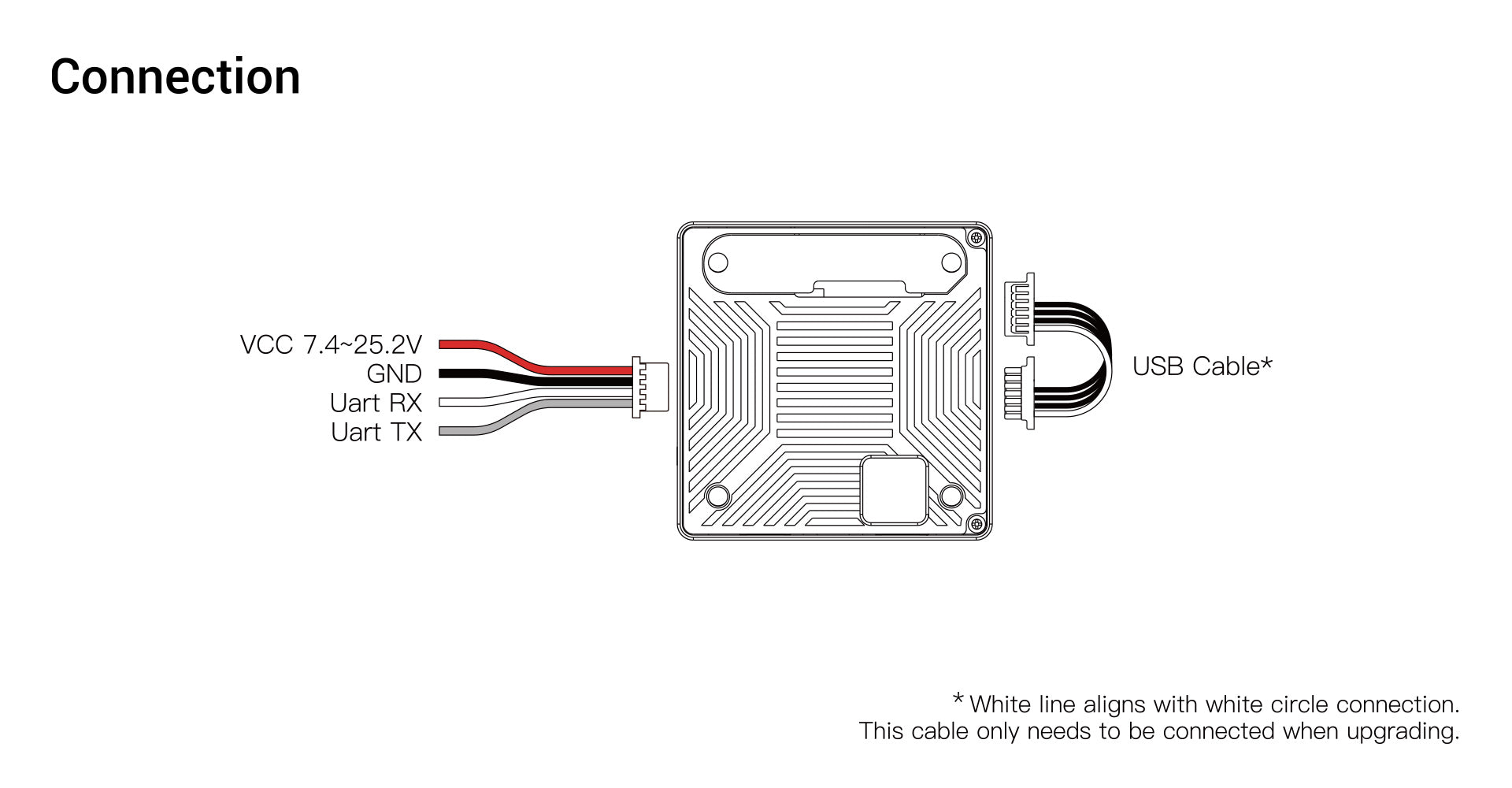

Walksnail Moonlight kit, Connection VCC 7.425.2V GND USB Cable* Uart RX U

Specification
Model Moonlight kit
Firmware name AvatarMoonlight_Sky_X.X.X
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
1/O Interface JST1.0*4(Power in)JST0.8*6(USB),Micro SD card Slot;IPEX-1
Sensor Starlight sensor
FOV Max 160°
Aperture F2.1
Shutter Rolling shutter
ISO 100-25600
Recording resolution 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
Max Mbps 150Mbps
Video format MP4 (H.264)
3D DNR Support
Gyroflow Support
Built-in EIS Support
Wide Power Input
7.4V-25.2V
Power consumption [email protected], [email protected]
Memory card type U3 MicroSD, Max 256G

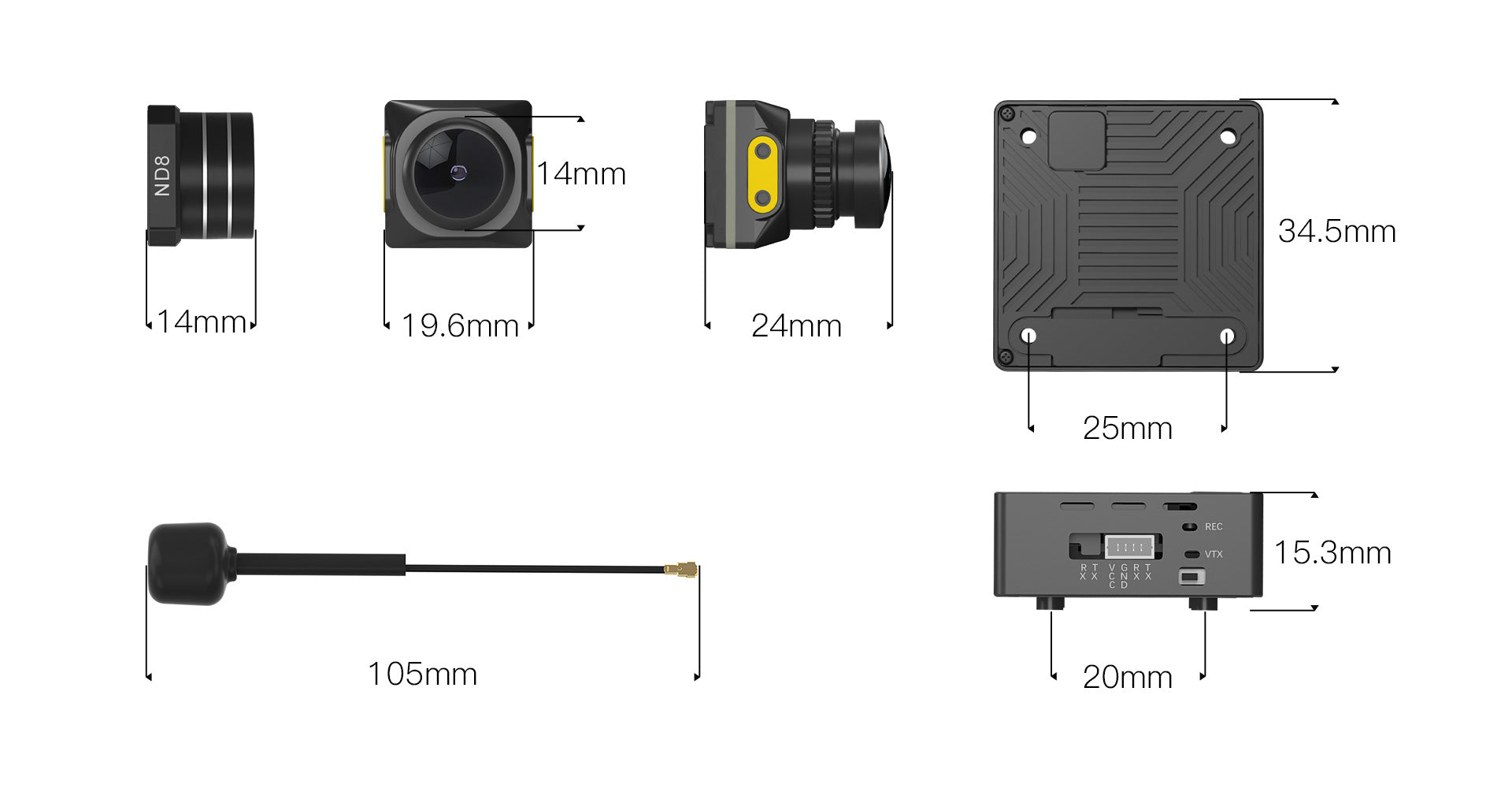

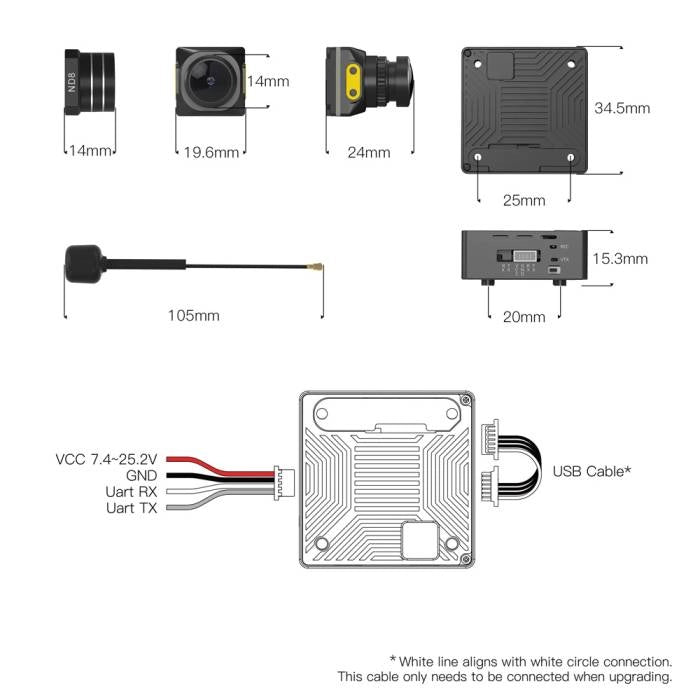

Camera size 19.6mm*19mm*24mm
VTX size 15.3mm*34.5mm*34.5mm
VTX Installation hole distance 20*20mm/25*25mm (M2)
Weight
38.5g(Antenna not included)
OSD Canvas mode
Latency Average delay 22ms
Antenna 2 (IPEX)
VTX Antenna
model avatar V2 antenna
Polarization LHCP
Frequency range 5600MHz-6000MHz
Average Gain 1.9dBi
VSWR <1.5
Input Impedance 50Ω
Interface IPEX-1
Dimension R15 X 45mm (without cable)
Weight 2g

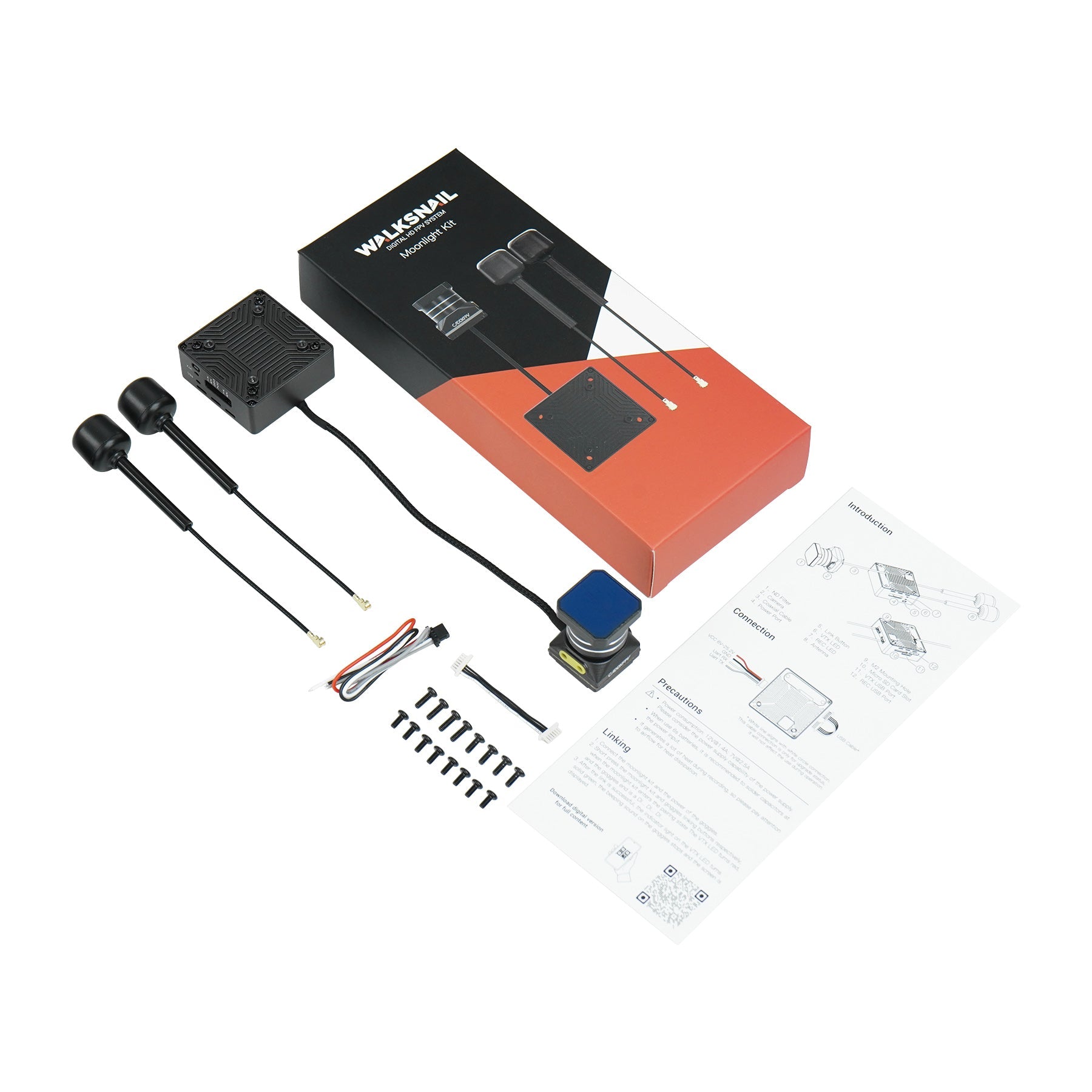

Packing List:

 Walksnail Moonlight kit, Digita Hotevsystem Moonlight Kit WD Introduction Connection W[ Precaution

WD Digita Hotevsystem Moonlight Kit 0n80 LKSNEIL Linking Dennlou Mladlou WD Introduction Connection W[ Precautions TttTttt Linking Denn
