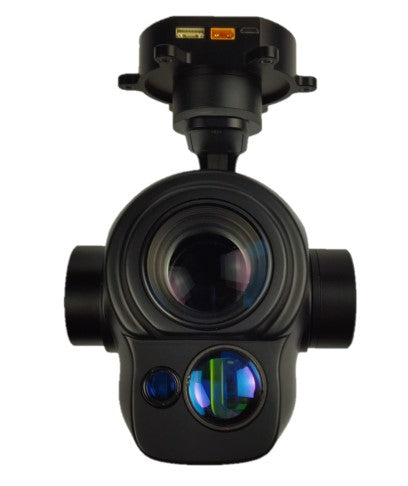

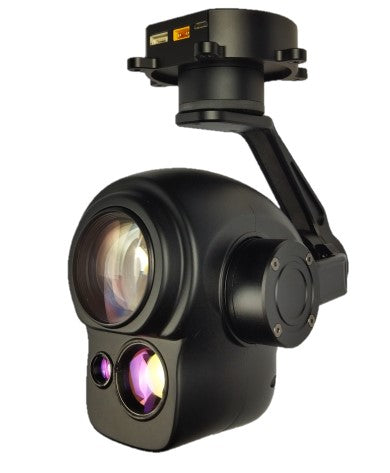

TOPOTEK SIP30L30A Dual Light Drone Gimbal
The SIP30L30A is a drone gimbal integrated with a 30x optical zoom and 3000m laser rangefinder, coupled with a 3-axis stabilized PTZ. It offers network output with standard RTSP video streaming and ground software support for gimbal zoom and attitude control. The PTZ adopts a high-precision encoder FOC control scheme, characterized by high stability, small size, lightweight, and low power consumption. The camera features a wide dynamic sensor with 2 million effective pixels, supporting 1080P local TF storage and network dual code stream transmission. Real-time ranging data can be obtained through network and serial port commands.

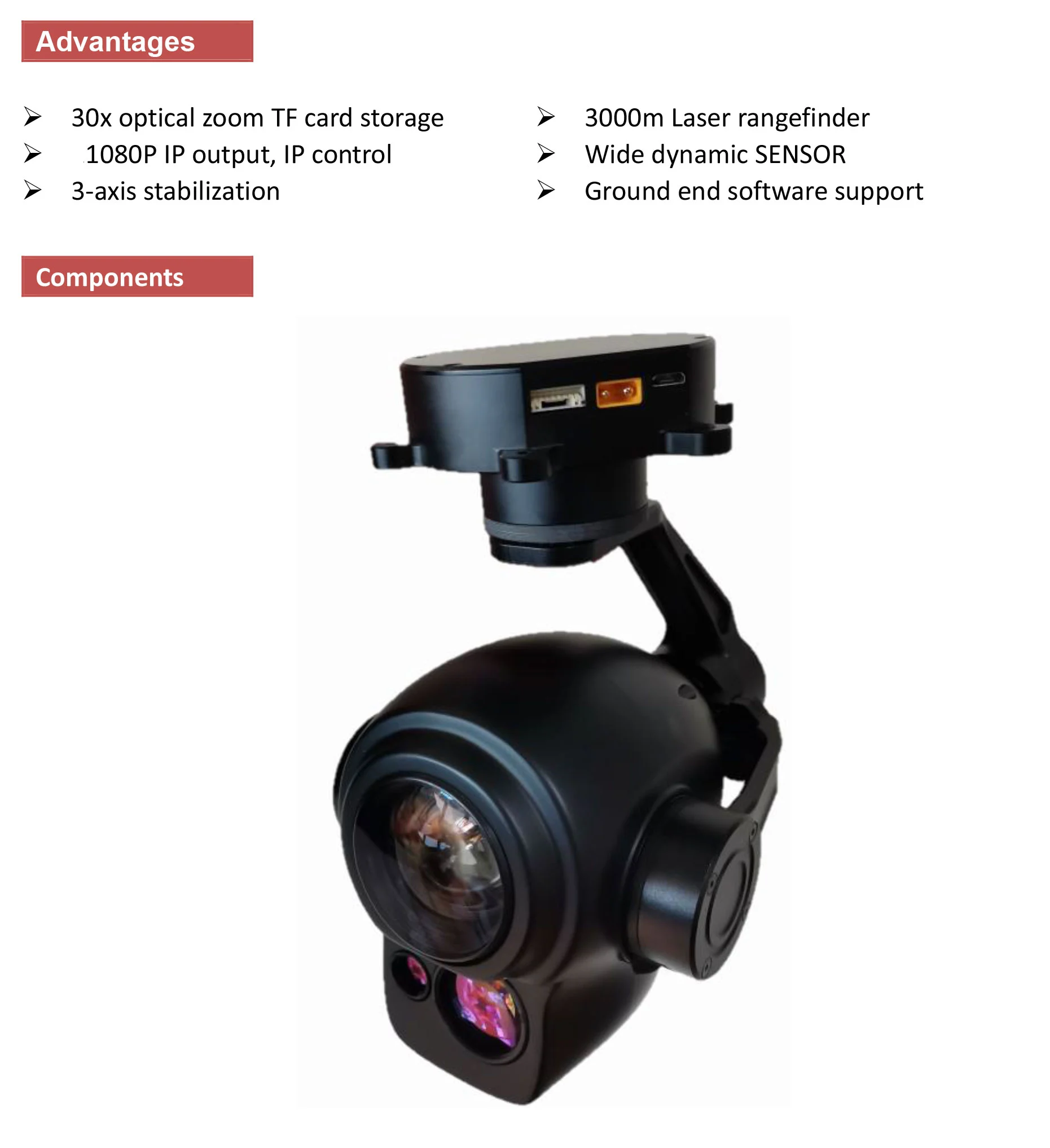

TOPOTEK SIP30L30A Advantages
- 30x optical zoom with TF card storage
- 3000m Laser rangefinder
- 1080P IP output, IP control
- Wide dynamic SENSOR
- 3-axis stabilization
- Ground end software support

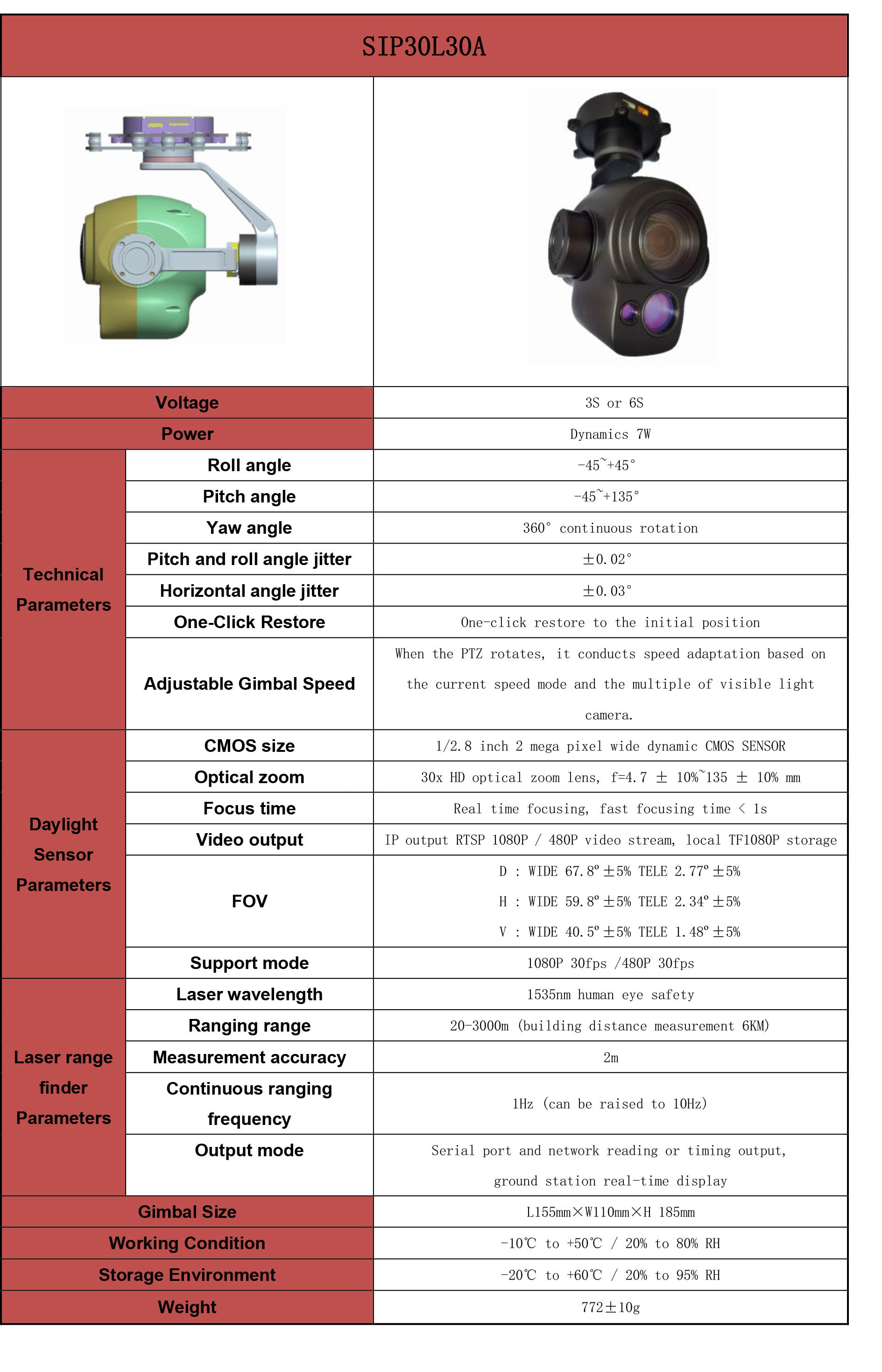

TOPOTEK SIP30L30A Technical Parameters
| Category | Parameter |
|---|---|
| Voltage | 3S or 6S |
| Power | Dynamics 7W |
| Daylight Sensor Parameters | |
| Roll angle | -45° ~ +45° |
| Pitch angle | -45° ~ +135° |
| Yaw angle | 360° continuous rotation |
| Pitch and roll angle jitter | ±0.02° |
| Horizontal angle jitter | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | Conducts speed adaptation based on the current speed mode and multiple of visible light camera |
| CMOS size | 1/2.8 inch 2 mega pixel wide dynamic CMOS SENSOR |
| Optical zoom | 30x HD optical zoom, f=4.7 ±10%~135 ±10% mm |
| Focus time | Real-time focusing, fast focusing time < 1s |
| Video output | IP output RTSP 1080P / 480P video stream, local TF 1080P storage |
| FOV | D: WIDE 67.8°±5%, TELE 2.77°±5%<br>H: WIDE 59.8°±5%, TELE 2.34°±5%<br>V: WIDE 40.5°±5%, TELE 1.48°±5% |
| Support mode | 1080P 30fps / 480P 30fps |
| Laser range finder Parameters | |
| Laser wavelength | 1535nm (human eye safety) |
| Ranging range | 20~3000m (building distance measurement 6KM) |
| Measurement accuracy | 2m |
| Continuous ranging frequency | 1Hz (can be raised to 10Hz) |
| Output mode | Serial port and network reading or timing output, ground station real-time display |
| Other Parameters | |

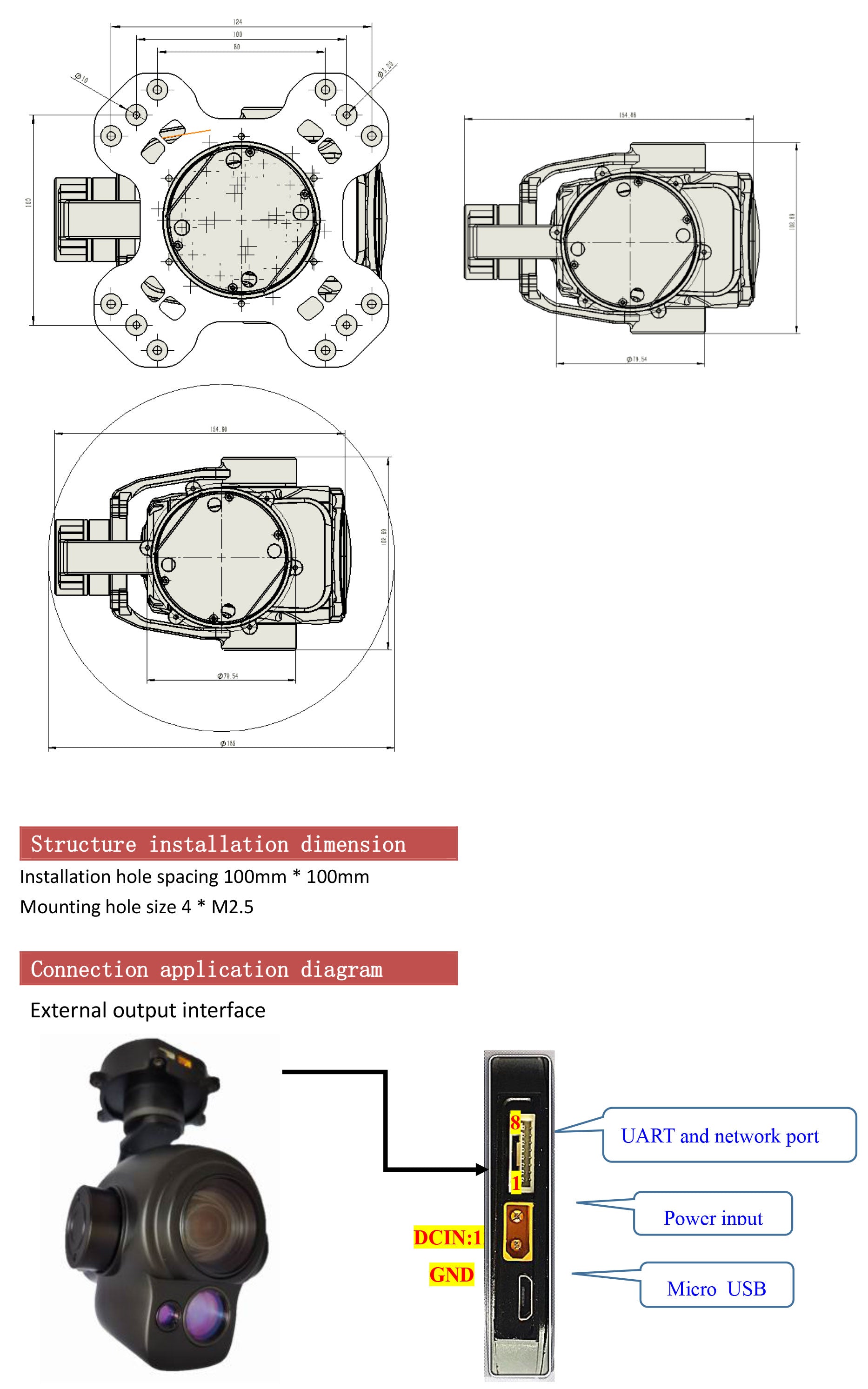

| Gimbal Size | L155mm x W110mm x H185mm |
| Working Condition | -10℃ to +50℃ / 20% to 80% RH |
| Storage Environment | -20℃ to +60℃ / 20% to 95% RH |
| Weight | 772g ±10g |
