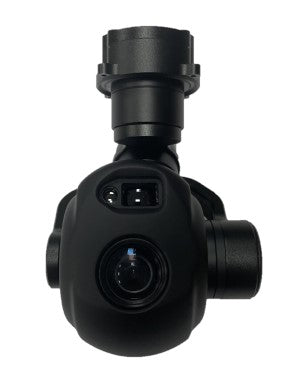

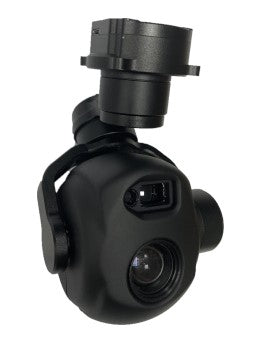

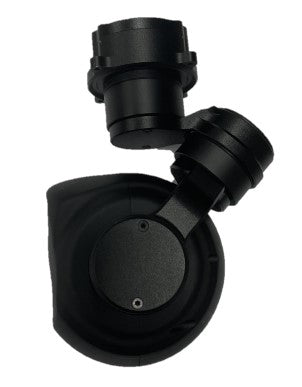

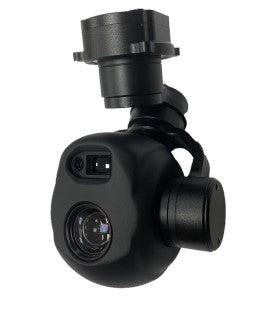

TOPOTEK SIP10L11A 10xOptical Zoom Camera
The TOPOTEK SIP10L11A is a high-precision gimbal camera system designed for UAV aerial photography. It integrates a 10x optical zoom camera and a 1100m laser ranging module, featuring a high-precision 3-axis stabilization pod. This system is equipped with network IP output and IP control, ensuring high stability, small size, light weight, and low power consumption. The camera utilizes a low illumination CMOS sensor with 4 million effective pixels, supporting network RTSP code stream output, synchronous control of the camera and head, and local TF storage.
TOPOTEK SIP10L11AÂ Features
- 10x Zoom Visible Light
- 1100m Laser Ranging
- 170ms Low Latency RTSP Code Stream Output
- 3-Axis Stabilization Gimbals
- Network and UART Control
- Lightweight Gimbal of 370g
- Supports OSD Superposition
- TF Card Double Record, Network Reading and Writing
TOPOTEK SIP10L11A Specifications
| Parameter | Value |
|---|---|
| Technical Parameters | |
| Roll Angle | -45° ~ +45° |
| Pitch Angle | -45° ~ +135° |
| Yaw Angle | -300° ~ +300° rotation |
| Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | The speed adaption is carried out based on the current speed mode and the multiple of visible light camera. |
| Control Mode | Support network IP control and serial port control (optional SBUS and PWM control) |
| White Light Camera Parameters | |
| CMOS Size | 1/3 inch 4 megapixel with low illumination CMOS SENSOR |
| Zoom | 10x HD optical zoom lens f=4.9±10% ~ 49±10%mm |
| Focus | Real-time fast focusing function, focusing time <1S |
| Video Output | Network HD RTSP output 1080P, Video streaming local TF storage |
| Field of Vision (FOV) – D | Wide: 66.6°±5%, Tele: 7.2°±5% |
| Field of Vision (FOV) – H | Wide: 53.2°±5%, Tele: 5.3°±5% |
| Field of Vision (FOV) – V | Wide: 39.8°±5%, Tele: 4.2°±5% |
| Video Mode | 1080P 30fps |
| Laser Ranging | |
| Laser Ranging | 5m to 1000m |
| Accuracy (1m) | <400 |
| Accuracy (2m) | >400 |
| Laser Type | 905nm |
| Additional Parameters | |
| Gimbal Size | 89mm x 99mm x 139mm |
| Working Condition | -10°C to +45°C / 20% to 80% RH |
| Storage Environment | -20°C to +60°C / 20% to 95% RH |
| Application | Drone aerial photography |
| Weight | 370g |
