TOPOTEK KIP30S90 EO Gimbal Camera Specification
| Parameter | Specification |
|---|---|
| Voltage | 3S-6S (11V-24V) |
| Power | Dynamic 10W |
| Roll Angle | -85°~+85° |
| Pitch Angle | -90°~+90° |
| Yaw Angle | 360° continuous rotation |
| Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera. |
| Control Mode | Support network IP control and serial port control (SBUS and PWM control are optional) |
| CMOS Size | 1/2.8 Inch 2 Mega Pixels Wide Dynamic CMOS SENSOR |
| Focal Distance | 30x optical zoom lens, f=4.5±10%~135±10%mm |
| Digital Zoom | 9x Digital Zoom |
| AF Time | Real-time fast focusing, focusing time < 1s |
| Video Output | IP network output supports 4K, 1080P, and local TF storage |
| Field Angle (FOV) | D: WIDE 67.8° ±5% TELE 2.77° ±5% H: WIDE 59.8° ±5% TELE 2.34° ±5% V: WIDE 40.5° ±5% TELE 1.48° ±5% |
| IP Output Mode | 1080P 30fps |
| Working Frequency | 806-826MHZ |
| Wireless Power and Transmission Distance | 25dBm 10KM |
| Control Mode | IP, Serial port, PC side app mouse, key operation |
| Gimbal Size | 140mm×160mm×143mm |
| Working Condition | -10°C to +50°C / 20% to 80% RH |
| Storage Environment | -20°C to +60°C / 20% to 95% RH |
| Main Applications | UAV aerial photography |
| Weight | 655±10g |

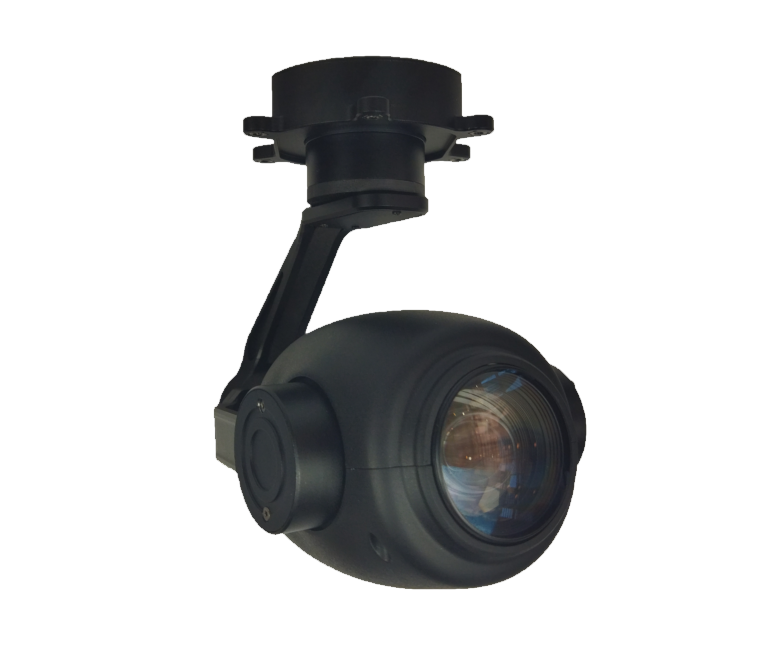

The KIP30S90 is a single EO gimbal payload integrated with a 30x optical zoom, 3-axis stabilized PTZ, and IP output. The ground receiving end IP outputs RTSP code streams, and the ground end software supports PTZ control and zoom camera control. The PTZ adopts a high-precision encoder FOC control scheme, offering high stability, small size, lightweight design, and low power consumption. The camera features a 2-megapixel wide dynamic CMOS sensor, supporting 1080P local TF storage and wireless transmission.
Advantages
- 30x Optical Zoom: Allows for detailed close-ups without losing image quality.
- Standard RTSP Stream Output: Ensures compatibility with various streaming applications.
- TF Card Storage: Facilitates convenient and expandable local storage.
- Follow / Lock Mode: Enhances tracking and focus capabilities.
- 170ms Low Latency: Provides near-instantaneous feedback and control.
- 9x Digital Zoom: Adds further flexibility in framing shots.
- Image and Data Use the Same IP: Simplifies network configuration and reduces the need for additional hardware.
- 3-Axis Stabilized Gimbal: Ensures smooth and stable footage, even in dynamic conditions.
- Lightweight at 655g: Easy to integrate into various platforms without adding significant weight.
Connection pin details: Power supply via 3S or 6S VIN (ground) with device structure dimensions: 16mm x 0.02mm x 143mm x 37mm x 40mm.
