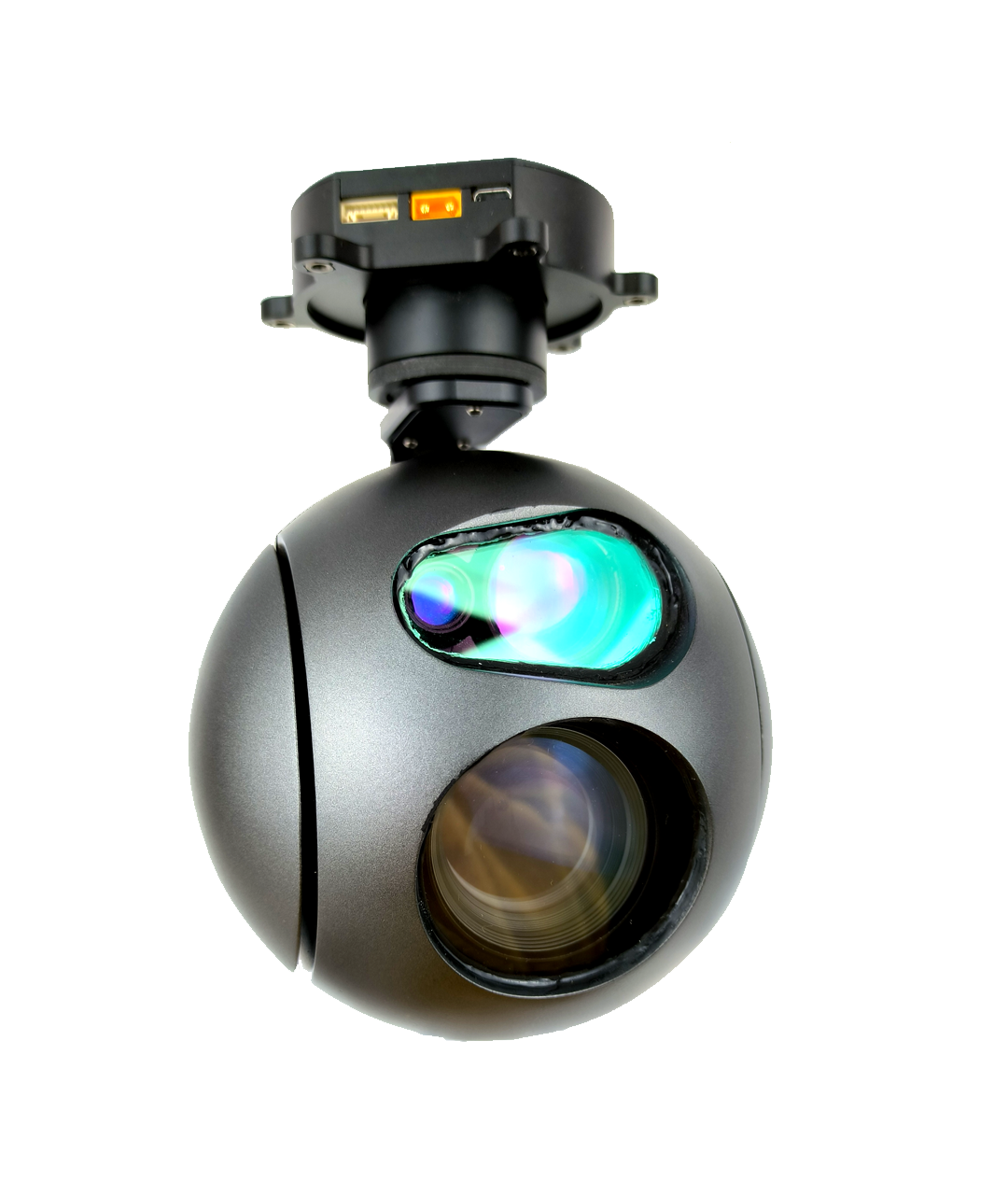

TOPOTEK KIP30L30A Dual Light Drone Gimbal
The TOPOTEK KIP30L30A is an advanced dual-optical integrated system featuring a 270x mixed optical zoom camera, a 3000m laser range finder, and a professional three-axis stabilization PTZ. This gimbal is designed for high stability, compact size, lightweight construction, and low power consumption. The visible light camera adopts a 2MP HD CMOS sensor and the system supports network IP and UART control, along with reading data from the laser range finder. It also supports local TF storage and network file read and write, providing robust ground station software.
TOPOTEK KIP30L30A Features
- 270x mixed optical zoom
- 3000m laser range finder
- High-precision encoder FOC control scheme
- Fast focusing
- IP output
- One TF card dual-recording, network read & write
Technical Parameters
| Parameter | Details |
|---|---|
| Voltage and Power Supply | DC 12V-26.2V, Dynamic 8W |
| Gimbal Feature | |
| Roll Angle Range | -45° to +45° |
| Pitch Angle Range | -45° to +120° |
| Yaw Angle Action Range | 360° Polar rotation |
| Mode | One click automatic quick return to the initial position lock/follow mode |
| Control Mode | The speed is adaptive and controllable, Support network IP and UART<br>Serial port control |
| Visible Light Camera | |
| CMOS Sensor | 1/2.8 inch 200MP effective pixels wide dynamic CMOS sensor |
| Optical Zoom | 30x HD optical zoom camera f=4.5±10%~135±5%mm |
| Focusing Time | Real-time focusing, fast focusing time <1s |
| Video Output | Network RTSP 1080P and 480P output, Video stream, local TF card storage |
| Field Angle (FOV) | D: WIDE 67.8°±5% TELE 2.77°±5%<br> H: WIDE 59.8°±5% TELE 2.34°±5%<br> V: WIDE 40.5°±5% TELE 1.48°±5% |
| Support Mode | 1080P 30fps |
| LRF | |
| Infrared Wavelength | 1535nm±5nm (class 1 safety laser) |
| Measuring Range | 20~3000m (not allowed to illuminate objects less than 20m) |
| Accuracy/Resolution | Accuracy≤±2m; Ranging resolutions≤20m |
| Size | 174mm×162mm |
| Working Condition | -20°C to +50°C / 20% to 80% RH |
| Storage Environment | -30°C to +60°C / 20% to 95% RH |
| Main Application | UAV aerial photography |
| Weight | 880 ± 10g |
