TOPOTEK KIP10G613 Overview

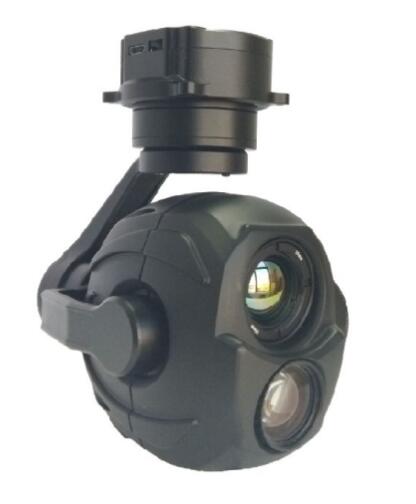

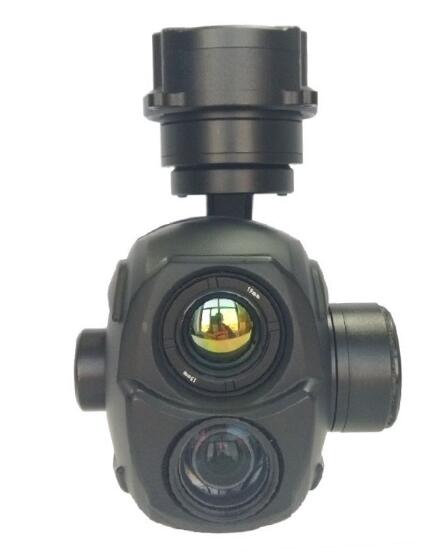

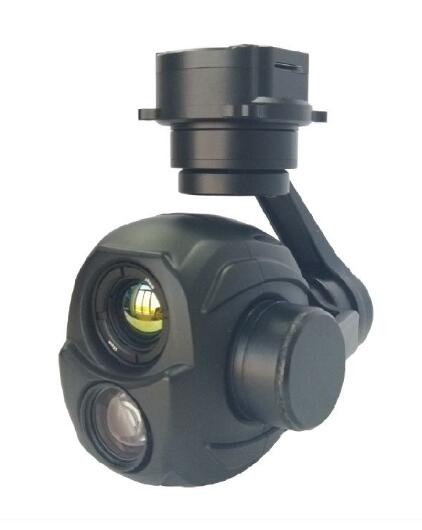

The KIP10G613 is an integrated 90x mixed zoom camera with a resolution of 2592×1560. It features a 13mm focal length 640×512 resolution thermal imaging module and a high-precision professional three-axis stabilized gimbal. The enhanced pod zoom dual optical integration system uses network IP output and PFO adopts a high-precision encoder FOC control scheme, offering high stability, small size, lightweight, and low power consumption. The system supports four picture-in-picture modes, ten pseudo-color displays, and global temperature measurement functions. Both the serial port and the network can control the camera and PTZ, and the local TF card supports dual recording and photographing.
TOPOTEK KIP10G613 Features
- 90x mixed zoom
- 640×512 Thermal imager
- Four Picture-in-Picture modes
- 3-Axis stabilized gimbal
- IP and UART control
- Lightweight gimbal, 430g
- TF card double recording
- Ten pseudo color modes
TOPOTEK KIP10G613 Specifications
| Parameter | Details |
|---|---|
| Voltage | DC 12V-26.2V |
| Power Supply | Dynamic 7.5W |
| Working Status | |
| Roll angle action range | -45° to +45° |
| Pitch angle action range | -45° to +120° |
| Yaw angle action range | -280° to +280° |
| Pitch and Roll Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| PTZ control speed adjustable | When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera. |
| Visible Light Camera | |
| SENSOR | 1/3 inch 4 mega effective pixels CMOS SENSOR |
| Optical Zoom | 10x HD optical zoom lens, f=4.9±10%~49±10%mm |
| AF Time | Real time fast focusing, focusing time < 1s |
| Video Output | IP HD RTSP output 1080P, video stream local TF storage |
| Local Record | Local TF record, H.264/H265, 1080P video stream |
| Field Angle (FOV) | D: WIDE 66.6°±5% TELE 7.2°±5%<br> H: WIDE 53.2°±5% TELE 5.3°±5%<br> V: WIDE 39.8°±5% TELE 4.2°±5% |
| Support Mode | 1080P 30fps |
| Thermal Imagery | |
| Resolution | 640 x 512 pixels |
| Pixel spacing | 12μm |
| Type | Uncooled vanadium oxide |
| Wavelength range | 8~14μm |
| Thermal sensitivity (NETD) | ≤65mk@30°C |
| Video output | Network IP output |
| Field angle | 13mm lens, FOV: 32.9° x 26.6° |
| Measurement function (optional) | Center point, Lowest and Highest temperature display; Support global temperature measurement |
| Device Size | Φ: 138mm H: 140mm |
| Work Condition | -10°C to +55°C / 20% to 80% RH |
| Storage Condition | -20°C to +60°C / 20% to 95% RH |
| Mainly usage | For UAV aerial photography |
| Weight (Not including dampers) | 430 ± 10g |
