TOPOTEK KHP335G609 Overview

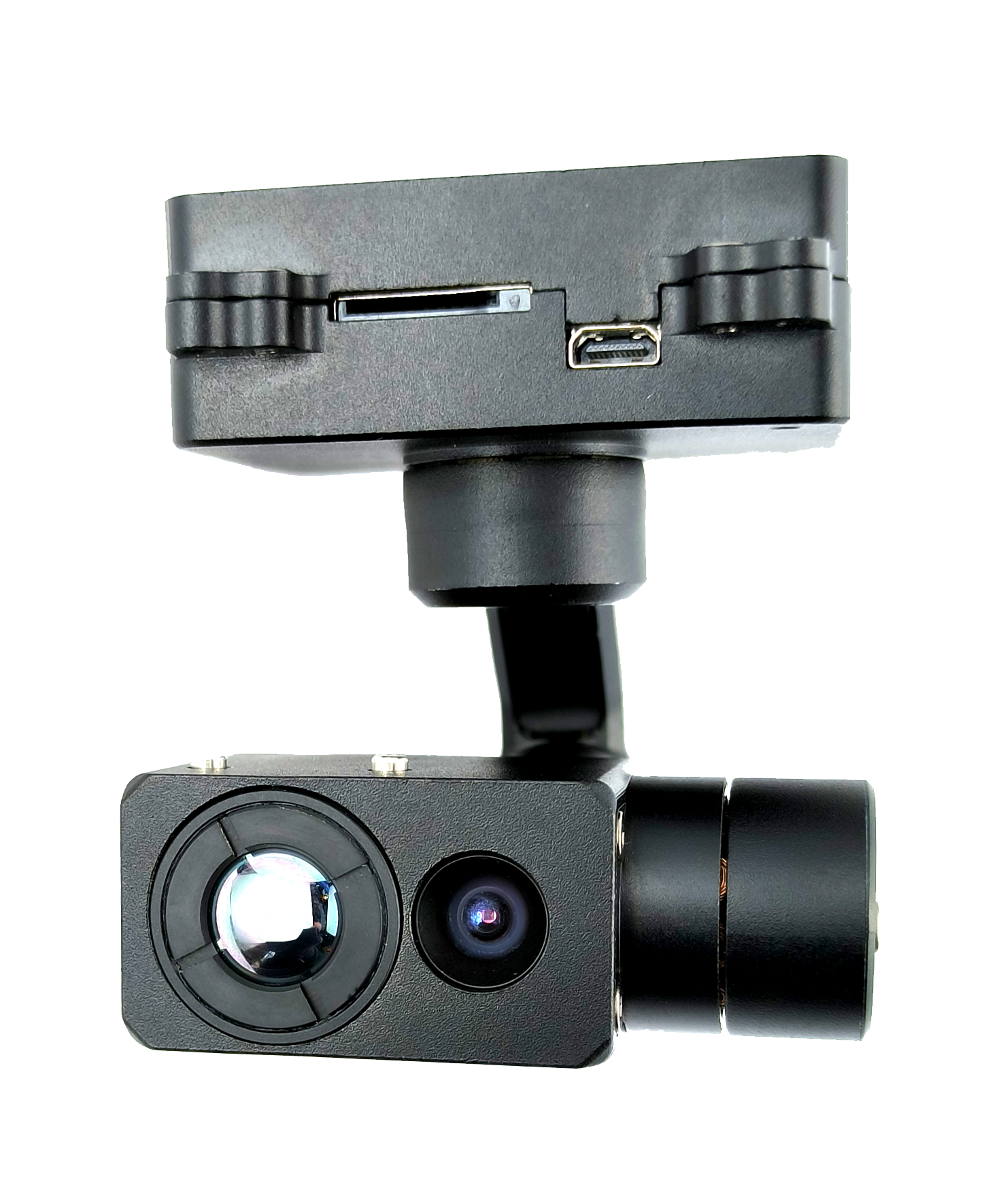

The TOPOTEK KHP335G609 is a dual-light drone gimbal, integrating a fixed-focus visible light camera with a 4MP CMOS sensor, a 640×512 resolution thermal imaging module, and a high-precision professional 3-axis stabilized PTZ system. Designed for UAV aerial photography, it excels in applications requiring high stability, compact size, lightweight construction, and low power consumption.
This gimbal supports both network IP and HDMI dual output, ensuring seamless integration with various control systems. The visible light camera delivers sharp and detailed images, while the thermal imaging module employs a vanadium oxide detector for precise thermal measurements. The system supports network RTSP stream output, picture-in-picture switching, multiple pseudo-color displays, and global temperature measurement. Both the serial port and the network can control the cameras and PTZ, and the system supports local TF two-way video recording and photography. With a 9x digital zoom, targets become more visible, and the thermal imaging lens has a focal length of 9.1mm for detailed thermal imaging.
TOPOTEK KHP335G609 Advantages
- Fixed focus visible light
- 640×512 IR camera
- 10 modes for pseudo color
- HDMI and IP interface dual output
- 9x digital zoom
- 4 modes for PIP (Picture-in-Picture)
- Network and UART control
- 3-axis stabilized gimbal, 120g
TOPOTEK KHP335G609 Specifications
| Parameter | Details |
|---|---|
| Voltage | DC 12V-26.2V |
| Power | Dynamic 4W |
| Technical Parameters | |
| Roll Angle | -45° to +45° |
| Pitch Angle | -30° to +90° |
| Yaw Angle | -150° to +150° |
| Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera. |
| Control Mode | Support network IP UART control (SBUS and PWM are optional) |
| Daylight Sensor Parameters | |
| SENSOR | 4 Mega Pixels CMOS SENSOR |
| Digital Zoom | 9x |
| Compressed Storage Mode | H264, H265, video stream local TF storage |
| FOV | FOV: 92° x 59° |
| HDMI Video | Micro-D HDMI 1080P 30fps |
| IP Output Mode | 1080P 30fps |
| Thermal Imager Parameters | |
| Resolution | 640×512 |
| Pixel Spacing | 12μm |
| Type | Uncooled vanadium oxide detector |
| Wavelength Range | 8~14μm |
| NETD | ≤50mk@F1.0@25°C |
| Field Angle | 9.1mm Lens, Angle: 45.8° x 37.3° |
| Measurement Function (Optional) | Support global temperature measurement, optional full pixel temperature storage function |
| Gimbal Size | Φ: 120mm H: 65mm |
| Working Condition | -10°C to +55°C / 20% to 80% RH |
| Storage Environment | -20°C to +60°C / 20% to 95% RH |
| Main Applications | UAV aerial photography |
| Weight | 120 ± 10g |
