KHP30S90 is a 30x optical zoom camera, 3-axis IP/HDMI gimbal. It outputs the RTSP stream video, video display, and camera & gimbal controlled by the ground software station. It is stable, light in weight, and low power consumption. It has 1080p 30fps HD output, 2MP resolution, local TF card storage, dual video stream output by the wireless transfer, IP support.
Advantages：
- 30x zoom camera, 9x digital zoom
- 1080P IP/HDMI output & control
- 3-axis stabilizer
- 170ms low delay video
- TF card storage
- Ground control software support

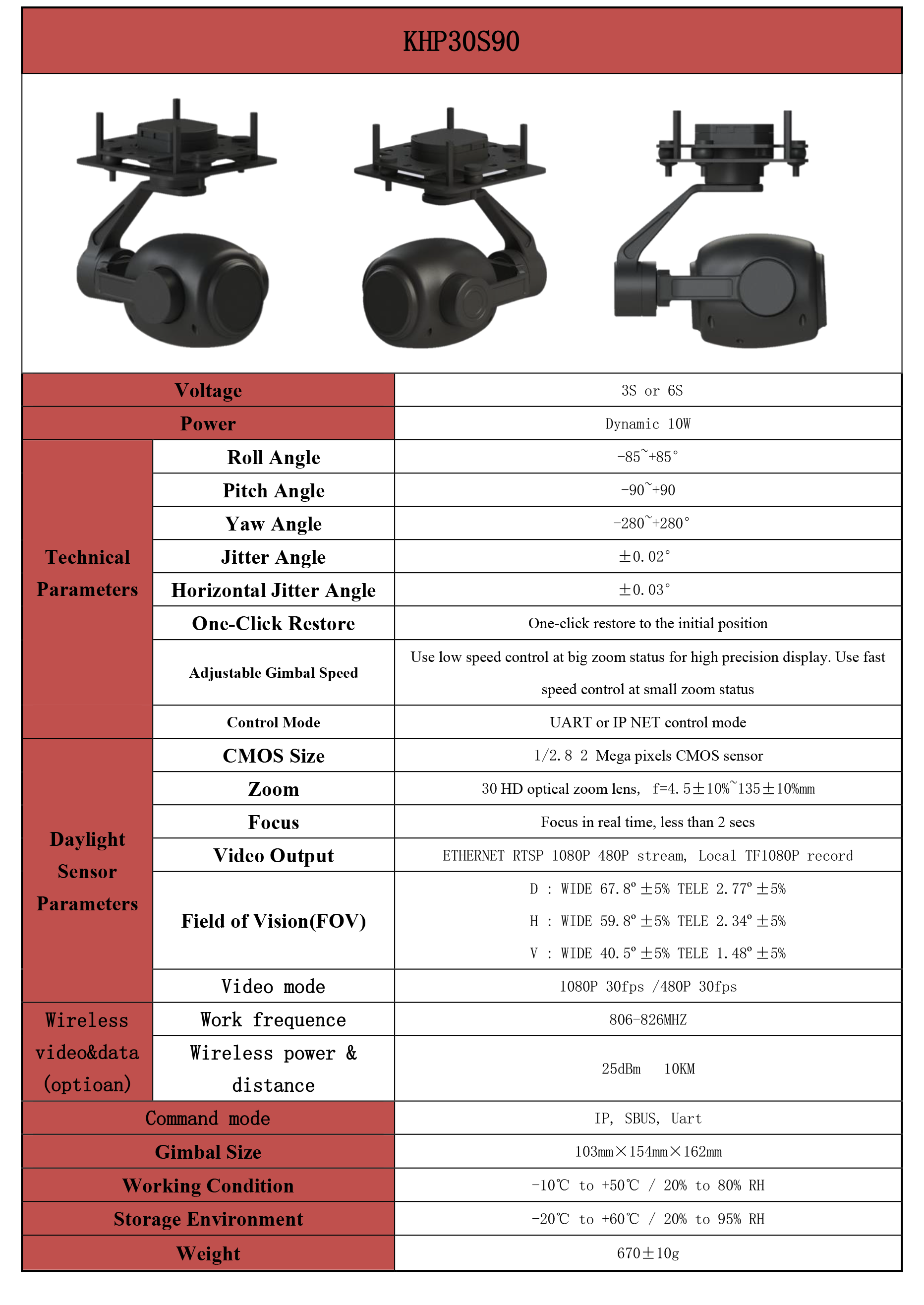

TOPOTEK KHP30S90 Specifications
| Technical Parameters | |
|---|---|
| Voltage | 3S or 6S |
| Power | Dynamic 10W |
| Roll Angle | -85° ~ +85° |
| Pitch Angle | -90° ~ +90° |
| Yaw Angle | -280° ~ +280° |
| Jitter Angle | ≤0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | Use low speed control at big zoom status for high precision display. Use fast speed control at small zoom status |
| Control Mode | UART or IP NET control mode |
| CMOS Size | 1/2.8 2 Mega pixels CMOS sensor |
| Zoom | 30 HD optical zoom lens, f=4.5 ±10% ~ 135 ±10% mm |
| Focus | Focus in real time, less than 2 secs |
| Video Output | ETHERNET RTSP 1080P 480P stream, Local TF 1080P record |
| Field of Vision (FOV) | |
| D: WIDE 67.8° ±5% TELE 2.77° ±5% | |
| H: WIDE 59.8° ±5% TELE 2.34° ±5% | |
| V: WIDE 40.5° ±5% TELE 1.48° ±5% | |
| Video mode | 1080P 30fps / 480P 30fps |
| Wireless video & data (optional) | |
| Work frequence | 806-826MHz |
| Wireless power & distance | 25dBm 10KM |
| Command mode | IP, SBUS, UART |
| Gimbal Size | 103mm x 154mm x 162mm |
| Working Condition | -10°C to +50°C / 20% to 80% RH |
| Storage Environment | -20°C to +60°C / 20% to 95% RH |
| Weight | 670g ±10g |
