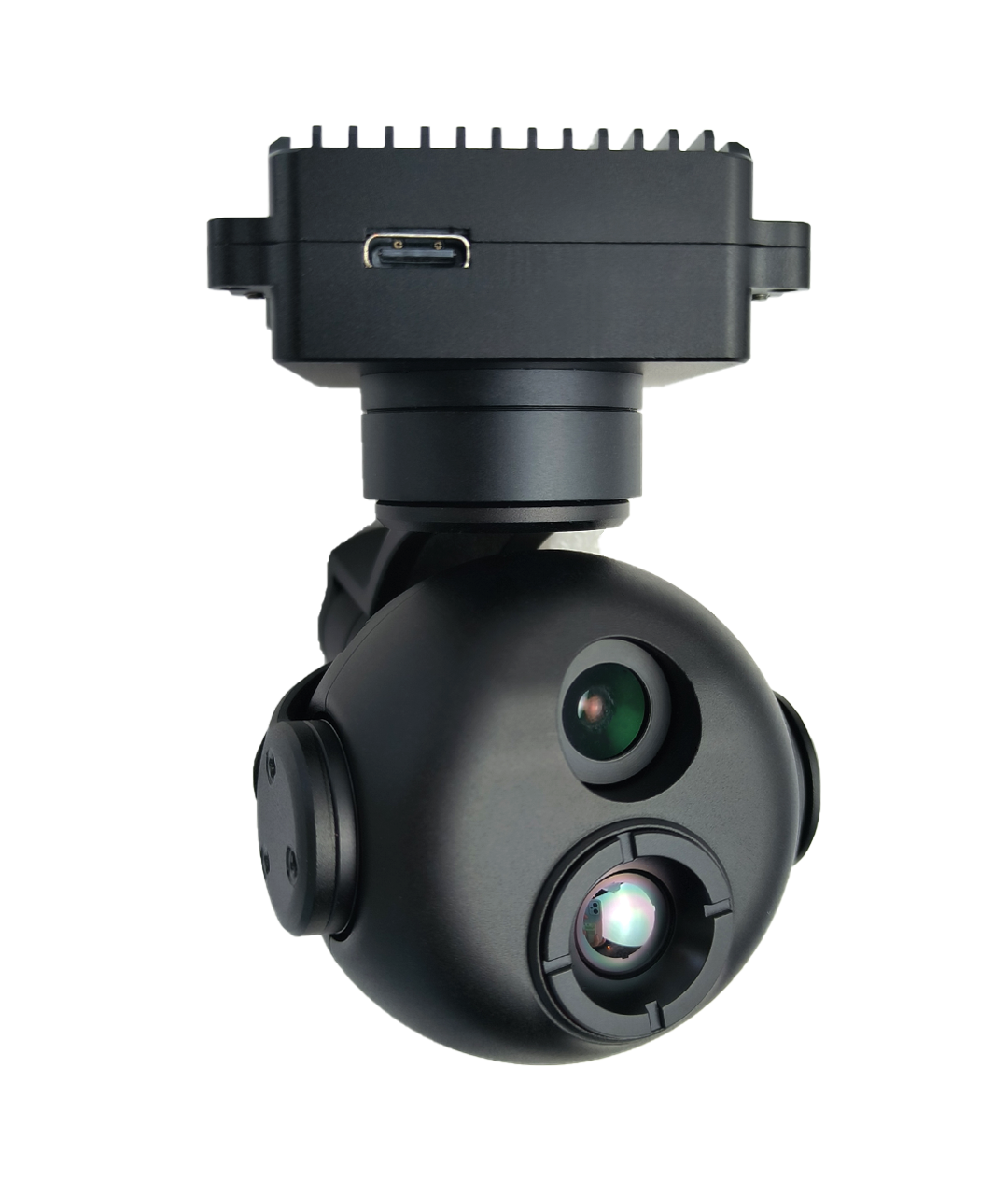

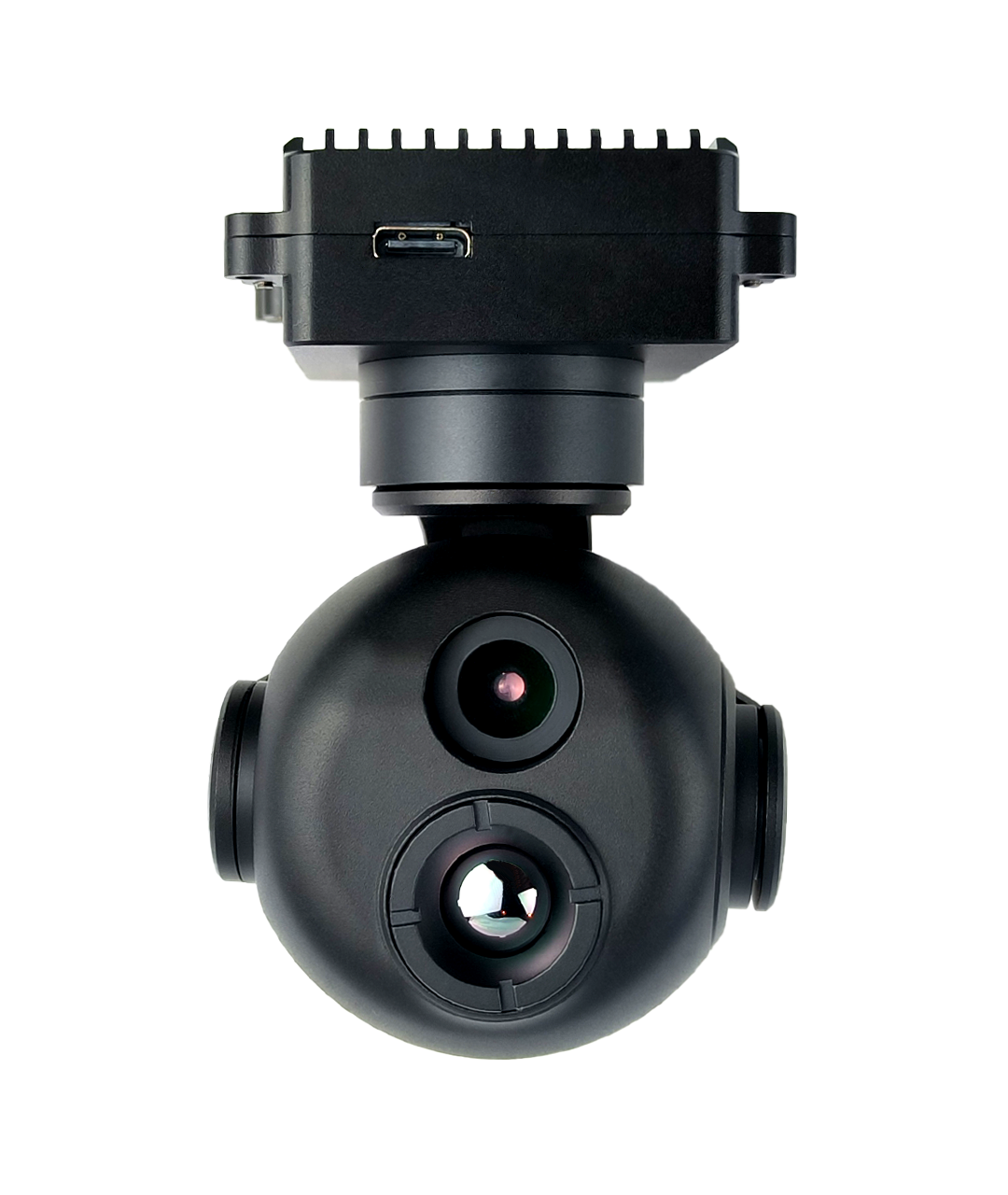

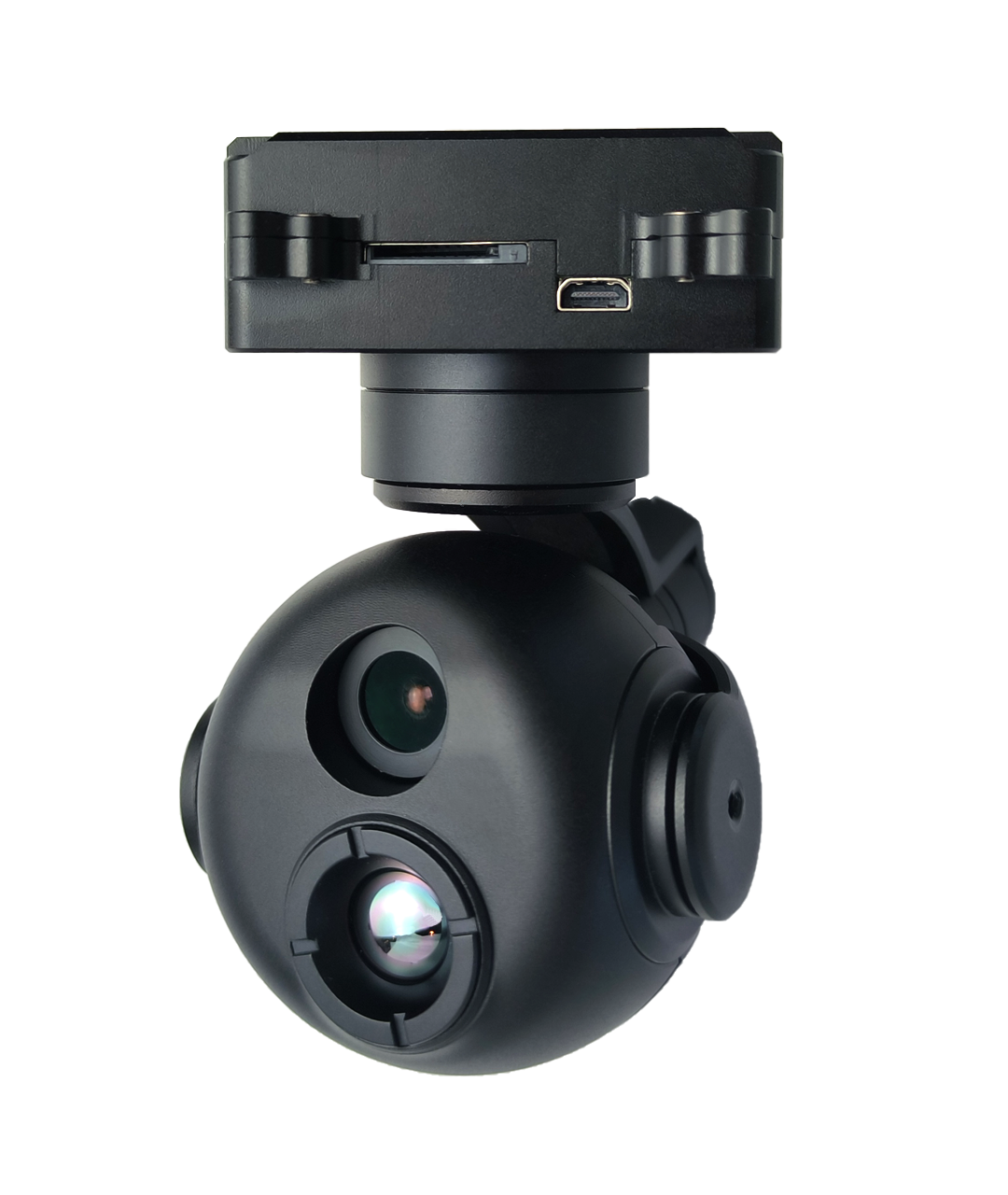

TOPOTEK KHP290A609 Overview
The TOPOTEK KHP290A609 is an integrated 1080P visible-light camera with a 9.1mm focal length and a 640×512 thermal imaging module, supporting 9x digital zoom. The high-precision three-axis enhanced stability pod features high stability, small size, lightweight, and low power consumption by using dual output of network IP and HDMI. The visible light camera uses a wide dynamic CMOS sensor with an effective pixel count of 2 million, while the thermal imaging module uses a 640×512 resolution vanadium oxide detector. The system supports network RTSP stream output, four picture-in-picture modes, ten pseudo-color displays, and global temperature measurement. Both the serial port and network can control the camera and PTZ, supporting local TF dual recording and photographing.
Functional Characteristics
- TF card dual recording
- 1080P visible light
- Four picture-in-picture modes
- 640×512 thermal imager
- Ten pseudo-color modes
- Supports dual output of IP/HDMI
- Supports 9x digital zoom
- 3-axis stabilization pods
- Network IP, UART, and SBUS control
- Lightweight gimbal, 200g
| Parameter | Details |
|---|---|
| Voltage | DC 12V-26.2V |
| Power | Dynamic 4W |
| Working Status | |
| Roll Angle action range | -45° to +45° |
| Pitch Angle action range | -45° to +100° |
| Yaw angle action range | -140° to +140° |
| The amount of angular jitter in pitch and roll direction | ±0.02° |
| Horizontal Angle jitter | ±0.03° |
| One-click return function | One-click automatic quick return to the initial position |
| The speed of the head control is adjustable | The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera. |
| Control mode | Support network IP control and serial port, SBUS control |
| Visible Light Camera | |
| SENSOR | CMOS SENSOR pixel: 2 mega pixels |
| Digital zoom | Support 9x digital zoom |
| Compressed storage mode | H264, H265, video streaming local TF storage |
| Field of view (FOV) | FOV: 60° x 43° |
| HDMI video | Micro-D HDMI 1080P 30fps |
| Network output mode | 1080P 30fps |
| Thermal Imagery | |
| Resolution ratio | 640 x 512 |
| Space between pixels | 12μm |
| Type | Uncooled vanadium oxide infrared thermal imagery instrument |
| Wavelength coverage | 8~14μm |
| Heat sensitivity (NETD) | ≤[email protected]@25°C |
| Field angle | 9.1mm lens, Angle: 48° x 38° |
| Measurement function (optional) | Central point, the highest temperature and lowest temperature display temperature function; Global temperature measurement function |
| Dimensions | Φ: 120mm H: 93.5mm |
| Work environment | -10°C to +45°C / 20% to 80% RH |
| Stored Environment | -20°C to +60°C / 20% to 95% RH |
| Main application | Drone aerial photography |
| Weight | 200 ± 10g |
