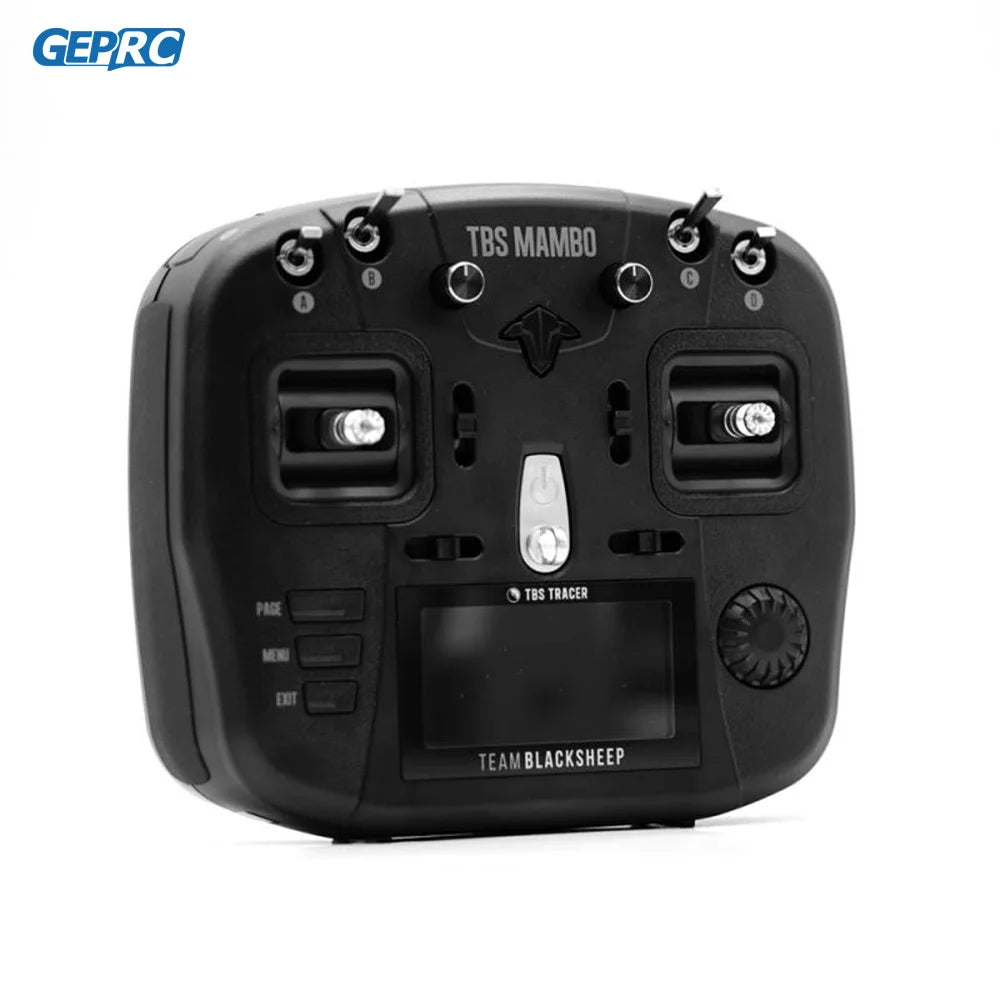

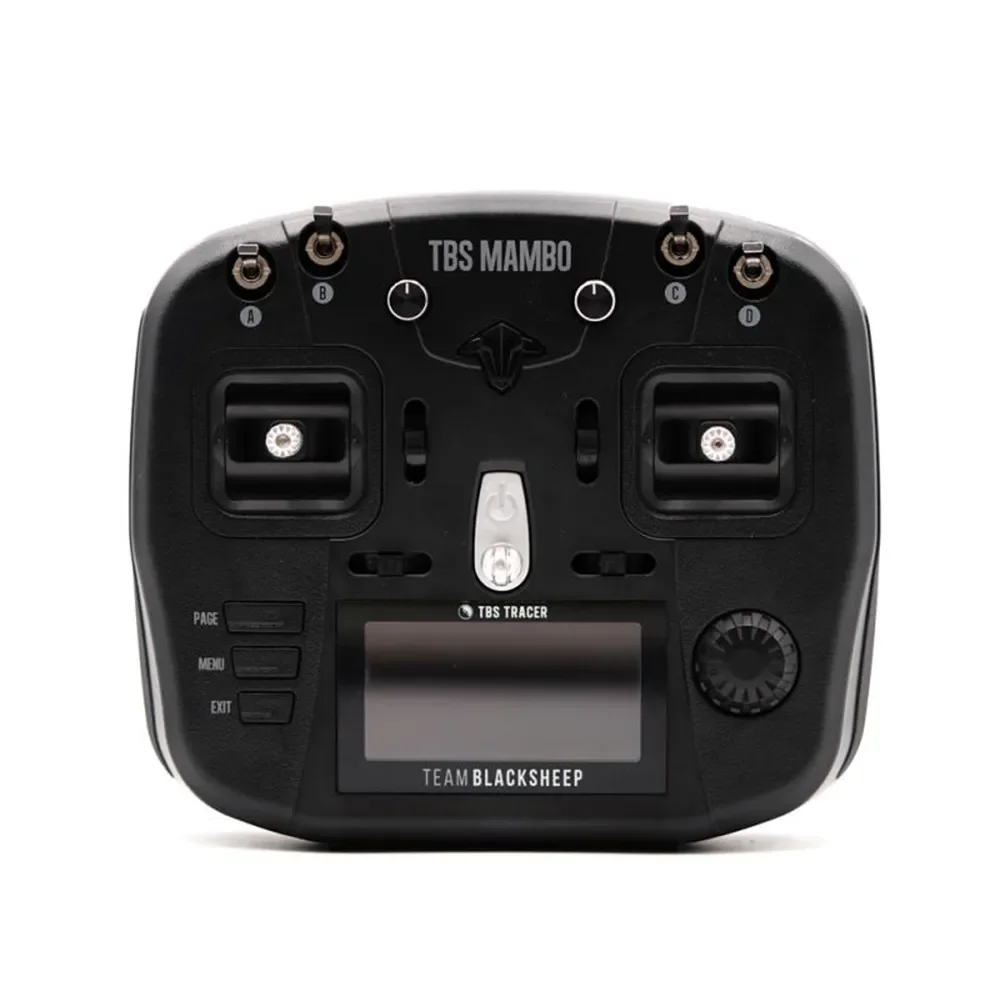

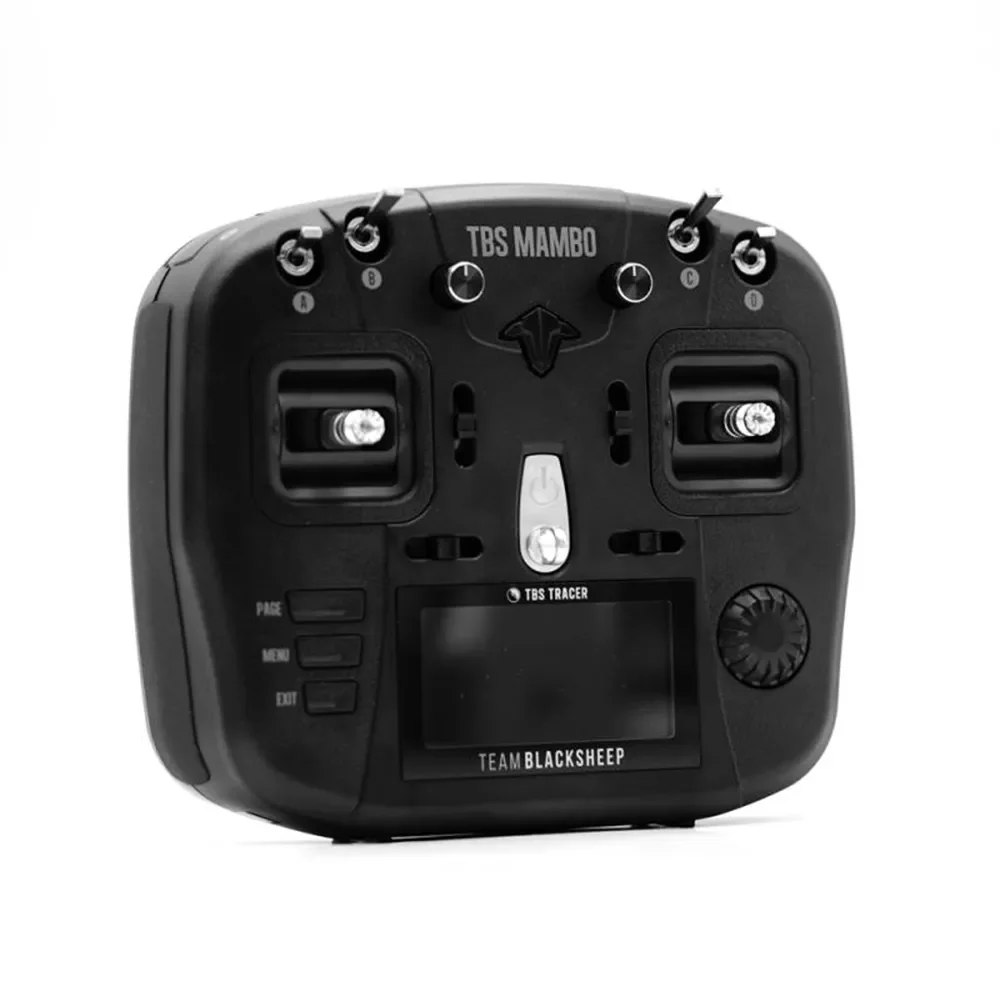

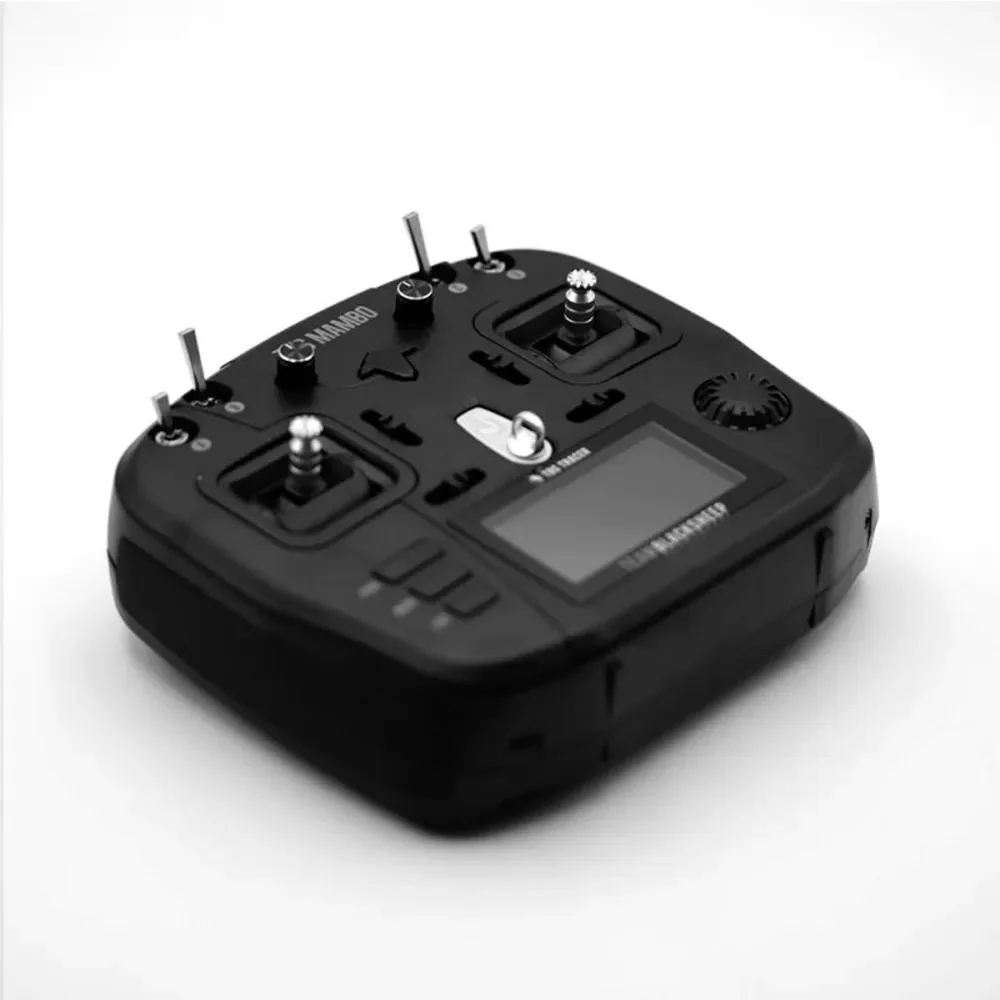

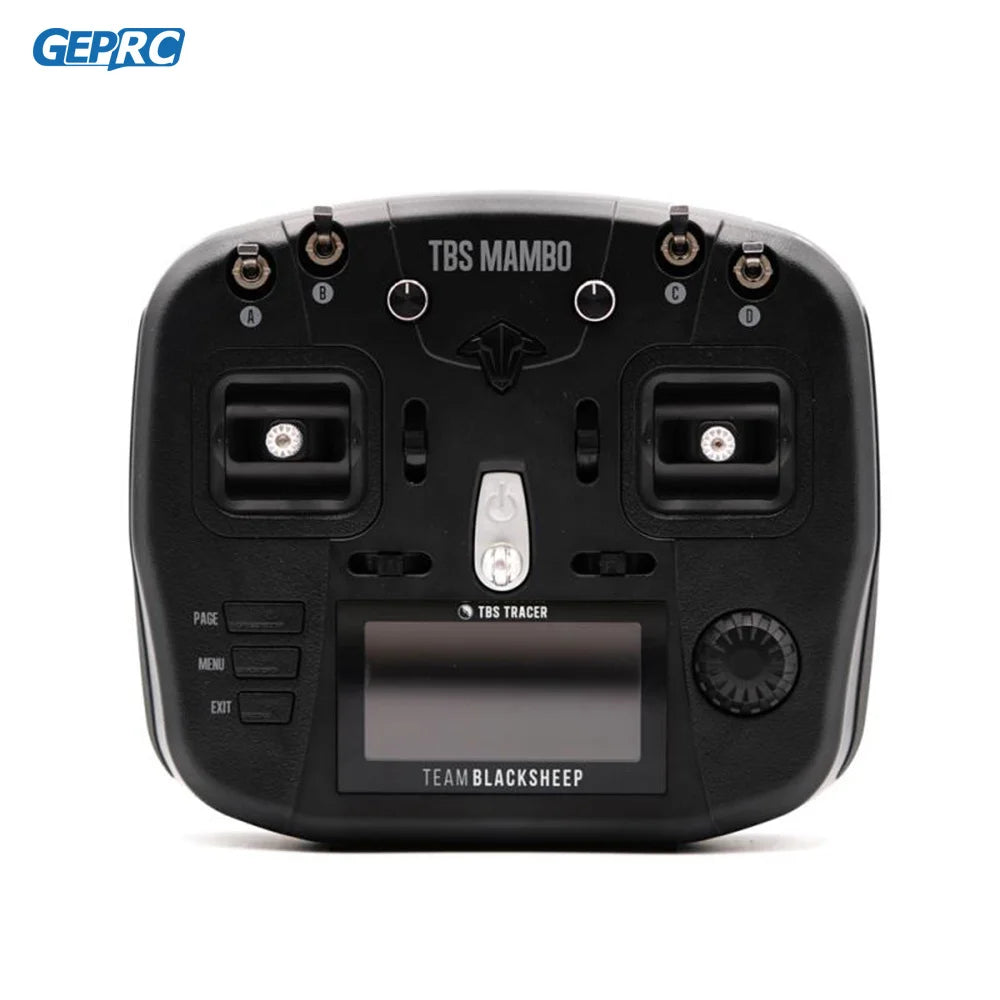

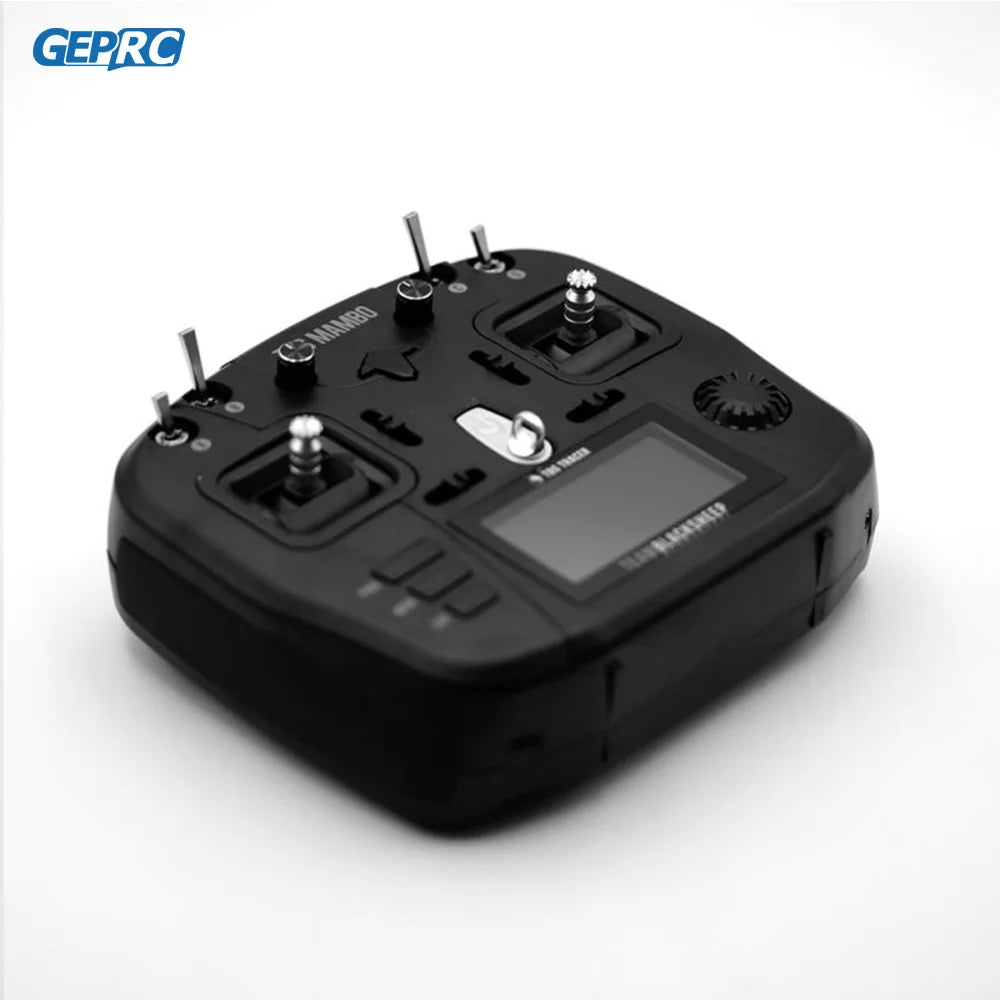

TBS MAMBO FPV RC RADIO DRONE CONTROLLER VERSION JR Module Bay TBS CROSSFIRE RX SERIES QUADCOPTER DRONES REMOTE CONTROLLER

$189.23

+ Free Shipping
MAMBO
MAMBO
CHINA
CHINA
Clear
SKU: N/A Category:

TBS MAMBO SPECIFICATIONS

Brand Name: GEPRC

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Batteries – LiPo

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Controller

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: TBS MAMBO – FPV RC RADIO DRONE CONTROLLER

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

Note: The radio controller is built-in TBS 2.4G receiver, if you need to bind TBS receiver, please purchase TBS 915 tuner separately.

A CLASS ON ITS OWN
Team BlackSheep has redefined the portable remote control with the TBS Tango 2. Now we’re back with one of the most popular requests: a compact full-size remote! The TBS Mambo follows in the footsteps, but focuses on all of the things the Tango 2 tries not to have: a larger screen, traditional form factor with switches and potentiometers, JR module bay, replaceable batteries and trim buttons!

But do not fear: we haven’t made a cookie-cutter remote! With the built-in antenna (external antenna available as optional add-on), the 2-position and momentary gamepad buttons, and TBS Tracer built-in, we’ve accomplished a few “firsts” that put this radio into a class on its own!

TRACER INSIDE
The first radio with TBS Tracer built in. And it fits your existing TBS Crossfire module through the JR bay! TBS Tracer is the world’s lowest latency radio link, and builds upon the rock-solid reputation of the TBS Crossfire code base. With the continued development and expansion of the TBS ecosystem, pilots will remain on the bleeding edge of capabilities paired with the ease of use and overall robustness that TBS products are known for.

1.6ms end to end latency
250Hz refresh rate
Long range capable
High telemetry throughput for Mavlink and long range missions
TBS Cloud connectivity

FEATURES
TBS Tracer built-in
CRSF V3 protocol support for lowest latency and most direct response of any remote control available
Range of up to 25km / 15mi
Built-in antenna for ultimate ruggedness
External antenna available as add-on

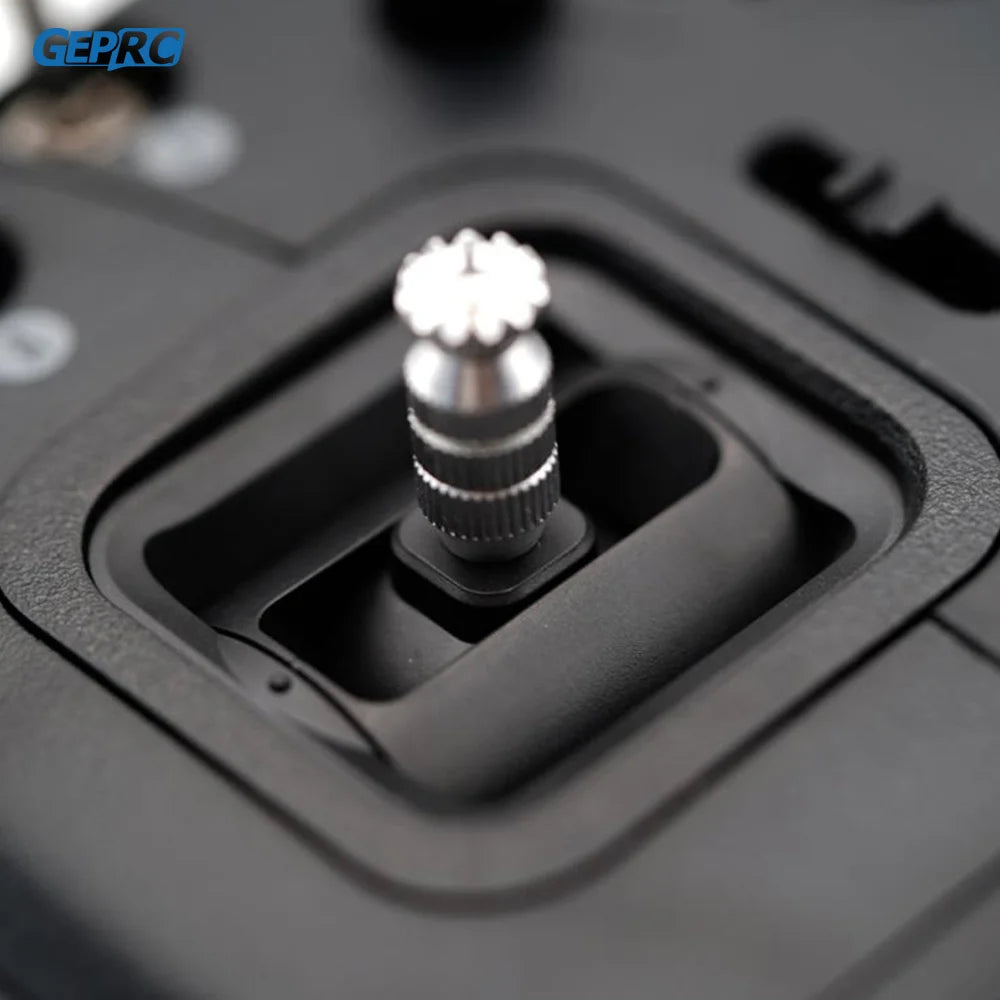

Full size, ball bearing hall sensor gimbals
Configurable resistance and tension
Adjustable throttle & pitch throw (+/- 10 degrees)
Spare spring set included for lower tension
Ergonomic shell design with grippy rubber edges
4x 3-position switches
2x potentiometer with center notch
1x 2-position switches
1x momentary button
4x digital trim buttons
Perfectly balanced lanyard mount
Up to 12 channels supported

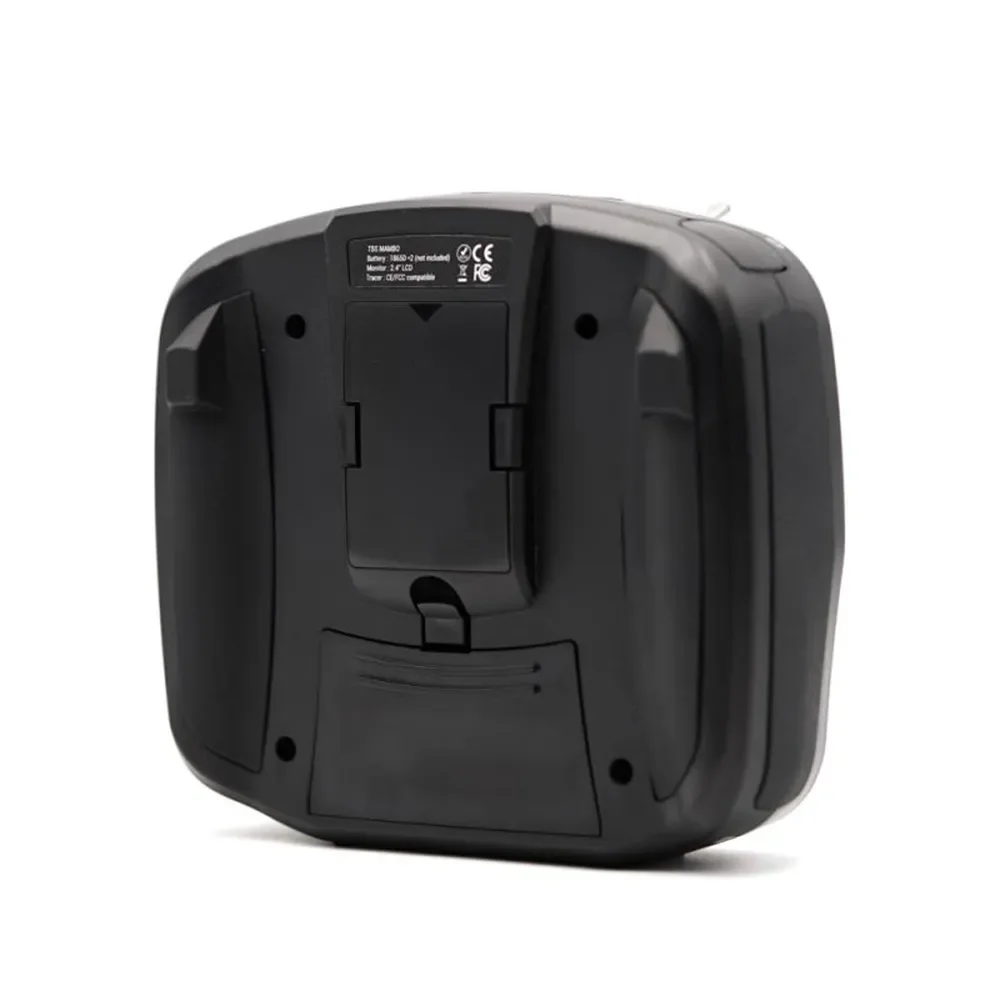

Parallel 18650 x 2 (not included!) with USB-C 2A charging (2.5 hours for full charge)
Speech audio output with audio jack & haptic vibration alert
Open Source remote control operating system (FreedomTX, temporary fork of OpenTX)
Rocker dial and 3 button menu for super simple navigation
High resolution (128*64) black & white LCD screen w/ backlight
100+ model memory with included SD-card
TBS Cloud compatible
SPECIFICATION
Weight: 565g

Battery: 2 x 18650
Audio: 1W speaker & 3.5mm headphone jack
Display: 3.5″ LCD panel (128 x 64)
Antenna: Embedded antenna
Switches: 4 x 3pos | 1 x 2pos | 1 x Momentary
USB-C Port: Battery charging (5V, 1A), Firmware upgrades & Simulator / HID
TBS MAMBO INCLUDES
1 x TBS Mambo remote control
1 x Springs Set (Lower Tension)
2 x Throttle limitation screws (with allen key)
MORE INFORMATION
TBS Mambo Manual
FreedomTX source code
Mambo SD Card Contents donwload (For Freedom TX 1.2x)
TBS Cloud – Wifi Firmware
TBS Agent Lite
