Tarot-RC TL300N3 – 5.8G FPV receiver suitable for small multi-axis rotor aircraft Transmitter and Rc Racing FPV Drone

$47.55

+ Free Shipping
Default Title
Default Title
Clear

Tarot-RC TL300N3 SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembled class

Technical parameters: Value 8

Size: As description

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y

RC Parts & Accs: Connectors/Wiring

Origin: Mainland China

Model Number: TL300N3

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Tarot-RC 5.8G image transmission FPV receiving group TL300N3 suitable for small multi-axis rotor aircraft and Racing drone

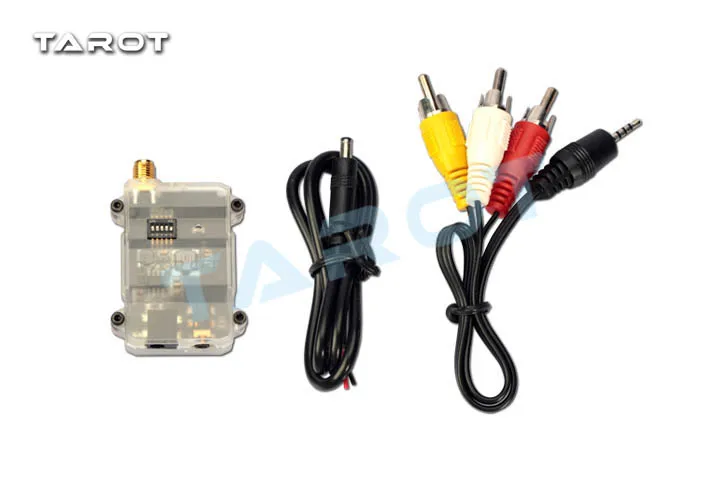

Product specifications:
5.8G audio and video receiver × 1
3.5MM power cord × 1
2.5MM audio and video cable × 1
Instruction manual ×1



Product Description

The tarot self-developed 32-band 5.8g image transmission system has an ultra-miniature form factor and ultra-light weight, which is especially suitable for small multi-axis rotorcraft and cross-machines. 32 frequency points are compatible with conventional frequency, providing 1 channel video signal, 2 channels of audio signal for long distance transmission, and the receiving end weighs only 10.9g (without antenna)


Specifications:
1. Weight: 17.2 G (without antenna)
2, Dimension: 55 × 32 × 13mm
3. Working frequency: 5645-5945 MHZ
4, Channel: 4 bands / 32 channels
5, channel selection: 5-DIP switch
6. Receiving Sensitivity: -85 dbm
7, Input Voltage: DC 7-26V (2-6S)
8, Antenna Adaptor: SMA 50Ω
9, Working Temperature: -10 ~ 60 degrees
10, PLL Frequency: FM / PLL
11, AV output: 2.5mm 4 pins AV output
12, Power input: 3.5mm (exterior) 1.3 mm (interior) DC

Precautions:
1. Please install the antenna first, then turn on the power. So as not to cause equipment failure
2. Select the appropriate operating frequency and set the reception to the same frequency. See frequency table for details.
3. This transmitter has a large power. Do not touch the case with your hands during work to avoid burns. It is normal for the shell to be hot, so feel free to use it.
4. The input voltage is 7-26V (2-6S). Do not use it beyond the voltage range.
5, the output current voltage is 5V 1A, please pay attention to whether the camera is within the voltage and current range.
