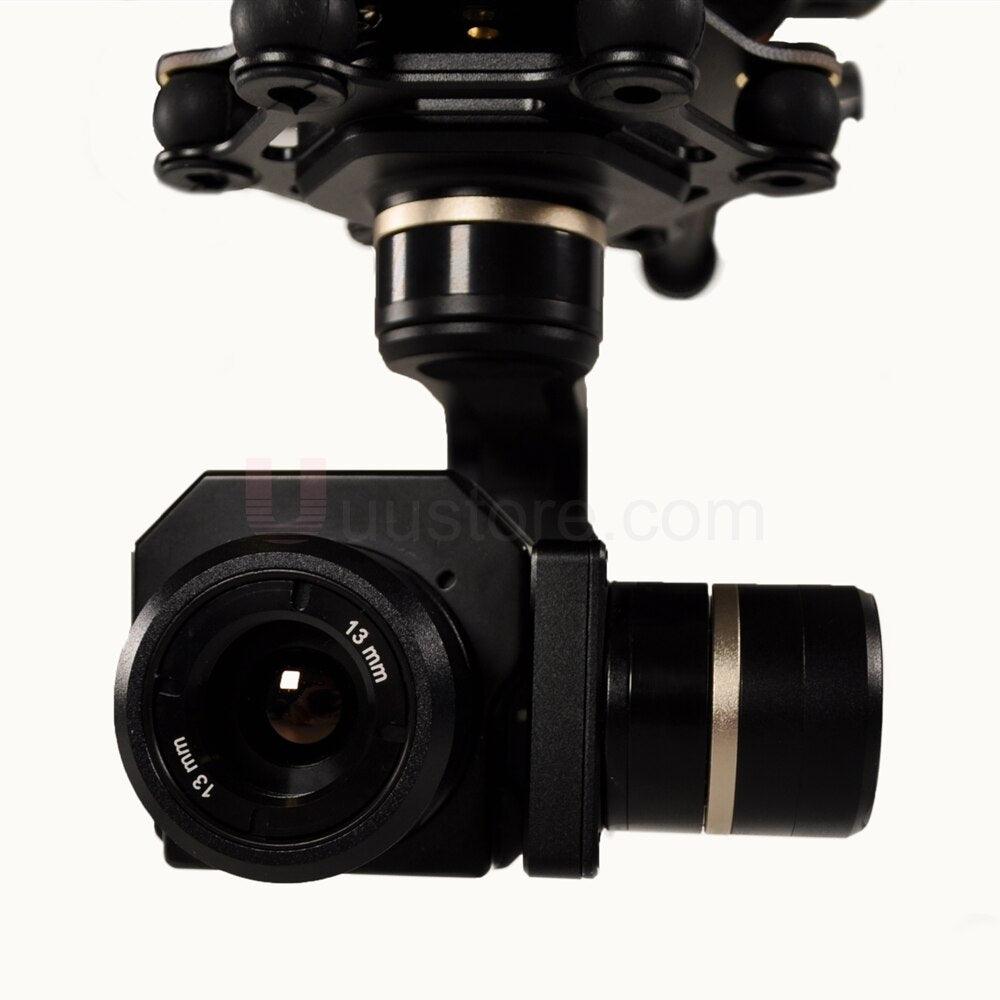

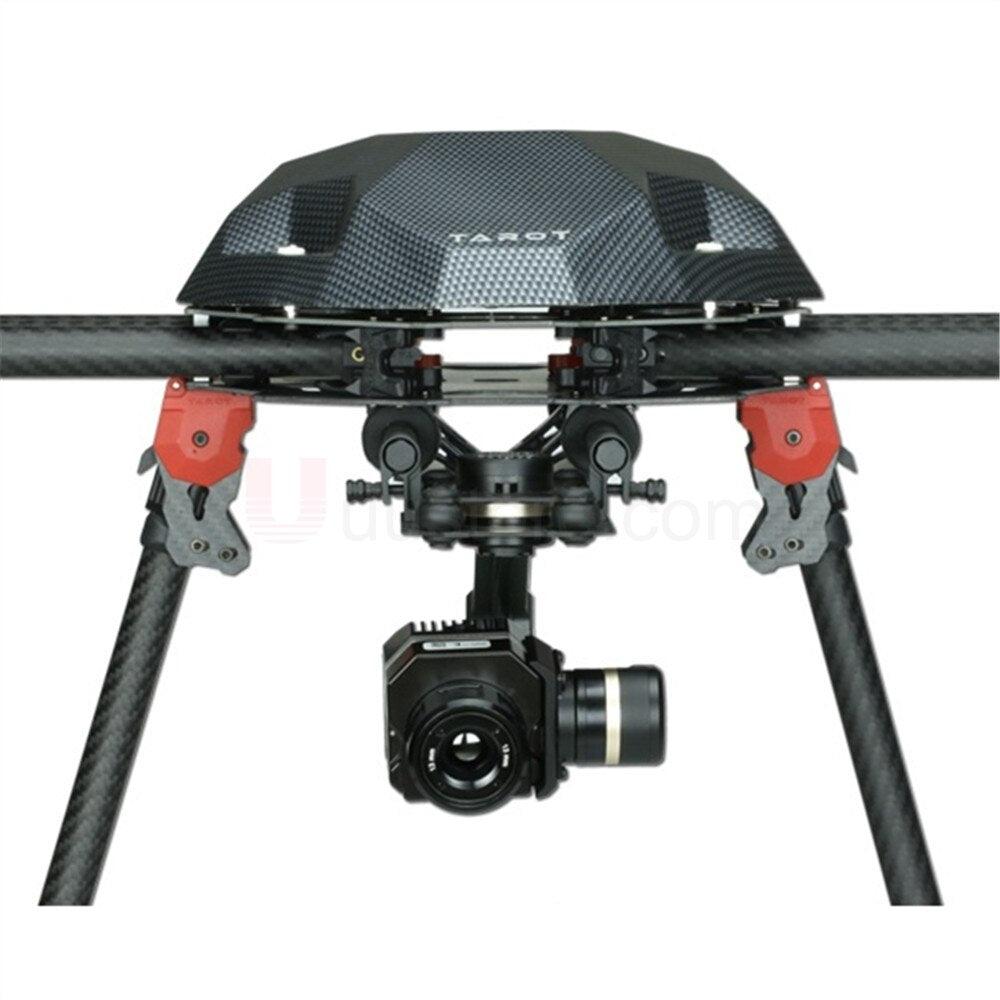

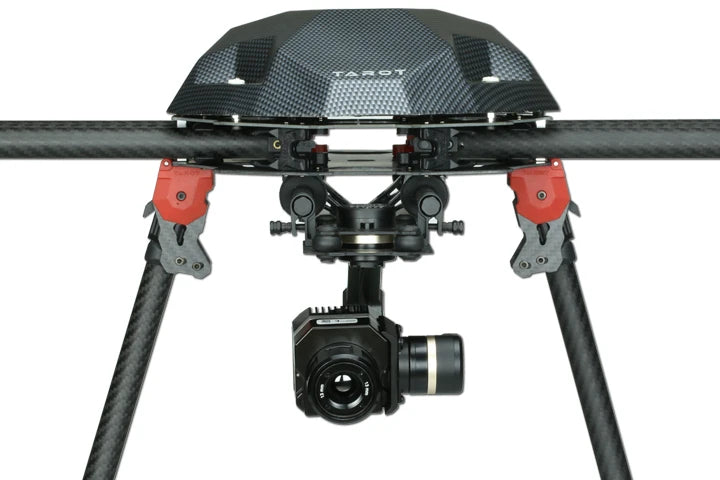

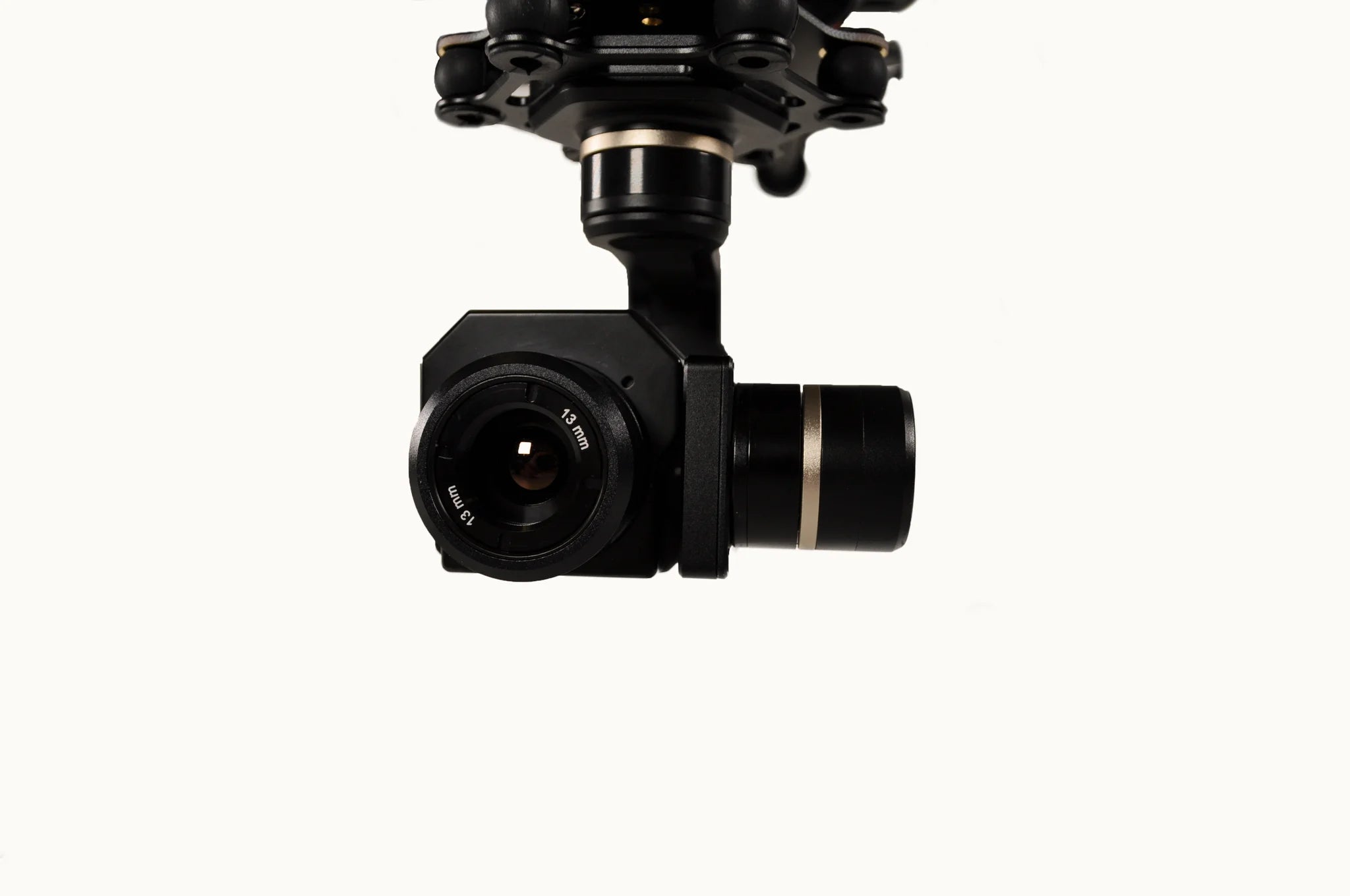

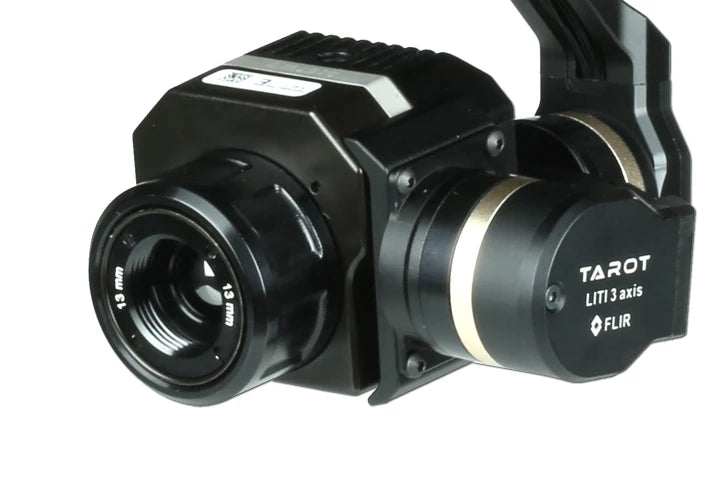

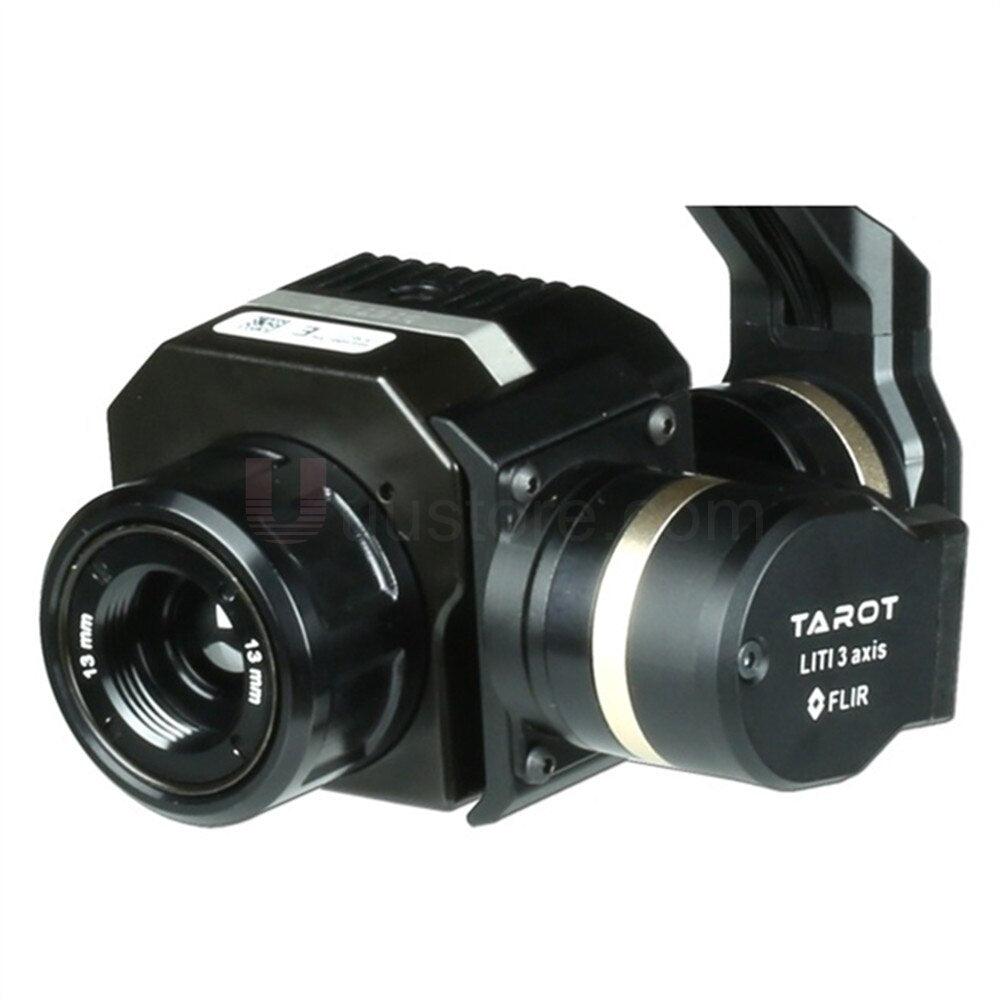

Tarot FLIR 3 Axis Gimbal with VUE 640 Camera Set (TL01FLIR) for FPV Quadcopter Drone Multicopter

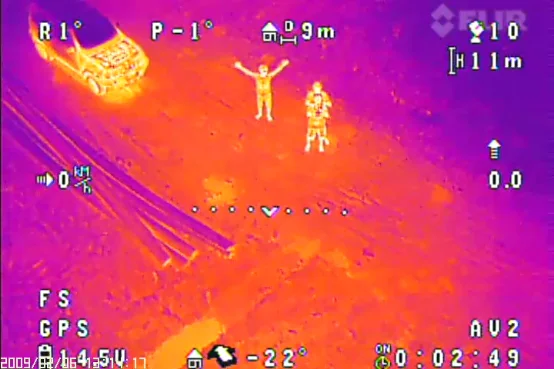

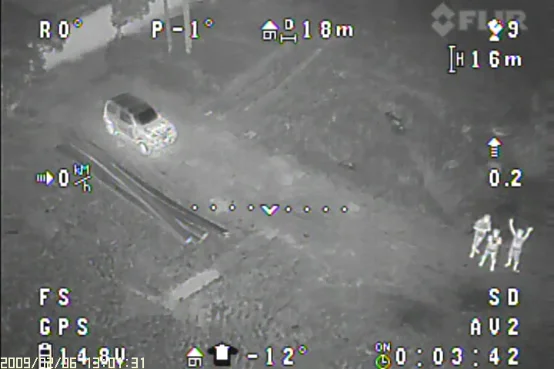

Tarot FLIR metal 3 axis gimbal is designed for high-sensitivity thermal imaging camera such as Flir Vue, Vue Pro for professional applications like power line maintenance,fire-fighting etc.The gimbal intergrated all high-end techniligy of Tarot Series PTZ,adapted full CNC ribbed slab structure with overall industrial design,lightweight and brings the most strong stability.Breaking the limitations of light and space,Tarot FLIR 3 axis PTZ with VUE 640 camera set let you capture clear, precise thermal image anywhere. Tarot FLIR thermal imaging camera gives a new dimension of vision, make the job more easier to search large areas, or detection to the highly located device. Work more efficiently, easily and securely.

Features:
-Completely new intelligent solution, plug and play
-Magnetic encoder sensor for gimbal motor high accurate control
-Seamless shaft design technology, bring smooth operating experience
-Motor anti-wire-twisted design
-Wide range applications for RC multircopter drones

Gimbal Descriptions:
-Applicable Camera Type: FLIR thermal imaging cameras Flir VUE 336, VUE640, Vue Pro 336, Vue Pro 640
(Default standard camera FLIR Vue640,please inquiry us for other camera options)
-Input Power: 3S-6S Li (11V-26V)
-Operating Current: 30mA (@ 25V) / 50mA (@ 12V)
-Stall Current: 350mA (@ 25V) / 700mA (@ 12V)
-Attitude control accuracy: ± 0.02 degrees
-Maximum controllable speed
The direction of rotation (PAN): ± 200 ° / s
Pitch direction (TILT): ± 200 ° / s
Roll direction (ROLL): ± 200 ° / s
-Controllable rotation range
The direction of rotation (PAN): ± 125 °
Pitch direction (TILT): -120 ° to + 80 °
Roll direction (ROLL): ± 50 °
-S-Bus / PPM / DSM receiver supports
-Working temperature: -20 ° ~ + 50 °
-Maximum dimensions (with the camera): 79mm * 98mm * 95.5mm

Gimbal Software Download
Software requirement: Windows XP,Windows VISTA,Windows 7,Windows 8(32 or 64 bit)

FLIR Vue640 Camera Descriptions:
– Wave: 7.5-13.5um
– Frame frequency: 9Hz
– Pixels: 17um
– Resolution: 640*512
– Not support APP blutooth parameters setting
– Not support SD storage
– Not support image video storage
– Not support MAVLink integration and thermal imaging control
– Not support temperature measurement information superposition
– Size: 57.4-44.4mm
– Weight: 92.1-113.4g
– Analog NTSC,PAL video interface: Support
– Input power voltage: 4.0-6.0VDC
– Working temperature: -20~50 deg C
– Level control and palette: Support-adjust in GUI
– Working altitude: 12,200m

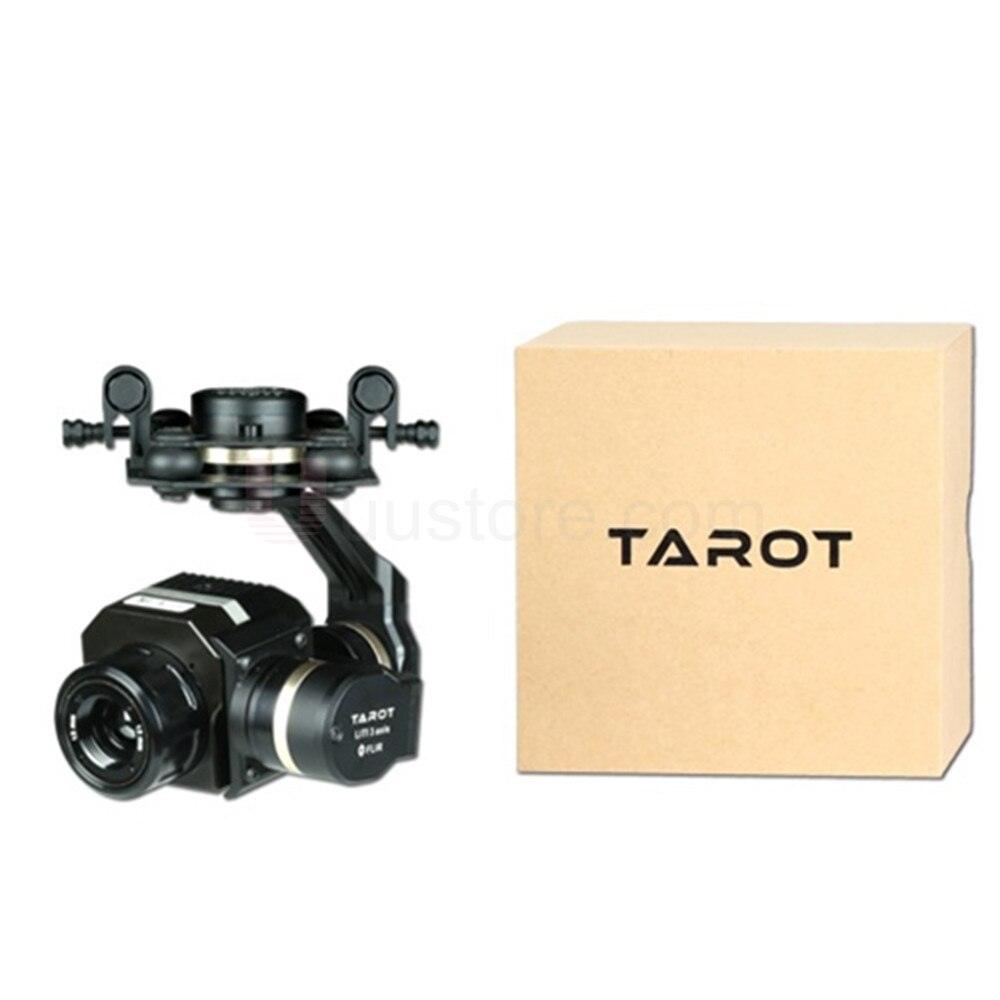

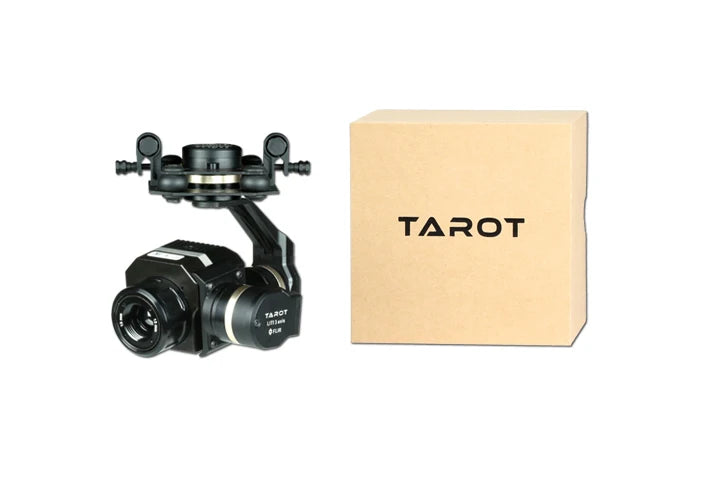

Package incluede:
– 1 x Tarot FLIR 3 Axis Gimbal
– 1 x Flir VUE 640 camera
– 1 x Gimbal control module (36×25×11MM)
– 1 x Connecting line
– 1 x 5V output,receiver and video cable
– 1 x USB module (27*21*7mm)
– 1 x Flight controller connection cable
