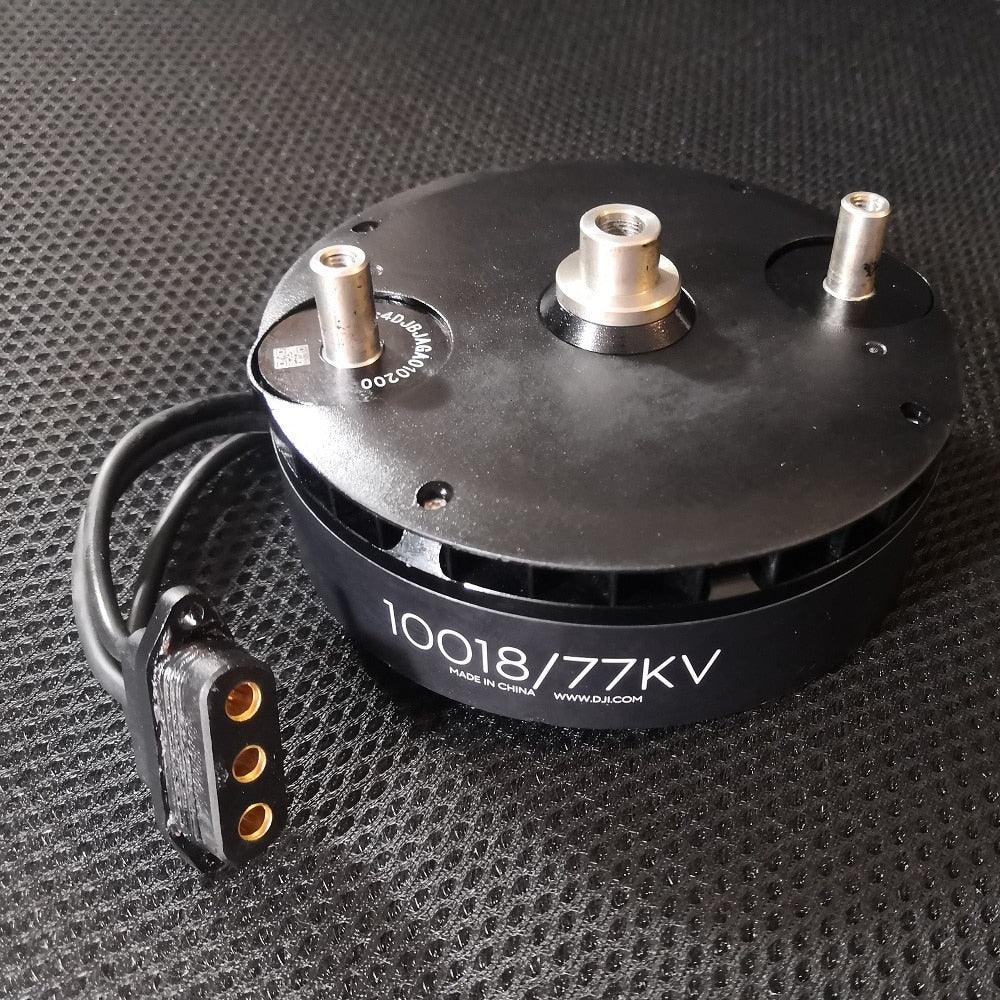

T30(10018) DJI Brushless Motor – 77kv Aircraft Plant Protection UAV Motor Accessories Drone T30 Engine Parts Airplane

$149.78

SKU: N/A Categories: , ,

Description

T30(10018) DJI Brushless Motor SPECIFICATIONS

Origin: Mainland China

Model Number: T30

Brand Name: MAXUAV

10018 DJI Brushless Motor 77kv Aircraft Plant Protection UAV T30 Motor Accessories Drone T30 Engine Parts Airplane



Model condition:┬áUsed Drone disassembly motor´╝îall the functions could be work well

Model:T30(10018)
Stator size:100*18mm
Motor Diameter: 150mm
Motor height:30mm
Configuration:36N42P
Wire´╝Ü16# silica gel wire 15mm in length
Protection grade´╝ÜIP55
kv´╝Ü77kv
Motor weight´╝Ü616g
NO load current(18v)´╝Ü1A
Interphase resistance:22m╬ę
Max current(180s):100A
Max Power(180s):2400W
Maximum pulling force:13.5KG
Battery:10-14S Lipo
POP:3390
ESC:FLAME 100A, ALPHA 100A HV
Four axis flight parameters
Standard takeoff weight
39.5kg (16L medicine box)
Maximum effective takeoff weight
40.5kg (near sea level)

Packing include:

1pc T30 brushless motor

T30(10018) DJI Brushless Motor, 10018/7ZKV MAdIWC CINNa MvidjT30(10018) DJI Brushless Motor, DJI Brushless Motor 77kv Aircraft Plant Protection UAV T30 Motor Accessories

T30(10018) DJI Brushless Motor, WWWDJICOM ADJBa Oozois $ 10018/77T30(10018) DJI Brushless Motor, DJI Brushless Motor 77kv Aircraft Plant Protection UAV T30 Motor Accessories
