T-motor MN3110 KV470 KV700 KV780 Brushless Motor SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Recommend Age: 18+
RC Parts & Accs: Motors
Origin: Mainland China
Model Number: MN3110 KV470
Material: Metal
For Vehicle Type: Helicopters
Brand Name: T-MOTOR

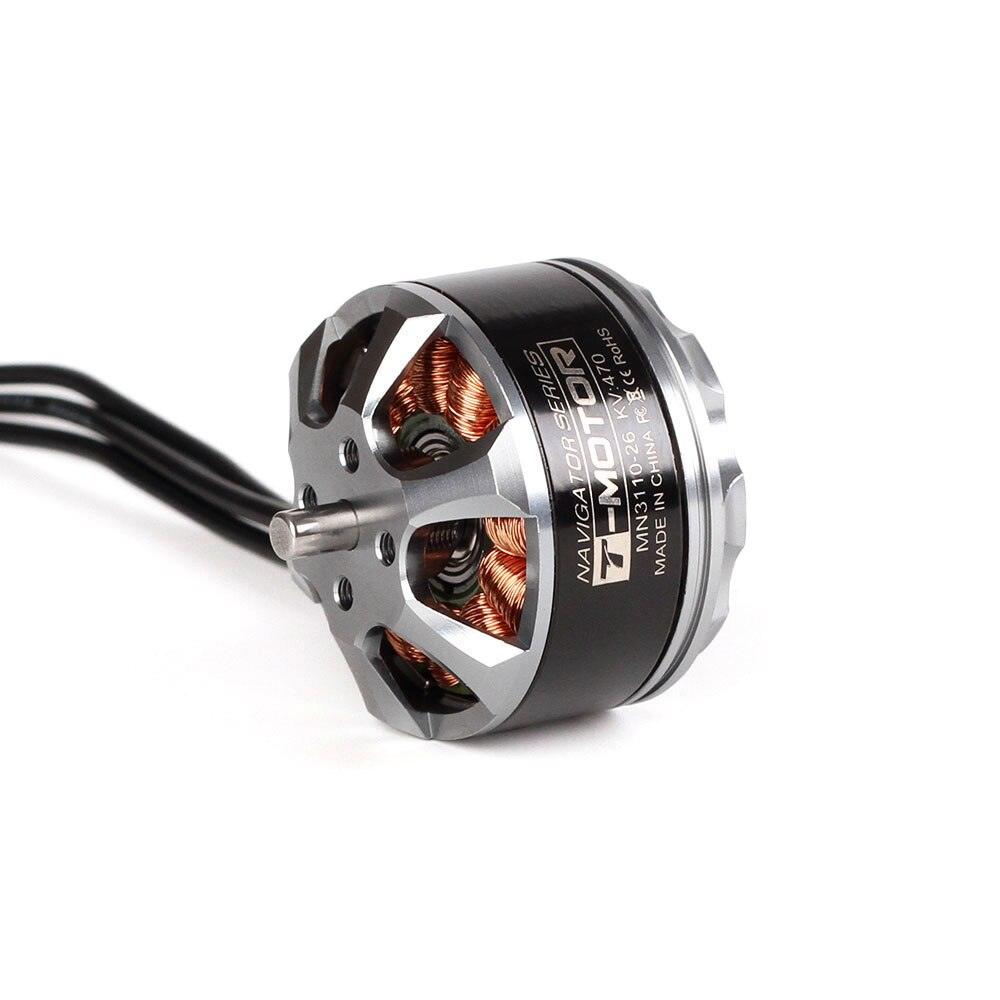

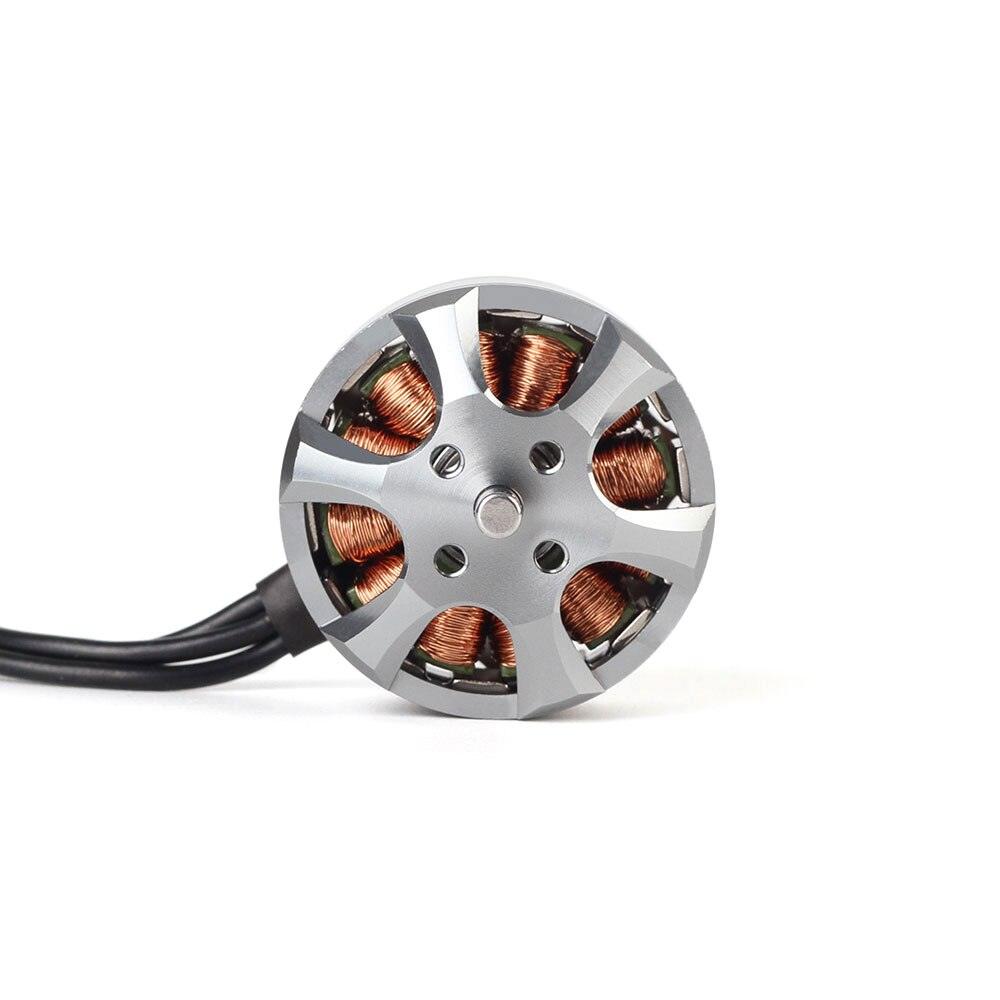

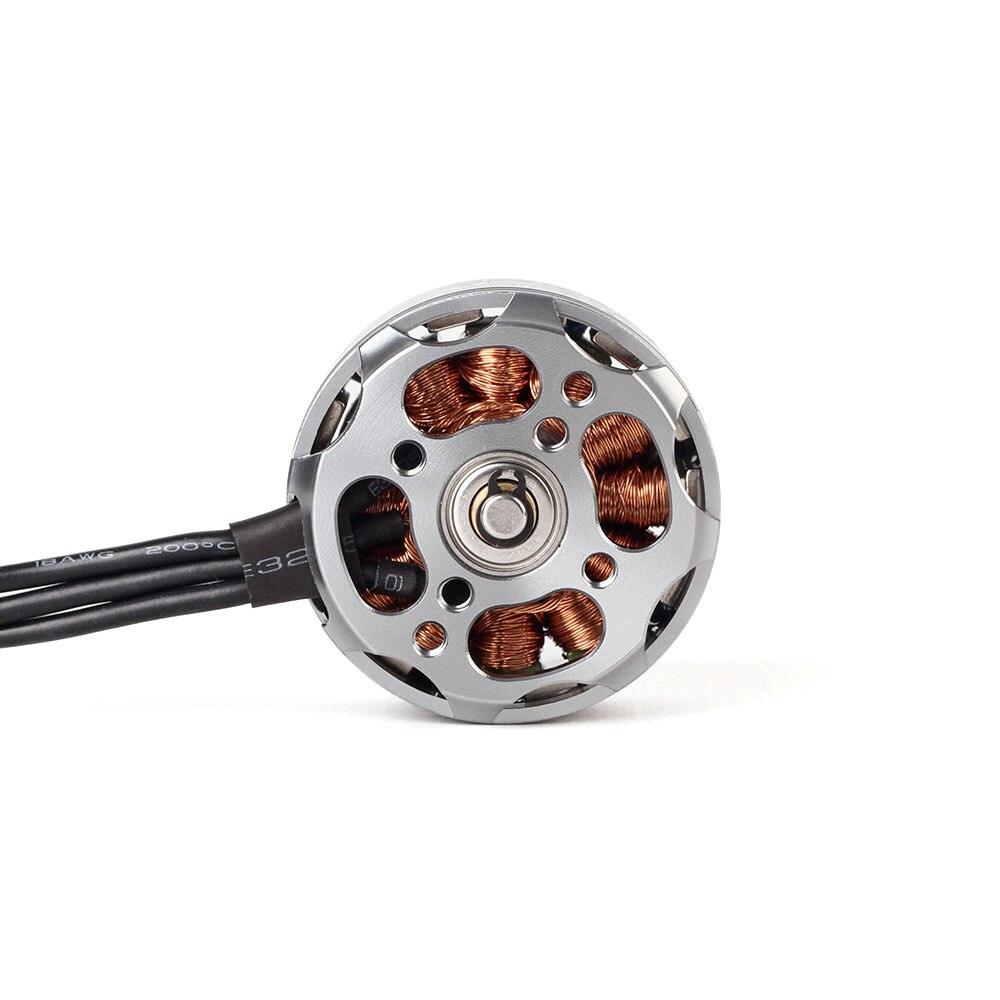

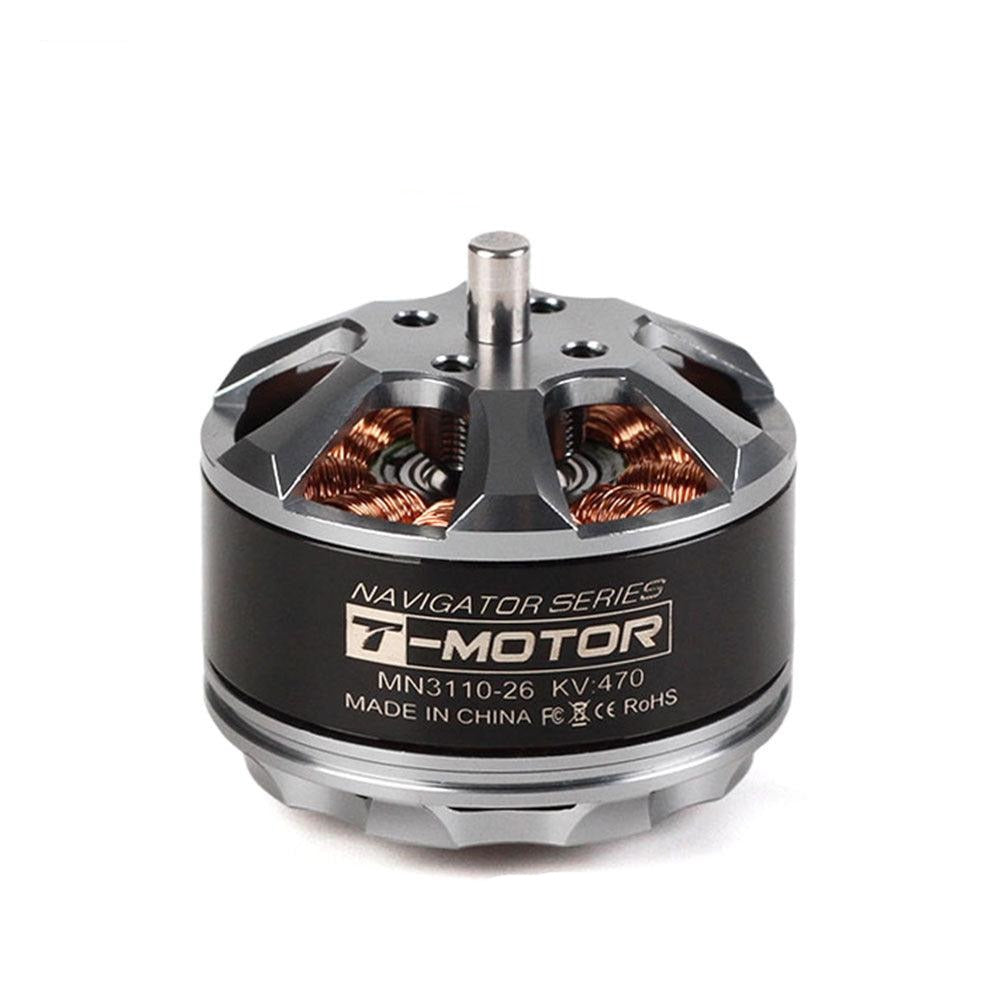

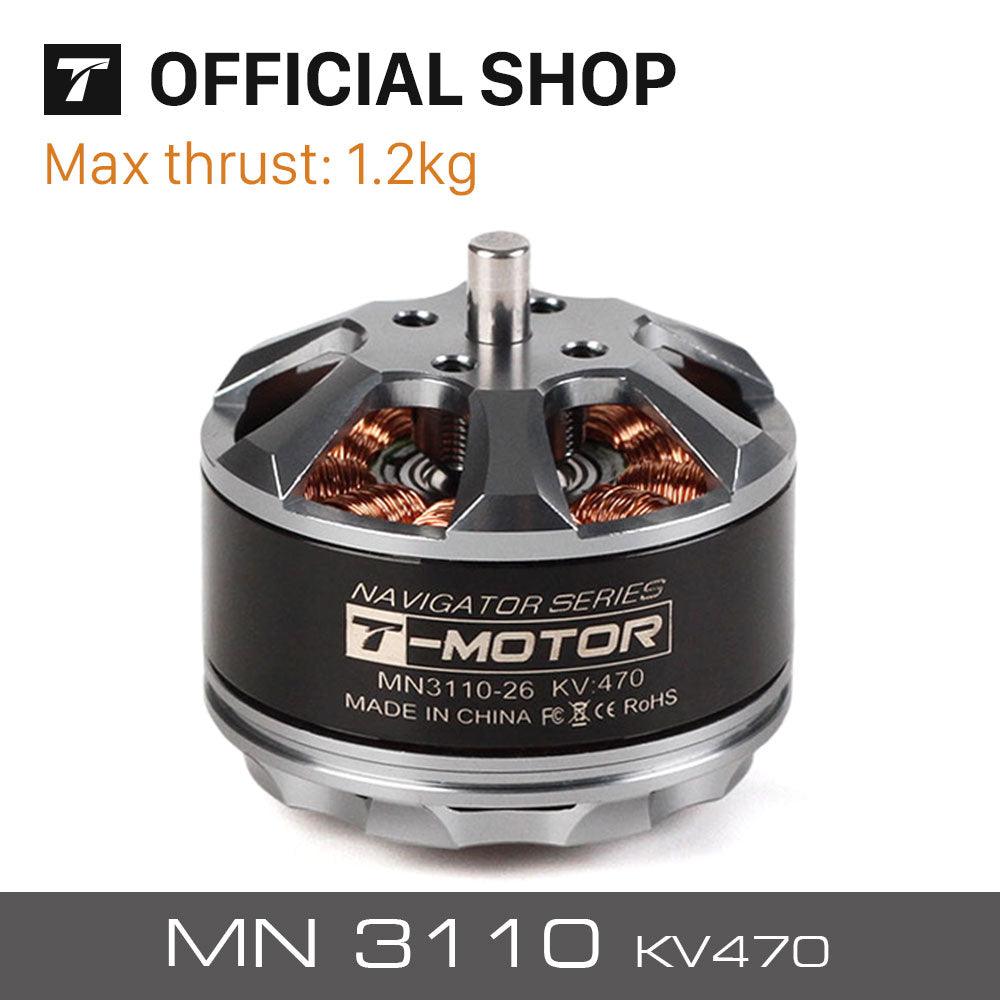

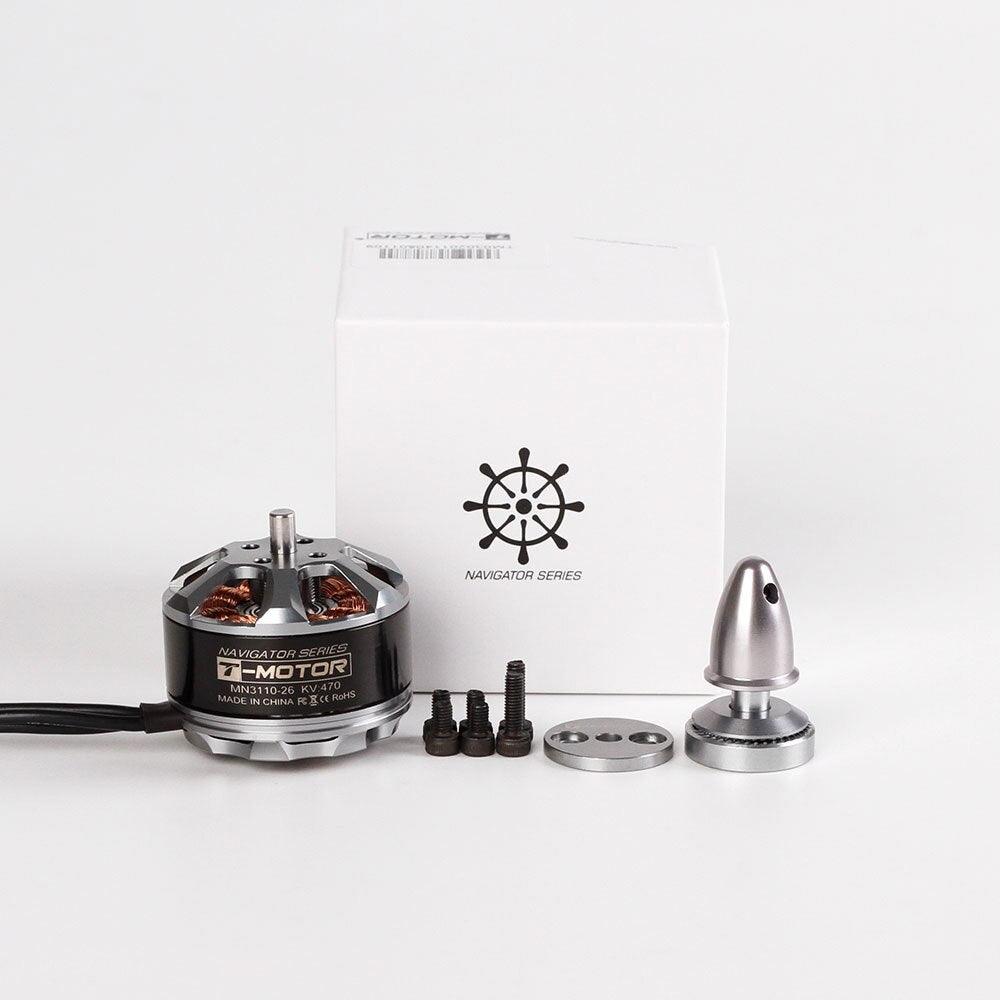

introduction of T-Motor Navigator Series . the motor is a high quality, smooth running, durable brushless motor built for multirotor UAV application.
Motor with Safe Propulsion System: Provides reliable performance for dependable aerial applications.
The T-Motor MN3110 is a high-performance brushless motor that was first introduced in models 2216, 2217, 2808, and 2810. According to numerous test data sets, this motor has been upgraded.
The T-MOTOR MN3XXX series features high-standard bearings, originally imported as EZO, ensuring high-quality and reliability. This results in stable motor performance even at low velocities.

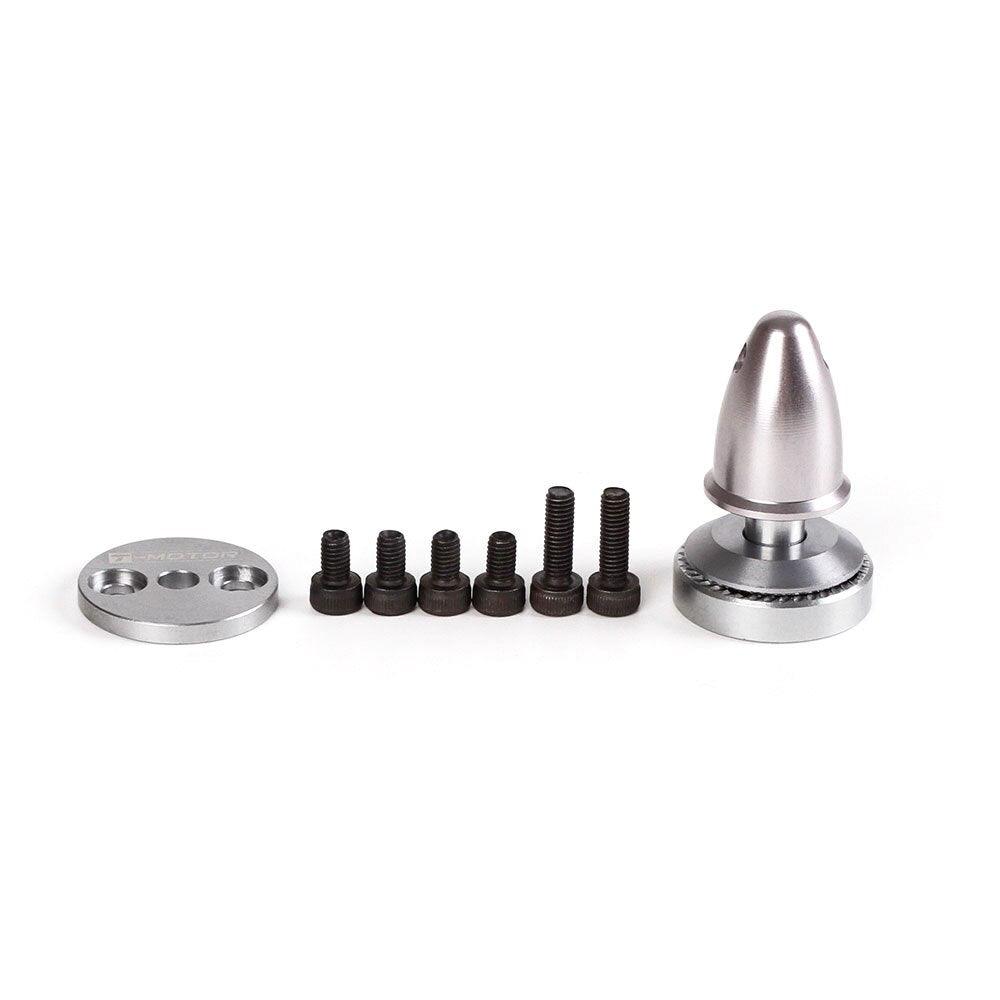

Motor T-Donar LMOTOR features a flexible mount design with various holes to match different frame types, allowing for easy installation of standard-sized propellers (16x1mm or 9x25mm).
Test Report: MN3110 KV470 Motor Specifications. Internal Resistance: 135mΩ. Configuration: 12N14P. Shaft Diameter: 4mm. Motor Dimensions: 37.7mm x 28.5mm. Stator Diameter: 31mm, Stator Height: 10mm. AWG Cable: 18#. Cable Length: 60mm. Weight (including cables): 98g. Weight (excluding cables): 80g. Number of cells (Lipo): 3-6S. Idle Current: [insert value].
Test Report Test Item MN3110 KVZOO Report NO. MN.00009 Specifications Internal Resistance 92m0 Configuration 12N14P Shaf Diameter 4mm Stator Height 10mm AWG 18# Cable Length G00mm Weight Including Cables 99g Weight Excluding Cables 80g Noe of Cells(Lipo) 3-6S Idle Current@1v 0.3A Max Continuous Power 180S 466WN Max Continuous Current 180S 21A Max
MN3110 KV780 Brushless Motor Report Test Item: MN00010 Specifications. Internal Resistance: 71mΩ. Configuration: 12Ni4P. Shaft Diameter: 4mm. Stator Height: 10mm. AWG: 18#. Cable Length: 600mm. Weight (including cables): 100g. Weight (excluding cables): 80g. Number of Cells (Lipo): 3-6S. Idle Current at 10V: 0.4A. Maximum Continuous Power: 180S, 481W. Maximum Continuous Current: 180S, 26A.
