T-motor GL100 KV10 Gimbal Motor SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Recommend Age: 14+y
Origin: Mainland China
Material: Metal
Brand Name: T-MOTOR

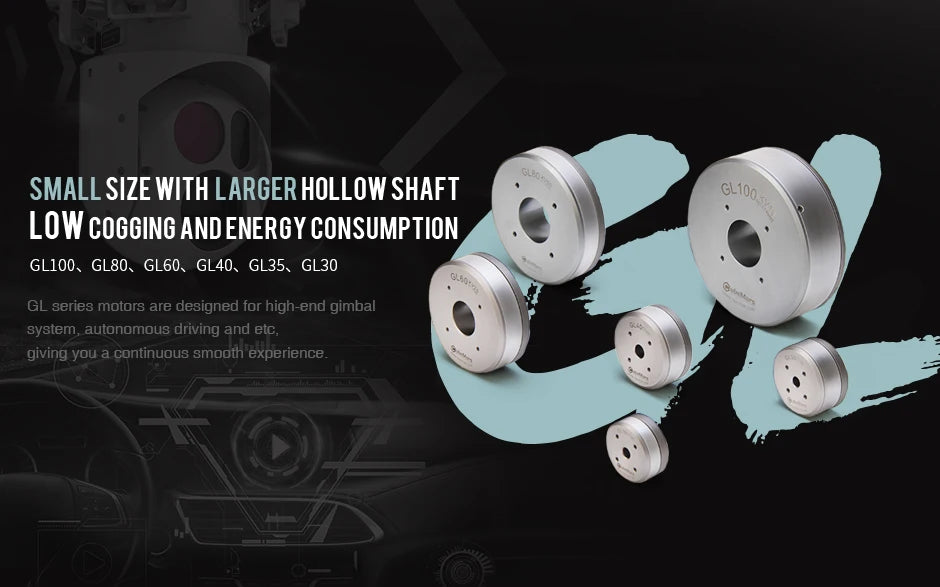

motors are designed for high-end gimbal system autonomous driving etC, giving you continuous smooth experience_ 61-1003k4 .

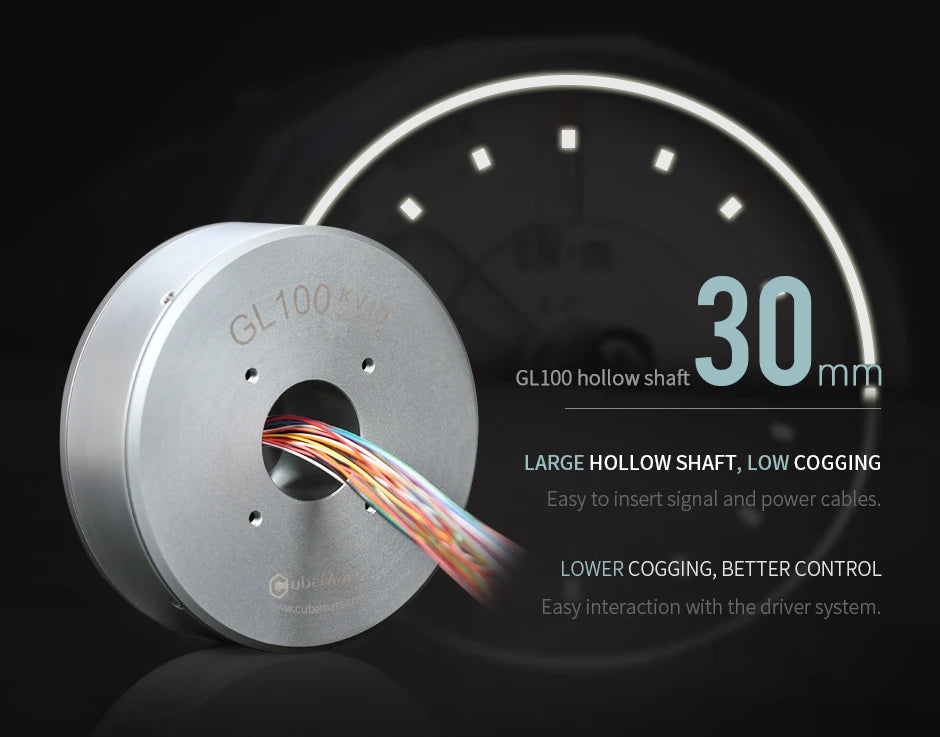

The T-motor GL100 KV10 Gimbal Motor features a large hollow shaft (30mm) designed for low cogging, allowing for easy insertion of signal and power cables. This results in better control and interaction with the driver system, offering a smooth 100K Vib performance.

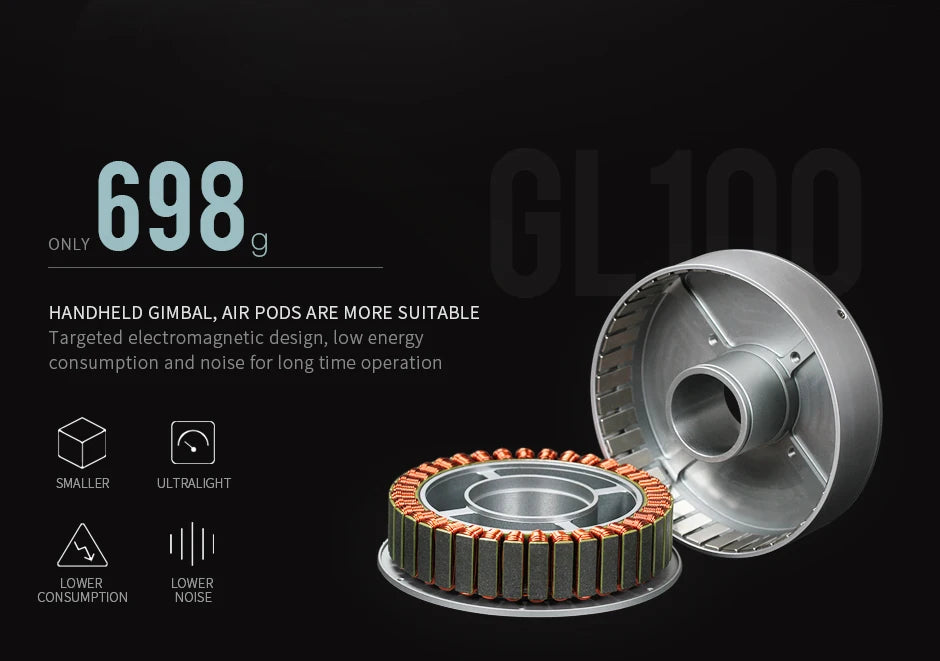

The T-Motor GL100 KV10 Gimbal Motor, part of the CubeMars Series, features a targeted electromagnetic design that minimizes energy consumption and noise for prolonged operation, making it an ideal choice for handheld gimbals and other applications.
Ip45 certified – free in various scenes: suitable for use in gimbal systems, drone pods, and autonomous driving navigation systems.

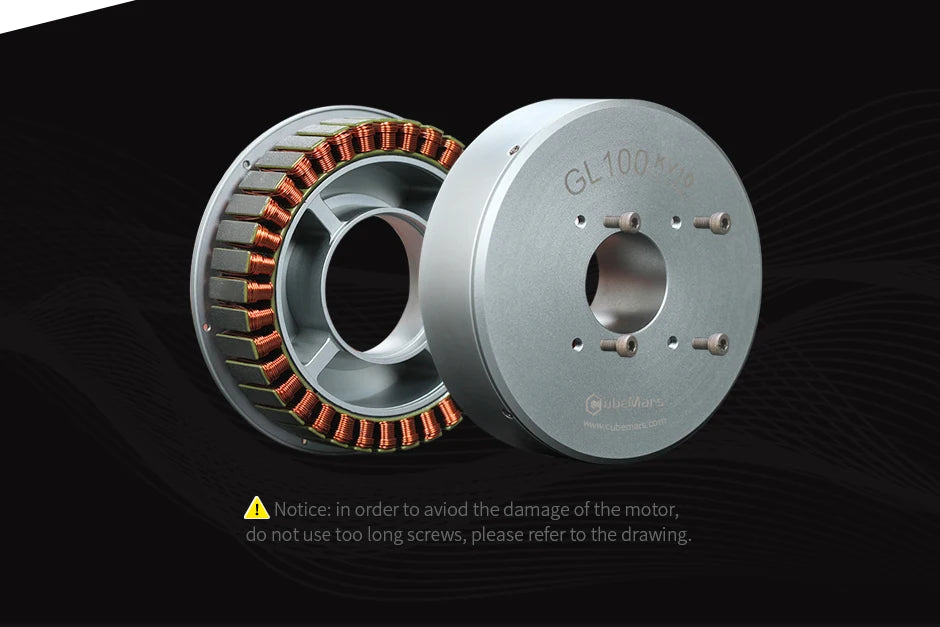

Notice: To avoid damaging the motor, please use no more than 7 screws. Refer to the diagram (part number: 400- Kyoz-He) for further instructions.

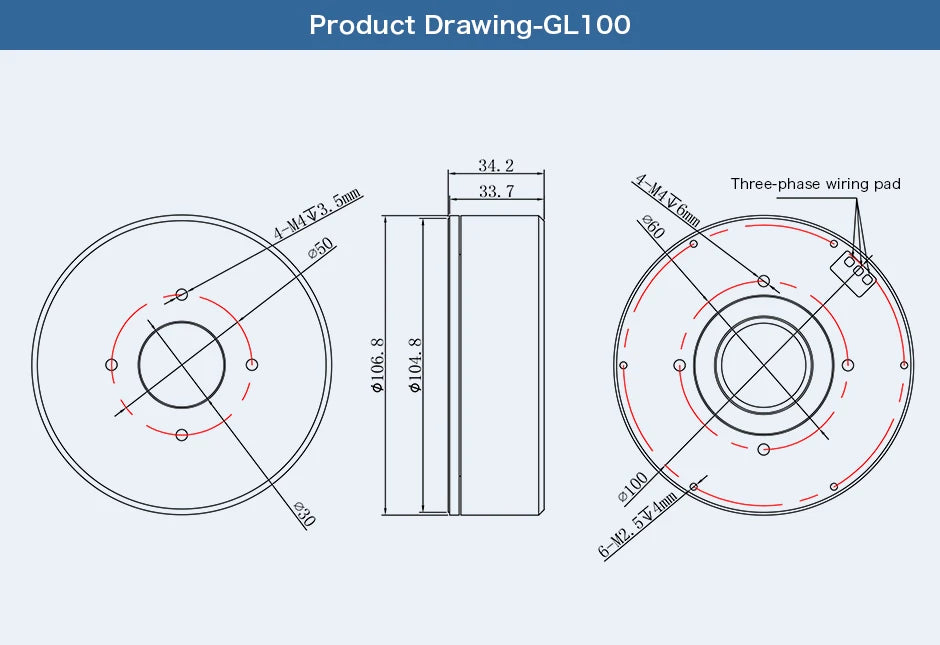

Product Drawing-GLIOO Three-phase wiring pad Si Yo 3 3 0 2 4-WLTow LIB 250 2100 ml 6

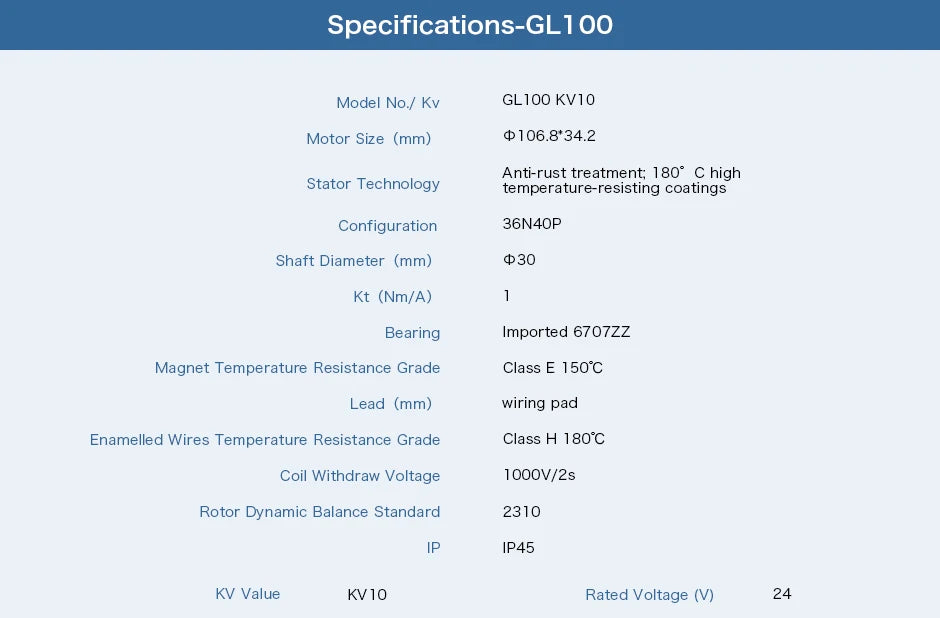

The T-motor GL100 KV10 gimbal motor features a compact size of 106.8mm x 34.2mm, with anti-rust treatment for added durability. It boasts high-performance stator technology with temperature-resisting coatings up to 180°C. The wiring includes enamelled wires with a high temperature resistance grade of Class H, supporting a maximum operating voltage of 1000V and a withdrawal current of 2s. Additionally, the rotor is dynamically balanced to standard 2310 IP45 specifications, ensuring smooth operation and reduced vibration.

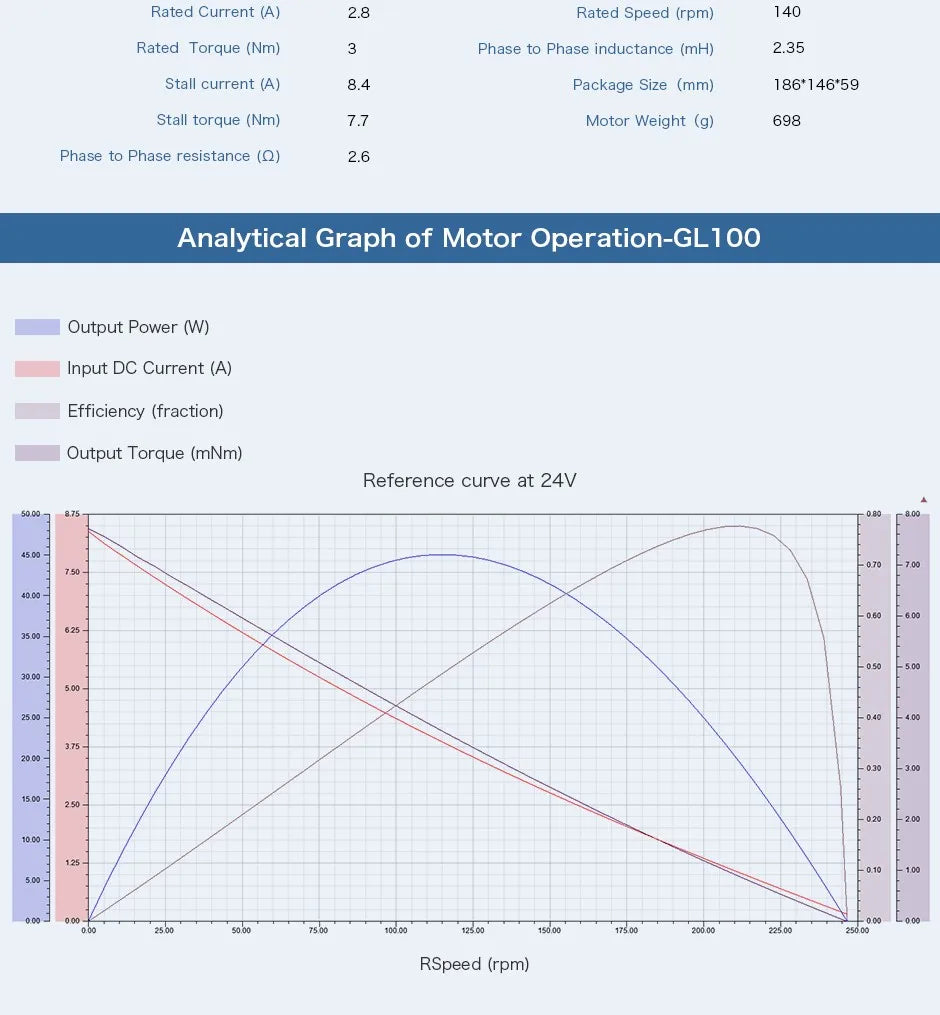

Key Specifications:
Rated Current: 8.4 Amps
Package Size (mm): 186 x 146 x 59
Stall Torque (Nm): 7.7 Nm
Motor Weight (g): 698 grams
Phase-to-Phase Resistance (Ohms): 2.6 Ohms
