SPECIFICATIONS

Name: T-motor F60PRO IV V2 Brushless Electrical Motor KV1750 KV1950 KV2550 Max 1.8KG Thrust For FPV Racing Drone FPV Freestyle Frame - Drone
Price: 47.24 USD
Availability: InStock

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: ESC

Recommend Age: 18+

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: F60 PRO IV

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

This is V2 version.

There are Grey,Blue and Red colors to choose,and we will send you color randomly.You can also leave us a message which color you want.

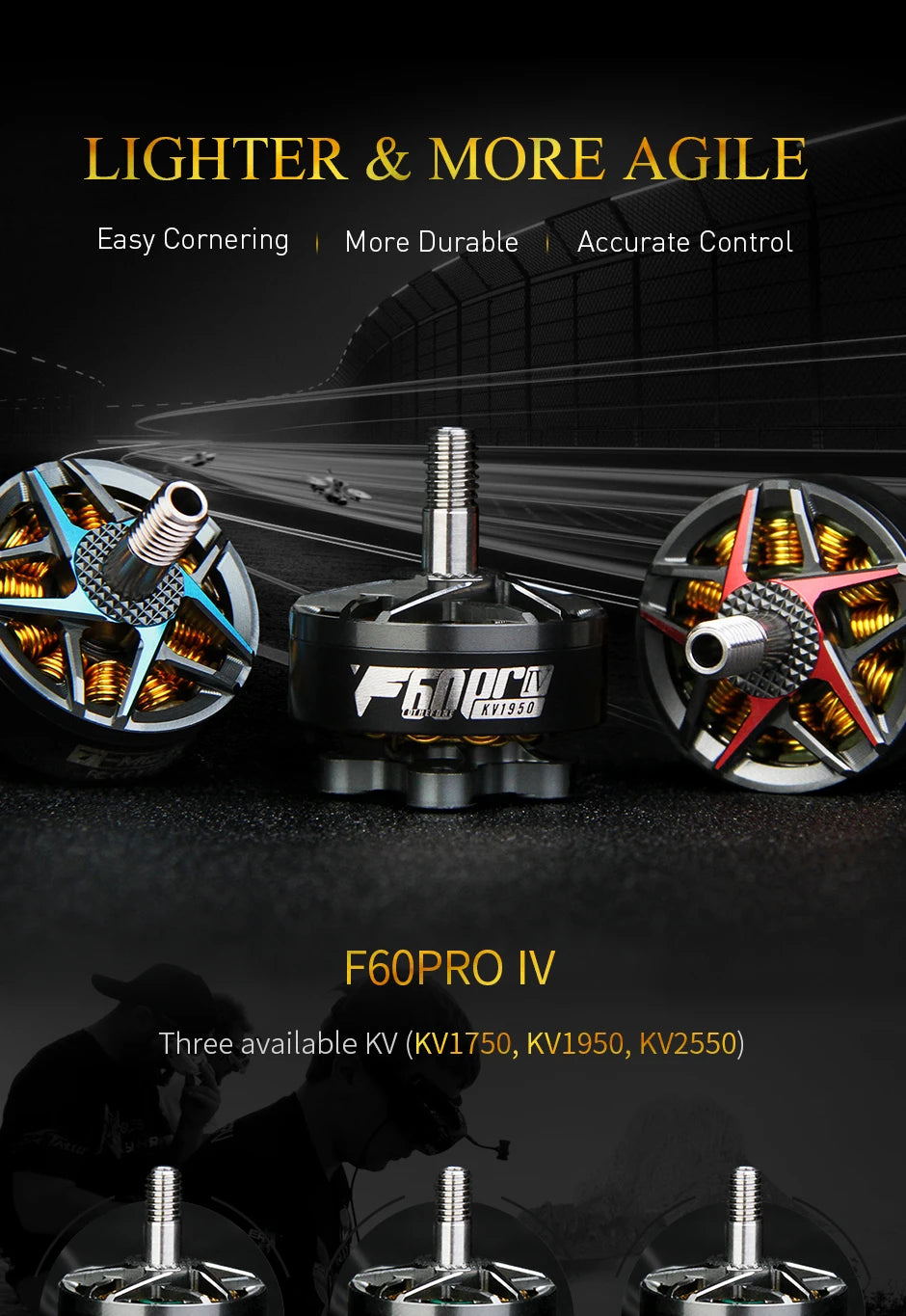

T-motor, Kv1950 F6OPRO IV Three available KV (KV1750,

Kv1950 F6OPRO IV Three available KV (KV1750, KV1950, kv2550) Easy 3D Cornering More Durable Accurate Control Ah W Kv1750 F

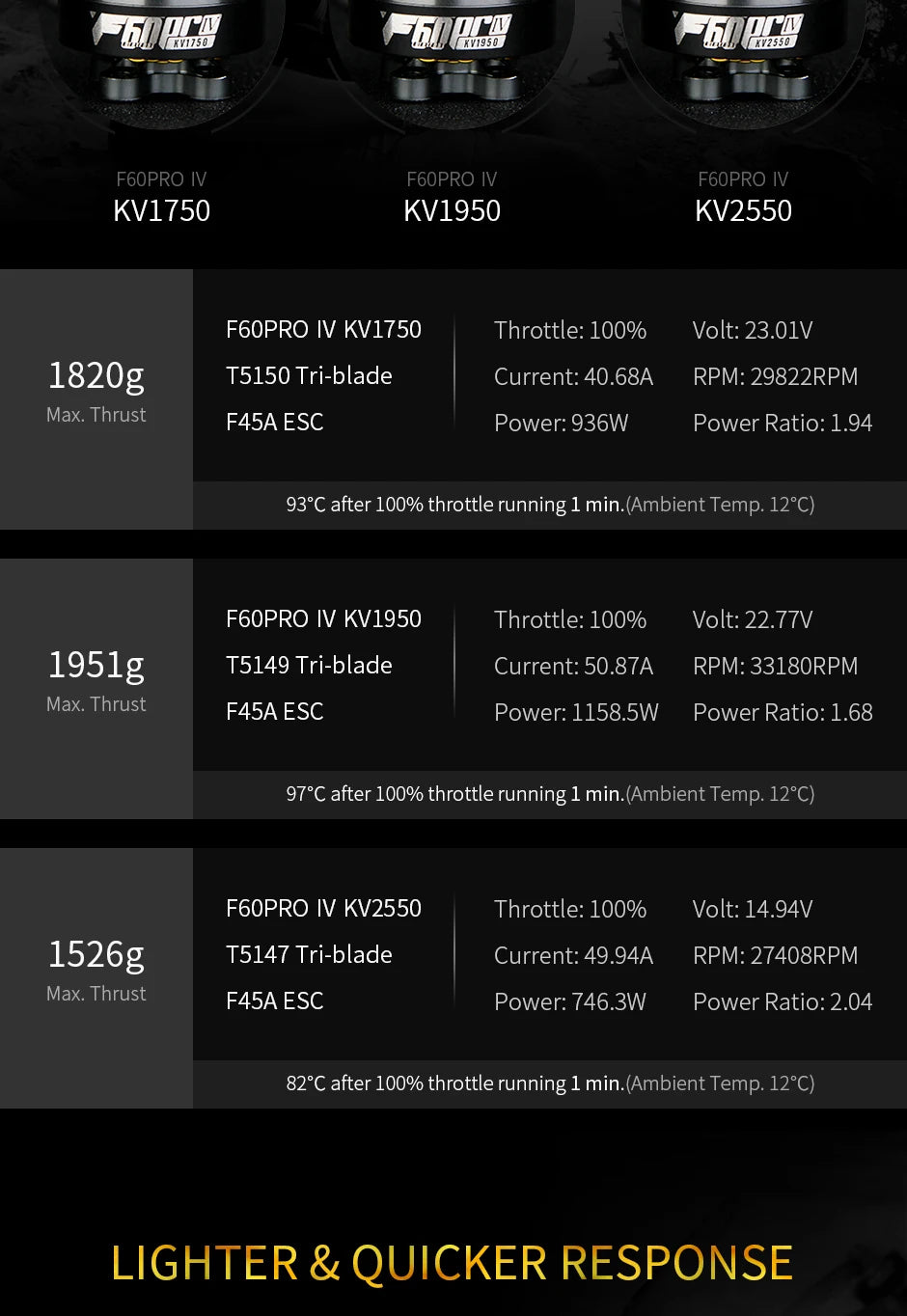

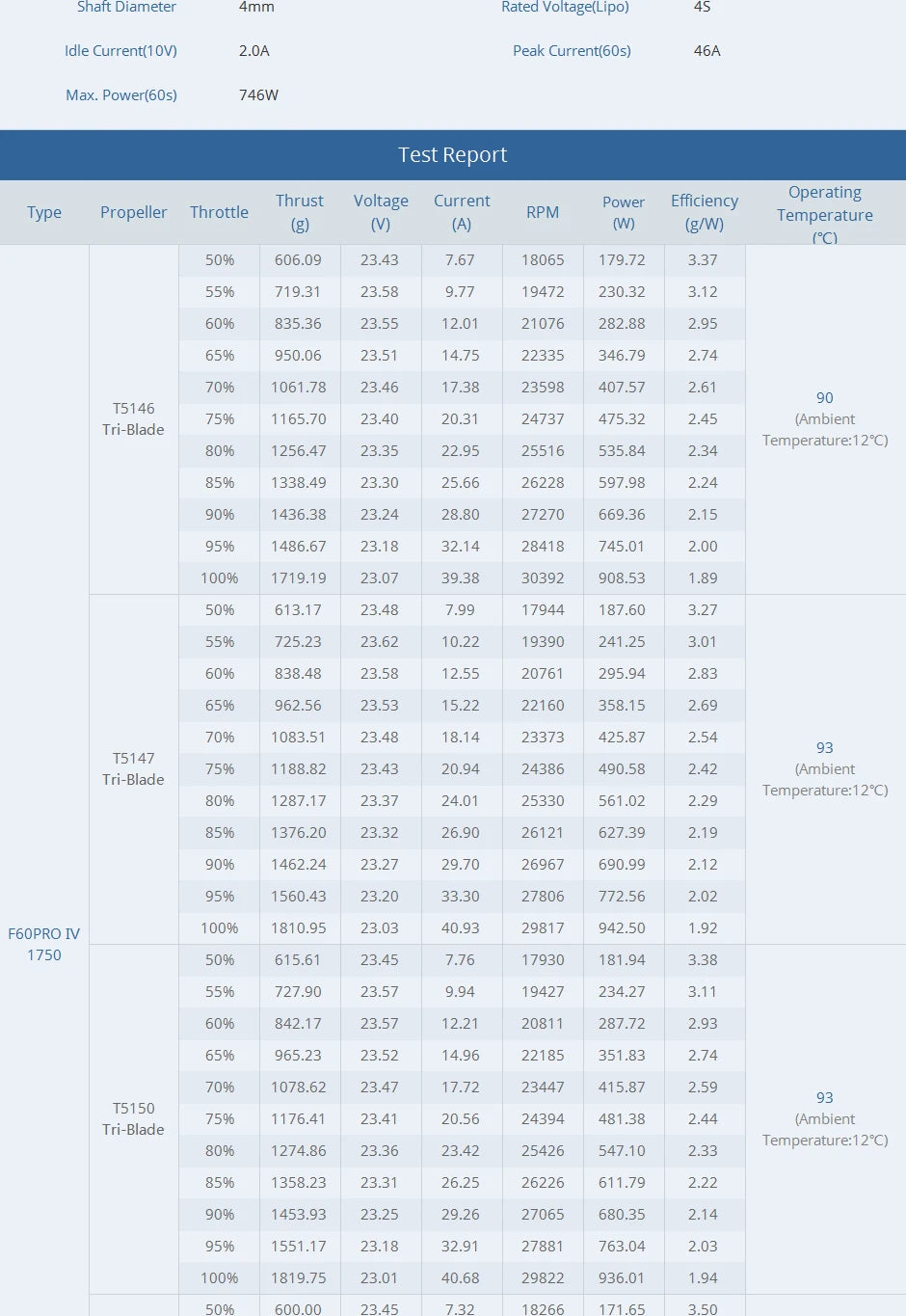

T-motor, FGOPRO IV KV1750 Throttle: 100% Volt: 23.01

T-Motor F60PRO IV Brushless Electrical Motor Specifications:

* KV (Kilovolt): 1750
* Throttle: 100%
* Voltage: 23.01V
* Weight: 1820g
* Propeller: Tri-Blade T5150
* Current: 40.68A
* RPM: 29,822RPM
* Max Thrust: [Not specified]
* ESC Power: 9,361W
* Power Ratio: 1.94
* Temperature after 100% throttle running: approximately 93°C

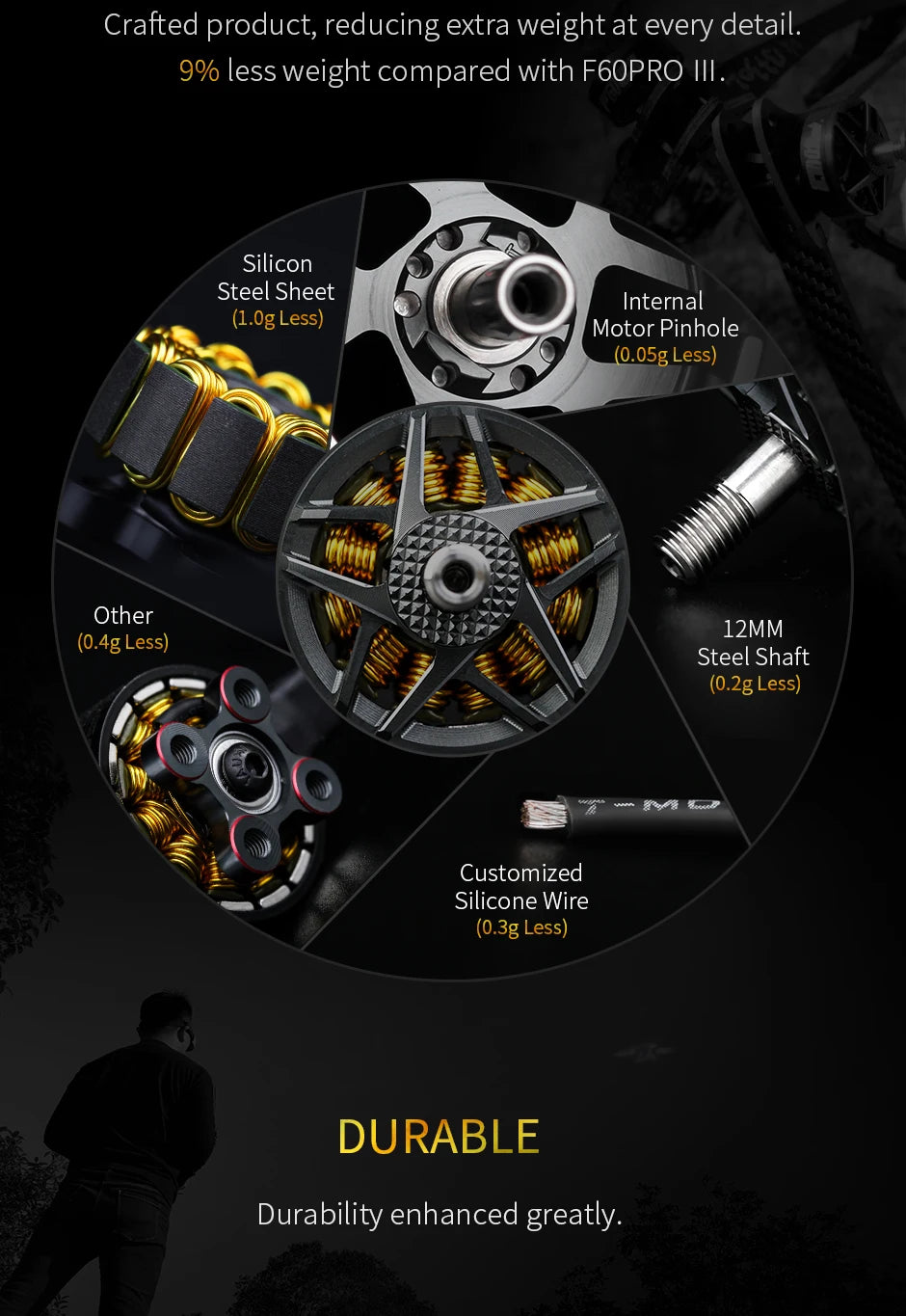

T-motor, 9% less weight compared with F6OPRO III . reducing extra weight at

Enjoy a 9% reduction in weight compared to the F60PRO III, where every detail has been optimized to minimize excess weight.

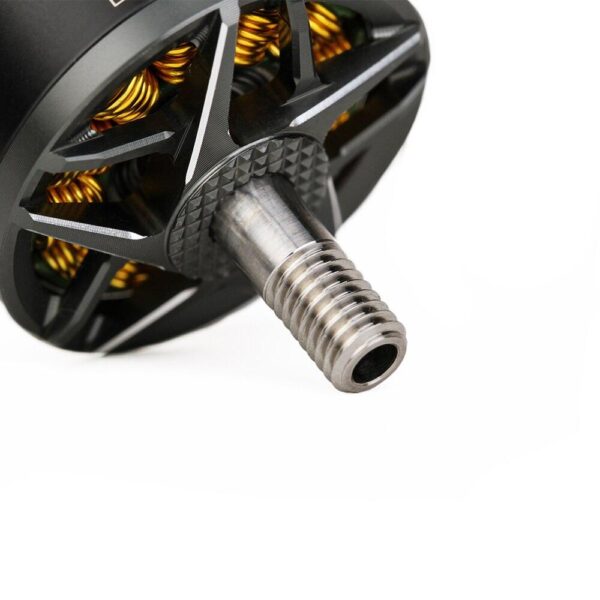

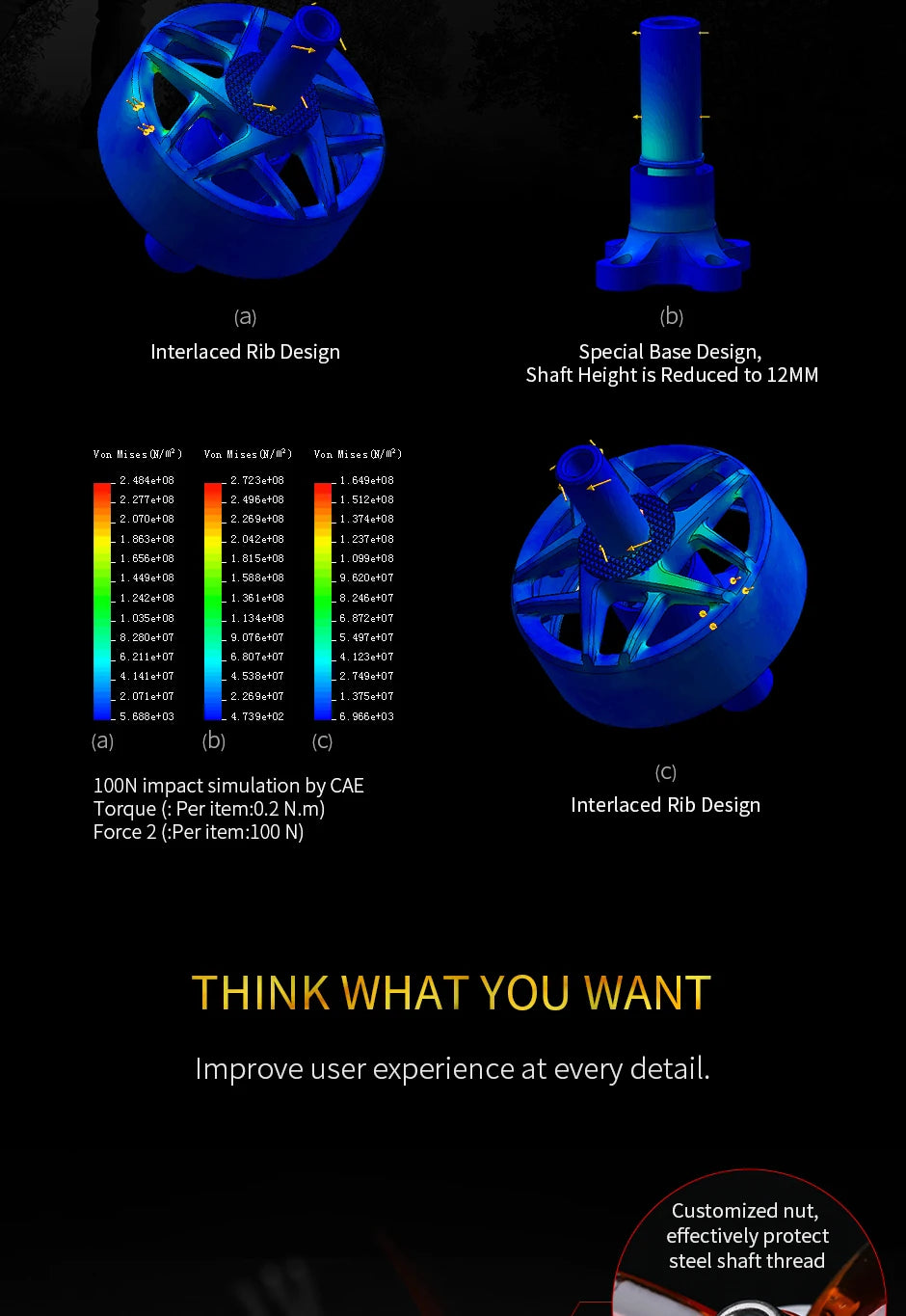

T-motor, Interlaced Rib Design Special Base Design; Shaft Height is Reduced to 12MM

The F60PRO IV V2 motor features an innovative interlaced rib design, along with a special base design that reduces the shaft height to just 12mm. Additionally, our CAE-validated torque simulation helps to enhance the user experience.

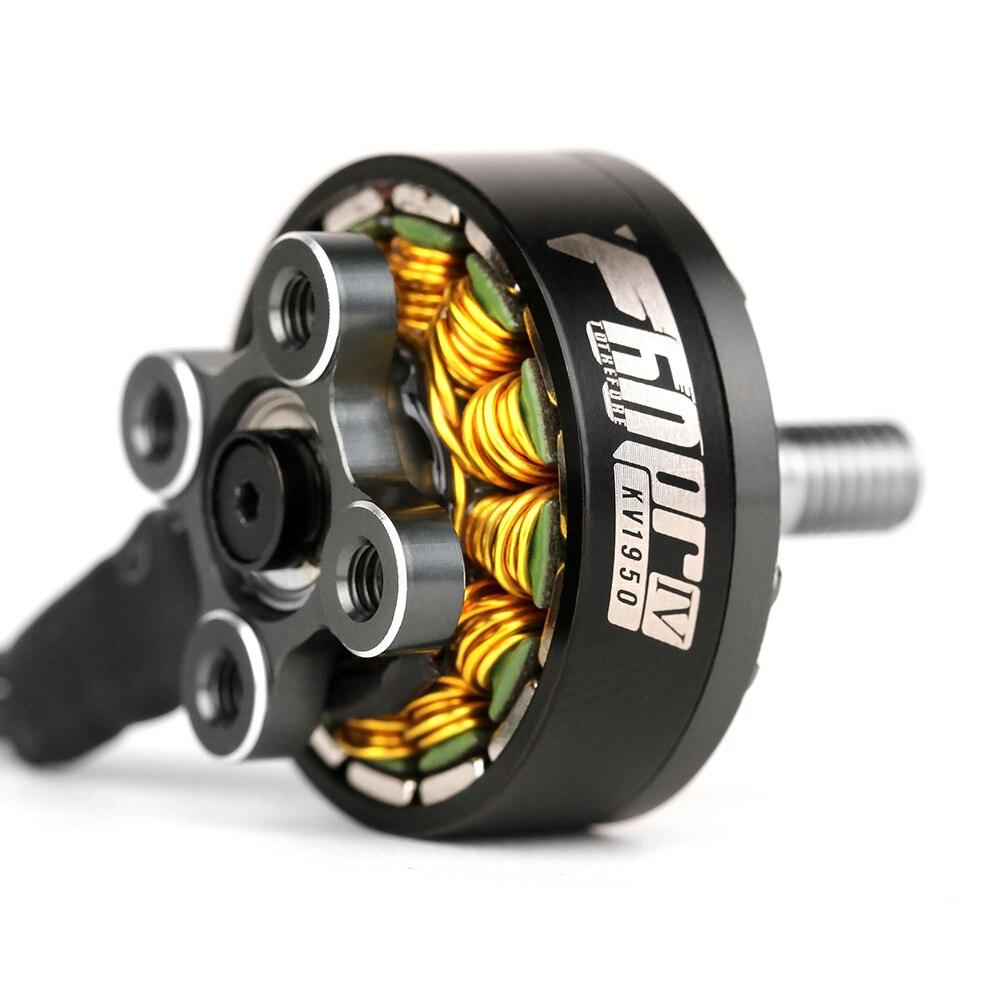

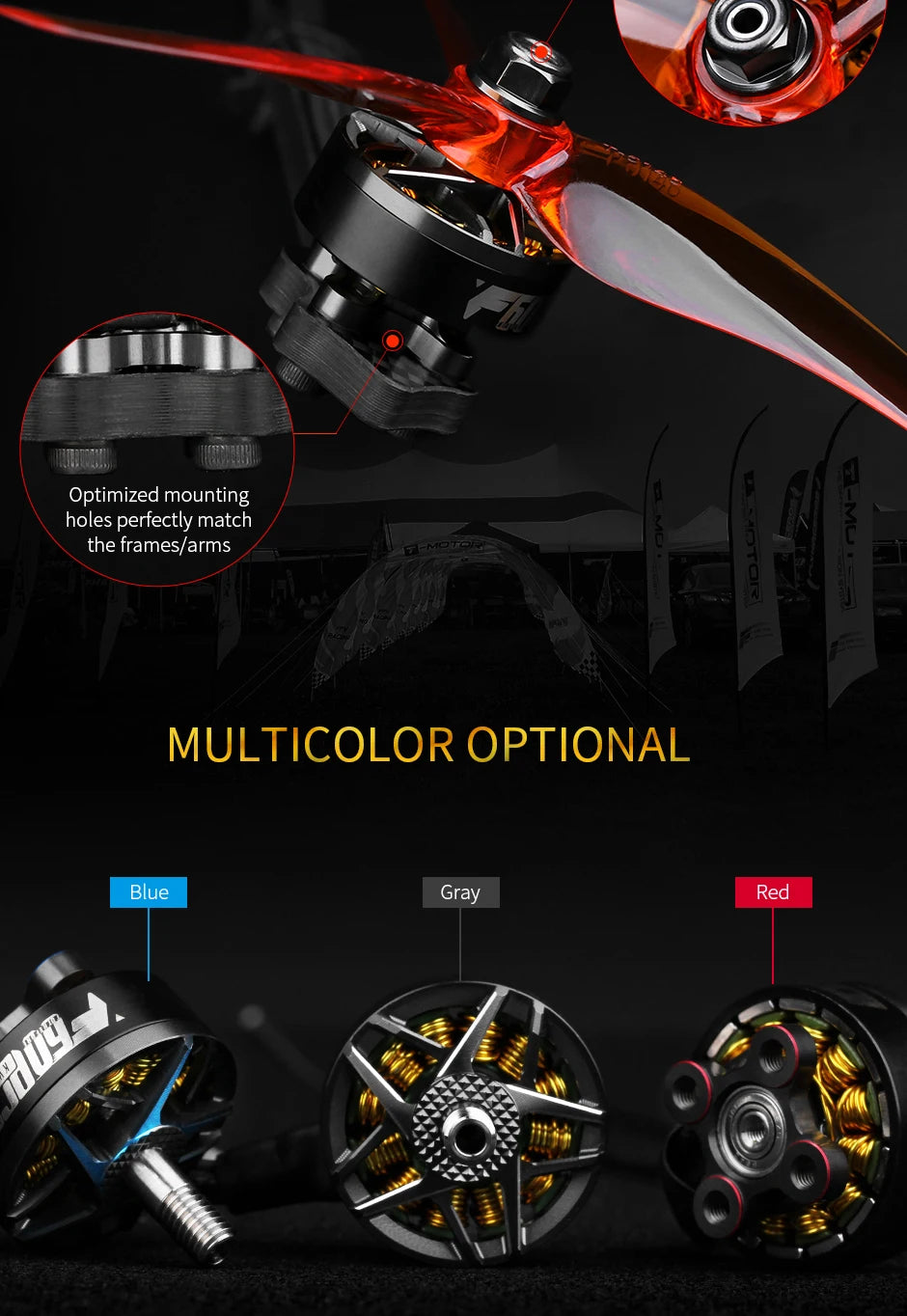

T-motor, Optimized mounting holes perfectly match 5 the frames/arms MULTICOLOR

The optimized mounting holes provide a perfect match for 5 frames/ar arms, with optional colors including blue and red.

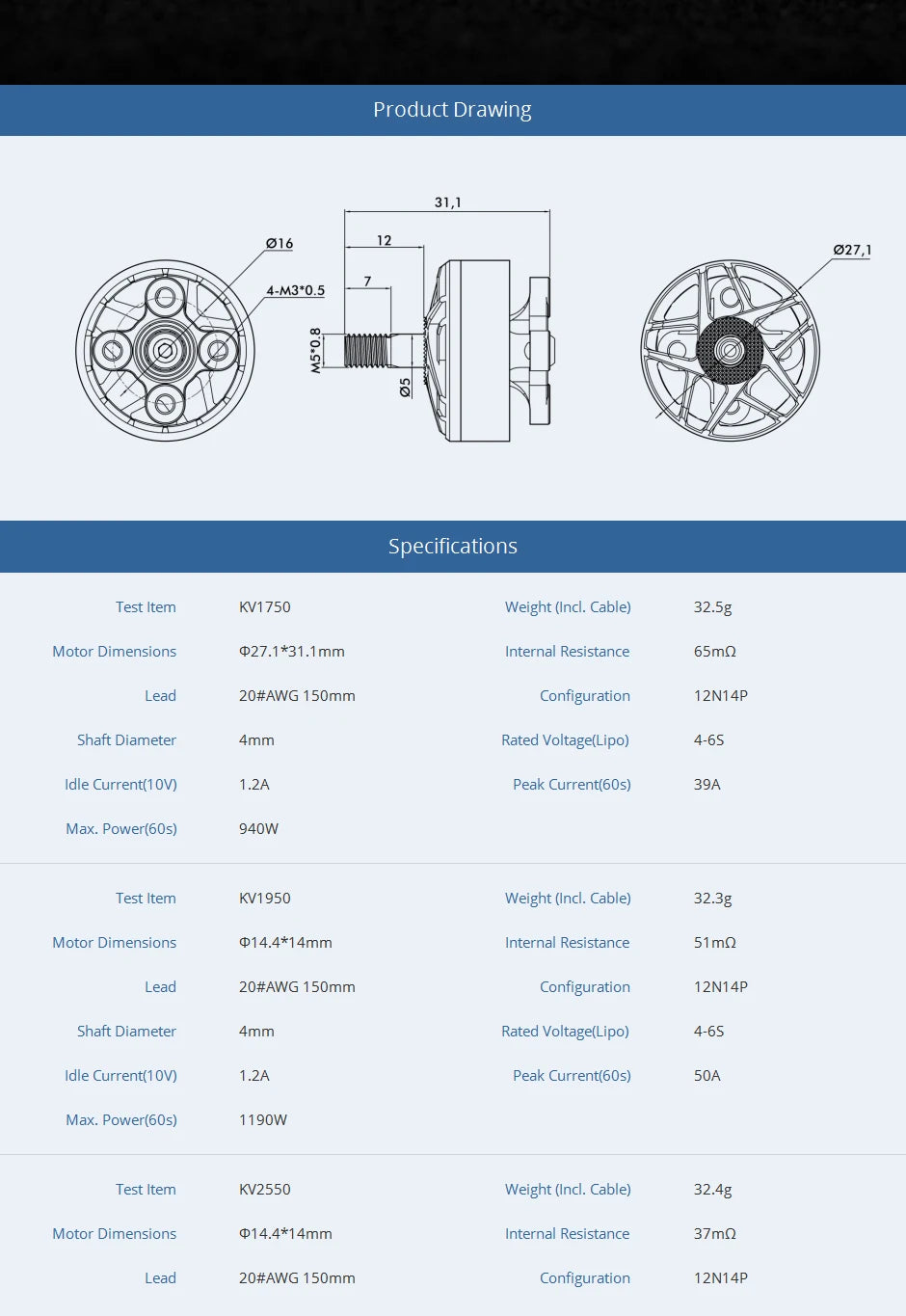

T-motor, 32.5g Motor Dimensions 027.1*31.1mm Interna Resistance 65mn

Product Specifications: KV1750 Motor – Weight (including cable): 32.5 grams; Dimensions: 27.1mm x 31.1mm; Internal Resistance: 65mΩ; Lead Wire: 20AWG, 150mm long; Configuration: 12N14P; Shaft Diameter: 4mm; Rated Voltage (Lipo): 4-6.5V; Idle Current (1V): 1.2A; Peak Current (60s): 394A; Maximum Power (60s): 1190W. Test Item KV2550 – Weight: 32.4g.

T-motor, RC Parts & Accs : Motors Origin : Mainland China T-motor, you can also leave us a message which color you want .

Color	KV2550, KV1950, KV1750
