SunnySky 2814 X2814 900KV KV1100 KV1250 3-5S Brushless Motor for Believer UAV 1960mm RC Airplane Helicopter Fixed-wing Drone

$80.30

+ Free Shipping
2PCS KV1250
2PCS KV1100
2PCS KV900
2PCS KV12502PCS KV11002PCS KV900
Clear
SKU: N/A Categories: ,

SunnySky X2814 900KV SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Other

Unit Type: piece

Tool Supplies: Assembled class

Technical parameters: Value 4

Remote Control Peripherals/Devices: Motor

Recommend Age: 18+,12+y

RC Parts & Accs: Motors

Package Weight: 0.15kg (0.33lb.)

Package Size: 9cm x 6cm x 5cm (3.54in x 2.36in x 1.97in)

Origin: Mainland China

Model Number: X2814 920KV

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: uuustore

SunnySky 2814 X2814 900KV 3-5S Brushless Motor for Believer UAV 1960mm RC Airplane Helicopter Fixed-wing Drone RC Motor

 X2820 920KV 3-5S Brushless Motor
Specifications:
Model: X2820
KV (rpm/min): 920KV
Stator diameter: 28mm
Stator thickness: 20mm
No. of stator arms: 12
No. of rotor poles: 14
No-load current: 1.1A
Motor resistance: 28mΩ
Max continuous current: 52A/30S
Max continuous power: 750W
Rotor diameter: 35mm
Shaft diameter: 5mm
Body length: 42mm
Overall shaft length: 61mm
Max Lipo cell: 3-5S
Recommended ESC: 60A
Recommended propeller: APC13*6.5, APC12*8, APC12*6, APC11*5.5, APC11*8, APC11*7
Motor weight: About 146g/pcs

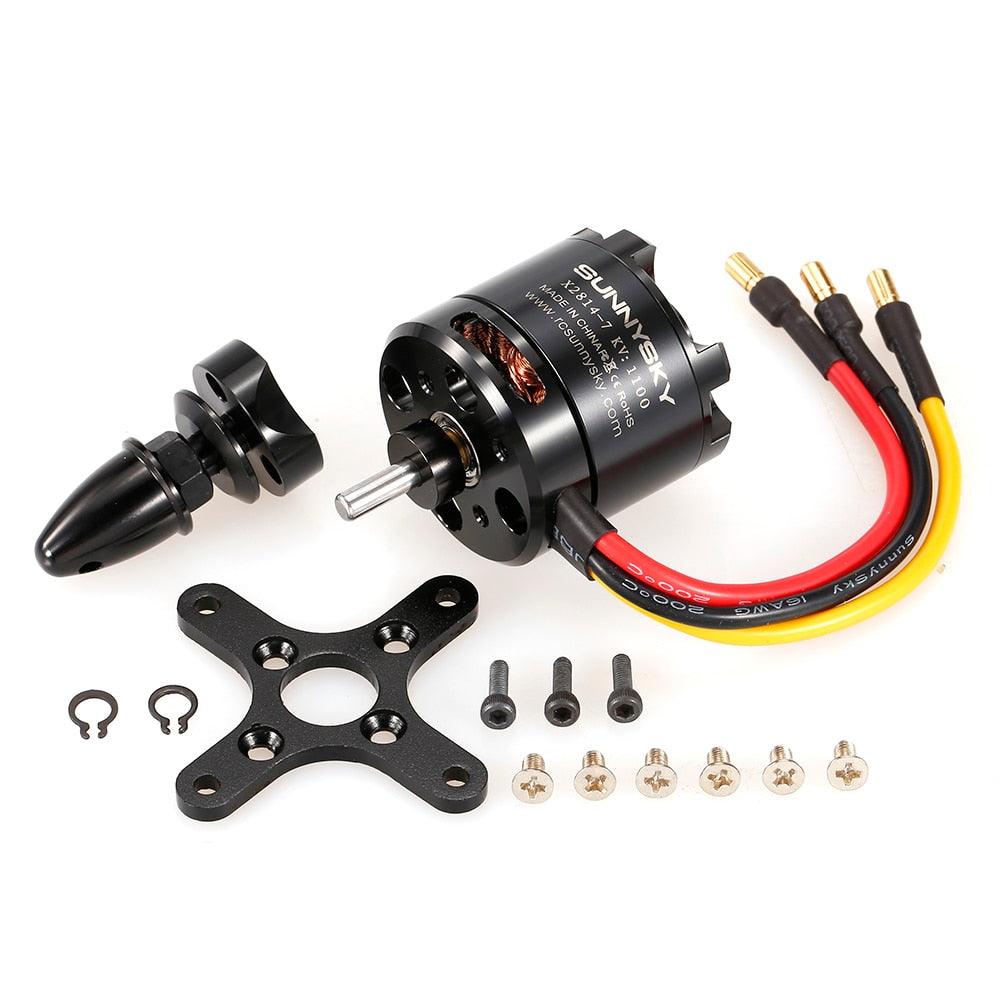

Package list:


2 * Motor

rotor poles: 14 No-load current: 1.1A Motor resistance: 28
rotor poles: 14 No-load current: 1.1A Motor resistance: 28
SunnySky X2814 900KV SPECIFICATIONS Use
SunnySky X2814 900KV SPECIFICATIONS Use
SunnySky X2814 900KV SPECIFICATIONS Use
SunnySky 2814 X2814

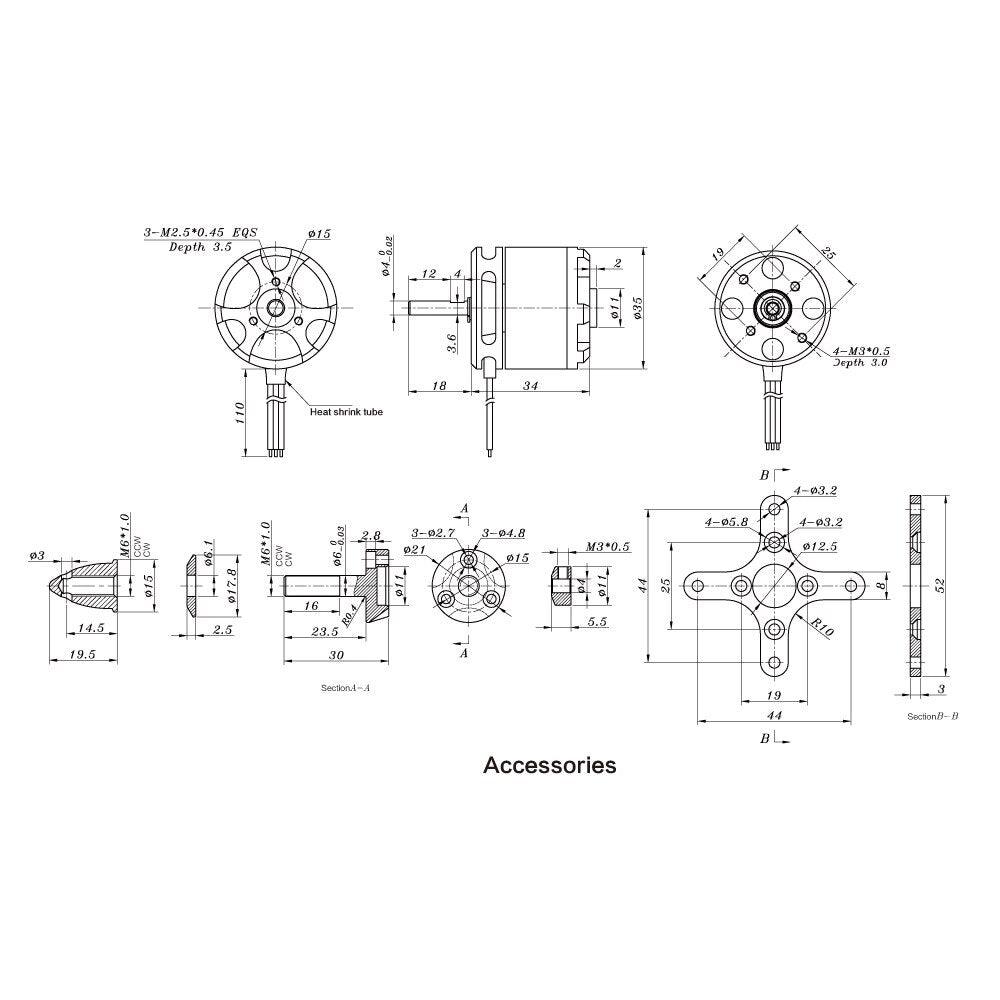

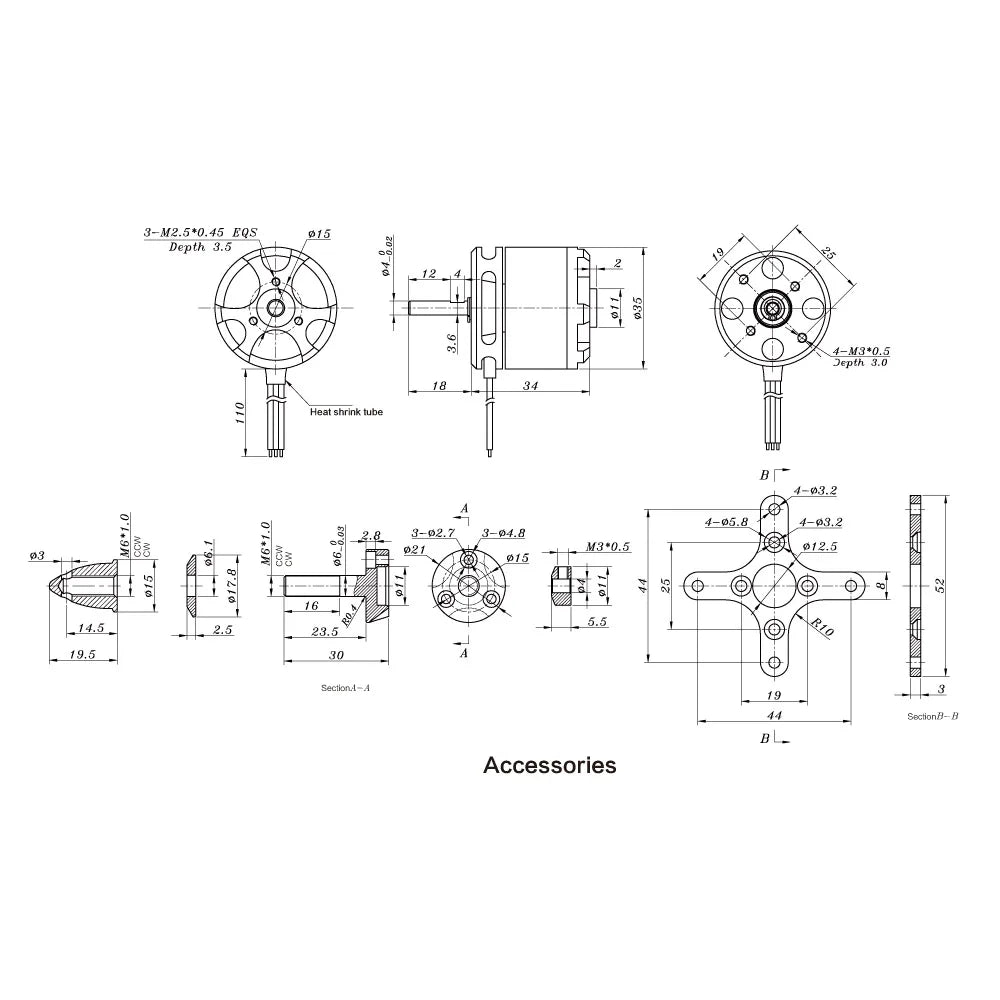

4-03.2 : 3-02 04.8 Ies 01 M35 012.5 : 55 LLS 23. 19.5 Eeciiona Spatona- V | Accessories Rio de Janeiro .

rotor poles: 14 No-load current: 1.1A Motor resistance: 28
X2814 920KV 3-5S Brushless Motor for Believer UAV
rotor poles: 14 No-load current: 1.1A Motor resistance: 28

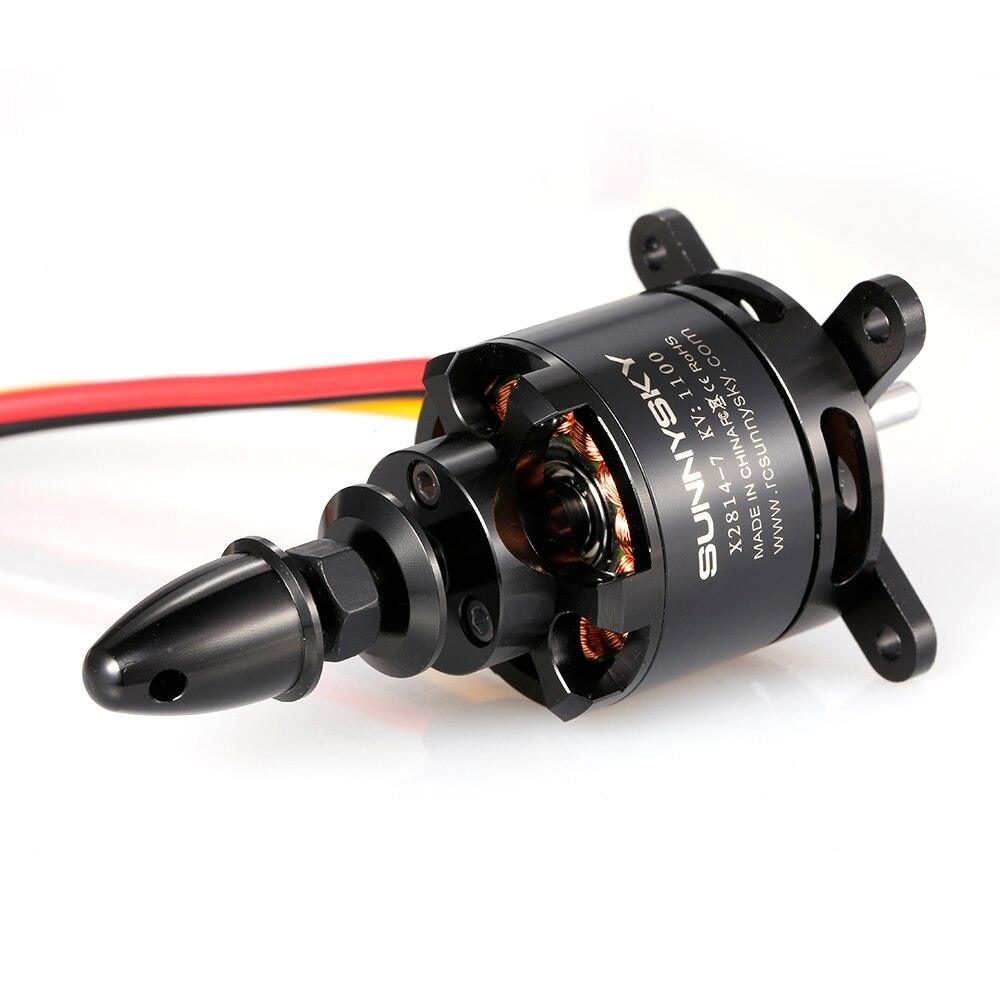

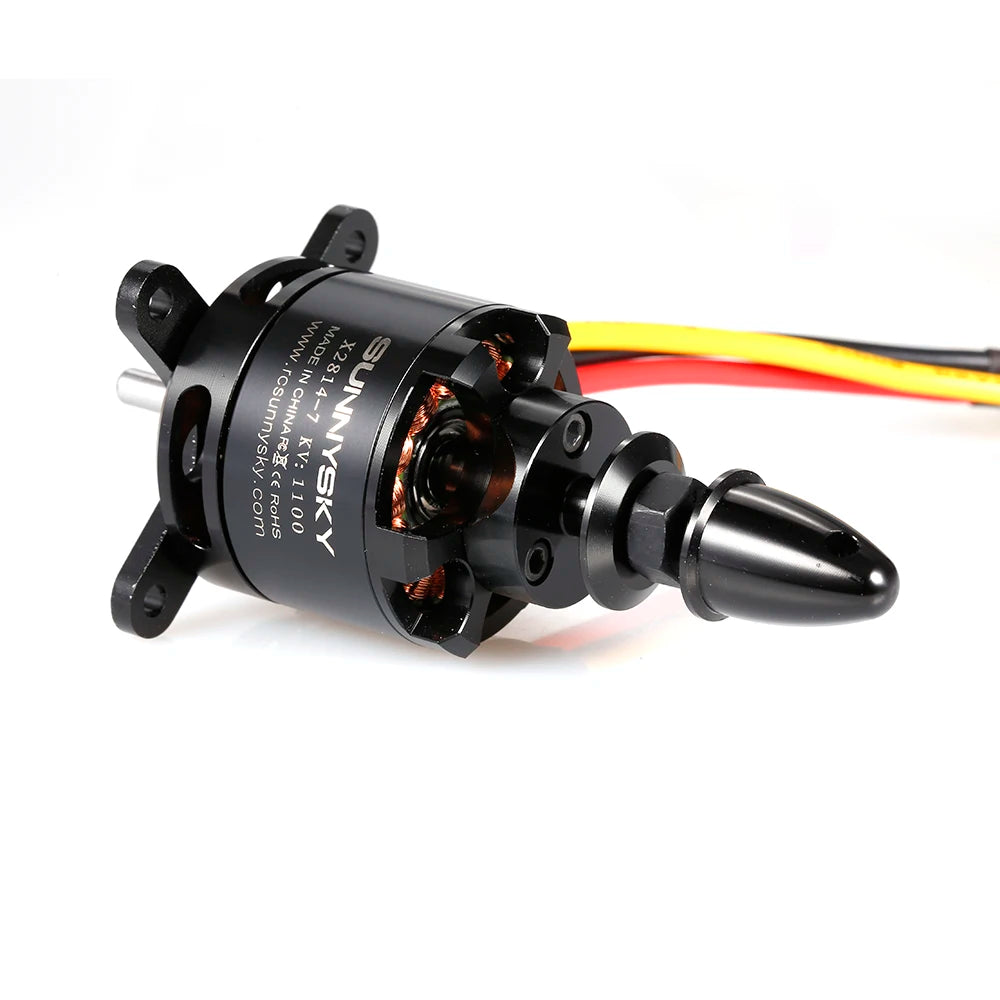

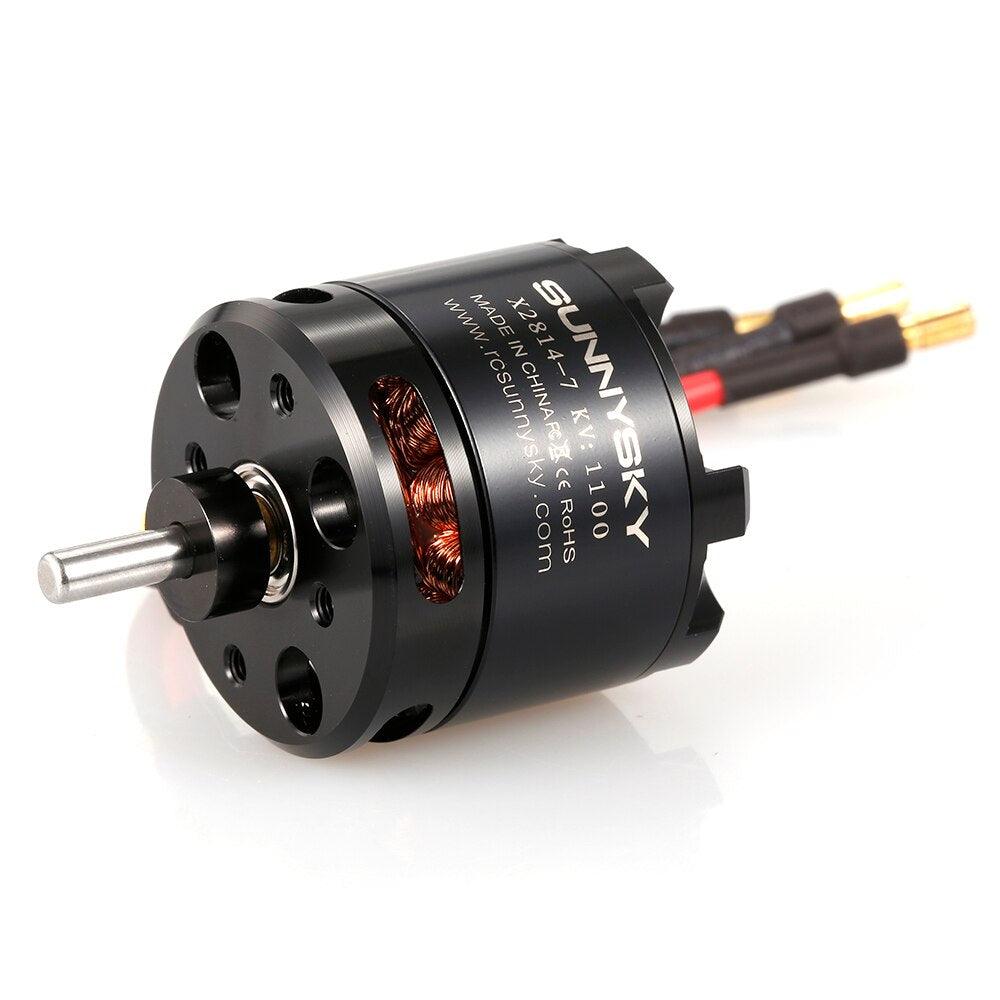

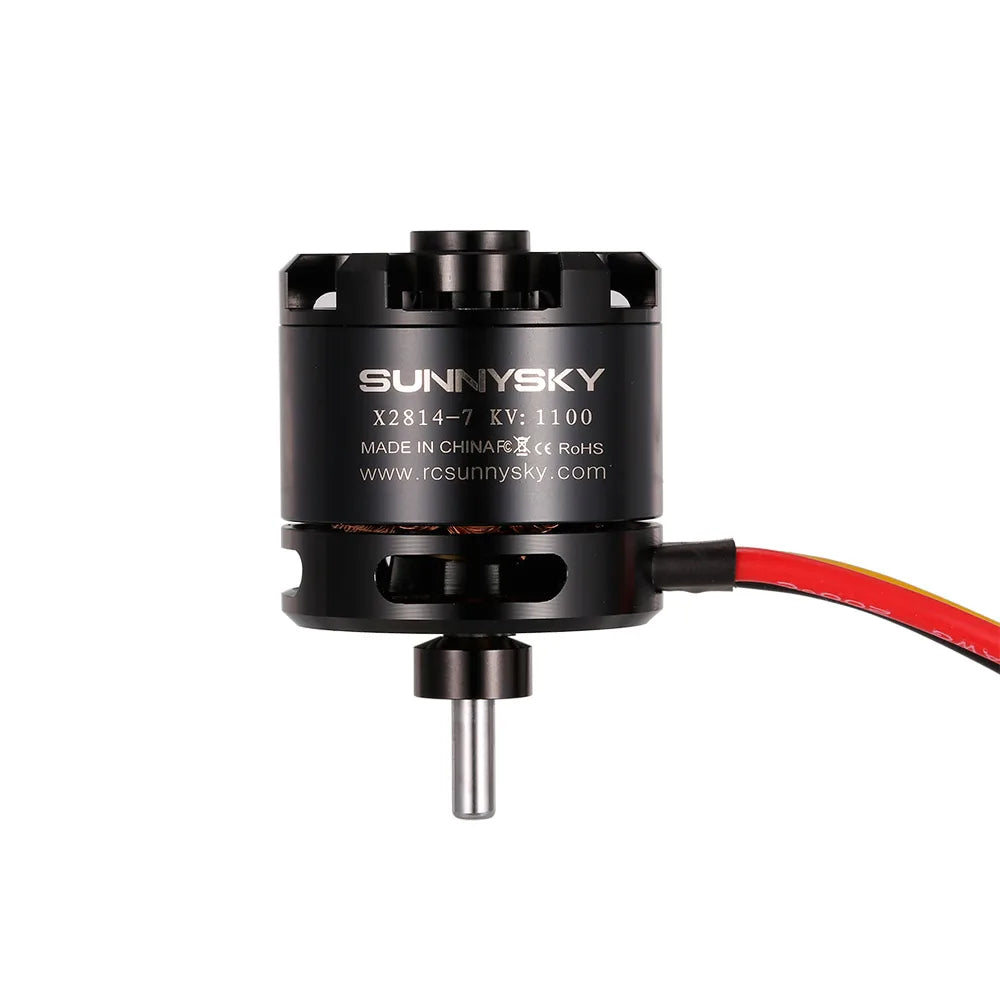

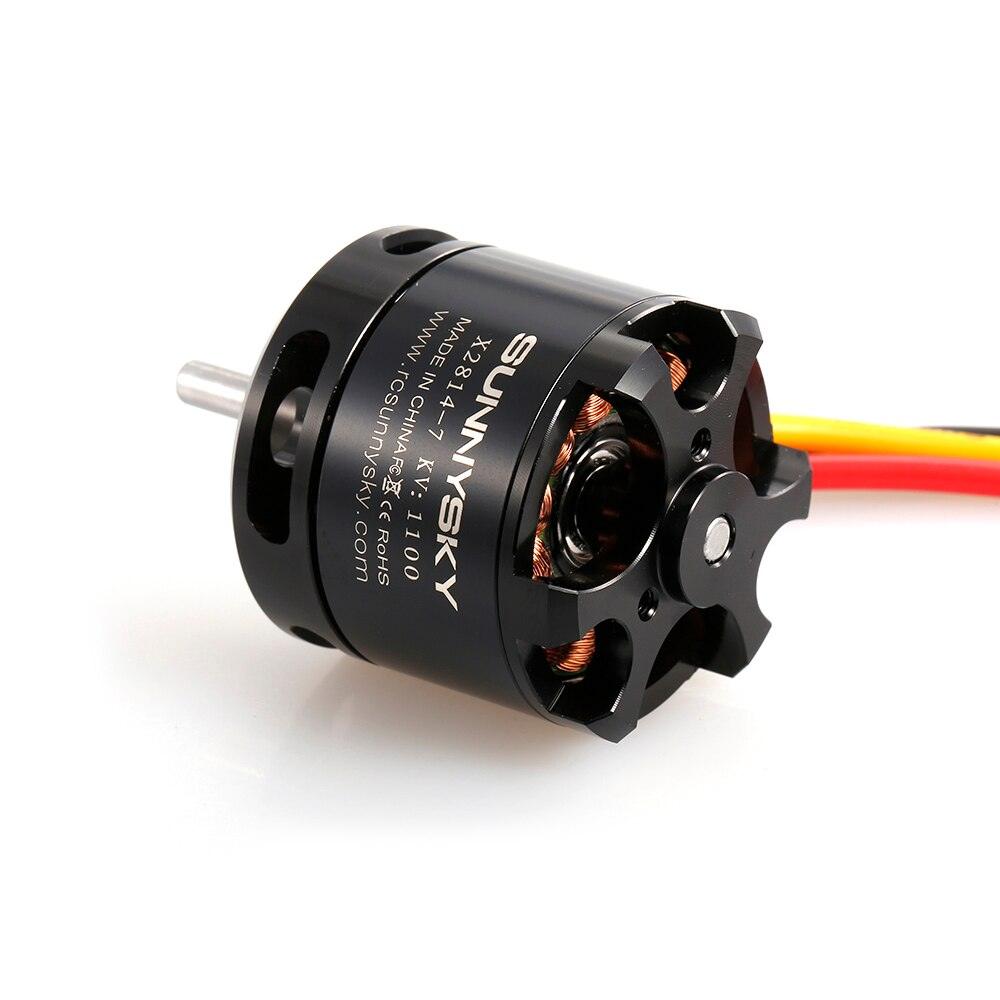

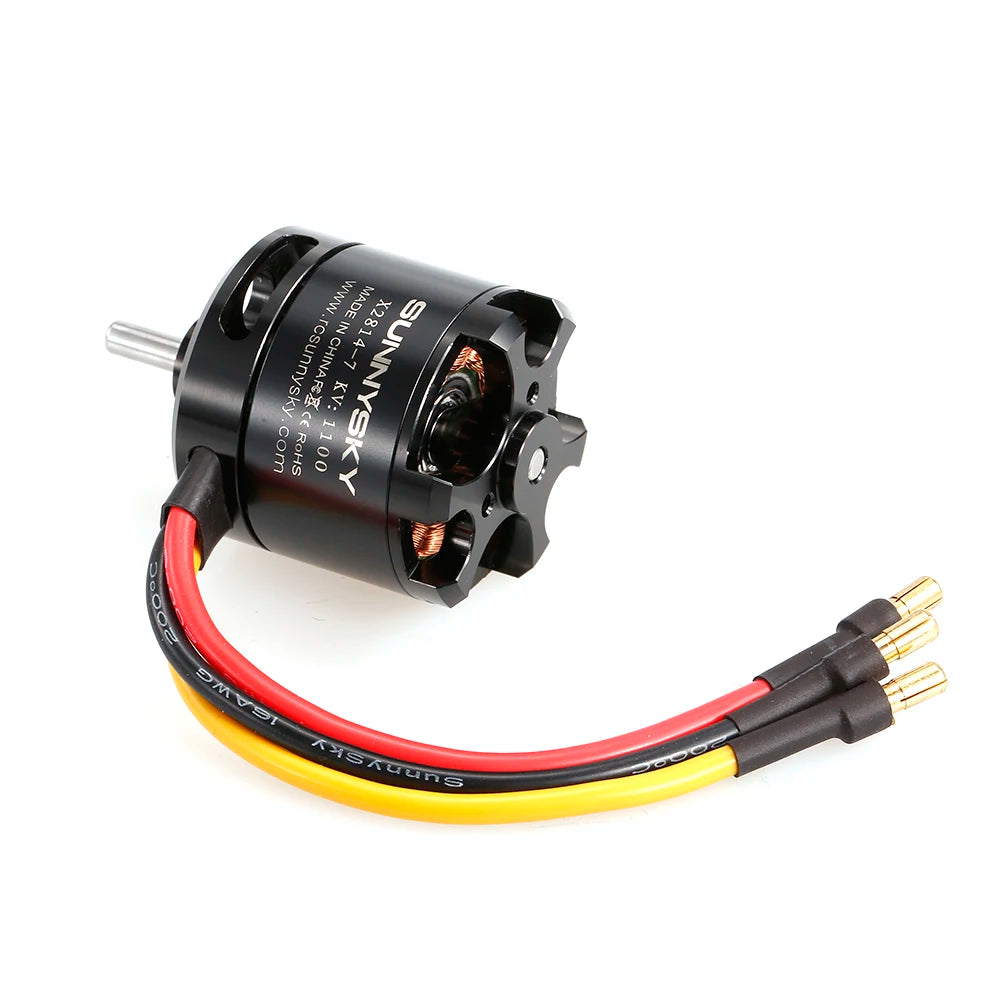

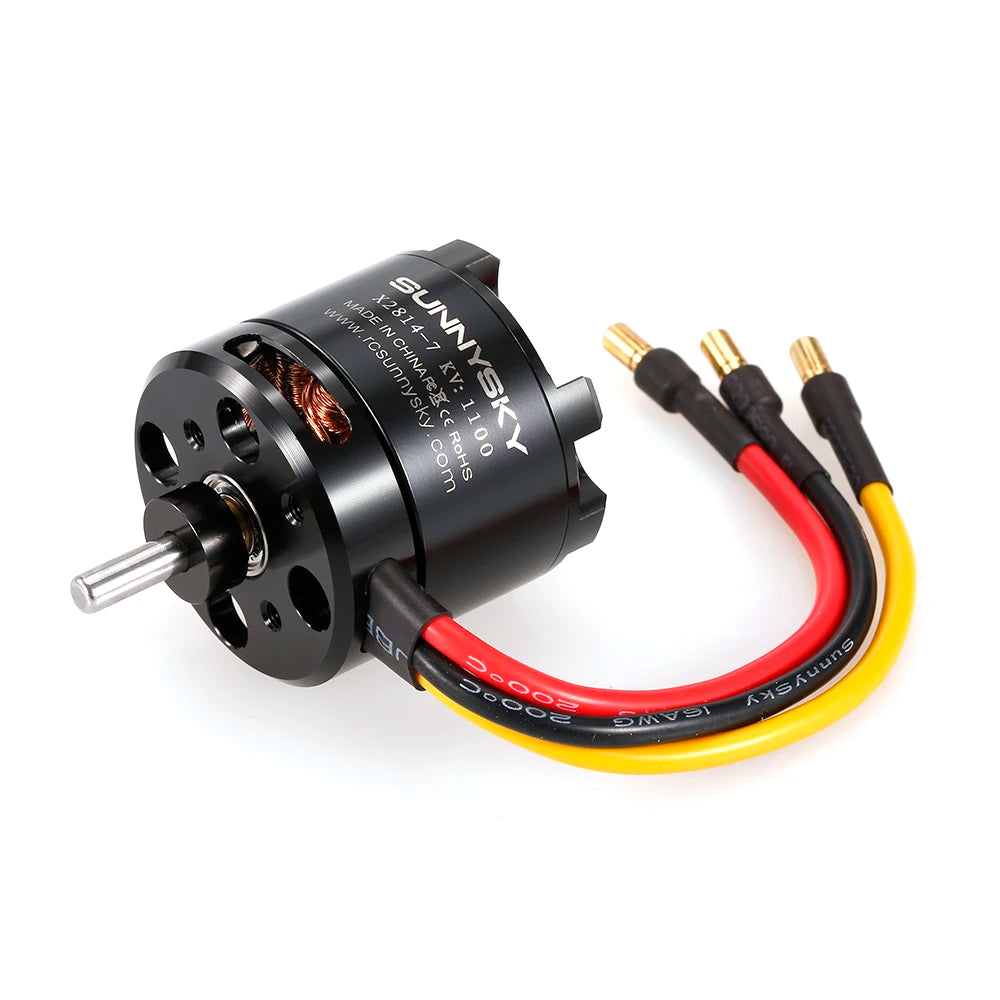

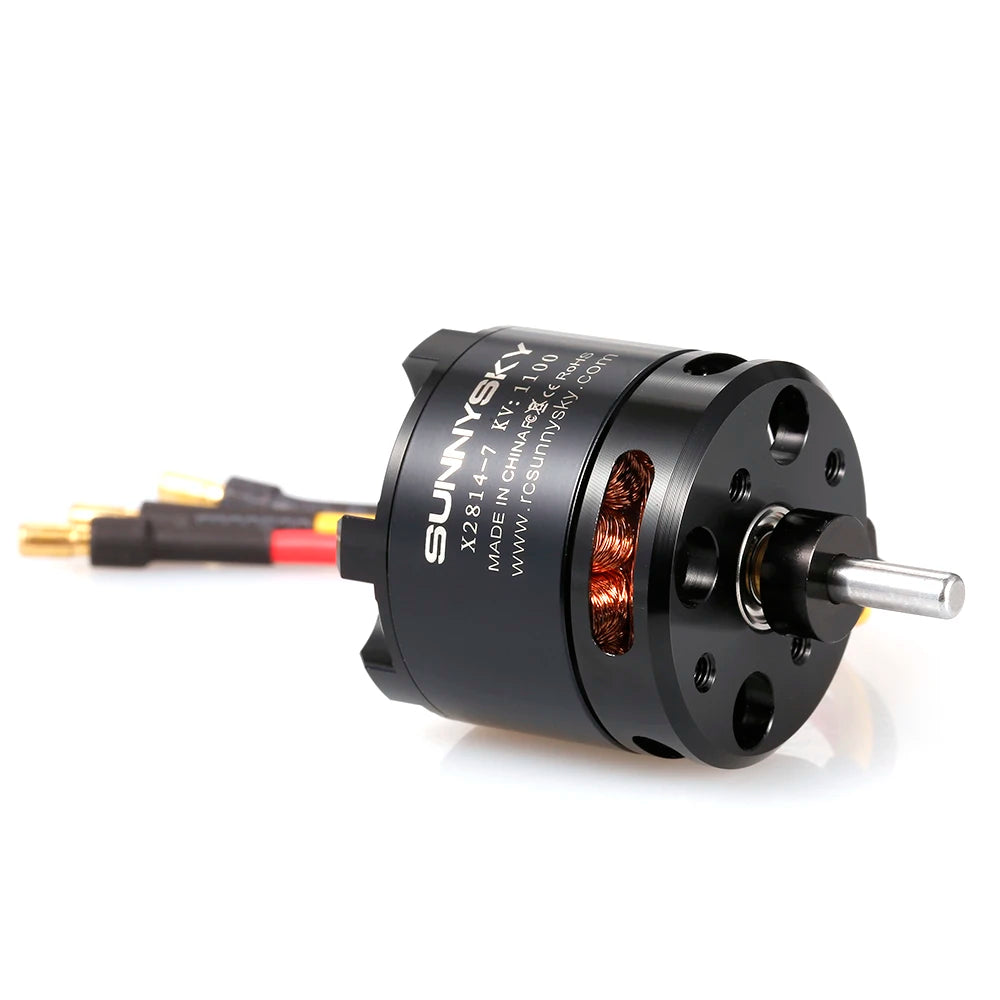

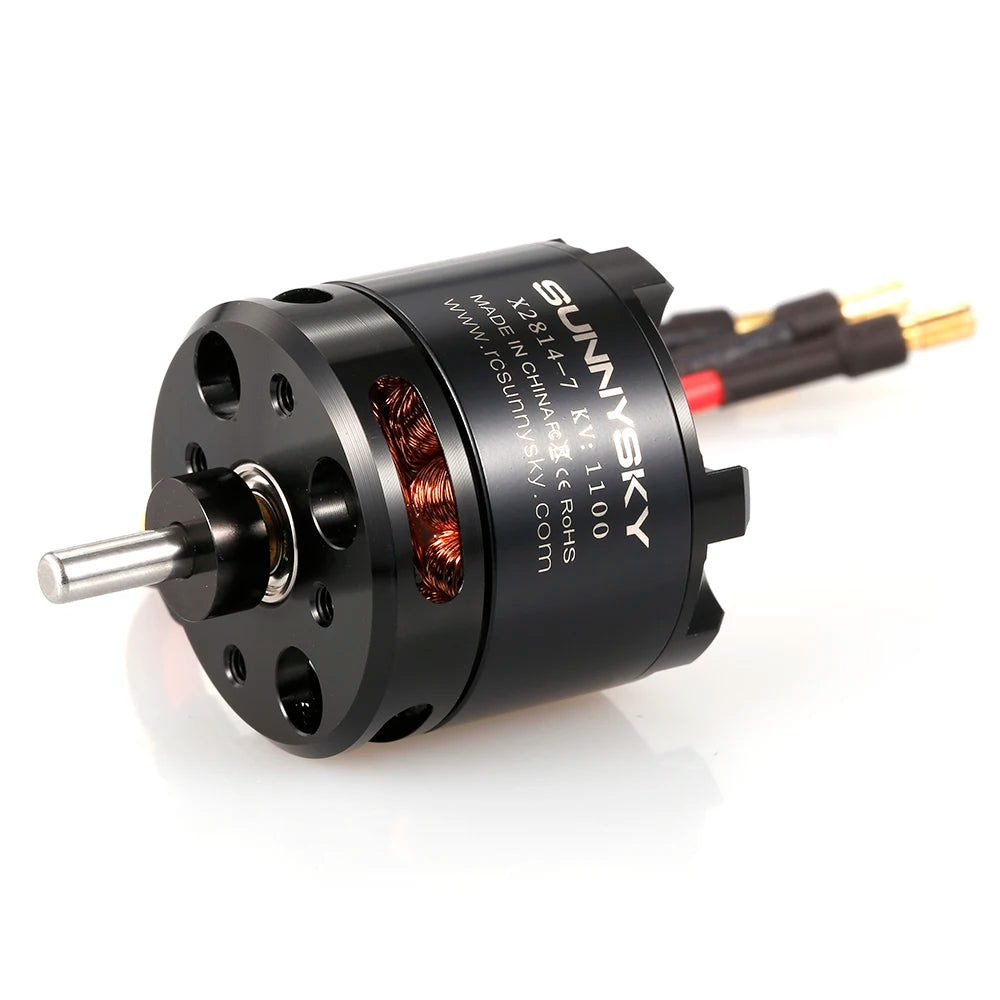

X2814-7 KV: 1100 MADE IN CHINAFcX

Color

2PCS KV1250, 2PCS KV1100, 2PCS KV900
