SKYRC S65 AC Balance Charger – 10W Discharger XT60 Connector 65W 6A Smart Charger for LiPo/LiFe/Lilon/NiMH/NiCd/PB/LiHV VS B6 S60

SKYRC S65 AC Balance Charger SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: Lithium Battery

Tool Supplies: Battery

Technical parameters: KV1100

Size: As show

Remote Control Peripherals/Devices: Remote Controller

RC Parts & Accs: Batteries – LiPo

Quantity: 1 pcs

Origin: Mainland China

Model Number: S65

Material: Metal

Input Voltage: AC , 100-240V

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Display Type: LCD

Discharge Wattage: 10W

Charge Wattage: 65W



SKYRC S65 AC Balance Charger 10W Discharger XT60 Connector 65W 6A Smart Charger for LiPo/LiFe/Lilon/NiMH/NiCd/PB/LiHV VS B6 S60



S65 Instruction Manual V2.0:

https://www.skyrc.com/s65

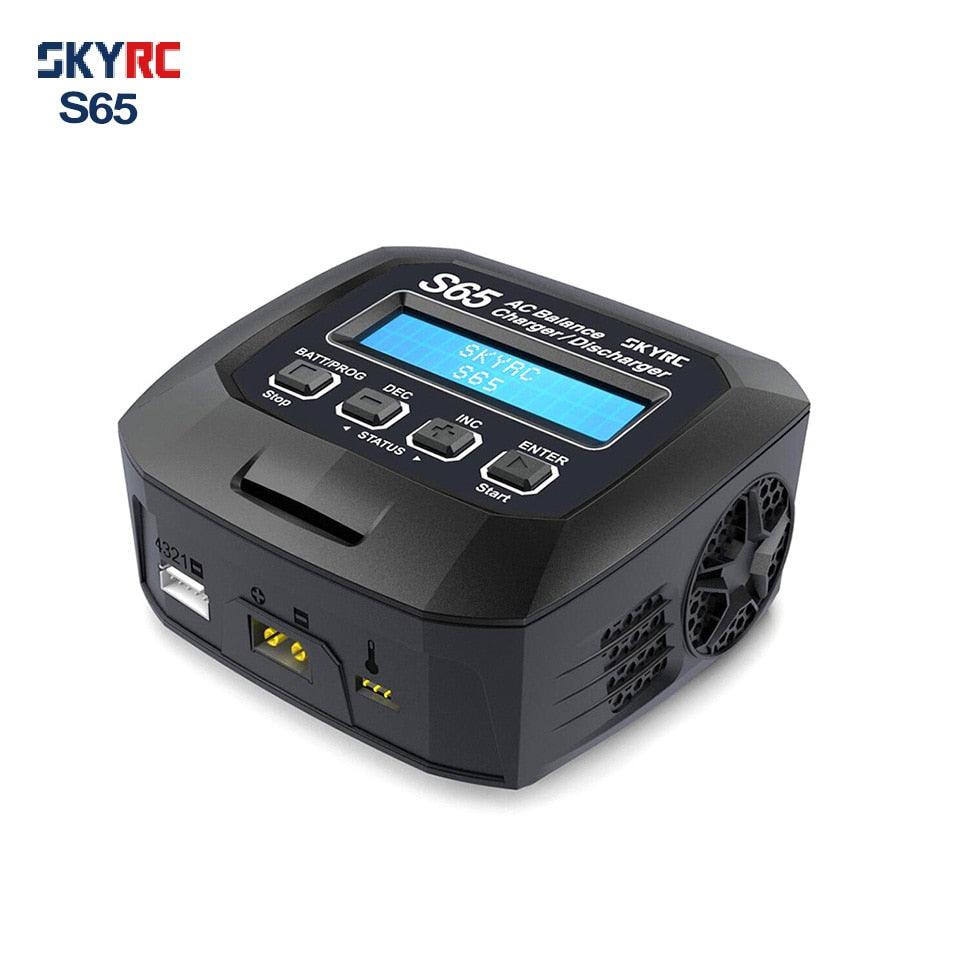

SkyRC S65 is an AC input high-performance micro processor control charge/discharge station, with battery management, suitable for use with all current battery types, LiPo, Lilon, LiFe, NiCd, NiMH, PB and also new generation LiHV with end voltage 4.35V. It is an AC input charger/discharger with compact size. The maximum charging power of S65 is 65W with maximum charging current 6A and discharging current 2A.



PB AGM & Cold Charge

XT60 Battery Connector

Bigger Cooling Fan

Lithium Battery Balancer

Program Data Store / Load

Battery Resistance Meter

Battery Voltage Meter

Maximum Safety

Terminal Voltage Control



Specifications:

Brand:SKYRC

Model: S65

Case Material: Plastic

Socket Type: US,EU,AU(Optional)

Case Size: 118*115*45mm

Weight: 315g

Input Voltage: AC 100-240V

Charge Wattage: 65W

Discharge Wattage: 10W

Battery Types/Cells:LiPo/LiFe/LiIon/LiHV: 2-4 cells, NiMH/NiCd: 6-8 cells ,Pb: 3-6 cells

Battery Capacity Range:NiMH/NiCd:100-50000mAh,LiPo/LiIon/LiFe/LiHV:100-50000mAh,Pb: 100-50000mAh

Charge and Discharge:

Charge Voltage

NiMH/NiCd: Delta peak detection

LiPo: 4.18-4.25V/cell

LiFe: 3.58-3.7V/cell LiIon: 4.08-4.2V/cell

LiHV: 4.25-4.35V/cell

Discharge Cut-off Voltage

NiMH/NiCd:0.1-1.1V/cell

LiPo:3.0-3.3V/cell

LiFe:2.6-2.9V/cell LiIon: 2.9-3.2V/cell

LiHV: 3.1-3.4V/cell



Charge Current: 0.1A-6.0A

Discharge Current: 0.1A-2.0A

Balance Cells: 2-4 cells

Balance Current: 300mA/cell Max

Safety Timer: 1-720minutes off

Charge Method: CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.

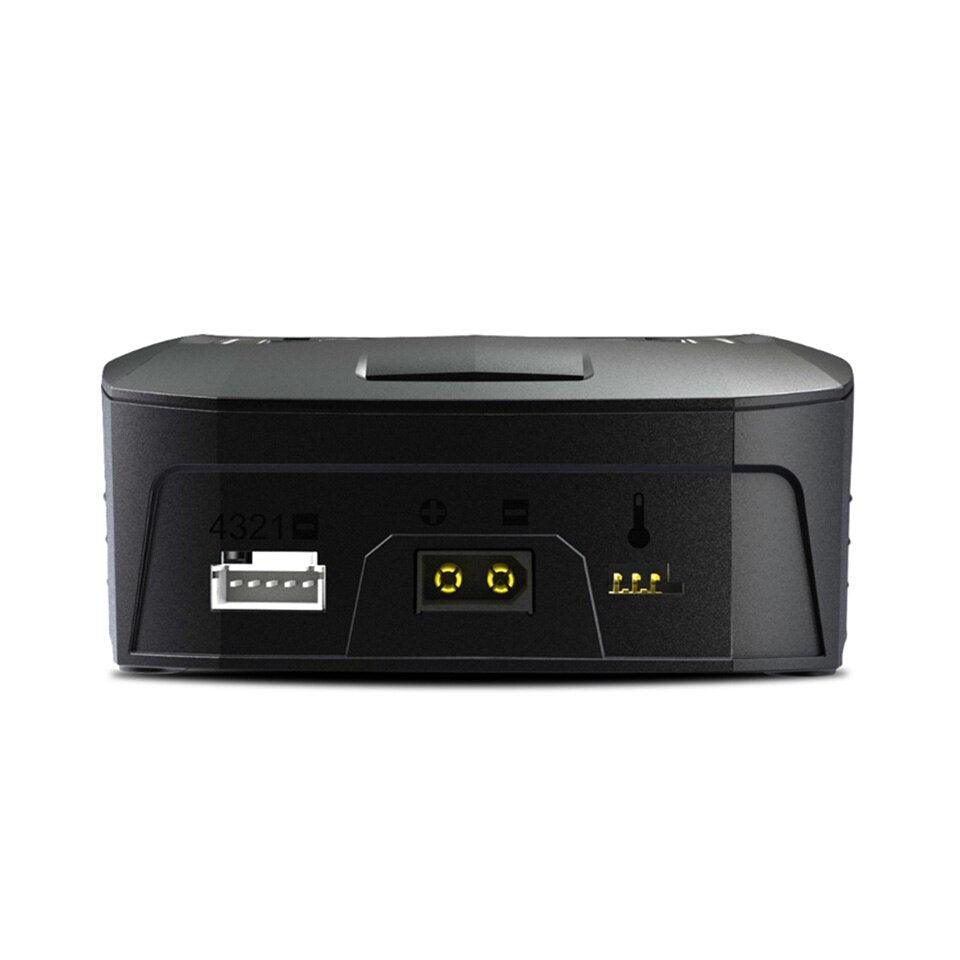

Embedded XT60 Battery Connector

By embedding the XT60 battery connector in the charger, it gets more convenient & safe for charging the most popular battery with XT60 connector and avoid the possibilities of reverse polarity for it.



AGM & Cold Charge Modes for PB Battery

SkyRC S65 can charge AGM battery and also can be used for charging PB battery at very low temperatures.



Smart & Efficient Cooling System

Temperature controlled 7000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.



Higher Accuracy with Three Decimals for Battery Voltage

The charger firmware is highly optimized by displaying the battery voltage with three decimals during the process of charging & battery voltage measuring.



Temperature Threshold

If the temperature limit is reached, the process will be terminated.



Package information:

Package size: 15.2×14.8x6cm/5.97×5.82×2.36in

Package weight: 492g/17.35oz

General Box Package

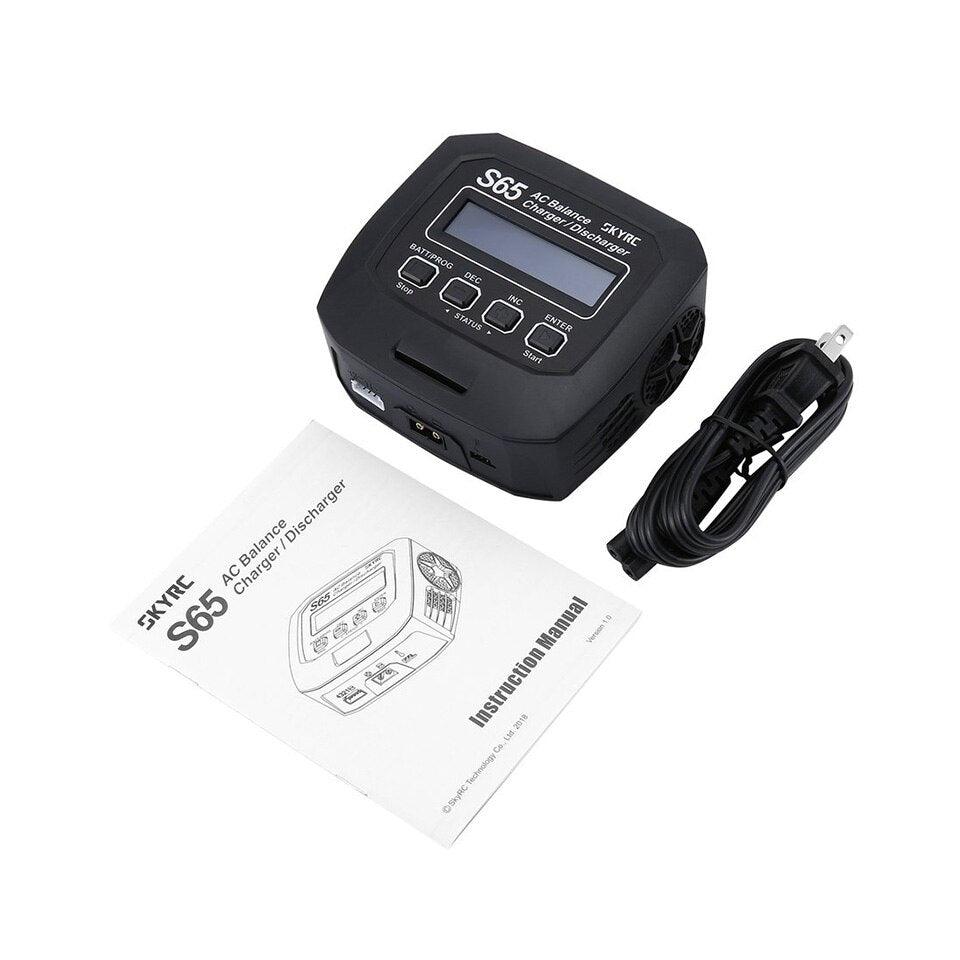

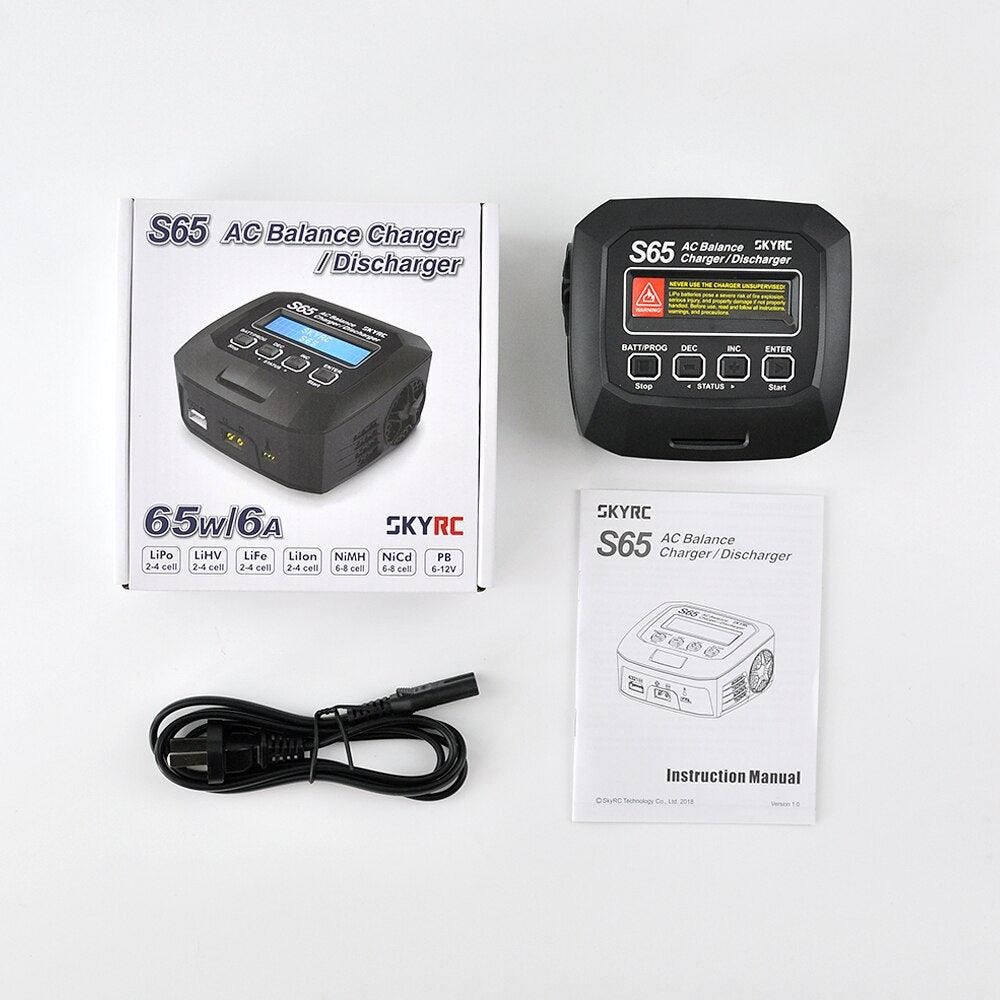

Package Included:

1 x S65 Charger

1 x Power Cord

1 x Manual



Notes by OK RC:

S65 charger kit only, others not included.

There may be some deviation due to manual measurement.

The colors deviation might differ due to different monitor settings, please kindly understand.

“OK RC” has only one store, no branch, other pictures and descriptions of the same store as us , are competitors copying us, we are more professional than them !

We provide you with the best product and service. If you have any problem, please let us know, and we will solve the problem ASAP.

Thank you so much, nice day !
