SIYI FT24 Transmitter SPECIFICATIONS
Wheelbase: Screws
Upgrade Parts/Accessories: Wheel Hub
Tool Supplies: Cutting
Technical parameters: Value 2
Size: As description
Remote Control Peripherals/Devices: Remote Controller
RC Parts & Accs: Connectors/Wiring
Quantity: 1 pcs
Origin: Mainland China
Model Number: FT24
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters

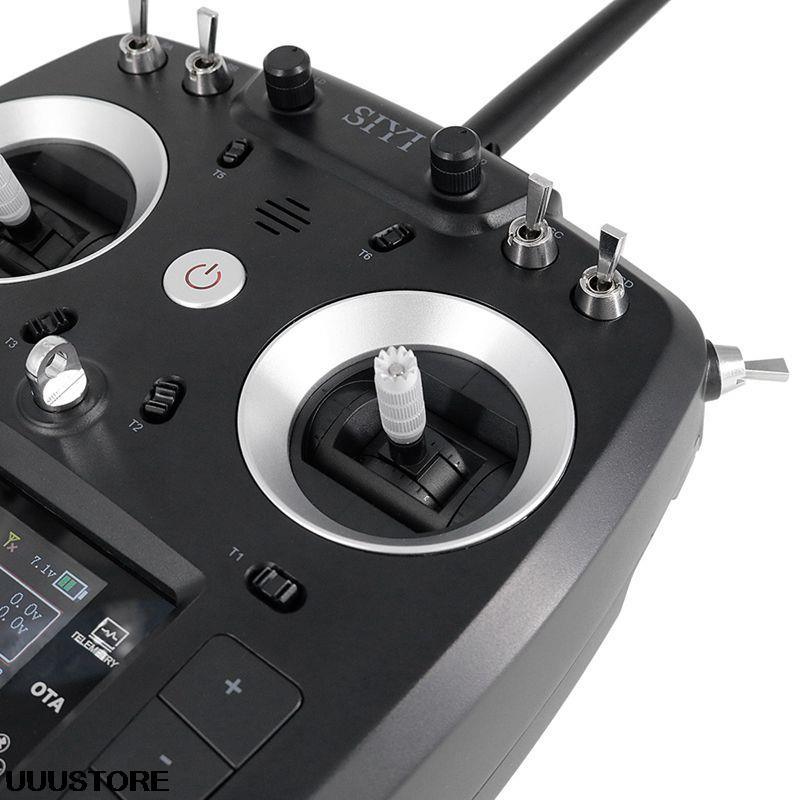

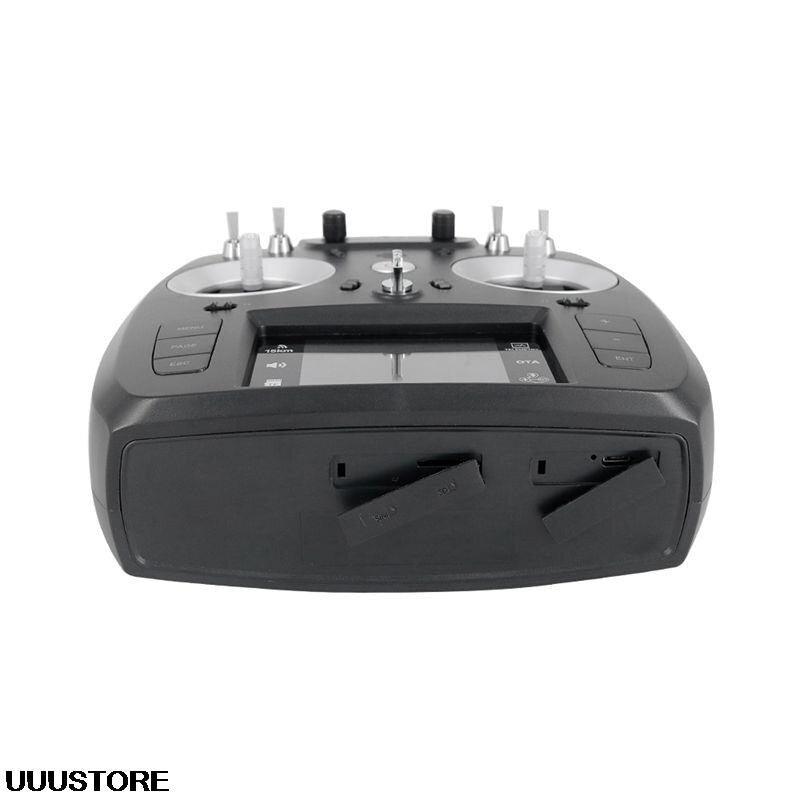

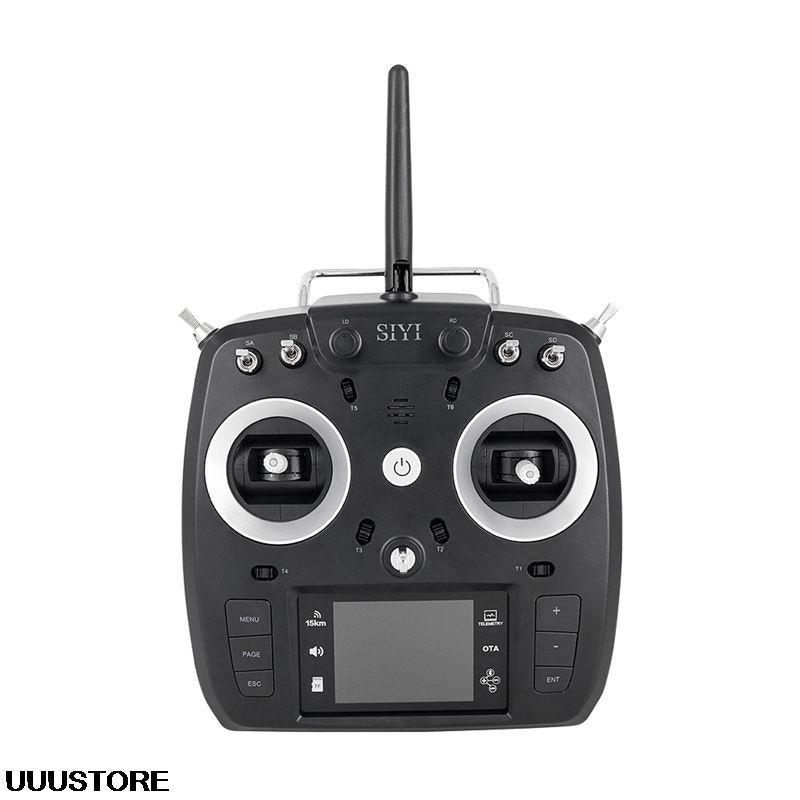

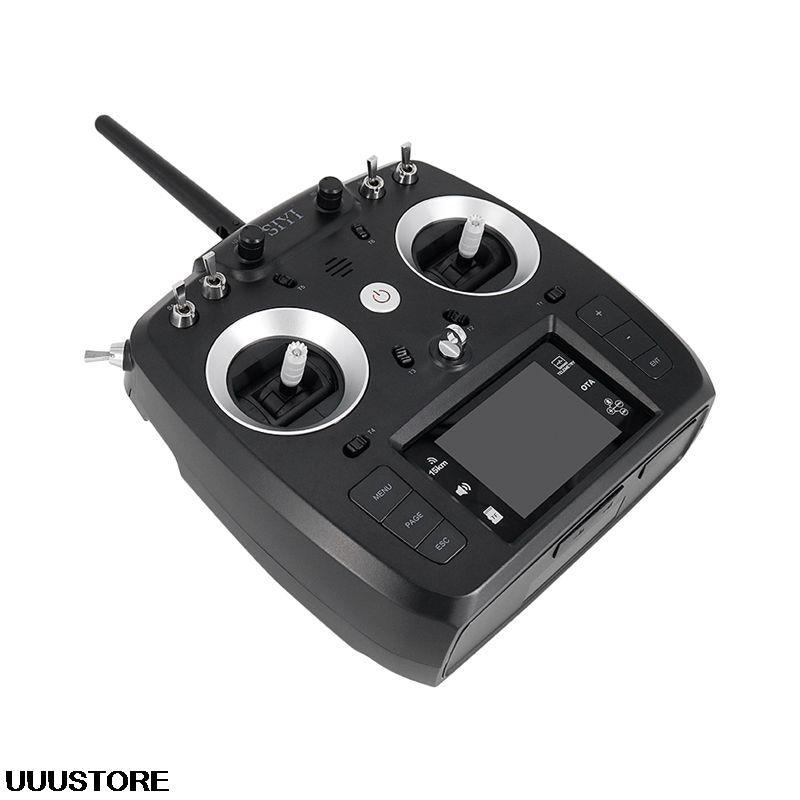

15Km SIYI FT24 2.4G 12CH Radio Transmitter Remote Controller with OTA Mini Receiver for TBS Crossfire/ Frsky R9M FPV Drones
Â
Featrues:
15KM long-distance flight
Expand Bluetooth, FPV, Link
Chinese and English custom voice broadcast
Telemetry data return
OTA wireless upgrade receiver
Support TF card
Bearing assembly Gimbal
4096 high resolution ratio channels
2MS high-speed response

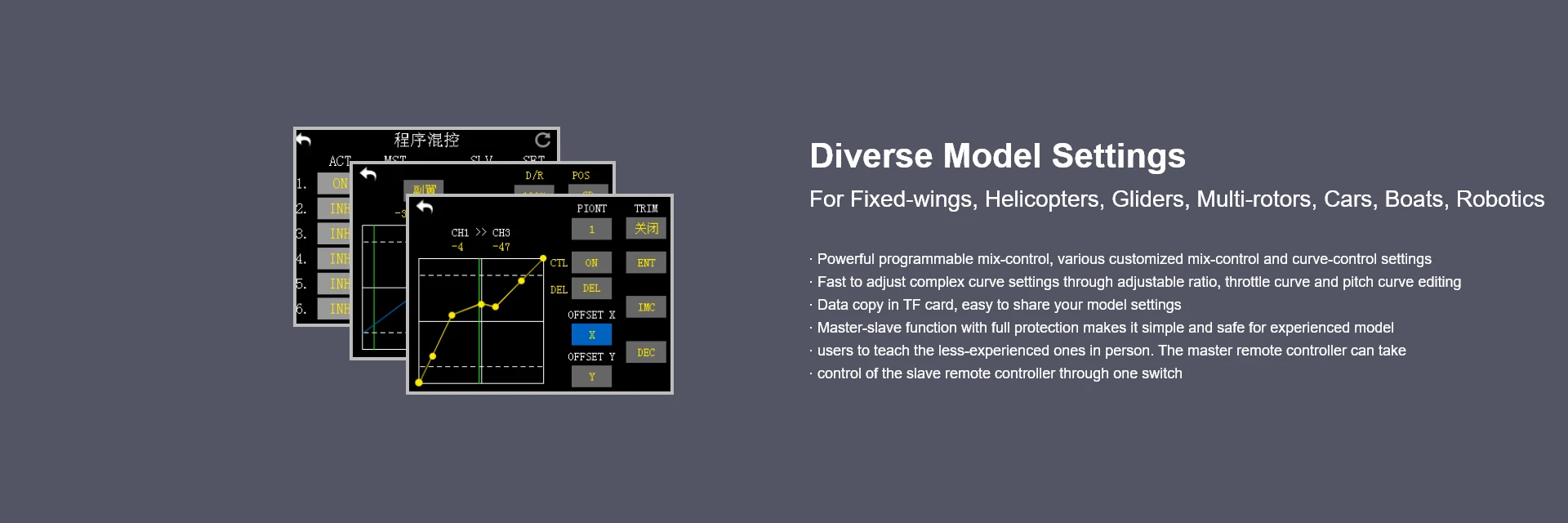

2.8 inch high brightness color LCD screen
Chinese and English menu
Power voltage, RSSI signal return
Â
Description:
Brand Name: SIYI
Item Name: FT24 Transmitter with Receiver (Optional)
Weight: 586g (without battery)
Size:Â 191*175*64mm
Maximum communication distance (no interference, no obstruction): 15 KM
Operating frequency: 2.400-2.483 GHz
Output: PPM/PWM/SBUS
Number of channels: 12 physical channels, 16 signal channels
Support models: multi-rotor/fixed-wing/glider/helicopter/car/ship
Support battery type: 18650 *2, 2S Lipo battery (Not Include)
Battery compartment size: 60*58*16 MM
Antenna gain: 2dbi
Working current (rated): 210mA
Â
Receiver:
| FR Receiver | FR Mini Receiver |
| Signal output: 16-channel S.Bus, 8-channel PPM, 8-channel PWM | Signal output: 16-channel S.Bus, 8-channel PPM |
| Data interface: UART | Data interface: UART |
| Size (without antenna): 51.5*38*13mm | Size (without antenna): 24*15*3mm |
| Weight (without antenna): 20g | Weight (without antenna): 1.5g |
| Antenna gain: 2dbi | Antenna gain: 2dbi |
| Operating voltage range: 5V-8.4V | Operating voltage range: 5V |
| Return voltage range: 0-50V | Return voltage range: 0-26V |
| Working environment temperature: -10℃ to 55℃ | Working environment temperature: -10℃ to 55℃ |
