SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Type: NO, Industrial Drone Parts – Transmission System
Transmission Range: 20 km
Supported Models: Quadcopters, Multi-rotors, Fixed Wings, Gliders, Helicopters
Supported FC: PIX/APM, etc BOYING PALADIN V2 JIYI K3A/K++
Recommend Age: 12+y
Place of Origin: Guangdong, China
Origin: Mainland China
Operating Frequency: 2.400 GHz ~ 2.483 GHz
Model Number: DK32S
Material: Composite Material
Channels: 16 CH
Brand Name: SIYI
Brand Name: aerops

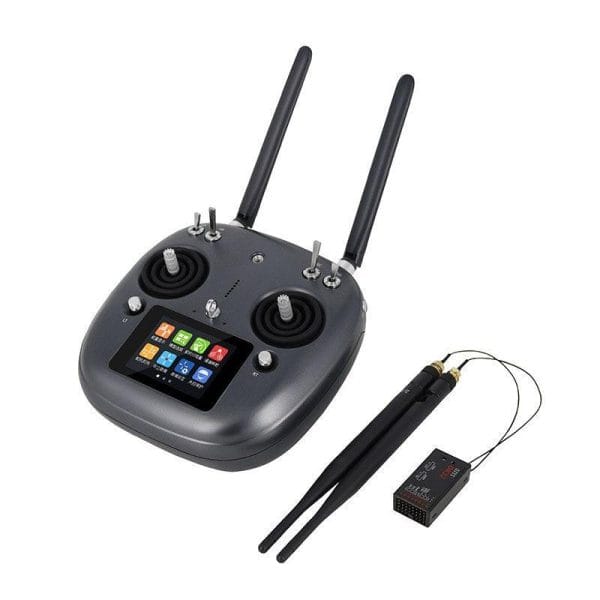

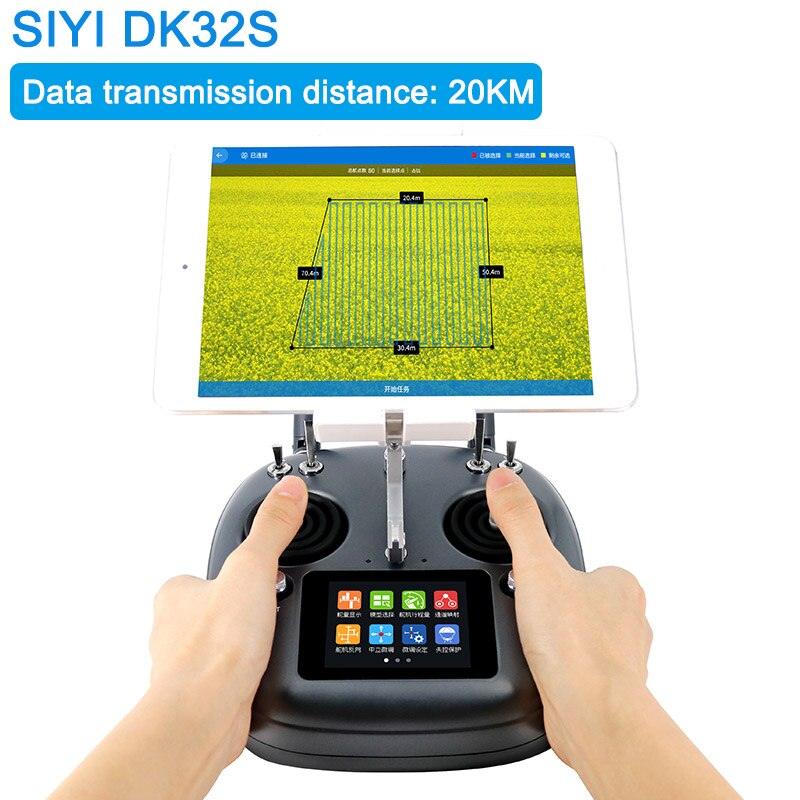

SIYI DK32S 2.4G 16CH Transmitter Remote Controller Transimitter Receiver integrated 20KM Datalink for DIY Agricultural drones
Overall performance
Maximum communication distance (no interference, no blocking): 15 km
Operating frequency: 2.400-2.483 GHz
Number of channels: 26 physical channels, 16 receiver output channels
Support models: plant protection machine / multi-rotor / fixed wing / glider / helicopter
Flight control supported by digital transmissio:TopXgun T1-A
Woozoom THEONE – A
EFY Finix200
JIYI K3A
BOYING PALADIN V2
QIAO Matrix
Cfuas C1-A
Open source flight control PIX, APM
Ground terminal (remote carontrol transmitter)
Language display:Chinese/English
Connect mobile phone, tablet interface A-USB, Micro USB, WIFI (optional)
Dimensions :194.5 x 172.5 x 114mm
Weight :610g
Battery ambient temperature :0°C ~55°C
Battery 4000 mAh Lithium Rechargeable Battery 1S
Charging Micro USB 5V 2A
Sky terminal (remote control receiver integrated DATALINK)
Signal output 16-channel S.Bus, 9-channel PPM, 9-channel PWM
Connect flight control interface UART, CAN (optional)
Dimensions (without antenna) 49 x 26 x 14mm
Weight (without antenna) 22g
Antenna gain 5dBi
Working voltage 5 V-8.4V
Working environment temperature -10 ° C to 55 ° C
