RadioMaster Zorro ELRS Radio Controller High-Frequency Hall Handle Radio Control Multi-protocol ELRS Starter Set Transmitter

$191.03

SKU: N/A Category:

Description

RadioMaster Zorro SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y

RC Parts & Accs: Speed Controllers

Quantity: 1 pcs

Origin: Mainland China

Material: Polyester

Brand Name: DarwinFPV

Zorro ELRS Radio Controller comes with an oversized LCD screen can give you perfect viewing experience. Travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

Specifications:

Physical dimensions´╝Ü170*159*108mm

Weight´╝Ü350 grams

Operating frequency´╝Ü2.400GHz-2.480GHz

Internal RF Options´╝ÜCC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz

Supported protocols ´╝ÜModule dependent

RF power´╝ÜCC2500 and 4-in-1: 20dBm max. / ELRS: 22dBm max.

Antenna gain´╝ÜFolding 2db

Operational current´╝Ü[email protected]

Operational voltage´╝Ü6.6-8.4v DC

Control distance´╝Ü> 2km @ 20dbm

Operating system´╝ÜOpenTX / EdgeTX Compatible

Control channels´╝ÜMaximum 16 (Rx dependent)

Display ´╝Ü128*64 Monochrome LCD

Battery ´╝Ü2 x 18350 (Not included)

Charging ´╝ÜBuilt in USB-C Charging

Gimbal´╝ÜHall-effect

Module bay ´╝ÜNano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)

Firmware Upgrade method´╝ÜVia USB or SD card (SD Not included)

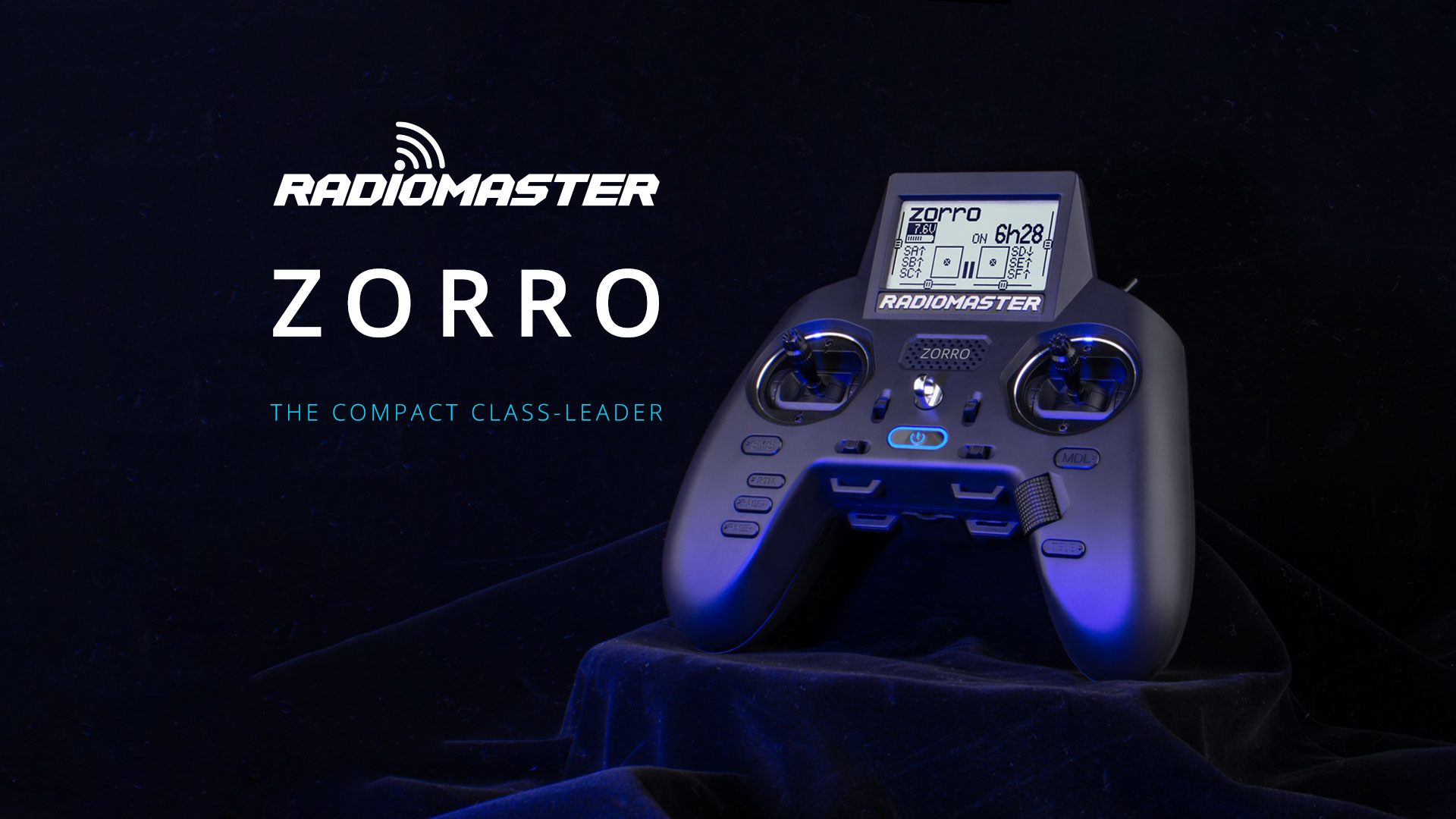

RAdiOMASTER zorro Mm REU ON 6h

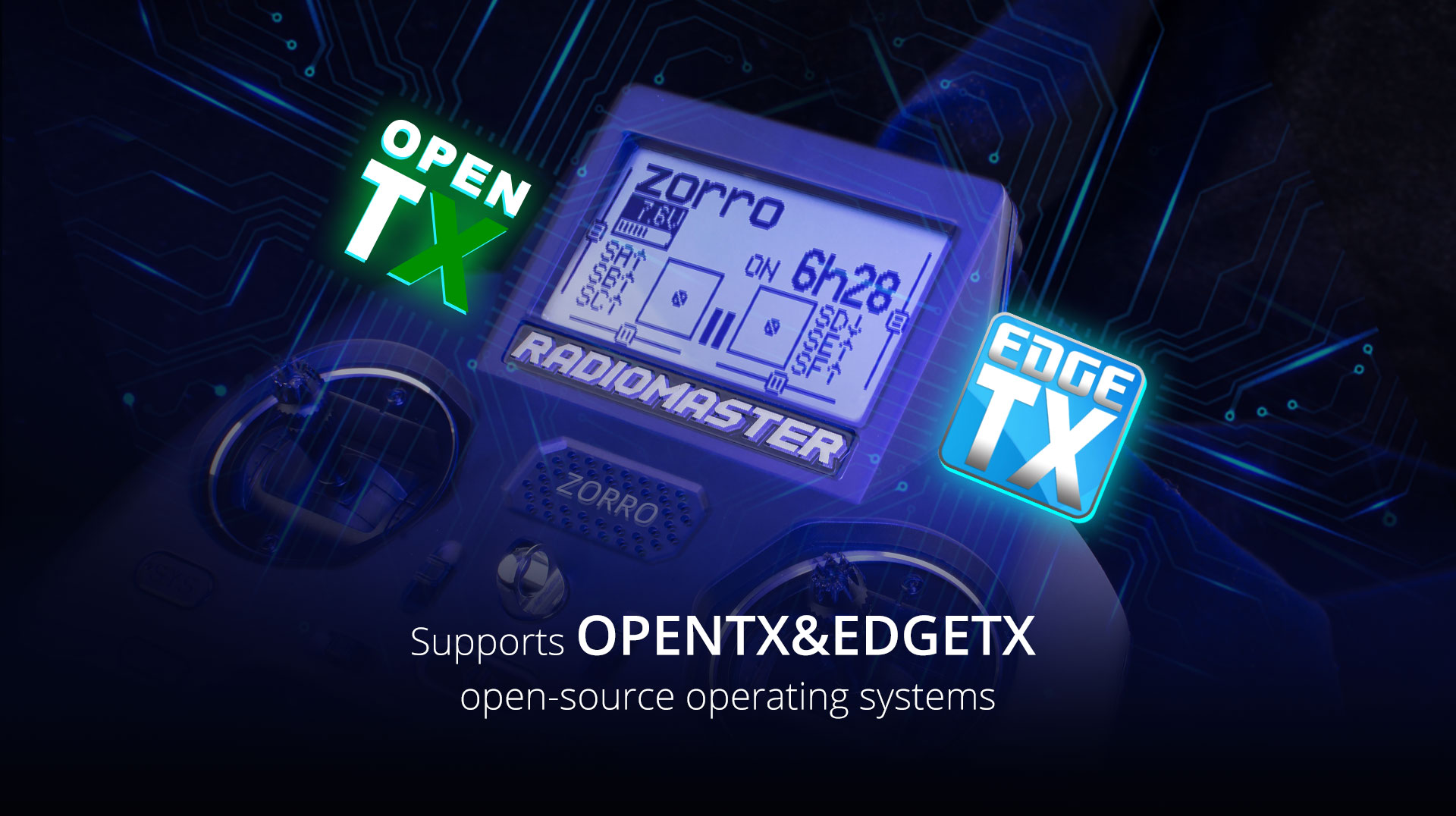

Support OPENTX & EDGETX

QN m Supports OPENTX&EDGETX open-source operating

Oversized LCD & Foldable Antenna

Oversized LCD with adjustable brightness for any environment zorro 7.6V 6h

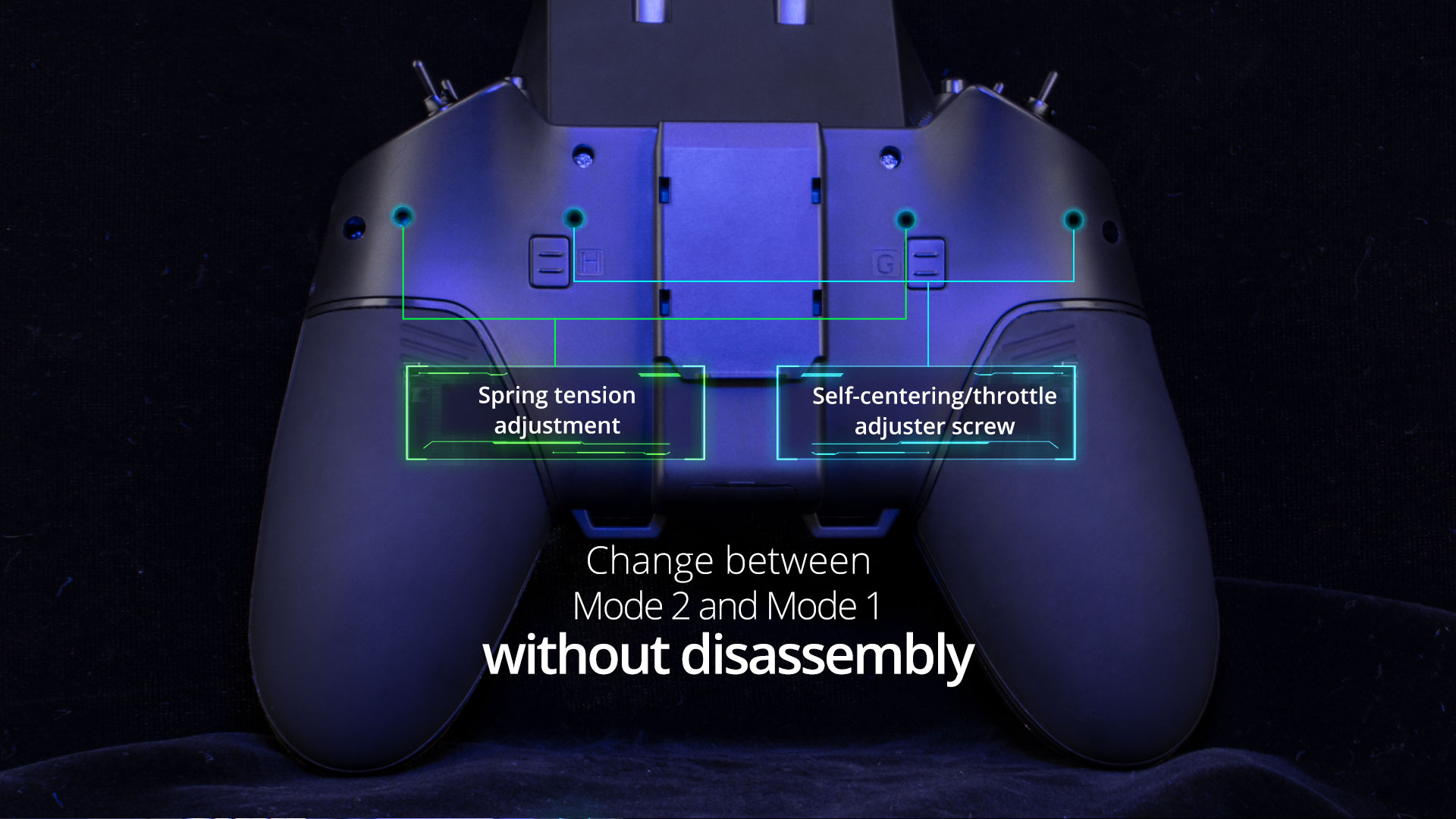

Switchable in Mode 1 and Mode 2

Spring tension Self-centering/throttle adjustment adjuster screw Change between Mode 2 and Mode

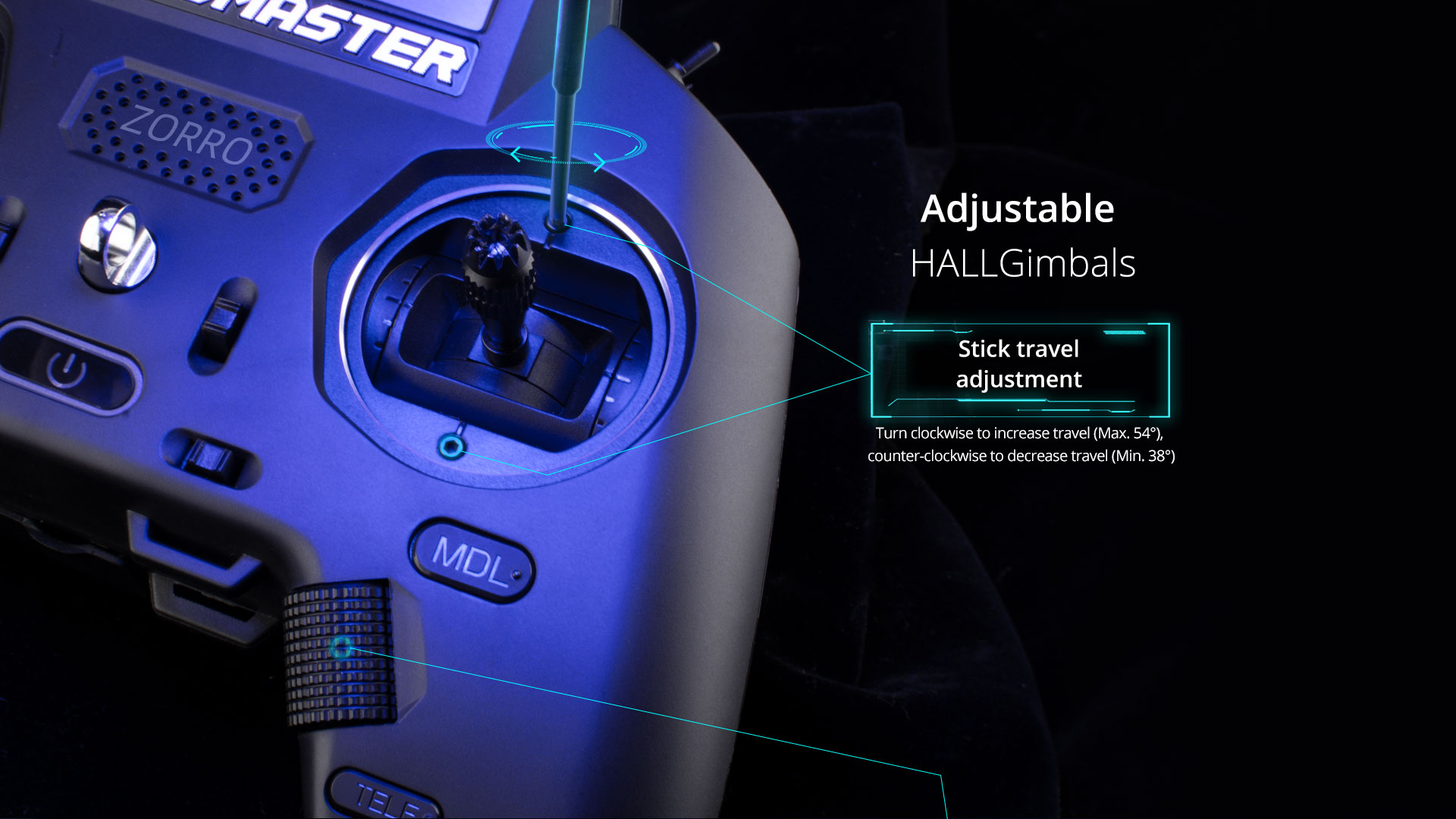

Adjustable Hall Gimbals

Adjustable HALLGimbals Stick travel adjustment Turn clockwise to increase travel .

Adjustable HALLGimbals Stick travel adjustment Turn clockwise to increase travel (Max. 549, counter-clockwise to decrease travel (Min: 382) TASTER ZORRO MDL
