RadioMaster TX16S MKII V4.0 Hall Gimbals ELRS SPECIFICATIONS

Name: RadioMaster TX16S MKII V4.0 Hall Gimbals ELRS JP4IN1 Transmitter Remote Control Multi-protocol OpenTX And EdgeTX - Drone
Availability: InStock

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

Origin: Mainland China

Model Number: RadioMaster TX16S MKII

Material: Composite Material

SPECS

Notes:

4in1 (standard) Version supports all MPM protocols

ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)

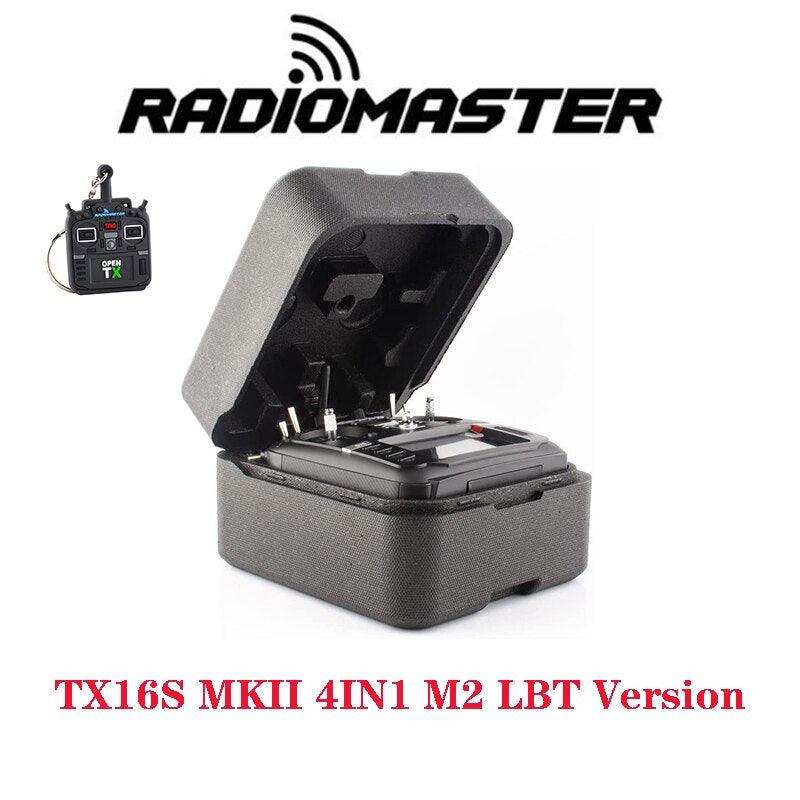

4in1 LBT Version (Europe)is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX

ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power
output)

Size:287x129x184mm

Weight: 750g (without battery)

Transmission frequency: 2.400GHz-2.480GHzTransmitter module:

Option 1: Internal 4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401)

Option 2: lnternal ELRS(SX1280)Transmitting power:

lnternal 4-in-1 multi-protocol module : Max 100mw(protocol dependent)

lnternal ELRS : Max. 250mw(transmitting power is adjustable)

Antenna gain: 2db (transmit power adjustable)working current: 400mA

Working voltage:6.6-8.4v DC

Remote control distance:> 2km @ 22dbmRadio firmware: EdgeTX

Module Firmware: Multiprotocol- Module(4IN1)-

OR- ExpressLRS(ELRS)

Channels: Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour touch display with a

resolution of 480* 272

Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia,

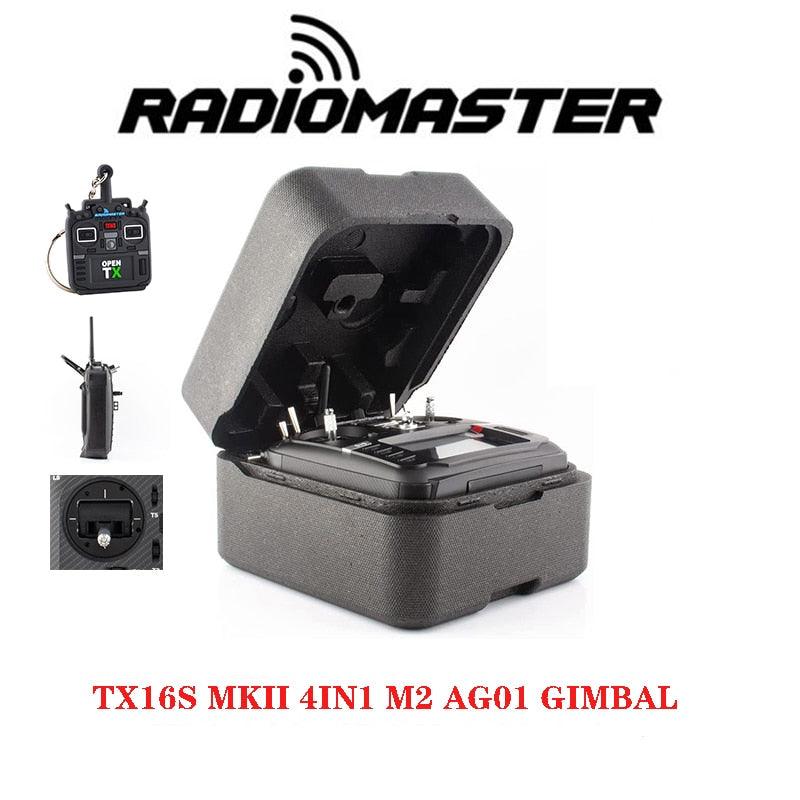

Option 2:AG01 CNC Hall sensor

Module Bay: JR compatible module bay

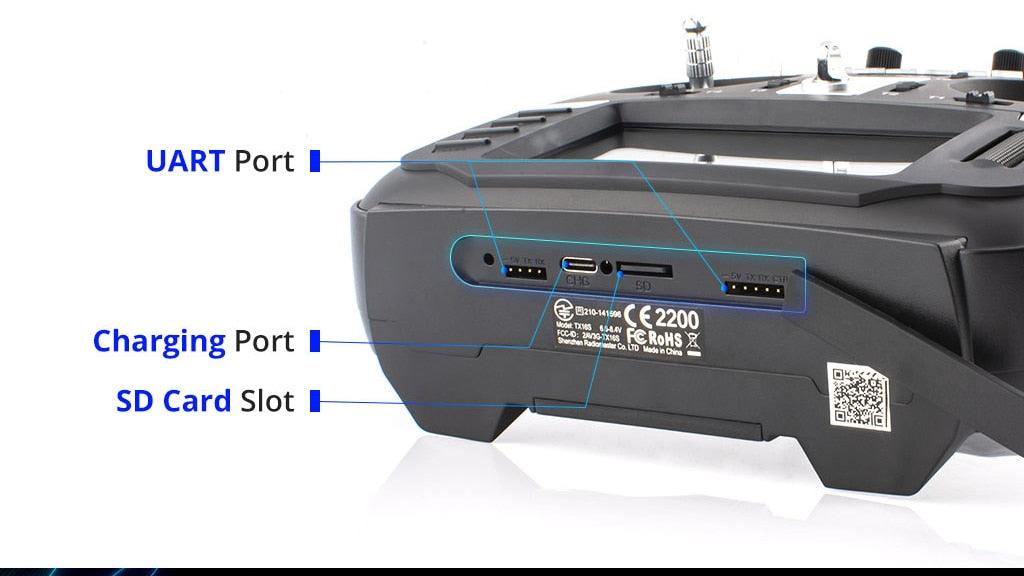

Upgrade method: Supports USB-C online / SD card offline upgrade

IMPROVEMENTS

-lmproved internal circuity and optimized power supply.

– New charge circuitry with integrated reverse-polarity protection.

·Optimized charge IC, better balancing and uSB-C charge current management.· Rear mounted audio jack provides headphone output.

· V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01)- Optional high/low rear grips included for improved ergonomics.

-lmproved S1/S2 knobs with clear centre-detents.

-lmproved LS/RS Sliders with smoother feel and better centre-detents.- Redesigned battery cover for improved battery access.

– Retooled body shell with improved fit and finish.

·Trainer socket changed to standard TRS 3.5mm socket.- Rear DIY Socket added for personalised mods.

– lmproved internal plastics for better longevity.·Available ELRS and 4in1 versions.

MAX units feature carbon look face plates and CNC finishing components and buttons.

RadioMASTER TX16S Mark II ELRS 4INI ViAAO IOPEN edge TX TX SUPPORTS EDGETX AND OPENTX AVAILABLE 4ini AND ELR VERSIONS MULti 480k7 (334 Max ‘NEW V4,0 HALL GIMBALS Adiustable without disassembly’

6 not Onn Uso 95 6 RADiOMASTER 74v Znh 6ZOOMAH 8 ‘Always = Battery (charge Li-PO nol C charge battery disassemble 9 baltery Charging correct = unallended ‘away (charging = Current = L88Wh (modify ‘from – 1 flammable ‘this E 12.0A devices ‘

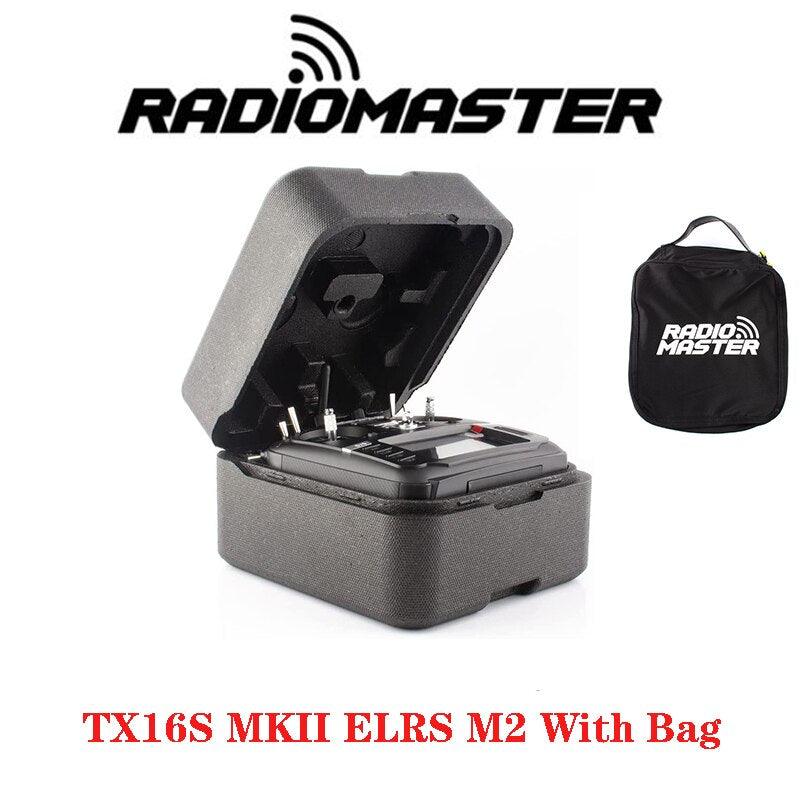

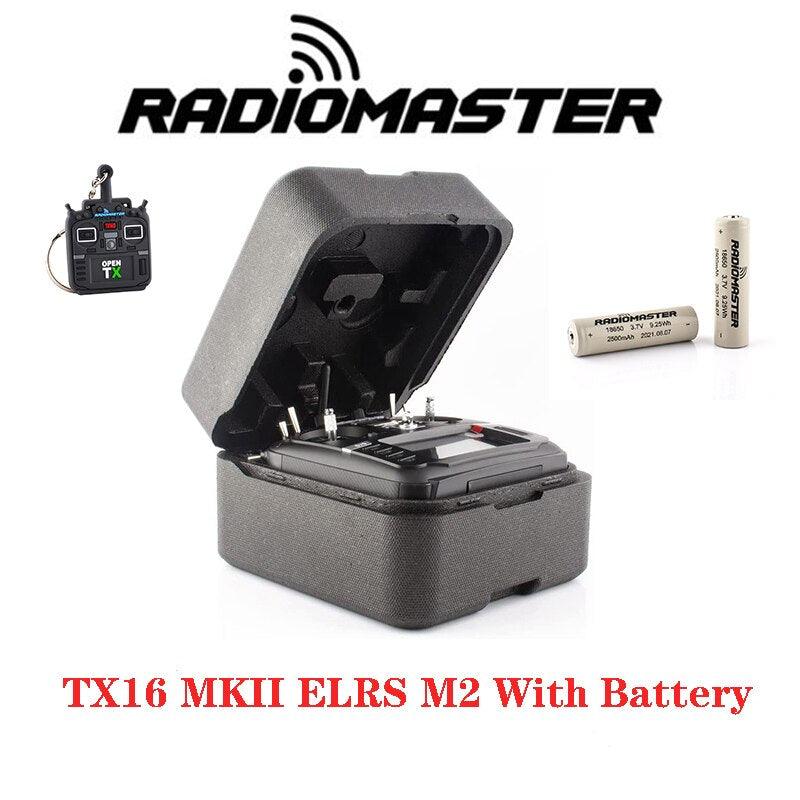

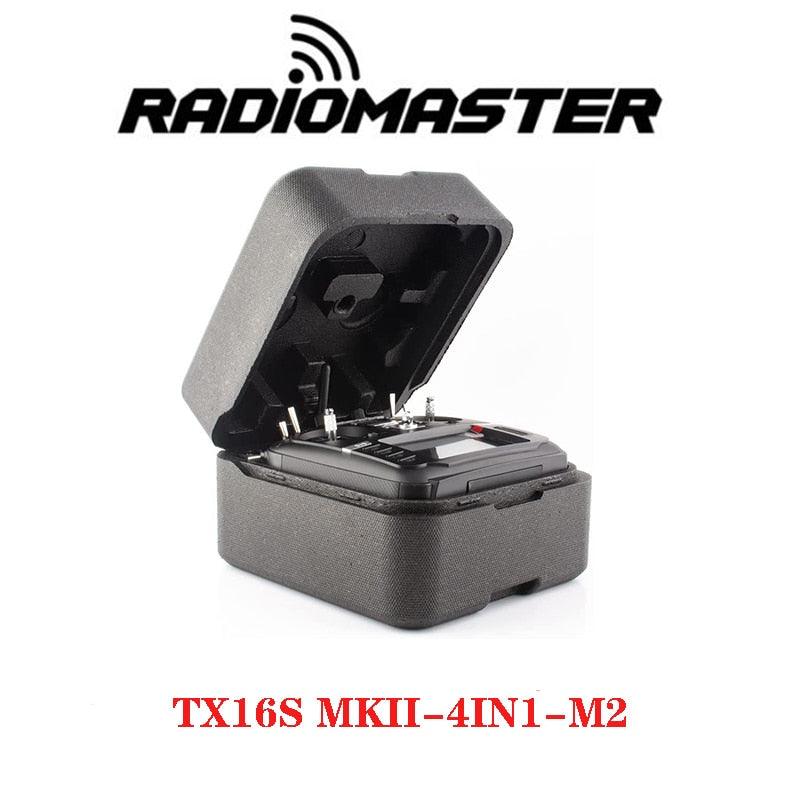

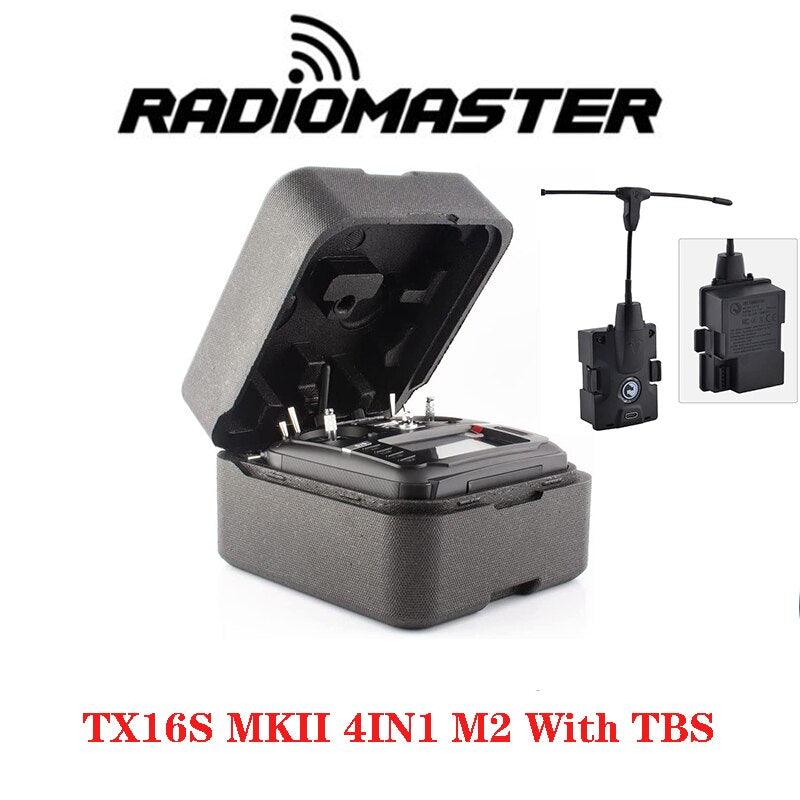

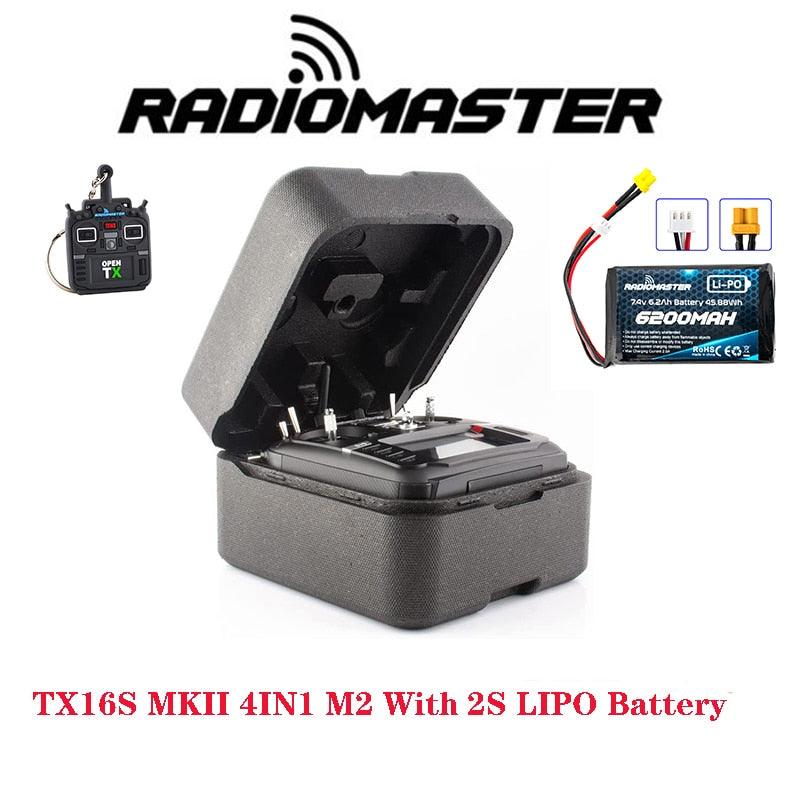

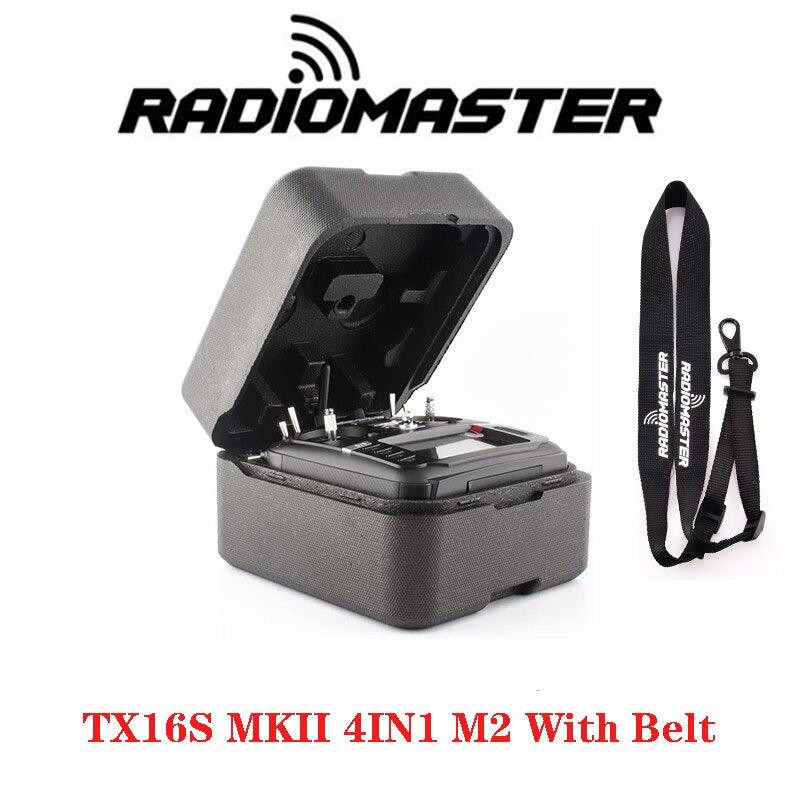

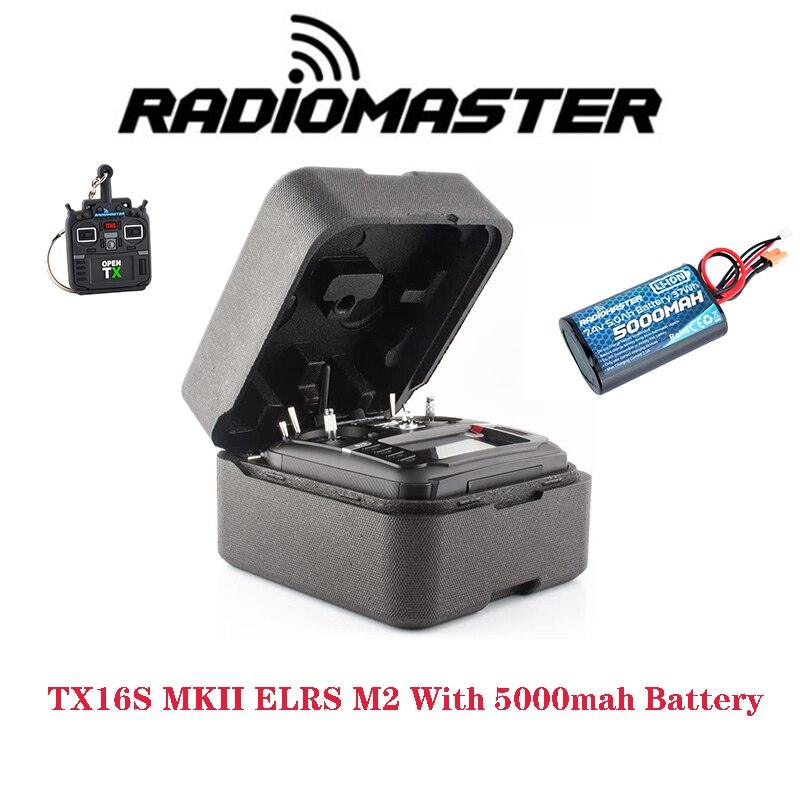

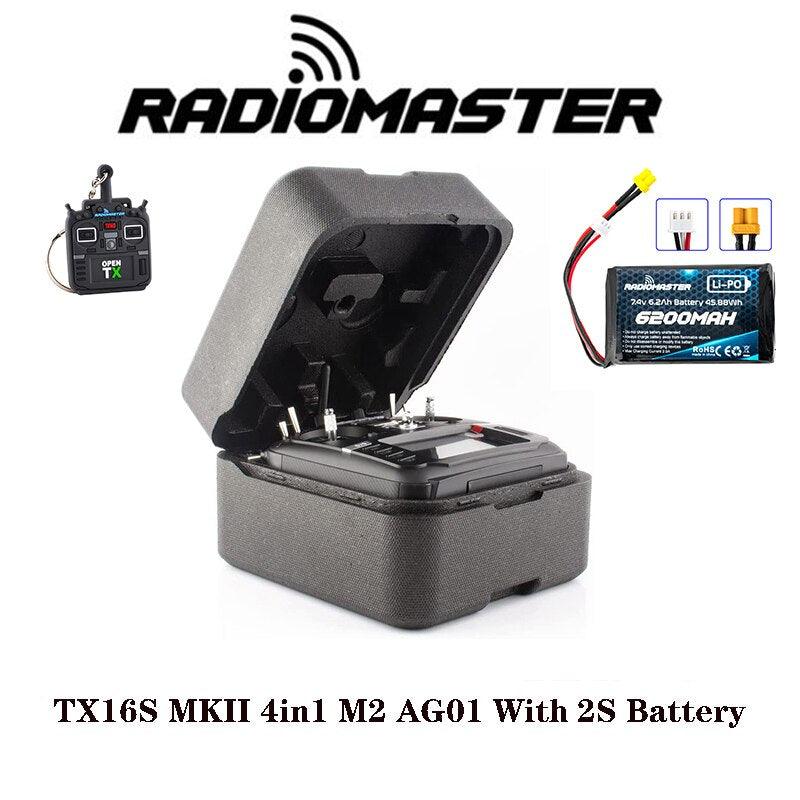

Color	ELRS M2 2S Battery, ELRS AG012s Battery, 4IN1 AG01 2s Battery, ELRS M2 5000MAH, 4IN1 M2 5000MAH, 4IN1 M2 2S Battery, ELRS M2 with TBS, 4IN1 LBT Version, ELRS LBT Version, ELRS M2 with Battery, 4IN1 M2 with Battery, MKII ELRS M2 AG01, MKII 4IN1 M2 AG01, 4IN1 M2 with TBS, ELRS M2 with Bag, 4IN1 M2 with Bag, ELRS M2 with Belt, 4IN1 M2 with Belt, TX16S MKII ELRS M2, TX16S MKII-4IN1-M2
