Description

RadioMaster TX16S MKII V4.0 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Size: 212X183X66mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Radio Systems

Origin: Mainland China

Model Number: TX16S

Material: Composite Material

For Vehicle Type: Airplanes

Brand Name: abay

Brand Name: SPARKHOBBY

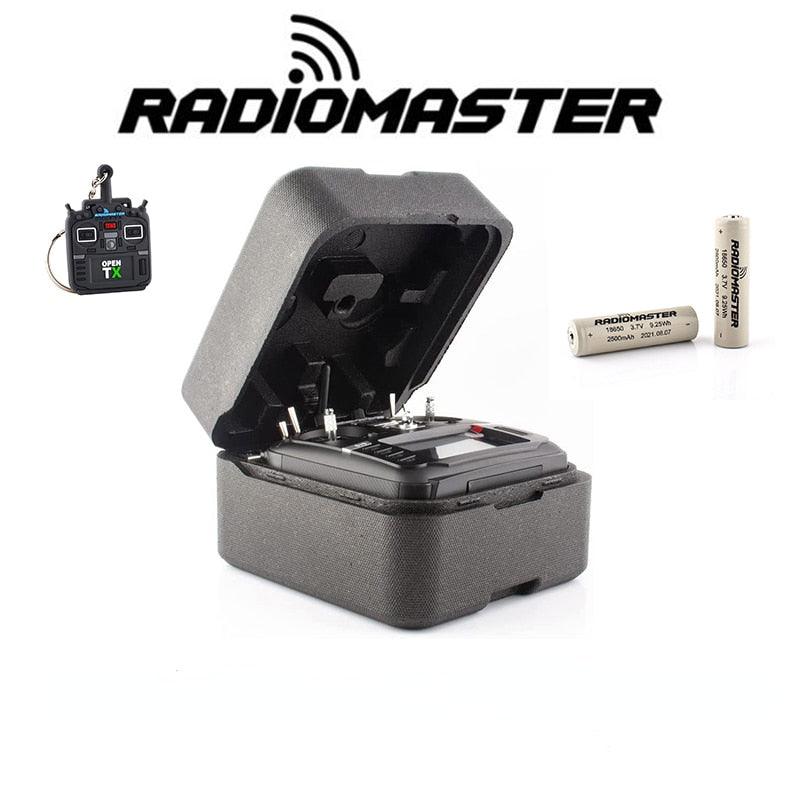

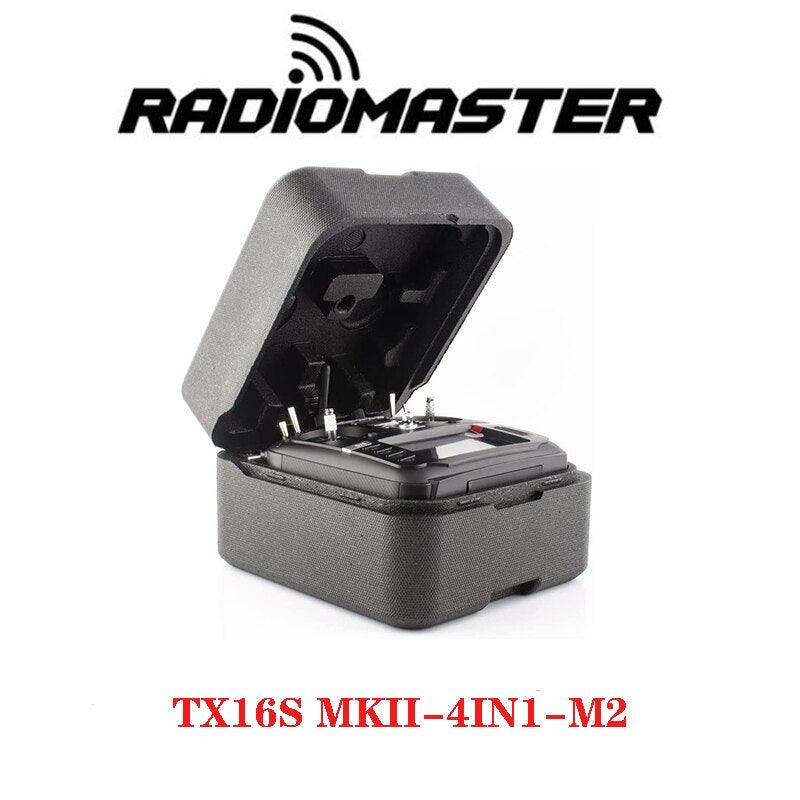

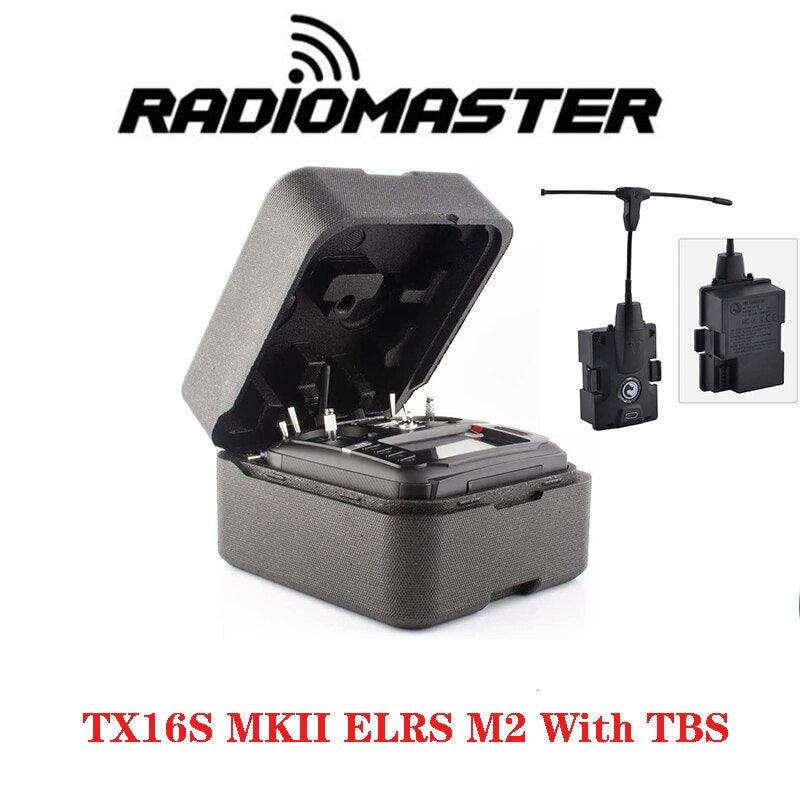

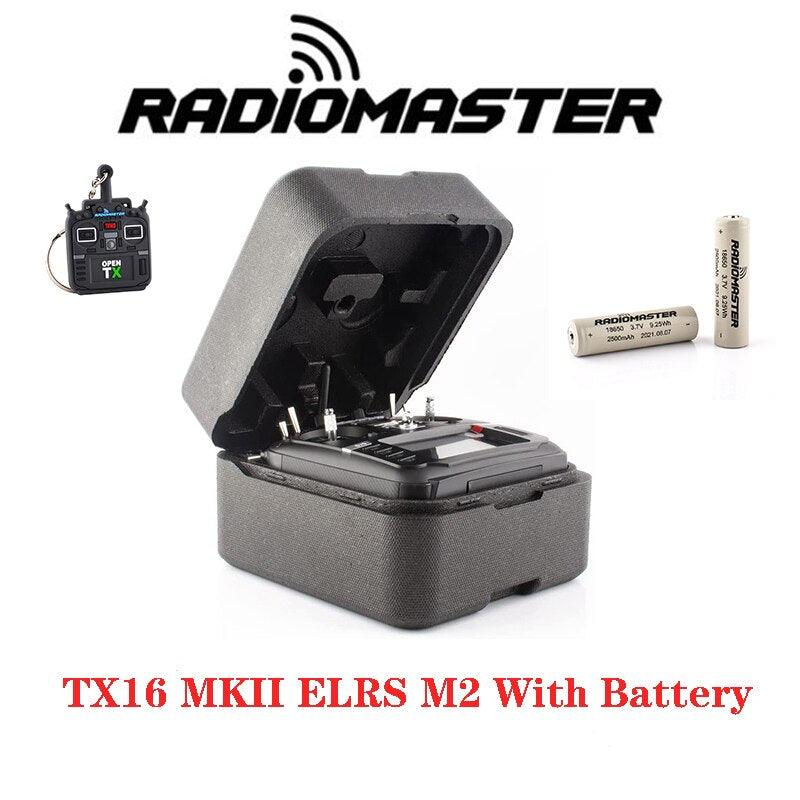

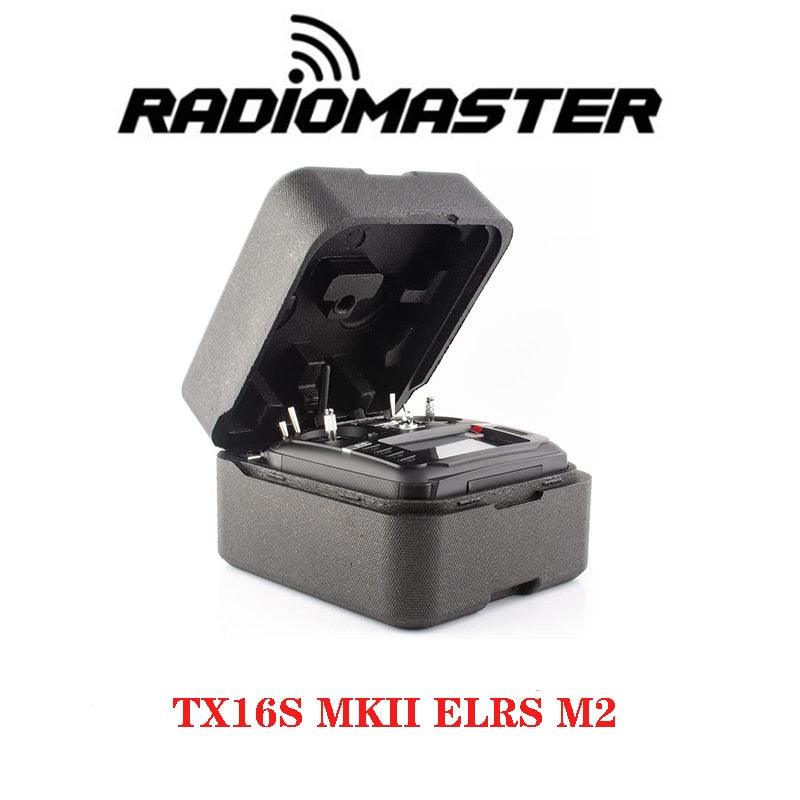

Item: Radiomaster TX16S TX16S MKII Remote Control

Parameters:

Brand Name: Radiomaster

Model: TX16S MKII

Size: 287×129×184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module:
Option 1: Internal 4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401)
Option 2: Internal ELRS(Sx1280)
Transmitting power:
lnternal 4-in-1 multi-protocol module : Max 100mw(protocol dependent)
lnternal ELRS : Max 250mw(transmitting power is adjustable)
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: Multiprotocol- Module (4IN1)-
OR-ExpressLRS(ELRS)
Channels:
Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT
full-colour touch display with a resolution of 480 * 272
Gimbal:

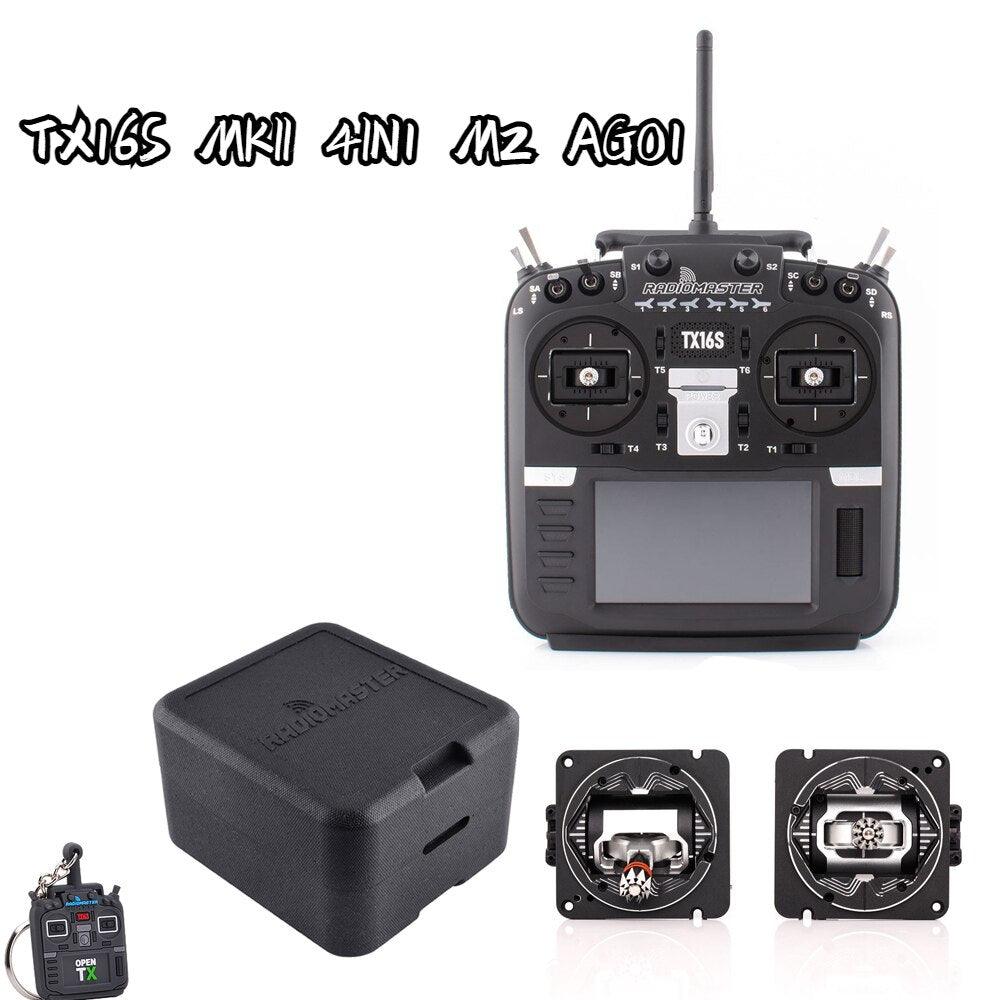

Option 1: v4.0 Hall sensor with Aluminium fascia,
Option 2: AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade

IMPROVEMENTS
Improved internal circuity and optimized power supply.
New charge circuitry with integrated reverse-polarity protection.
Optimized charge lC, better balancing and USB-C charge current management.
Rear mounted audio jack provides headphone output.
V4.0 Gimbal improved centring and temperature stability(Same circuitry as AG01).

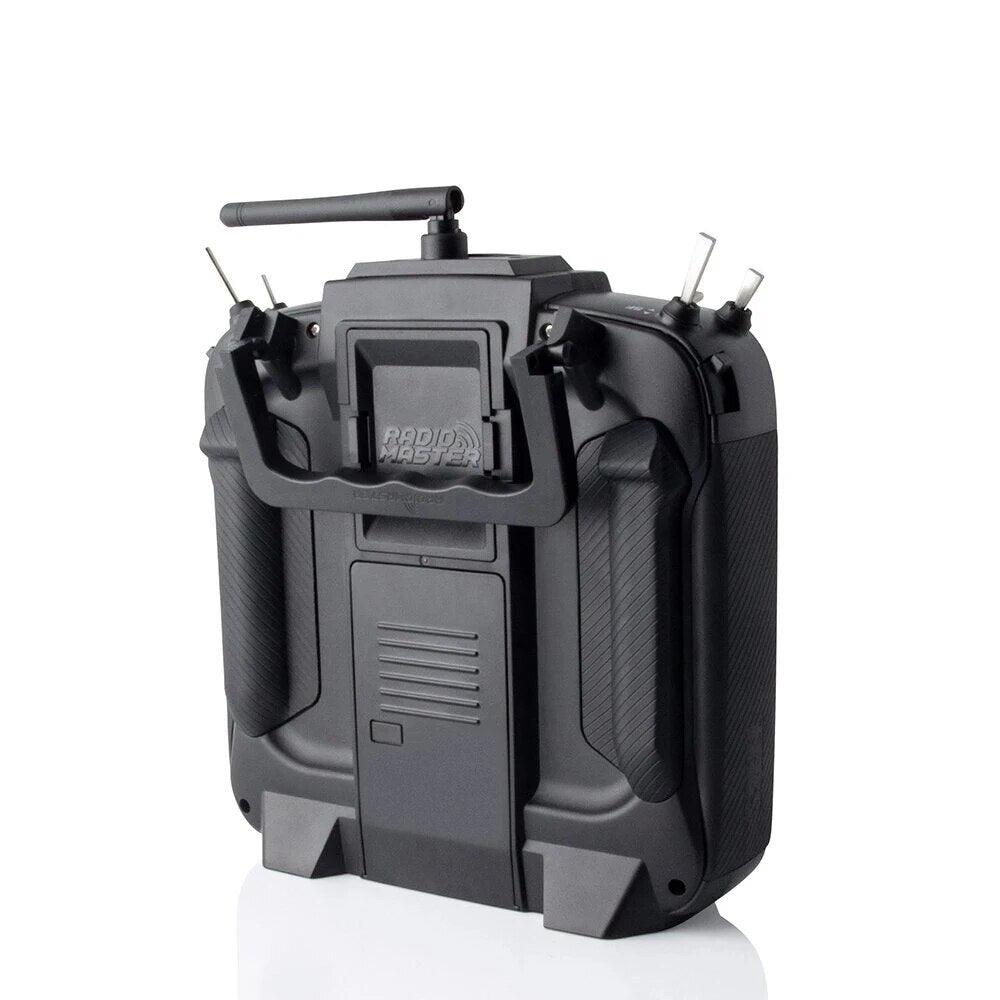

Optional high/low rear grips included for improved ergonomics.
Improved S1/S2 knobs with clear centre-detents.
Improved LS/RS Sliders with smoother feel and better centre-detents.

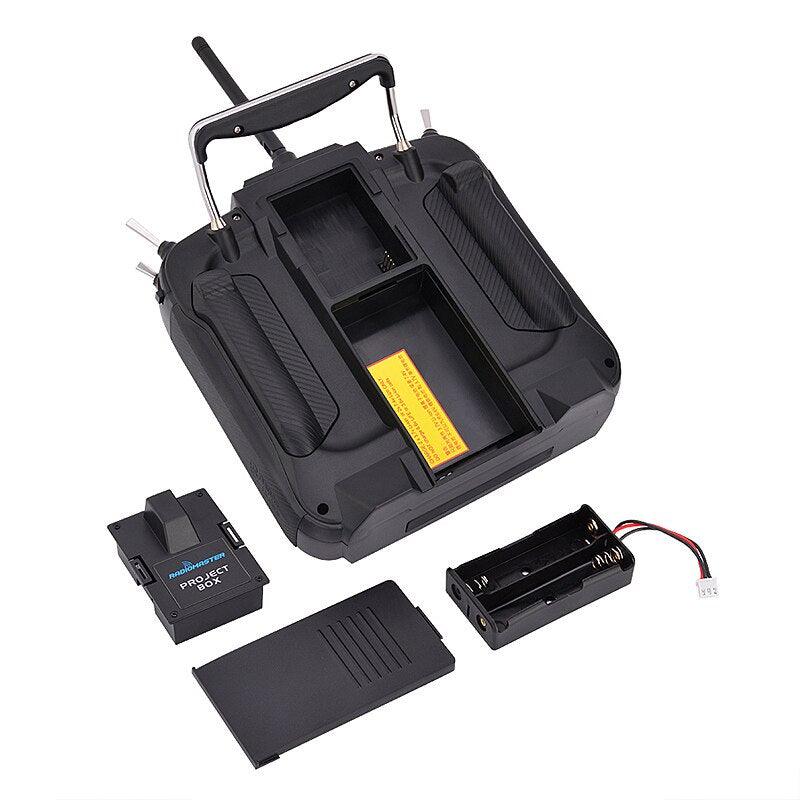

Redesigned battery cover for improved battery access.
Retooled body shell with improved fit and finish.
Trainer socket changed to standard TRS 3.5mm socket.
Rear DIY Socket added for personalised mods.
Improved internal plastics for better longevity.
Available ELRS and 4in1 versions.

Optional high/low rear grips included for improved ergonomics . 4.3-inch full-colour touch display with a Improved internal plastics for belter longevity.

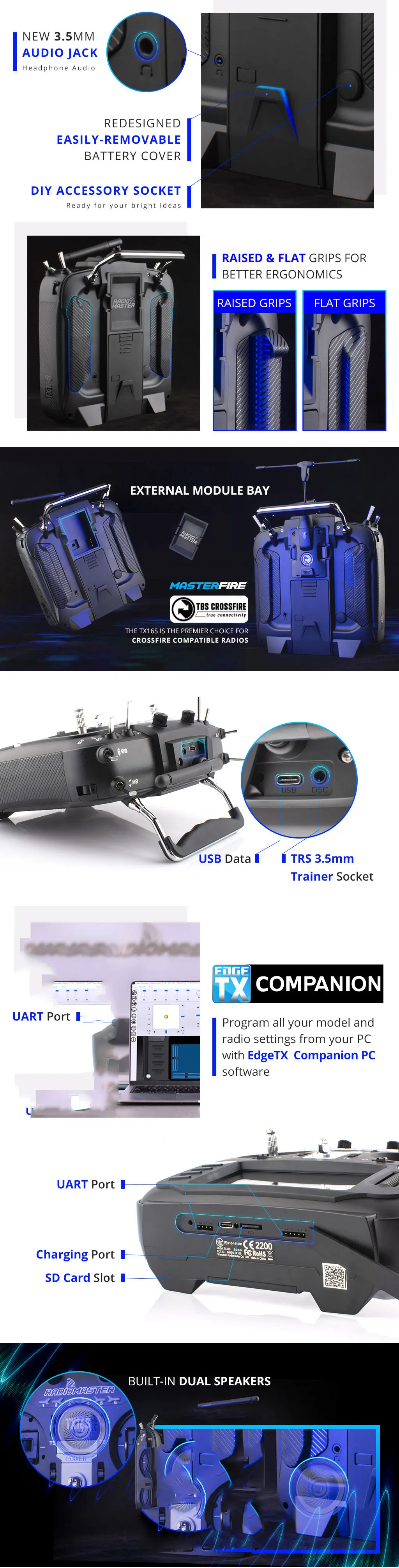

RAdiOMASTER TX16S Mark II FX ELRS 4INI VA.O OPEN edge TX TX SU SUPPORTS EDGETX AND OPENTX AVAILABLE 4ini AND elr VERSIONS MULti 58077 Max 540 NEW V4.0 HALL GIMBALS Adjustable without disassembly Min. 389, Max. 549 1/2 STICK TRAVEL LIMITER Turn clockwise decrease travel; counter

NEW 3.5MM AUDIO JACK He dphone Audio REDESIGNED EASILY-REMOVABLE BATTERY COVER DIY ACCESSORY SOCKET Ready for your bright ideas RAISED & FLAT GRIPS FOR BETTER ERGONOMICS .

the TX16S has the best of everything we could fit in to the radio from the very start . radiomaster has worked collaboralion with opentx t0 bring the radio to the market and OPEN will continue to work with OpenTX . the internal RF module will support firmware updales directly from the radios .
