SPECIFICATIONS
name: HANMA
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembly Category
Technical parameters: KV1100
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Transmitters
Origin: Mainland China
Model Number: TX16S MAX MKII
Material: Composite Material
Four-wheel Drive Attributes: Battery
For Vehicle Type: Airplanes
Brand Name: abay
Brand Name: RADIOMASTER
- Improved internal circuity and optimized power supply.
- New charge circuitry with integrated reverse-polarity protection.
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.
- Rear mounted audio jack provided headphone output.
- V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).

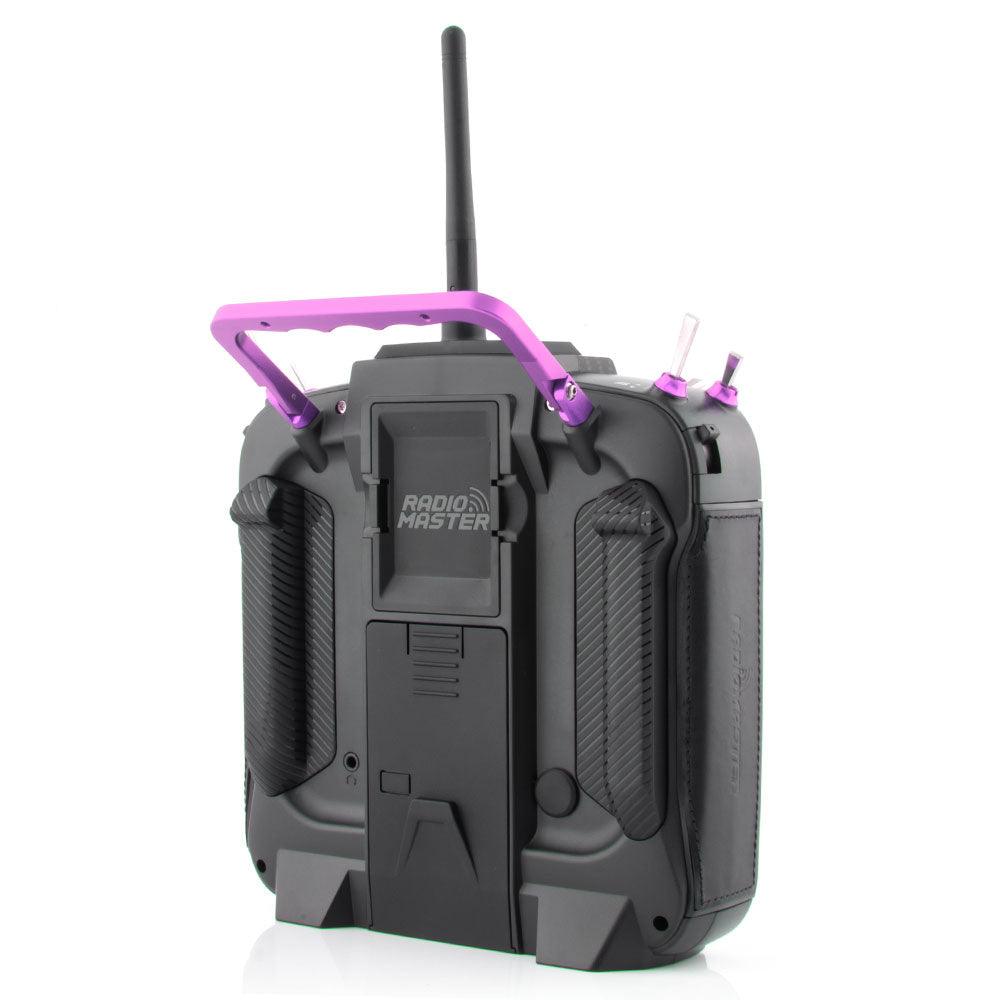

- Optional high/low rear grips included for improved ergonomics.
- Improved S1/S2 knobs with clear centre-detents.
- Improved LS/RS Sliders with smoother feel and better centre-detents.
- Redesigned battery cover for improved battery access.
- Retooled body shell with improved fit and finish.
- Trainer socket changed to standard TRS 3.5mm socket.
- Rear DIY Socket added for personalised mods.
- Improved internal plastics for better longevity.
Specification

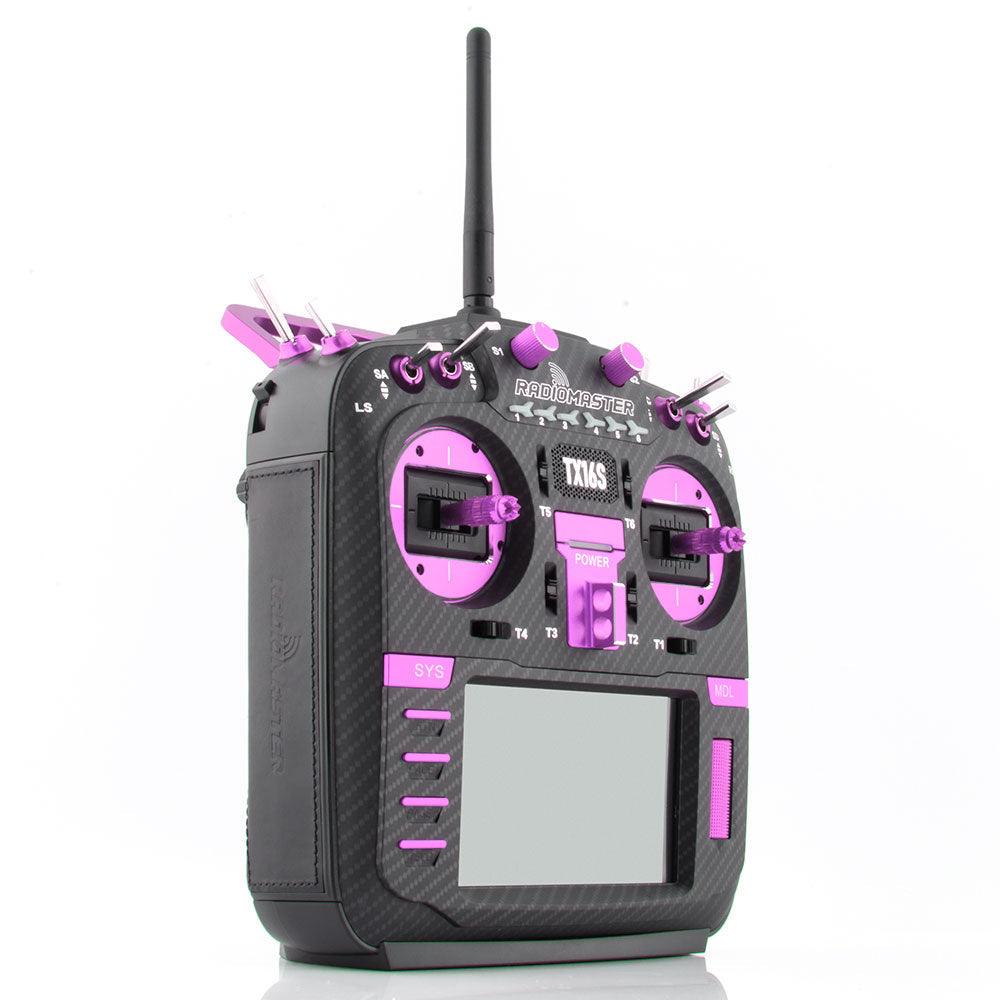

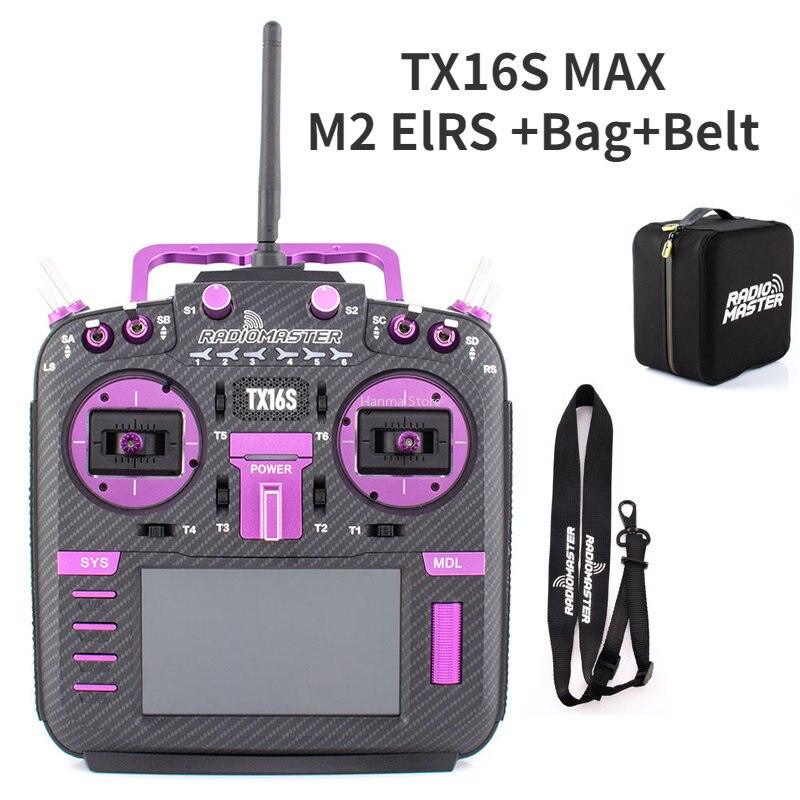

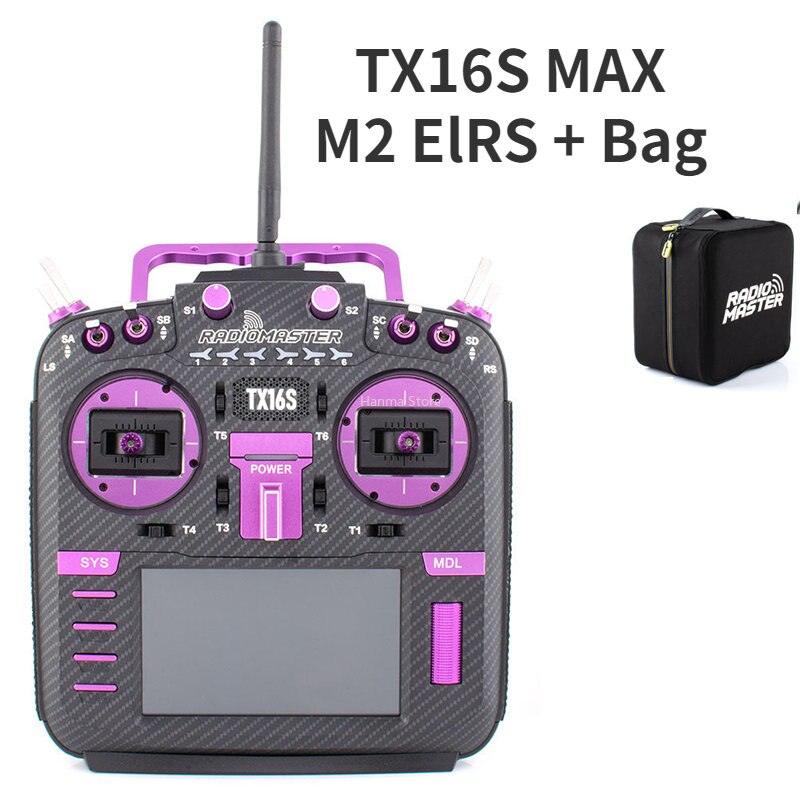

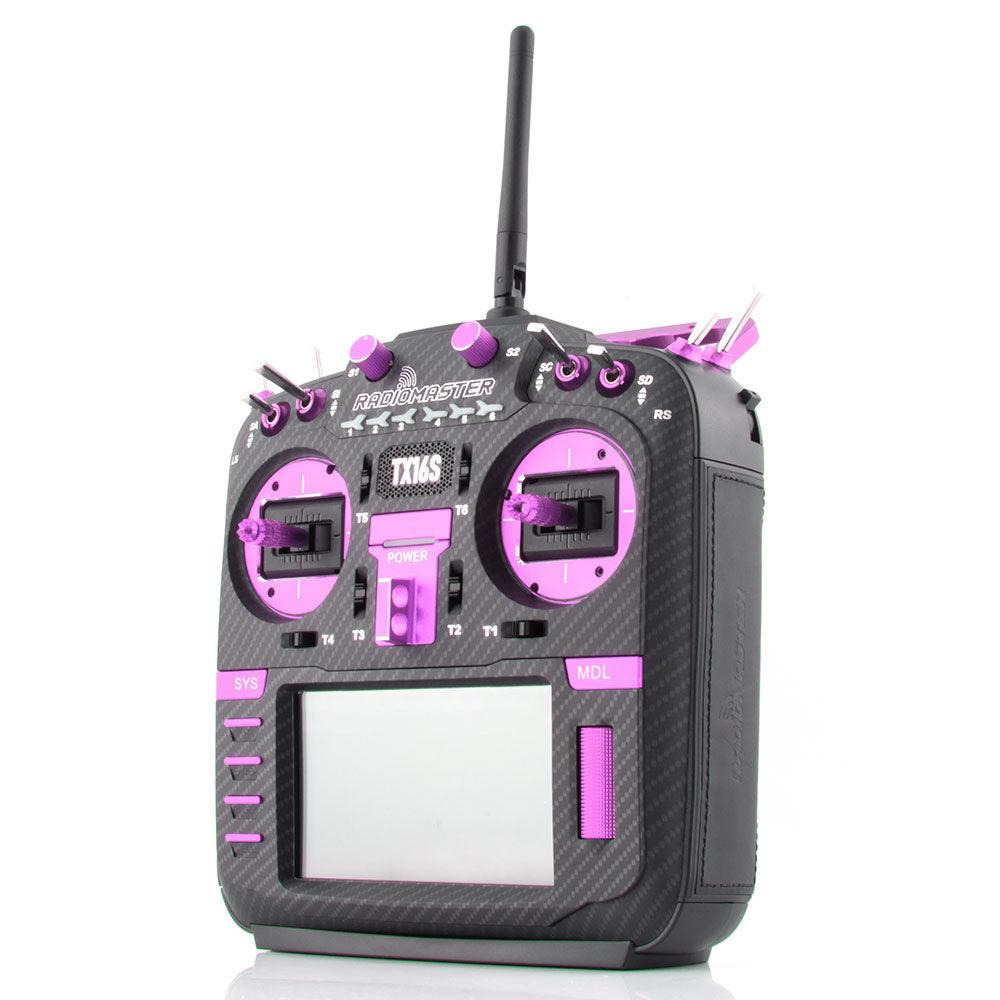

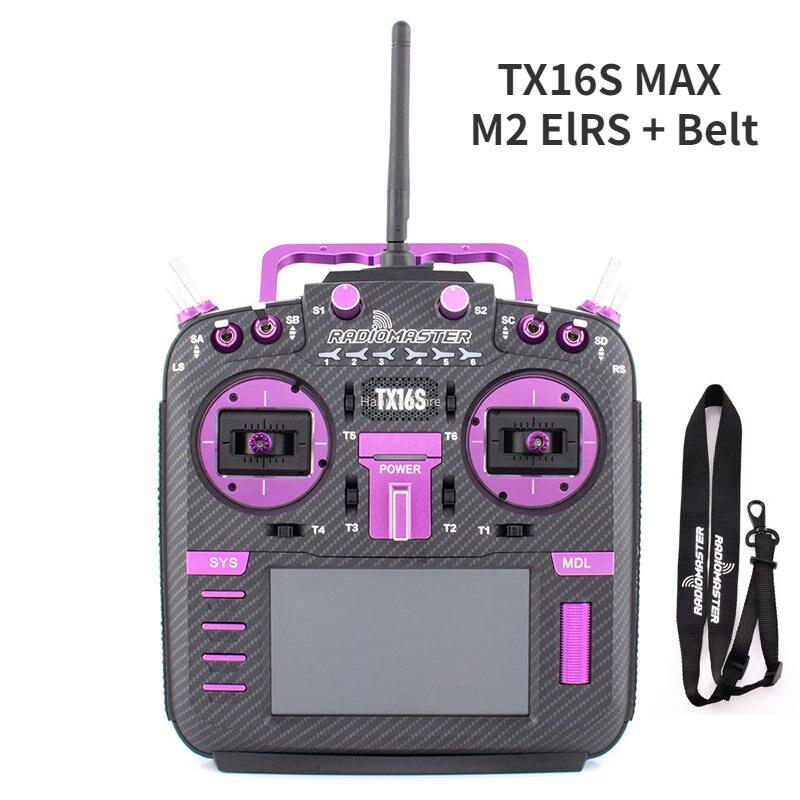

- Item: TX16S Mark II Max (Joshua Bardwell Edition)
- Size: 287x129x184mm
- Weight: 750g (without battery)
- Transmission frequency: 2.400GHz-2.480GHz
- Transmitter module: Internal ELRS (SX1280)
- Transmitting power: Internal ELRS: Max 250mw (transmitting power is adjustable)
- SD card: 256MB by default, 8GB maximum
- Antenna gain: 2db (transmit power adjustable)
- Working current: 400mA
- Working voltage: 6.6-8.4v DC
- Remote control distance:> 2km @ 22dbm
- Radio firmware: EdgeTX
- Module Firmware: ExpressLRS (ELRS)
- Channels: Up to 16 channels (depending on the receiver)
- Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
- Gimbal: V4.0 Hall sensor with Aluminium fascia
- Module Bay: JR compatible module bay
- Upgrade method: Supports USB-C online / SD card offline upgrade
Package Includes

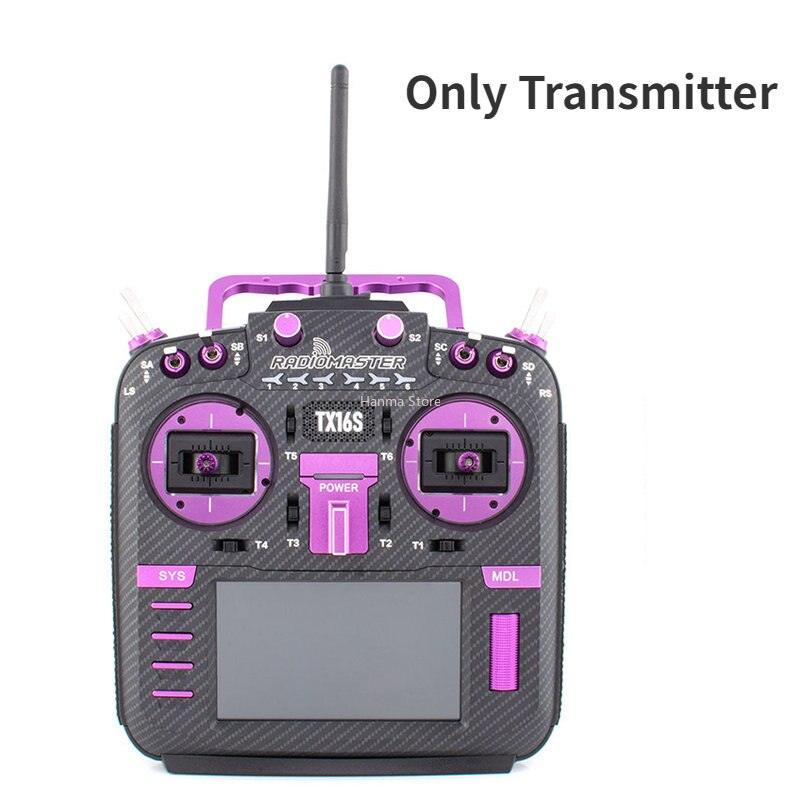

- 1 * TX16S Mark II Max Radio Controller

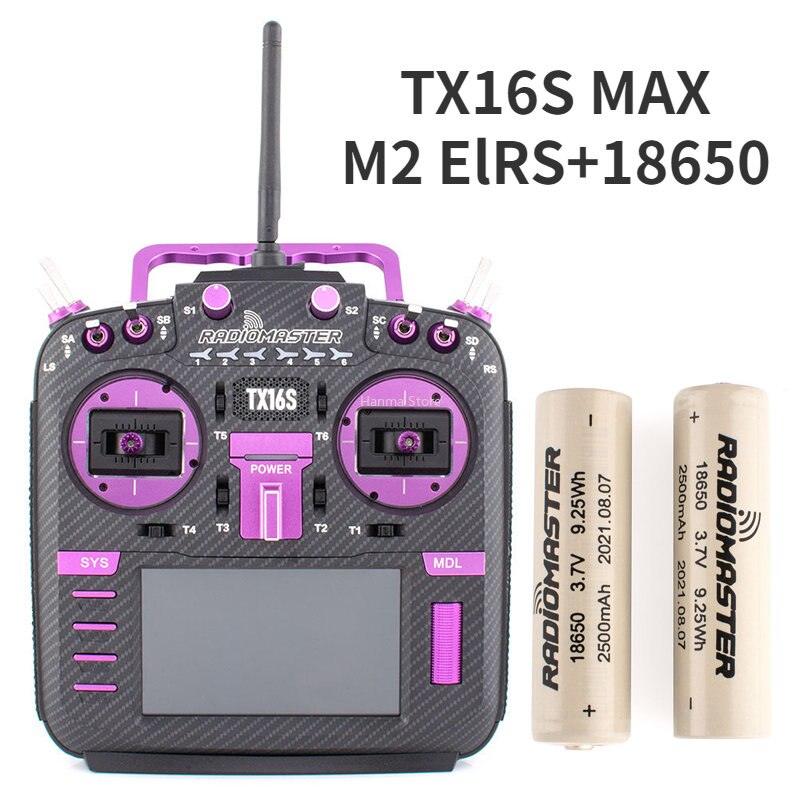

- 1 * 18650 Tray
- 1 * USB-C Cable
- 1 * Screen Protector
- 1 * LED Gimbal Light Mod Set (White)
- 1 pair of flat grips
- 1 pair of raised grips (installed on radio by default)
- 1 * TX16S Key Chain

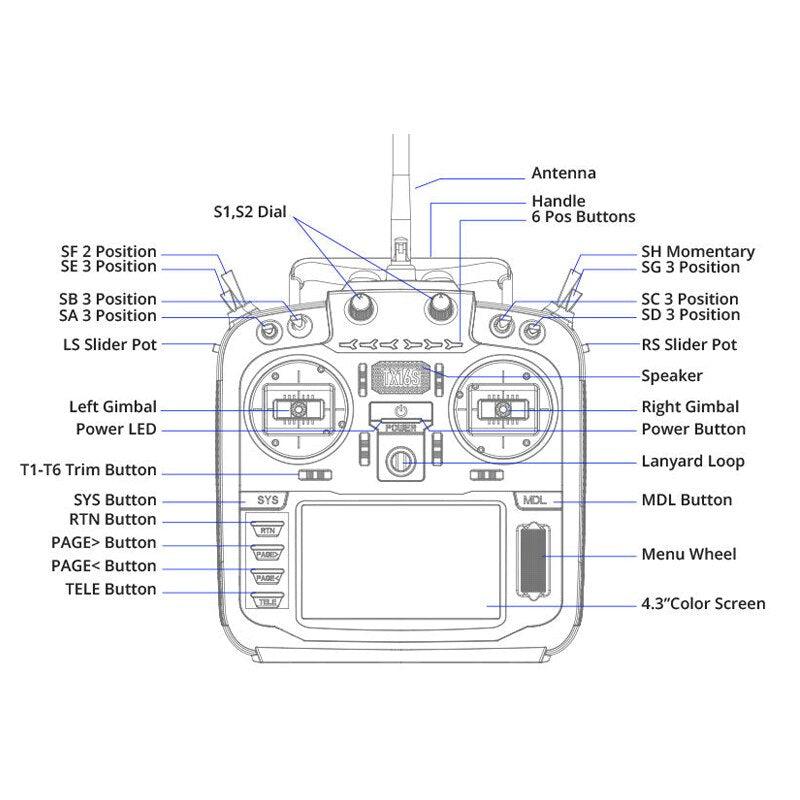

Antenna Handle S1,52 Dial 6 Pos Buttons SF 2 Position SH Momentary SE 3 Position SG 3 Position SB 3 Position SC 3 Position SA 3 Position SD 3 Position Power Button T1-T6 Trim Button Lanyard Loop SYS Button SYS EL MDL Button RTN Button PAGE> Button Menu Wheel PAGEButton TELE button 4.3″Color Screen”
RadioMASTER TX16S Mark II ELRS 4IN1 OPEN edge TX SUPPORTS EDGETX AND OPENTX AVAILABLE 4inI AND ELR VERSIONS MULtI 480k77 Max NEW V4.0 HALL GIMBALS Adjustable withov disassembly Min. 389, Max 1/2 STICK TRAVEL LIMITER decrec ‘ travel, Turn HORIZONTAL AXIS TENSIONER (LEFT
Optional high/low rear grips included for improved ergonomics . 4.3-inch full-colour touch display with a Improved internal plastics for belter longevity.
