RadioMaster Micro 2.4GHz RM 4-in-1 Multiprotocol Module – JR / Nano For Zorro Boxer TX16S MKII TX12 MKII Radio Transmitter

$73.27

SKU: N/A Category:

Description

RadioMaster Micro 2.4GHz RM 4-in-1 Multiprotocol Module SPECIFICATIONS

State of Assembly: Ready-to-Go

Origin: Mainland China

Model Number: Micro 2.4GHz RM 4-in-1

Communication method: IR

Brand Name: hot rc

The RadioMaster 4IN1 external module is a multi-protocol module that integrates CC2500, NRF24L01, A7105 and CYRF6936 RF chips. Designed for OpenTX and EdgeTX systems, the RM 4IN1 module allows the radio to connect with most mainstream protocols on the market.

the RM 4IN1 module allows the radio to connect with most mainstream protocols on the market

Description:

Brand: RadioMaster

Item: RM 4IN1 Module Operational voltage: 4.5-8.4V Operational frequency: 2.4G ISM band (2400mHz – 2483mHz) RF Chipsets: CC2500, NRF24L01, A7105 and CYRF6936 Operational current:‚Čą100mA RF Gain: +20dBm Weight: 30g (without antenna) Dimension: 73*42*22mm (without antenna)

Features:
* Up to 20dBm power output.
* Compatible with more than 70 RF Protocols.

* Works with JR and Nano Module Bays.
* Wireless trainer function.
* For Zorro, Boxer, TX16S MKII, TX12 MKII and more.

Compatible with more than 70 RF protocols
RM 4IN1 is compatible with more than 70 RF protocols, including DSMX, Flysky, SFHSS, HiTec, HoTT, OMP, Radiolink, Frsky and many more.

COMPATIBLE WITH MORE THAN 70RF PROTOCOLS DSMX, Flysky

Wireless trainer function
When used in conjunction with a suitable EdgeTX or OpenTX compatible radio such as the TX16s, TX12 or Zorro the RM 4in1 module can be used as a wireless trainer link to a student radio such as another TX16s, TX12, Zorro or any other radio capable of transmitting DSMX, Frsky or Flysky protocols.

RM4in1 module can be used as wireless trainer link to student . can be

FCC Version and EU LBT Version are Available

Currently, we provide the standard FCC version and the EU LBT version. FCC Version supports all MPM protocols. And EU LBT Version is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX.

NANO & JR Adapter
The RadioMaster 4IN1 module is a nano module by default. A JR adapter is included as standard. Support Zorro, Boxer, TX16S MKII, TX12 MKII and more.

NANO & JRADAPTER FOR ZORRO, TX16S MKI

Size:

RadioMaster 4IN1 is a nano module by default. A JR adapter is

Package Included:

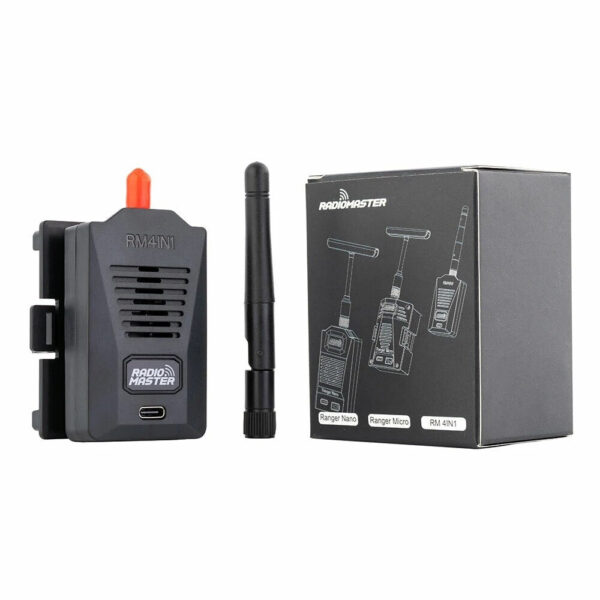

1 * RM 4IN1 Module
1 * JR Adapter
1 * Stick Antenna

Package Included: 1 * RM 4IN1 Module 1 * JR Adapter

Compatible with more than 70 RF protocols, including DSMX, Flysky, SF

RM 4in1 module can be used as a wireless trainer link to a student

Compatible with more than 70 RF Protocols.

Currently, we provide the standard FCC version and the EU LBT version . F

RadioMaster Micro 2.4GHz RM 4-in-1 Multiprotocol Module - J

the RadioMaster 4IN1 external module integrates CC2500, NRF24L

RadioMaster 4IN1 is a nano module by default. A JR adapter is

Compatible with more than 70 RF Protocols.

Compatible with more than 70 RF protocols, including DSMX, Flysky, SF

the RM 4IN1 module allows the radio to connect with most mainstream protocols on the market

Ranzer Naco Ranzer Mcrg RMaini ragier)

RMAINI ragicer Micro RM 4iNi Rancet Nano
