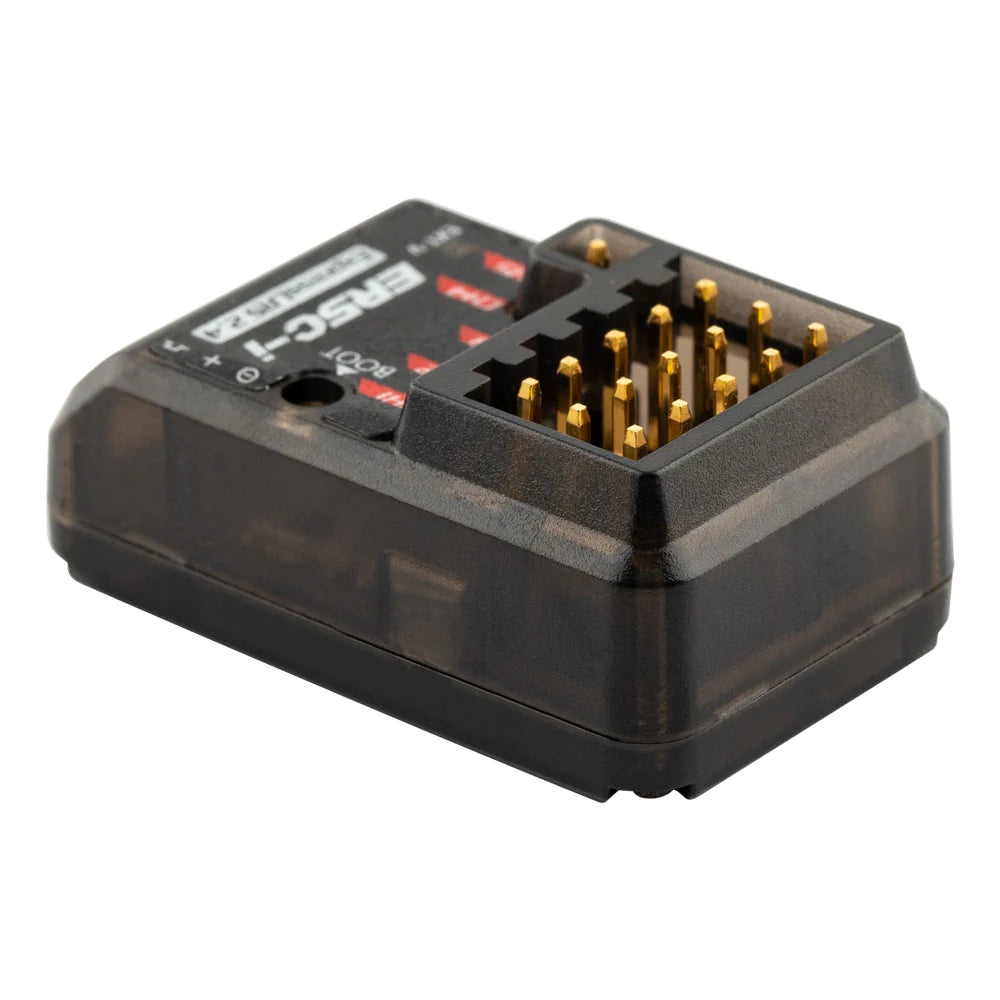

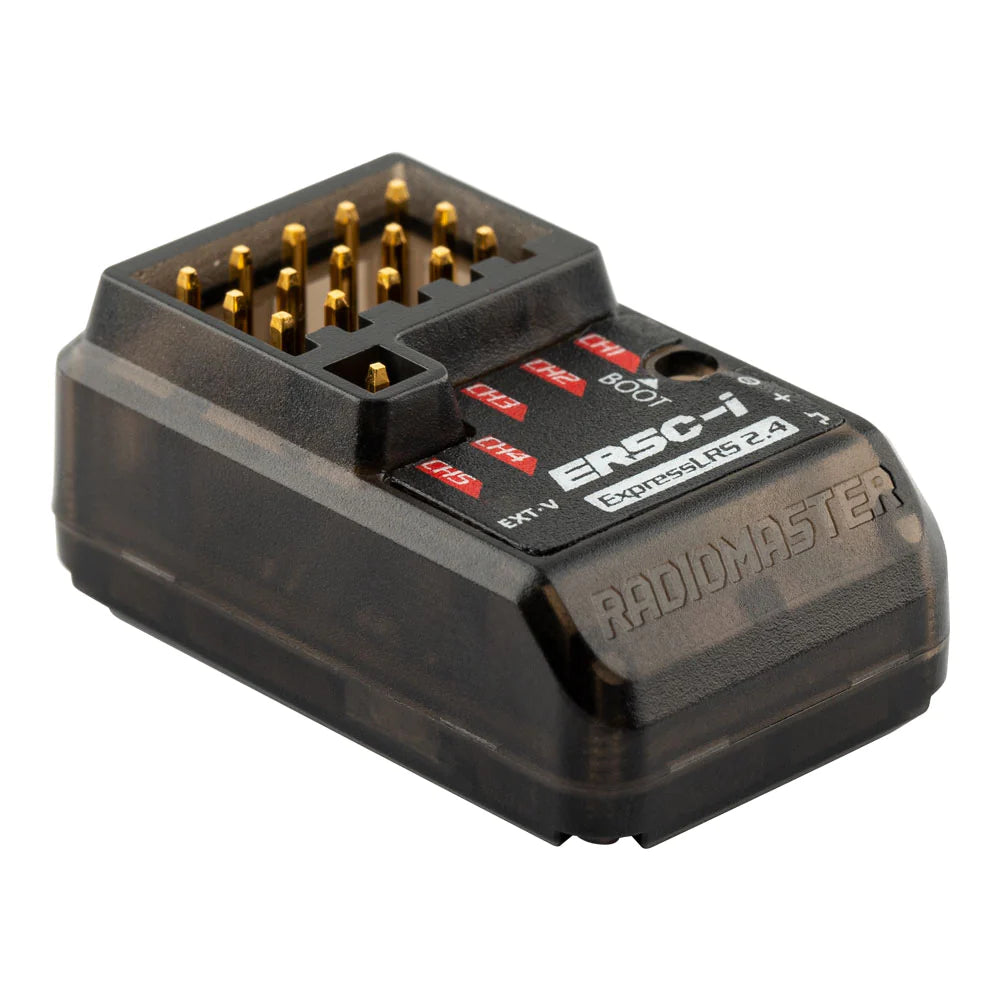

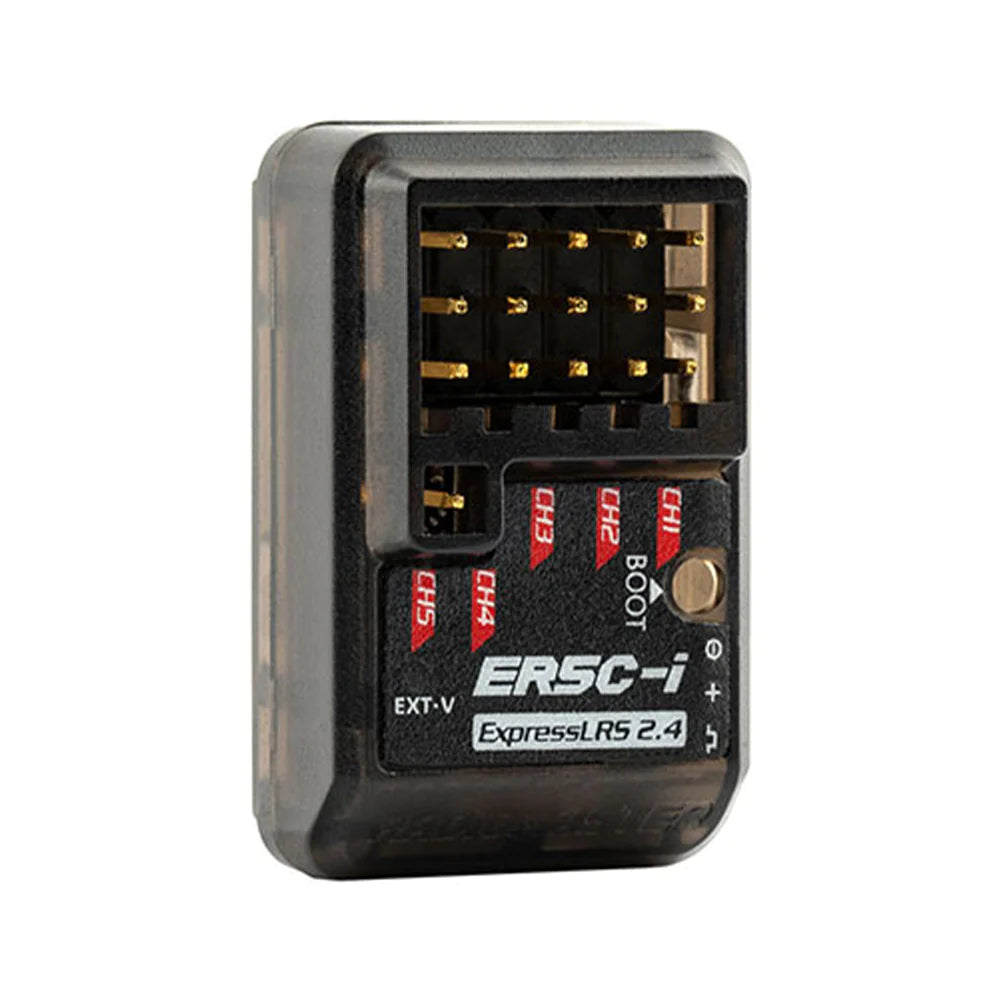

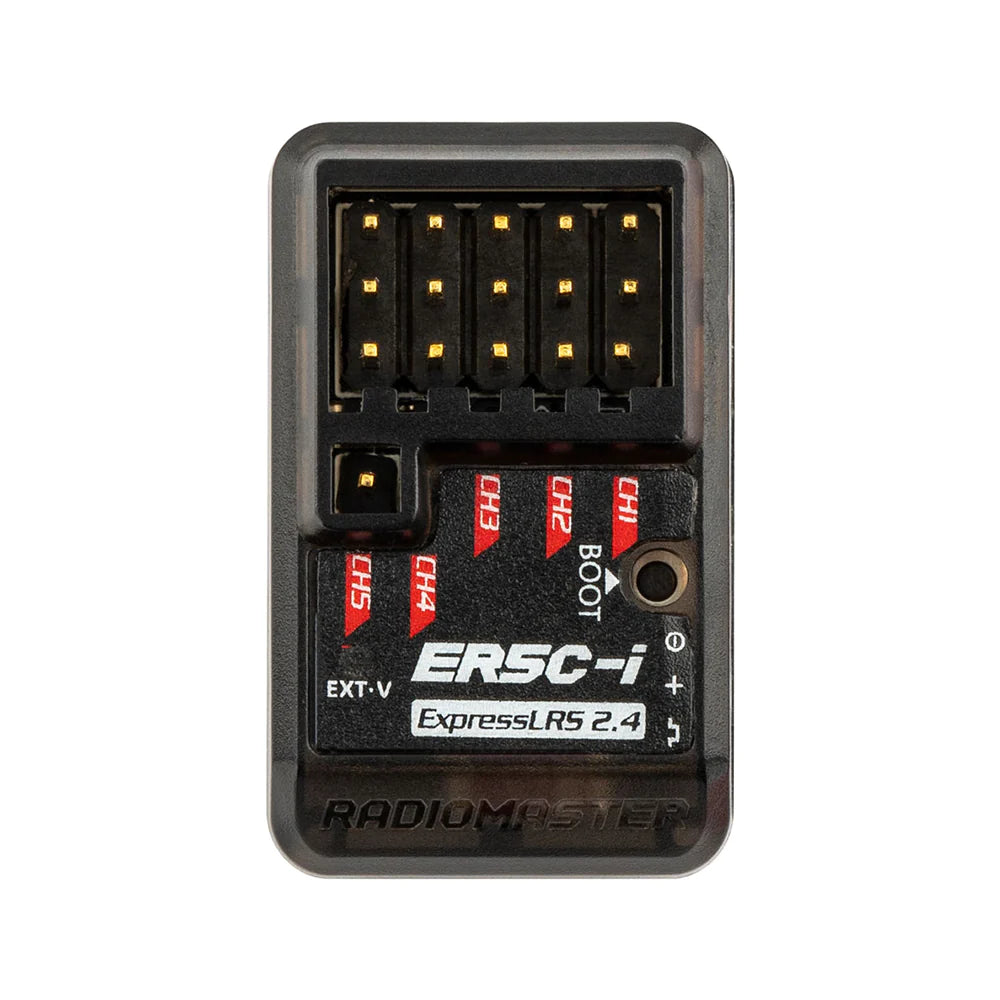

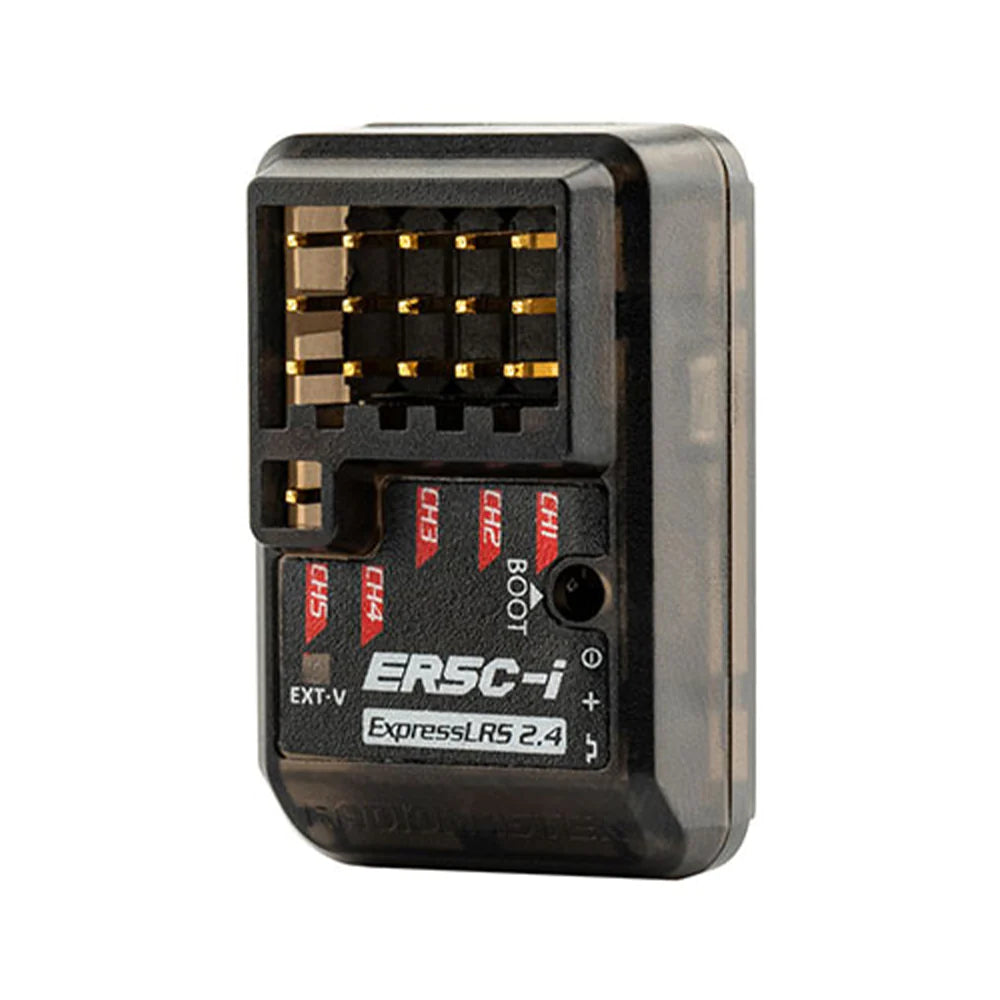

RadioMaster ER5C-i 2.4GHz ELRS PWM Receiver – With Built-in High-Sensitivity Ceramic Antenna Designed for Surface Models

$35.00

SKU: N/A Category:

Description

The RadioMaster ER5C-i receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER5C-i ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. The ER5C-i features a built-in high-sensitivity ceramic antenna, it is designed for all types of surface models and provides a clean install without antenna wires to worry about.

ER3C-i& ER5C-i 2.4GHz ELRS PWM Receiver

Features

  • Built-in high-sensitivity ceramic antenna
  • Based on the Revolutionary ExpressLRS System
  • High performance, high reliability, flexible configuration, fast response speed and ultra-long range
  • Supports 5 PWM Channels
  • Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
  • Optimized ground up PCB design
  • Supports Wi-Fi updates and WEBUI configuration
  • Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
  • Designed for all types of surface models
  • Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

    Specifications

    • Item: ER5C-i 2.4GHz ELRS PWM Receiver
    • Power supply: DC 4.5 – 8.4V
    • Antenna type: Built-in high-sensitivity ceramic antenna
    • Wireless protocol: ExpressLRS 3.3.0 pre-installed
    • Output channel: 5CH PWM
    • Telemetry power: 10mW
    • Battery voltage detection range: DC 4.0 – 35V
    • Weight: 5.0 grams
    • Dimensions: 30.0*18.5*13.0 mm
    • Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER5C-i

    ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM Receiver

    Size

    ER5C-i 2.4GHz ELRS PWM Receiver

    Associated Products

    • MT12 Surface Radio Controller
    • ER SERIES ELRS PWM RECEIVERS

    Package Includes

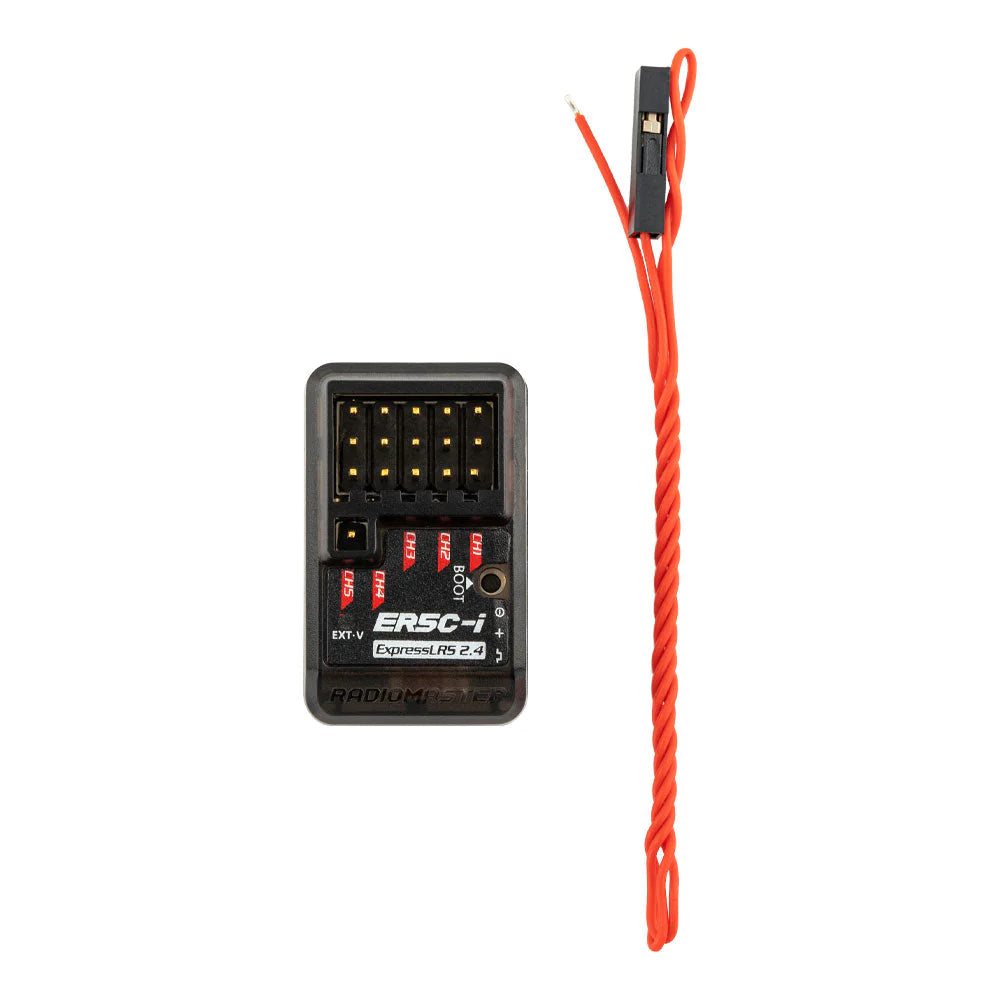

    • 1 * ER5C-i 2.4GHz ELRS PWM Receiver
    • 1 * Voltage telemetry wire
    • 1 * User Card

    Additional information

    REGION

    LBT, FCC
