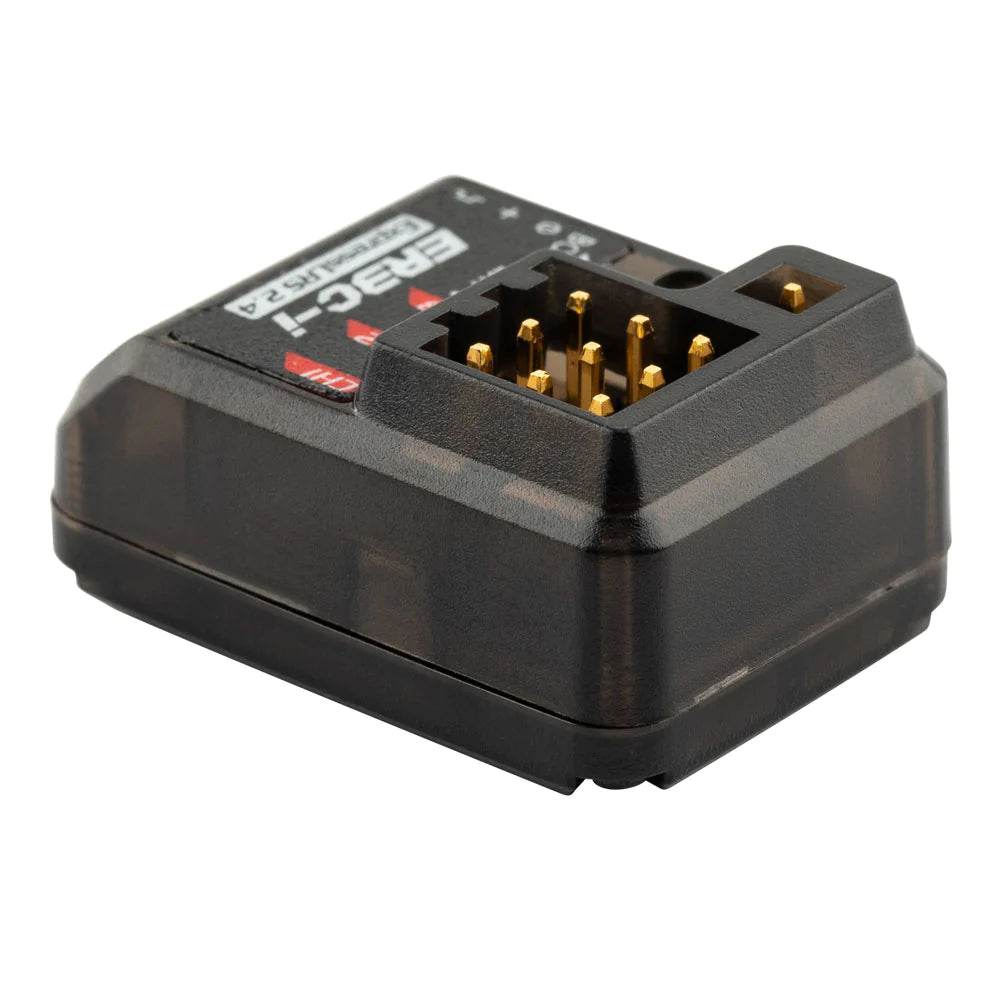

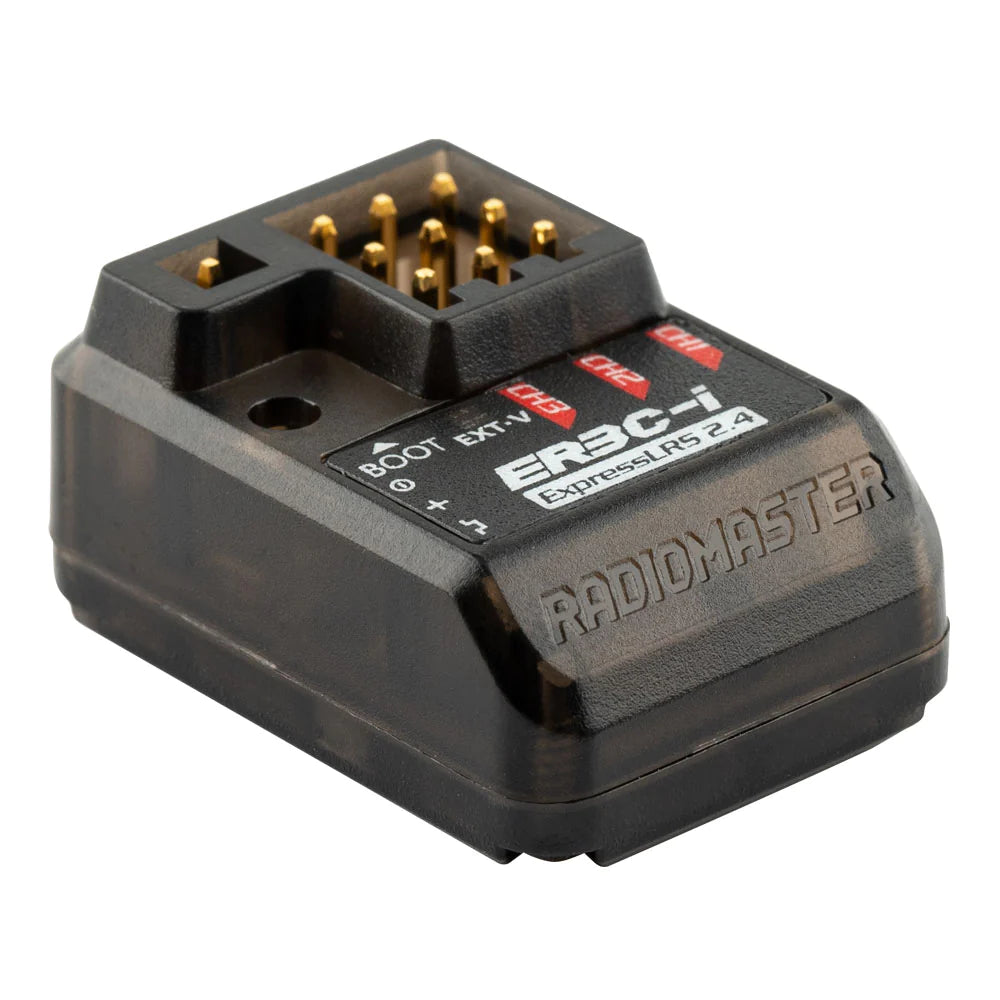

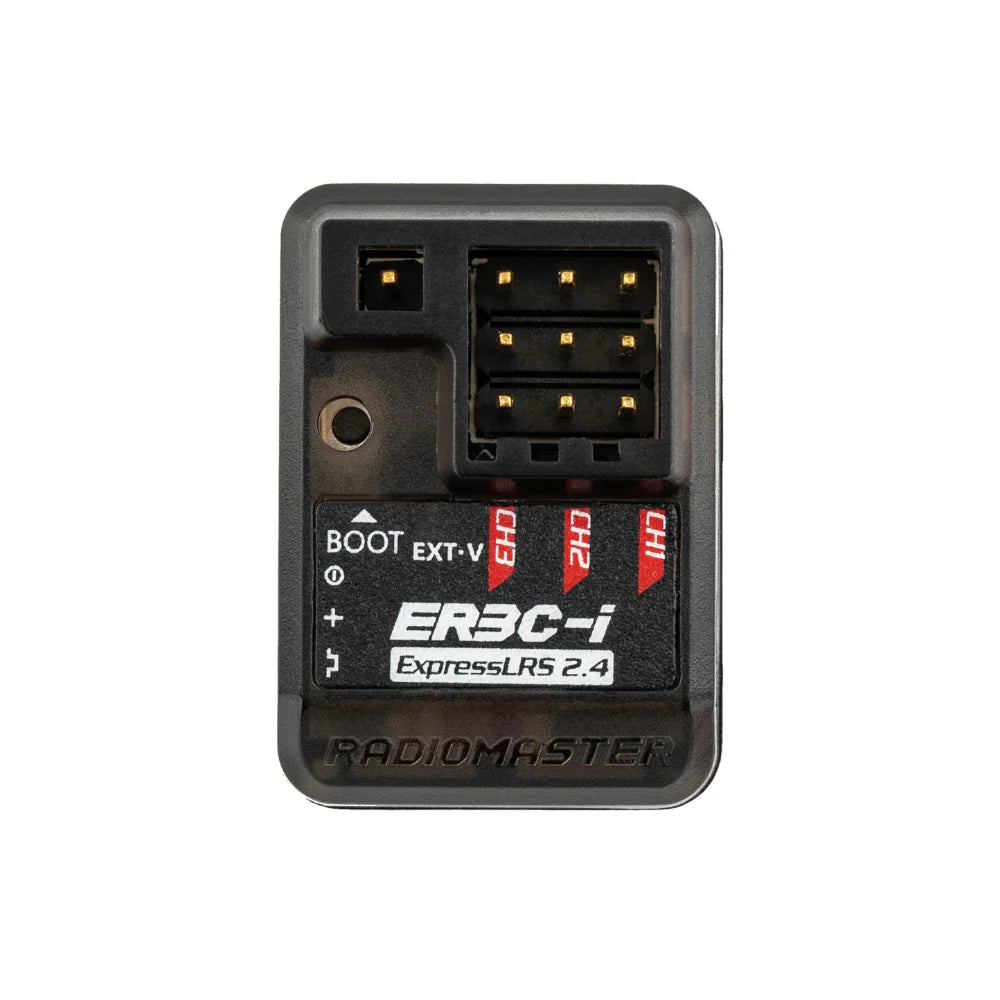

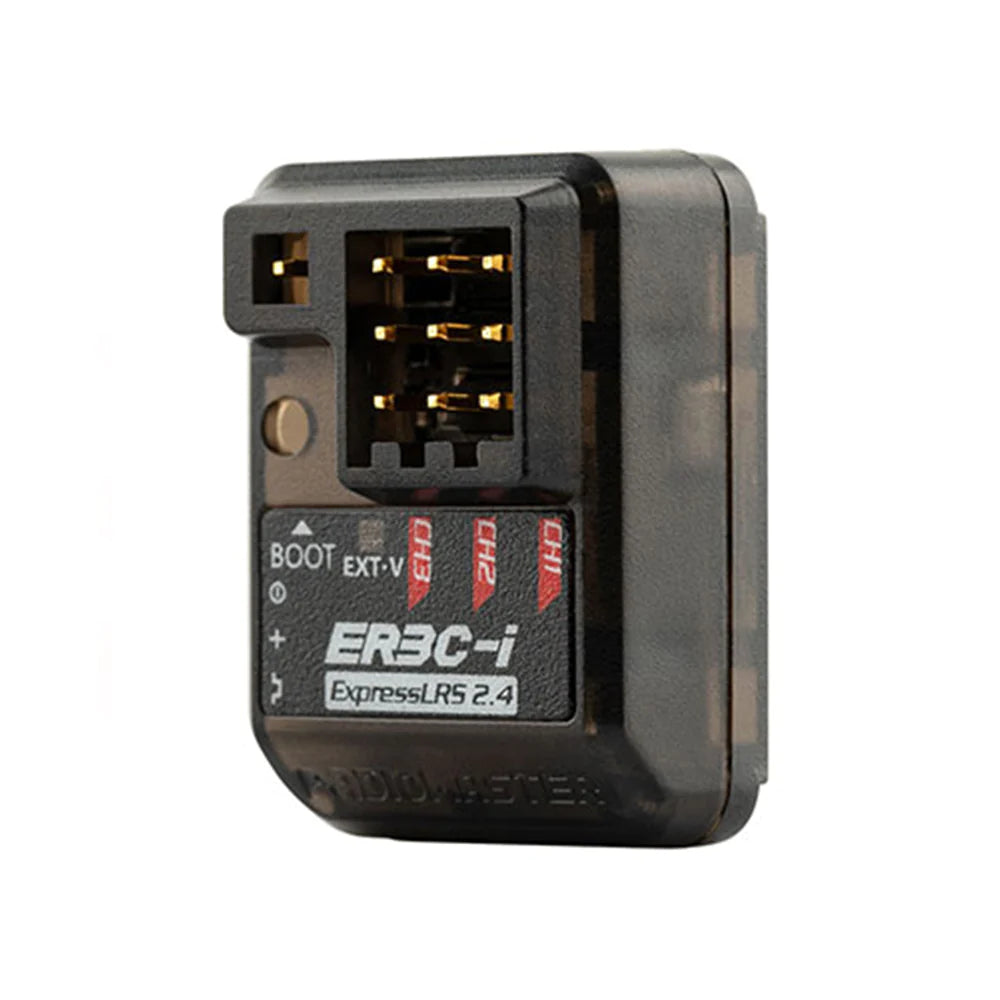

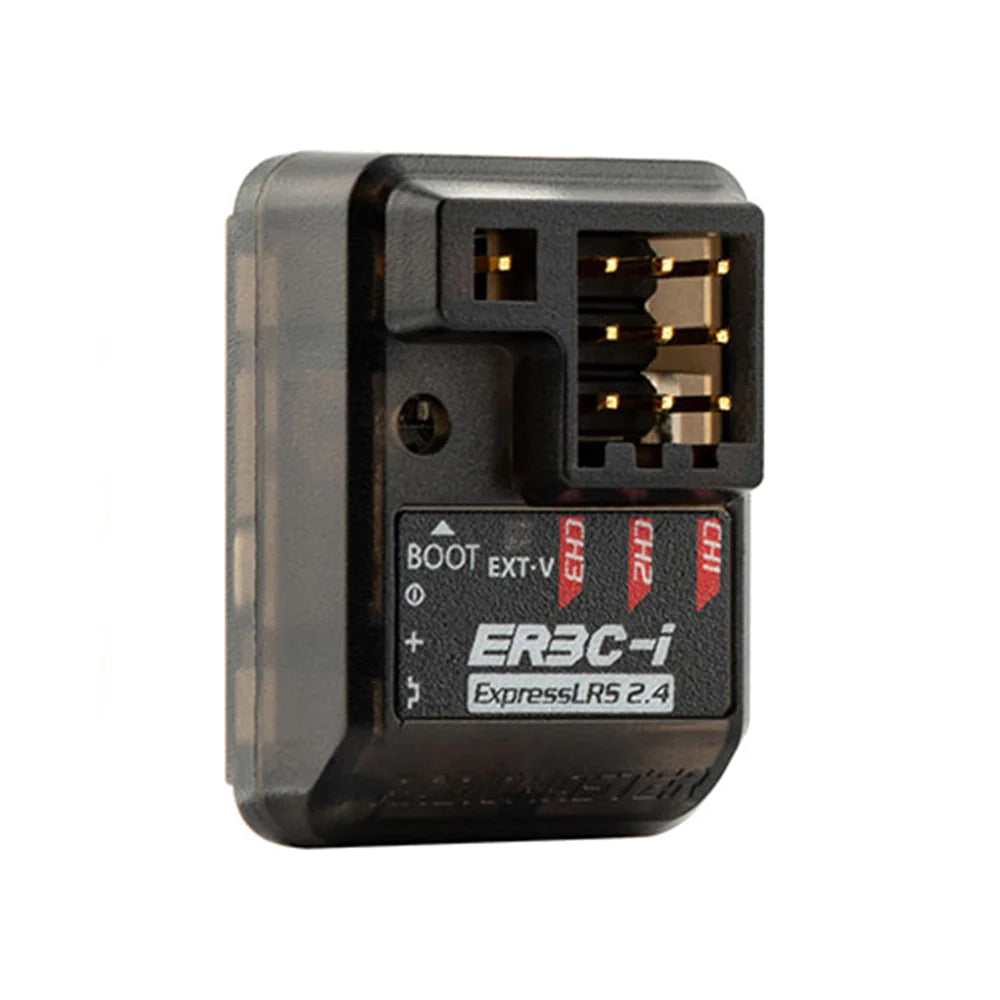

RadioMaster ER3C-i 2.4GHz ELRS PWM Receiver – With Built-in Ceramic Antenna Designed for All Types Surface Models

$29.00

Description

The RadioMaster ER3C-i receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER3C-i ELRS receiver can drive up to 3 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. The ER3C-i features a built-in high-sensitivity ceramic antenna, it is designed for all types of surface models and provides a clean install without antenna wires to worry about.

ER3C-i& ER5C-i 2.4GHz ELRS PWM Receiver

Features

  • Built-in high-sensitivity ceramic antenna
  • Based on the Revolutionary ExpressLRS System
  • High performance, high reliability, flexible configuration, fast response speed and ultra-long range
  • Supports 3 PWM Channels
  • Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
  • Optimized ground up PCB design
  • Supports Wi-Fi updates and WEBUI configuration
  • Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
  • Designed for all types of surface models
  • Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specifications

  • Item: ER3C-i 2.4GHz ELRS PWM Receiver
  • Power supply: DC 4.5 – 8.4V
  • Antenna type: Built-in high-sensitivity ceramic antenna
  • Wireless protocol: ExpressLRS 3.3.0 pre-installed
  • Output channel: 3CH PWM
  • Telemetry power: 10mW
  • Battery voltage detection range: DC 4.0 – 35V
  • Weight: 4.2 grams
  • Dimensions: 26.1*18.5*13.0 mm
  • Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER3C-i

    ER3C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM ReceiverER3C-i& ER5C-i 2.4GHz ELRS PWM Receiver

    Size

    ER3C-i 2.4GHz ELRS PWM Receiver

    Associated Products

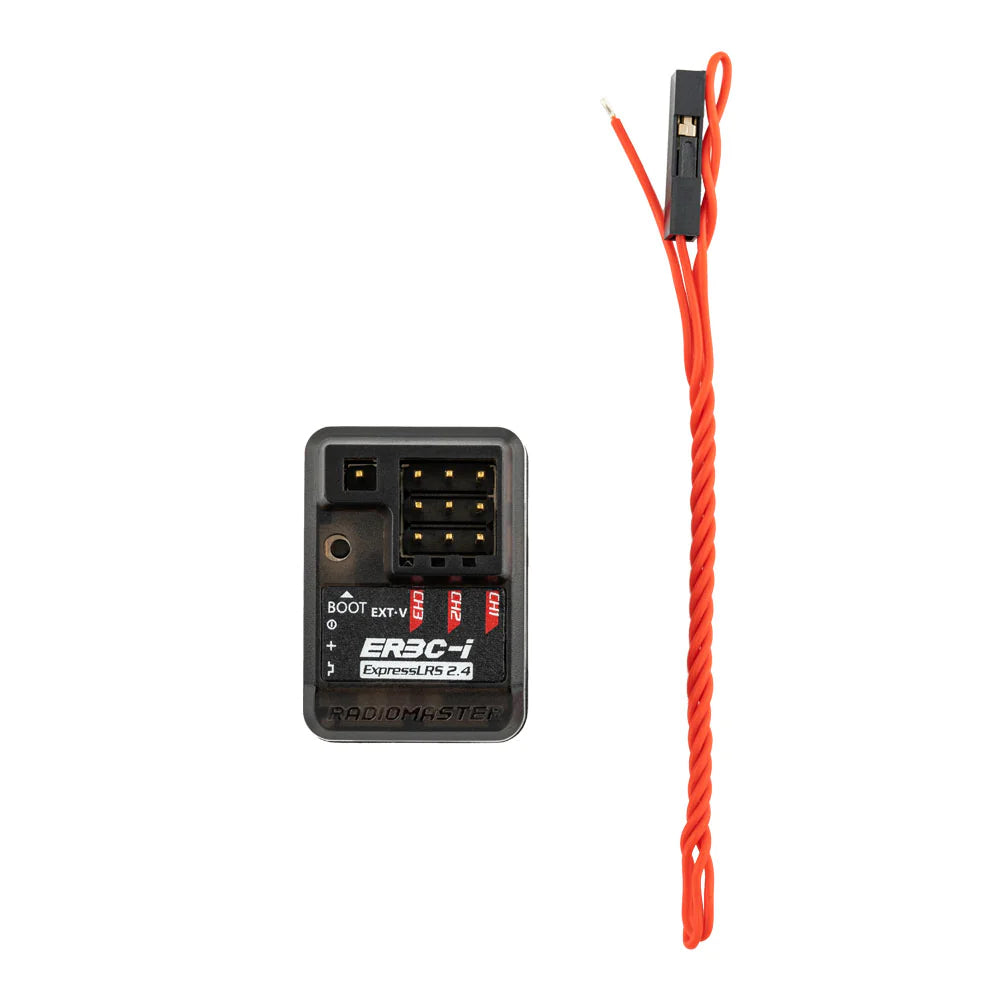

    Package Includes

    • 1 * ER3C-i 2.4GHz ELRS PWM Receiver
    • 1 * Voltage telemetry wire
    • 1 * User Card

    Additional information

    REGION

    LBT, FCC
