SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

Origin: Mainland China

Model Number: T8FB

Material: Plastic

Certification: CE

Brand Name: abay

Brand Name: RadioLink

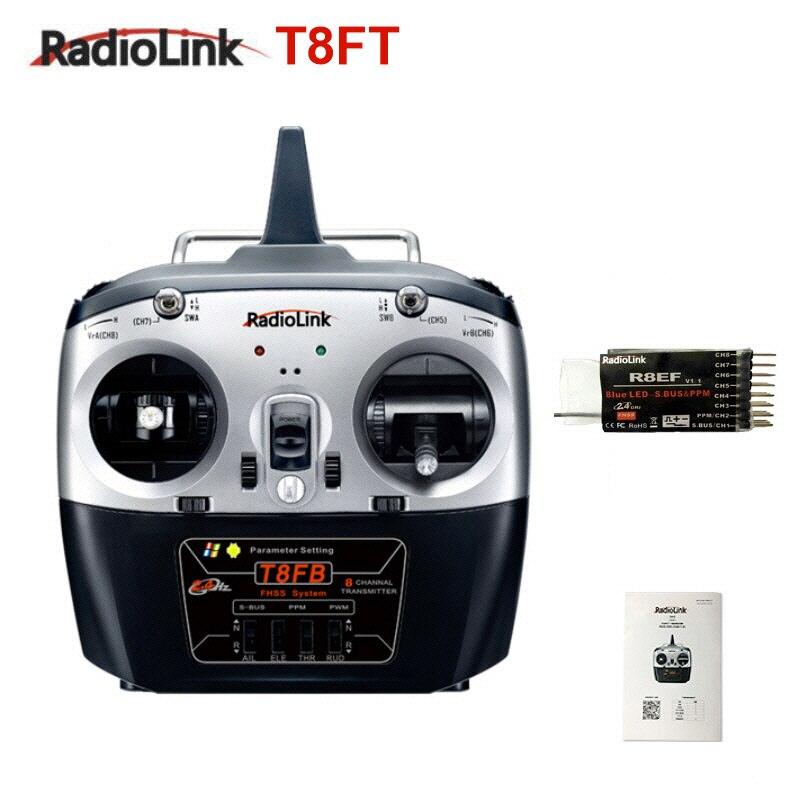

Radiolink T8FB 8CH RC Transmitter and Receiver R8EF 2.4GHz Radio Controller SBUS/PPM/PWM for Drone/Fixed Wing and More Radiolink is a high technology manufacturing company dedicated to researching, manufacturing and marketing of RC model radio transmitters. Our products included: RC transmitter, flight controller, receiver, GPS, drone etc. We are committed to providing customers with a high reliability and high performance product solution, as well as providing technical support and friendly after-sales service.

Please Note:

Please chooseMode 1orMode 2as you need!

The operation menu ONLY support English and Chinese. Please contact us when you need full user manual.

T8FB 8ch radio controller features:

• 【8 Channels】: fast response synchronously for 8CH, the FHSS spread spectrum to keep the excellent anti-interference, with programmable mix function that 5th-8th channels can be programmable mix control, it’s a good choice for fixed wing.

• 【Newbie Choice】: support basic menu and advanced menu, easy to bind and set up. Only takes 2 second to bind and do not need complicated seting parameter with Android phone App.

• 【Anti-polarity Protection】: unique anti-polarity connect protection. Universal JST connector supports multiple batteries: 4 pcs AA or 2s-4s LiPo battery. (Not included batteries)

• 【Low Consumption of Battery】: Swithing mode power supply keeps the operating current of T8FB is less than 80mA. A 3s 1800mAh liPo battery can work more than 20 hours.

• 【Suit for Multiple Models】: T8FB rc controller suitable for racing drone, fixed-wing, quadcopter, multiple rotors, RC boat and car.

T8FB Rc Transmitter Specifications:

• Channels: 8ch

• Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)

• Channel Bands width: 1200KHz

• Spread Spectrum: FHSS

• Adjacent Channel rejection: >38dbm

• Transmitter Power: <100mW (20dBM

• Operating Voltage: 4.8V~18V

• Sensitivity: -104dB

• Speed Rate:38kbps

• PWM Output: 1.0ms~2.0m

• Size: 17.3*10.2*20.6cm

• Weight: 0.74kg

R8EF Receiver Specifications

• Signal output: S-BUS & PPM & PWM

• Channel: 8ch

• Control Distance: 1000m on air

• Working Voltage: 4.8-10V

• Working Current: 19-25mA(input voltage 5V)

• Section precision: 4096

• Size: 4.8*2.1*1.1cm

• Weight: 11g

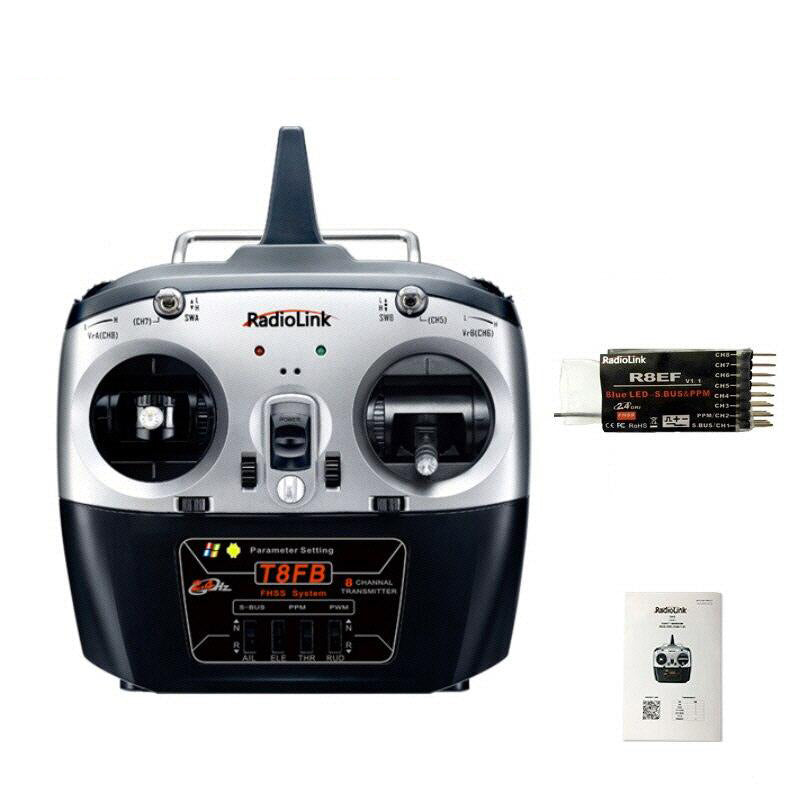

Package Included:

• T8FB  x 1

• R8EF receiver x 1

• OTG Cable x

• Spring Accessories x 1

• User Manual x 1

IcTI RadioLink = IcS) VerichO) VrB cHD T8FB Parameters setup via android APP EASY TO USE CERTAINLY WORTH FOR ITS VALUE .

4.8-18V Wide range of voltage RBRM Mini receiver USB upgrade Antiplug protect 8OmA operate current 8CH full function FHSS JUUUUC SBUS& PPM& P

caneil T8FB has better anti-interference ability and control distance . TSFB and 14 times higher than famous racing the regular jitter drone transmitter . with 7us regular signal jitters much better than the competing transmitters .

S-BUS,PPM and PWM signal possible working at the same time . no need for too many cables and any signal converter, reduced the weight of aircraft . gimbal and landing gear can control, easy to set and control .

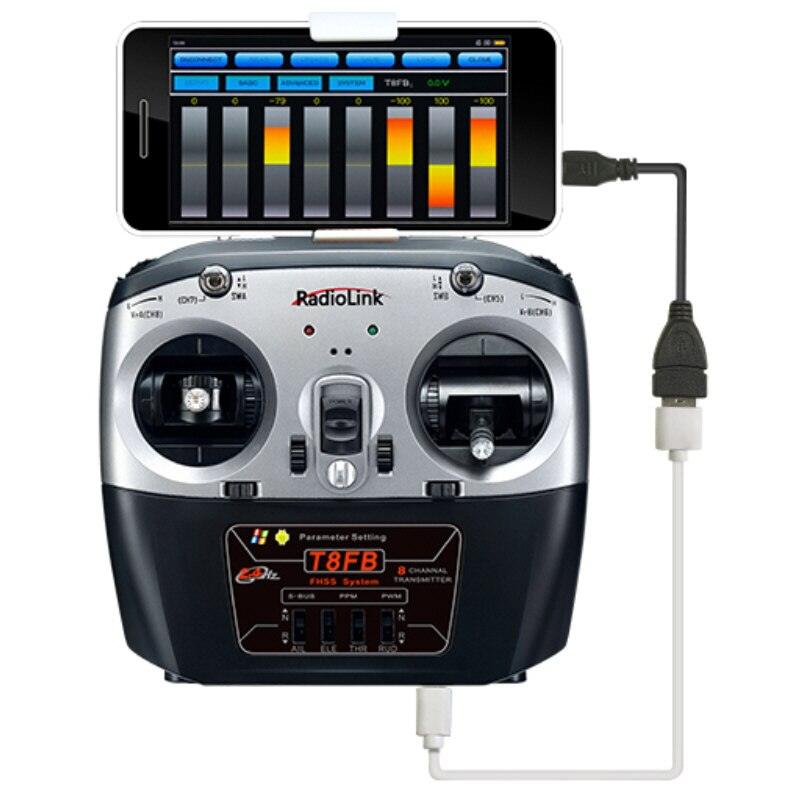

Setup USB Upgrade Parameters can be easily setup and modified with mobile App Radiolink USB upgrades with new functions added and keeps TBFB always advanced . only personalize the parameters once and data can easily copy in quantities to the same model remote controllers .

Ce FC RoHS 2 ID SET compatible with all kinds of flight controllers without DCCU, is the best choice for racing drones.

Types Suit for most of the airplanes including fixed wing 2 airfoils 3 rears . 21 centimeters long antenna receiver specialized good for the RC boats .

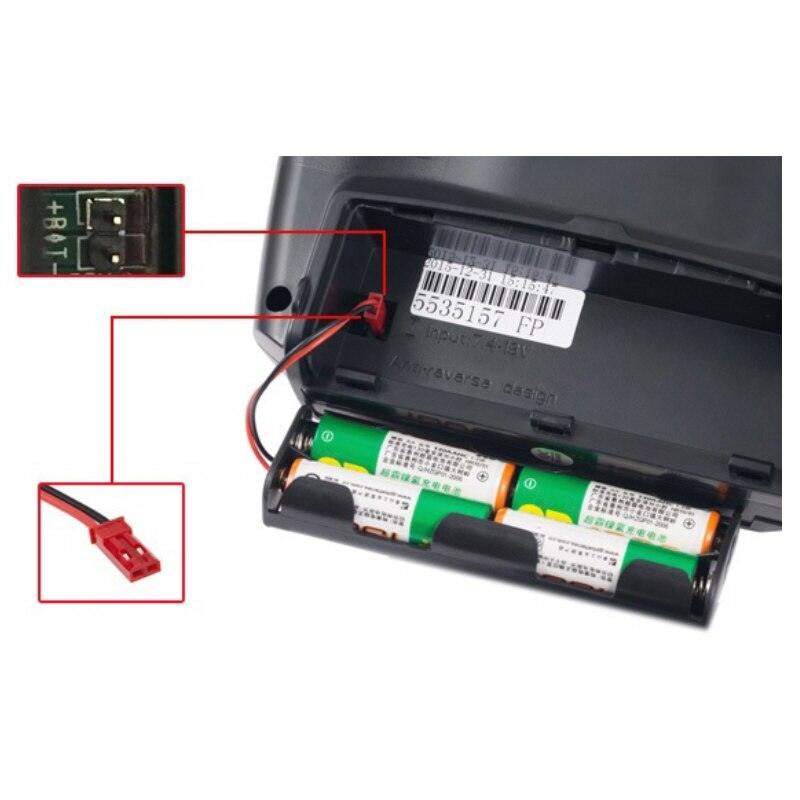

Universal JST battery connector supports multiple batteries include 4pcs AA batteries or 25-4S LiPo battery . anti-polarity 053515 Connect Protection Intelligent Will not damage the PCB of transmitter and receiver even connect polarity with long time .

4.8V18V, Cdeno applicable to 2S to 4S Li-Po or 4 pieces AA batteries . T8FB, simplify the operation, makes it easy to use even without user manual:

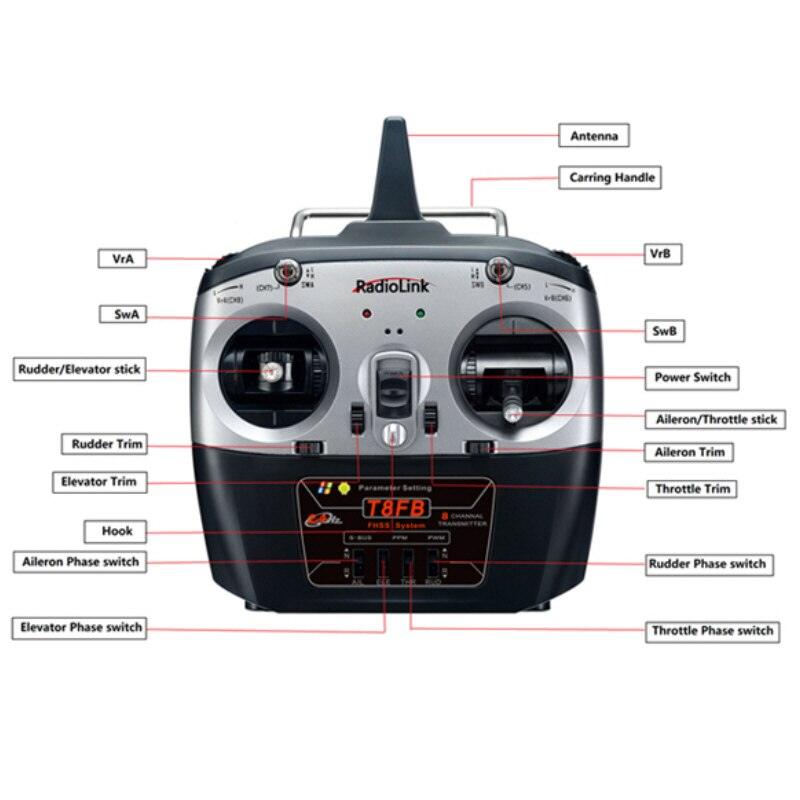

AllcrouThrotule tuck Rudder/Elevator stick PoStcn T8FB were designed by the same professional company of AT9 . with innovation and independent design Alcton Tnmt Elcyator Trim concept, it is the perfect choice for your plane .

Specification T8FB size: 173*102*206mm, RBEF size: 48.5*21*11mm Weight: 0.47kg (including R8EF) Frequency: 2.4GHz ISM band (2400MHz2483.5MHz) Modulation mode: GFSK Channel band width: 4O0KHz Channel pacing: 1200KHz Transmitter power: 1OOmW (2OdBM) Sensitivity: 104dBM Speed rate: 38kbps
