Over 30KM Wireless HDMI image Transmission SPECIFICATIONS
Wheelbase: Screws
Upgrade Parts/Accessories: Long range system
Tool Supplies: Battery
Technical parameters: Value 2
Size: As description
Remote Control Peripherals/Devices: Receivers
RC Parts & Accs: Receivers
Quantity: 1 pcs
Model Number: COFDM
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Over 30KM Wireless HDMI image Transmission 100-900Mhz Full HD 1080P COFDM Digital FPV Wireless Video Transmitter
Working frequency: 100-900Mhz
Antenna interface: 50Ω SMA female
Video bit rate: 2-5Mhz
Working bandwidth: 6/8Mhz
Delay: about 200-350ms
Working environment: -10 °C to +60 °C humidity 5-95%
Working environment temperature: 14°～104°F (-10°- 40°C)
Transmission distance: Receiver 2dBi antenna: distance up to 2-4km;
Receiver 4dBi antenna: distance up to 4-5km;
Receiver 5.5dBi antenna: distance up to 5-7km;
Receiver parameters:
Output resolution: 1080P (downward compatible)
Recording method: U disk recording
Recording format: MTS
Working voltage: DC 7V-24V
Video output interface: HDMI, AV
Machine power: standby less than 0.3W, working less than 6W

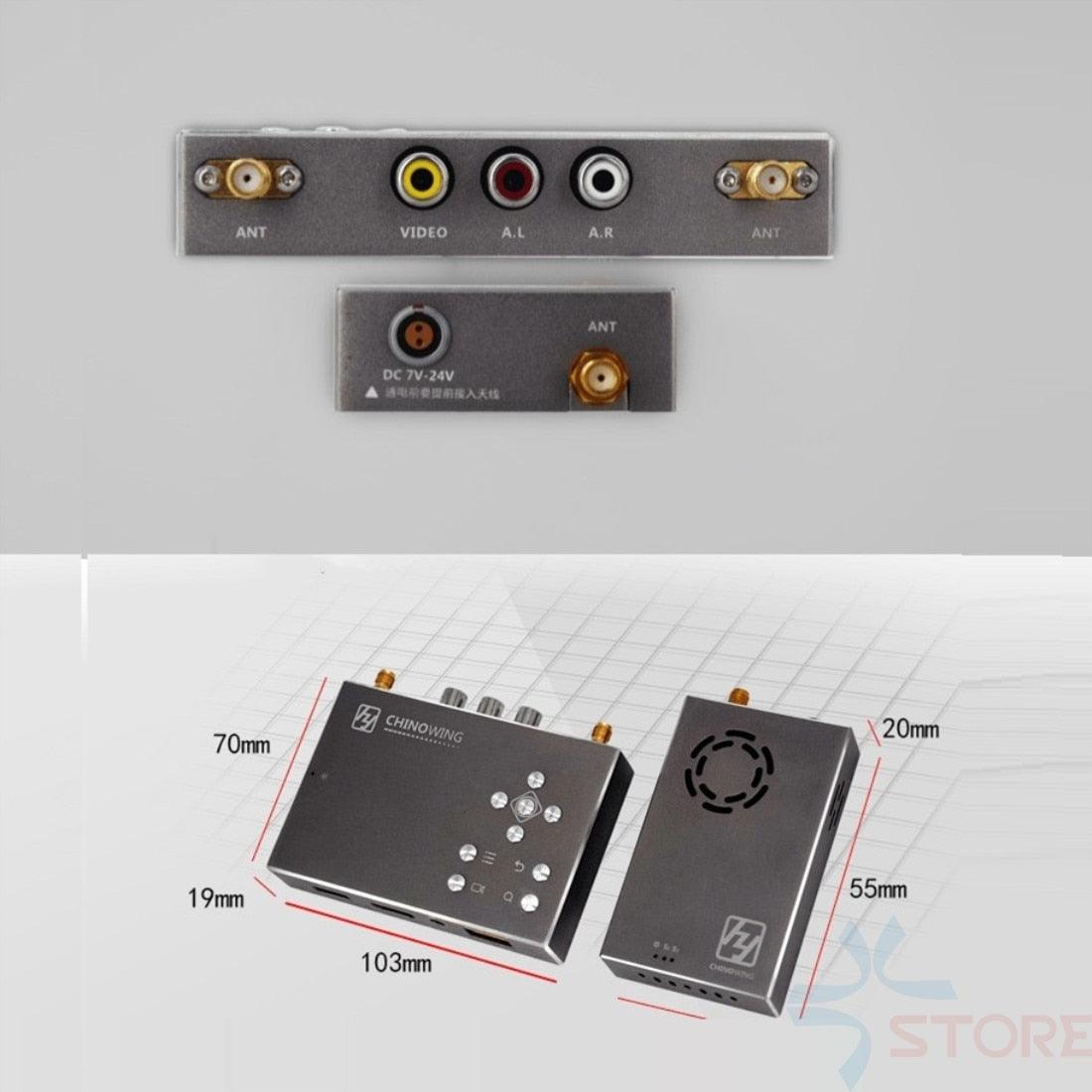

Dimensions (without antenna): 103mm (L) x 70mm (W) x 19mm (H)
Mounting hole size: 60mm (L) x 45mm (W) M3 screw hole
Weight (without antenna): 140g
Transmitter parameters:
Video bit rate: 2-5Mhz
Working bandwidth: 6/8Mhz
Delay: about 200-350ms
Compressed format: H.264
Image clarity: 1080P@60/50/30 (downward compatible)
Working voltage: DC7V-24V
Video output interface: HDMI, AV
Machine power: less than or equal to 10W @ standard power 1W
Dimensions (without antenna): 91mm (L) x 55mm (W) x 20mm (H)
Mounting hole size: 60mm (L) x 59mm (W) M3 screw hole
Weight (without antenna): 91g

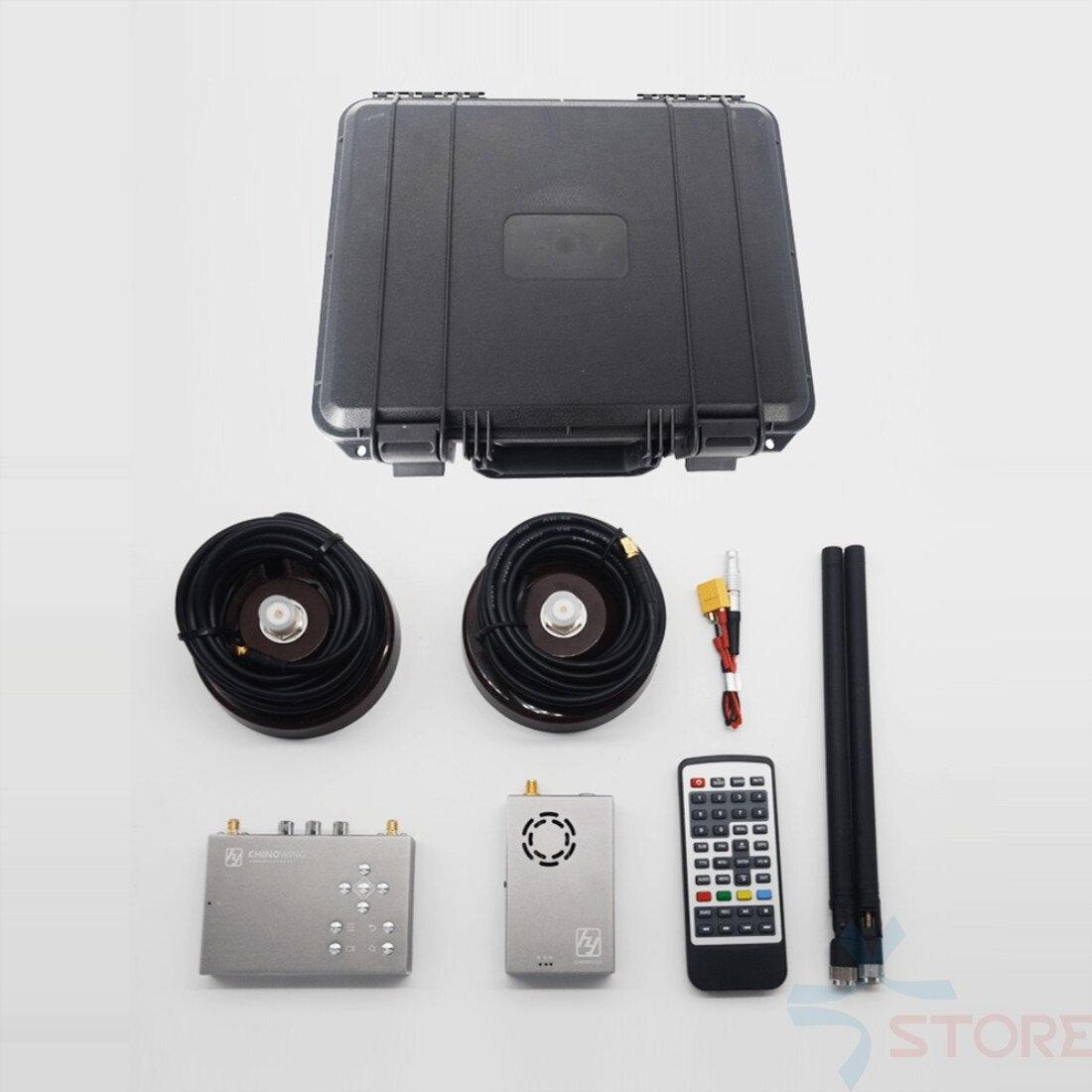

Package include:
Transmitter x1
Receiver x1
Antenna x2
All cables x1
controller x1
