SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Technical parameters: Value 2
Remote Control Peripherals/Devices: Battery
Recommend Age: 14+y
Quantity: 1 pcs
Origin: Mainland China
Model Number: 14S 20000
Material: Metal
For Vehicle Type: Airplanes
ZEN F 0 N #EtriEHH Authorization certificate rztzty ‘AA/6tTT X Hiloi Ai +IHA d ttt/Rt J4A=’OKCELL’ MRBE .

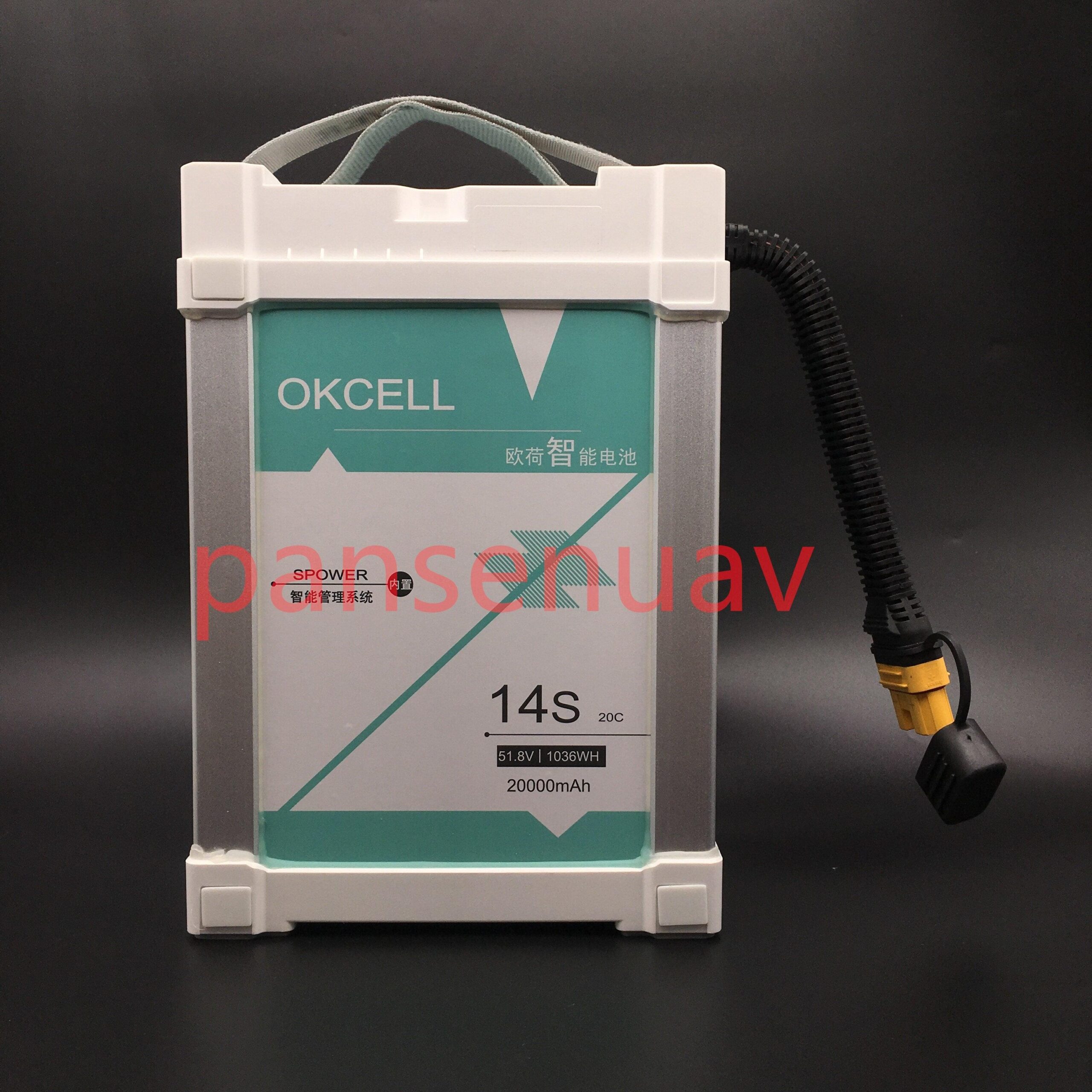

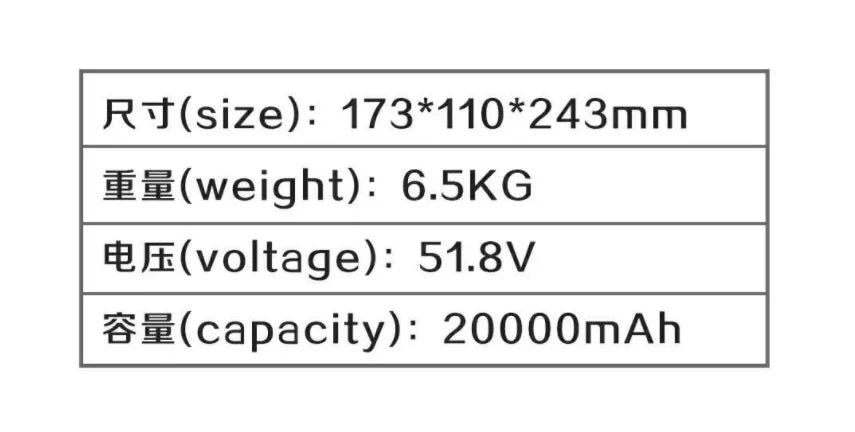

Rt(size): 173*110*243mm @E(weight): 6.5KG atE(voltage): 51.8V se(capacity): 20000

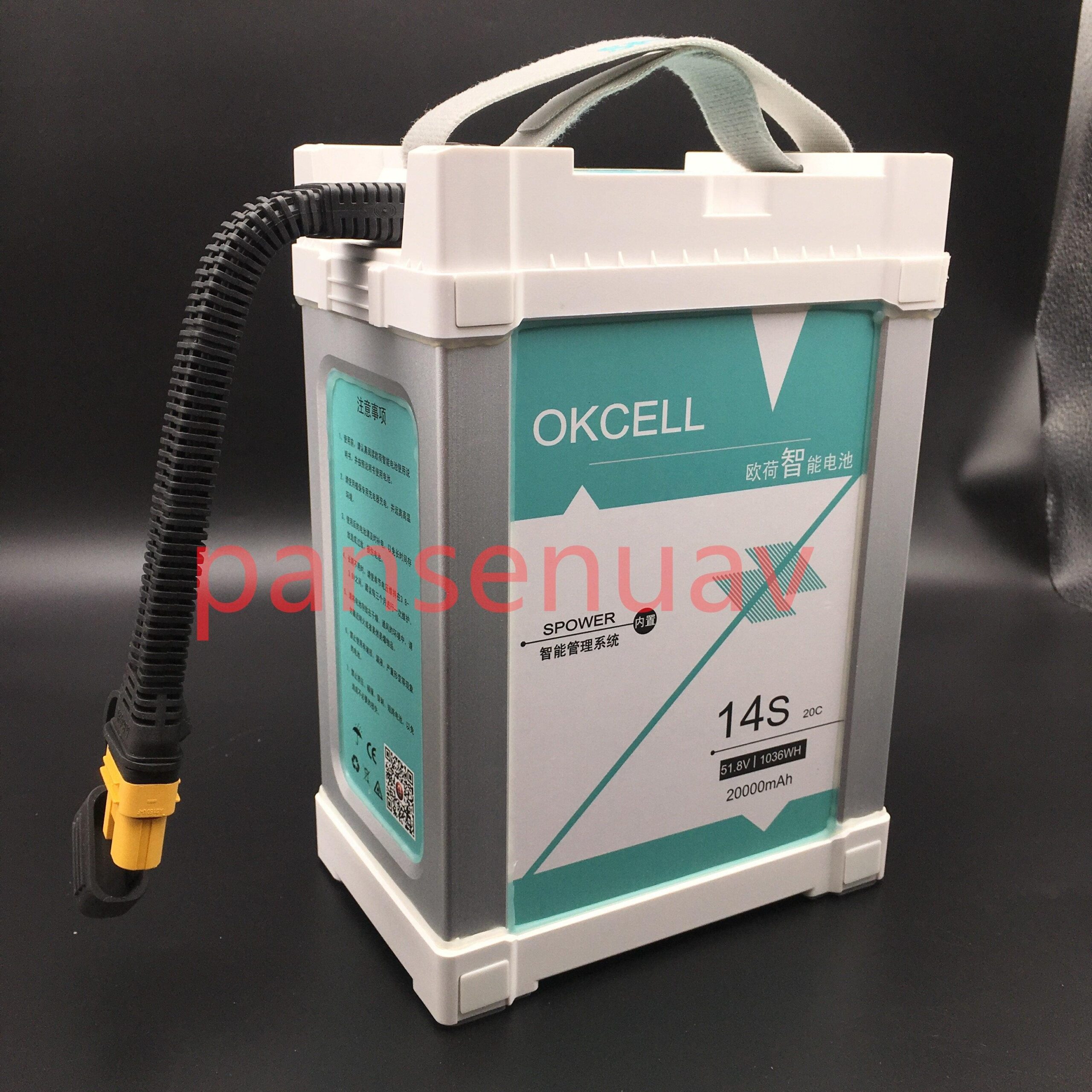

Dimensions: 173 x 110 x 243mm, Weight: 6.5kg, Voltage: 51.8V, Capacity: 20,000mAh
Specifications:
20000mAH Battery:
Battery voltage: 51.8V
Capacity: 20000mAH
Charging voltage: 50.4V (4.20V/Cell)
Charging current: Max.20.0A
Operating temperature (discharge) : -10℃-+60℃
Operating temperature (charging) : 0-20℃-+45℃
Weight: 6.2 KG
Size:173*114*224.8mm
Specifications:
28000mAH Battery:
Battery voltage: 51.8V
Capacity: 20000mAH
Charging voltage: 50.4V (4.20V/Cell)
Charging current: Max.20.0A
Operating temperature (discharge) : -10℃-+60℃
Operating temperature (charging) : 0-20℃-+45℃
Weight: 9.1 KG
Size:180*110*245mm
Product main features:

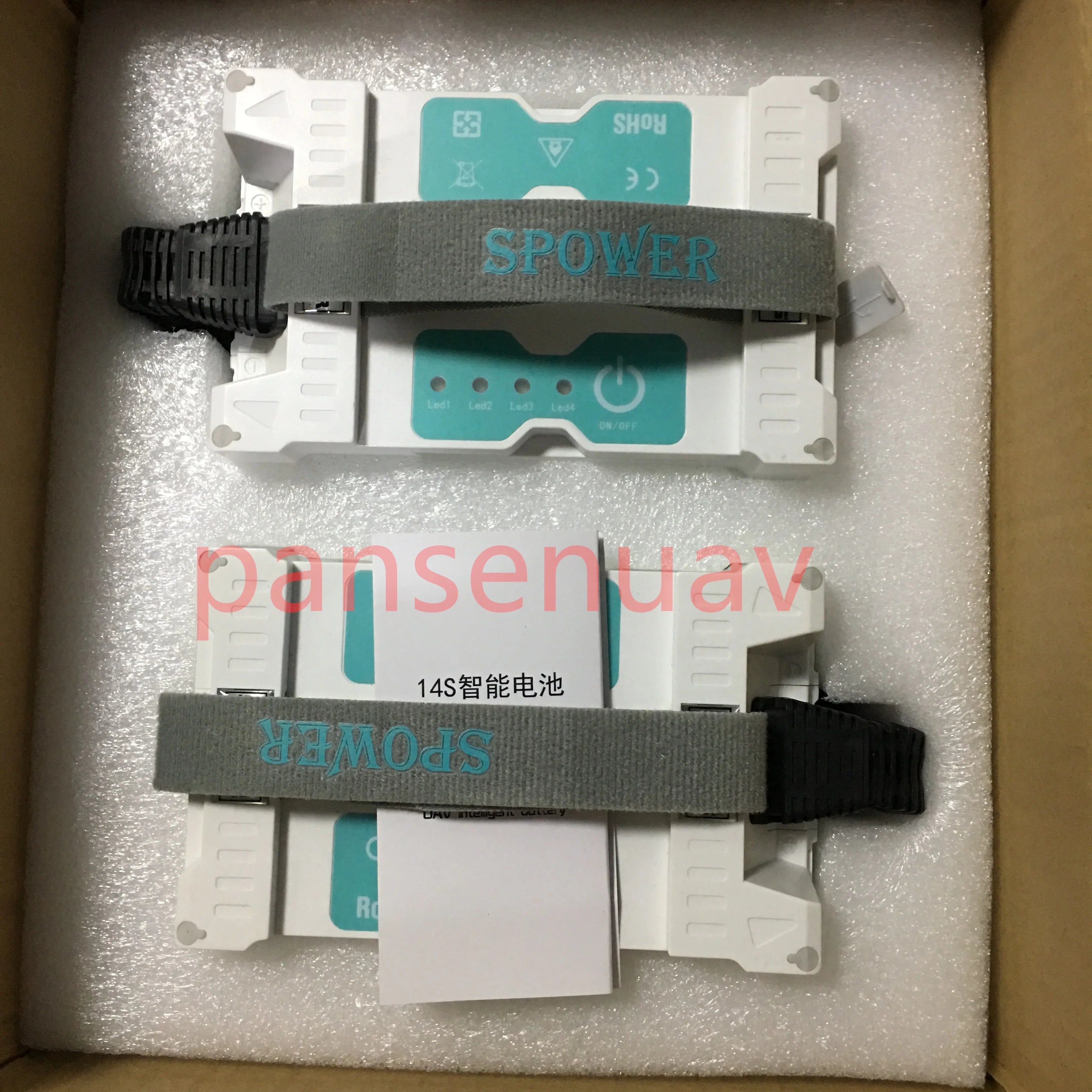

1. Smart battery indicator
This product is designed with four high-brightness LED indicators. When discharging or charging, it can automatically recognize the status and indicate the power. When the battery is in the shutdown state, short press the button. The LED indicates that the power is about 2S and then turns off.
2. Battery life tips
When the number of uses reaches 150 times, the LED lights of the power indicator all turn to red to indicate the power, indicating that the battery life has been reached, and the user can use it as appropriate.
3. Intelligent charging alarm
During the charging process, the battery detects the status in real time, and alerts the charging overvoltage, overcurrent, and overtemperature.
4. Low-voltage intelligent alarm
When the battery is in the discharge state, when the voltage is detected to be low (single 3.7V), it comes with a buzzer alarm to remind, stop discharging, and the alarm is released.
5. Intelligent storage function
When the battery is at a high level for a long time and is not in use, it will automatically start the intelligent storage function and discharge to the storage voltage to ensure the storage safety of the battery.
6. Automatic sleep function
When the battery is turned on and not in use, it will automatically sleep and shut down after 3 minutes to save battery power.
7. Software upgrade function
This product has a software upgrade function, you can connect the computer through the USB port or upgrade the software through the mobile APP to update the battery software.
8. Data communication function
This product is designed with two communication methods at the same time: USB serial communication and WiFi communication; both methods can be used to obtain real-time battery information, such as current voltage, current, battery usage, etc.; flight control can also establish a connection with this to communicate .
9. Battery logging function
This product is designed with a unique logging function that can store and store data throughout the life of the battery. The battery log information includes cell voltage, current, battery temperature, number of cycles, number of abnormal states, etc. The user can connect the battery to view through the mobile phone APP.
