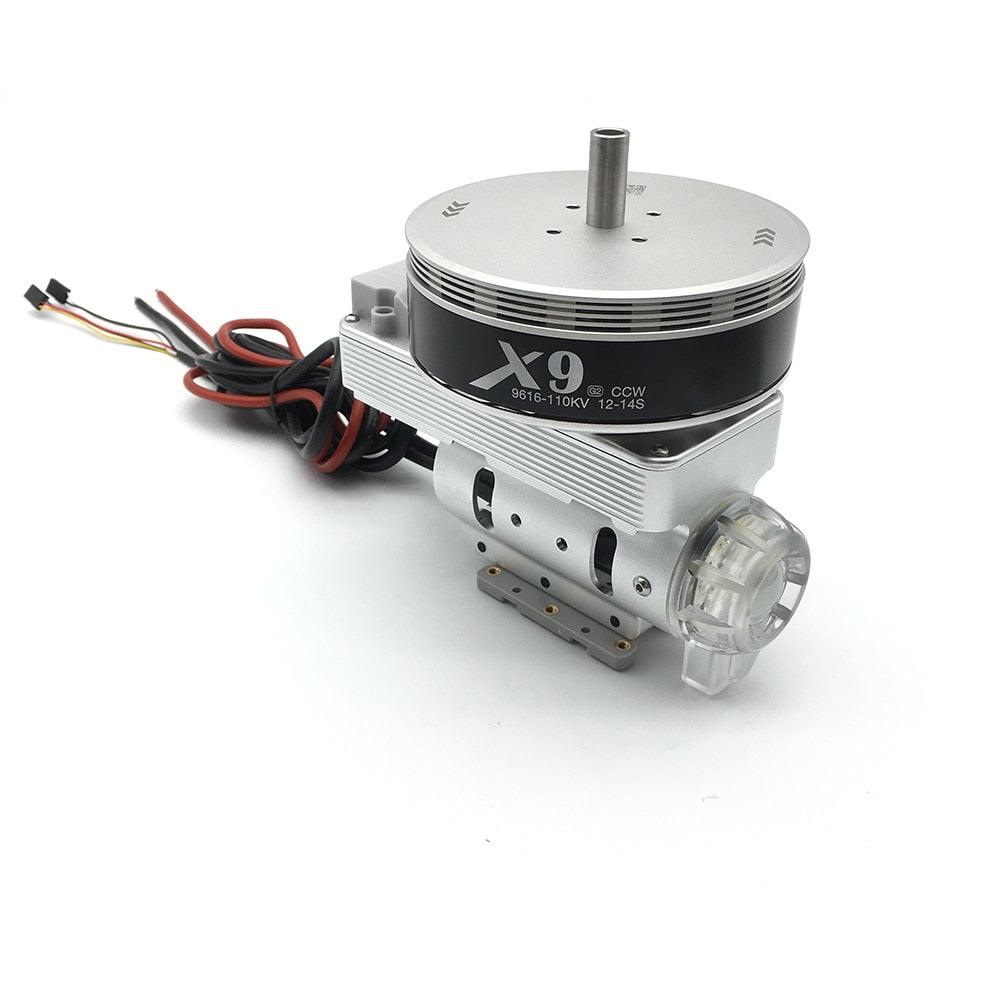

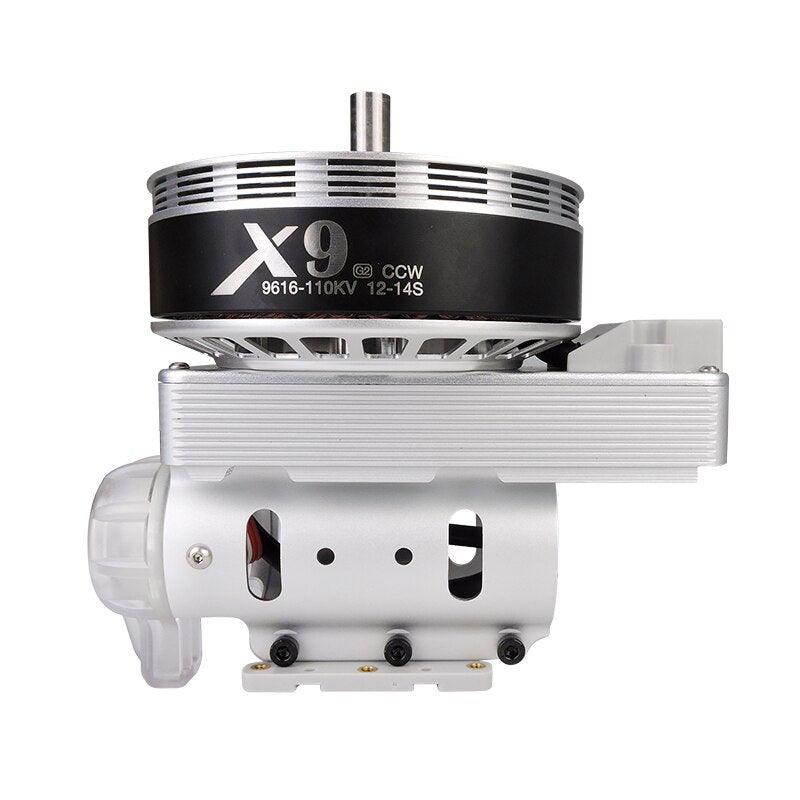

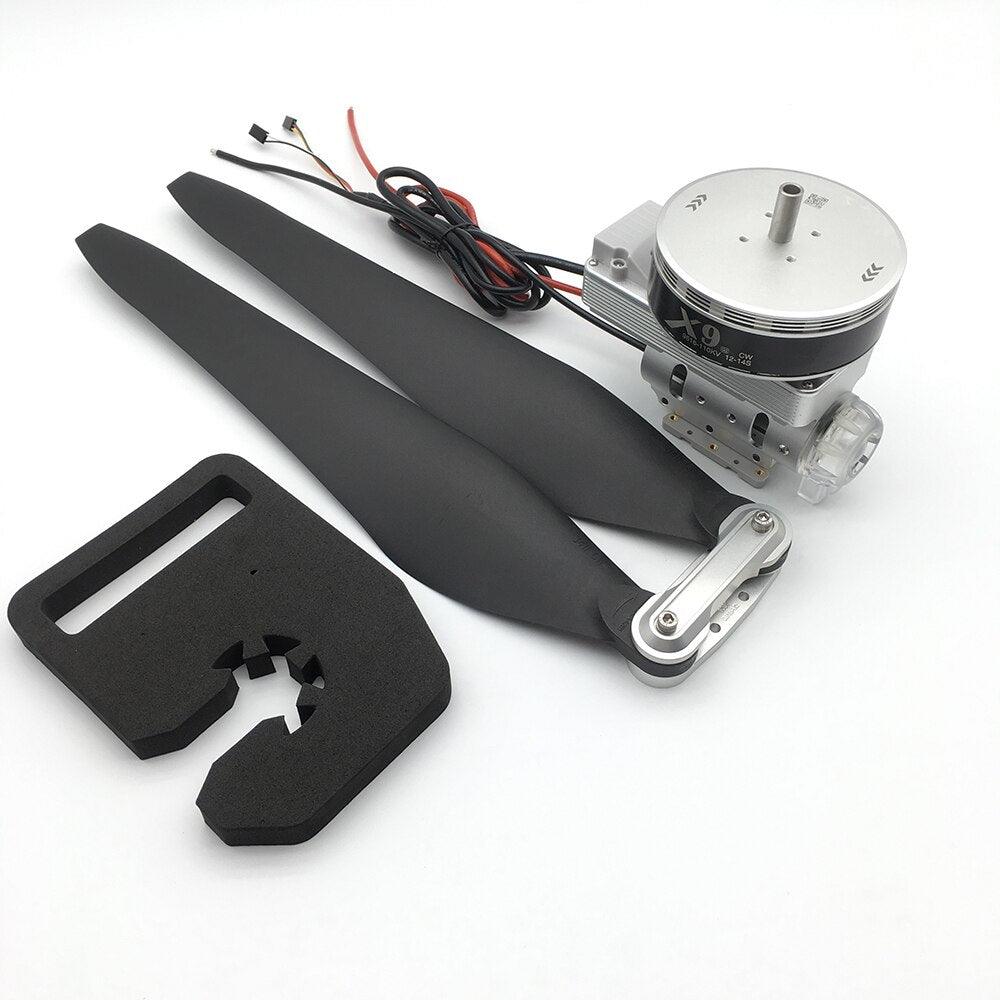

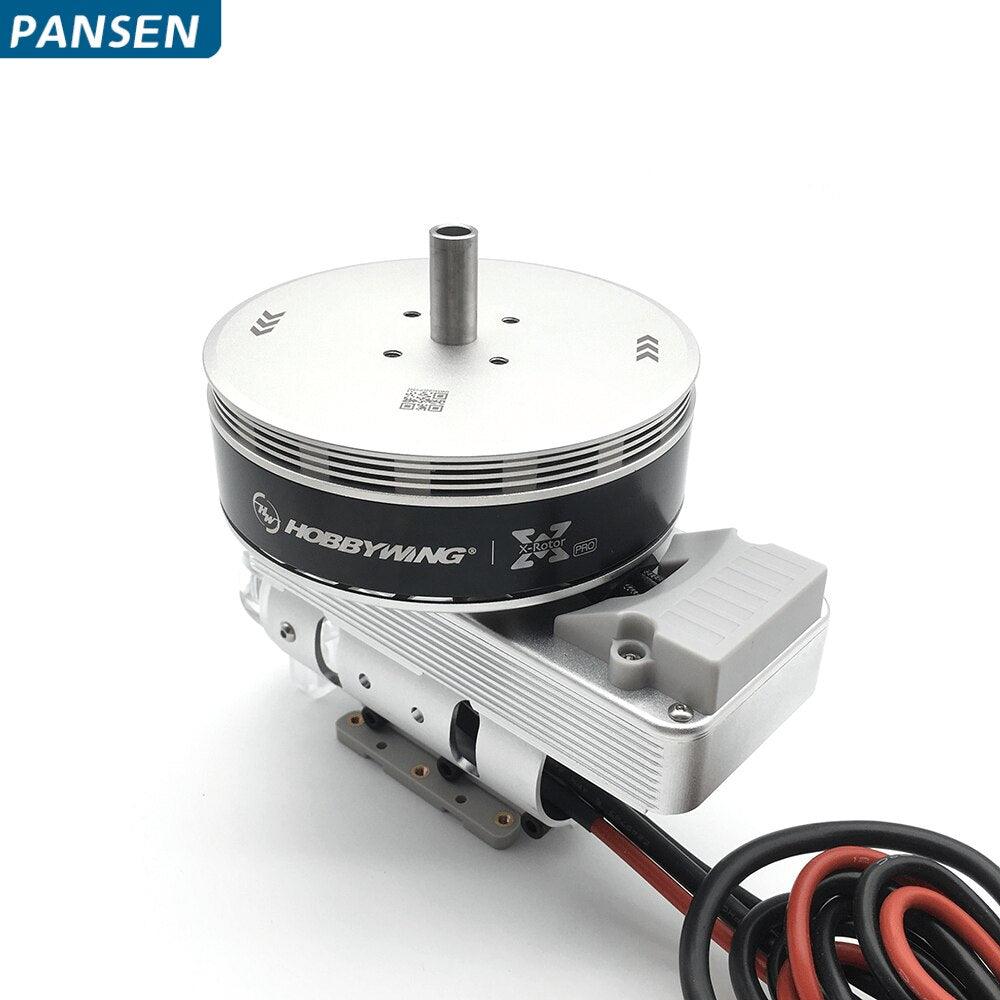

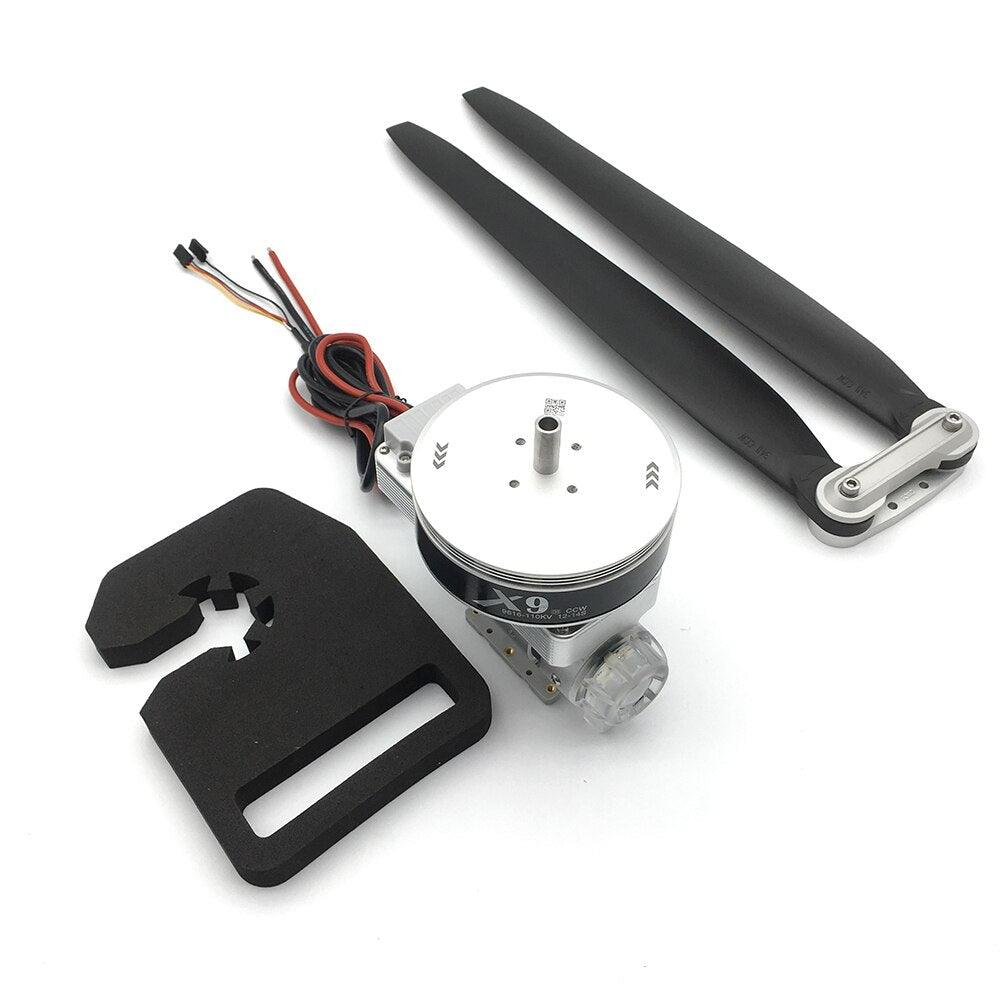

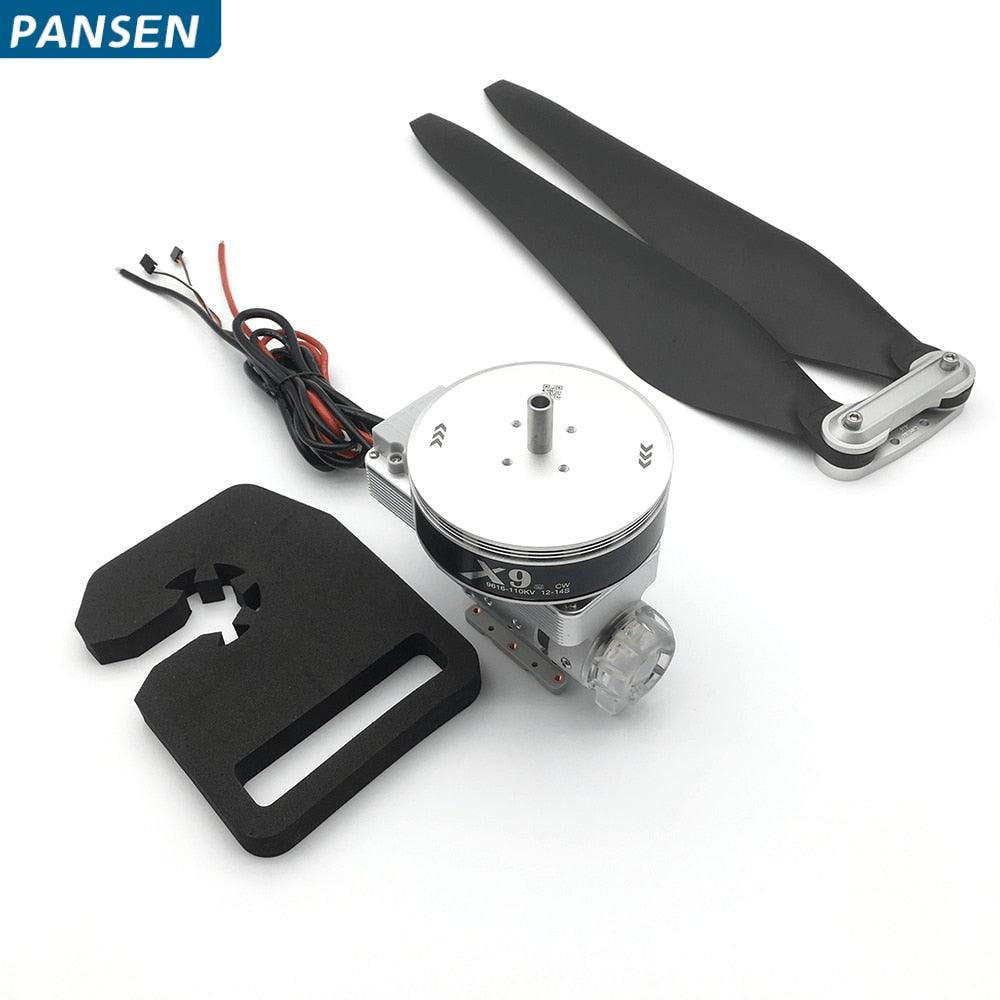

Original Hobbywing X9 14S FOC Integrated Motor Power System With 34inch 3411 Propeller for 40mm Agriculture Drones

$298.30$330.37

Description

Hobbywing X9 SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Technical parameters: Value 2

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: AXLE

Quantity: 1 pcs

Origin: Mainland China

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Specifications:

Technical Parameters

Maximum pulling force: 21.5KG/axis
Recommended battery: 12S lipo
Recommended takeoff weight (single axis): 7.0-9.5KG
Weight (including propeller) 1450g
Dimensions: 151.2×133.3mm
Motor
Stator size: 96x16mm
KV value: 105rpm/V
Internal resistance: 0.031ΩBE
Maximum current: 100A
Motor outer diameter: Φ103.5mm
Paddle clamp installation size: Φ25mm-4xM3; Φ31mm-4xM3
Bearing: imported ball bearing (waterproof)
Applicable carbon tube outer diameter: 40mm
ESC
Model: X-rotor/120A-FOC
Battery: 6-12S lipo
PWM input signal level: 3.3V/5V
Working pulse width: 1100μs-1940μs (curing, calibration is not supported)
Maximum allowable voltage: 52.2V
Maximum allowable current (continuous): 120A
Maximum allowable peak current (3 seconds): 150A
BEC: none
propeller:
Diameter / pitch: 3411
#RtR#AFR: 2023#01R01E_€ 2023

Hobbywing Certification of Originality – Certificate No. KOB-03-YWINNT, issued on January 1st, 2023, with authorization number 872454413.

Original Hobbywing X9 14S FOC Integrated Motor, electronic speed controller: Not included in the X9 power systemOriginal Hobbywing X9 14S FOC Integrated Motor, Hobbywing X9 14S FOC Integrated Motor Power System With 34inch 3411

store nl 562805 x9 cw 9616-110kv 12-14

powerful and efficient: Delivers up to 21.5kg thrust per axis (52.2vOriginal Hobbywing X9 14S FOC Integrated Motor, Ensures safe and reliable operation with features like power-on self-test, abnormal voltage

Store Number: 2805103CW12

Hobbywing X9 14S FOC Integrated Motor Power System With 34inch 3411the recommended takeoff weight is 7.0-9.5kg per axis at 48v seaHobbywing X9 14S FOC Integrated Motor Power System With 34inch 3411Hobbywing X9 14S FOC Integrated Motor Power System With 34inch 3411Impact-resistant: Aluminum alloy frame and optimized design minimize the risk of damage from drops or impactsHobbywing X9 14S FOC Integrated Motor Power System With 34inch 3411

Original Hobbywing X9 14S FOC Integrated Motor, KOBBYWING X9T/*Awjzs X

plant protection special po we r sy st em . kobbywing x9t/*awjzs

I hope this is a more organized and informative product description

Original Hobbywing X9 14S FOC Integrated Motor, X9 power system combo has a smoother operation and a better compatibility with

smart upgrades allow the x9 power system combo to have a smoother operation and a better compatibility with various flight controllers . programmable items like motor direction, response rate; light color; brake guarantee a more

Original Hobbywing X9 14S FOC Integrated Motor, impact-resistant design beneath the ESC absorbs impact to protect the motor & ESC

The impact-resistant design located beneath the Electronic Speed Controller (ESC) helps absorb shock and protects the motor and ESC from damage, reducing the risk of harm caused by crashes.

the impact-resistant design beneath the esc absorbs impact to protect the motor & esc and reduce damage to the combo caused by crashes ‘20005 . x9 power system combo features a centrifugal fan

Original Hobbywing X9 14S FOC Integrated Motor, Rich auxiliary functional Interface Reserved nozzle install fixed socket at the bottom of power system and

The Original Hobbywing X9 power system features a rich auxiliary functional interface, including a reserved nozzle installation at the bottom, as well as a built-in brushless motor ESC (12V/1A) that can be directly connected to install and use. This simplifies the structure of models, particularly those used for plant protection applications.

rich auxiliary functional interface reserved nozzle install fixed socket at the bottom of power system and built-in brush eccentric nozzle esct (12v/1a) these can be directly connected to install and use: enrich the auxiliary application of

Original Hobbywing X9 14S FOC Integrated Motor, UfWAIe Support system upgrade 4g0 Linh SoF TWARE

Upgrade your Hobbywing X9 14S FOC system by updating the ESC software with the latest features in sync.

ufwaie support system upgrade use multifunctional lcd programiming boxe or datalink data boxe . connect the computer; open the correspording software to upgrade the software of esc

Ensures safe and reliable operation with features like power-on self-test, abnormal voltage

Original Hobbywing X9 14S FOC Integrated Motor, shenzhen Hongcai Testing Technology Co, Ltd. certifies that hn

shenzhen Hongcai Testing Technology Co, Ltd. certifies that hnts neen completed and reports have been generated . manufacturer: Hobbywing Technology Co. LT Address; Bldg Yasen Hi-tech Industrial Park, Chengxin Rd.,, Raolong Town .

Original Hobbywing X9 14S FOC Integrated Motor, the applicant may issue DECLARATION of CONFORMITY and apply the CE marking accordance

the applicant may issue DECLARATION of CONFORMITY and apply the CE marking accordance with European Union Rules . COMBO-XRotor Pro-X6 has been assessed according to the following applicable standards .

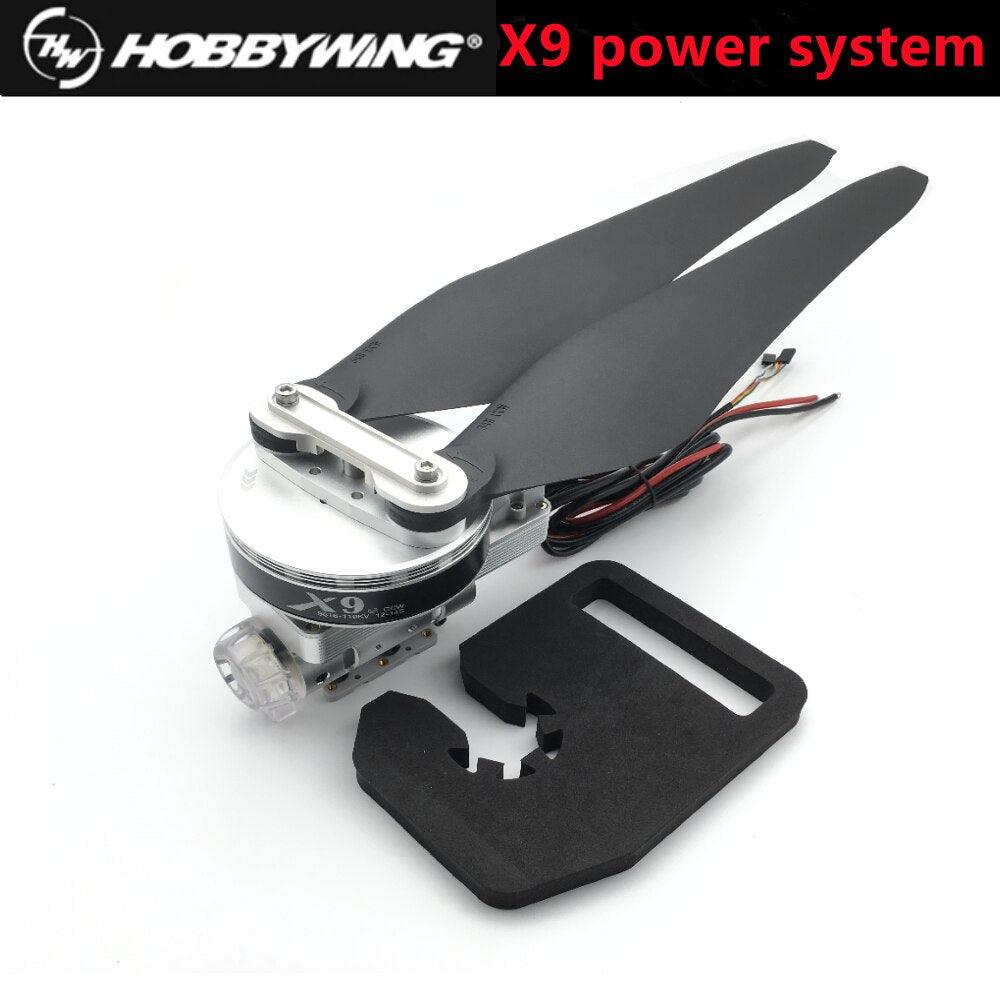

Hobbywing X9 14S FOC Integrated Motor Power System with 34inch 3411 Propeller for 40mm Agriculture Drones

Product Highlights:

  • Integrated and ready-to-use: Combines motor, ESC, propeller, and motor mount for easy installation and use.
  • Powerful and efficient: Delivers up to 21.5kg thrust per axis (52.2v, sea level) with high efficiency thanks to FOC-based PMSM algorithm.
  • Super waterproof: IPX7 rating makes it suitable for harsh agricultural conditions like rain, pesticides, and salt spray.
  • Multiple protection functions and real-time data output: Ensures safe and reliable operation with features like power-on self-test, abnormal voltage protection, and real-time data transmission to the flight controller.
  • High-brightness LED indicator: Provides system status information and alerts to potential issues.

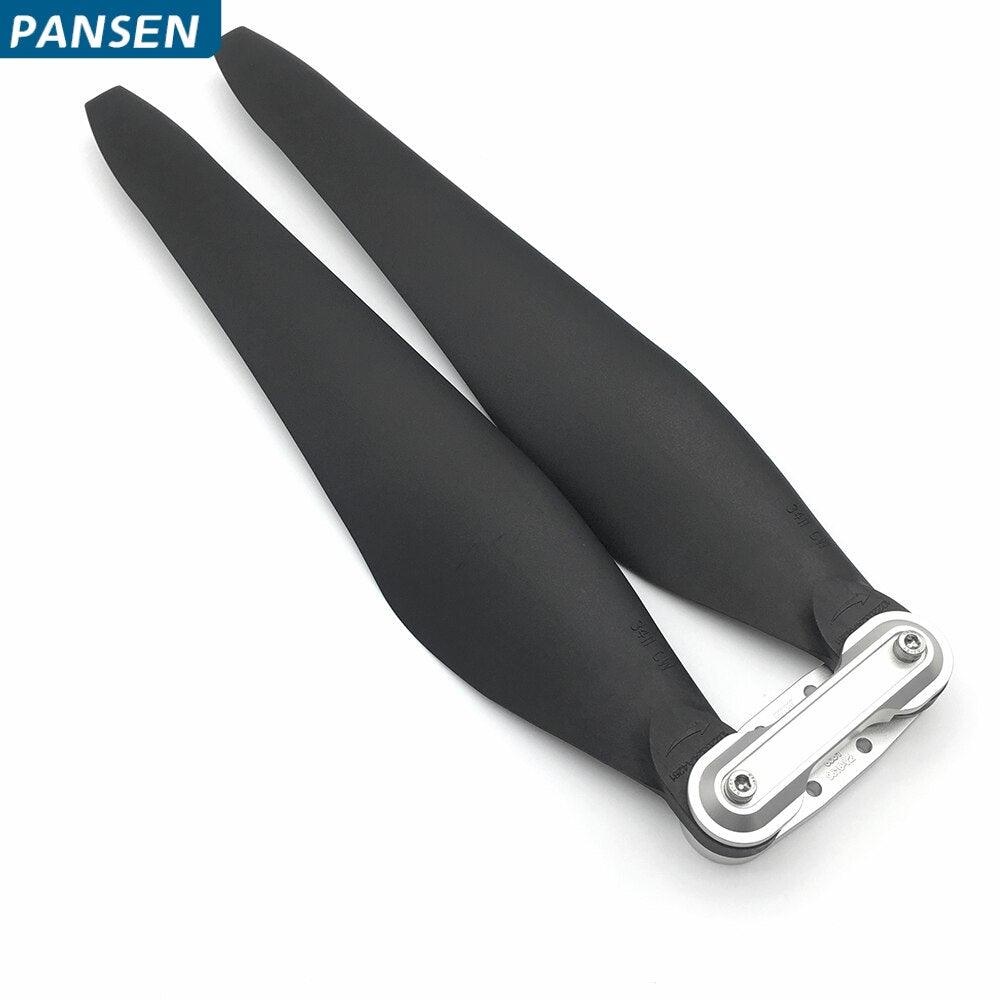

  • High-strength carbon fiber propeller: Ensures consistency, balance, and high thrust and efficiency.
  • Super impact-resistant: Aluminum alloy frame and optimized design minimize the risk of damage from drops or impacts.
  • Modular design for easy maintenance: Replace damaged parts like blades or the entire power combo quickly and easily.

Functional Selling Points:

  • Smart & compatible: Programmable motor direction, response rate, light color, and brake settings for a more stable and reliable performance.
  • Outstanding heat-dissipating & impact-resistant design: Integrated design with centrifugal fan and impact-resistant ESC housing for improved reliability.
  • Rich auxiliary functional interface: Reserved nozzle install fixed socket and built-in brush eccentric nozzle ESC (12v/1a) for various agricultural applications.
  • Support system upgrade: Upgrade ESC software with a multifunctional LCD programming box or Datalink data box (sold separately).

Technical Specifications:

  • Motor:

      • Stator size: 96x16mm

      • KV value: 105rpm/V

      • Internal resistance: 0.031ΩBE

      • Maximum current: 100A

    • Motor outer diameter: Φ103.5mm
  • ESC:
      • Model: X-rotor/120A-FOC
      • Battery: 6-12s lipo
      • PWM input signal level: 3.3v/5v
      • Working pulse width: 1100μs-1940μs
      • Maximum allowable voltage: 52.2v

      • Maximum allowable current (continuous): 120A

    • Maximum allowable peak current (3 seconds): 150A
  • Propeller:
    • Diameter/pitch: 34×11
  • Weight (including propeller): 1450g
  • Dimensions: 151.2×133.3mm
  • Applicable carbon tube outer diameter: 40mm

Additional Information:

  • Flight controller: Please refer to the product manual for compatible flight controllers.
  • Electronic speed controller: Not included in the X9 power system.
  • Drone frame: Compatible with 40mm carbon fiber tubes.
  • Water tank and spreader system: Optional for agricultural applications.
  • Setup and maintenance: Consult the official user manual for detailed instructions.

FAQ:

  • What is the recommended takeoff weight for this system? The recommended takeoff weight is 7.0-9.5kg per axis at 48v sea level.
  • What type of battery is recommended? A 6-12s lipo battery is recommended.
  • Can I upgrade the ESC firmware? Yes, you can upgrade the ESC firmware with the Hobbywing Datalink data box (sold separately).

I hope this is a more organized and informative product description. Please let me know if you have any other questions.

Note: The provided OCR result contains some inaccurate information and typos. I have tried my best to correct them based on the product specifications and images.
