Description
Microzone MC8B 2.4G 8CH Remote Control Transmitter SPECIFICATIONS
is_customized: Yes
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Microzone MC8B
Tool Supplies: 8CH Transmitter
Technical parameters: Value 2
Size: 215MM*105MM*220MM
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
RC Parts & Accs: Radio Systems
Quantity: 1 pcs
Origin: Mainland China
Model Number: CFMX015
Material: Metal
Four-wheel Drive Attributes: MC8B Transmitter
For Vehicle Type: Airplanes
Brand Name: U-Angel-1988

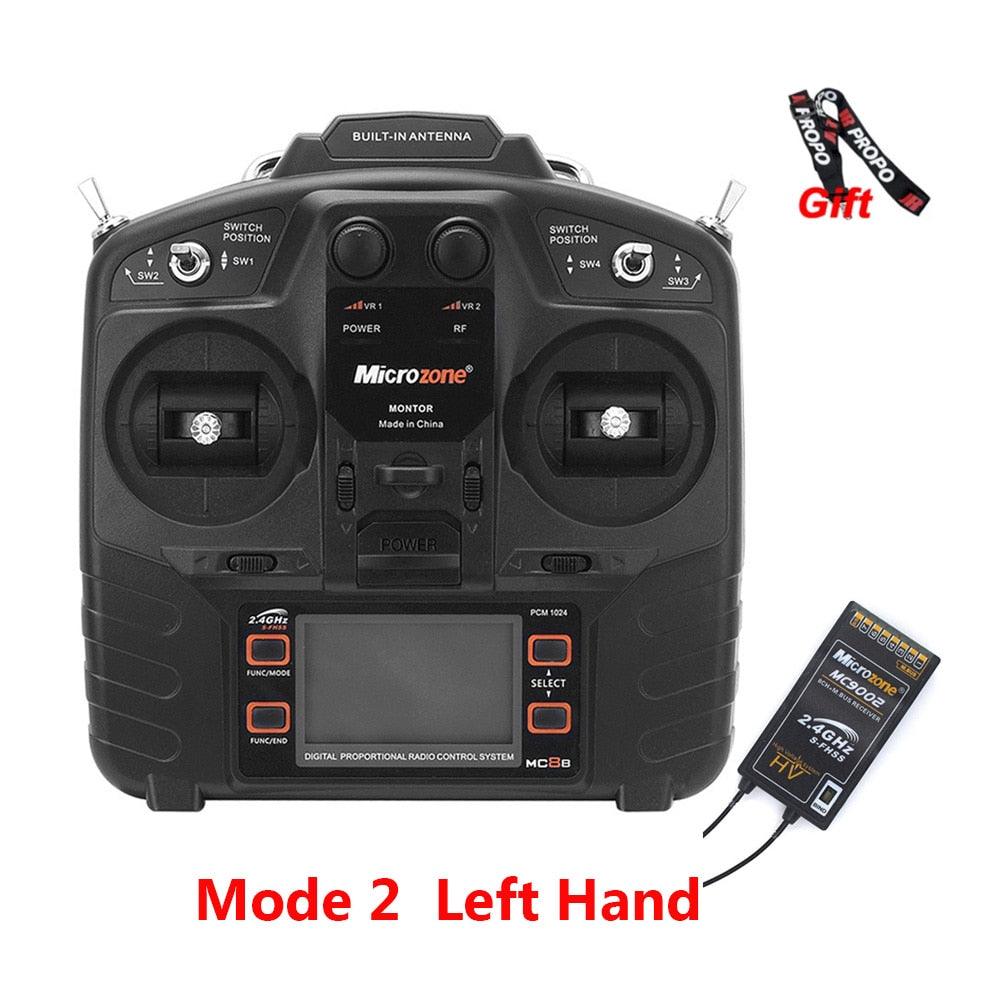

Microzone MC8B 2.4G 8CH Remote Control Transmitter Details
Low voltage alarm mode: LED indicator and buzzer alarm at the same time. Supply analog and external power, LCD displays Chinese and English menu.
The receiver wide voltage design (DV 2V-9V) supports 8 PWM signals and 1SBUS signals.
Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.
The classical neutral knob is fine tuned to facilitate quick switching of the platform and attitude.
The 8 channel full function remote controller is suitable for fixed wing aircraft, helicopters and multi axis aircraft.

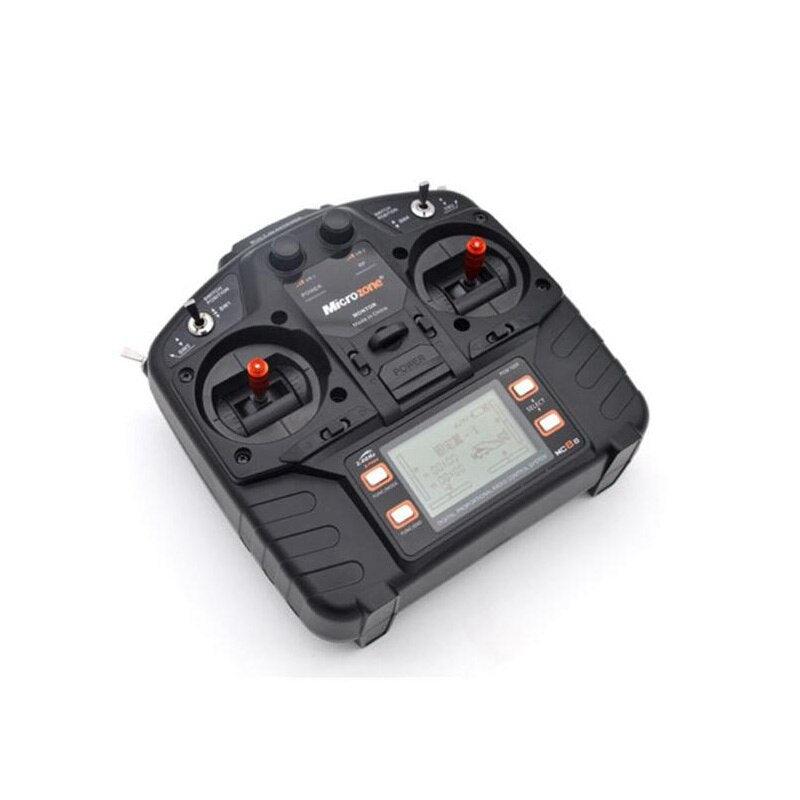

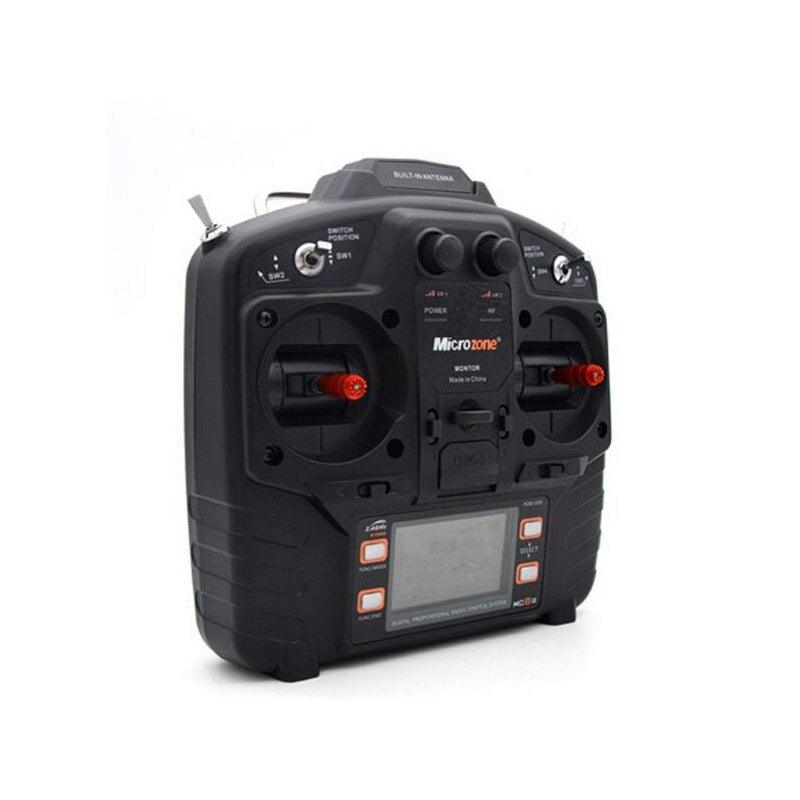

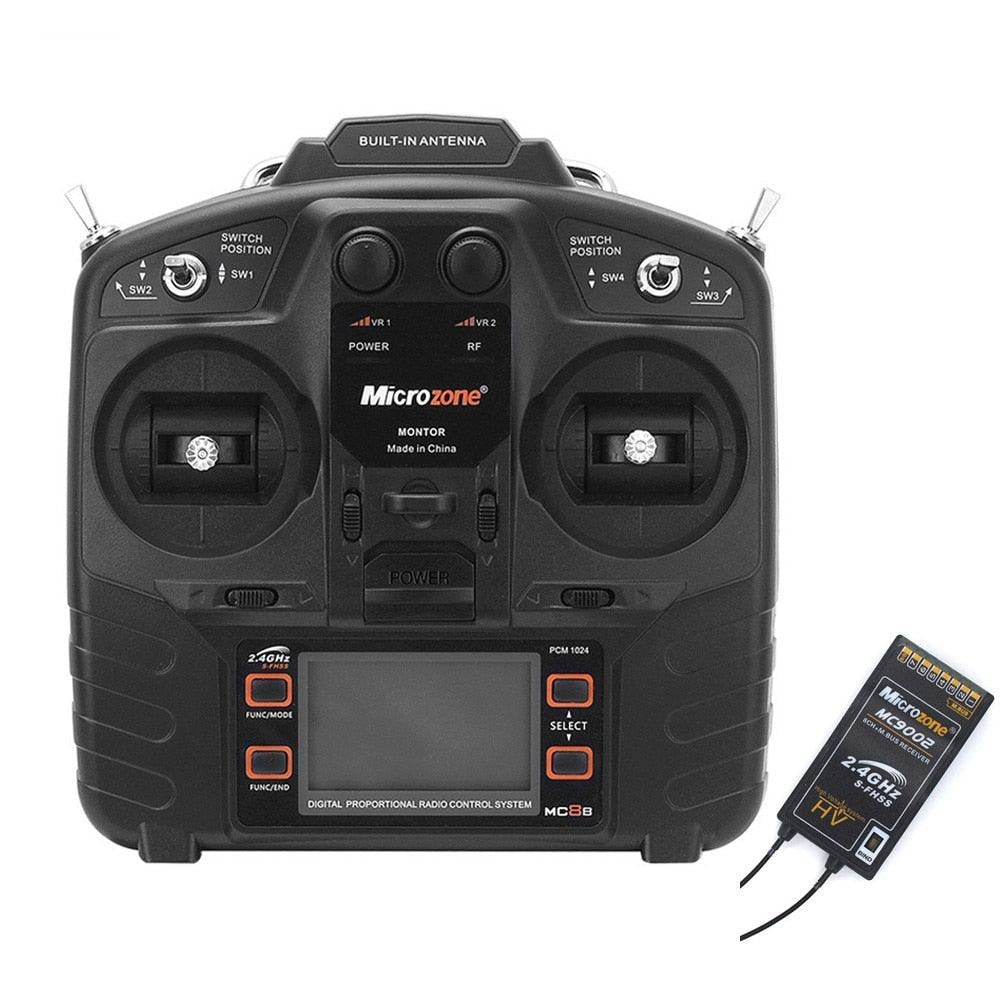

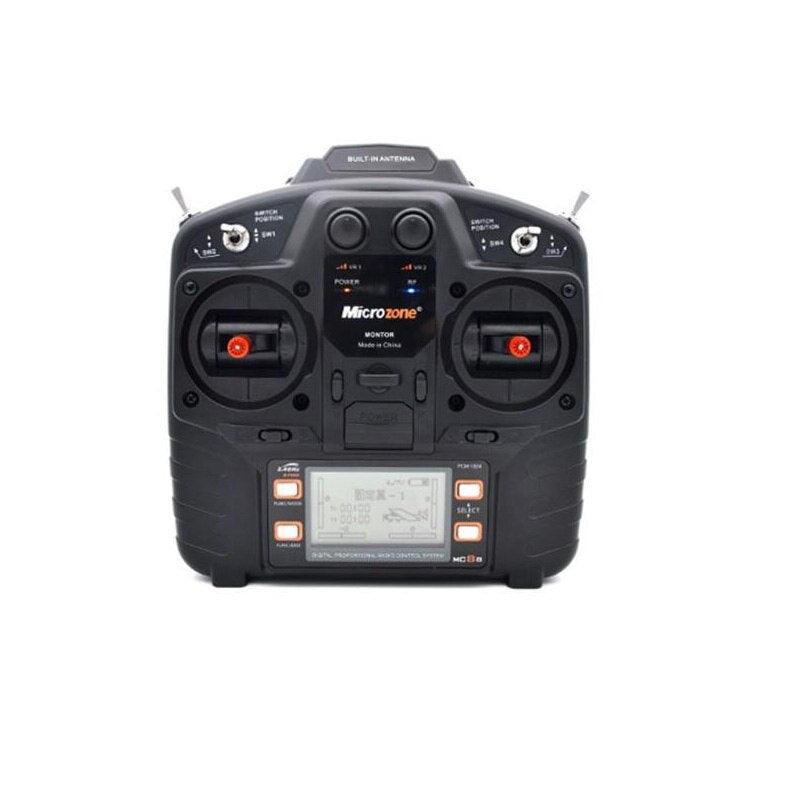

Transmitter Specifications:
Channels: 8
Color: Black / silver
Model: fixed wing model airplane, UAV, helicopter, cars, boat.
RF range: 2405MHZ—2479MHZ
RF power: less than 100MW
Working current: less than 150MA
Working voltage: 4.5–8.5V
Modulation mode: FSK
Sensitivity: 1024
Signal output: 8 PWM signals and 1 SBUS signals.
Analog and external power supply (not more than 8V): YES
Low voltage alarm mode: LED indicator and buzzer alarm at the same time (according to battery type in the system).
The LCD Chinese and English menu displays.
Internal software support: CH5—CH8, arbitrary replacement of settings and CH1–CH8 signal detection.
Internal software support: M1 and M2 throttle swap (double return), can set the flight time, the main screen to build a lock, a factory reset.
Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.
Power : 6V 1.5AA*4
Adopt the latest FHSS mode in line with European standards.
Certificate: FCC, CE_RED
Size: 215MM*105MM*220MM
Weight (gross weight): 580g

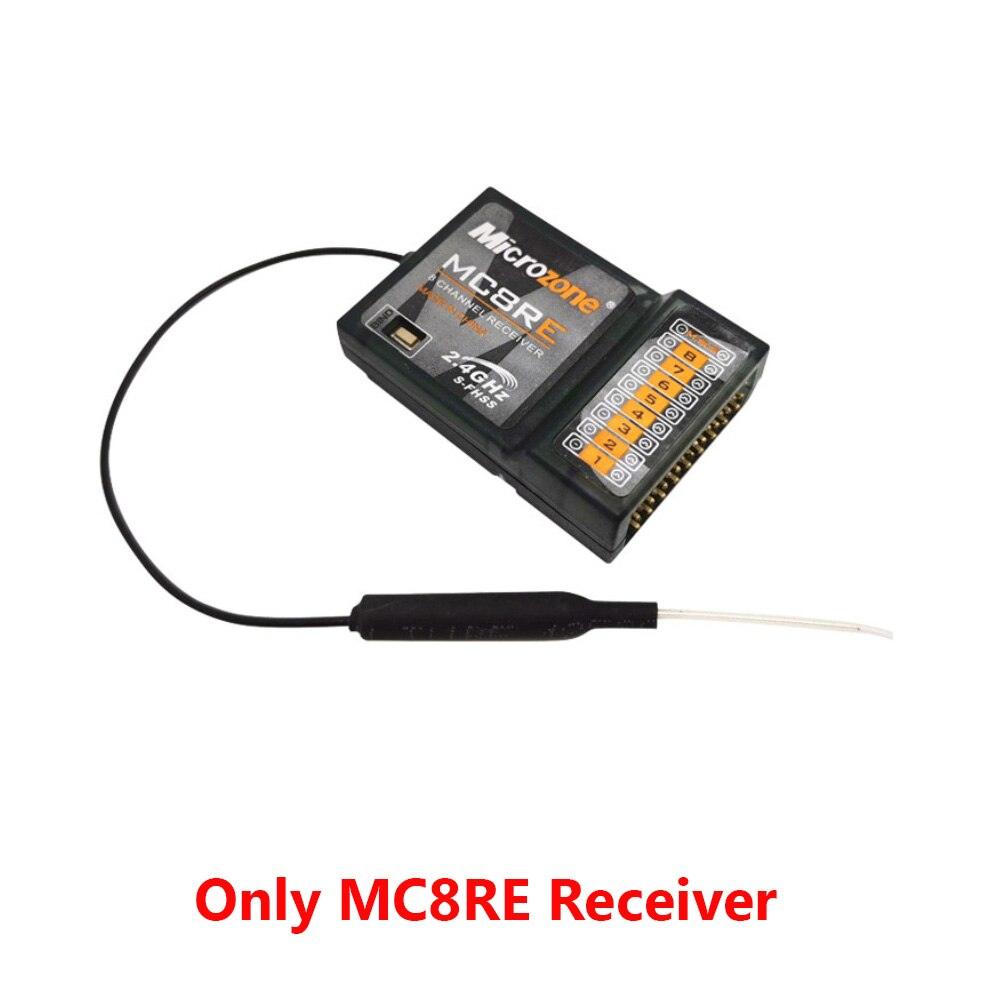

Receiver Specifications:
Product name: MC8RE Receiver
Antenna length: 110mm
Output channel: 8 PWM signal channels and 1 SBUS signal channel
Reception frequency: 2401MHZ-2479MHZ
Application: MC8A, MC8B remote control, fixed wing models, UAV, helicopter models, trams and tanker models, ship models
Size: 42 * 28 * 12mm
Weight: 12g

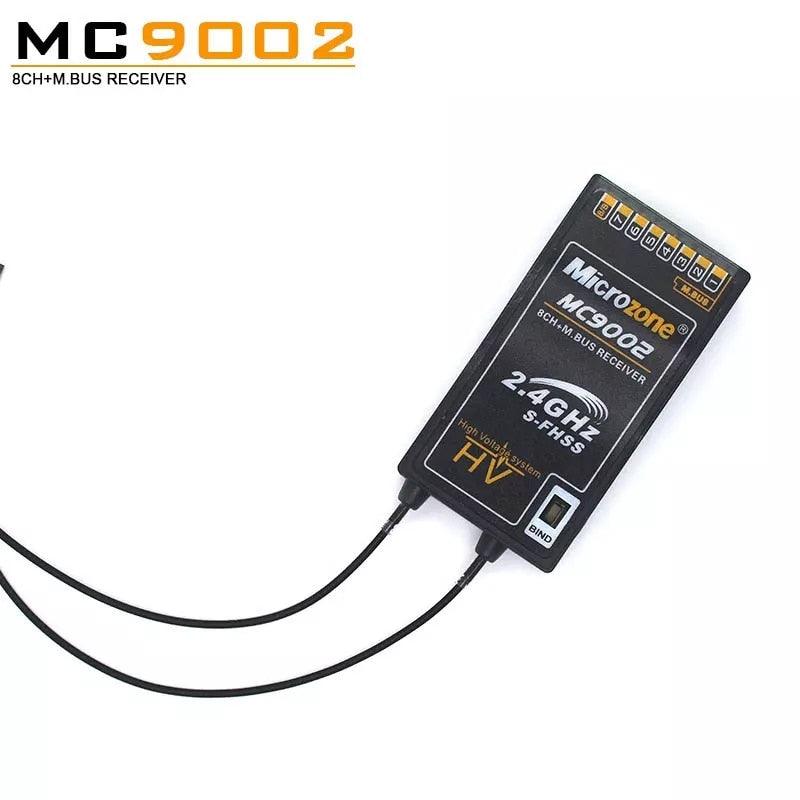

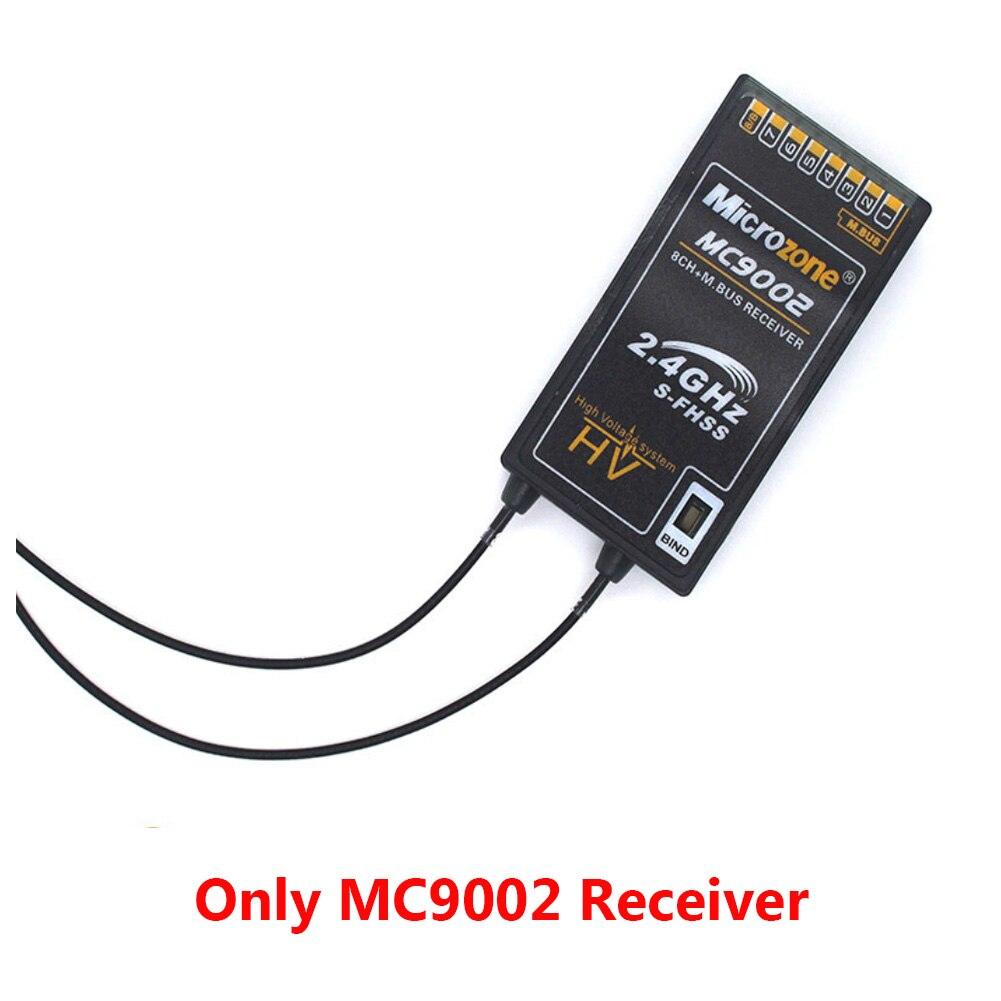

MC9002 Receiver PWMISBUS “M 9 Size: 47x25x14mm Weight: 10g Length of antenna: 150mm (Dual antenna design) Receive frequency: 2.4GHz Channel output: 8 PWM signals, 1 SBUS signal Voltage range DC4V-9V Receiving distance: the air distance is greater than 1OOOM Frequency matching: contact frequency matching 00dooodu Microz Mc9OOz zone Ich= DUS JreceivER AGHz
MC8RE 4 3o ( @0 0 Size: 42x28x12mm Receiving frequency: 2401MHz-2479MHz Receiving distance: Air distance >800M Voltage range: DC3.7V-9V Channel output: 8 PWM, SBUS signal Weight: 12g Length of antenna: 11Omm Frequency matching: Contact frequency Microz MCBR zone ChanNEV lllc 1 1 R ‘Ths
Microzone Outtmanuu Aca Rohtol NEW STYLE NAVIGATION MODEL REMOTE CONTROL Foata Microzone’ Wontor 8-channel full scale Wlia c Flexible customization New FM operating system'”17 Simple and fast MC8B 2.4GHz FHSS 15u Laosn te Fonna
MC8B 2.46 8CH Remote Control Transmitter Designed & Manufactured for RC Drone Aircraft Helicopter Multicopter Car Boat Microzone” Ert
MC8RE 9CH Receiver Positive Pole Negative Pole Signal Microzone MCBRE Canunalct Anaa 2.GHz Contact Pair S.BUS Signal PWM Signal Frequency For Multi-axial UAV, For Fixed wing F3/Pix4/QQ flight control aircraft .
built-in ANTENNA SeCt Postod’ Position SwA Sw3 Vr 1 Power Microzone Nontor Made China SELEct 80 ecuiolt Dicttn eucncntc ead oicoltt OLouselt MCE .
BUILT-INANTENNA Switch Position Swi Swa SwJ POWER Microzone MontoR China Fa ZGohe Aeele e E=# Tuncmool’ selEcT O:; Wtncitno Disui crodoctoralrnd o Conieeeaat Mc8 Microzone MCBRE Ocelanc HtGtn 2JCH3 Sch Position Made
