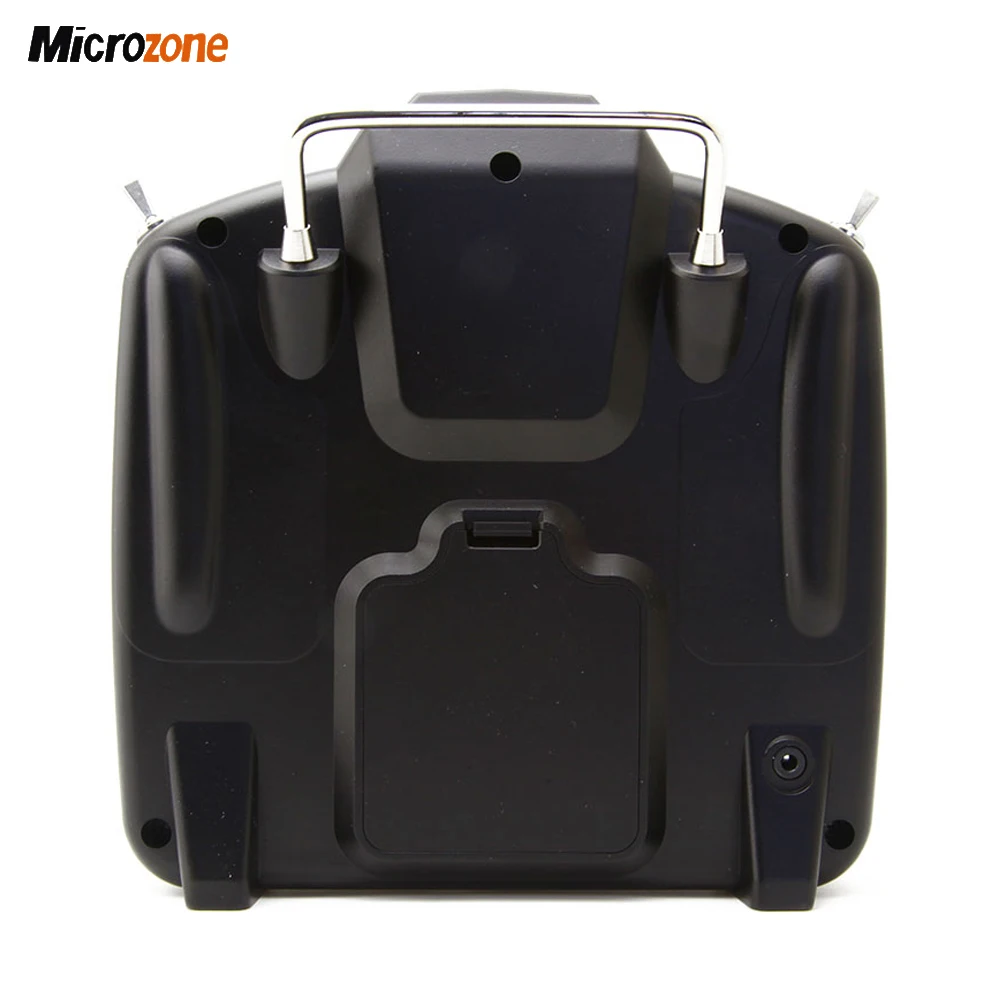

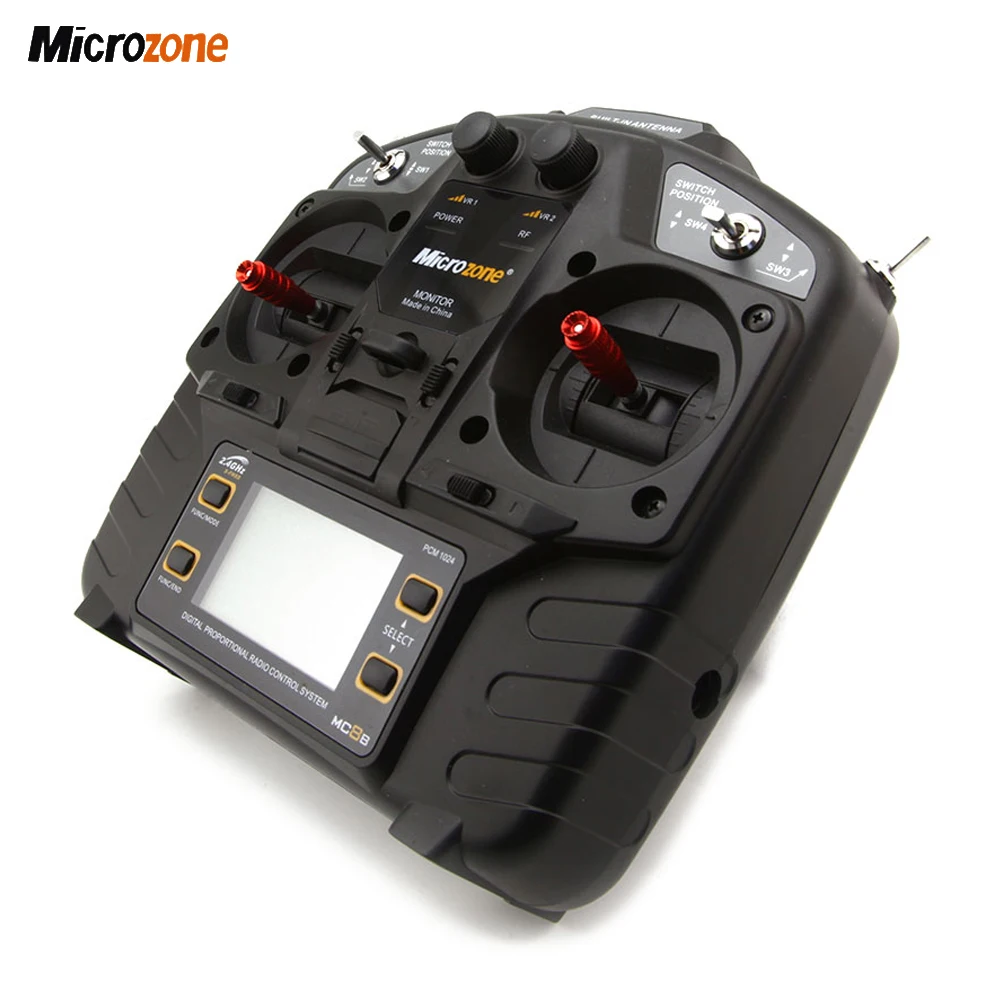

Microzone MC8B 2.4G 8CH Remote Control Transmitter & MC8RE/ MC9002 Receiver Radio System For RC Aircraft Fixed-wing Helicopter

$23.43$66.11

Description

SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: MC8RE Receiver

Tool Supplies: MC9002 Receiver

Technical parameters: Value 2

Size: MC8RE Receiver

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Receivers

Origin: Mainland China

Model Number: Microzone MC8B

Material: Composite Material

Four-wheel Drive Attributes: MC9002 Receiver

For Vehicle Type: Airplanes

Brand Name: U-Angel-1988

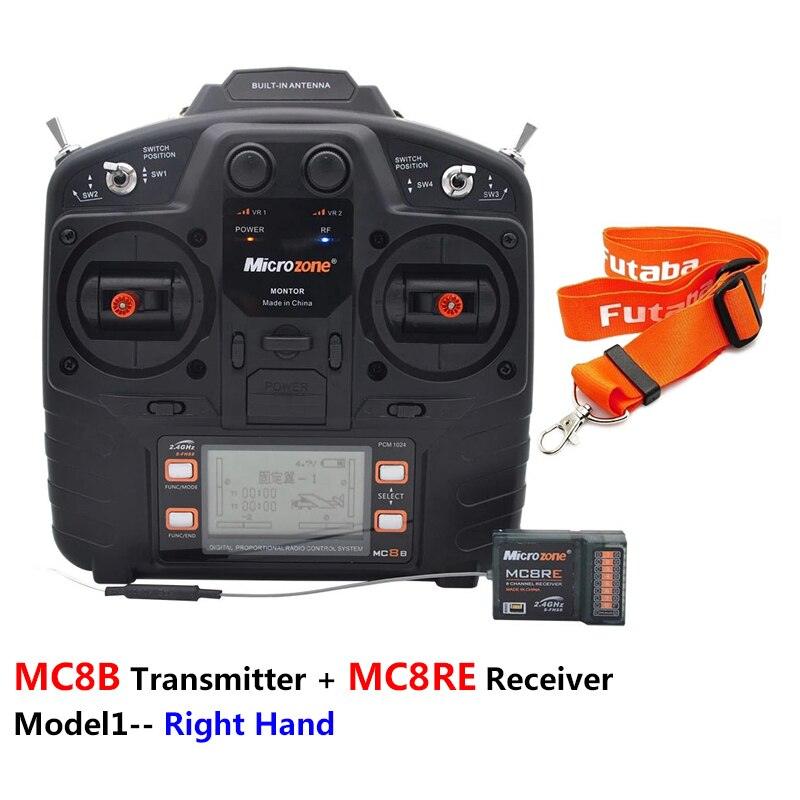

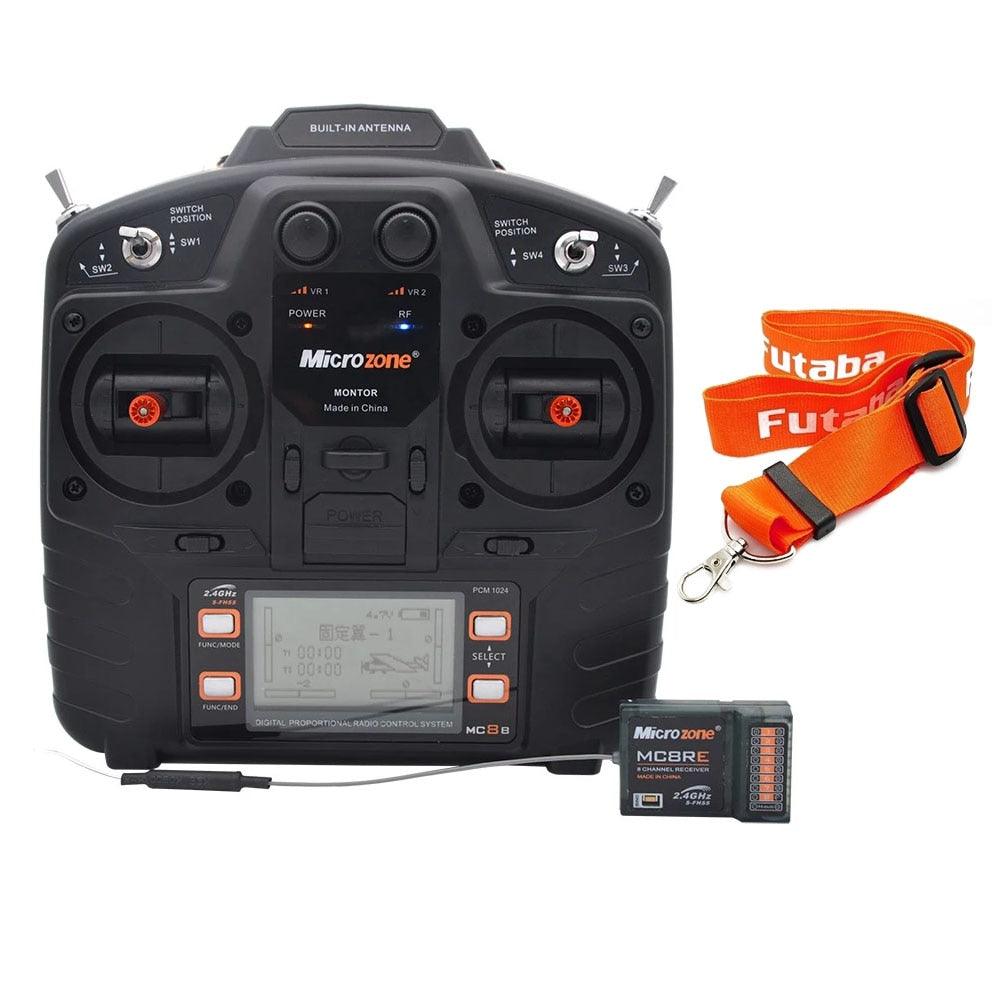

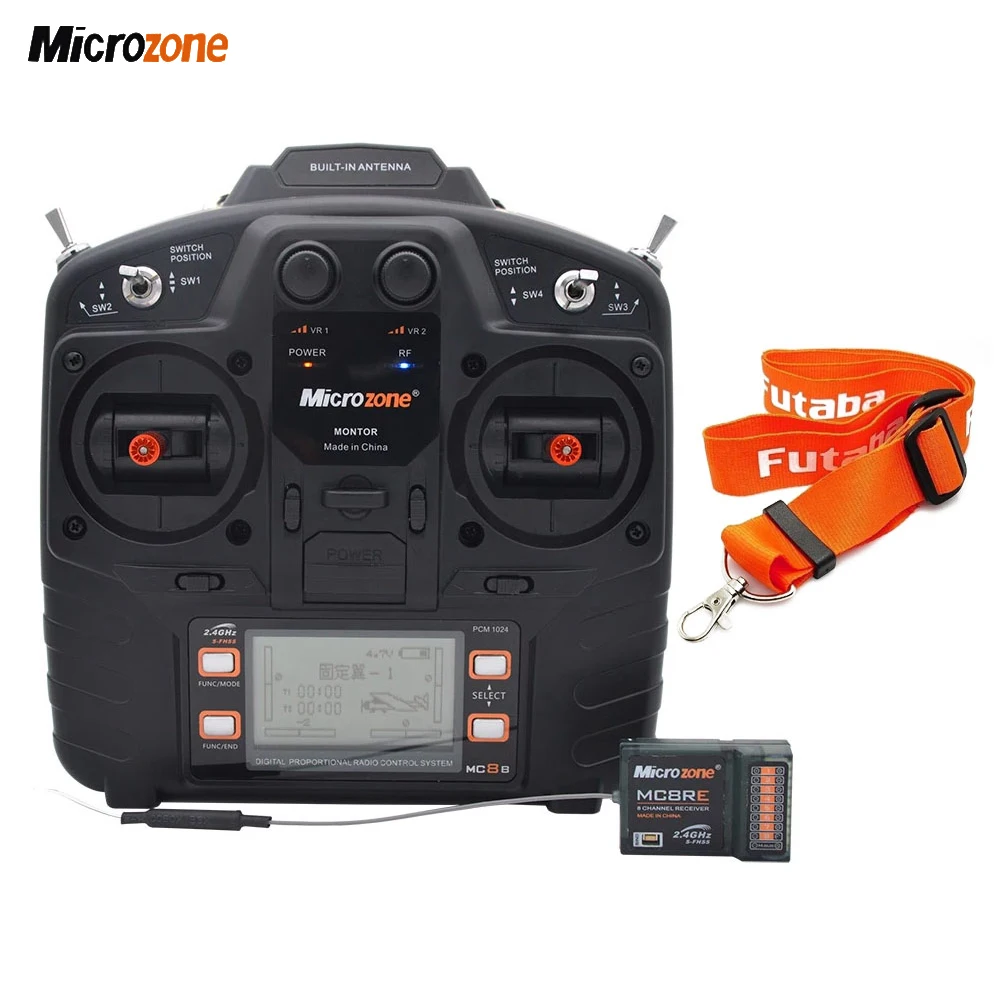

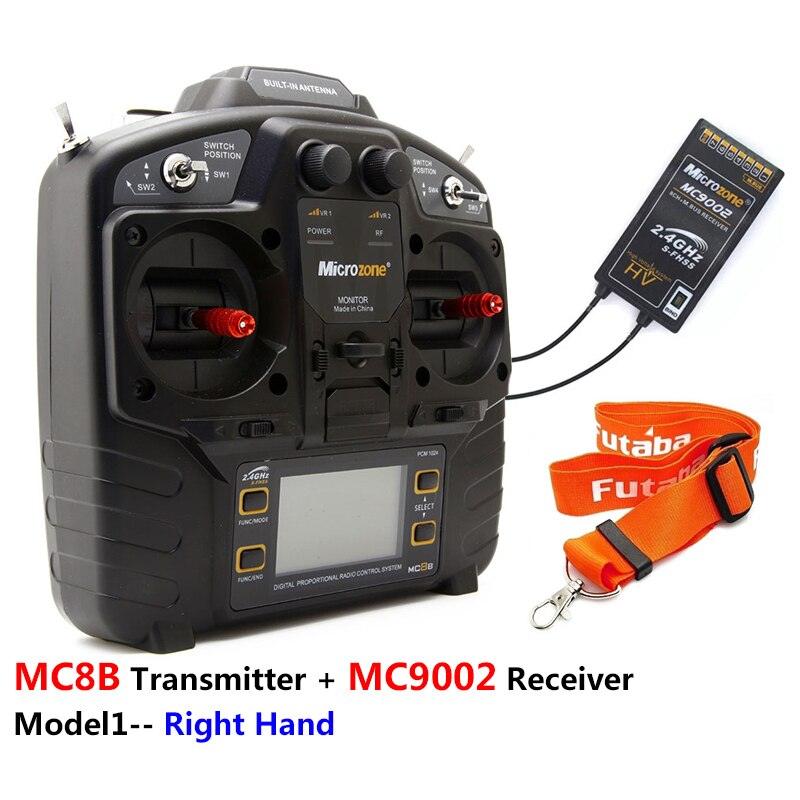

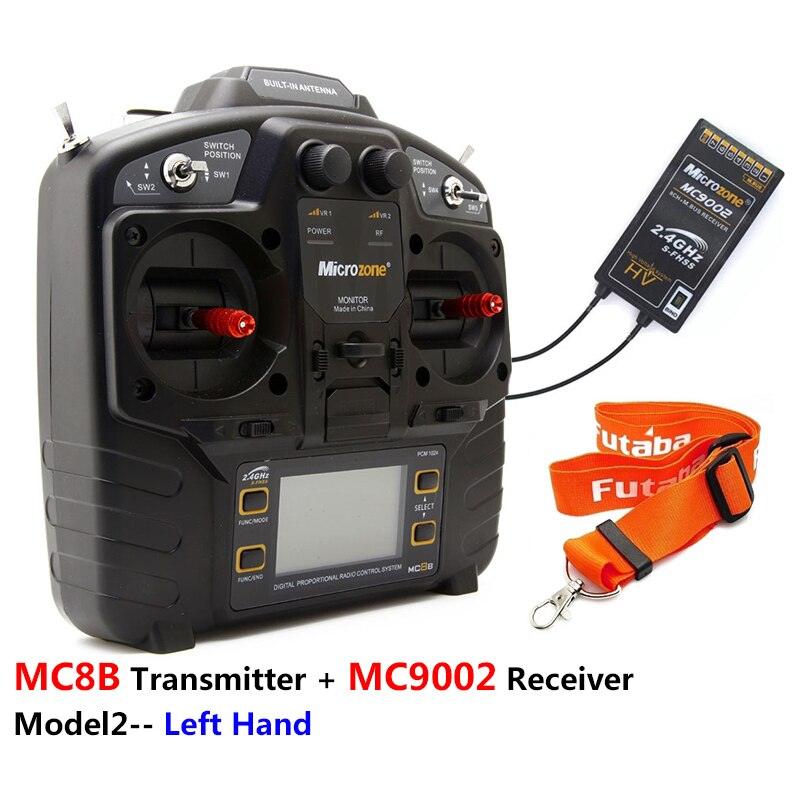

Microzone MC8B 2.4G 8CH Remote Control Transmitter & MC8RE/ MC9002 Receiver Radio System

Low voltage alarm mode: LED indicator and buzzer alarm at the same time. Supply analog and external power, LCD displays Chinese and English menu.
The receiver wide voltage design (DC 2V-9V) supports 8 PWM signals and 1SBUS signals.
Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.
The classical neutral knob is fine tuned to facilitate quick switching of the platform and attitude.
The 8 channel full function remote controller is suitable for fixed wing aircraft, helicopters and multi axis aircraft.

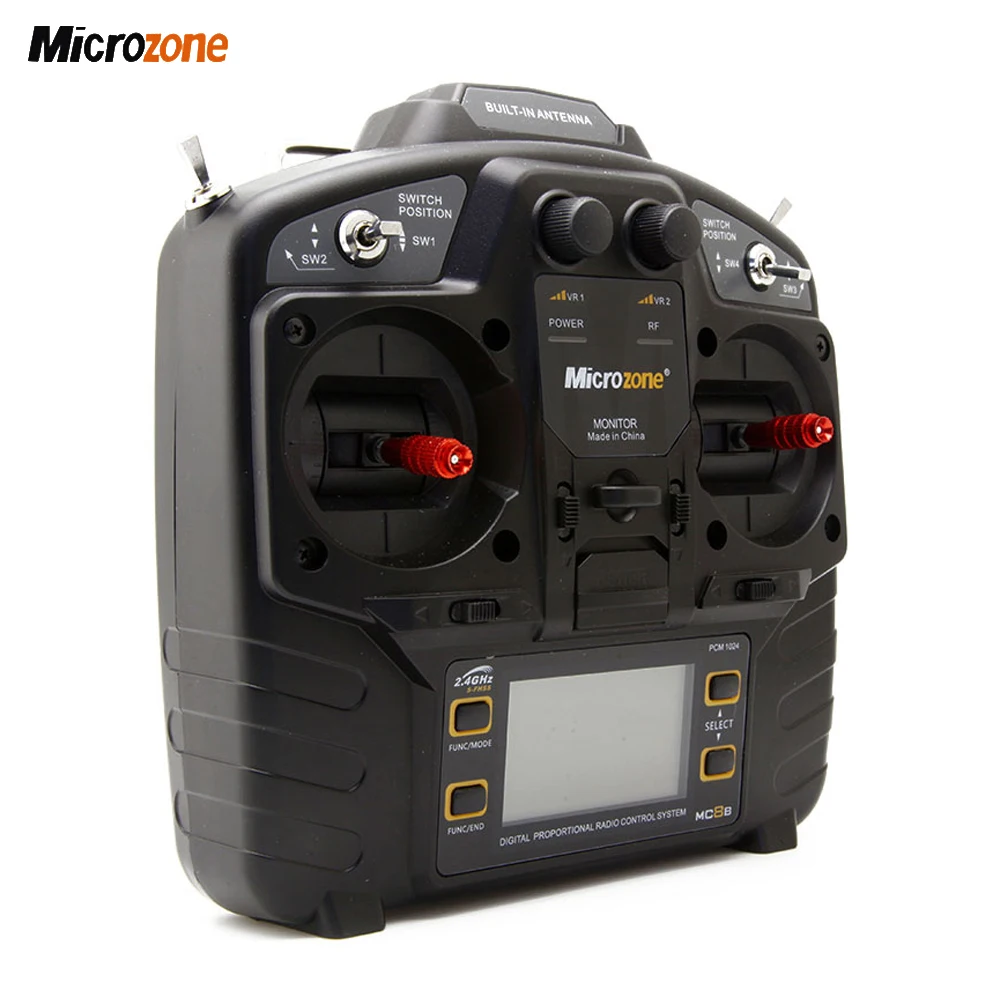

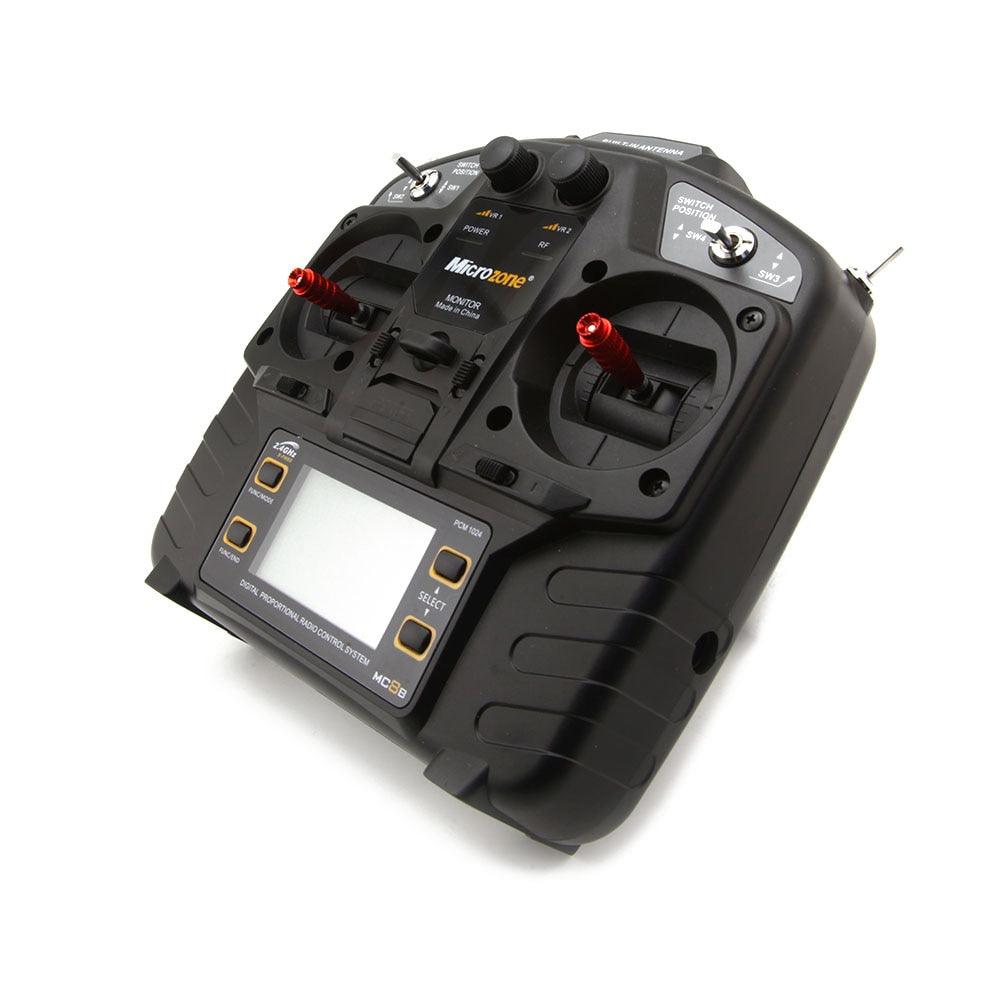

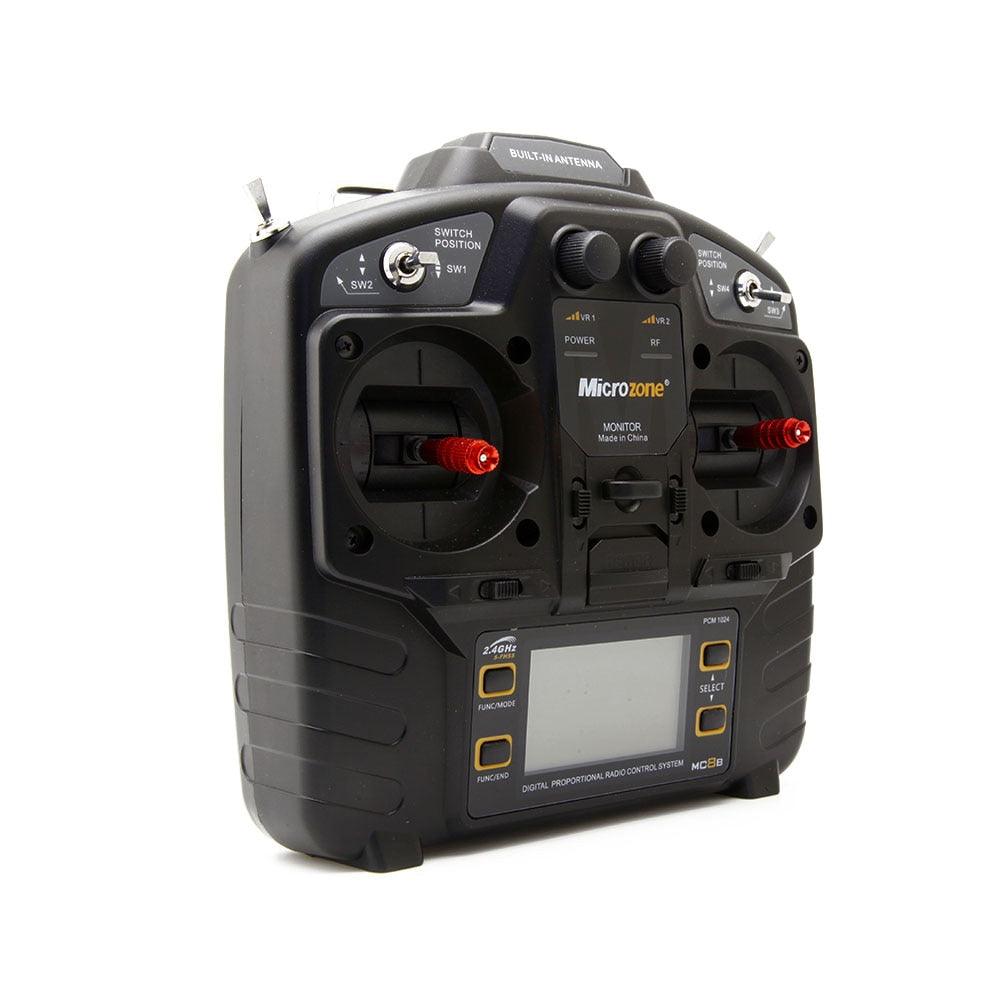

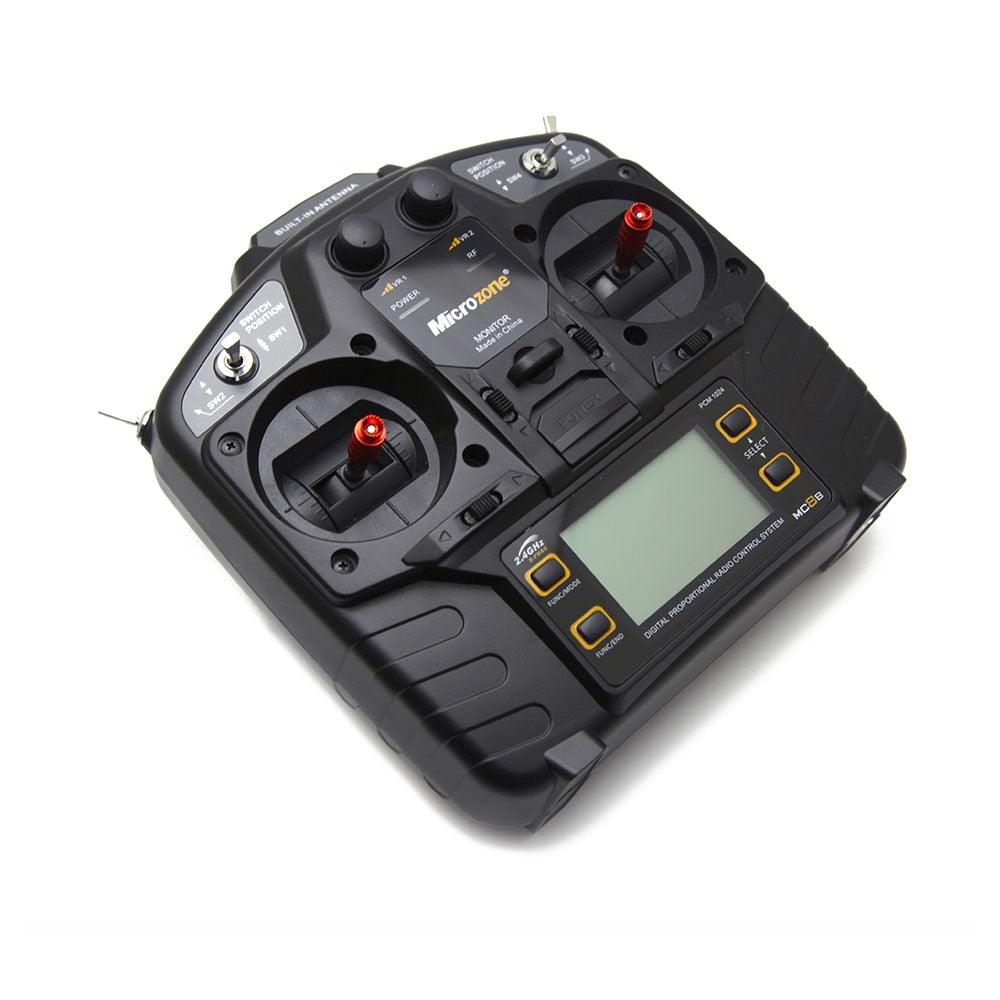

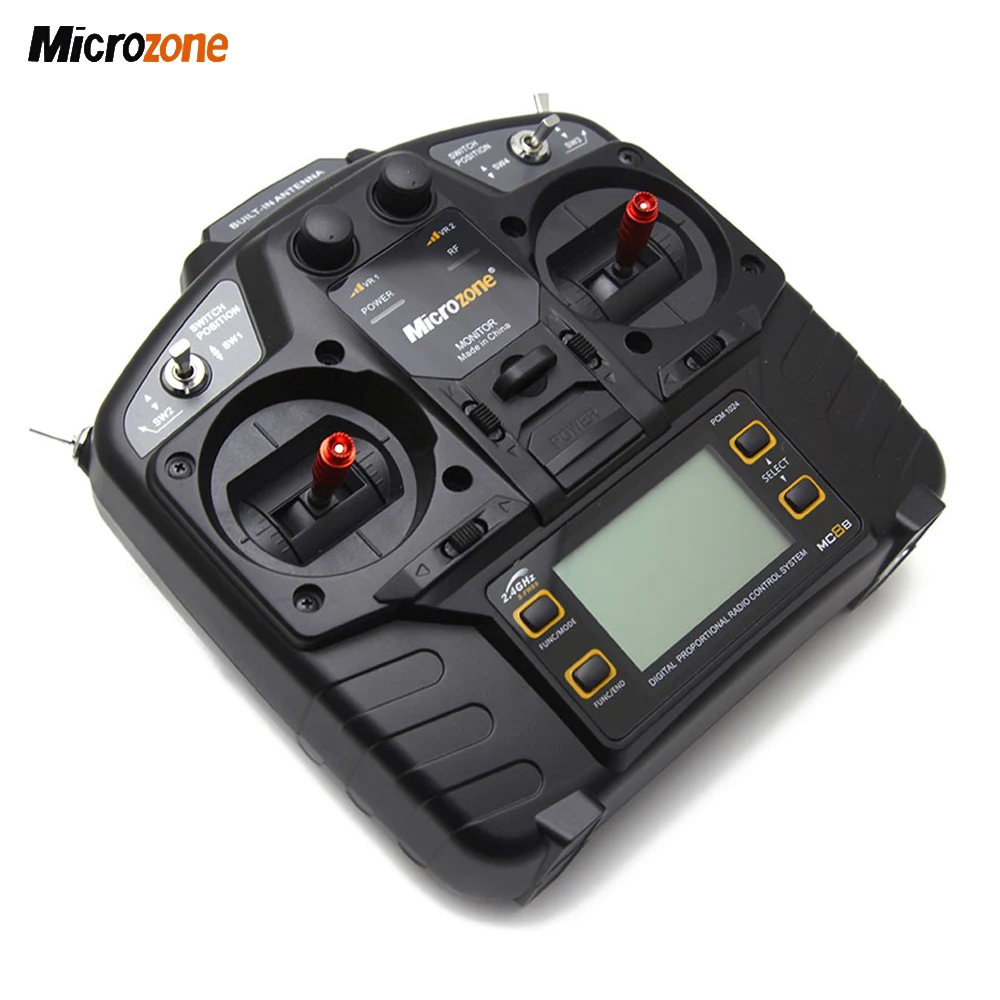

Transmitter Specifications:
Channels: 8
Color: Black / silver
Model: fixed wing model airplane, UAV, helicopter, cars, boat.
RF range: 2405MHZ—2479MHZ
RF power: less than 100MW
Working current: less than 150MA
Working voltage: 4.5–8.5V
Modulation mode: FSK
Sensitivity: 1024
Signal output: 8 PWM signals and 1 SBUS signals.
Analog and external power supply (not more than 8V): YES
Low voltage alarm mode: LED indicator and buzzer alarm at the same time (according to battery type in the system).
The LCD Chinese and English menu displays.
Internal software support: CH5—CH8, arbitrary replacement of settings and CH1–CH8 signal detection.
Internal software support: M1 and M2 throttle swap (double return), can set the flight time, the main screen to build a lock, a factory reset.
Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.
Power: 6V 1.5AA*4
Adopt the latest FHSS mode in line with European standards.
Certificate: FCC, CE_RED
Size: 215MM*105MM*220MM
Weight (gross weight): 580g

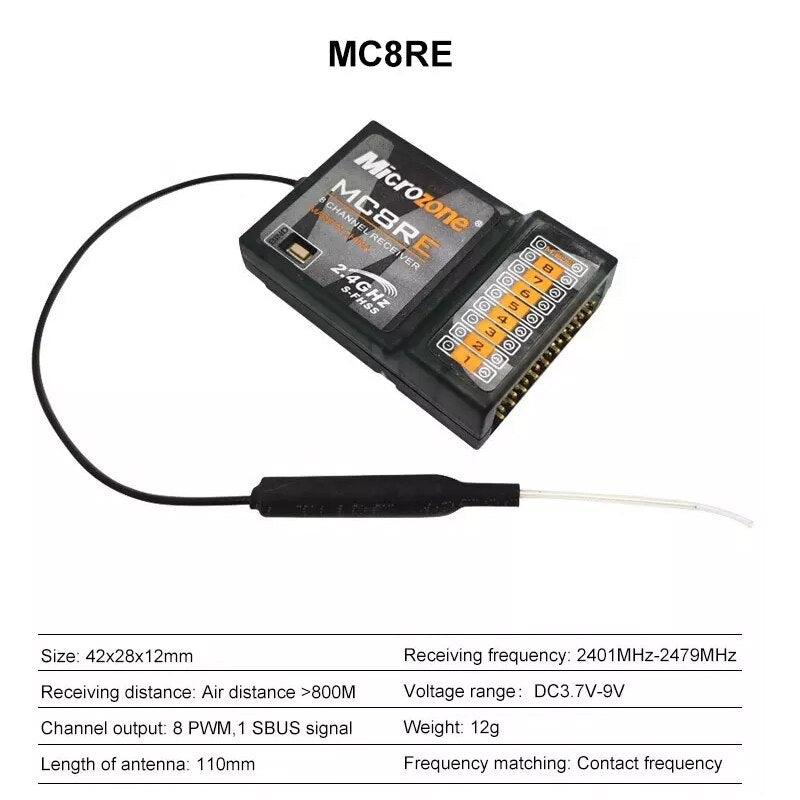

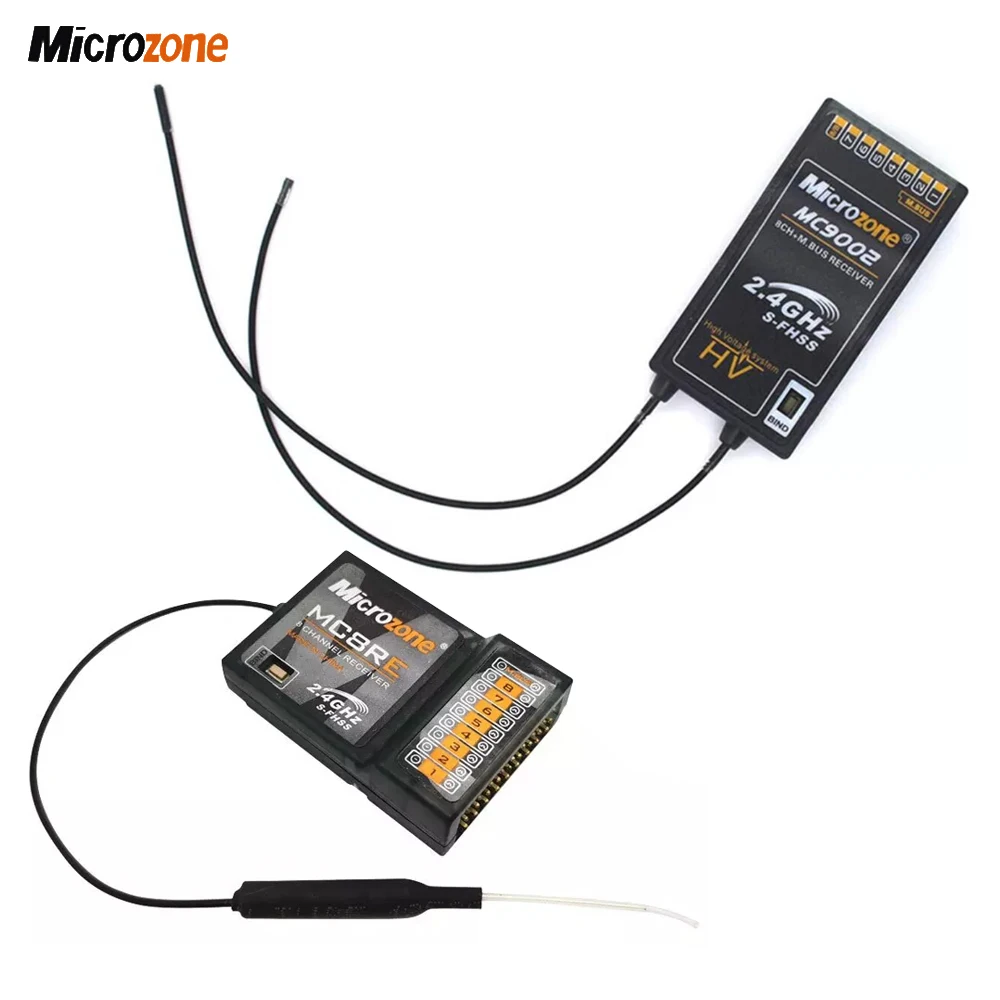

MC8RE 8CH Receiver:
Voltage Range: DC3.7V-9V;
Channel Output: 8PWM, 1SBUS signal;
Receiving Frequency: 2401MHz-2479MHz;

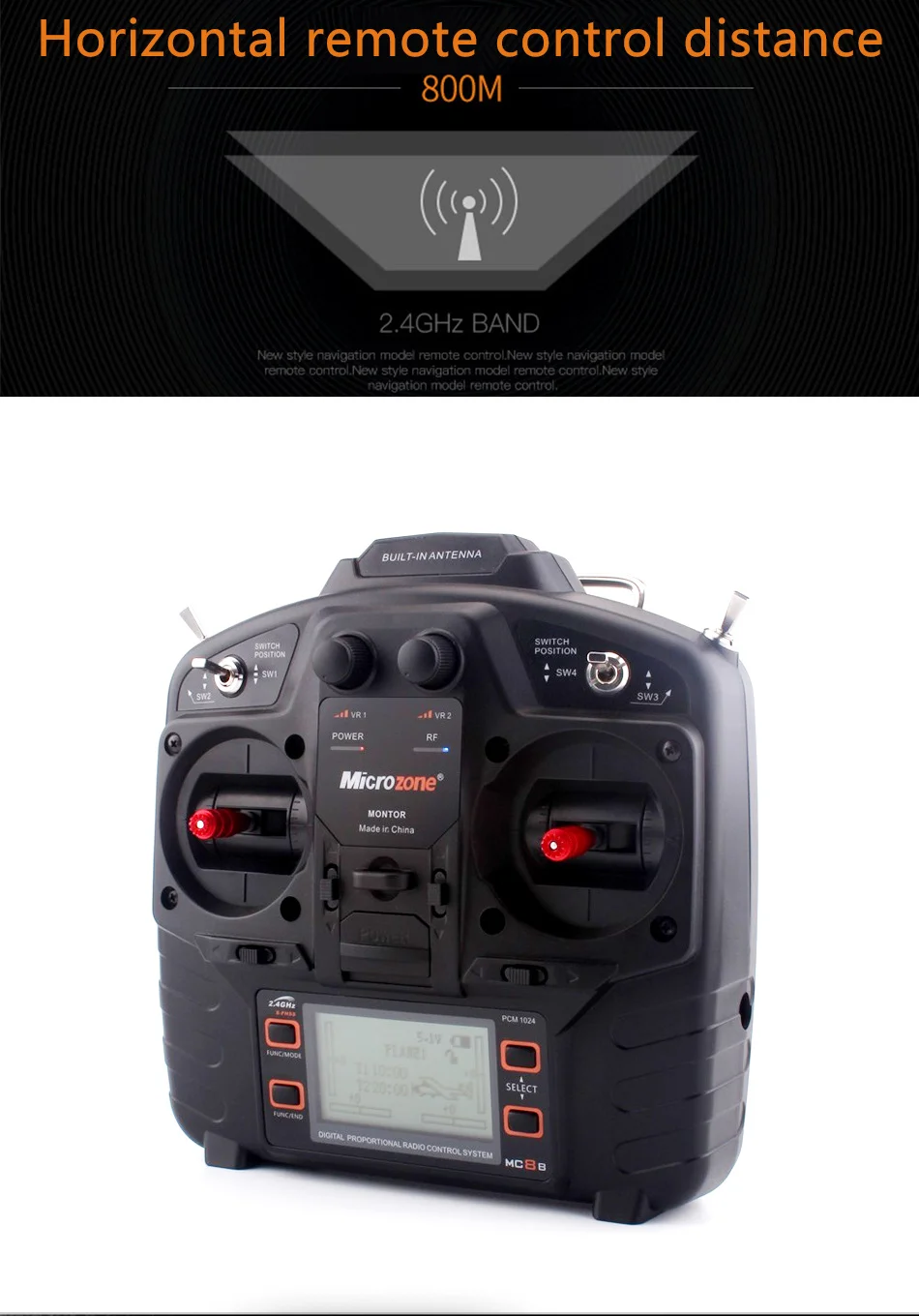

Receiveing Distance: Air Distance>800m;
Length Of Antenna: 110mm;
Frequency Matching: Contact Frequency;
Size: 42*28*12mm;
Weight: 12g;
Application: MC8A, MC8B remote control, fixed wing models, UAV, helicopter models, trams and tanker models, ship models

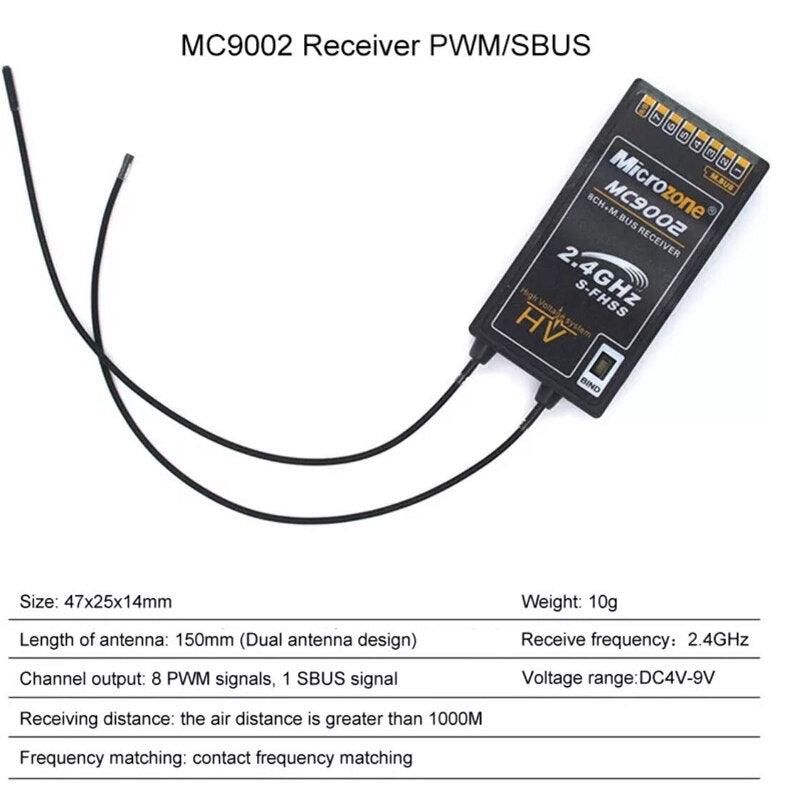

MC9002 Receiver PWM/SBUS:
Voltage Range: DC4V-9V;
Channel Output: 8PWM, 1SBUS signal;
Receiving Frequency: 2.4GHz;
Receiveing Distance: Air Distance>1000m;
Length Of Antenna: 150mm;
Frequency Matching: Contact Frequency;
Size: 47*25*14mm;
Weight: 10g;

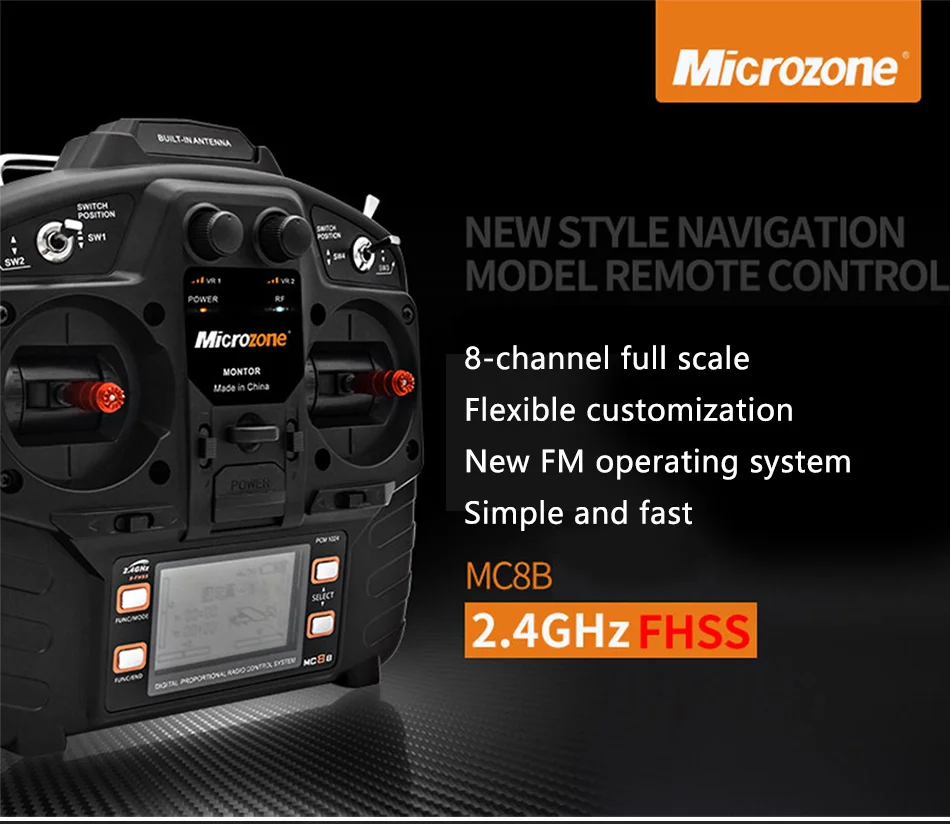

Microzone Outtmanuu Aca Rohtol NEW STYLE NAVIG

Microzone Outtmanuu Aca Rohtol NEW STYLE NAVIGATION MODEL REMOTE CONTROL Foata Microzone’ Wontor 8-channel full scale Wlia c Flexible customization New FM operating system'”17 Simple and fast MC8B 2.4GHz FHSS 15u Laosn te Fonna

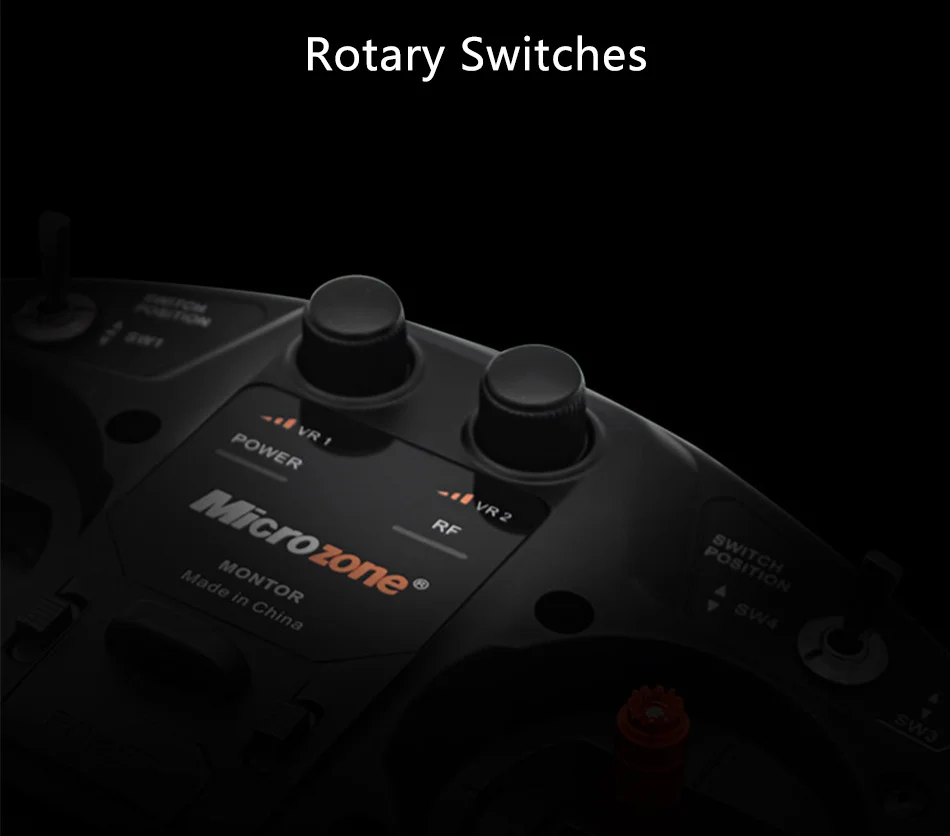

Rotary Switches Rf U TRt Power Mlcrozone VVR? SwtMC8B 2.46 8CH Remote Control Transmitter Designed & Manu

MC8B 2.46 8CH Remote Control Transmitter Designed & Manufactured for RC Drone Aircraft Helicopter Multicopter Car Boat Microzone” Ert

built-in ANTENNA SeCt Postod' Position SwA Sw3

built-in ANTENNA SeCt Postod’ Position SwA Sw3 Vr 1 Power Microzone Nontor Made China SELEct 80 ecuiolt Dicttn eucncntc ead oicoltt OLouselt MCE .

Microzone Utaba MontoR Made China Fut Zohs Elel = Tur

Microzone buILt-INANTENNA Switch Position Swi Swa Sw2 SwJ VR I POWER Microzone Utaba MontoR Made China Fut Zohs Elel = Turcinodi a SELECT C: 0 UNcitno digtalerormonalrano oniccsis Mc8B Microzone MCBRE Mani 2 935 Swntch Position

VONITOR Macein Chra 2 GHI 0 Gial Built-im

Microzone Switch PositiOn Sho Psn Swi SwZ Poier Microzone” select Turata Mc8b isitn Rnocona Tuetd Padaorionnli .

Microzone Microzone" poter 7oueo Monnor D Kach(sMicrozone Pomar Q SmIch postnioNe Swa Microz SwJ

Microzone Pomar Q SmIch postnioNe Swa Microz SwJ zone Joior Uacr Iovim LMooto Man Ocoviac Systev select McBB

Channels: 8 Color: Black / silver Model: fixed wing model airplane, UMicrozone S 76 0O0odddi Microz zone ach

Microzone S 76 0O0odddi Microz Mc9oOz zone ach-M Loust receiver ‘AGHz S-FHSS Micro; MCBRI one 1 L Fhss

Additional information

Color

MC8B MC9002 Mode1, MC8B MC9002 Mode2, MC8B MC8RE Mode1, MC9002 Receiver, MC8RE Receiver, MC8B MC8RE Mode2
