MATEKSYS VRX-1G3-V2 Receiver SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Other
Unit Type: piece
Tool Supplies: Assembled class
Technical parameters: Value 5
Size: As Description Show
Remote Control Peripherals/Devices: Other
Recommend Age: 12+y
RC Parts & Accs: Other
Quantity: 1 pcs
Package Weight: 0.01kg (0.02lb.)
Package Size: 12cm x 8cm x 2cm (4.72in x 3.15in x 0.79in)
Origin: Mainland China
Model Number: Matek Systems F722-Mini
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters

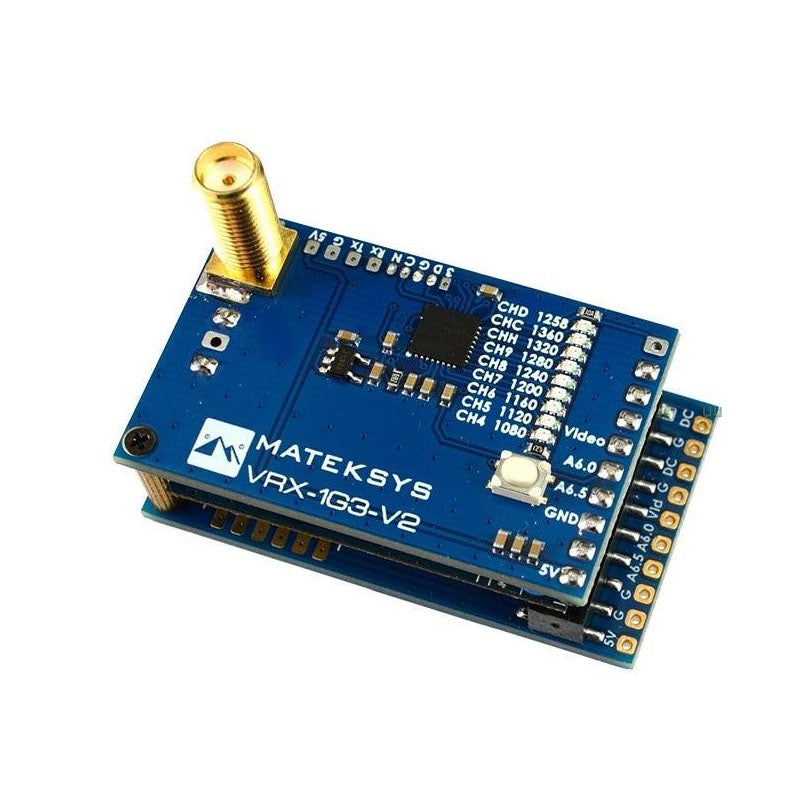

MATEKSYS VRX-1G3-V2 1.2Ghz 1.3Ghz 9CH FPV Video Receiver for RC Drone Goggles Monitor
Includes
1x 1.2/1.3G Video receiver VRX-1G3-V2
1x VRX-DK

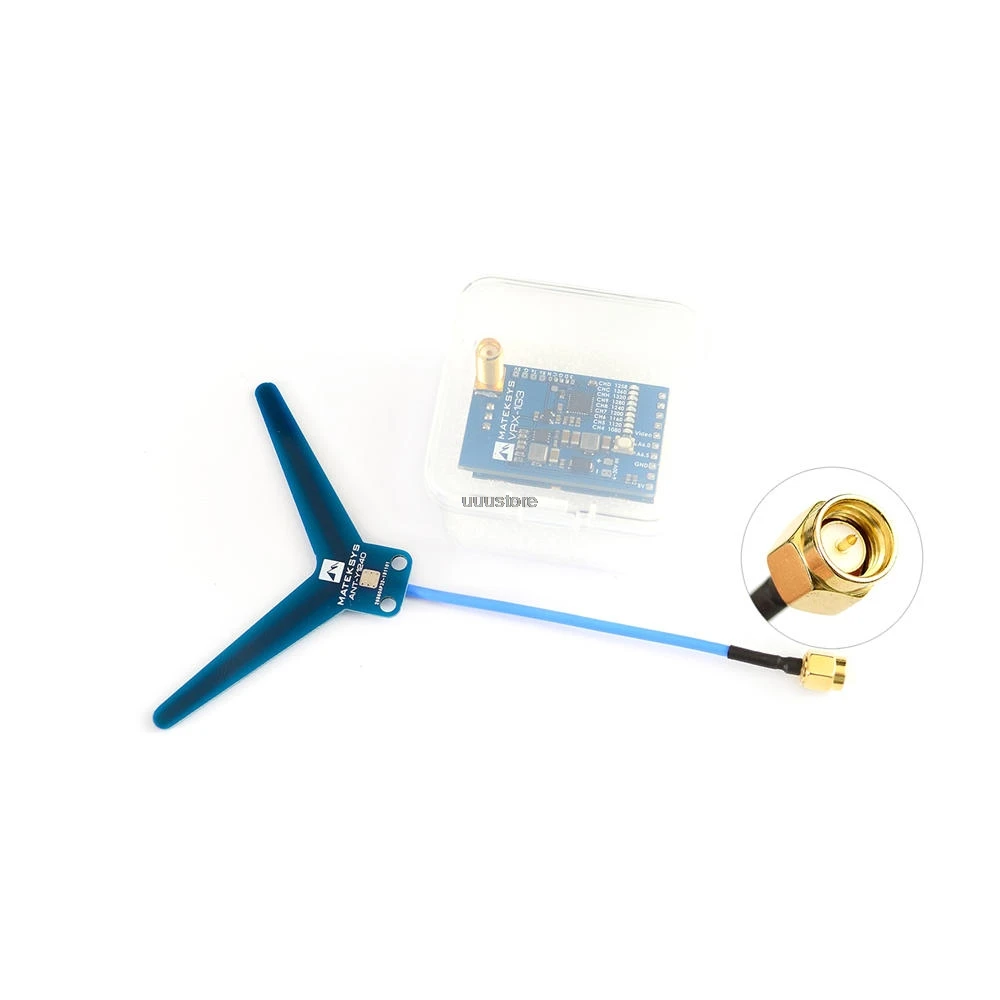

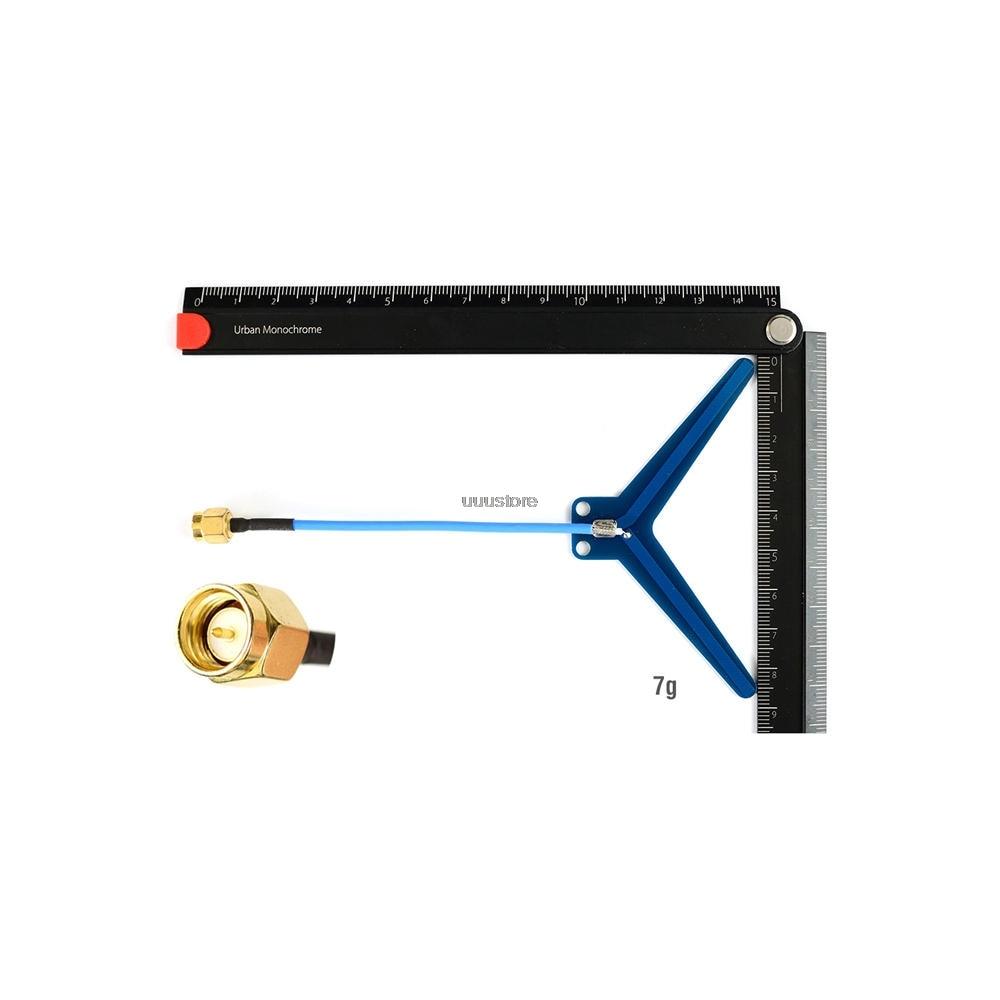

1x Dipole antenna_SMA, center freq 1240MHz

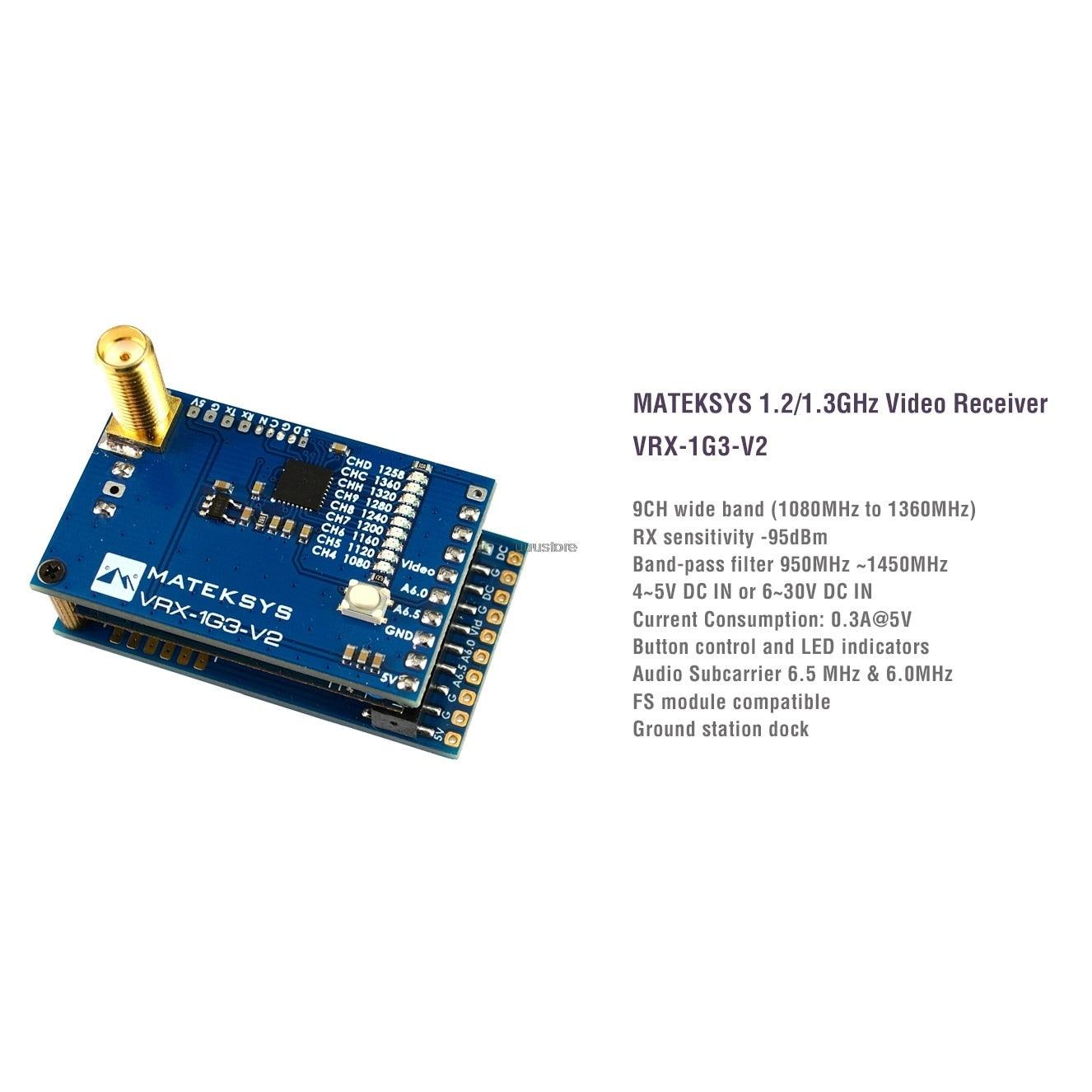

Features & Specifications
Receiving frequency: 9CH (1080MHz to 1360MHz)
RX Sensitivity: -95dBm
Band-pass filter 950MHz~1450MHz
Dual input options: 4~5V via pins or 6-30V via “DC” pad on VRX-DK
Button control and LED indicators
VRX-DK input voltage 6~30V (“DC” pad)
VRX-DK regulator output: 5V 2.5A
Current Consumption: 0.3A @5V
Video format: NTSC or PAL
Video Output impedance: 75Ω, Typ.
Audio Subcarrier Frequency: 6.5 MHz & 6.0MHz
ANT. input impedance: 50Ω, Typ.
RF Connector: SMA
2.54mm pins and PCB size are compatible with FS module
5pins (5V, Gnd, A6.5, A6.0, Video) work with FS dock

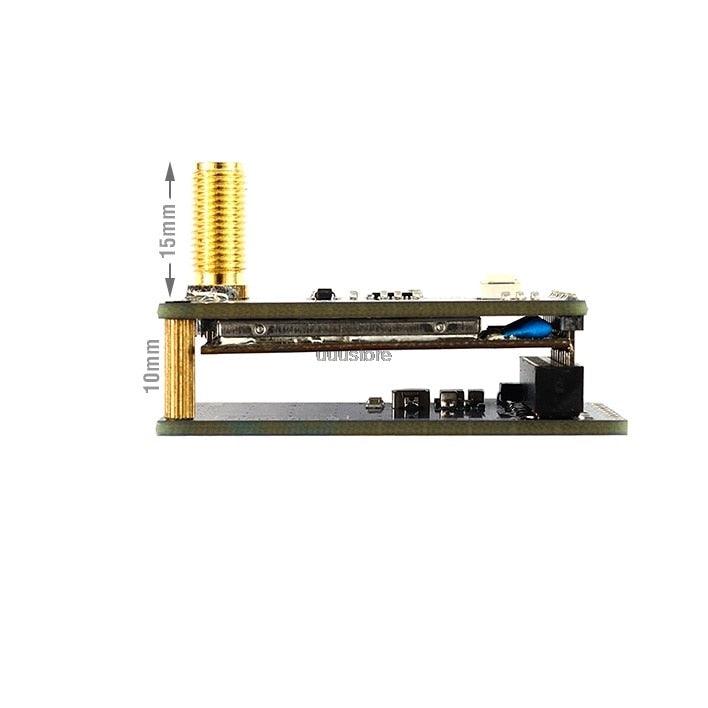

Weight: 12g ( w/o dock), 19g (w/ dock)

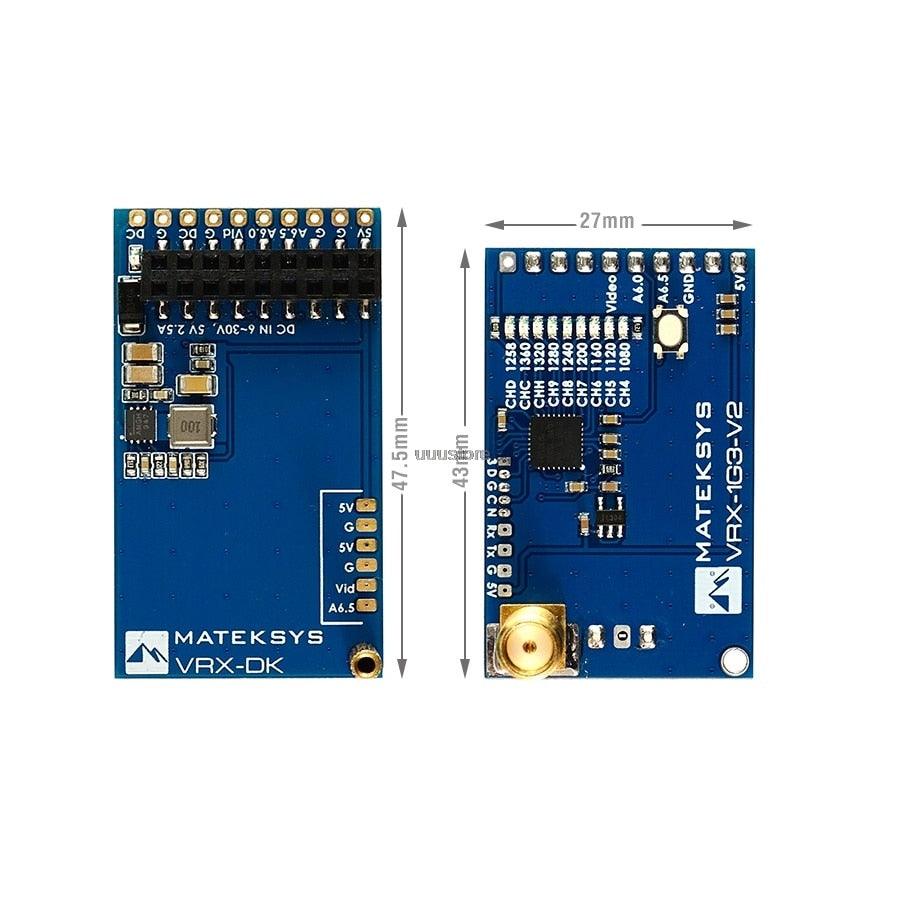

Size: board 43*27mm
Settings
Press and hold the button 2 seconds to enter the frequency setting. Frequency LED blinks
Press the button to select the frequency
When the LED blinks at new frequency, RF input is enabled on this frequency.
New frequency will be saved if no button action within 3 seconds
