SPECIFICATIONS
Brand Name: TAROT-RC
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Connectors/Wiring
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Certification: CE
Upgrade Parts/Accessories: Adapter
Remote Control Peripherals/Devices: RECEIVERS
Tool Supplies: Assembly Category
Quantity: 1 pcs
Technical parameters: Value 10
Model Number: Matek
Four-wheel Drive Attributes: Motors
Wheelbase: Upper Shell

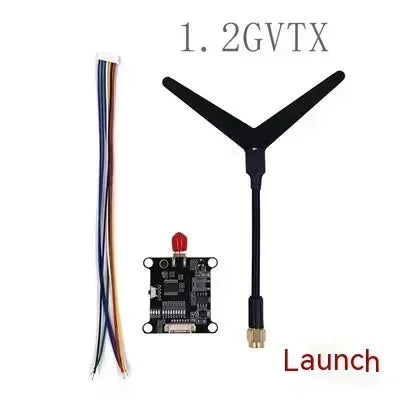

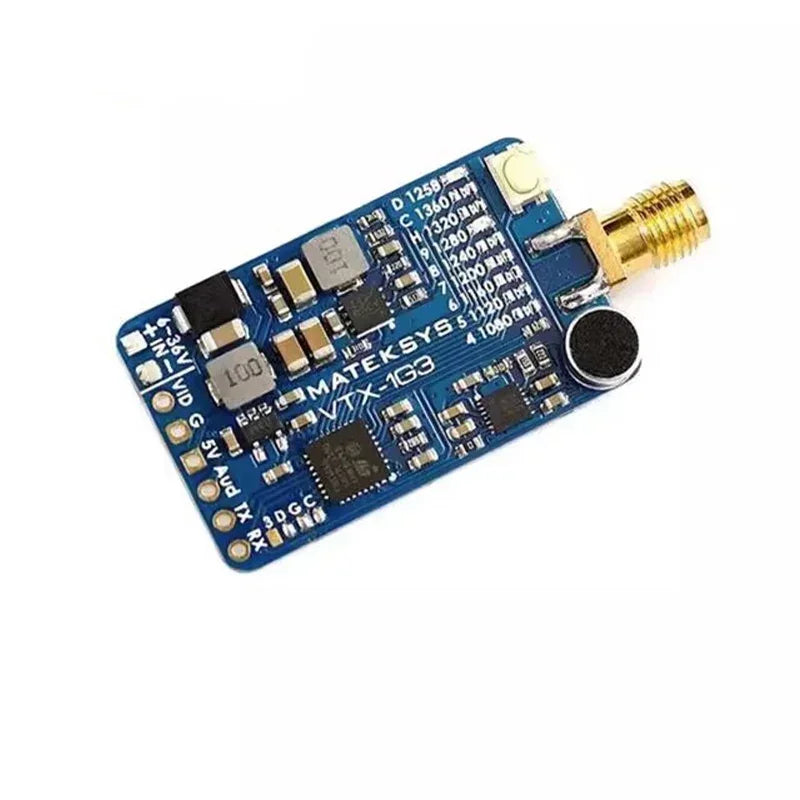

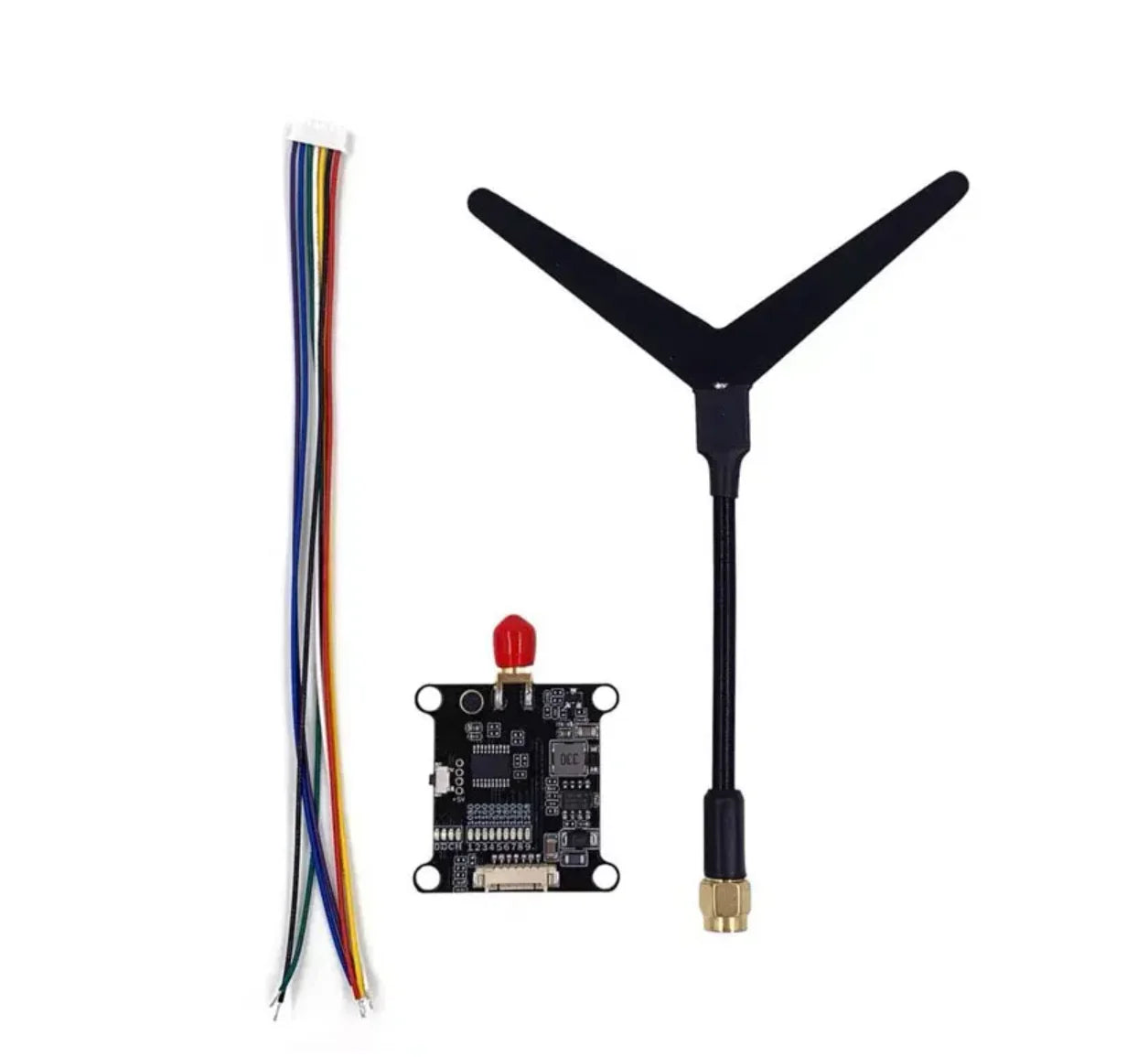

9CH_INTL version (1080,1120,1160,1200,1240,1280,1320,1360,1258MHz), SKU: VTX-1G3SE-9
2CH_US version (1258MHz & 1280MHz), SKU: VTX-1G3SE-2
RF power output: 0.1mw(0, pit mode), 25mw(1), 200mw(2), 800mw(3)
CMS control via Tramp protocol variant for 1.3G
Button control and LED indicators
Built-in AGC microphone
6-36V DC IN (2-8S LiPo)
Power Consumption: 40mA(0.1mw), 110mA(25mw), 150mA(200mw), 250mA(800mw) @12V IN
Video format: NTSC or PAL
Audio Subcarrier: 6.5 MHz & 6.0MHz, onboard microphone on 6.5MHz
RF Connector: SMA
Weight: 9g ( w/o antanna)

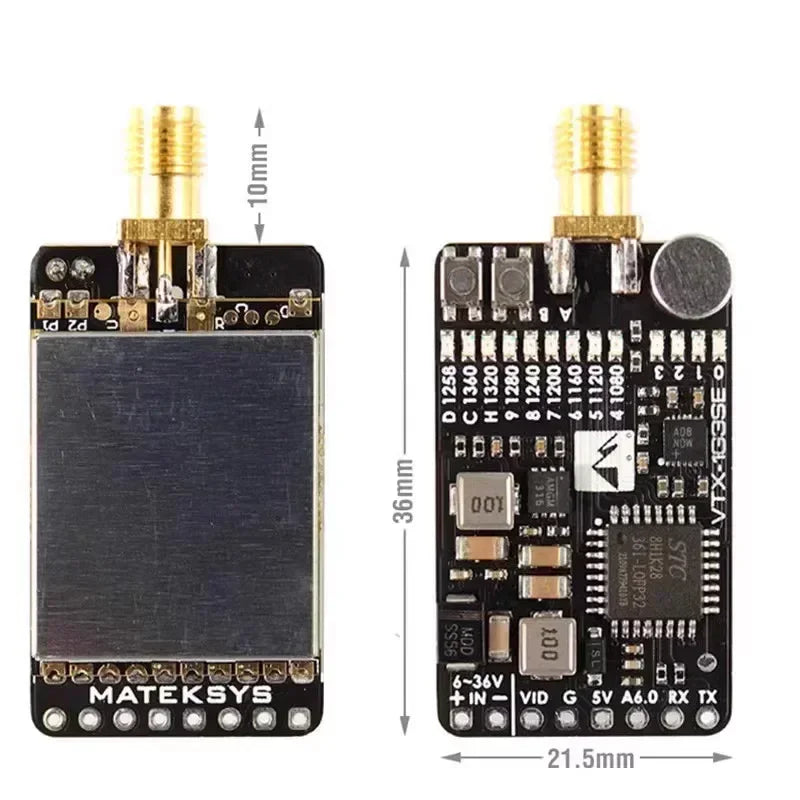

Size: board 36*21.5mm

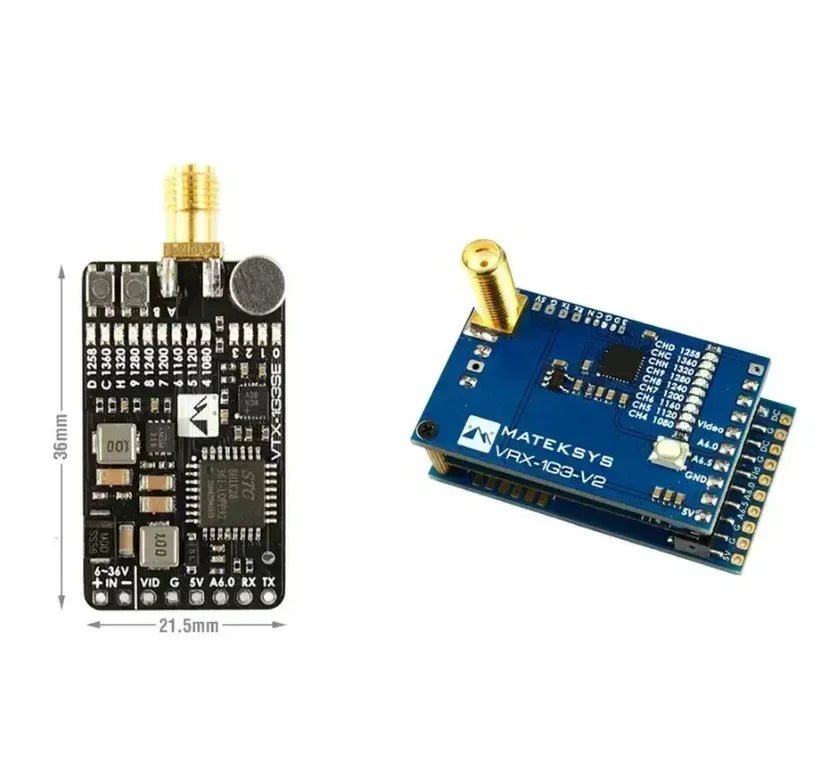

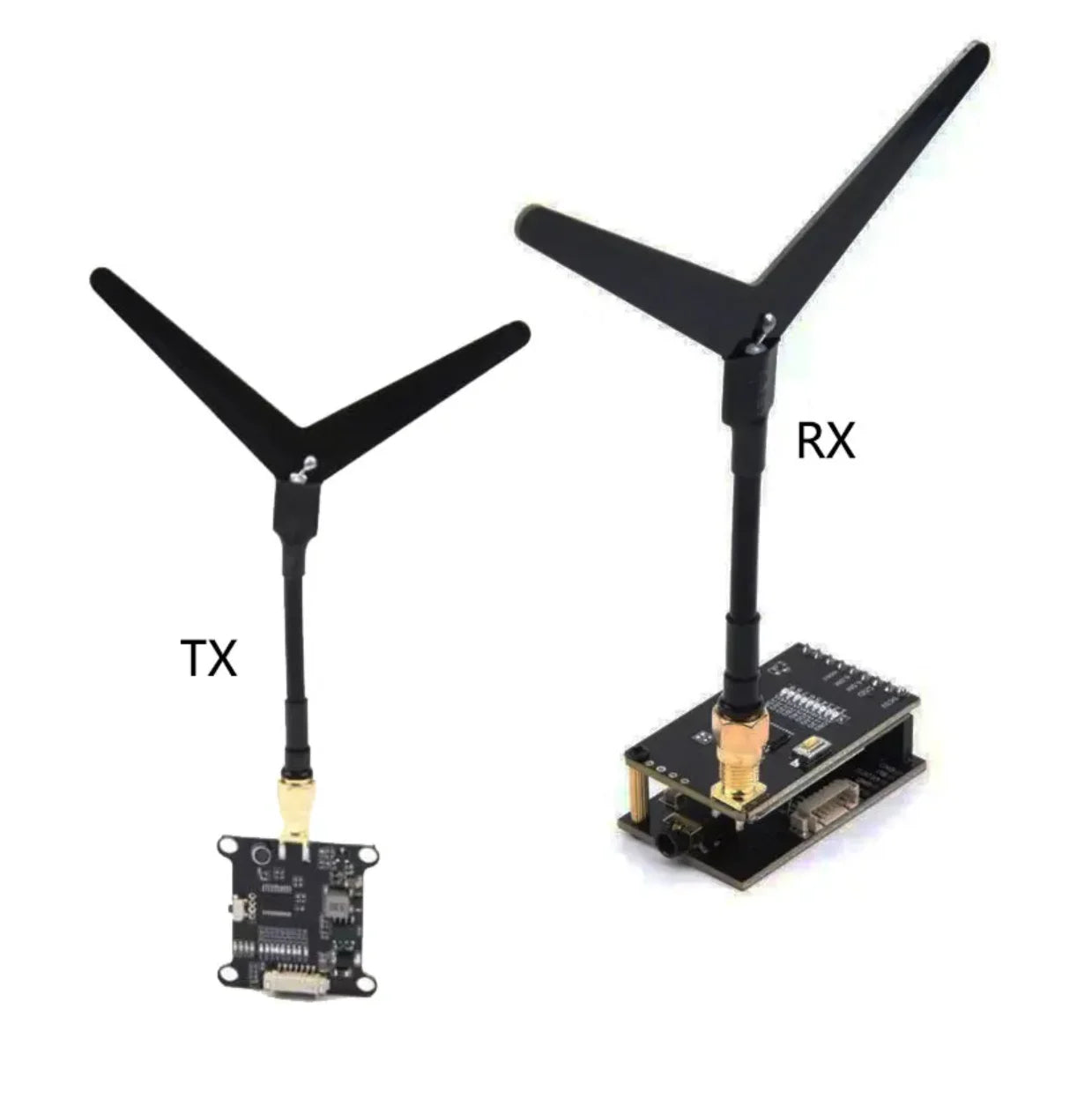

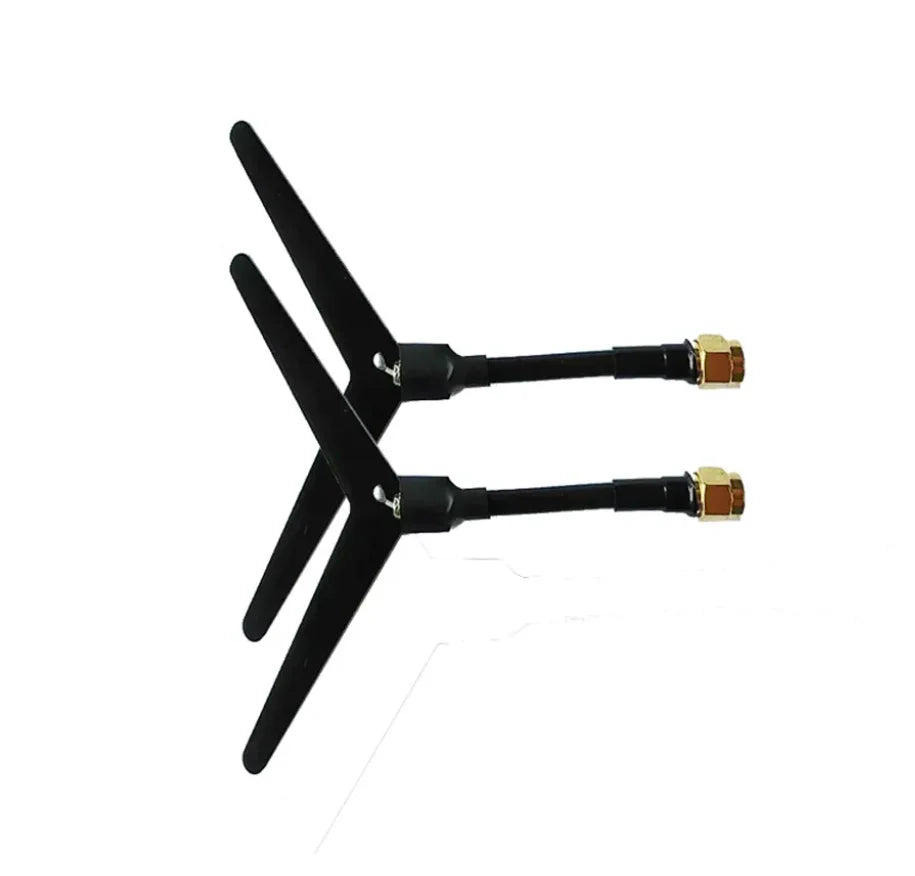

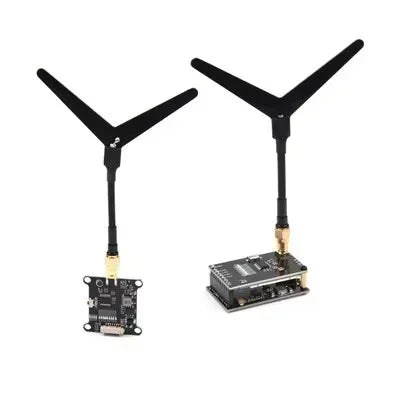

Matek System Video Transmission Receiver Antenna 1.2/1.3ghz Ant-y1240/VTX/VRX For RC FPV Drone Aircraft Helicopter Model Parts

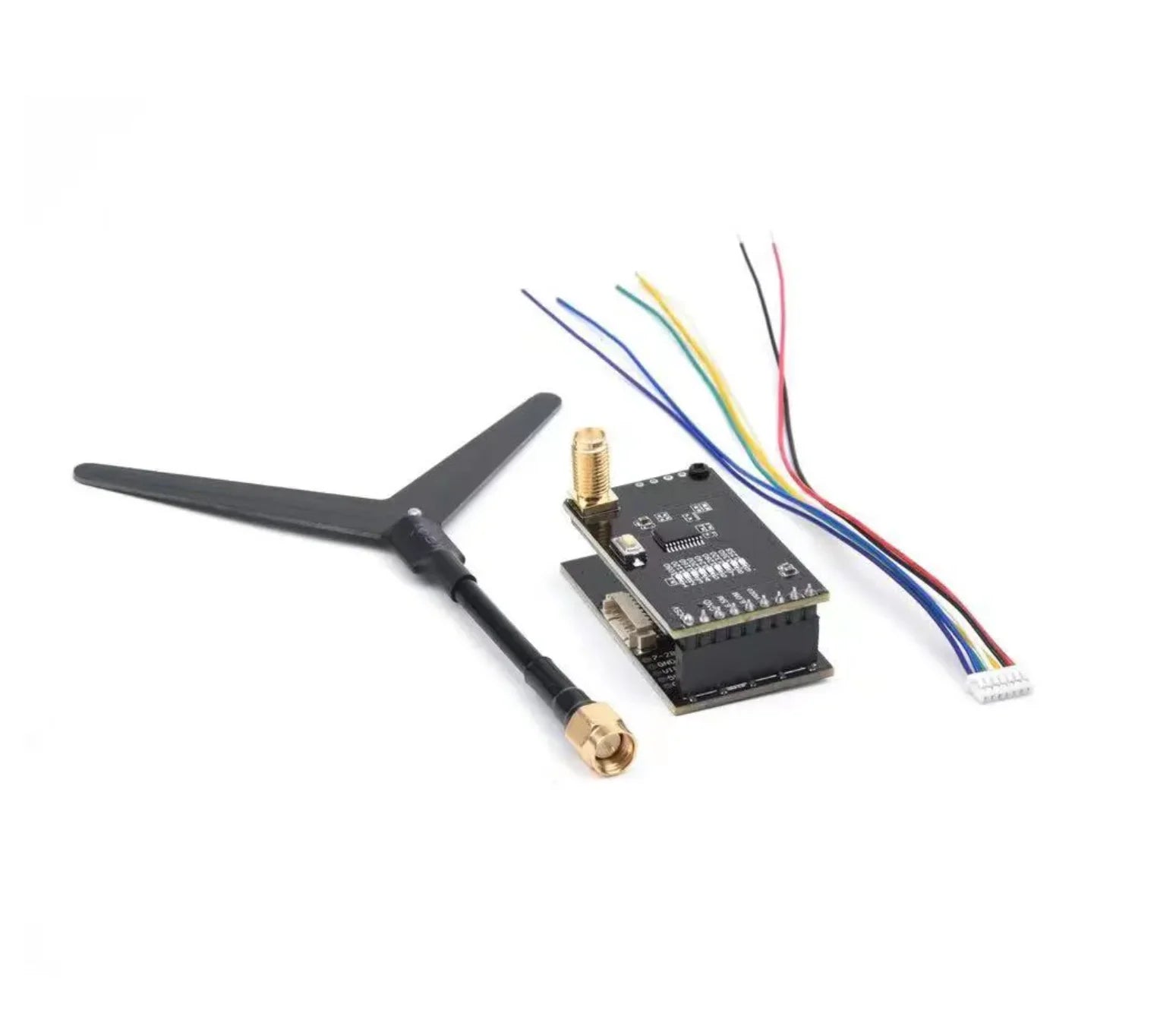

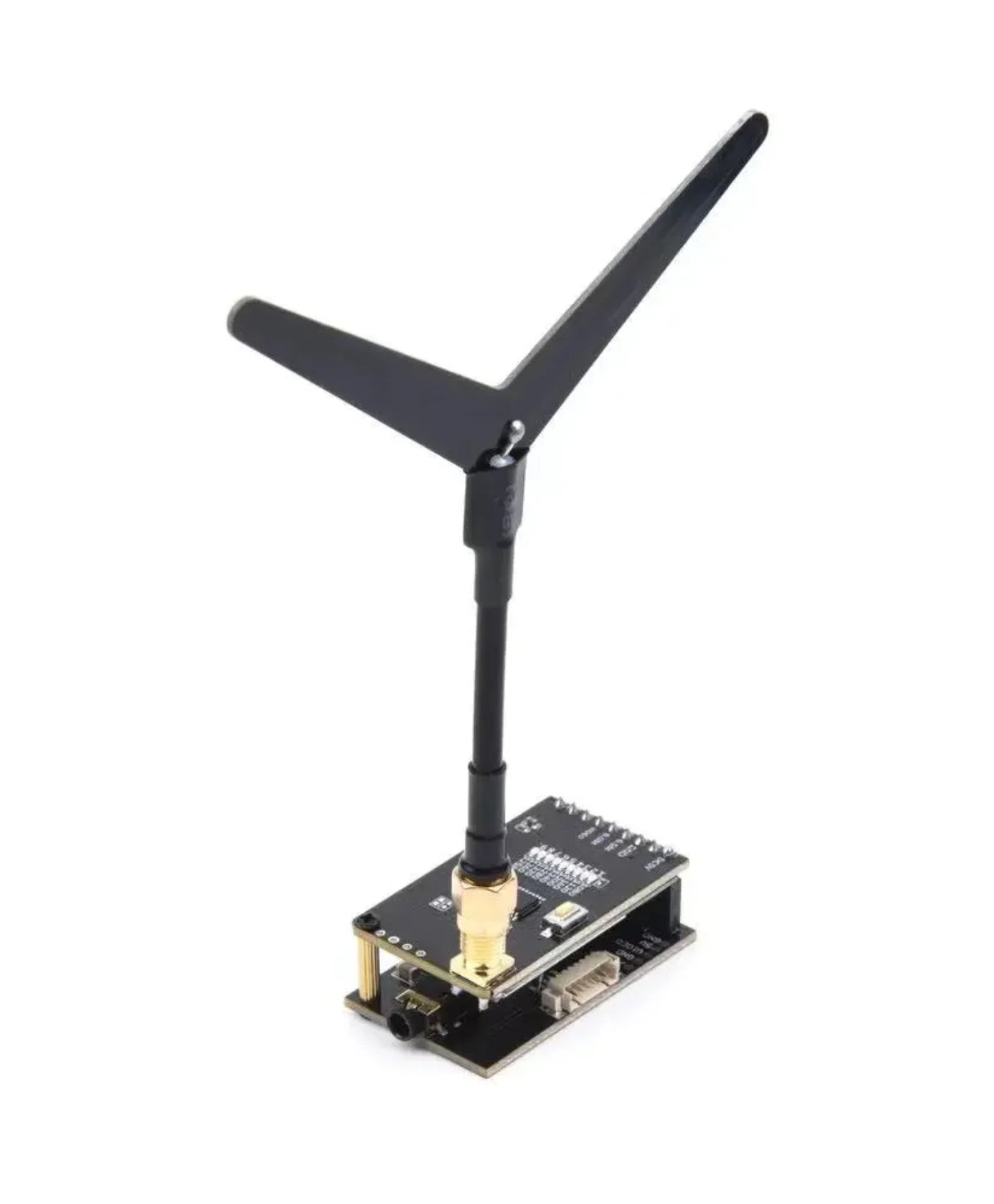

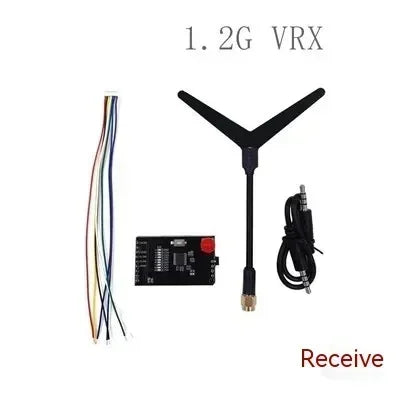

VRX-1G3-V2:
Project specifications (specifications)
Band 1060-1380MHz
Channel Customers 9
Channel frequency 1080/1120/1160/1200/1240/1280/1320/1360/1258 (MHz)
Audio subcarrier 6.5MHz/6.0MHz
Modulation type frequency modulation
Frequency controlled phase-locked loop
Audio subcarrier controlled phase-locked loop
Frequency stability ± 100KHz (typical value)
Frequency accuracy ± 200KHz (typical value)
A/V ratio -26 ± 2dB
Signal to noise ratio (Fo ± 3MHz)>70dBc
Channel carrier error 1dB
Antenna port impedance (50 ohms)
Input format NTSC or PAL
Video input level range: 1V ± 0.2vp-p type
Audio input level range: 1V ± 0.2vp-p type
Working temperature -10 ℃~+60 ℃
DC 7-28v input power supply
Power output (output voltage) DC7.28V; DC5V
Outline dimensions 45.5mm (L) * 35.8mm (W) * 8.4mm (H)
Installation hole position 30.5mm x 30.5mm
Net weight 10 grams
VTX-1G3SE
DC characteristics
Power supply voltage 5.0V
Current consumption (280 ± 40) mA
Environmental regulations
Working temperature -10~+65 ℃
Storage temperature -30~+85 ℃
Working humidity 85% RH
Radio Frequency (RF)
Receiving frequency range 1050~1380MHz
*Input voltage standing wave ratio 2:1
FM/PLL demodulation system
Intermediate frequency IF 480MHz
ANT. Input impedance 50 Ω, typical value LO frequency stability ± 200kHz
LO frequency accuracy ± 200kHz
LO control PLL
Input LO leakage -65dBm
Receiving sensitivity -95dBm
Input level range -95 dBm to+5 dBm
Video Features
Video output impedance 75 Ω, typical video output level 1Vp-p, typical video polarity negative
Video frequency response ± 5 decibels, maximum 50 Hz~6 MHz
Differential gain ± 5%, maximum value
Differential phase ± 5 degrees, maximum
3dB IF broadband 16.5MHz
Signal-to-noise ratio S/N 38dB, Min
RSSI output voltage (-30dBm~-90dBm) 1.3-0.7V
audio frequency
Audio output
Contact us:
If you need to place a large order, you can contact us for a lower discount. And you have any questions or need help, please feel free to contact us. We will do our best to provide support.
This video transmission receiver supports HDMI and HDCP protocols, with a maximum pixel clock speed of 165MHz, compressed format H.264, and maximum video resolution of 1920×1080 at 60Hz. The HDMI connector is type-A with an impedance of 1000 ohms, and we recommend using cables shorter than 5 meters when transmitting at the maximum resolution. Additionally, this device features a 3.5mm IR port with unidirectional digital IR transmission frequency ranging from 20-60 kHz.
