The MATEK F405-WMN - Mateksys FLIGHT CONTROLLER is a drone product in the Flight Controller category priced at $93.60, featuring Vehicles & Remote Control Toys.

,

MATEK F405-WMN – Mateksys FLIGHT CONTROLLER

$93.60

+ Free Shipping
- +

Regional payment methods

Payssion regional payment methods
SKU: N/A Categories: ,
Ask for more info

Best Use Cases

  • Recommended for the Flight Controller category.

Key Specifications

  • use: Vehicles & Remote Control Toys
  • recommend_age: 12+y
  • origin: Mainland China
  • material: Composite Material
  • brand_name: MATEKSYS
  • mcu: STM32F405RGT6, 168MHz , 1MB Flash
  • imu: ICM42688-P
  • baro: SPL06-001

Compared to Alternatives

Compared to 3 alternatives in the Flight Controller category, the MATEK F405-WMN - Mateksys FLIGHT CONTROLLER is $93.60.

Frequently Asked Questions

  • What are the key specifications of MATEK F405-WMN - Mateksys FLIGHT CONTROLLER?
    Use: Vehicles & Remote Control Toys; Recommend Age: 12+y; Origin: Mainland China.
  • How much does MATEK F405-WMN - Mateksys FLIGHT CONTROLLER cost in the Flight Controller category?
    MATEK F405-WMN - Mateksys FLIGHT CONTROLLER is available at priced at $93.60 on 100drone.com.

MATEK F405-WMN – Mateksys FLIGHT CONTROLLER  SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

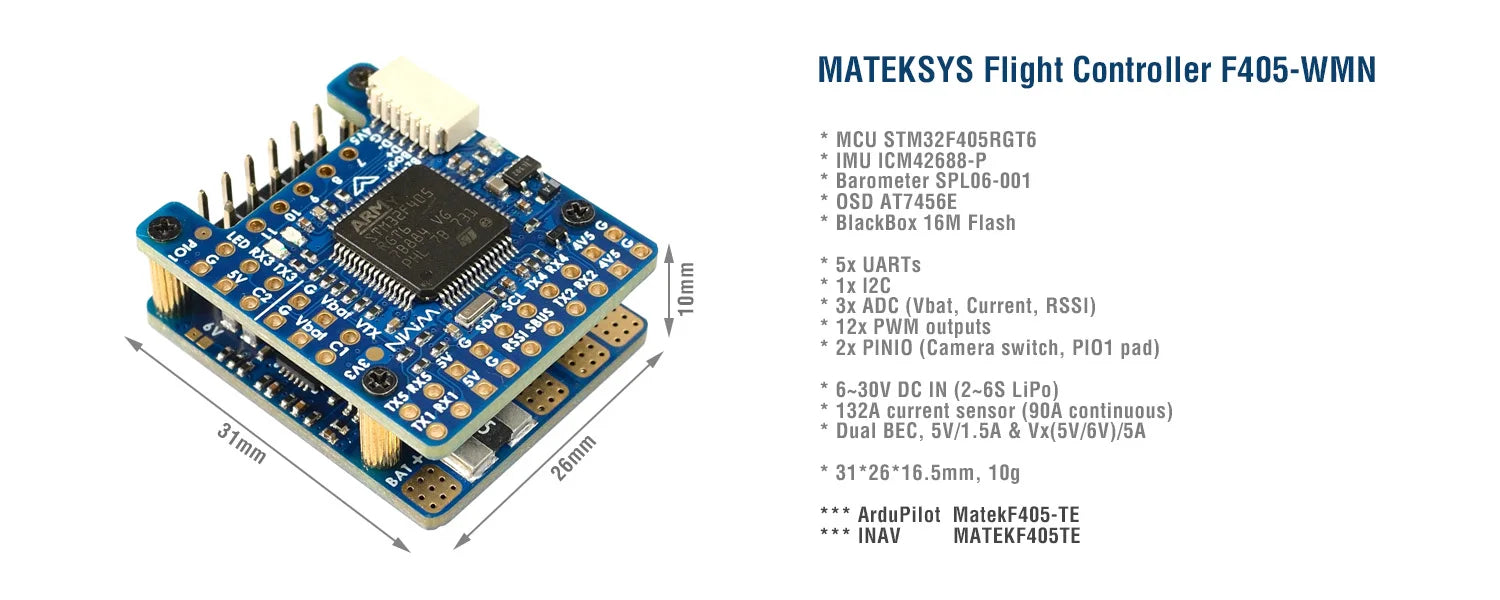

FLIGHT CONTROLLER F405-WMN

STM32F405RGT6, ICM42688P, SPL06, OSD, 16M Flash, 5xUARTs, 12x PWM,1xI2C, 3xADC

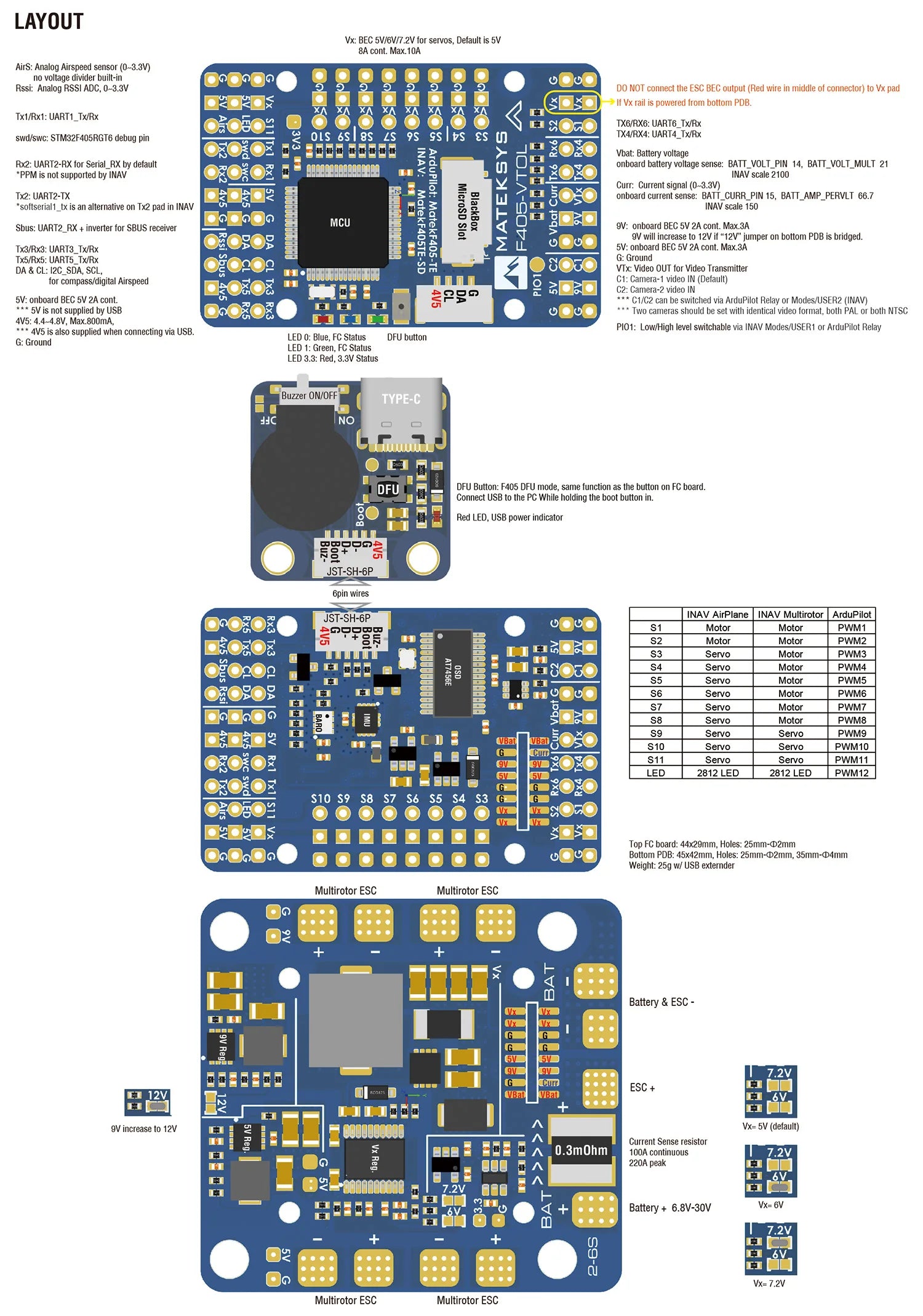

MATEK F405-WMN, MATEKSYS Flight Controller F4O5-WMN MCU STM3ZMATEK F405-WMN - Mateksys FLIGHT CONTROMATEK F405-WMN, Dupont 2.54 pins (Board is shipped unsolderedMATEK F405-WMNMATEK F405-WMN, BEC SVI6V/7.2V for servos, Default is 5

FC Specifications

  • MCU: STM32F405RGT6, 168MHz , 1MB Flash

  • IMU: ICM42688-P

  • Baro: SPL06-001

  • OSD: AT7456E

  • Blackbox: 16M Flash

  • 5x UARTs,  1x Softserial_Tx option(INAV)

  • 12x PWM outputs

  • 1x I2C

  • 3x ADC (VBAT, Current, RSSI)

  • 1x spare PINIO

  • USB/Beep Extender with Type-C(USB2.0)

  • Built in inverter on UART2-RX for SBUS input

  • Switchable Dual Camera Inputs

Power

  • 6~30V DC IN (2~6S LiPo)

  • 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)

  • PDB/Current sense resistor: 90A continuous, 132A burst.

  • BEC 5V 1.5A for FC & Peripherals

  • BEC Vx 5A for servos, 5V/ 6V option

  • Vbat for VTX and camera

  • LDO 3.3V 200mA

  • Battery Voltage Sensor: 1k:20k

FC Firmware

  • ArduPilot: MatekF405-TE

  • INAV: MATEKF405TE (INAV 5.0 or newer)

Physical

  • Dimensions: 31 x 26 x 16.5 mm

  • Mounting: 22 x 22mm, Φ2mm

  • Weight: 10g

Including

  • 1x F405-WMN

  • 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.

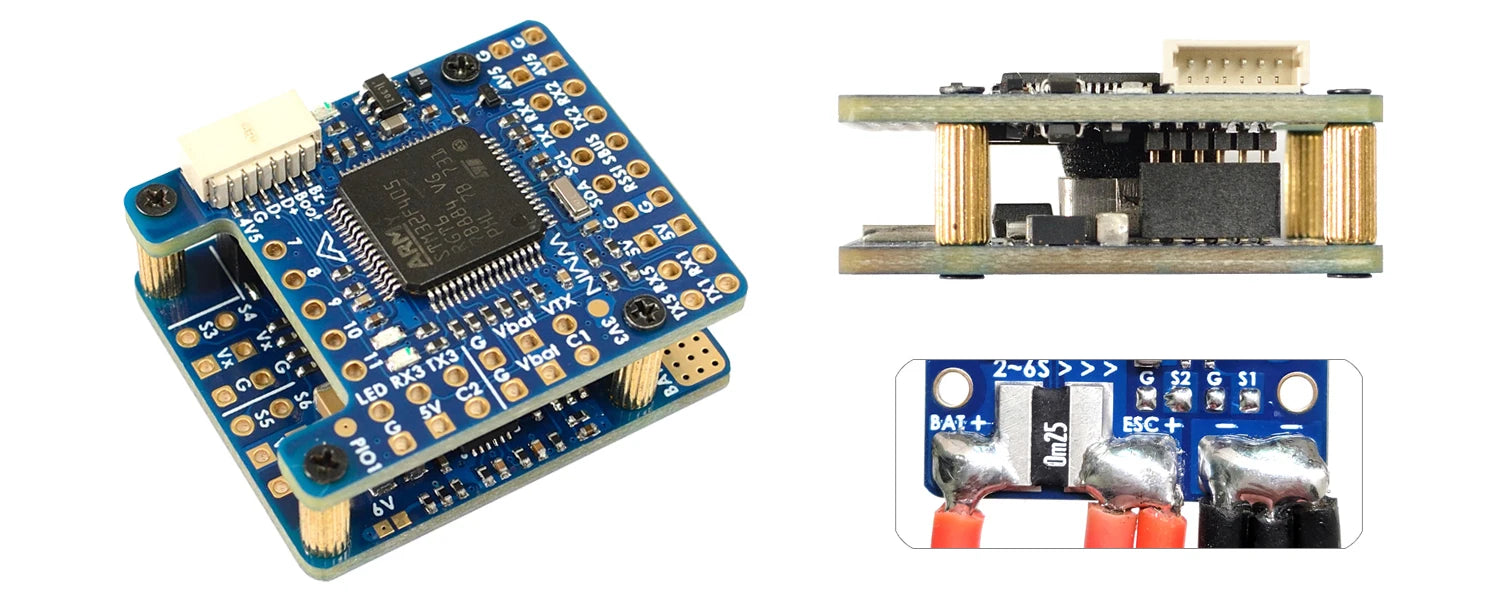

  • Dupont 2.54 pins  (Board is shipped unsoldered)
