MATEK ELRS-R24-S – Mateksys ELRS 2.4GHz receiver

$37.24

SKU: N/A Category:

Description

MATEK ELRS-R24-SĀ SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,3-6y,6-12y,0-3y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

EXPRESSLRS/ELRS 2.4GHZ RECEIVER

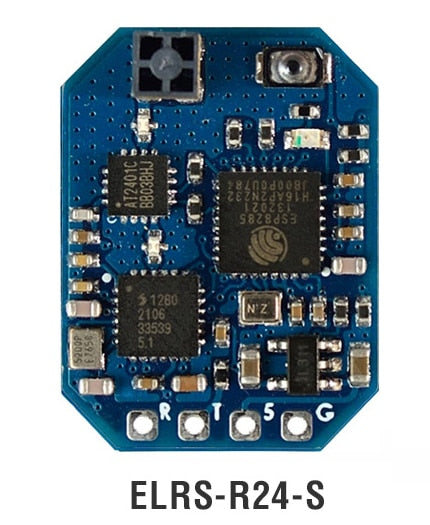

ELRS 2.4GHz receiver, ELRS-R24-S

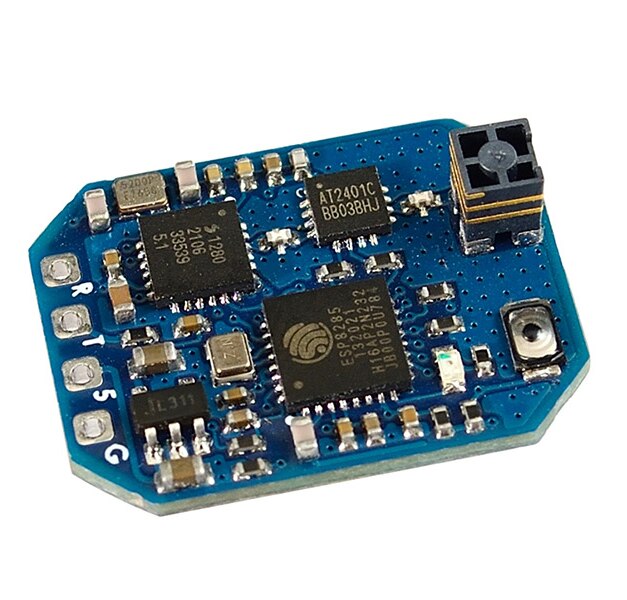

MATEK ELRS-R24-S, ESP8285 , SX128OIMLTRT PAJLNA:

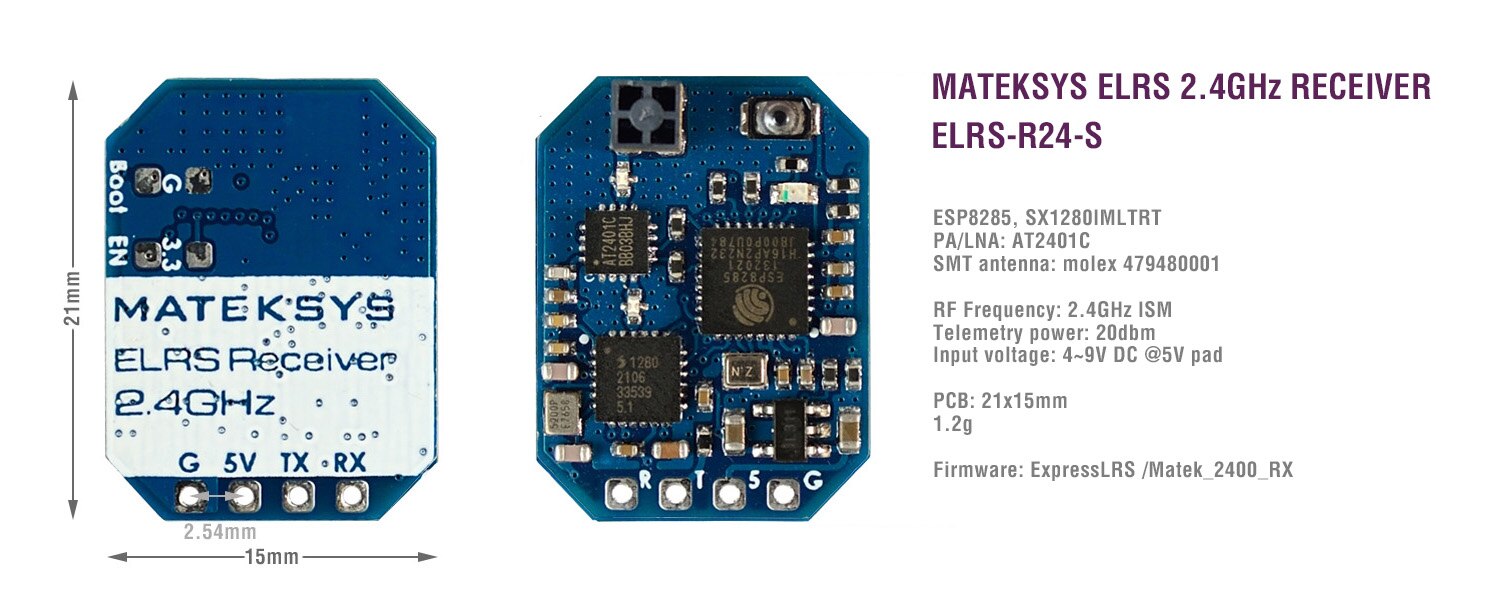

ESP8285 , SX128OIMLTRT PAJLNA: AT2401C 5 23 2240848896 SMT antenna: molex 479480001 5829053 MATEKSYS RF Frequency: 2.4GHz ISM Telemetry power: 2Odbm ELRSReceiver 71280 Input voltage: 4-9V DC @SV 2106 33539 2AGHz .

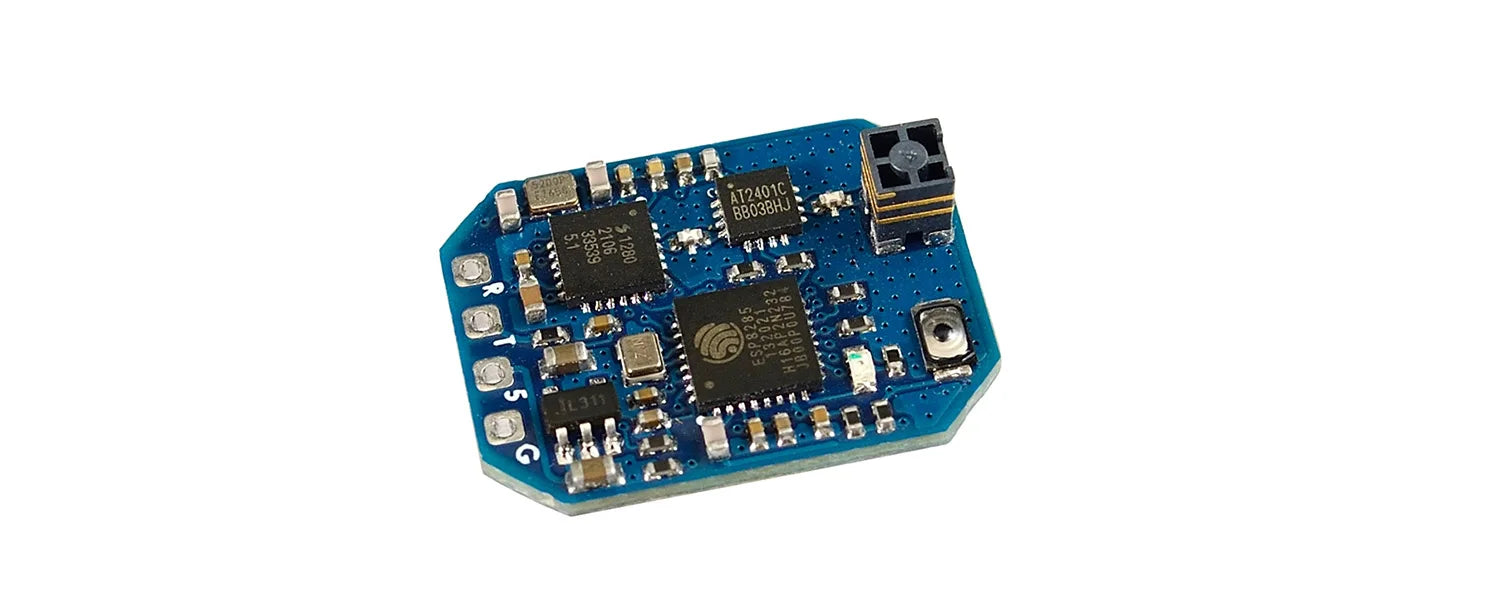

MATEK ELRS-R24-S SPECIFICATIONS Use

ELRS-R24-S Specifications

  • ESP8285, SX1280/1281IMLTRT

  • PA/LNA: AT2401C

  • molex 479480001 SMT antenna

  • RF Frequency: 2.4GHz ISM

  • Telemetry power: 20dbm

  • AT2401C Rx_gain: 12dB

  • Receiver protocol: CRSF

  • Input voltage: 4~9V DC @ 5V pad

  • Power dissipation:Ā  40~45mA(before binding), 60~65mA(binding), 90~95mA(wifi mode)

  • PCB size: 21mm x 15mm

  • Weight: 1.2g

  • Packing: 1x ELRS-R24-S

For more information
