2023 New KST X08 V5.0 Metal Gear 2.7kg.cm@7.4V Servo SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Tool Supplies: Assembled class
Technical parameters: Value 5
Size: As show
Remote Control Peripherals/Devices: Servos
Recommend Age: 14+y,12+y
RC Parts & Accs: Servos
Origin: Mainland China
Model Number: KST X08 V5.0
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore

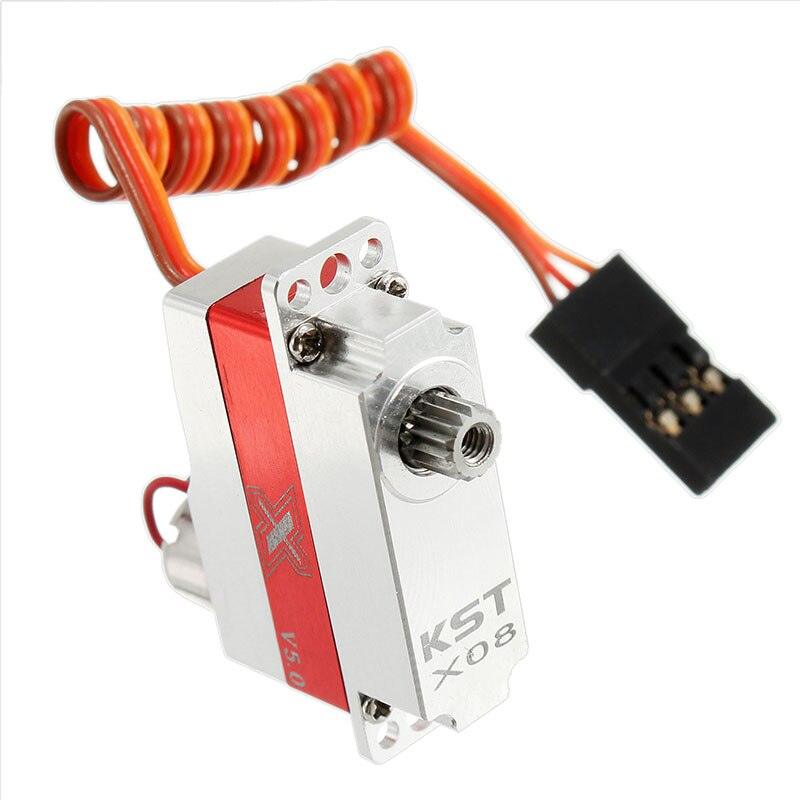

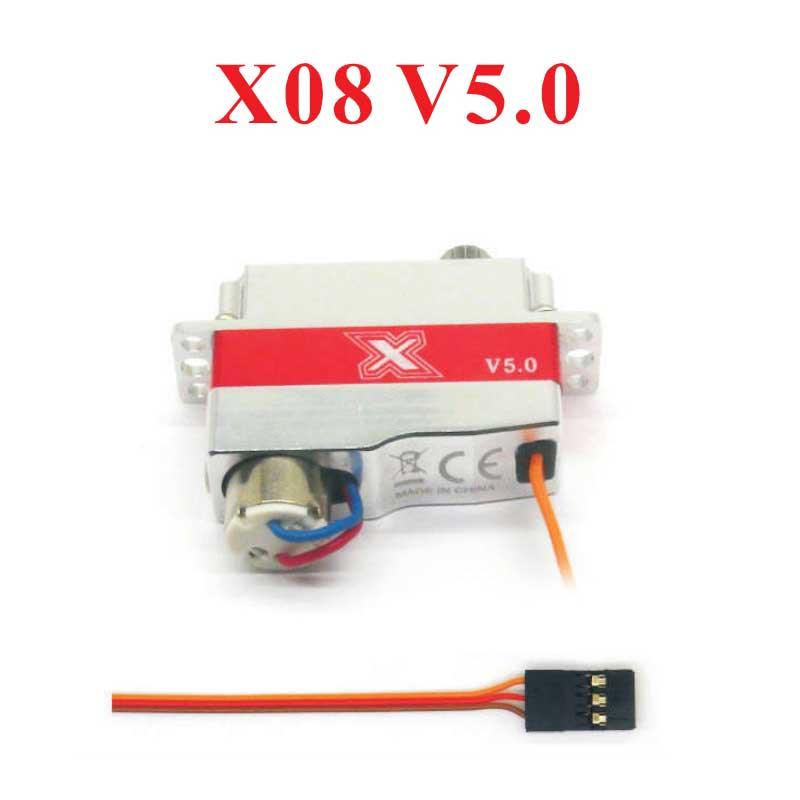

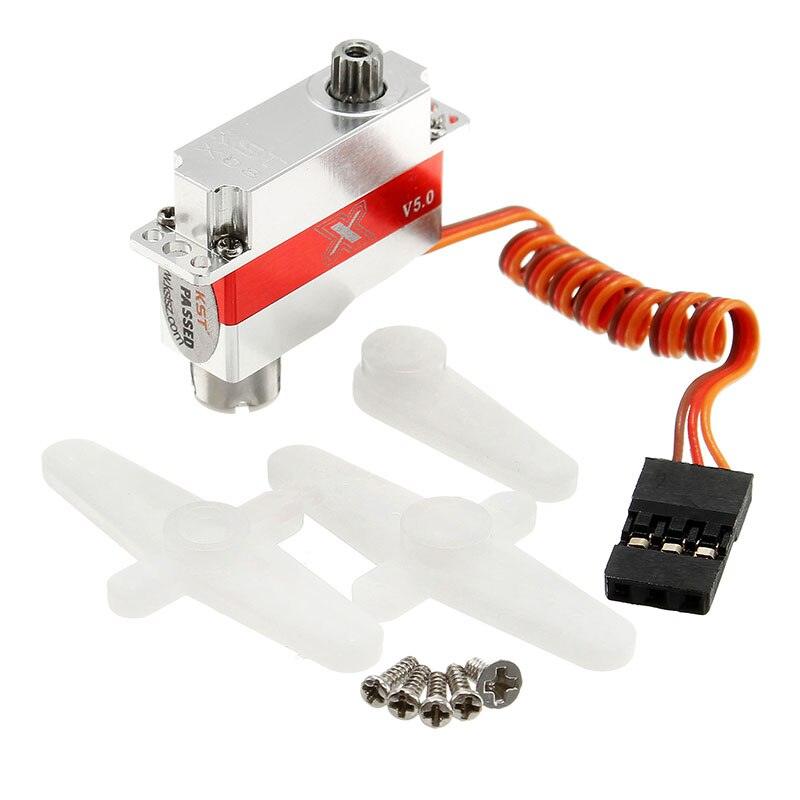

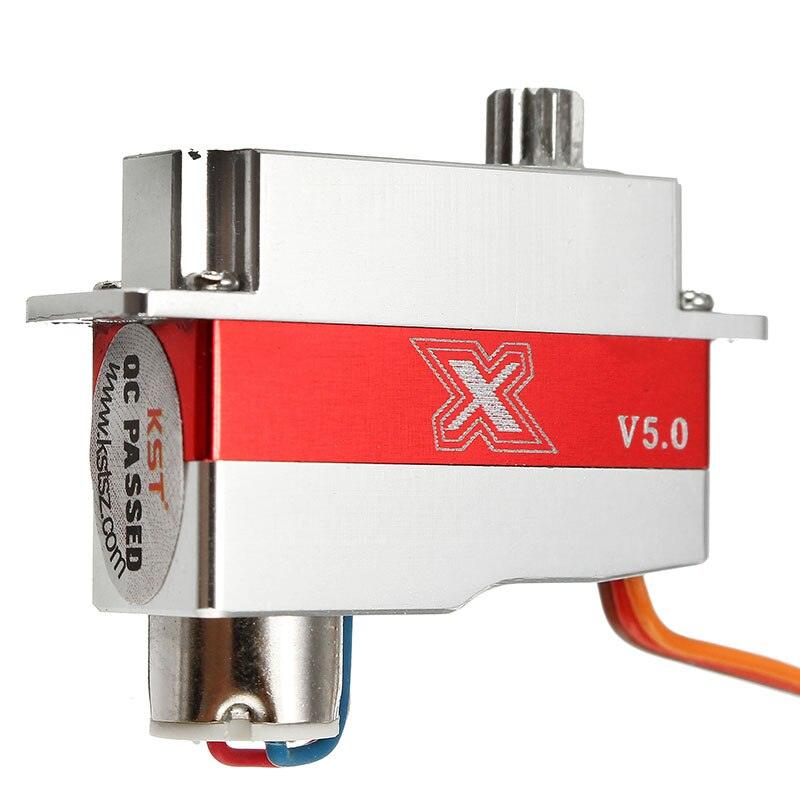

2019 New KST X08 V5.0 Metal Gear 2.7kg.cm@7.4V 9g Digital Wing Coreless Servo for RC Model Operation Voltage 3.8-8.4V

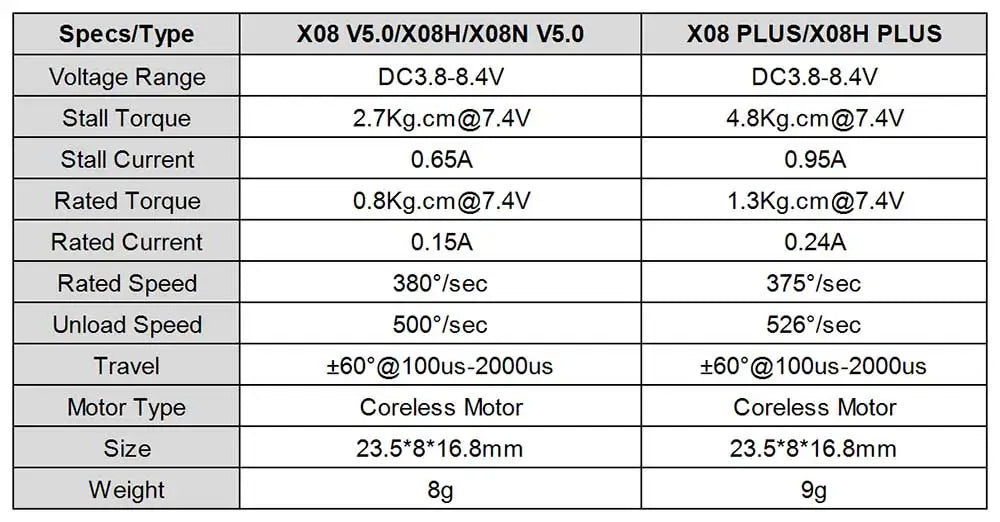

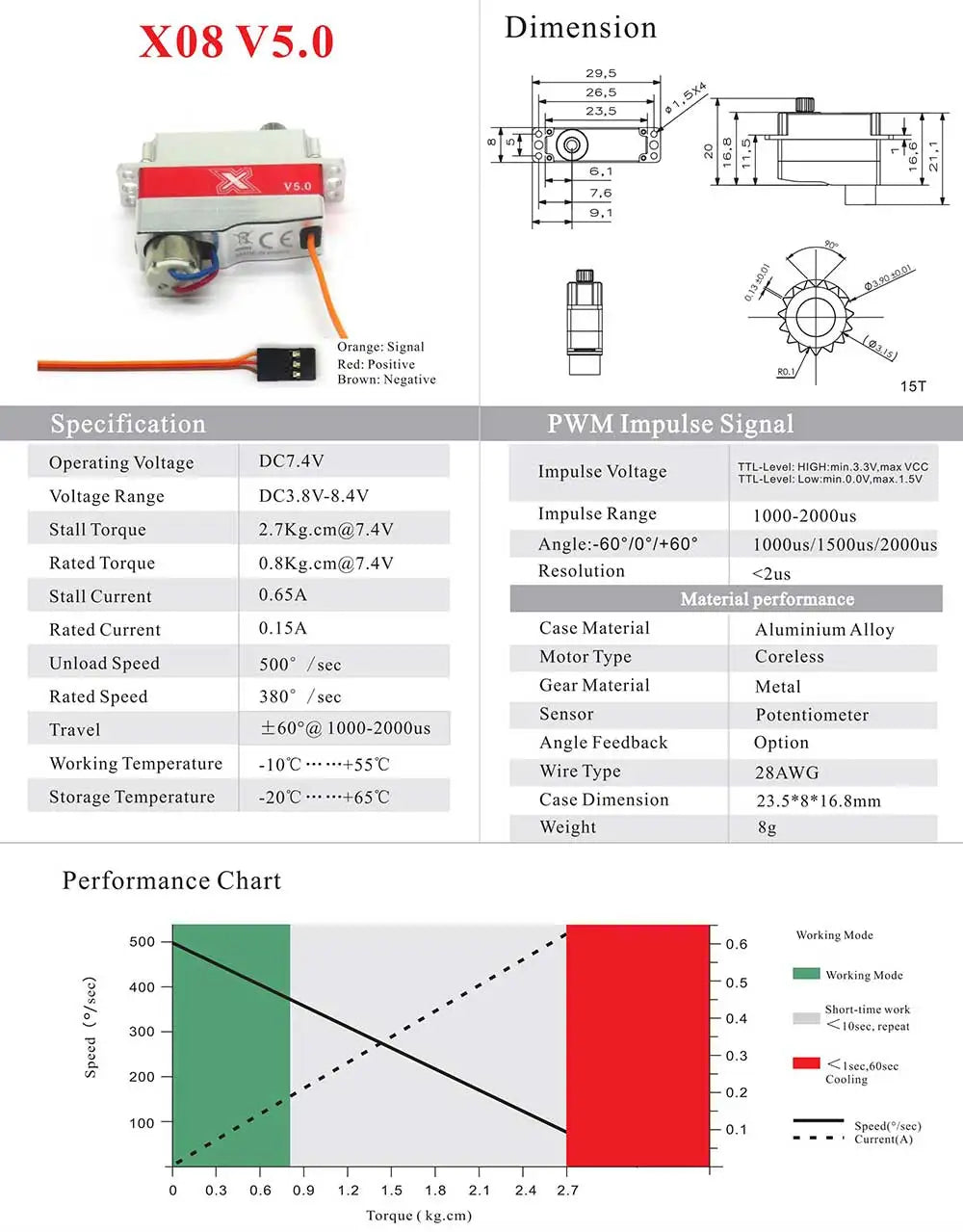

X08 V5.0 Specifications
The product features a voltage range of 3.8-8.4V, with a stall torque of 2.7 kg-cm at 7.4V and an angle range of -60° to +60°. The servo has the following specifications: case material is aluminum alloy, unload speed is 500°/sec, motor type is coreless metal gear, rated speed is 380°/sec, sensor type is potentiometer with a travel of 1609, and angle feedback option available. It can operate within a temperature range of -10°C to +55°C and has a wire type of 28AWG. Storage temperature should be within the same range.
Product Specifications: KST X08 V5.0 Metal Gear Servo – Coreless Motor Version
* Voltage Range: DC 3.8-8.4V
* Torque: 2.7kg.cm @ 7.4V (Stall Current: 9g)
* Rated Torque: 0.15A (at 3802/second) and 0.24A (at 3756/second)
* Rated Speed: Up to 500
