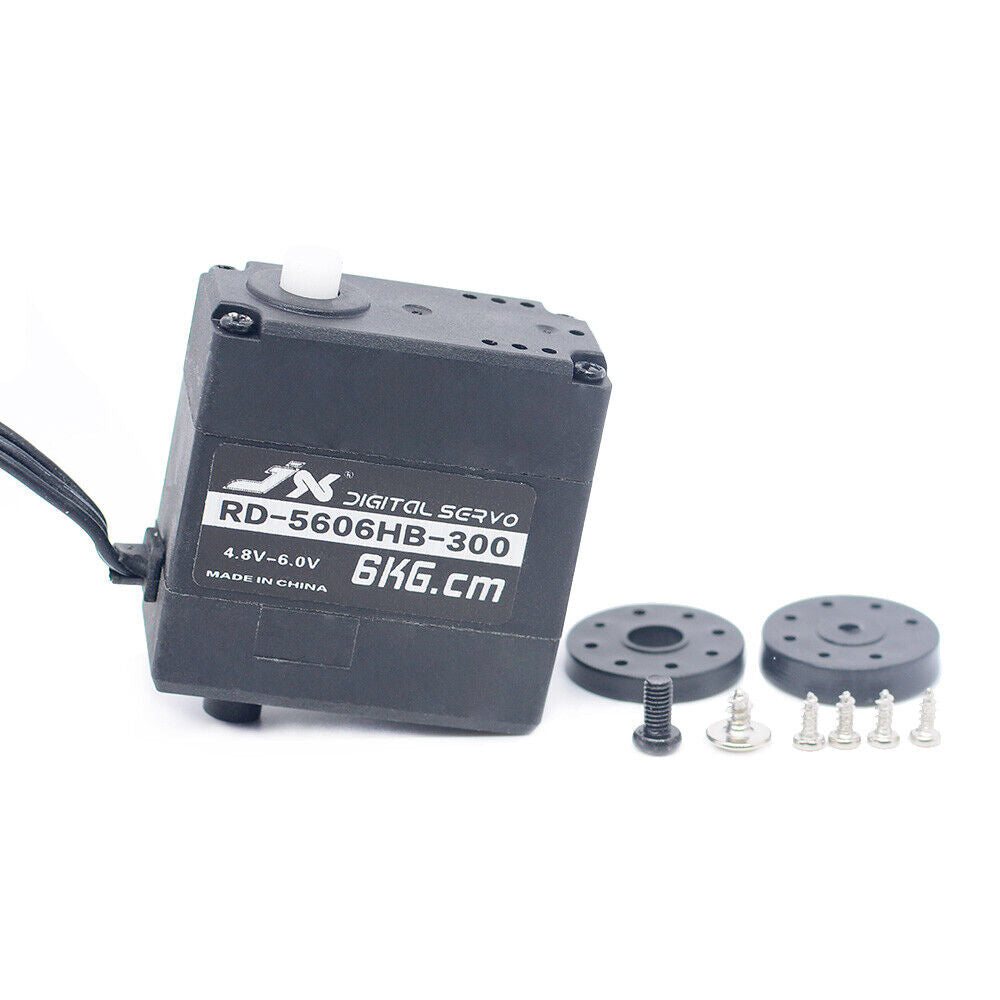

JX Servo RD-5606HB - 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo

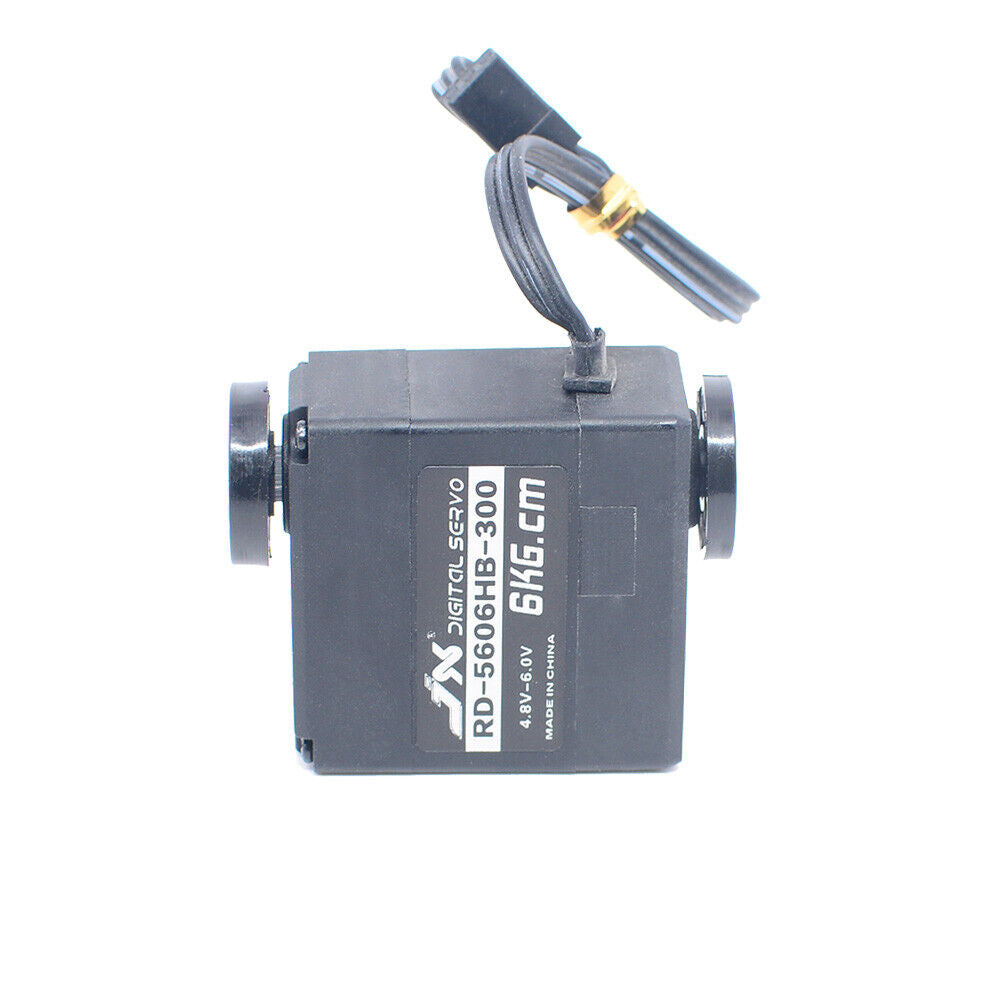

JX Servo RD-5606HB - 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo - Image 2

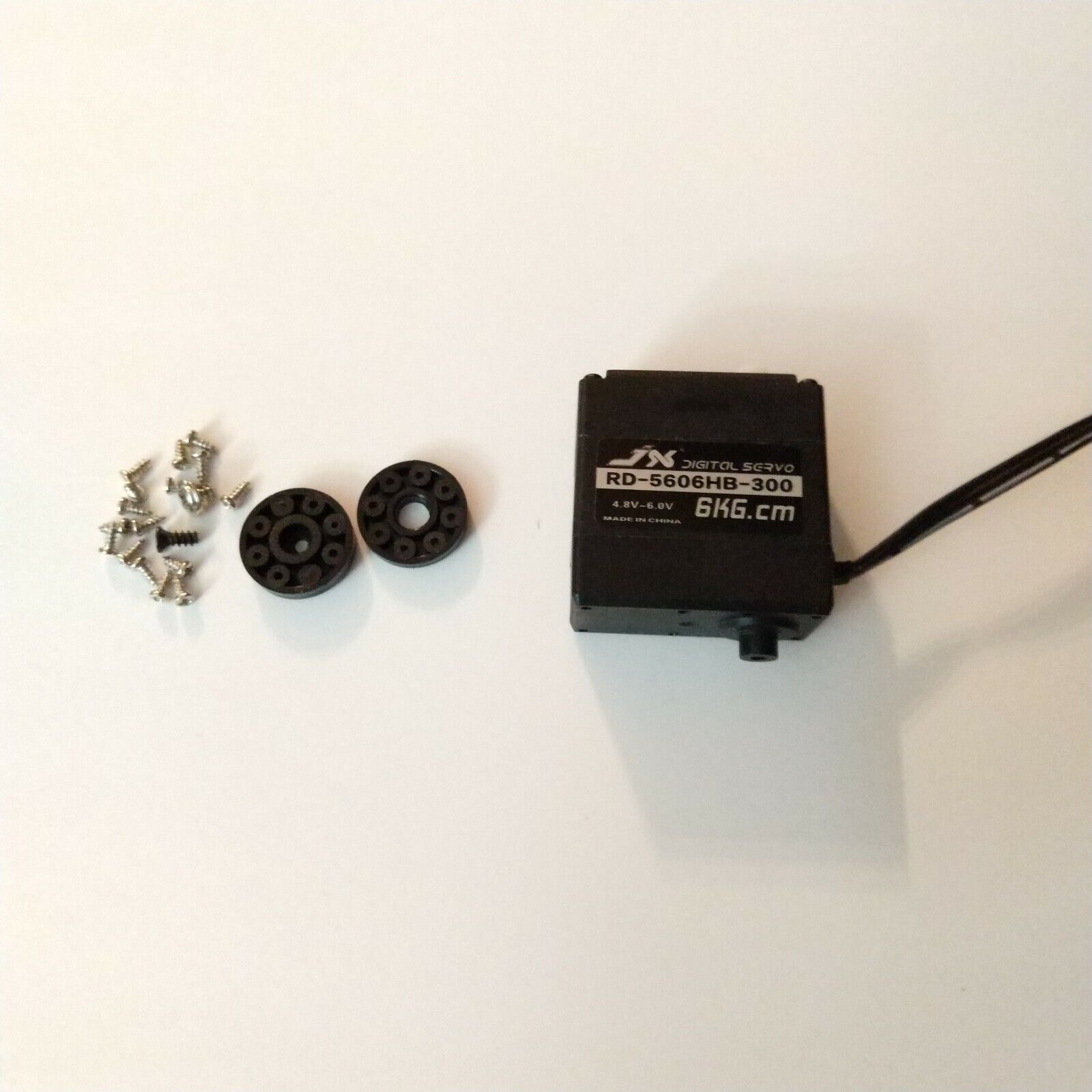

JX Servo RD-5606HB - 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo - Image 3

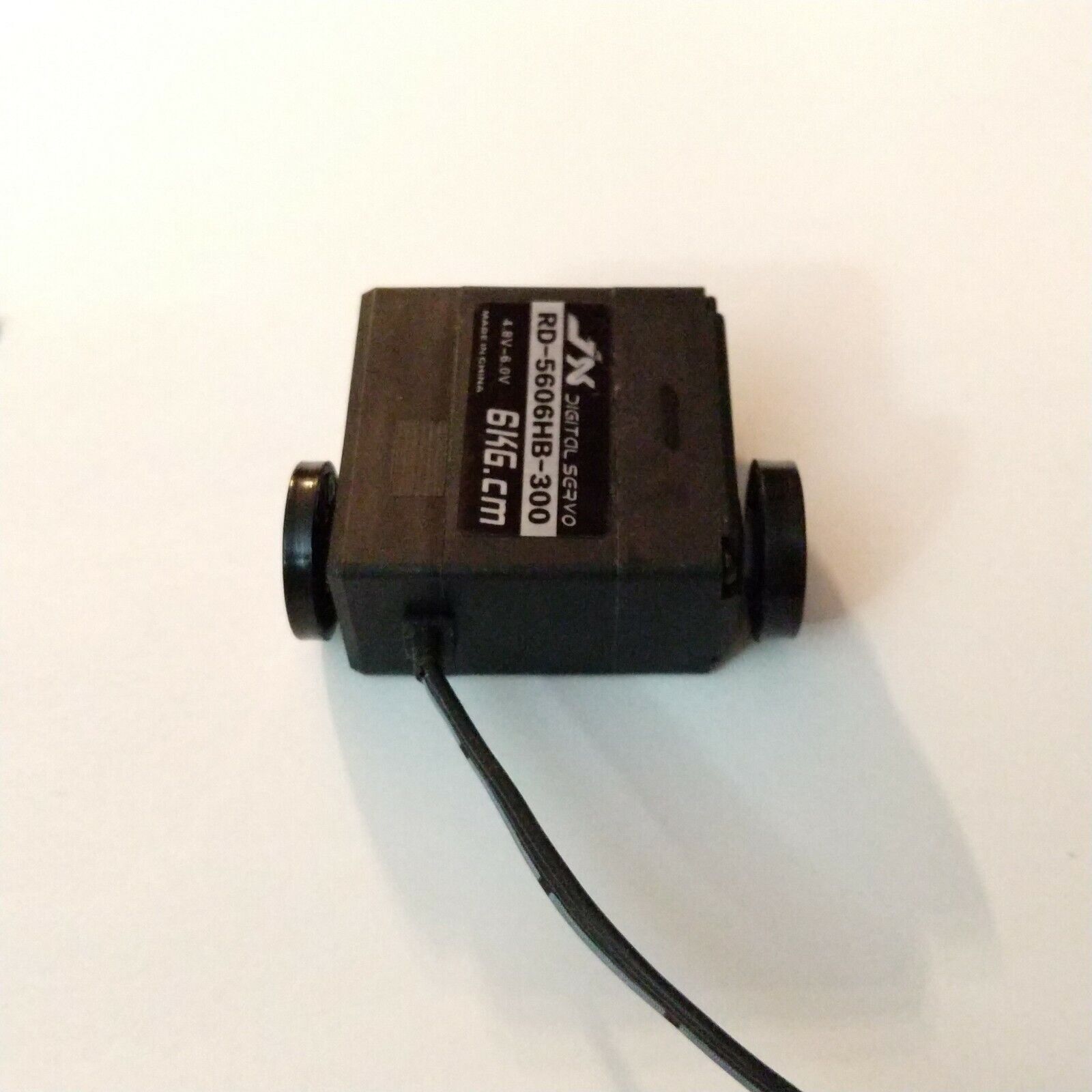

JX Servo RD-5606HB - 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo - Image 4

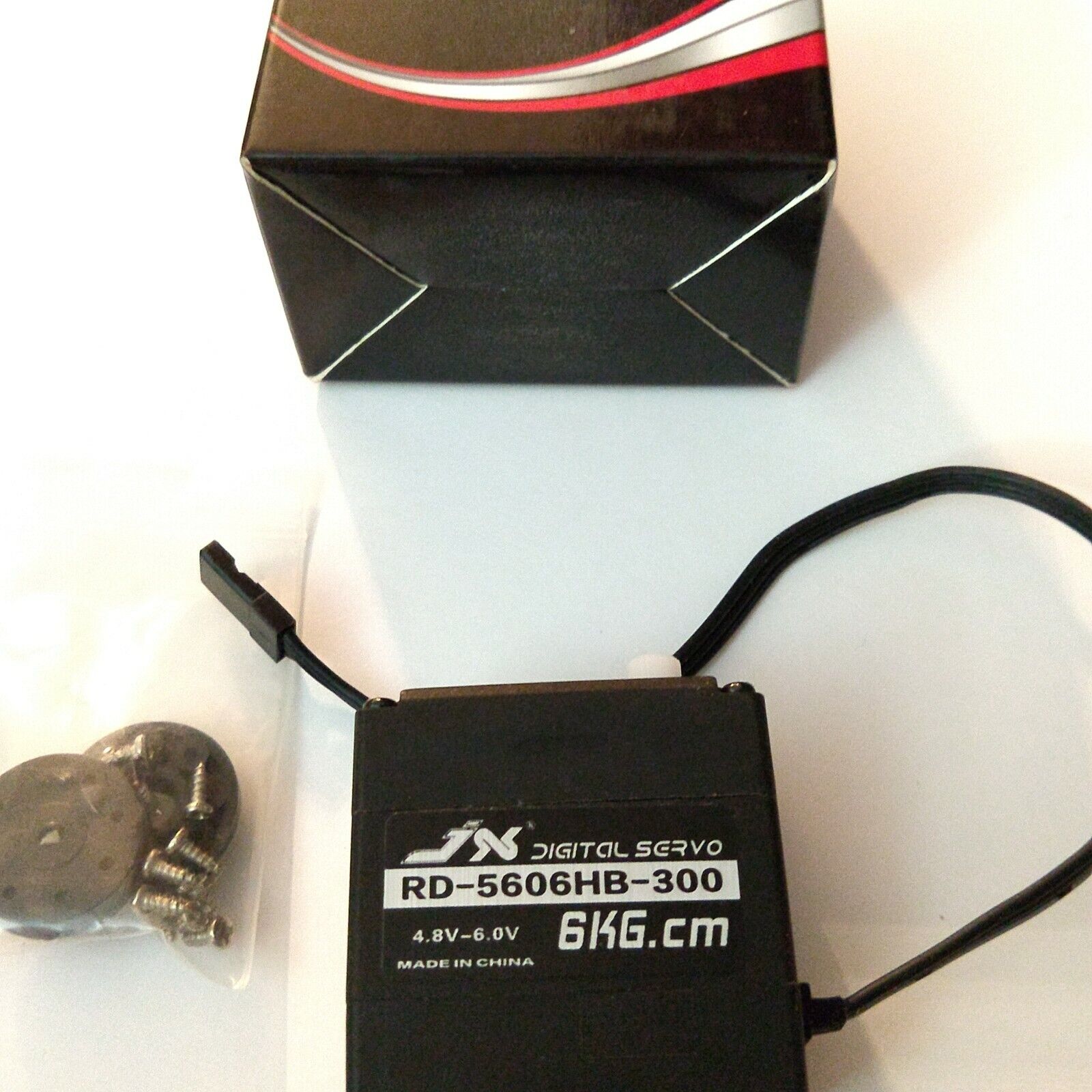

JX Servo RD-5606HB - 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo - Image 5

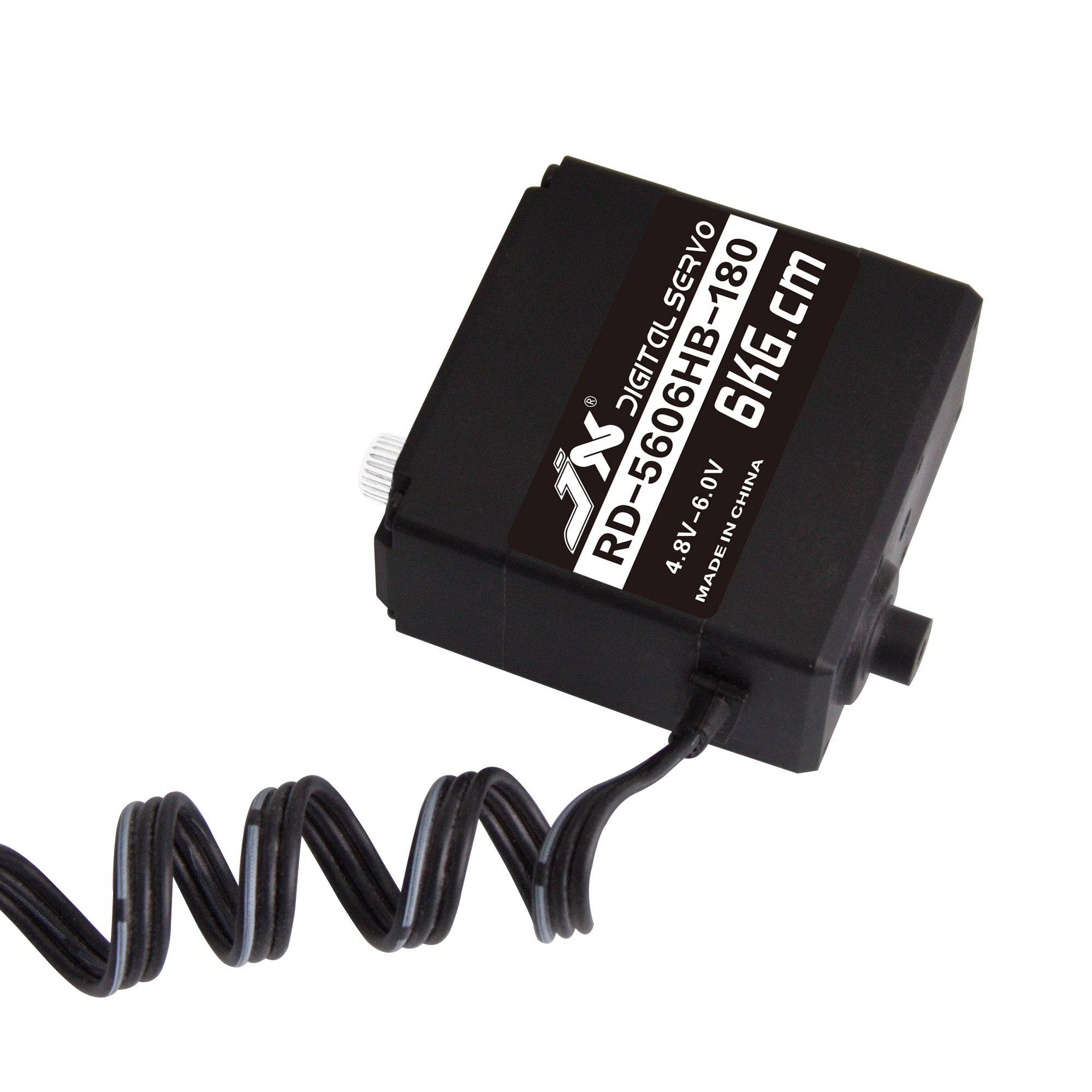

JX Servo RD-5606HB - 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo - Image 6
JX Servo RD-5606HB - 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo - Image 7

The JX Servo RD-5606HB - 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo is a drone product in the Drone Servos category priced at $15.00, featuring -- High performance robot servo.

,

JX Servo RD-5606HB – 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo - Drone Servos

$15.00

+ Free Shipping
- +

Regional payment methods

Payssion regional payment methods
SKU: N/A Categories: ,
Ask for more info

Best Use Cases

  • Recommended for the Drone Servos category.

Key Specifications

  • feature: -- High performance robot servo
  • operating speed(6.0v): 0.12sec/60° Stall torque(4.8V): 5.50 kg.cm
  • stall_torque(6.0v): 6.20kg.cm
  • demension: 40.5X20.3X40mm Weight:  47 g Connector Wire Length: JR  200mm  Spline Count: 25T

Compared to Alternatives

Compared to 3 alternatives in the Drone Servos category, the JX Servo RD-5606HB - 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo is $15.00.

Frequently Asked Questions

  • What are the key specifications of JX Servo RD-5606HB - 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo?
    Feature: -- High performance robot servo; Operating speed(6.0v): 0.12sec/60° Stall torque(4.8V): 5.50 kg.cm; Stall Torque(6.0v): 6.20kg.cm.
  • How much does JX Servo RD-5606HB - 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo cost in the Drone Servos category?
    JX Servo RD-5606HB - 4.8V 5.50kg.cm 6V 6kg.cm 180° 300° 0.12sec/60°47g Digital Plastic Gear Robot Servo is available at priced at $15.00 on 100drone.com.

Detailed introduction

FEATURE:
— High performance robot servo

— High quality core motor

— 300° angle


SPECIFICATIONS:

Dead band: 4μs
Neutral point: 1500μs
Pulse width：500μs-2500μs
Motor: Core
Max angle：300°±2°
Frequence: 330hz
Operating Voltage：4.8V-6V
Operating Speed(4.8V): 0.14sec/60°

Operating Speed(6.0V): 0.12sec/60°
Stall torque(4.8V): 5.50kg.cm

Stall torque(6.0V): 6.20kg.cm

Demension: 40.5X20.3X40mm
Weight:  47 g
Connector Wire Length: JR  200mm
Spline Count: 25T

Degree

180, 300
