JX Servo PDI-5509MG SPECIFICATIONS
Brand Name: JX
Origin: Mainland China
Material: Metal
RC Parts & Accs: Servos
Size: 40.5X20.5X36mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Servos
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Technical parameters: Value 5
Model Number: PDI-5509MG
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Factory supply，Huge stocks, Support wholesale！Please kindly to contact us, the price can be negotiated 🙂
FEATURE:
— High performance digital standard servo
— High-precision Taiwan-made metal gears
— High quality brushed motor
— Dual ball bearings
SPECIFICATIONS:
Dead band: 2μsl
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.15 sec/60 degrees
Operating Speed (6.0V): 0.13 sec/60 degrees
Stall Torque (4.8V): 8.65 kg.cm (120.15 oz/in)
Stall Torque (6.0V): 9.35 kg.cm (129.88 oz/in)

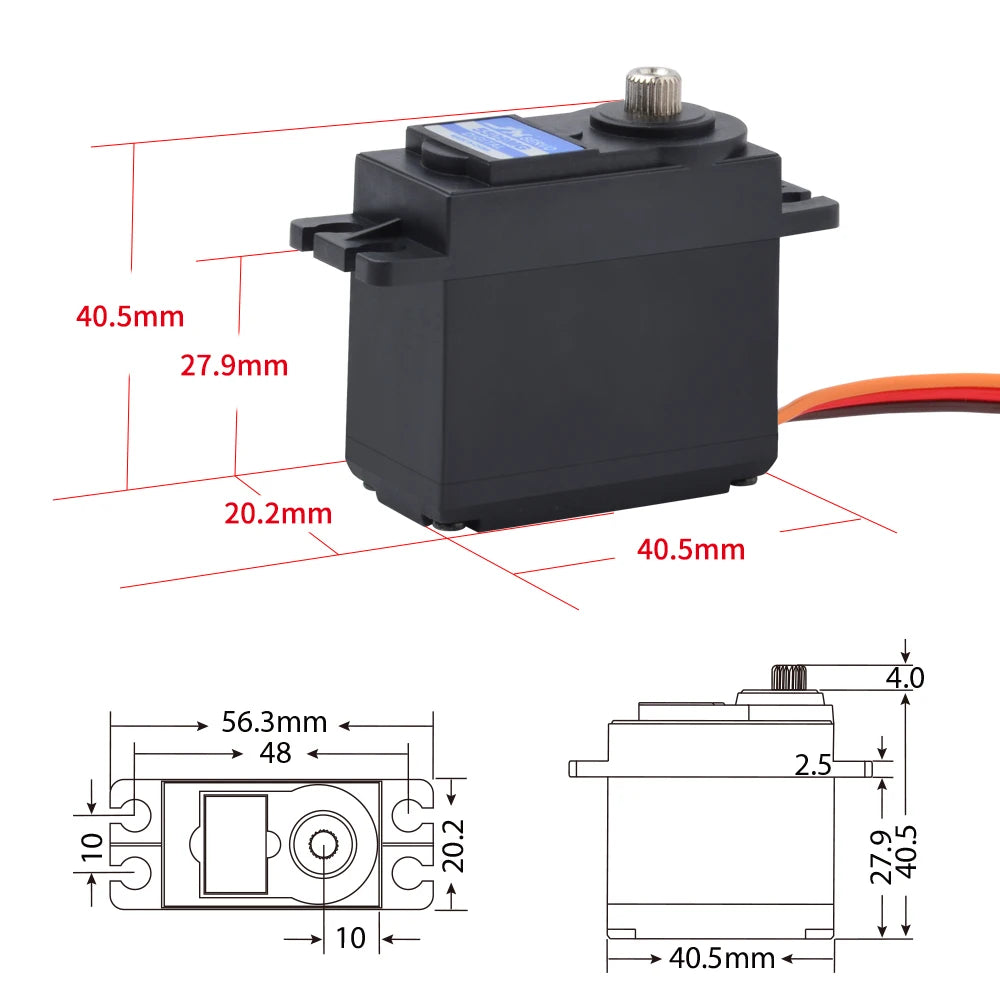

Dimensions: 40.5X20.2X38mm/1.59X0.80X1.49 in
Weight: 55.6 g (1.96oz)

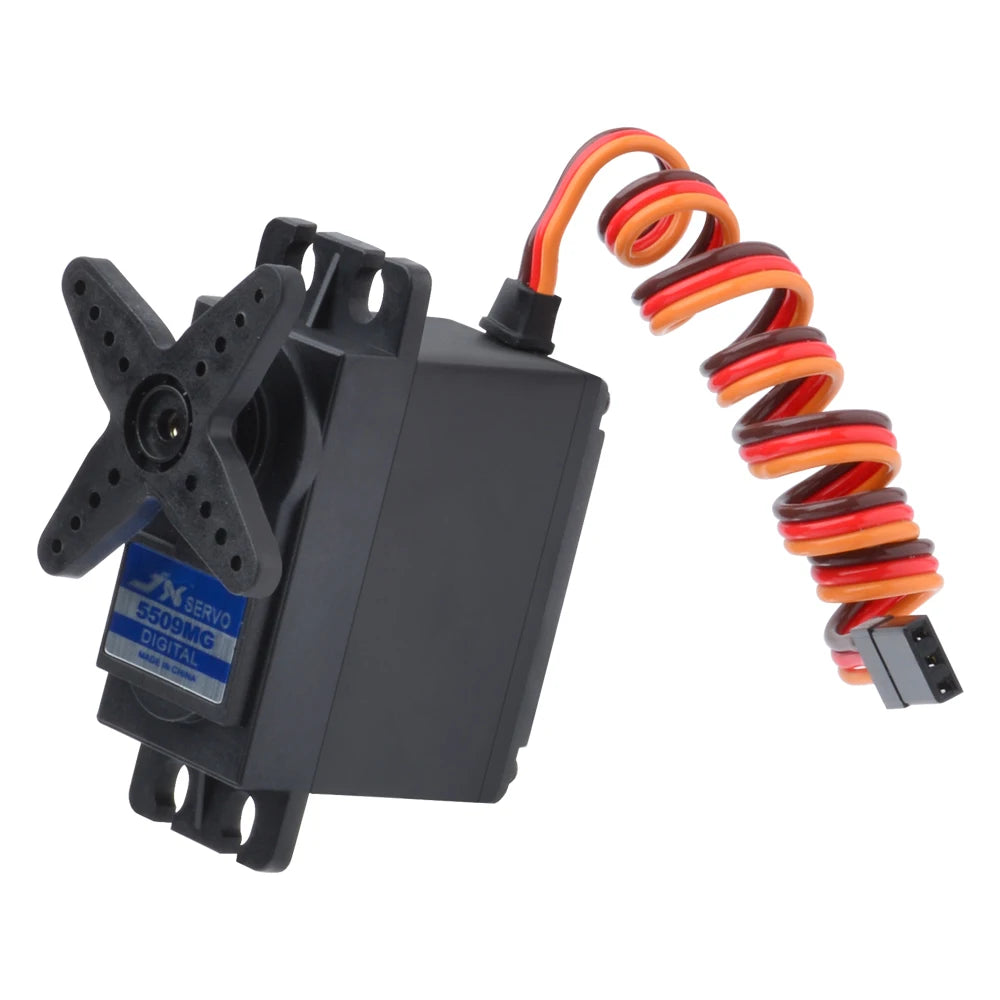

Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Tooth Count：25
