The JX Servo PDI-4409MG - 4.8V 7.8kg 6V 9kg Standard Short Digital Servo for 1/8 1/10 RC Car is a drone product in the Drone Servos category priced at $19.00, featuring 2μs.

,

JX Servo PDI-4409MG – 4.8V 7.8kg 6V 9kg Standard Short Digital Servo for 1/8 1/10 RC Car - Drone Servos

$19.00

+ Free Shipping
- +

Regional payment methods

Payssion regional payment methods
SKU: N/A Categories: ,
Ask for more info

Best Use Cases

  • Recommended for the Drone Servos category.

Key Specifications

  • dead_band: 2μs
  • working_frequence: 1520μs / 330hz
  • motor: high quality core motor
  • operating_speed_(4.8v): 0.13 sec/60°
  • operating_speed_(6v): 0.11 sec/60°
  • stall_torque_(4.8v): 7.8 kg.cm
  • stall_torque_(6v): 9.2 kg.cm
  • metal_teeth: 25T

Compared to Alternatives

Compared to 3 alternatives in the Drone Servos category, the JX Servo PDI-4409MG - 4.8V 7.8kg 6V 9kg Standard Short Digital Servo for 1/8 1/10 RC Car is $19.00.

Frequently Asked Questions

  • What are the key specifications of JX Servo PDI-4409MG - 4.8V 7.8kg 6V 9kg Standard Short Digital Servo for 1/8 1/10 RC Car?
    Dead Band: 2μs; Working Frequence: 1520μs / 330hz; Motor: high quality core motor.
  • How much does JX Servo PDI-4409MG - 4.8V 7.8kg 6V 9kg Standard Short Digital Servo for 1/8 1/10 RC Car cost in the Drone Servos category?
    JX Servo PDI-4409MG - 4.8V 7.8kg 6V 9kg Standard Short Digital Servo for 1/8 1/10 RC Car is available at priced at $19.00 on 100drone.com.

SPECIFICATIONS

Brand Name: JX

Origin: Mainland China

Material: Composite Material

RC Parts & Accs: Servos

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Servos

Tool Supplies: Battery

Technical parameters: KV1100

Model Number: PDI-4409MG

Four-wheel Drive Attributes: Assemblage

FEATURE:

High-performance standard digital servo

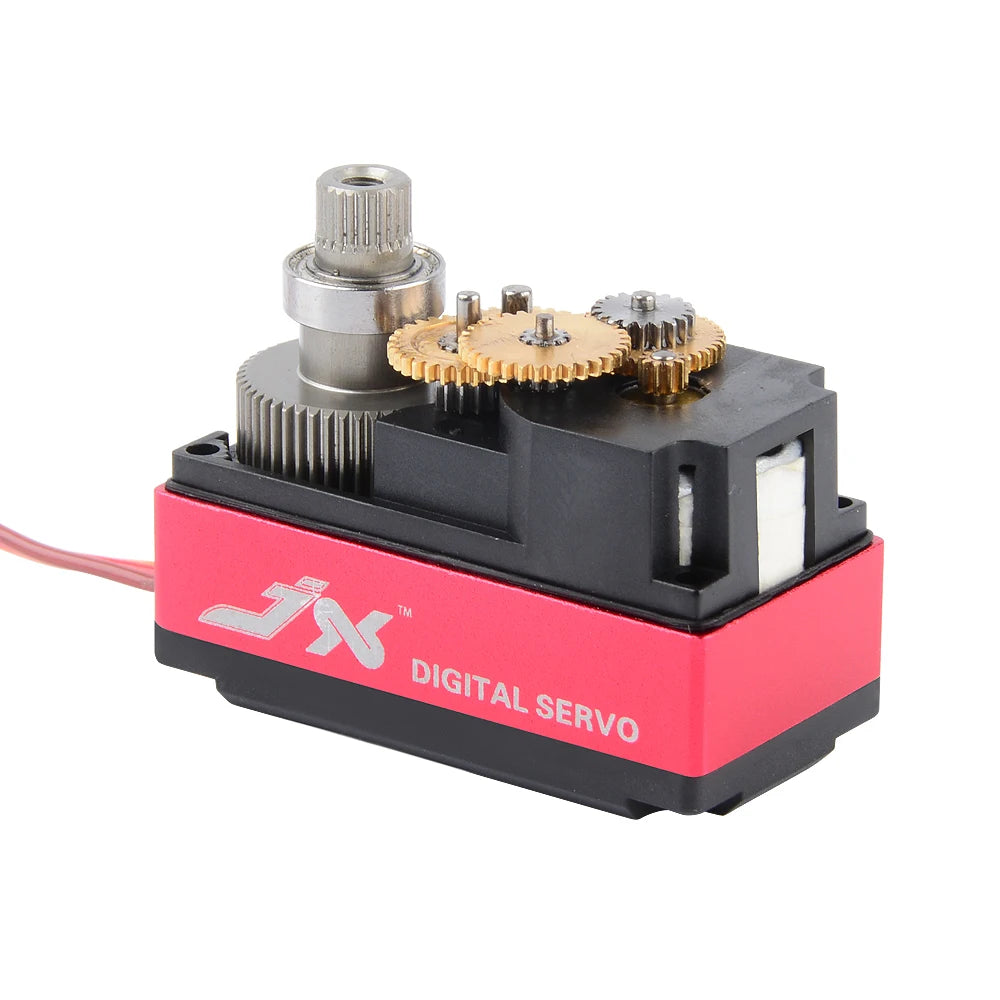

High-precision metal gear

High-quality brushed motor

Dual ball bearing

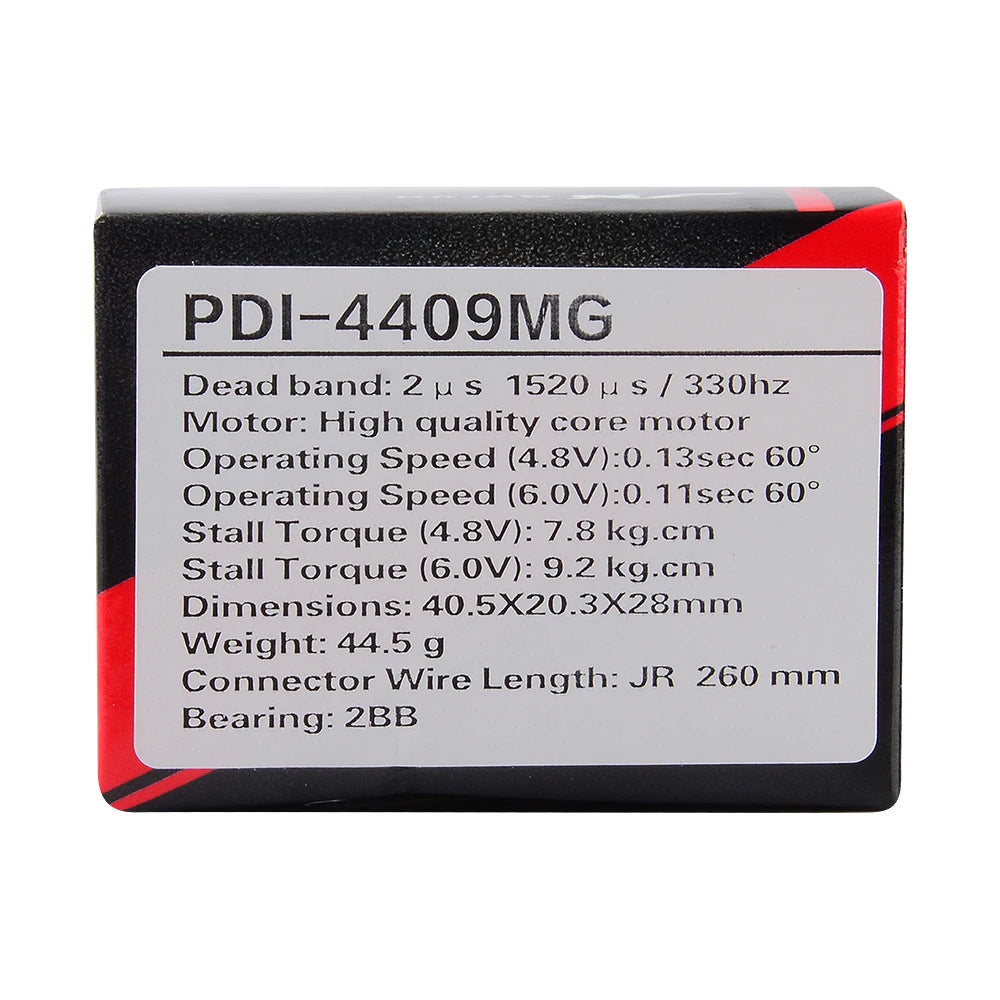

SPECIFICATIONS:

Dead band:2μs

Working frequence:1520μs / 330hz

Motor:high quality core motor

Operating Speed (4.8V):0.13 sec/60°

Operating Speed (6V): 0.11 sec/60°

Stall Torque (4.8V):7.8 kg.cm

Stall Torque (6V):9.2 kg.cm

Metal Teeth:25T

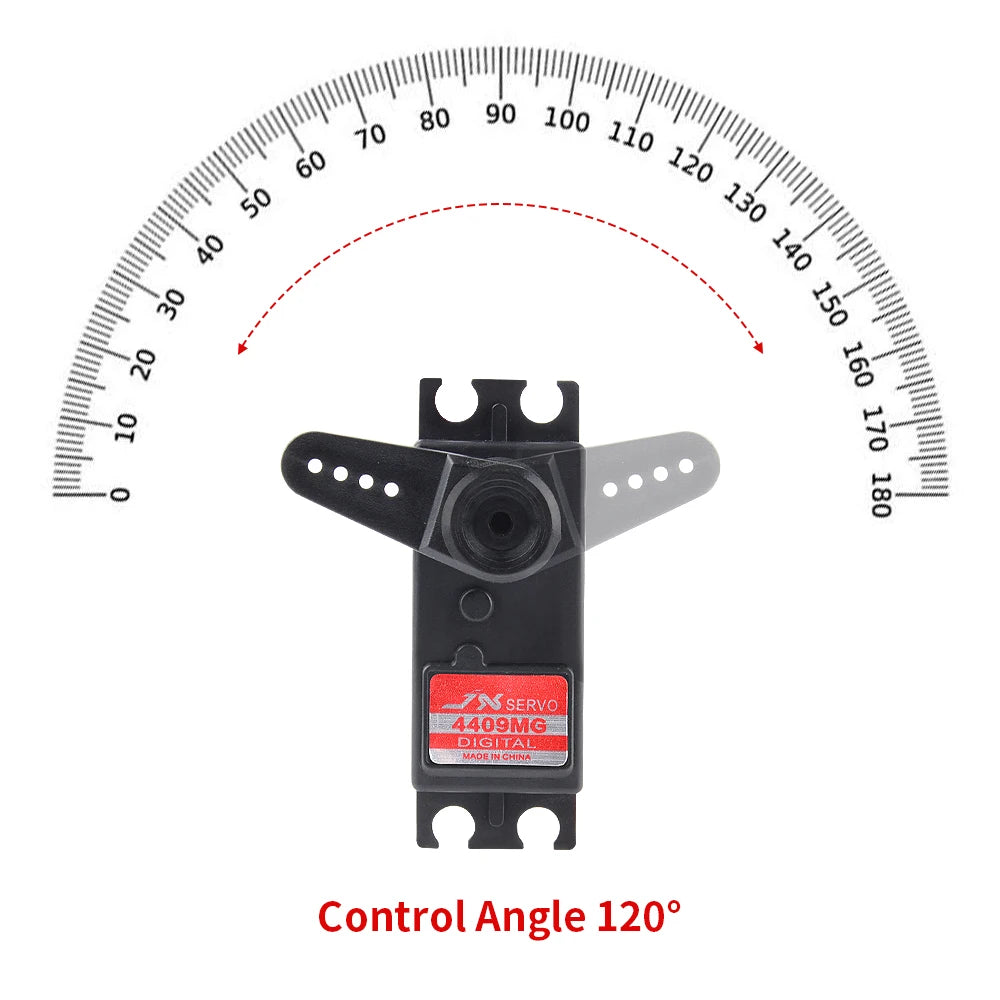

Control Angel:120 Degree

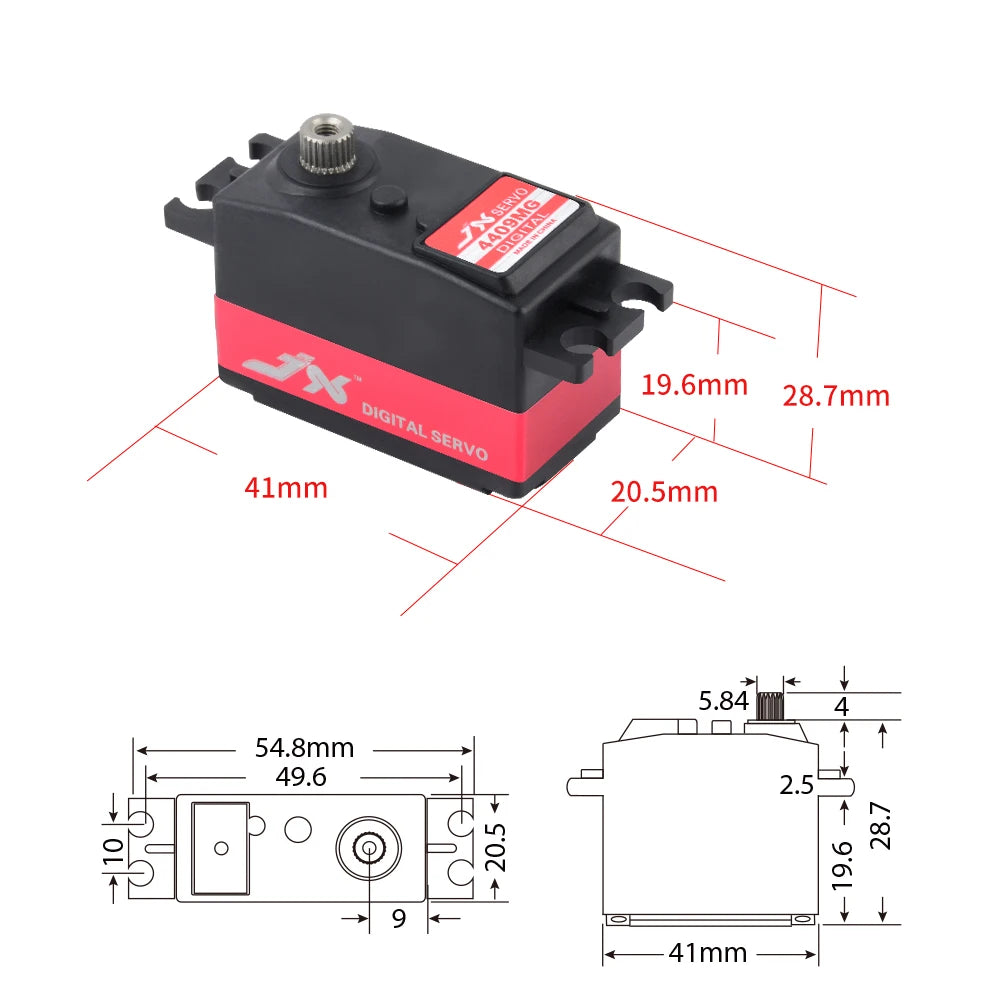

Dimensions:40.5X20.3X28mm

Weight:44.5 g

Connector Wire Length:JR  265 mm

Bearing:2BB

JX Servo, Servo PDI-4409JX Servo, JX Origin : Mainland China Material : Composite Material RC Parts &JX Servo, JX Origin : Mainland China Material : Composite Material RC Parts &JX Servo, 19.6mm 28.7mm 4lmm 20.5mm 5.84 54.8mm 49

19.6mm 28.7mm 4lmm 20.5mm 5.84 54.8mm 49.6 2.5 LO 8 8 8 41mm JXeEivo A4oemg hera 3X DIGITaL Sea

JX Servo, JX Origin : Mainland China Material : Composite Material RC Parts &JX Servo, SerVo Aademg Dish Mrdli Chita 4S DIJX Servo, JX Origin : Mainland China Material : Composite Material RC Parts &JX Servo, JX Origin : Mainland China Material : Composite Material RC Parts &JX Servo, Servo PDI-4409JX Servo, VNIMO Mi zovw Vsid OwsovvJX Servo, Mend Qwirawn Onrkc 47X DIGITAL SERVJX Servo, Servo PDI-4409

Product Specifications:
* Dead Band: 2 microseconds (1520 Hz)
* Motor: High-quality core motor
* Operating Speed (4.8V): 0.13 seconds
* Operating Speed (6.0V): 0.19 seconds
* Stall Torque (4.8V): 7.8 kilograms-force centimeters
* Stall Torque (6.0V): 9.2 kilograms-force centimeters
* Dimensions: 40.5mm x 20.3mm x 28mm
* Weight: 44.5 grams
* Connector Wire Length: [not specified]

JX Servo, WwwJX-SeRvO,com ERoHS Serv
