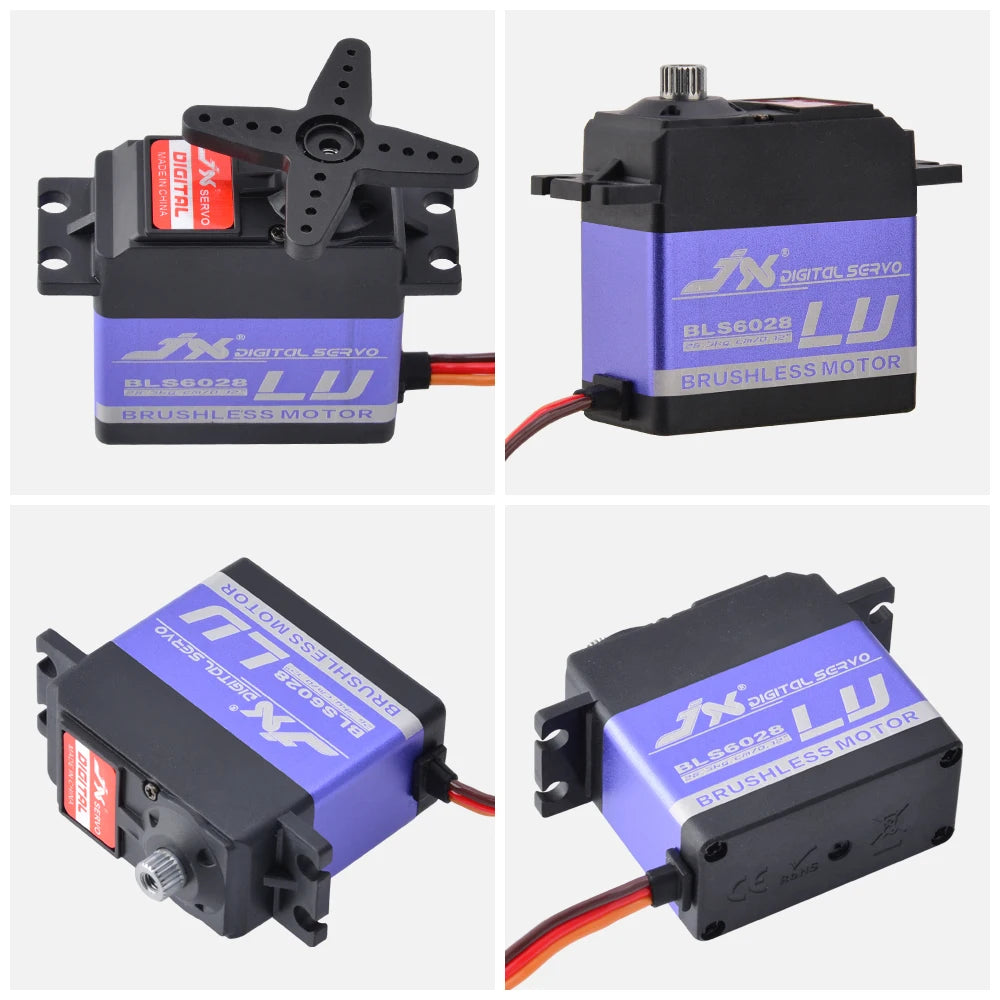

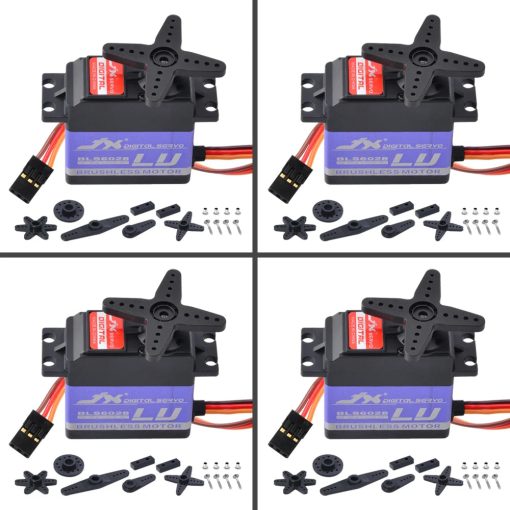

JX Servo BLS6028 – 6V 28kg Servo SPECIFICATIONS
Brand Name: JX
Origin: Mainland China
Material: Composite Material
RC Parts & Accs: Servos
Size: 40.5X20.5X40mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Servos
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Technical parameters: Value 5
Model Number: BLS6028
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Gear Teeth: 25T

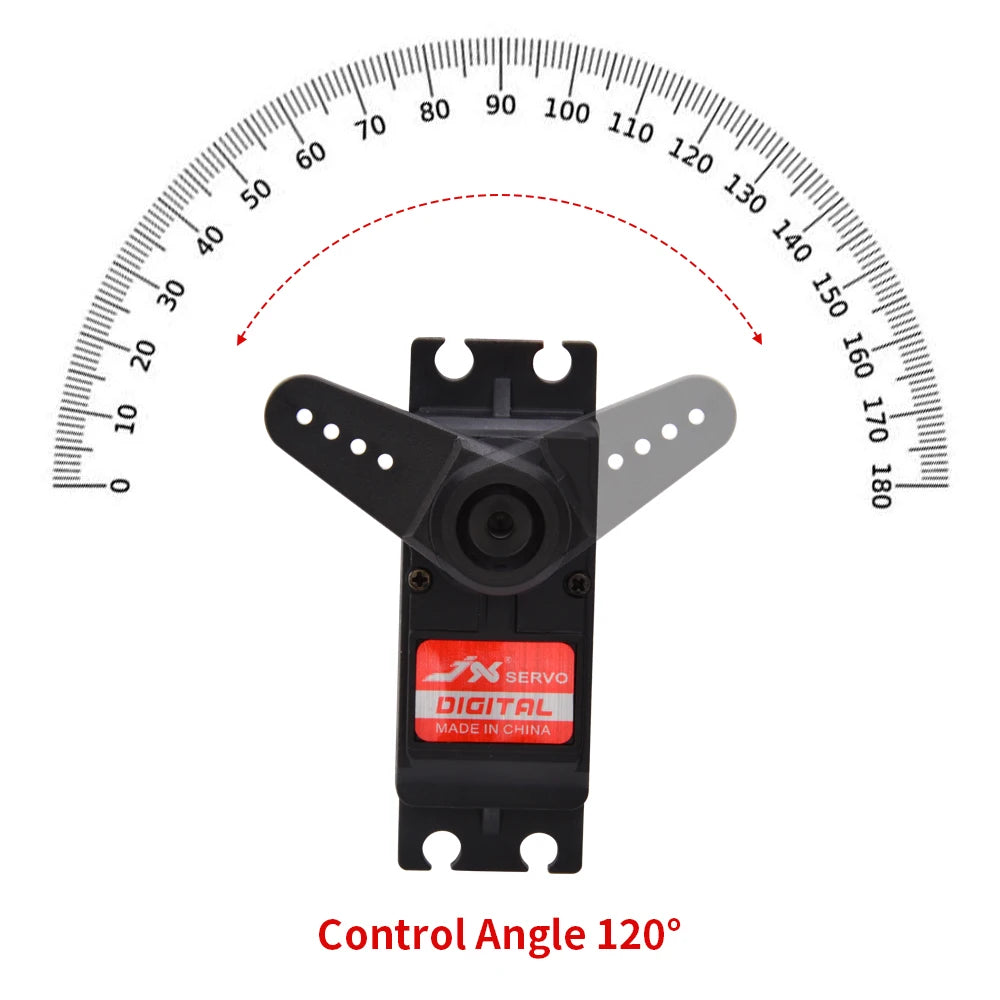

Control Angle: 120 Degree
Factory supply， Huge stocks, Support wholesale！
FEATURE：
—–CNC metal On the cover In the shell
—–High-precision Taiwan-made aluminium gears with hard anodizing
—–High Voltage Brushless Digital Servo
SPECIFICATIONS：
Dead band： 1μs
Working frequence： 1520μs / 330hz
Motor： Brushless
Operating Speed4.8v 0.15 sec/60°
Operating Speed6.0v 0.12 sec/60°
Stall Torque 4.8v 22.5 kg.cm
Stall Torque 6.0v 28.3 kg.cm

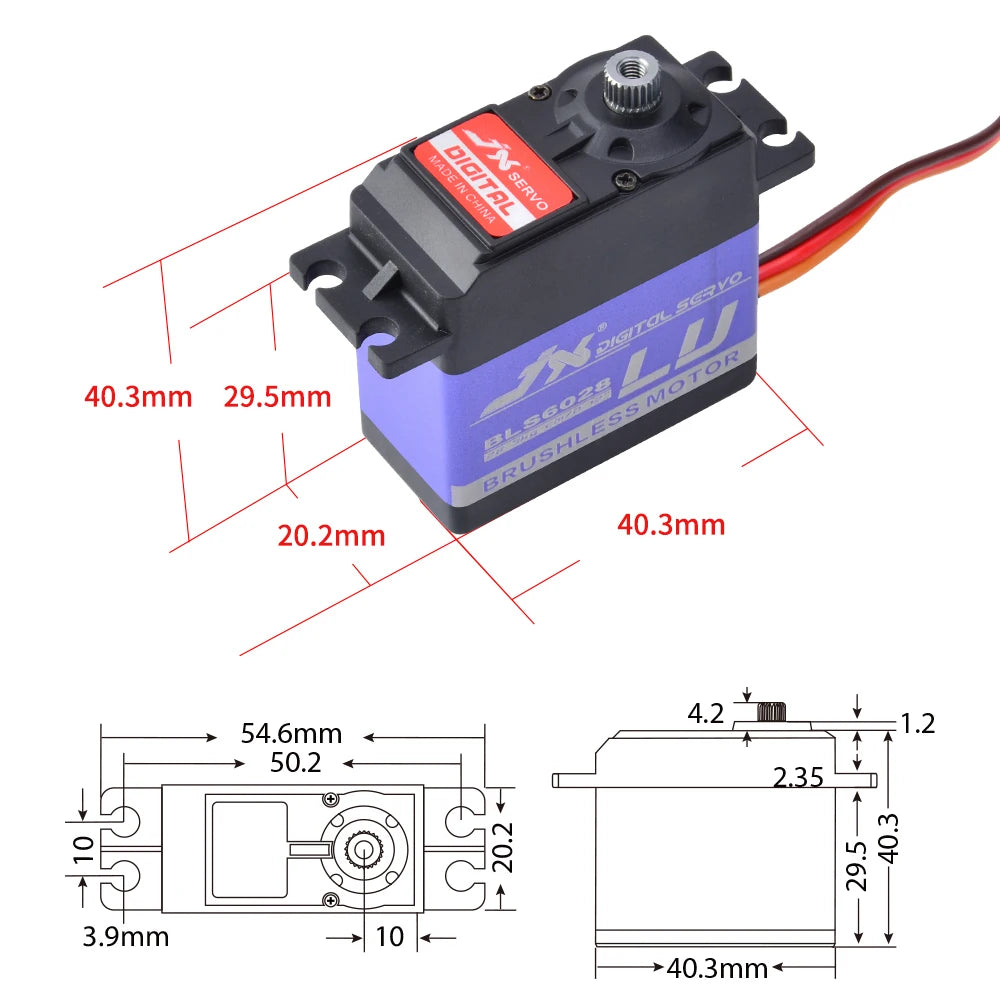

Dimensions： 40.5X20.5X40mm
Weight： 60 g
Wire/Color： JR 265 mm/ -Brown +Red S Orange
Bearing： 2BB
Tooth Count: 25

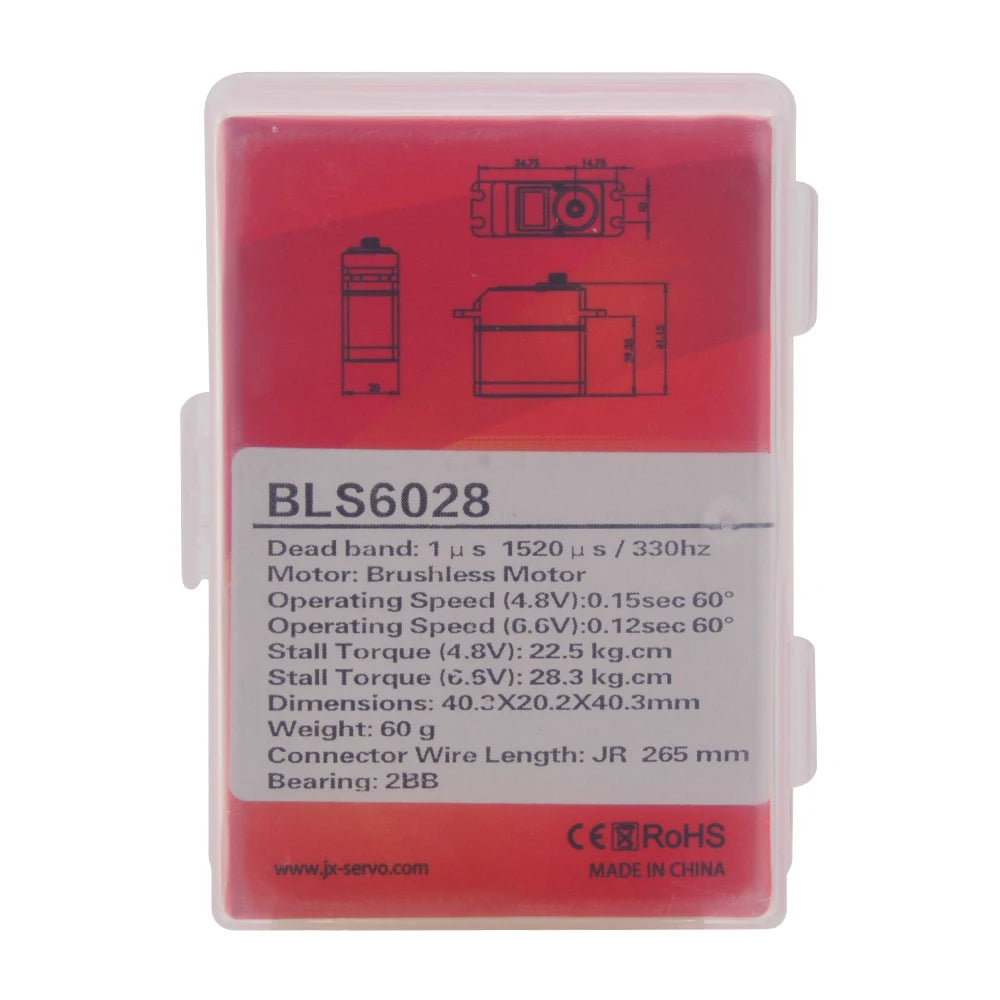

BLS6028 Dead band: 1 0 $ 1520 H $ 330hz Motor: Brushless Motor Operating Speed (4.8V:0.15sec 609 Operating Specd (G.GVJ:O.12sec)
