JMT T100 DIY FPV Racing Drone Toothpick Full Kit SPECIFICATIONS
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembled class
Remote Control Peripherals/Devices: Motor
Recommend Age: 14+y
RC Parts & Accs: Connectors/Wiring
Origin: Mainland China
Model Number: T100
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters
Brand Name: jmt
Â
Â
DIY Version: Unassembled ,will come with the flight control,vtx Soldered,buyer need assemble it after getting the drone kit.
Functions and features:
Recordable video
Compatible with 2s-4s Lipo / LIHV
Adjustable camera angle
Adjust the battery strap mount to fix batteries of different sizes
Ranch
Specifications:
Brand: JMT
Model: T100
Wheelbase: 100mm
Camera: 1200TVL PAL / NTSC 4: 3/16: 9 optional
Video transmission: 5.8GHz 5 band 40 channels 25 ~ 200mw 3.3V 5.5V TF card support: up to 32G video output format: NTSC
Flight control: F4 2-4S battery input Built-in Betaflight OSD Built-in 5V 1A BEC Built-in 10ABlheli_S 4in1 ESC Dshot600
Motor: 1103 7000KV 2-4S 1.5mm output shaft
Paddle: 2.5inch three-blade paddle
Battery: 11.1V 35C 450MAH
Flight time: about 7 minutes (the specific flight time depends on your flight actions)
Assistant software
https://github.com/betaflight/betaflight-configurator/releases/tag/10.6.0

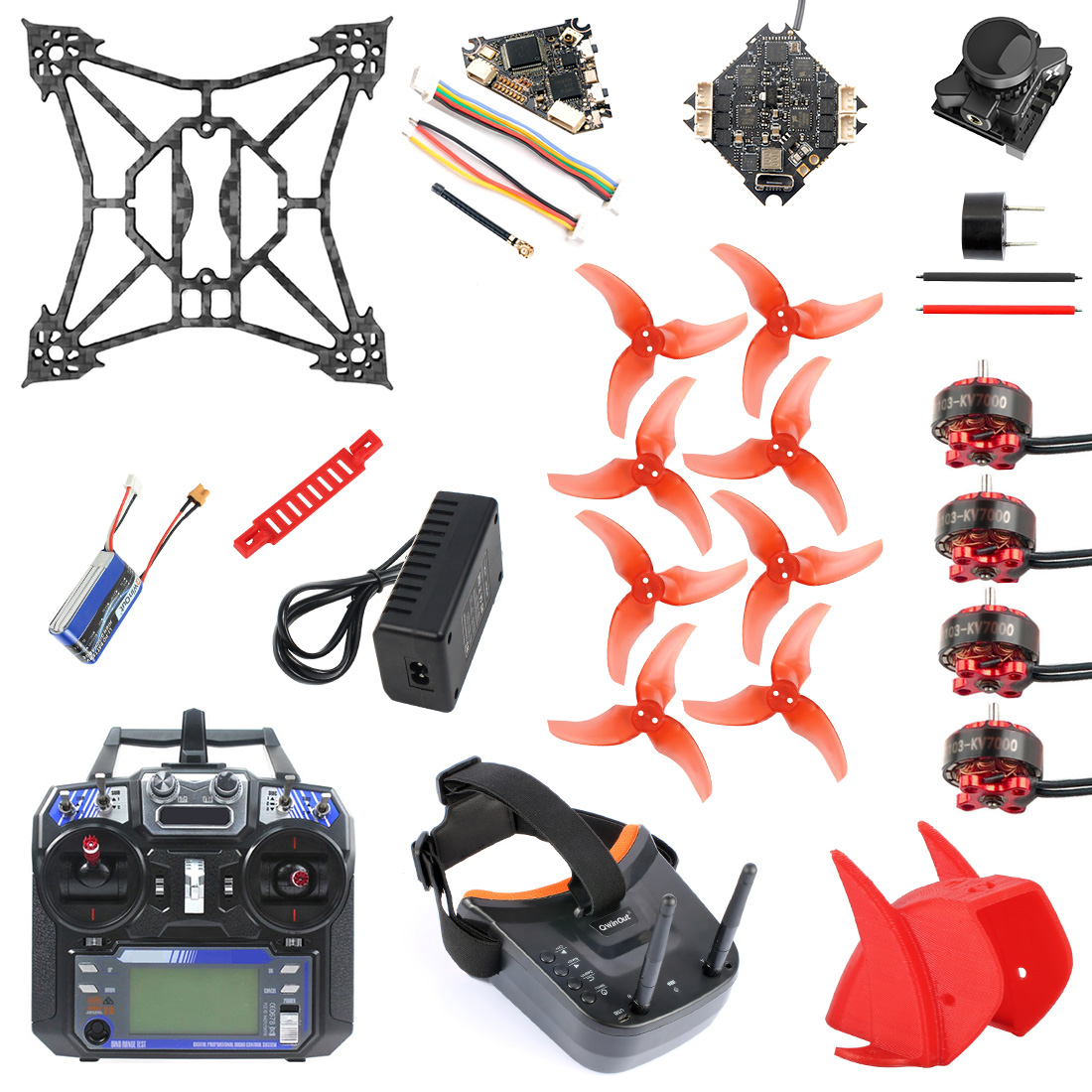

Package include:

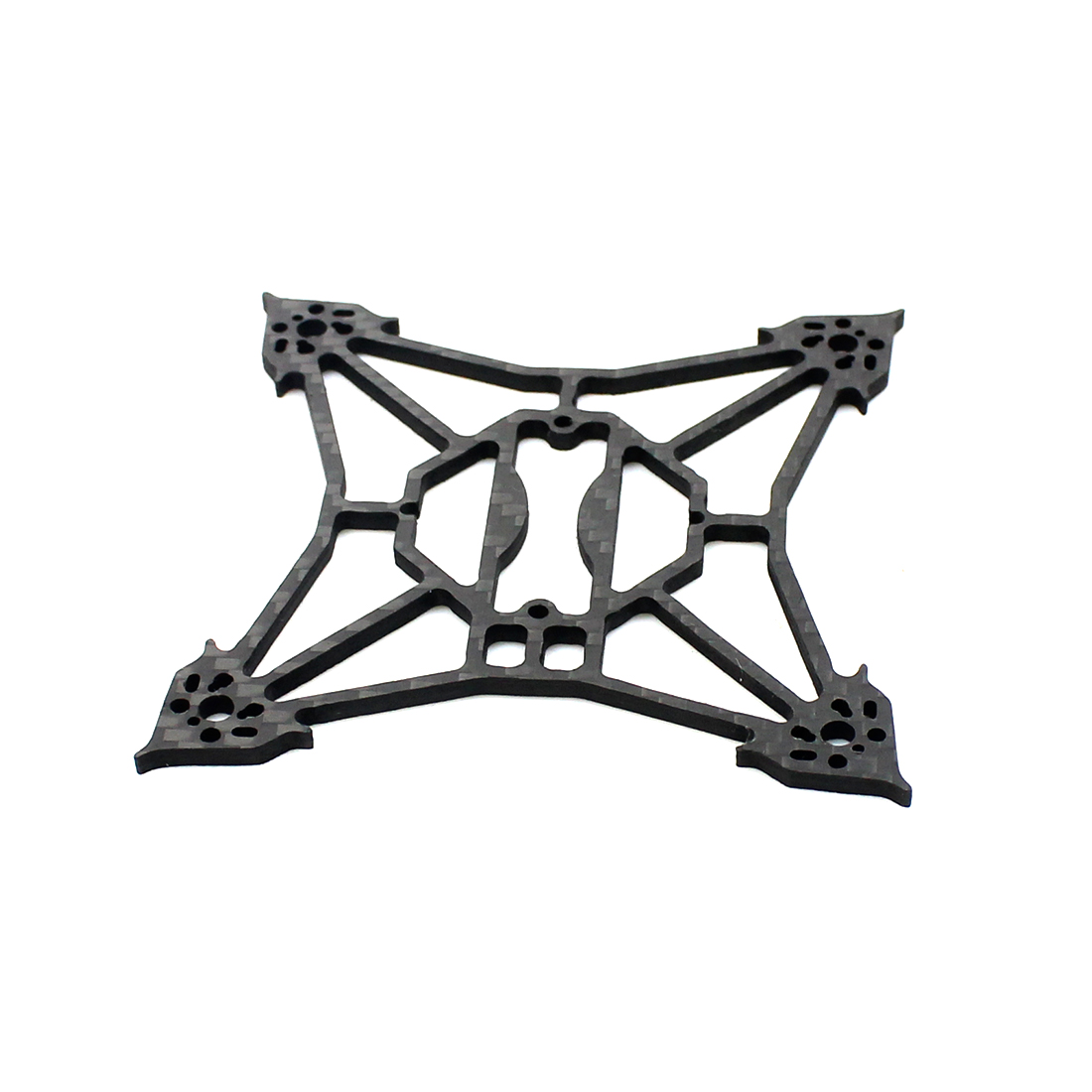

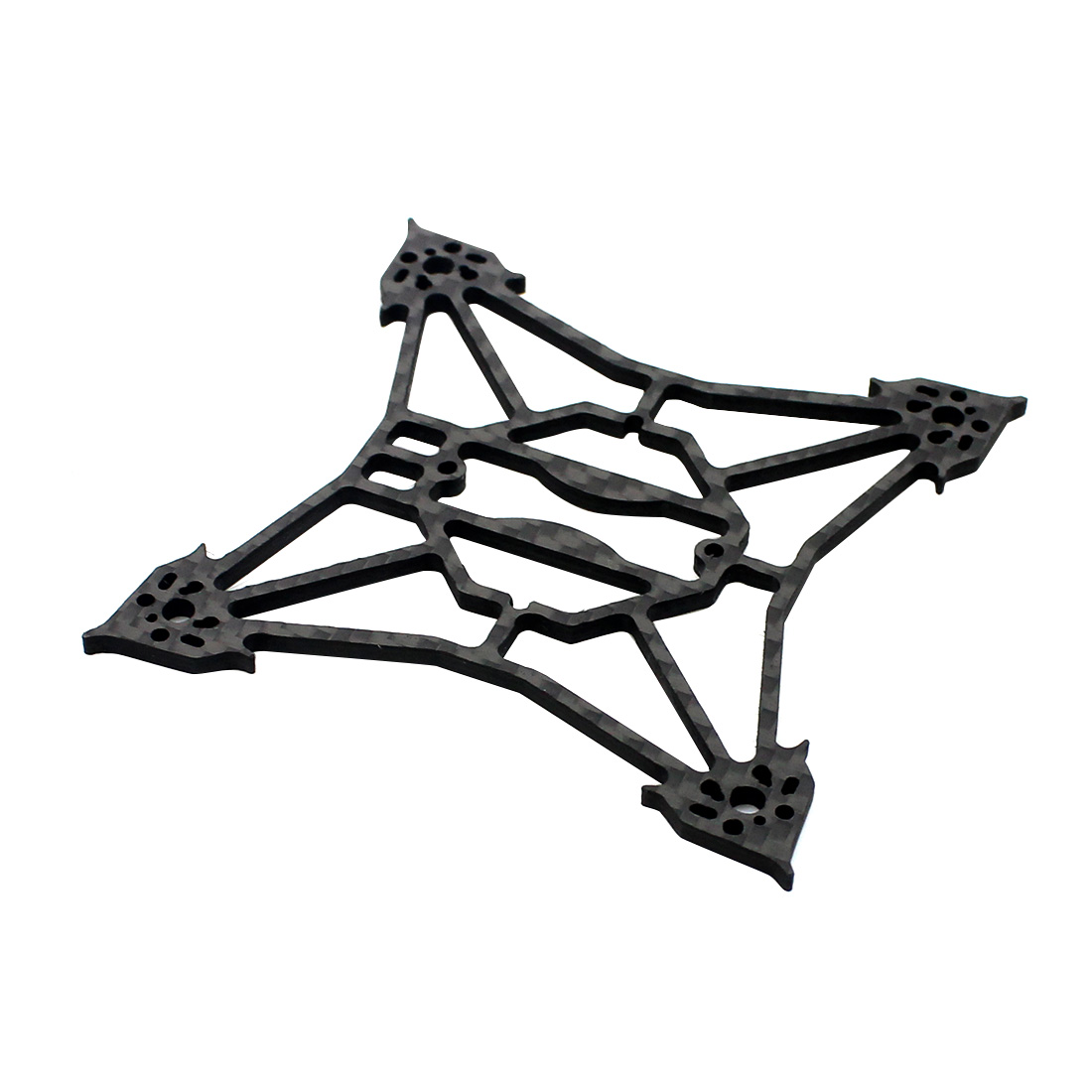

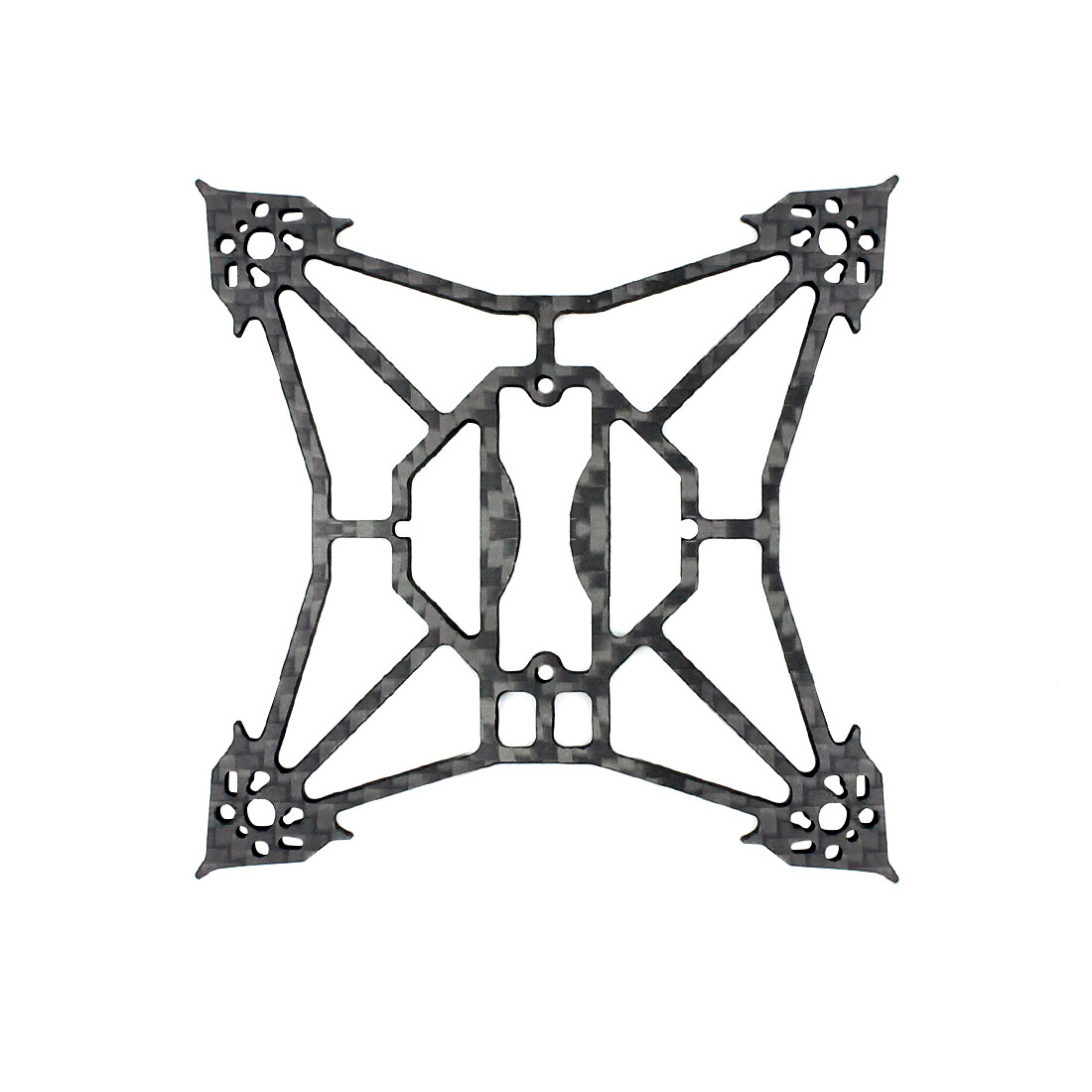

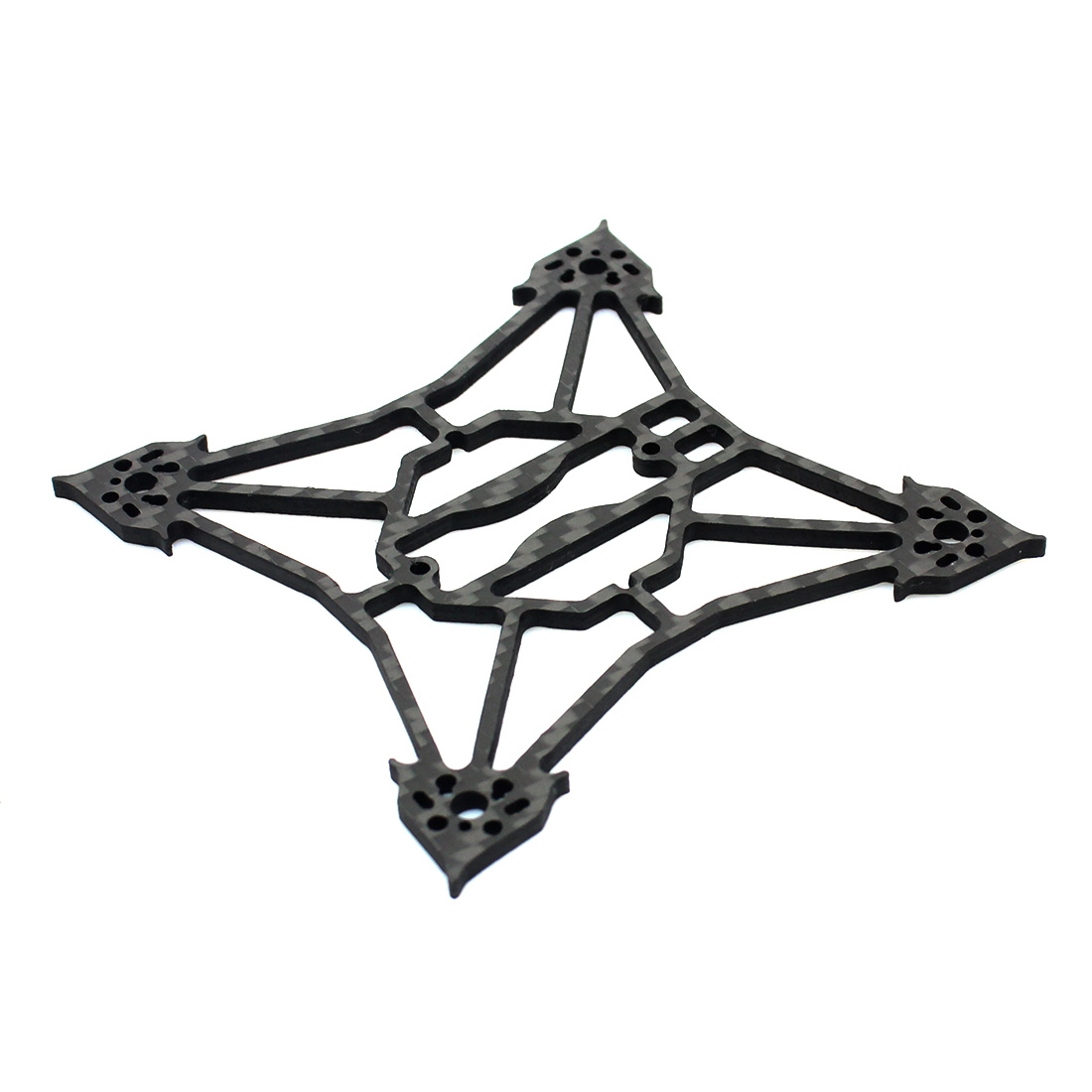

1x 100mm Wheelbase Carbon Fiber Frame Kit

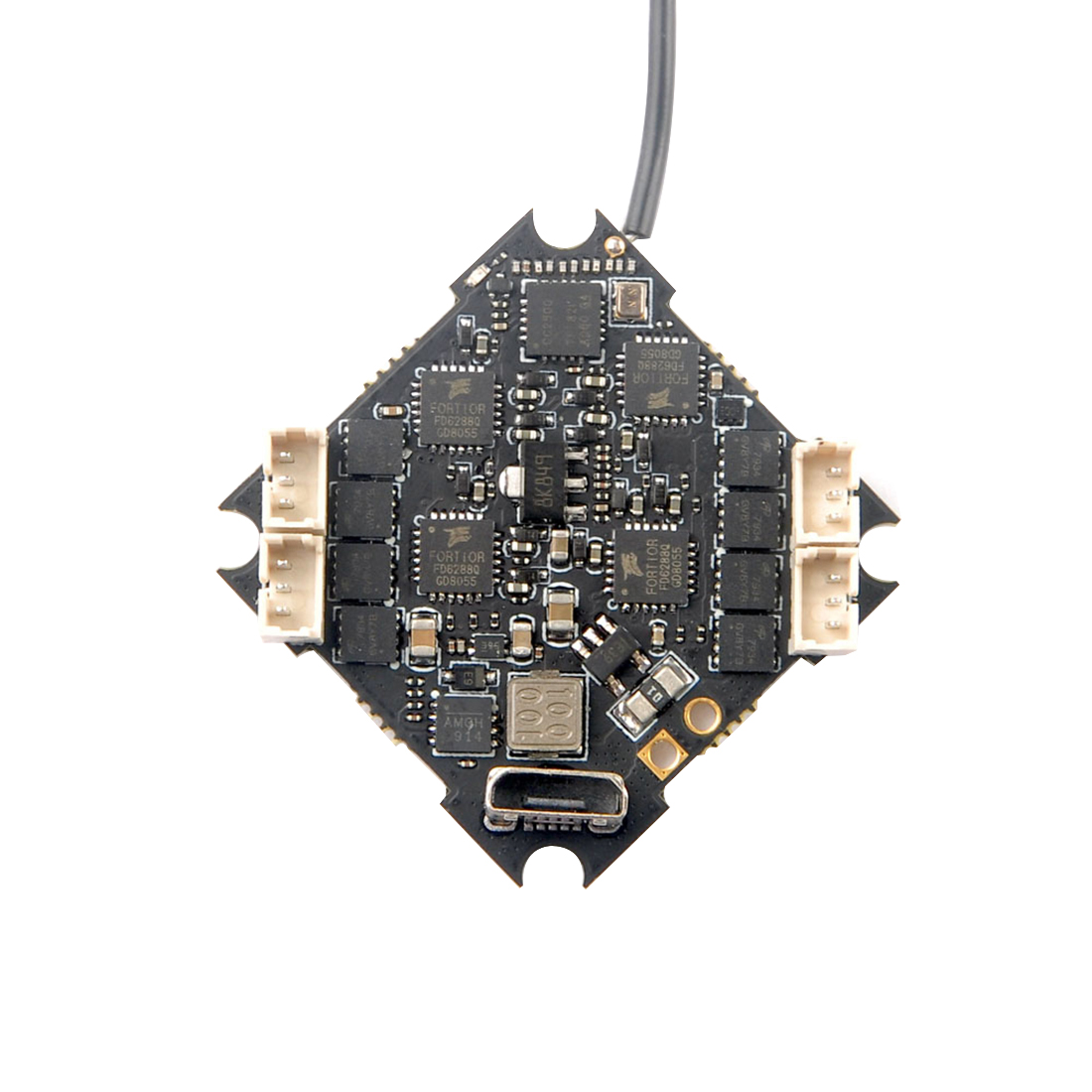

1x Crazybee F4 PRO V3.0 Flight Controller built-in Flysky Receiver

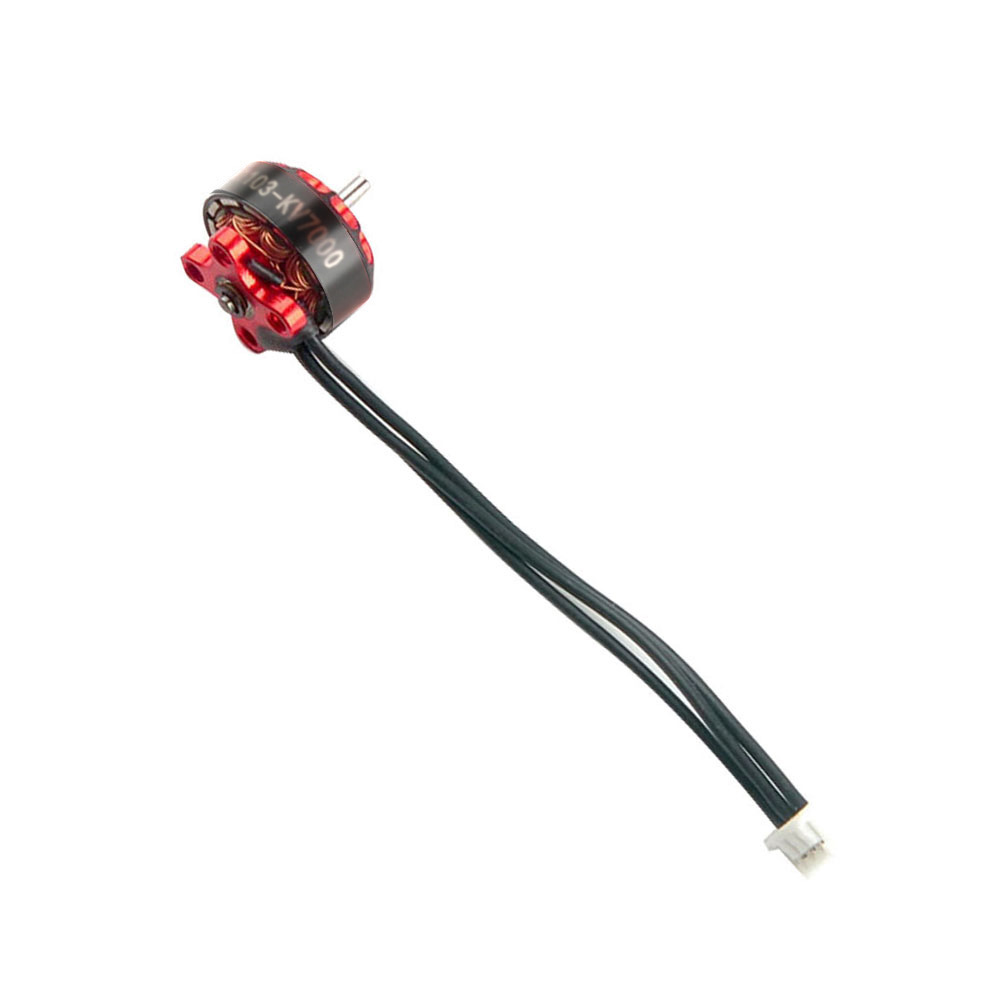

2x EX1103 7000kv 1.5MM Shaft 2-4S Motor CW
2x EX1103 7000kv 1.5MM Shaft 2-4S Motor CCW

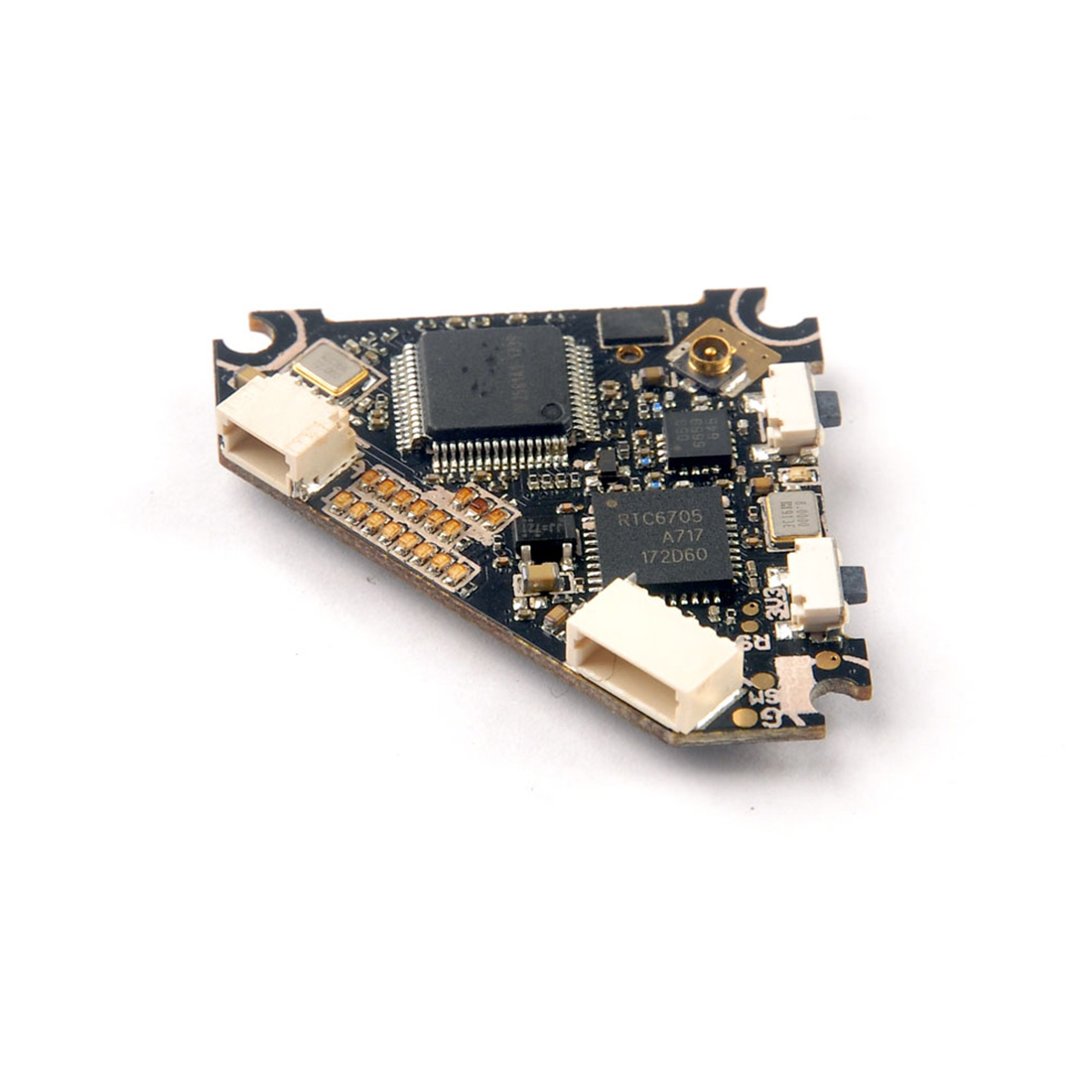

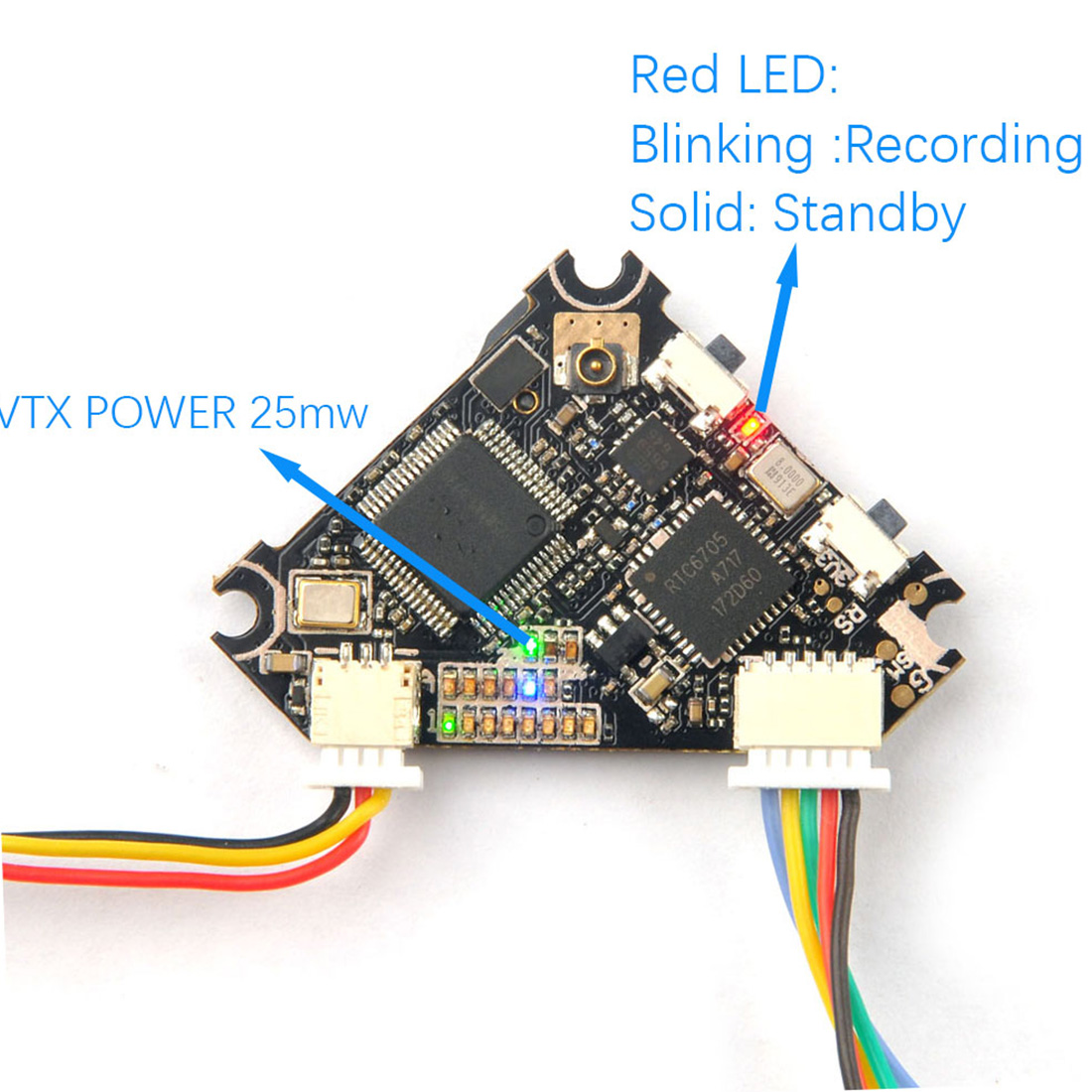

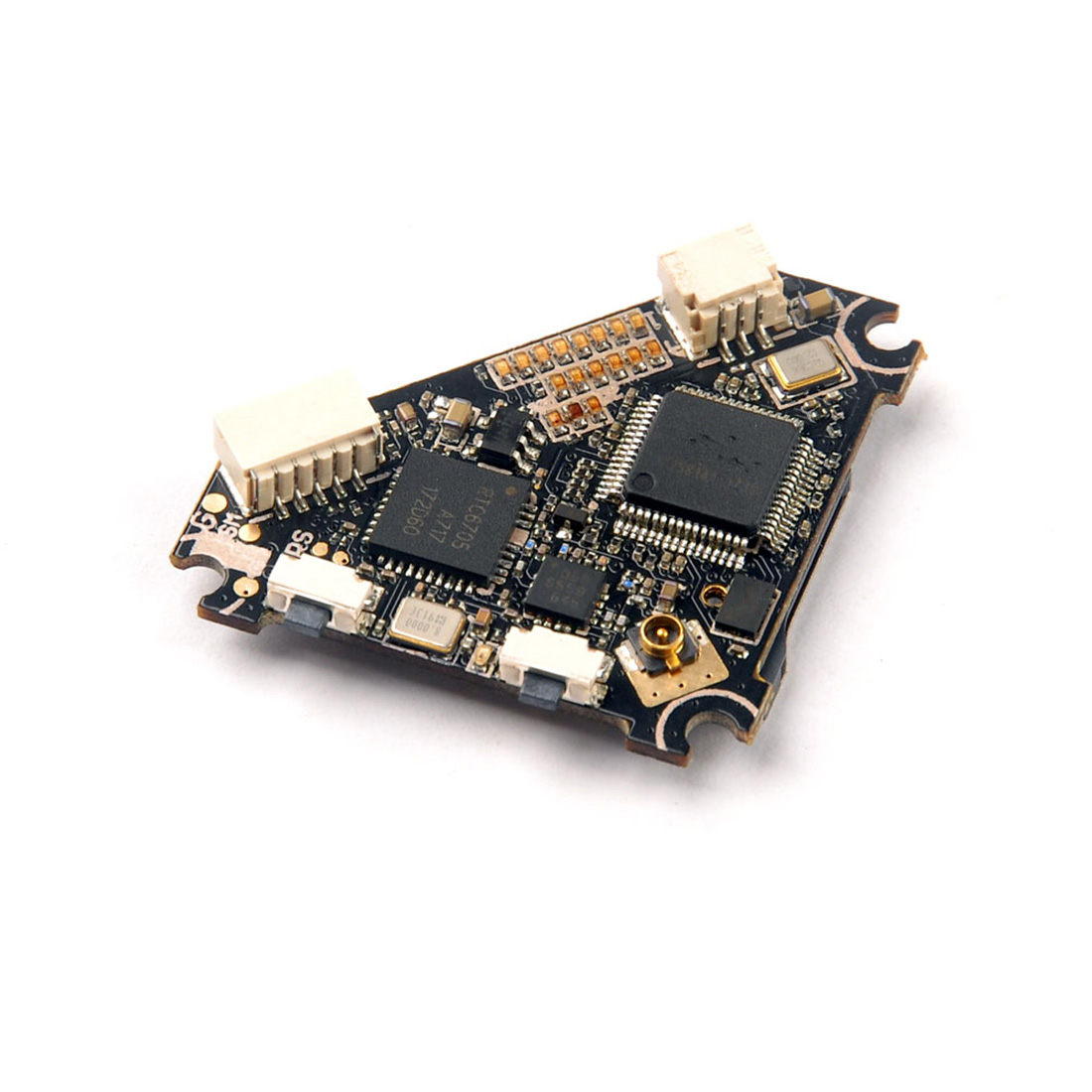

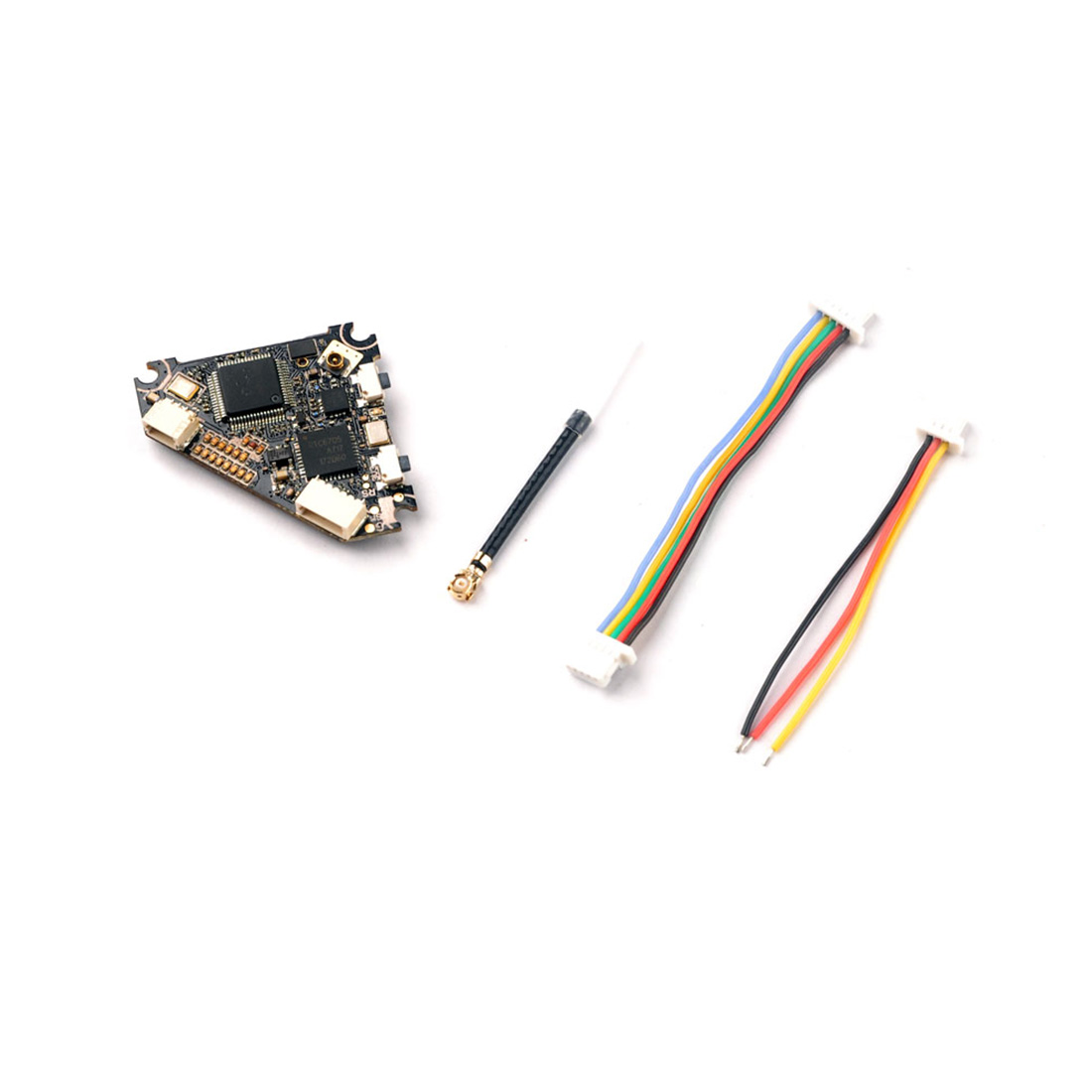

1x Diamond VTX 5.8G 40ch 25mw-200mw VTX

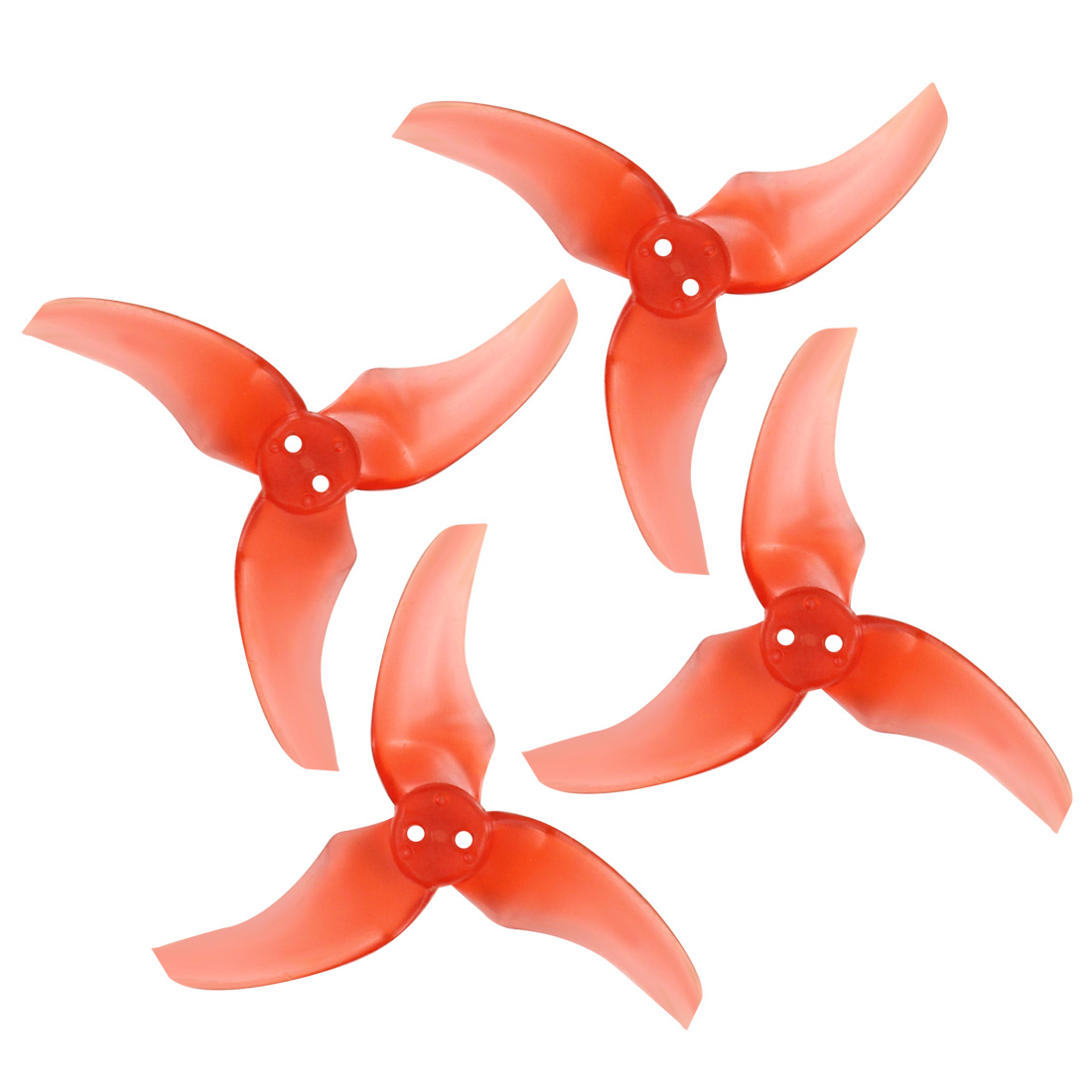

2x AVAN Rush 2.5 inch props (2 Pairs per lot)

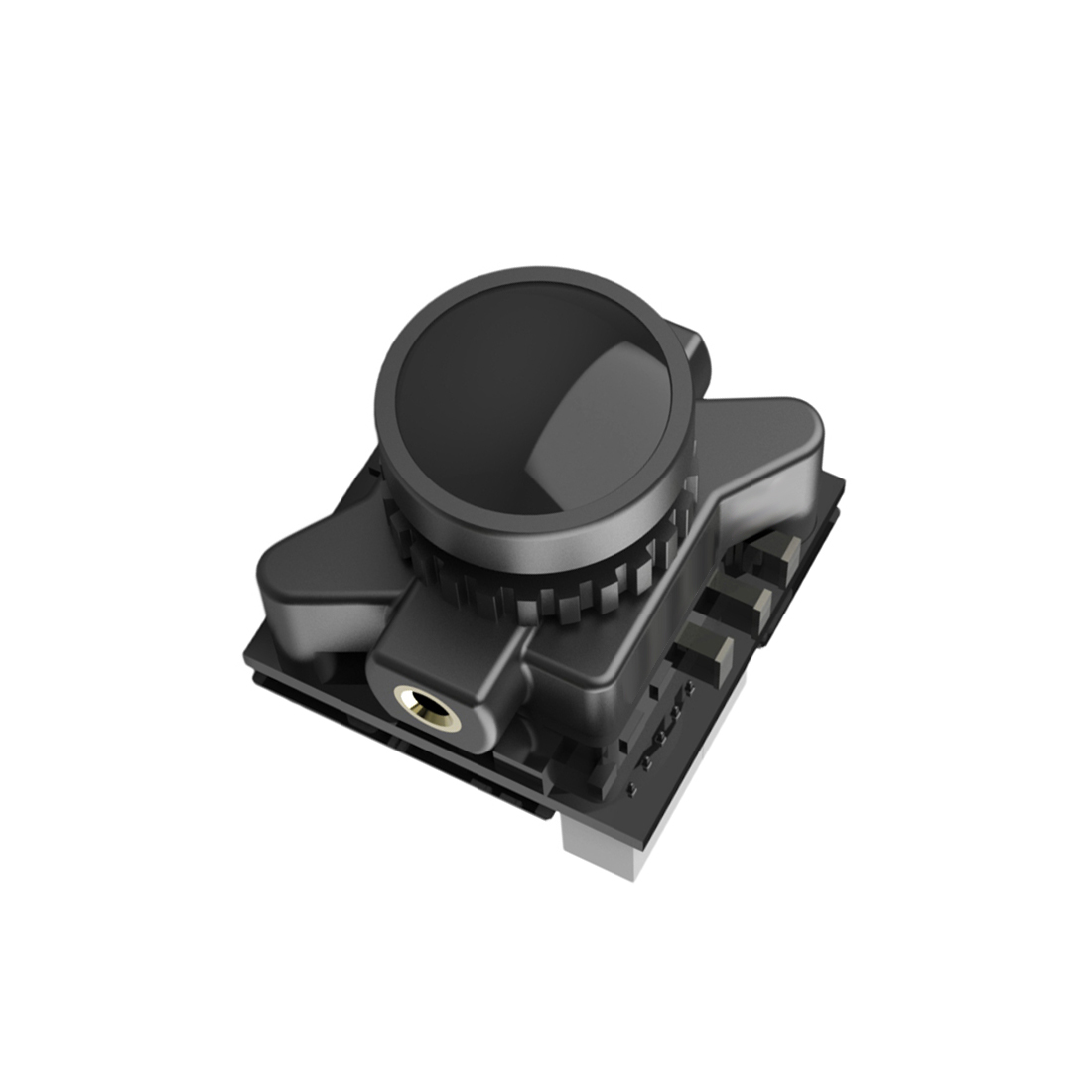

1x Razer Micro 1200TVL 1.8mm lens FPV Camera

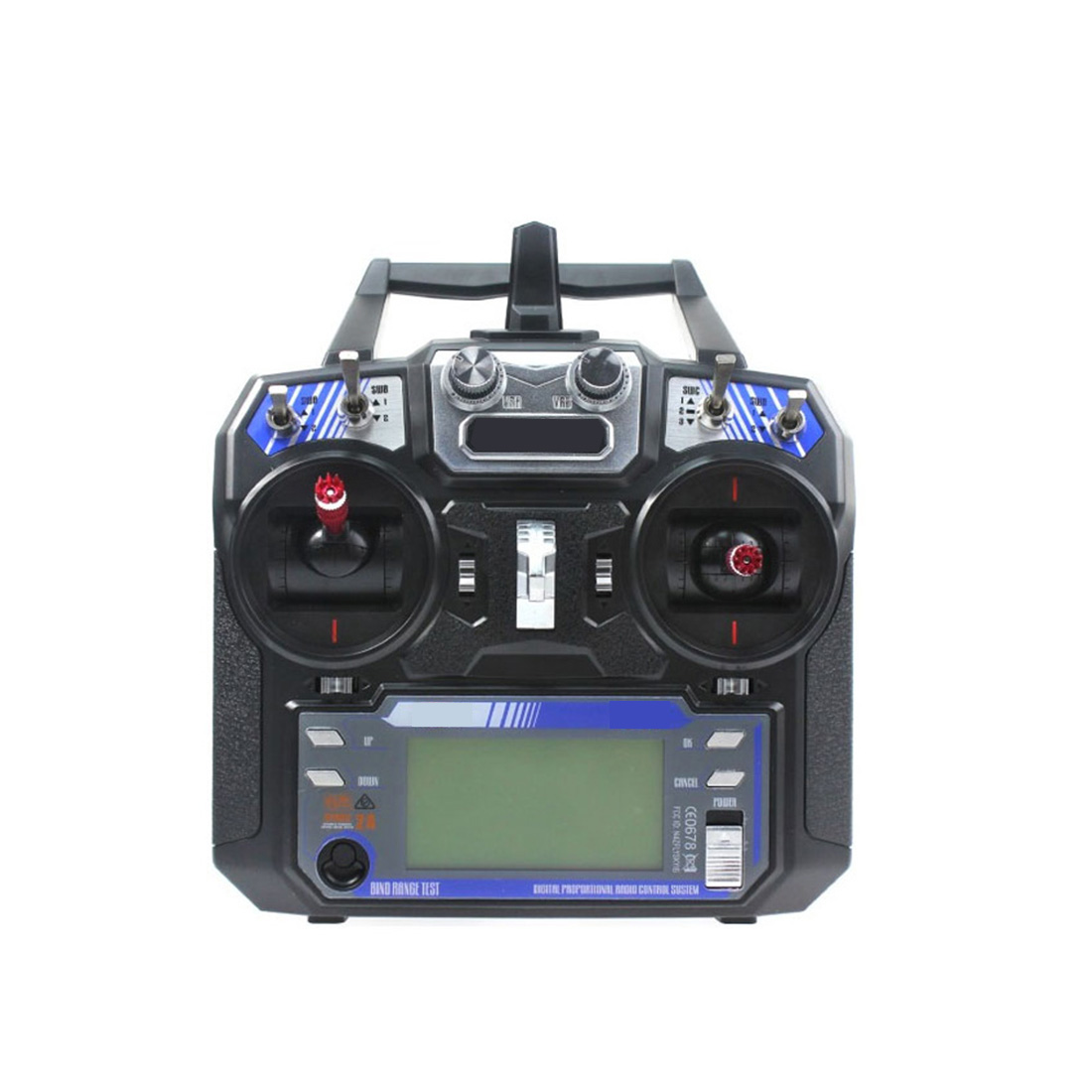

1x FS I6 Remote Controller

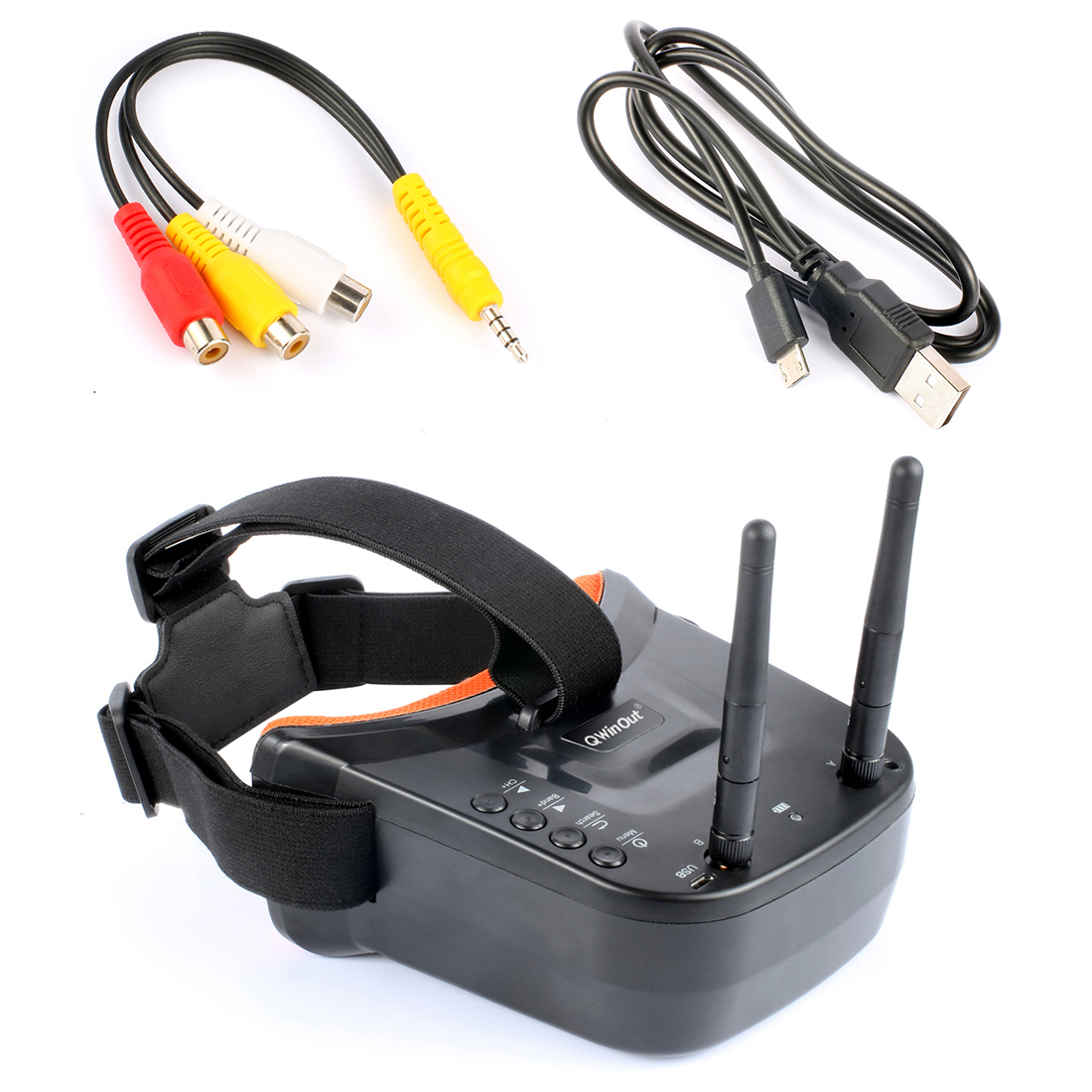

1x 5.8G FPV LST-009 FPV Goggles

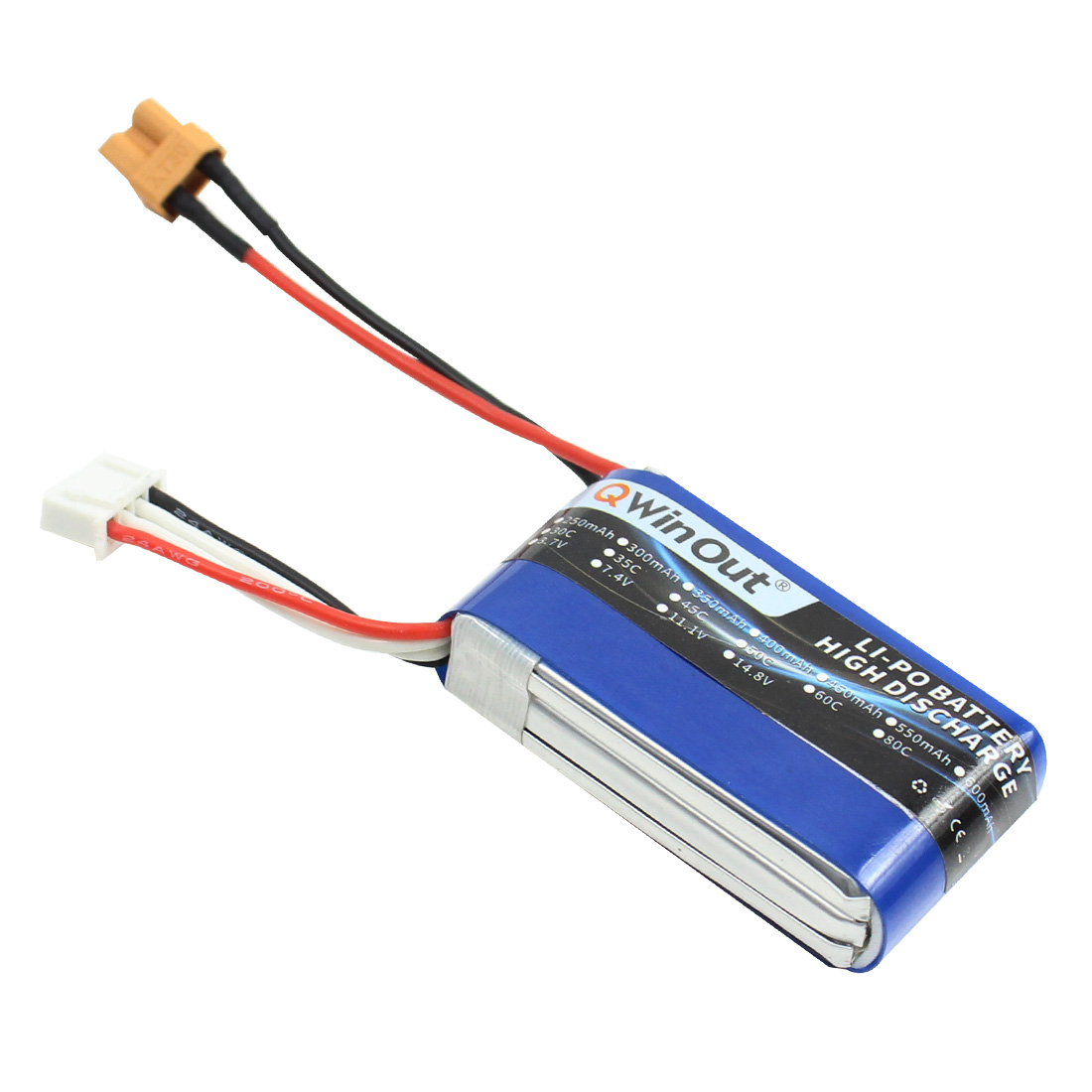

1x 11.1V 35C 450MAH Lipo Battery

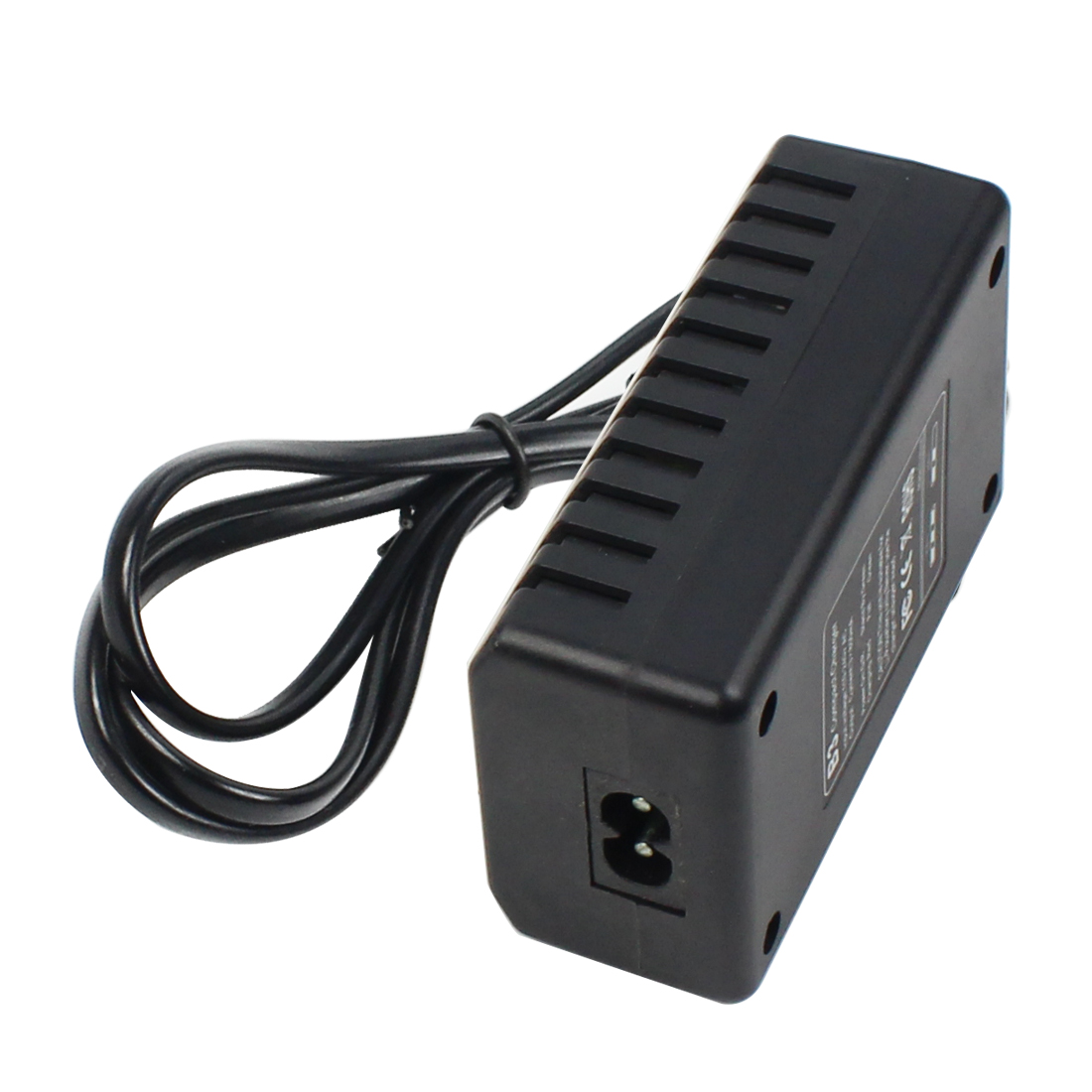

1x IMAXRC B3 pro Charger

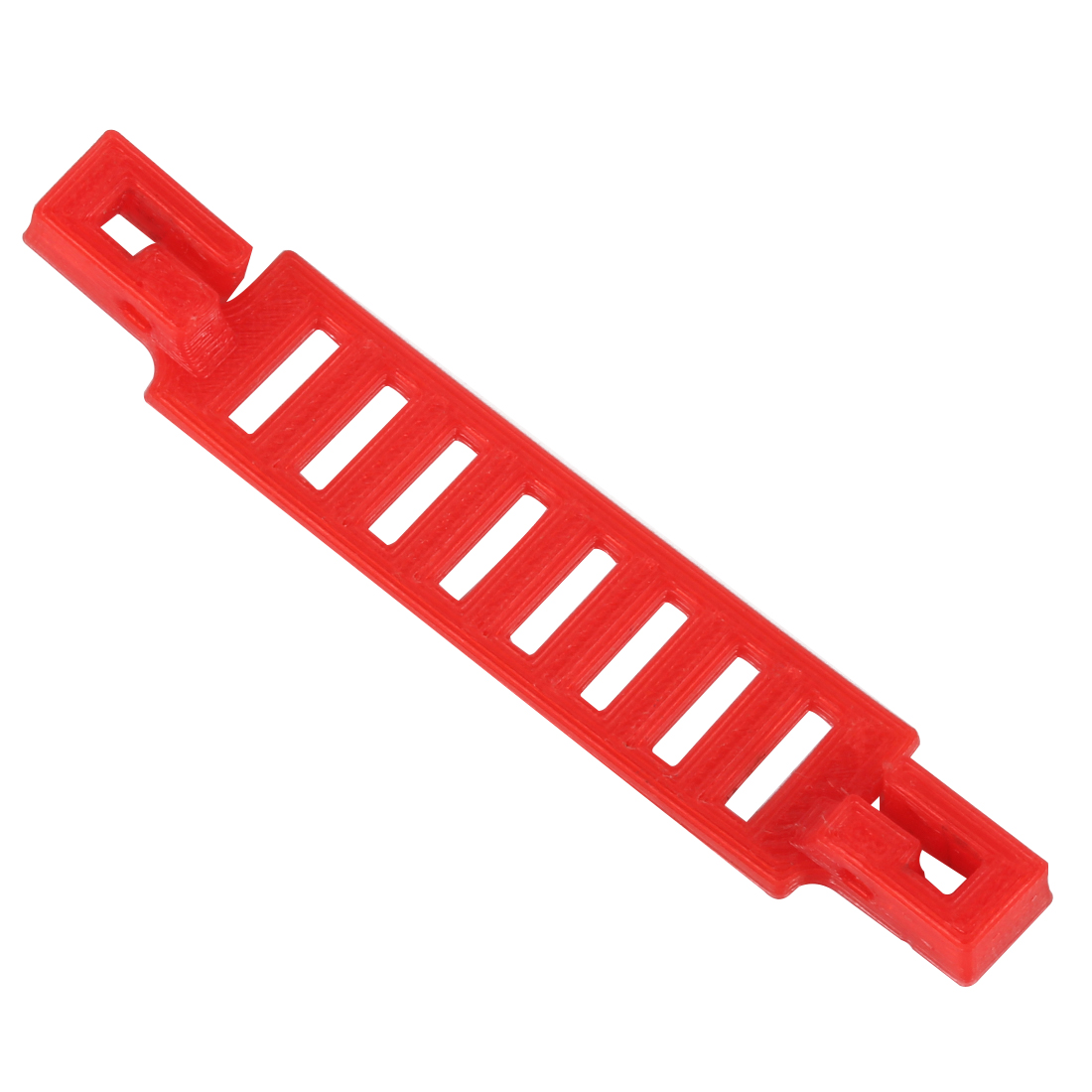

1x 3D Print Battery Strap

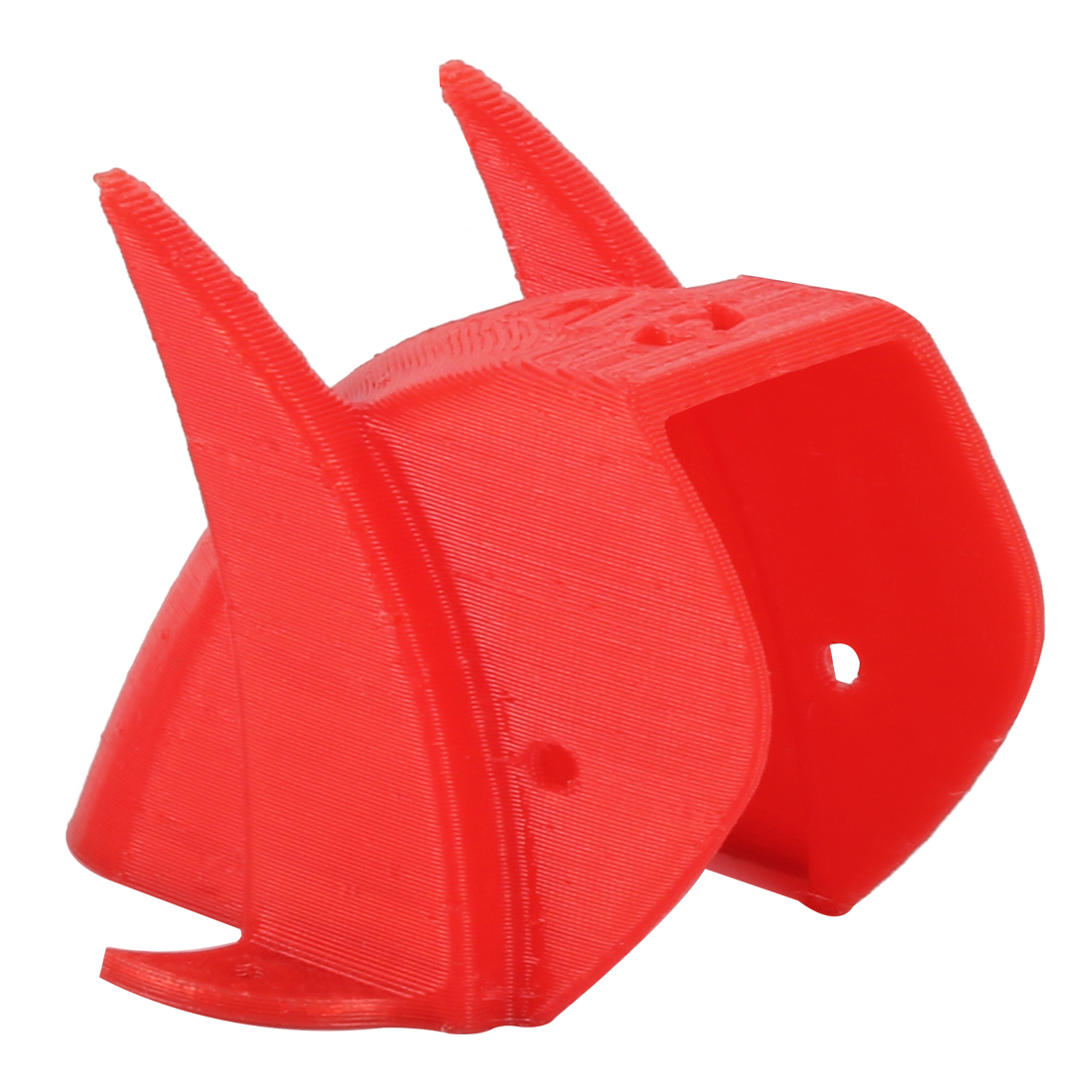

1x 3D Print Canopy
1x T100 Screws Kit

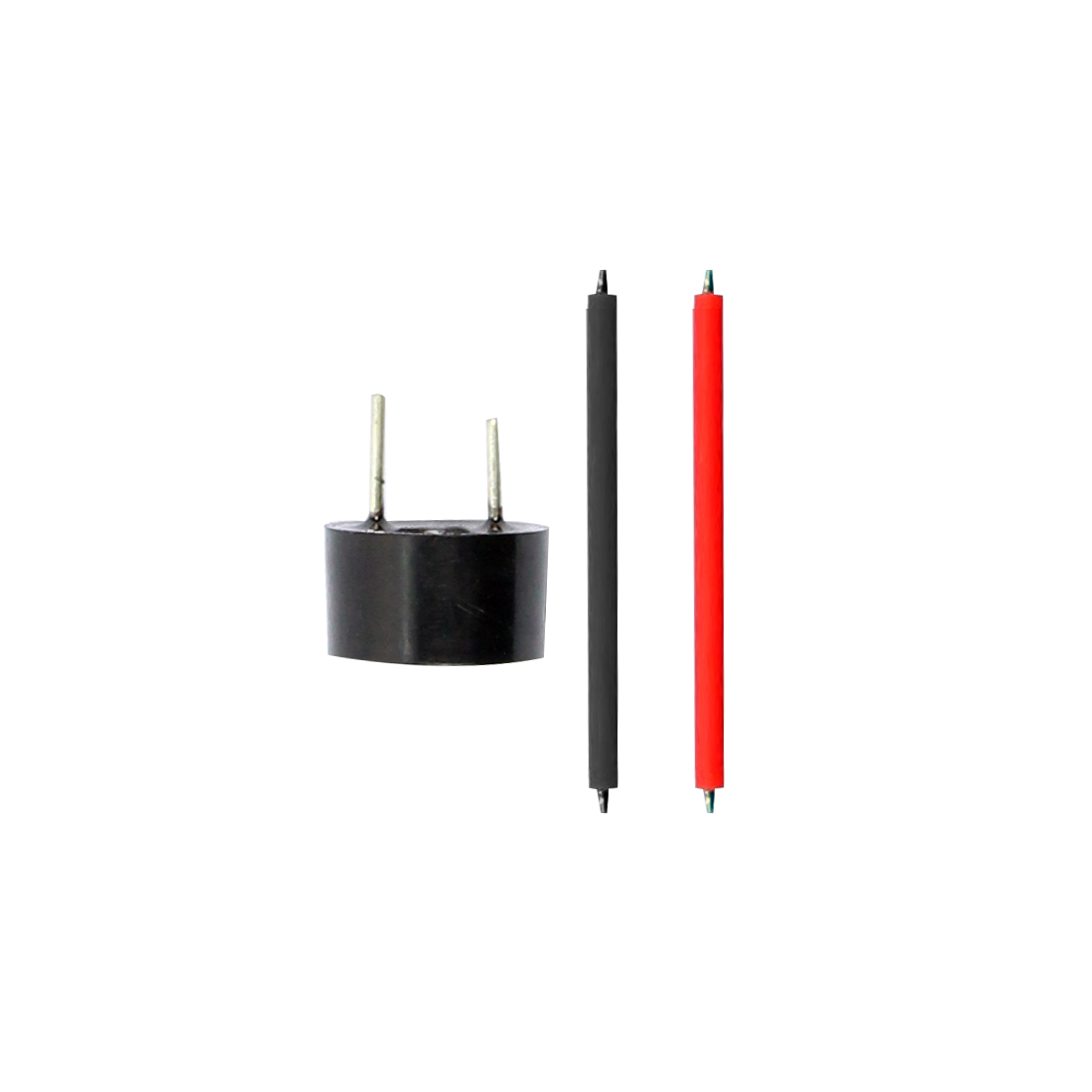

1x Buzzer
Â

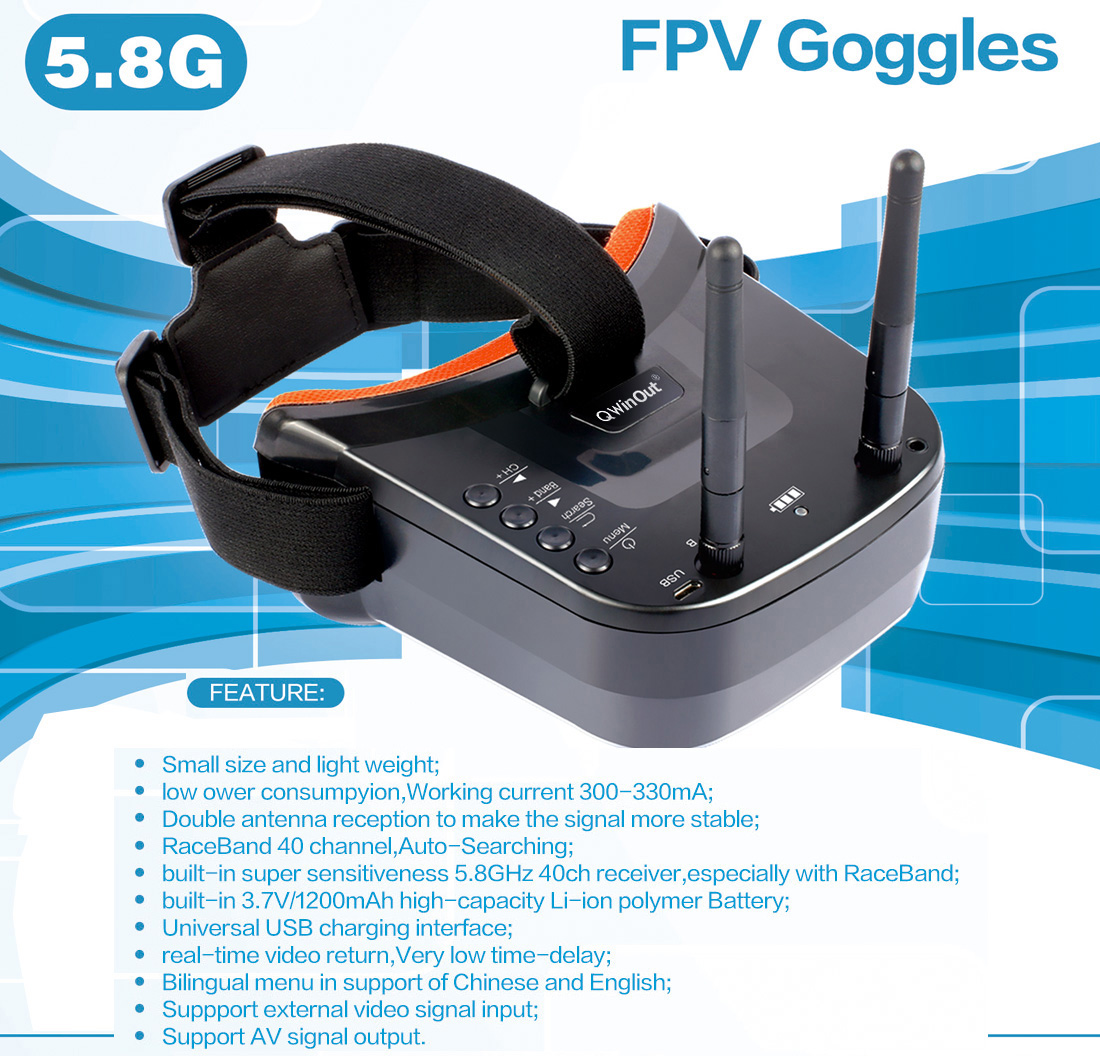

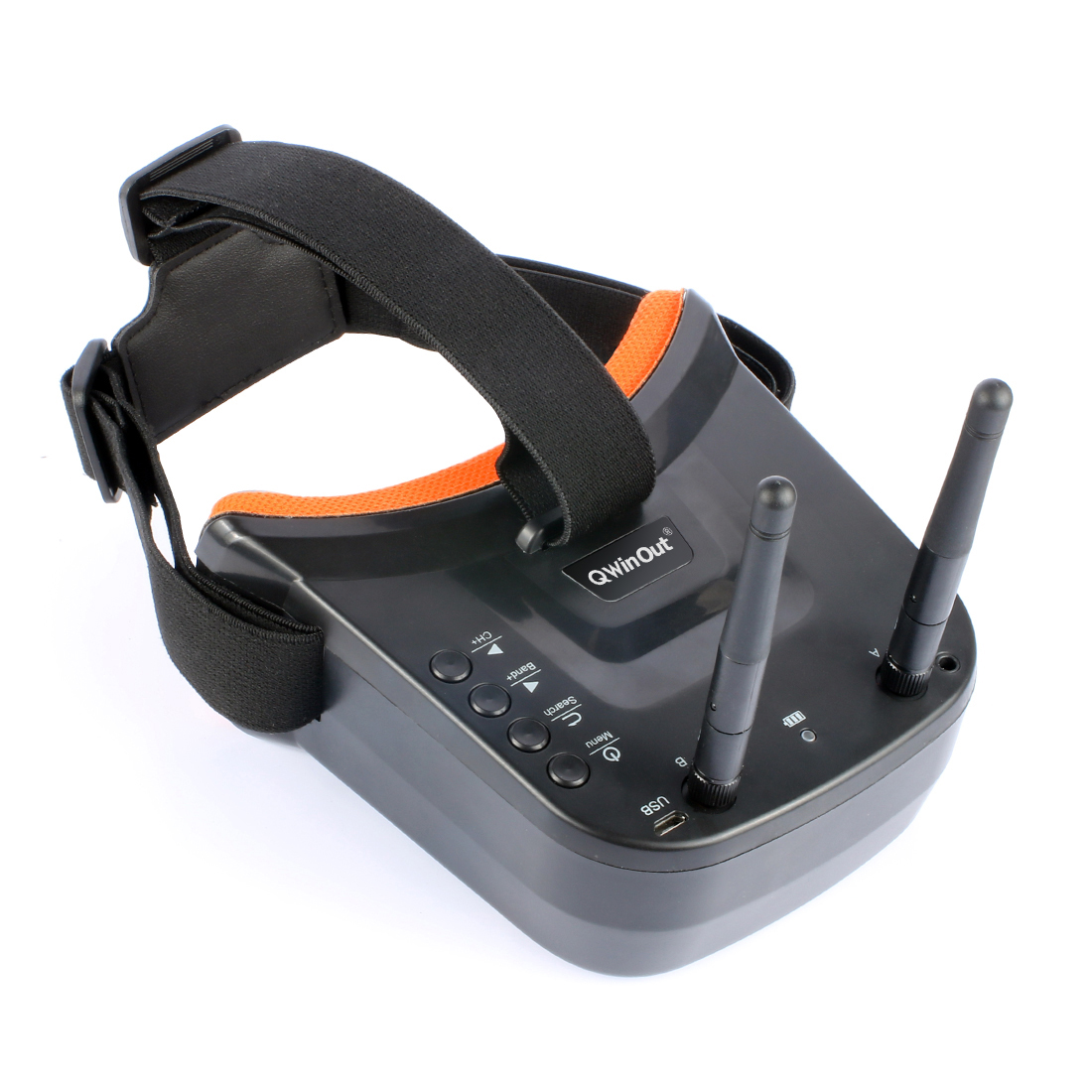

5.8G FPV Goggles 0 FEATURE: small size and light weight; low ower consumpyion,Working current 300-330mA; built-in super sensitiveness 5.8GHz 4Och receiver; raceband 40 channel, Auto-Searching; 3.7VM1ZOOmAh high-capacity Li-ion polymer Battery; universal USB charging interface; real-time video return, Very low time

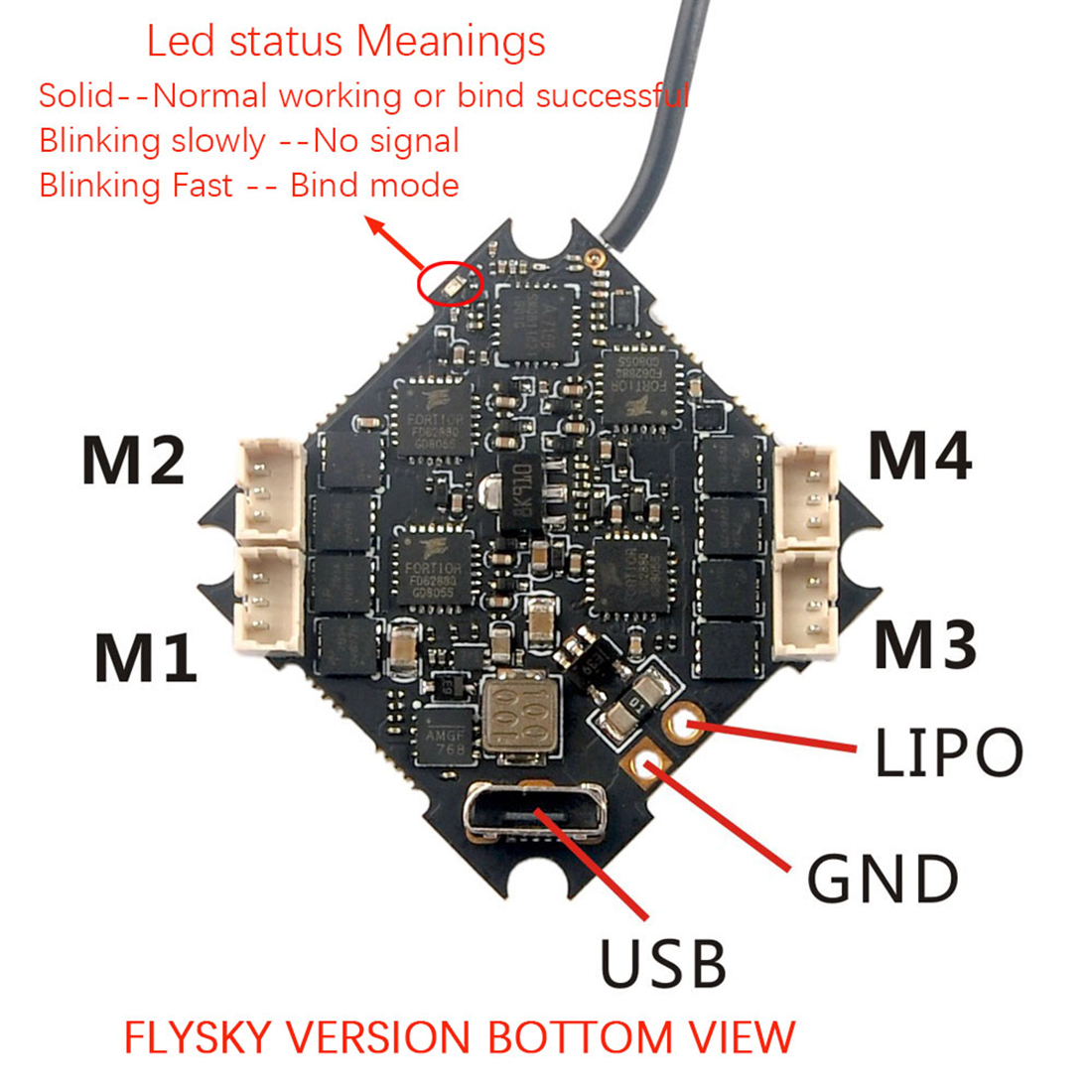

Led status Meanings Solid- Normal working or bind slowly No signal Blinking Fast Bind mode Bot8o FA M2 M4 3 Foation Fuaz 6730ss Ml M3 Amor 768
1 Yl Oo 8L WinOut ISOMAh 3oomat 35C 3G0MAT ‘456 AOOrata High LI-Po 14 DISCHAR BATTERY ‘Goc Iah ‘s50mAn ’80C 3
