The iFlight XING-E XING E Pro 2207 1800KV/2450KV/2750KV 2 ~ 6S FPV Brush Cars Compatible 5 Inch Propeller for Drone FPV is a drone product in the Drone Propeller category priced at $24.72, featuring 12N14P.

, ,

iFlight XING-E XING E Pro 2207 1800KV/2450KV/2750KV 2 ~ 6S FPV Brush Cars Compatible 5 Inch Propeller for Drone FPV

$24.72

+ Free Shipping
- +

Regional payment methods

Payssion regional payment methods
SKU: N/A Categories: , ,
Ask for more info

Best Use Cases

  • Recommended for the Drone Propeller category.

Key Specifications

  • configuration: 12N14P
  • stator_diameter: 22mm
  • magnets: N52SH Curved
  • bearing_size: 9x4x4
  • shaft_diameter: 5mm / Steel
  • base_mounting_pattern: 16x16mm M3 Thread
  • motor_dimension: 28.5x19.7mm
  • weight: 33.8g (150mm wires)

Compared to Alternatives

Compared to 3 alternatives in the Drone Propeller category, the iFlight XING-E XING E Pro 2207 1800KV/2450KV/2750KV 2 ~ 6S FPV Brush Cars Compatible 5 Inch Propeller for Drone FPV is $24.72.

Frequently Asked Questions

  • What are the key specifications of iFlight XING-E XING E Pro 2207 1800KV/2450KV/2750KV 2 ~ 6S FPV Brush Cars Compatible 5 Inch Propeller for Drone FPV?
    Configuration: 12N14P; Stator Diameter: 22mm; Magnets: N52SH Curved.
  • How much does iFlight XING-E XING E Pro 2207 1800KV/2450KV/2750KV 2 ~ 6S FPV Brush Cars Compatible 5 Inch Propeller for Drone FPV cost in the Drone Propeller category?
    iFlight XING-E XING E Pro 2207 1800KV/2450KV/2750KV 2 ~ 6S FPV Brush Cars Compatible 5 Inch Propeller for Drone FPV is available at priced at $24.72 on 100drone.com.

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 28.5×19.7mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: XING-E Pro 2207

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: IFLIGHT

Description:

  • XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.

  • This 2207 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.

Features

  • High-strength 5mm Steel shaft

  • N52H High-temperature magnets, NSK bearings

  • 16x16mm hole pattern

  • Single strand copper winding

  • Hex bolt shaft set screw

Specifications

  • Configuration:12N14P

  • Stator Diameter:22mm

  • Magnets: N52SH Curved

  • Bearing Size: 9x4x4

  • Shaft Diameter: 5mm / Steel

  • Base Mounting Pattern: 16x16mm M3 Thread

  • Motor Dimension: 28.5×19.7mm

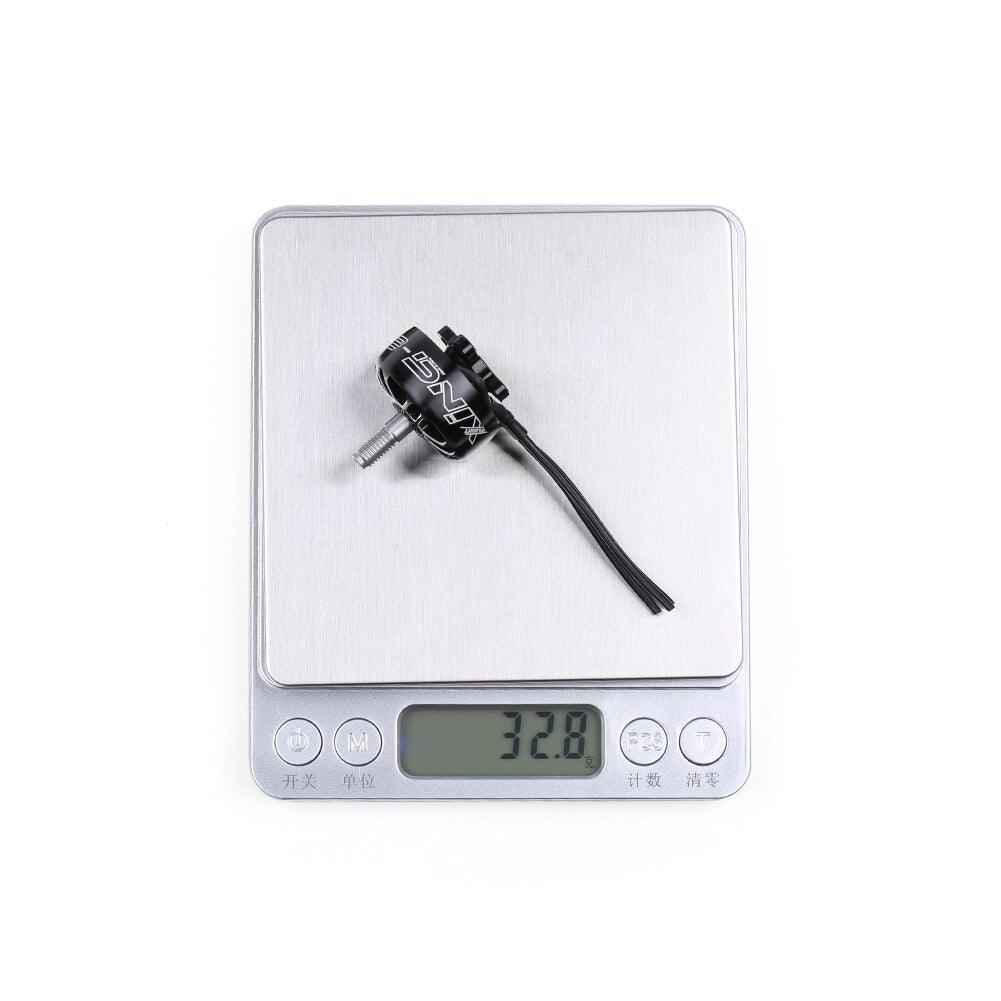

  • Weight: 33.8g (150mm wires)

  • Idle Current @12.6v (Io):1.2 A

  • Cells (LiPo): 2-6S

  • Max Burst Current <10s: 35.22A

  • Max  Power (W) 60s: 845W

  • Internal Resistance (Rm):81.5mΩ

  • Motor Wire Length:150mm / 20AWG

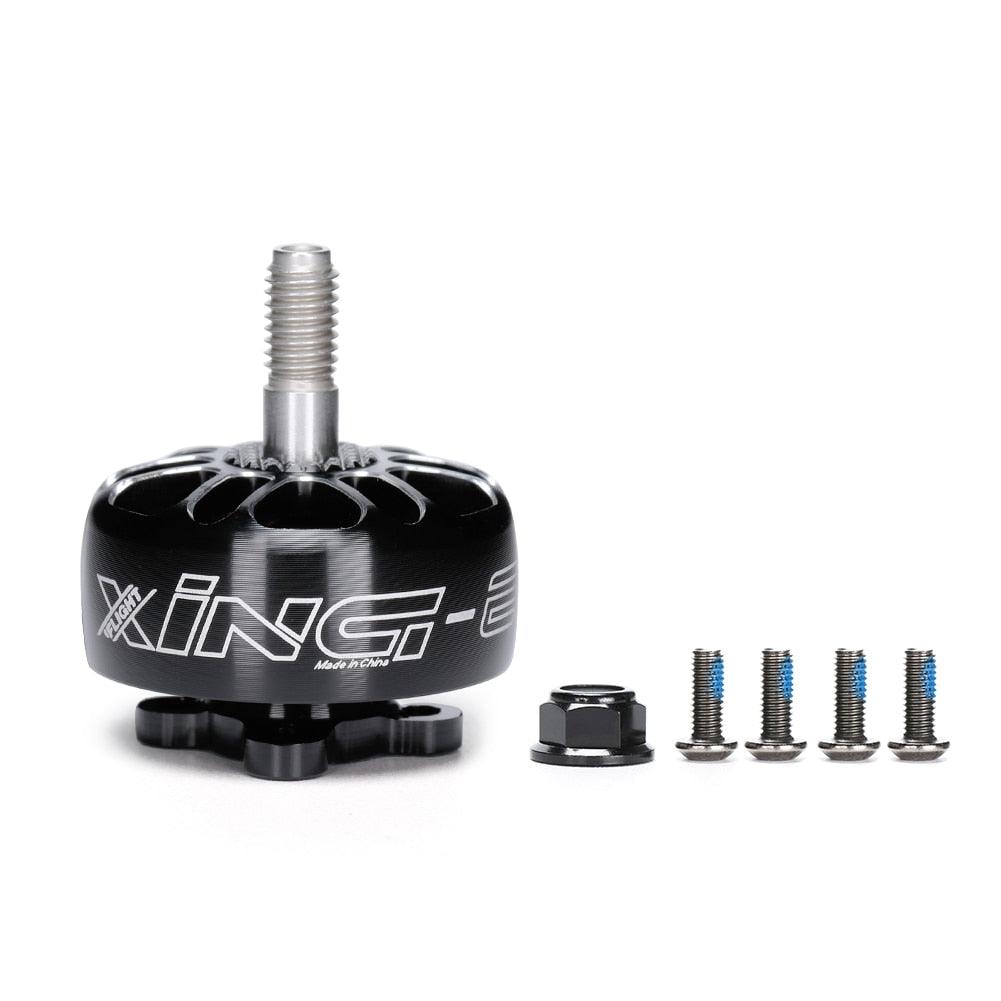

Package included:

  • 1pc x MOTOR XING-E Pro 2207 motor

or

  • 4pcs x MOTOR XING-E Pro 2207 motor

iFlight XING-E Pro X2207 2750KV Technical

iFlight XING-E Pro X2207 2750KV Technical Datas 2750 Configu-ration 12N14P Stator Diamter 22mm Stator Length Zmm Shaft Diameter 4mm Motor_Dimension(Dia :Len) p28.5*19.7mm Weight(g) 33.8 Idle_current(l0@1QV(A) Noof Cells(Lipo) 2-4S Pre63 =11 Max

this motor features a high-strength 4mm steel hollow shaft . itiFlight XING-E X2207 1800KV Technical Datas

The iFlight XING- E X2207 1800KV motor features technical specifications including a Kv value of 2448, an RPM range of 1481 to 1094, and a current consumption of 355mA at 53C. It also has a voltage rating of 5050V, a temperature range of -20C to 47C, and dimensions of 5.1mm x 3mm x 3mm.

5mm Steel shaft N52H High-temperature magnets, NSK bearings 16this motor features a high-strength 4mm steel hollow shaft . it

Color

2208 1800KV, 2207 1800KV, 2207 2450KV, 2207 2750KV, 2208 2450KV, 2306 1700KV, 2306 2450KV
