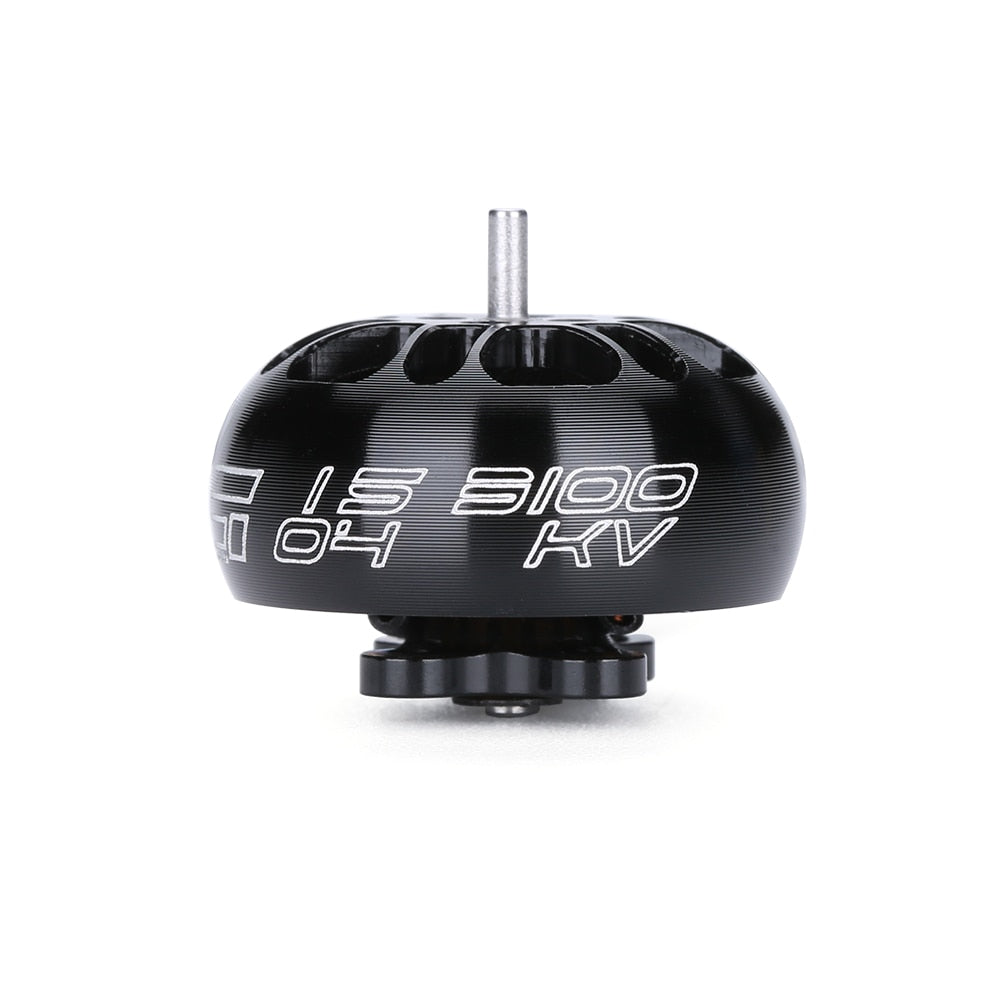

iFlight XING 1504 3100KV 3-6S FPV motor SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Battery
Technical parameters: Value 2
Size: 21.6*13.45mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: XING 1504
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT

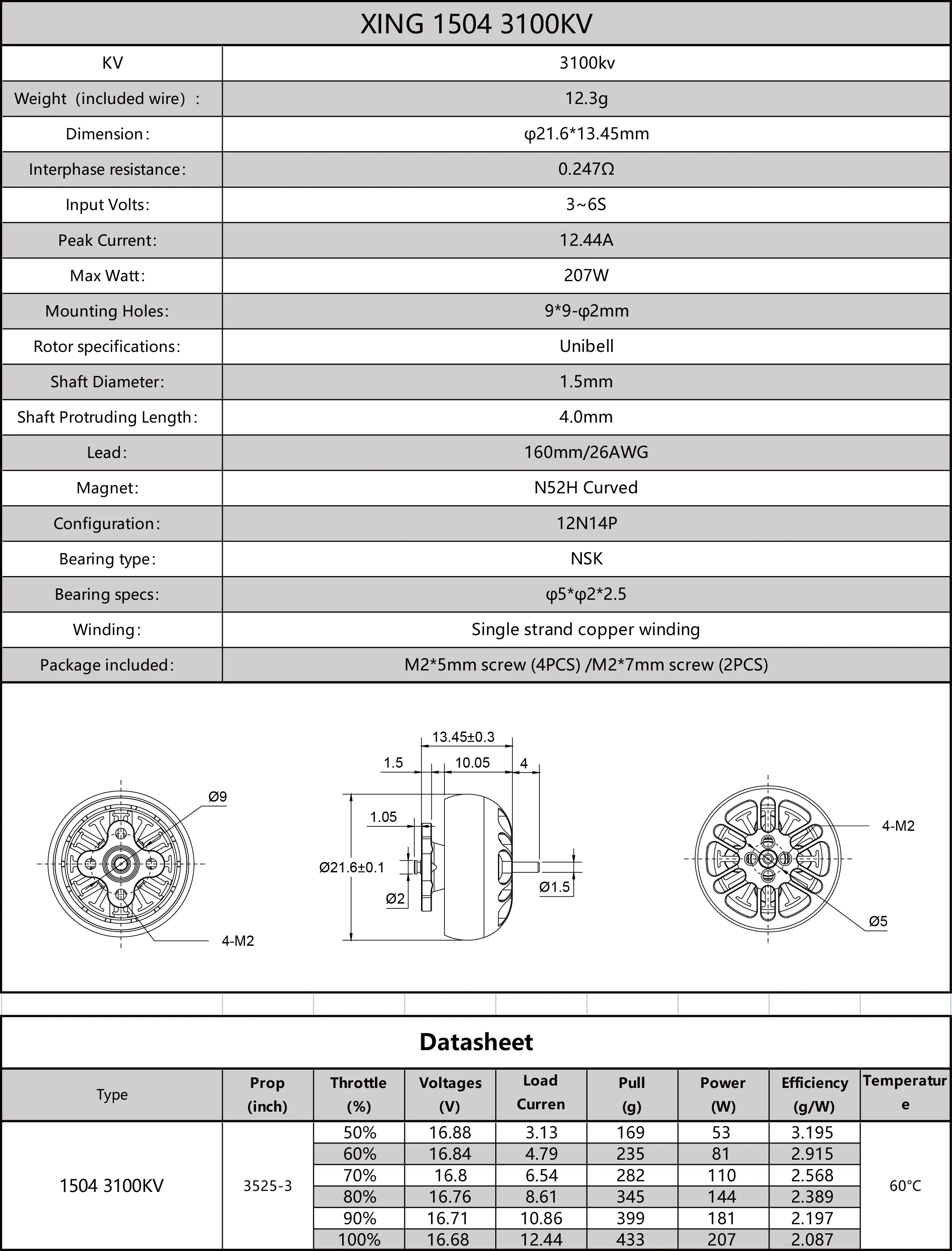

Specifications
- Model: XING 1504 Black Motor
- KV: 3100KV
- Weight(included wire): 12.3g
- Dimension: φ21.6*13.45mm
- Interphase Resistance: 0.247Ω
- Input Volts: 3~6 S
- Peak Current: 12.44A
- Max Watt: 207W
- Mounting Holes: 9*9 φ2mm
- Rotor Specifications: Unibell
- Shaft Diameter: 1.5mm
- Shaft Protruding Length: 4.0mm
- Configuration: 12N14P
- Bearing Type: NSK
- Bearing Specification: φ5*φ2*2.5
- Winding: Single Strand copper winding
Package included:
- 1 x XING 1504 3100KV Motor Black
XING 1504 3100KV KV 3100kv Weight (included wire) 12.3g Dimension: 021.6*13.45mm Interphase resistance: 0.24702 Input Volts: 36S Peak Current: 12.44A Max Watt: 207w Mounting Holes: 9*9-@2mm Rotor specifications: Unibell Shaft Diameter: 1.5mm Shaft Protruding Length: 4.0mm Lead: 160mm/26AWG Magnet:
